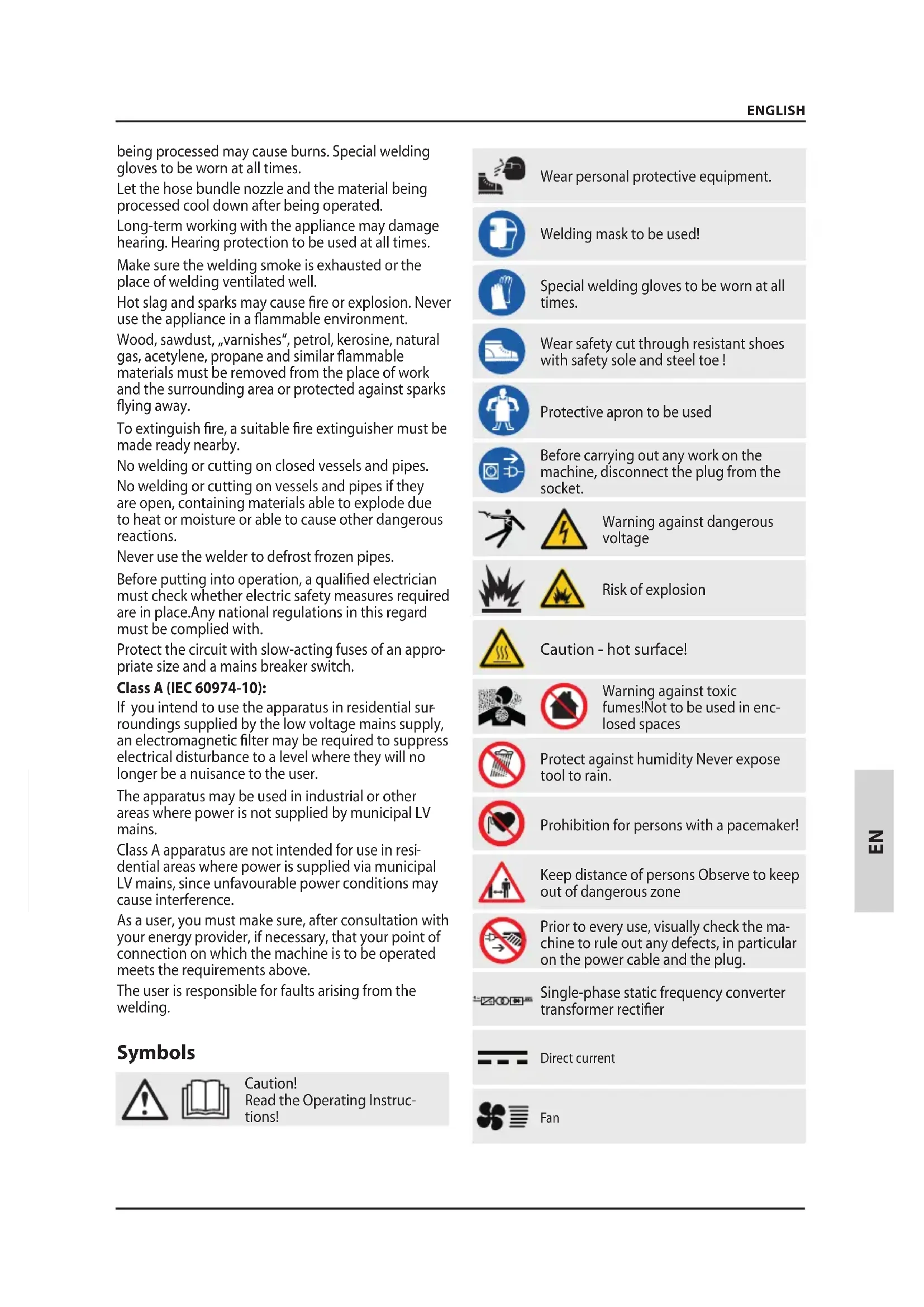

Notice Güde GE 145 W - page 13
13 / 56
Pick your language and provide your email: we'll send you a specifically translated version.
Product type MMA welding machine (coated electrode)
Brand Güde
Model GE 145 W
Power supply 230 V ~ 50 Hz
Welding current 10 - 145 A
Duty cycle (at 40°C) 10% at 145 A / 60% at 60 A
Electrode diameter 1.6 - 4.0 mm
Thermal protection Yes, with automatic shut-off
Open-circuit voltage 70 V
Protection class IP21
Weight 5.2 kg
Dimensions (L × W × H) 330 × 150 × 290 mm
Cable length Electrode holder 2 m, ground cable 2 m
Main functions MMA arc welding, continuous current adjustment
Maintenance and cleaning Dust regularly, check connections
Safety Overload protection, cooling fan
Spare parts and repairability Electrode holder, cables, ground clamps available
General information User manual included, semi-professional use

Frequently Asked Questions - GE 145 W Güde

What type of welding can I do with the Güde GE 145 W?
The GE 145 W is an MMA welding machine (coated electrode) intended for welding steel, stainless steel, and cast iron.
What is the maximum welding current?
The welding current can be continuously adjusted from 10 to 145 A.
What is the required power supply voltage?
The device requires a 230 V ~ 50 Hz power supply with a grounded outlet.
What electrode diameter can I use?
Electrodes with a diameter of 1.6 to 4.0 mm are compatible.
How to adjust the welding current?
Turn the adjustment knob on the front panel to set the intensity according to the metal thickness and electrode diameter.
What to do if the welding machine stops during use?
The stop is due to the thermal protection. Let the device cool down for a few minutes before resuming welding.
What safety precautions must I follow?
Always wear a welding helmet with a filter lens, insulating gloves, and work in a ventilated area. Avoid contact with live parts.
How to maintain the welding machine?
Regularly dust the ventilation openings with a dry brush and check the condition of the cables and connections.
Where can I find spare parts?
Spare parts such as the electrode holder or cables are available on the manufacturer's website or from authorized dealers.
What is the difference between an MMA and a MIG machine?
The MMA machine uses consumable coated electrodes, ideal for outdoor work and thick metals. The MIG machine uses a continuous wire with shielding gas.

User questions about GE 145 W Güde

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Welding machine in PDF format for free! Find your manual GE 145 W - Güde and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GE 145 W by Güde.

USER MANUAL GE 145 W Güde

natural_image Blue GE 145 W power station with attached test probes and a tool, no visible text or symbols on the main body.

GE 145 W

20001

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

Güde GE 145 W - 20001 - 1

Güde GE 145 W - 20001 - 2

text_image Güde

Güde GE 145 W - 20001 - 3

Güde GE 145 W - 20001 - 4

ENGLISH Please read the instructions carefully before starting the machine.
