Product type	Digital camera
Dimensions (L x H x D)	92 mm x 55 mm x 20 mm (excluding protrusions)
Weight (without battery or card)	122 g
Power supply	Olympus LI-42B/LI-40B lithium-ion battery (3.7 V, 740 mAh) or specified AC adapter
Sensor	1/2.5" CCD, 7,400,000 pixels (gross)
Effective pixels	7,100,000 pixels
Lens	Olympus 6.3 to 18.9 mm, f3.1 to f5.9 (35 mm equivalent: 38-114 mm)
Shutter speed	4 to 1/2000 sec
LCD screen	2.5" color TFT, 154,000 pixels
Internal memory	Yes (number of photos varies by quality)
Compatible memory card	xC-Picture Card (16 MB to 2 GB, TypeH/M, Standard)
Photo recording formats	JPEG (DCF, Exif 2.2, DPOF, PRINT Image Matching III, PictBridge)
Video recording formats	AVI Motion JPEG
Flash modes	Auto, red-eye, fill, off
Scene modes	10 modes (sports, interior, candle, self-portrait, sunset, fireworks, showcase, cuisine, documents, auction)
Self-timer	Approx. 12 seconds
Power saving	Sleep mode after 3 minutes, auto power off after 12 minutes
Connectors	USB, A/V OUT (multi-connector), DC-IN jack
Direct printing	PictBridge via USB cable
Supplied software	OLYMPUS Master (Windows/Mac)
Box contents	Camera, LI-42B battery, LI-40C charger, USB cable, AV cable, strap, OLYMPUS Master CD-ROM, manual
Operating temperature	0°C to 40°C
Operating humidity	30% to 90%

Frequently Asked Questions - FE220 OLYMPUS

How to charge the battery of the Olympus FE220?

Use the supplied LI-40C battery charger. Plug the charger into a wall outlet, insert the LI-42B lithium-ion battery into the charger in the correct orientation. The red indicator lights up during charging; it turns off when charging is complete (approx. 300 minutes).

How to insert the battery into the camera?

Open the battery compartment, insert the battery with the ▼ symbol facing the correct direction. Press until locked. To remove, slide the battery lock button.

How to set the date and time on the FE220?

Turn on the camera, press the △/□ and ▽ buttons to select the year (Y), month (M), day (D), hour and minutes. Use ▷ to move to the next field. Press OK to confirm.

How to change the display language?

Press MENU, select [SETUP] with ▷, then [○]. Use the △▽◀▶ buttons to choose the desired language (French, English, etc.) and press OK.

How to take a photo in AUTO mode?

Set the mode dial to AUTO, turn on the camera with POWER, frame the subject, press the shutter button halfway to focus (green indicator), then press fully to take the photo.

How to use macro / super macro mode?

Press the ◀ button repeatedly to select [✿] (macro, distance 10 cm) or [✿] (super macro, 5 cm, fixed zoom). Press OK to confirm.

How to delete a photo on the FE220?

In playback mode, display the photo to delete with ◀/▷, then press the button. Select [YES] with △/□ and confirm with OK.

How to transfer images to a computer?

Connect the camera to the computer using the supplied USB cable. On the LCD screen, select [PC] and press OK. Use the OLYMPUS Master software to transfer images.

How to print directly from the camera?

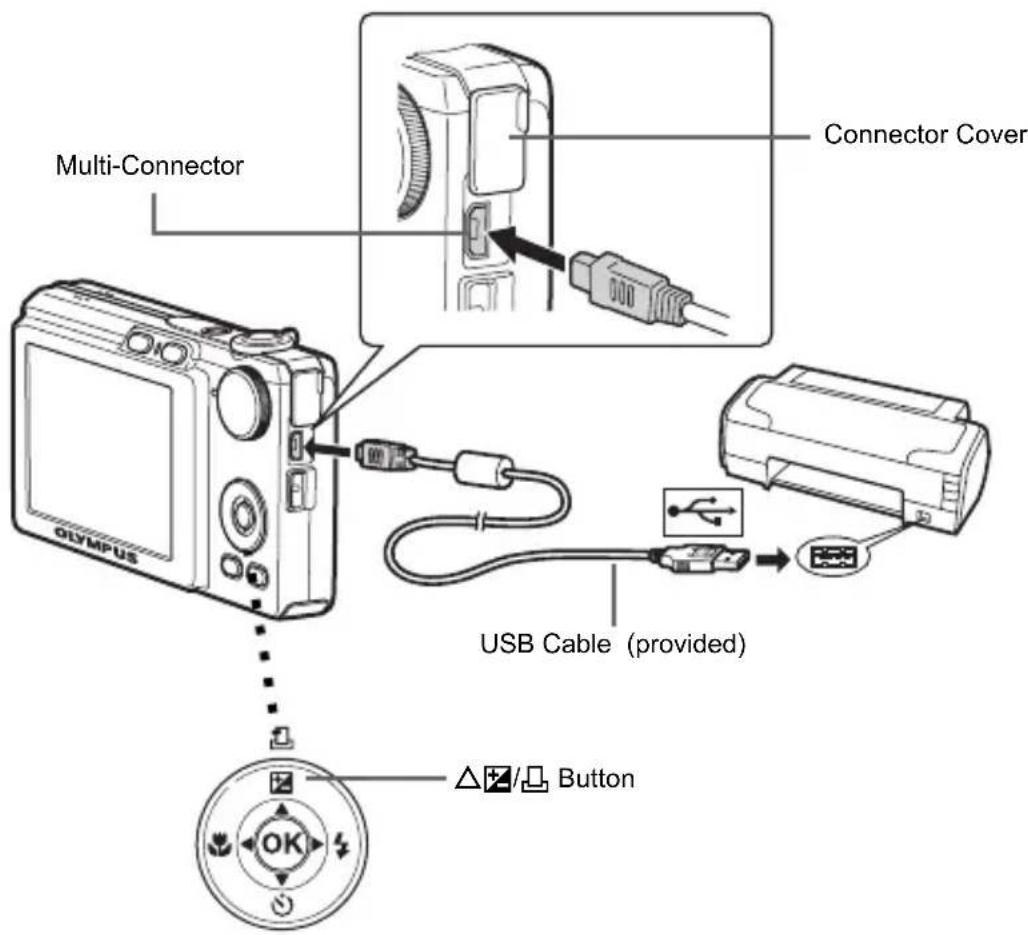

Connect the camera to a PictBridge-compatible printer via the USB cable. In playback mode, display the desired photo, then press △/□ to start easy printing.

What to do if the camera does not turn on?

Check that the battery is charged and properly inserted. If the problem persists, try recharging the battery. If the camera remains off, contact an authorized repair service. Do not attempt to disassemble the camera.

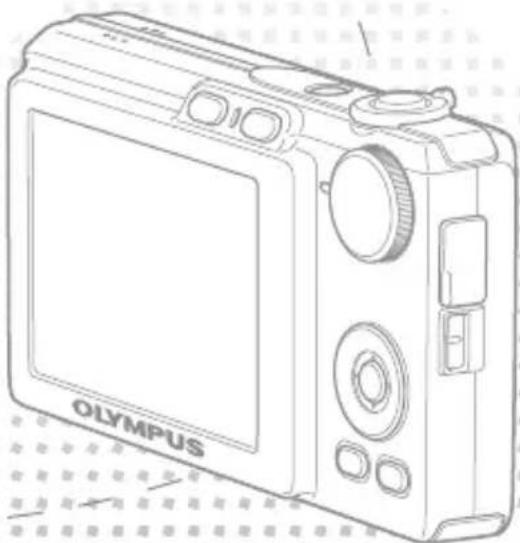

USER MANUAL FE220 OLYMPUS

Line drawing of a Olympus digital camera with no text or symbols on the body

GUIDE SOSNE AUTO

Line drawing of a Olympus digital camera with front panel and buttons (no text or symbols on body)

Table of Contents

Gather these items (box contents)....3

Prepare the battery ....4

Turn the camera on....5

Set date and time ....6

Select a Language ....8

Take a picture....9

Review your pictures....10

Basic Operation ....11

Shooting Mode Buttons 11

Mode Dial.... 12

SCENE Modes....12

Macro Mode.... 13

Flash Modes 13

Self-Timer 14

Power Save Feature 14

Menus and Settings ....15

Top Menu.... 15

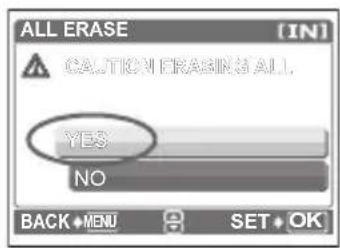

Erase All Pictures 15

Connecting the Camera....16

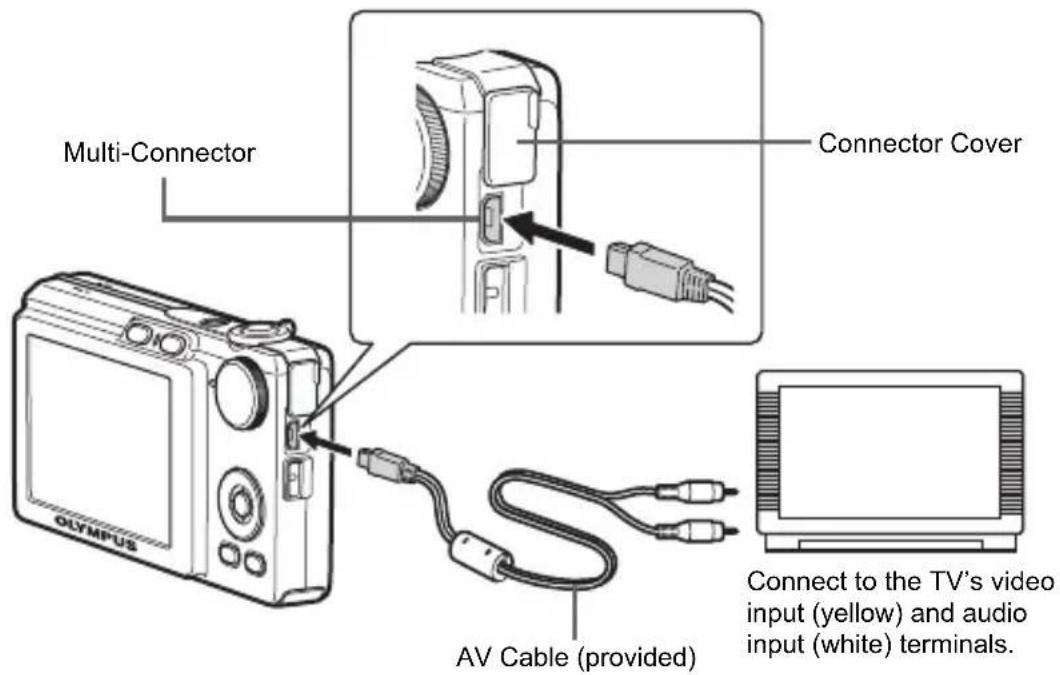

Playback on a TV.... 16

Direct Printing (PictBridge) 17

Transfer Images ....18

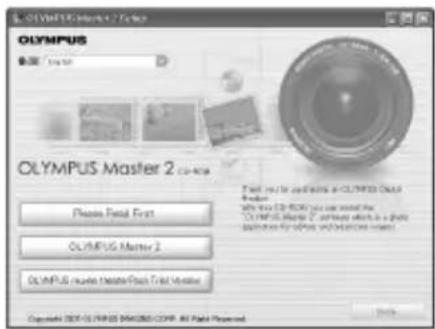

OLYMPUS Master Software ....20

Specifications....21

Safety Precautions....23

• Before using your camera, read this manual carefully to ensure correct use.
• We recommend that you take test shots to get accustomed to your camera before taking important photographs.
• Please observe the safety precautions at the end of this manual.
  ● ● The images of the LCD screen and illustrations of the camera used in this manual may differ from the actual product.

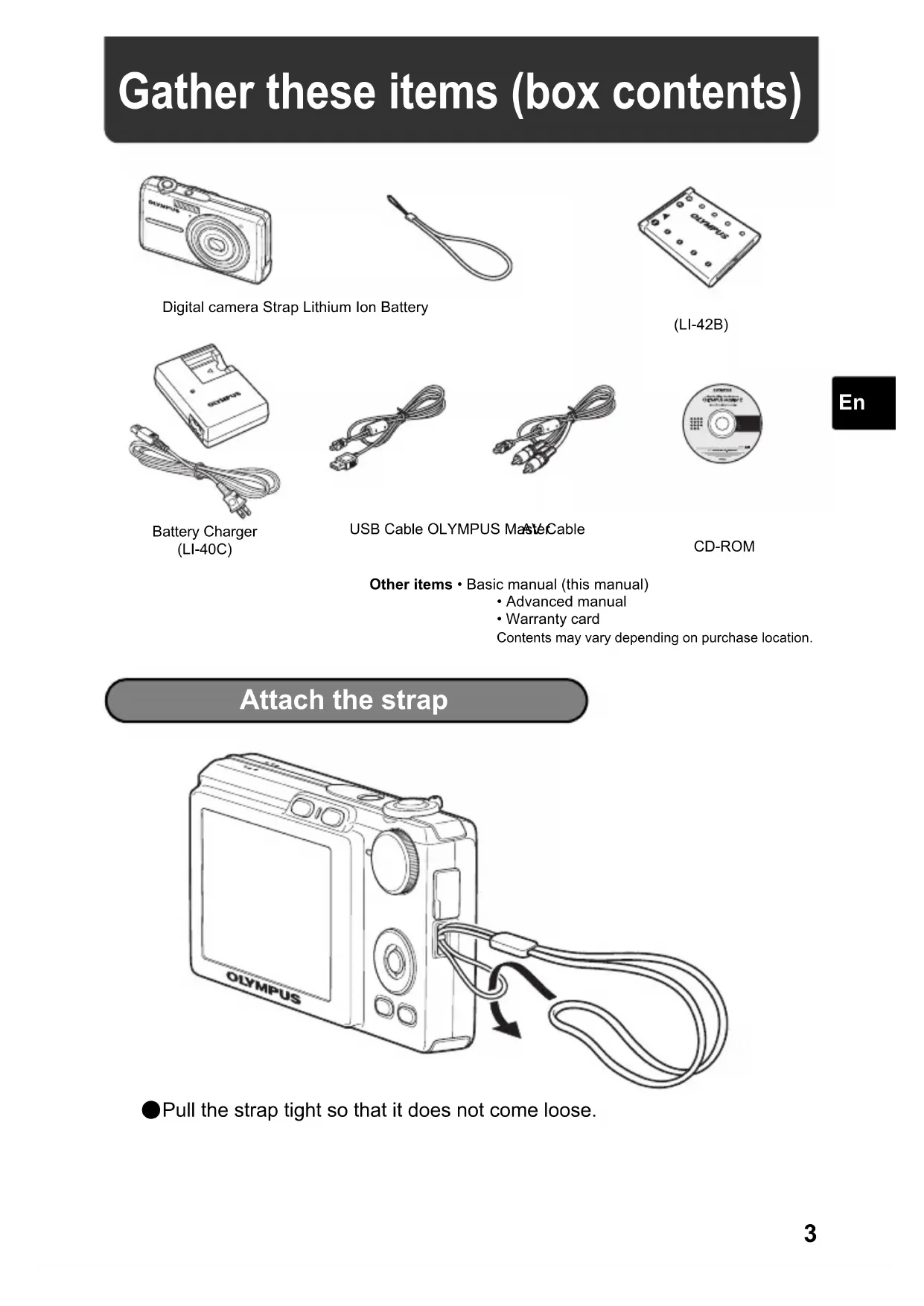

Gather these items (box contents)

Line drawing of a DUMIRUS digital camera (no text or symbols on body)

Digital camera Strap Lithium Ion Battery

Simple line drawing of a knuckle or handle (no text or symbols)

Line drawing of an Olympus battery pack with mounting holes (no text or symbols on body)

(LI-42B)

Line drawing of an Olympus device with a coiled cable (no text or symbols visible)

Battery Charger (LI-40C)

USB Cable OLYMPUS MasterCable

CD-ROM

Other items • Basic manual (this manual)

• Advanced manual
• Warranty card

Contents may vary depending on purchase location.

Attach the strap

Line drawing of a Olympus digital camera with cable and scroll, showing cable being inserted into the camera (no text or symbols on device body)

●Pull the strap tight so that it does not come loose.

Prepare the battery

a. Charge the battery

AC Wall Outlet Power Cable Lithium Ion Battery Battery Charger ① Charging Indicator Red light on: Charging Light off: Charging complete (Charging time: Approx. 300 minutes)

●Battery comes partially charged.

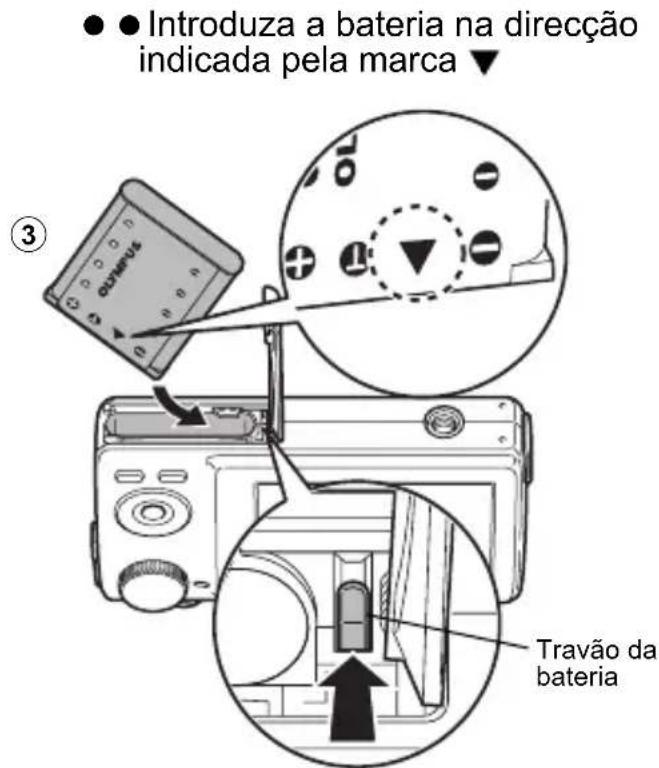

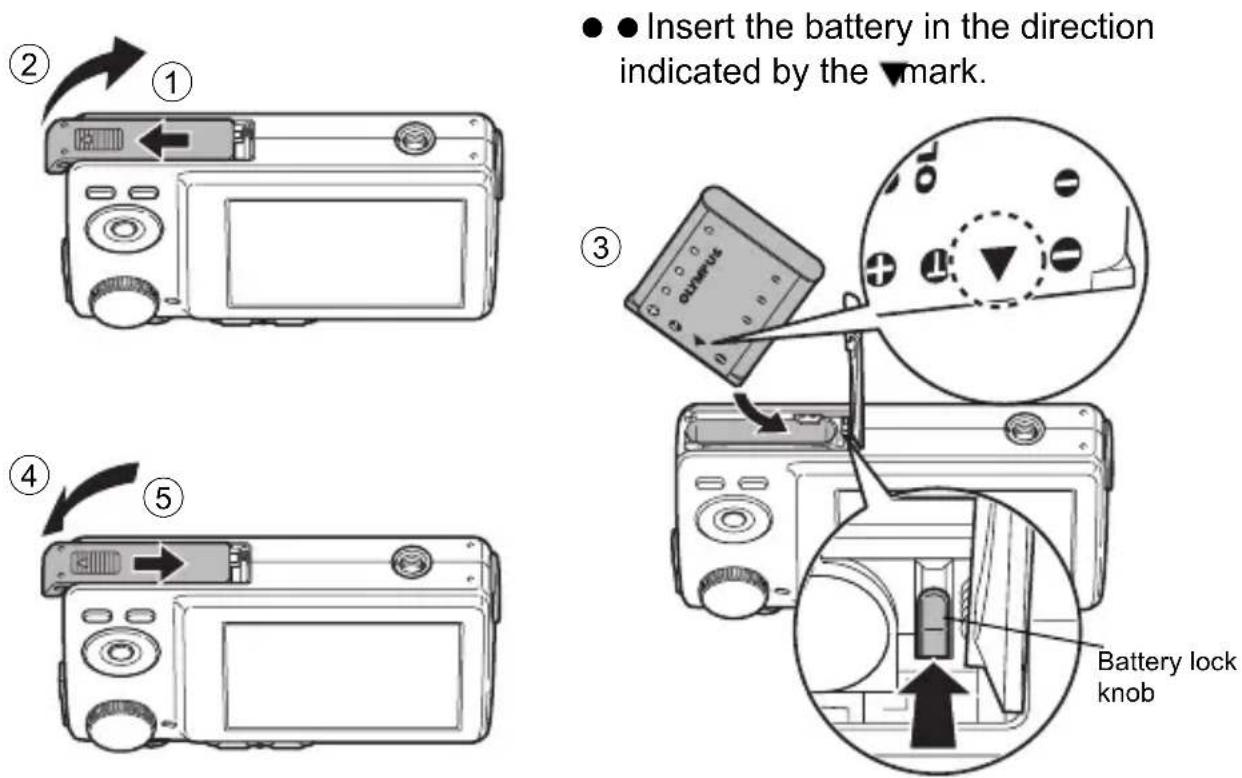

b. Insert the battery in the camera

● Insert the battery in the direction indicated by the ▼mark. ① ② ③ ④ ⑤ Battery lock knob

● ● To remove the battery, press the battery lock knob in the direction of the arrow.

● This camera does not require an optional xD-Picture Card™ (hereinafter referred to as "the card") to take pictures. For details on inserting an optional Card, please refer to Advanced Manual.

Turn the camera on

This section explains how to turn on the camera in shooting mode.

a. Set the mode dial to AUTO

When shooting movies AUTO Mode dial When shooting still pictures

Still picture shooting modes

AUTO The camera determines the optimum settings and shoots the picture.

(2) This function reduces the blur caused by a moving subject or camera movement when taking pictures.

Suitable for taking pictures of people.

Suitable for taking pictures of landscapes.

Suitable for taking pictures of people at night.

SCENE You can select a scene mode from among 10 set for various shooting conditions.

GUIDE This function allows you to take the best picture by following the shooting guide displayed on the screen.

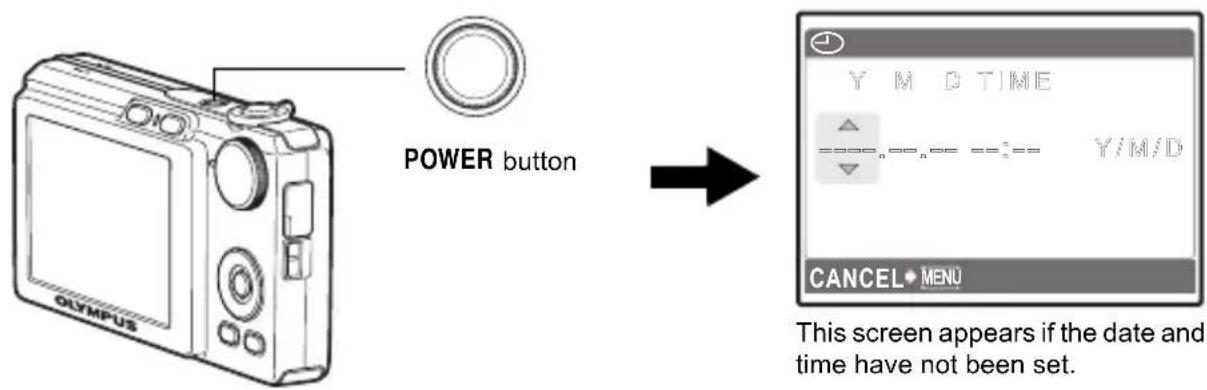

b. Press the POWER button

POWER button Y M D TIME ——— Y/M/D CANCEL MENU This screen appears if the date and time have not been set.

● To turn off the camera, press the POWER button again.

Hint

The directions of the arrow pad ( ) are indicated with in this manual.

Set date and time

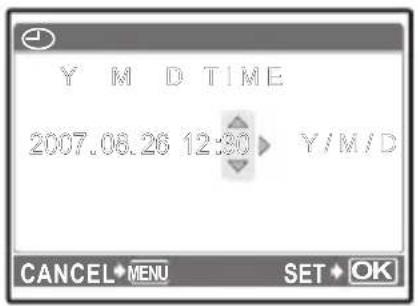

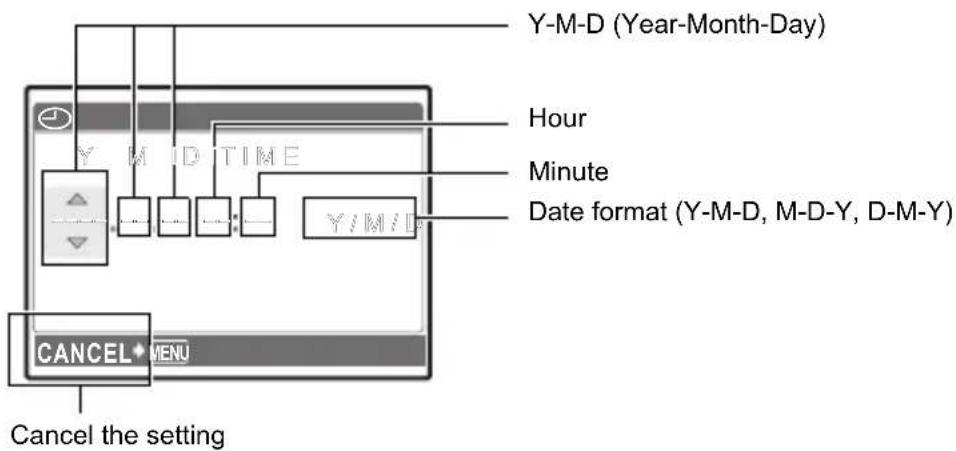

About the date and time setting screen

Y-M-D (Year-Month-Day) Hour Minute Date format (Y-M-D, M-D-Y, D-M-Y) CANCEL MENU Cancel the setting

a. Press the △/□ button and ▽ button to select [Y].

●The first two digits of the year are fixed.

Δ/□ button ▼ button Y M D TIME 2007. Y/M/D CANCEL MENU

b. Press the ▷↓ button.

OLYMPUS button

c. Press the △/□ button and the ▽ button to select [M].

Y M D TIME 2007.06.-- --:-- Y/M/D CANCEL♦ MENU

d. Press the ▷↓ button.

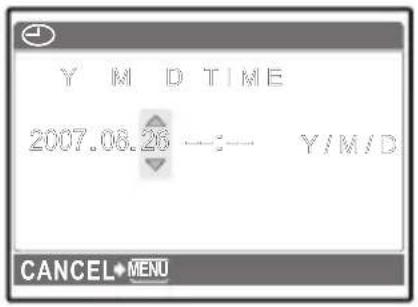

e. Press the △/□ button and the ▽ button to select [D].

Y M D TIME 2007.06.26 —— Y/M/D CANCEL→MENU

f. Press the ▷↓ button.
g. Press the △/□ button and the ▽ button to select “hour” and “minute”.

●The time is displayed in the 24-hour format.

Y M D TIME 2007.08.26 12:30 Y/M/D CANCEL MENU SET OK

h. Press the ▷↓ button.

i. Press the △/□ button and ▽ button to select [Y/M/D].

Y M D TIME 2007.08.26 12:30 Y/M/D CANCEL MENU SET OK

j. After all items have been set, press the Ⓞ button.

For a more accurate setting, you can press the Ⓞ button when the time signal hits 00 seconds.

OLYMPUS OK button AUTO HQ 3072×2304 [ ] [IN] 4

Select a Language

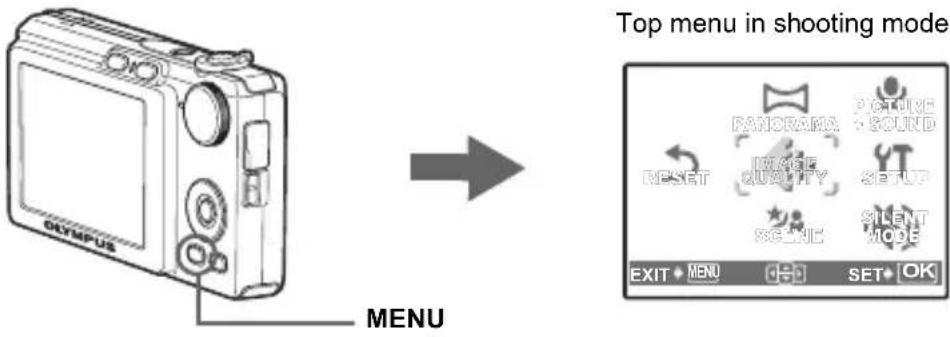

a. Press the MENU button to display the top menu.

OLEMPUS MENU Button

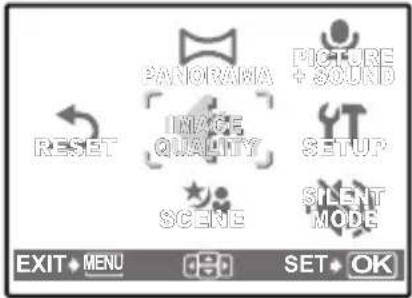

PANORANA PICTURE + SOUND RESET IMAGE QUALITY SETUP SCENE SILENT MODE EXIT MENU SET OK

b. Press the ▷↓ button to select [SETUP] and then press the Ⓞ OK button.

OLYMPUS Button

PANORAMA PICTURE + SOUND RESET IMAGE QUALITY SETUP SCENE @ Next MODE EXIT MENU SET OK

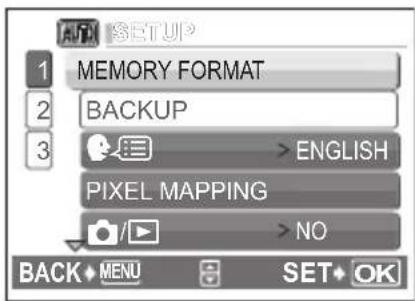

c. Press the △/□ button and ▽ button to select [●] and then press the Ⓞ button.

AFM SETUP 1 MEMORY FORMAT 2 BACKUP 3 > ENGLISH PIXEL MAPPING > NO BACK MENU SET OK

d. Press the arrow pad (△▽◀◀) to select a language and then press the Ⓞ button.

● You can add other languages to your camera with the provided OLYMPUS Master software. Please refer to the Advanced Manual.

ENGLISH FRANÇAIS ESPAÑOL PORTUGUES BACK MENU SET OK

Take a picture

a. Hold the camera

Horizontal grip Vertical grip

Line drawings of hands holding a digital camera, showing front, side, and top views (no text or symbols)

En

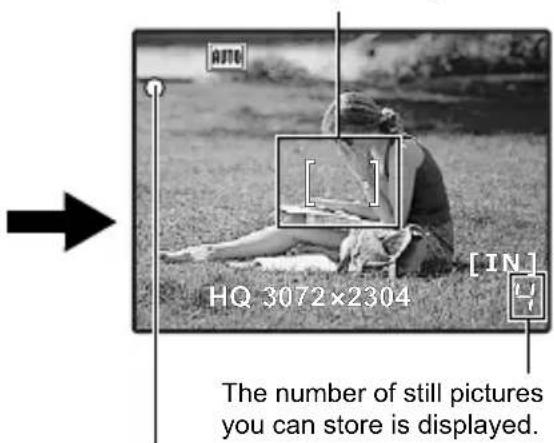

b. Focus

Shutter button Press halfway

Place this mark over your subject.

HQ 3072×2304 [IN] The number of still pictures you can store is displayed.

The green lamp indicates that the focus and exposure are locked.

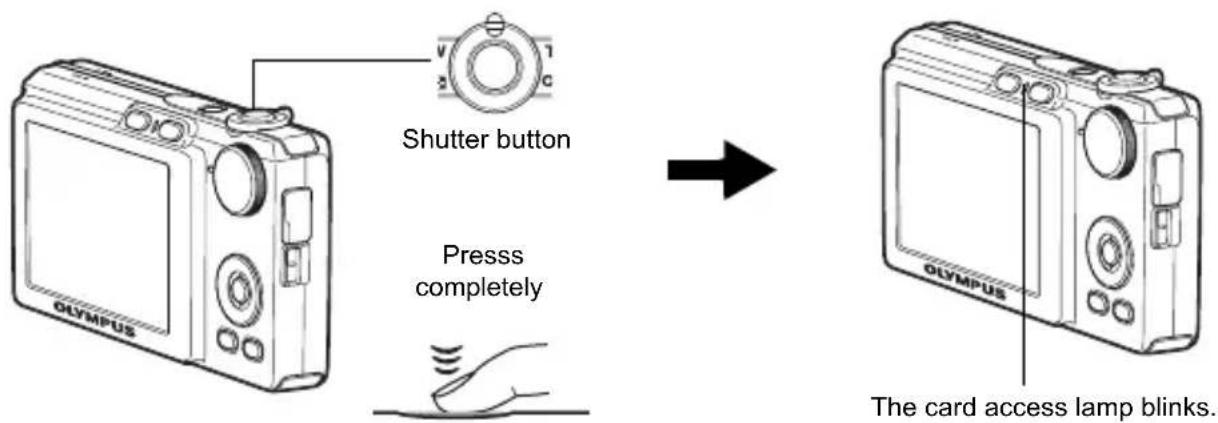

c. Shoot

Shutter button Presss completely The card access lamp blinks.

Review your pictures

a. Press the ▶ button.

Olympus Arrow pad button Next picture Previous picture

[IN] HQ 3072×2304 0.0 '07.08:26 12:30 100-0001 1

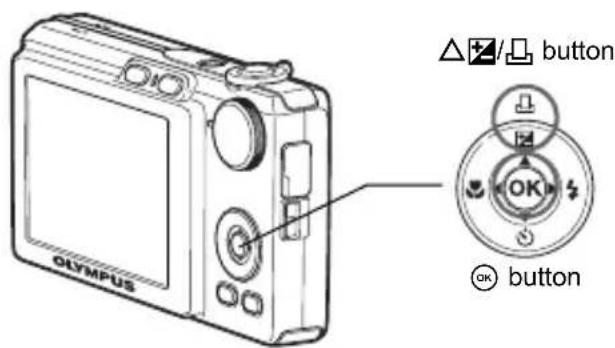

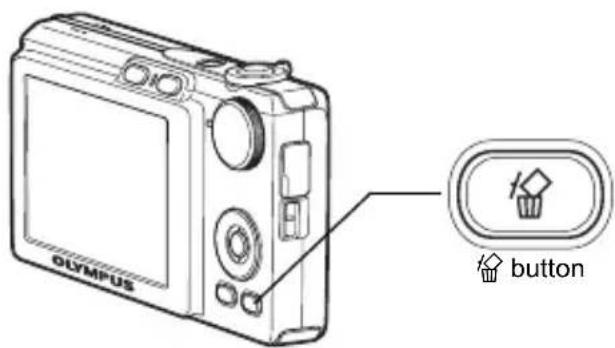

Erase pictures

a. Press the ◀ button and the ▷ button, to display the picture you want to erase.
b. Press the 🔒 button.

OLYMPUS button

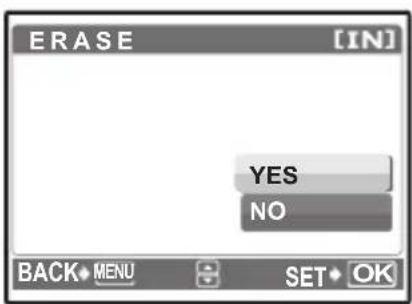

ERASE [IN] YES NO BACK MENU SET OK

c. Press the △/□ button to select [YES] and press the Ⓞ button.

▲/□ button OK ● button OLYMPUS

ERASE [IN] YES NO BACK MENU SET OK

Basic Operation

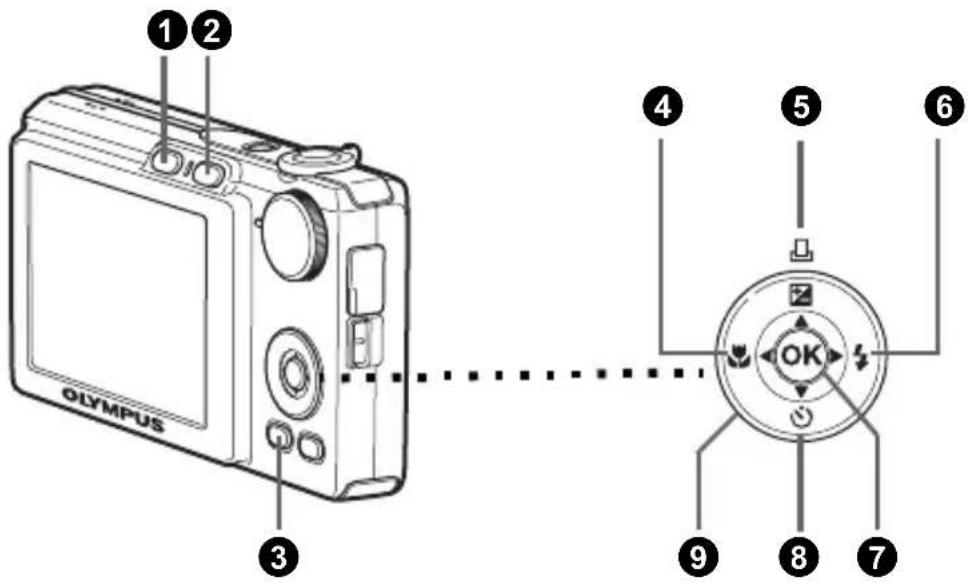

Shooting Mode Buttons

While in shooting mode, use these buttons for quick access to some of the more commonly used features.

1 2 3 4 5 6 Olympus OK 9 8 7

① button (Shooting)

Selects the shooting mode.

② button (Playback)

Selects the playback mode.

③MENU button

Displays the top menu on the monitor.

④◀ button (Macro Mode)

Use MACRO or SUPER MACRO mode when taking close-up pictures such as of a flower.

⑤ △/ button (Exposure Compensation)

Press in shooting mode to make the picture overexposed (+) or underexposed (−).

6▷↓ button (Flash Mode)

Select from 4 flash modes - FLASH AUTO, 📄 REDEYE, ↓ FILL IN, or ⓍFLASH OFF.

⑦ OK button

Press to confirm settings.

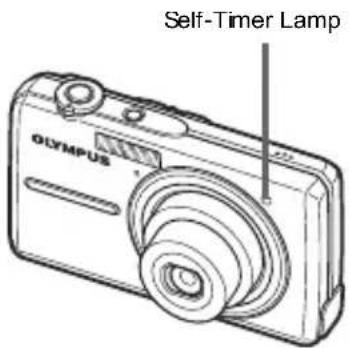

⑧ ∇ button (Self-timer)

Select the self-timer to delay the shot approximately 12 seconds from when the shutter button is pressed.

9 Arrow pad (△▽◀◀)

Selects scenes, playback pictures and menu items.

Mode Dial

Set the desired mode and turn the camera on. You may select the desired mode before or during use.

Olympus GUIDE SCENE AUTO

AUTO	The camera determines the optimum settings and shoots the picture.
	This function reduces the blur caused by a moving subject or camera movement when taking pictures.
	Suitable for taking pictures of people.
	Suitable for taking pictures of landscapes.
	Suitable for taking pictures of people at night.
SCENE	You can select a scene mode from among 10 set for various shooting conditions.
	This function lets you record movies.
GUIDE	This function allows you to take the best picture by following the shooting guide displayed on the screen.

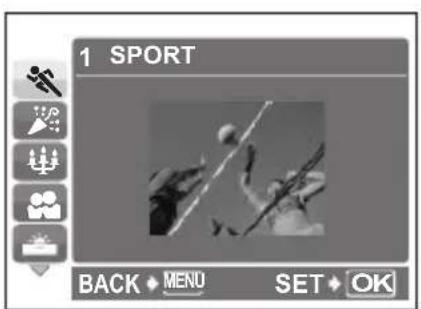

SCENE Modes

Select the shooting mode depending on an object.

① Set the mode dial to SCENE, and select the other scene.

1 SPORT BACK ◆ MENU SET ◆ OK

Mode Dial Δ Button OK Button ▽ Button

② Press / to select the scene modes and press OK.

Shooting SCENE Modes

SPORT

INDOOR

CANDLE

SELF PORTRAIT

SUNSET

FIREWORKS

BEHIND GLASS

CUISINE

DOCUMENTS

AUCTION

Macro Mode

This mode lets you take pictures as close as 10 cm (3.9 in.) to your subject. (Most wide-angle side)

Use this mode to take pictures as close as 5 cm (2.0 in.) to your subject. In mode, the position of the zoom lens is fixed.

Press

repeatedly to select [◀] or [s◀] and press Ⓞ.

Flash Modes

① Press ▷ repeatedly to select the flash mode and press OK.
②Press the shutter button halfway.

- When the flash is set to fire, the ↓ mark lights.

③ Press the shutter button completely to take the picture.

Icon Flash Mode Description
AUTO	FLASH AUTO The flash fires automatically in low light or backlight conditions.
	REDEYE The red-eye reduction flash mode significantly reduces this phenomenon by emitting pre-flashes before firing the regular flash.
	FILL IN	The flash fires regardless of the available light.
	FLASH OFF The flash does not fire even in low light conditions.

Self-Timer

1 Press ∇ to select [💡] and press Ⓞ.

②Press the shutter button completely to take the picture.

● ● After setting the self-timer, press the shutter button completely. Then the self-timer lamp lights for approximately 10 seconds, blinks for approximately 2 seconds, and the shutter is released.

Self-Timer Lamp OLYMPUS

En

Power Save Feature

● To save battery power, the camera automatically enters sleep mode and stops operating if not used for approximately 3 minutes. Press the shutter button or zoom lever to reactivate the camera.
- If the camera is not operated for 12 minutes after the camera enters sleep mode, it automatically retracts the lens and turns off. To resume operation, turn on the power again.

Menus and Settings

Top Menu

① Press MENU to display the top menu.

Top menu in shooting mode OLYMPUS MENU PANORAMA PICTURE + SOUND RESET WAVE QUALITY SETUP SCENE SILENT MODE EXIT MENU SET OK

② Use the arrow pad ( /// ) to select menu items, and press Ⓞ to set them.

PANORAMA

Panorama shooting lets you create a panoramic picture, using the OLYMPUS Master software from the provided CD-ROM. An Olympus xD-Picture Card is required for panorama shooting.

PICTURE + SOUND (Still picture shooting mode only)

Select whether to record 4 second audio or not after taking every picture.

MOVIE W/ SOUND (Movie shooting mode only)

Select whether to record sound or not during move recording.

RESET

Return the changed shooting functions back to default settings.

IMAGE QUALITY

Set the image quality of the picture you will shoot according to its intended purpose.

SETUP

Set the date, time, language, and operation sound, etc.

SCENE

Select a scene mode depending on the subject and shooting condition when the SCENE mode is selected.

SILENT MODE

Turn off operational sounds that occur during shooting and playback.

Erase All Pictures

① Press MENU in playback mode to display the top menu and select [ERASE] > [ALL ERASE].

②Select [YES], and press OK.

● ● All the pictures are erased.

ALL ERASE [IN] CAUTION FRASING ALL YES NO BACK MENU SET OK

Connecting the Camera

Playback on a TV

Use the AV cable provided with the camera to playback recorded images on your TV. Both still pictures and movies can be played back.

1 Make sure that the TV and camera are turned off. Connect the multi-connector on the camera to the video input terminal on the TV using the AV cable.

Multi-Connector Connector Cover Olympus AV Cable (provided) Connect to the TV's video input (yellow) and audio input (white) terminals.

②Turn the TV on and set it to the video input mode.
- ● For details of switching to video input, refer to your TV's instruction manual.
3 Turn on the camera and then press ▶ to enter playback mode.
- The last picture taken is displayed on the TV. Use the arrow pad (△/▽/◀/▶) to select the picture you want to display.

Direct Printing (PictBridge)

Using the provided USB cable, you may connect your camera directly to a PictBridge compatible printer to make prints. You can print a picture with simple operations.

①In playback mode, display the picture you want to print out on the monitor.
② Connect one end of the provided USB cable into the camera's multi-connector and the other end into the printer's USB connector.

Multi-Connector Connector Cover Olympus USB Cable (provided) Button OK

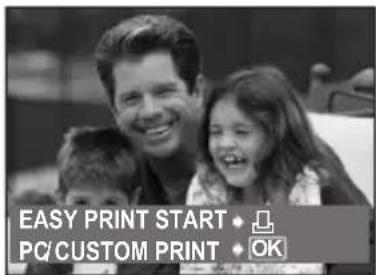

③ Press △/□.

• Printing starts.
• When printings finished, disconnect the USB cable from the camera with the picture selection screen displayed.

EASY PRINT START ◆ PC CUSTOM PRINT ◆ OK

Transfer Images

Install the software

① Insert the OLYMPUS Master CD-ROM.
② Windows: Click the "OLYMPUS Master 2" button.
Macintosh: Double-click the "Setup" icon.
③Simply follow the on-screen instructions.

OLYMPUS Master 2 OLEMPUS OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 ALEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPUS Master 2 OLEMPU3015-01-01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/3015-01-01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/01/3015-01-01/01/01/01/01/01/01/01/01/01/3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015-3015

En

Connect the camera to the computer

① Connect the camera and computer using the USB cable (included).
● The monitor will turn on automatically.

USB Cable (provided) ② ① Olympus

2 Select [PC] on the monitor, and press OK.

- ● Your PC will now recognize your camera as a removable storage drive.

USB [IN] PC EASY PRINT CUSTOM PRINT EXIT SET OK

Transfer images to the computer

① With the camera now connected, open OLYMPUS Master.
② Click "Transfer Images" on the browse window, and then click "From Camera".
③Simply follow the on-screen instructions.

Screenshot of a legacy image editing software interface showing a grid of image thumbnails and tool panels.

En

Tips

• For more detailed information regarding camera setup and usage, please refer to the camera's "Advanced Manual" provided on CD-ROM.
• For additional assistance, refer to the "Help" file in the OLYMPUS Master software.

OLYMPUS Master Software

OLYMPUS Master Software: Use this software to download pictures from the camera, view, organize, retouch, e-mail and print your digital pictures, movies and more!

●System Requirements

OLYMPUS Olympus Master 2 Control Panel 1 Control Panel 2

OS	Windows 2000 Professional/XP Home Edition/XP Professional/Vista or Mac OS X (10.3 or later)
CPU	Pentium III 500 MHz/Power PC G3 500 MHz/Intel Core Solo/Duo 1.5 GHz, or later
RAM 256 MB or more
Hard Disk 500 MB or more free space
Connection USB port/IEEE 1394 port
Monitor 1024 × 768 pixels resolution or more with minimum 65,536 colors (Windows), 32,000 colors (Macintosh)
Other Internet Explorer 6 or later (Windows), Safari 1.0 or later, QuickTime 6 or later (Macintosh)

For the latest support information, visit the Olympus website (http://www.olympus.com/digital)

User Registration

Register your camera when you install OLYMPUS Master to activate your warranty, receive notifications of software and camera firmware updates, and more.

Camera

Product type : Digital camera (for shooting and displaying)

Recording system

Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))

Applicable : Exif 2.2, Digital Print Order Format (DPOF), PRINT standards Image Matching III, PictBridge

Sound with still : Wave format

pictures

xD-Picture Card (16 MB to 2 GB) (TypeH/M, Standard)

No. of effective pixels : 7,100,000 pixels

Image pickup device : 1/2.5" CCD (primary color filter), 7,400,000 pixels (gross)

Lens : Olympus lens 6.3 to 18.9 mm, f3.1 to 5.9

(equivalent to 38 to 114 mm on 35 mm film)

Photometric system : Center-weighted metering

Shutter speed : 4 to 1/2,000 sec.

Shooting range : 0.6 m (2 ft.) to ∞ (W)/ 1.0 m (3.3 ft.) to ∞ (T) (normal mode) 0.1 m (0.3 ft.) to ∞ (W)/ 0.6 m (2 ft.) to ∞ (T) (macro mode) 0.05 m (2.0 in.) to ∞ (super macro mode)

Monitor : 2.5" TFT color LCD display, 154,000 pixels

Outer connector : DC-IN jack, USB connector, A/V OUT jack (multi-connector)

Automatic calendar system : 2000 up to 2099

Operating environment

Temperature : 0 to 40°C (32°F to 104°F) (operation)/-20 to 60°C (-4°F to 140°F) (storage)

Humidity : 30 to 90% (operation)/10 to 90% (storage)

Power supply : One Olympus lithium ion battery (LI-42B/LI-40B) or specified AC adapter

Dimensions : 92 mm (W) × 55 mm (H) × 20 mm (D) (3.6 × 2.2 × 0.8 in.) (excluding protrusions)

Weight : 122 g (4.3 oz) (without battery and card)

● Lithium ion battery (LI-42B)

Product type : Lithium ion rechargeable battery

Standard voltage : DC 3.7 V

Standard capacity : 740 mAh

Battery life : Approx. 300 full charges (varies on usage)

Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (charging)/

-10°C to 60°C (14°F to 140°F) (operation)/

-20°C to 35°C (-4°F to 95°F) (storage)

Dimensions : 31.5 × 39.5 × 6mm ( 1.2 × 1.5 × 0.2 in.)

Weight : Approx. 15 g (0.5 oz)

●Battery charger (LI-40C)

Power requirements : AC 100 to 240 V (50 to 60 Hz)

3.2 VA (100 V) to 5.0 VA (240 V)

Output : DC 4.2 V, 200 mA

Charging time : Approx. 300 min

Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (operation)/

-20°C to 60°C (-4°F to 140°F) (storage)

Dimensions : 62 × 23 × 90 mm ( 2.4 × 0.9 × 3.5 in.)

Weight : Approx. 65 g (2.3 oz)

Please note that design and specification improvements may result in unannounced changes.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.

If the product is used without observing the information given under this symbol, serious injury or death may result.

If the product is used without observing the information given under this symbol, injury or death may result.

If the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofing sections.

Location — To avoid damage to the product, mount the product securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the power source described on the product label.

Lightning — If a lightning storm occurs while using an AC adapter, remove it from the wall outlet immediately.

Foreign Objects — To avoid personal injury, never insert a metal object into the product.

Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers.

Handling the Camera

WARNING

●Do not use the camera near flammable or explosive gases.

●Do not use the flash on people (infants, small children, etc.) at close range.

- You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash too close to the subject's eyes could cause a momentary loss of vision.

- Keep young children and infants away from the camera.

• Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.
• Accidentally swallowing the battery, cards or other small parts.
• Accidentally firing the flash into their own eyes or those of another child.
• Accidentally being injured by the moving parts of the camera.

●Do not look at the sun or strong lights with the camera.

●Do not use or store the camera in dusty or humid places.

●Do not cover the flash with a hand while firing.

CAUTION

- Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

- Never remove the batteries with bare hands, which may cause a fire or burn your hands.

●Never hold or operate the camera with wet hands.

●Do not leave the camera in places where it may be subject to extremely high temperatures.

- Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger or AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in fire.

●Handle the camera with care to avoid getting a low-temperature burn.

- When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following:

• When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.
• In places subject to extremely cold temperatures, the temperature of the camera's body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

●Be careful with the strap.

- Be careful with the strap when you carry the camera. It could easily catch on stray objects - and cause serious damage.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

• The camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified charger. Do not use any other chargers.
• Never heat or incinerate batteries.
  • Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.
• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.
  • To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, by soldering, etc.
• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.
  • Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.

WARNING

• Keep batteries dry at all times.
  • To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.
• Insert the battery carefully as described in the operating instructions.
• If rechargeable batteries have not been recharged within the specified time, stop charging them and do not use them.
• Do not use a battery if it is cracked or broken.
• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera.
• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.
• Never subject batteries to strong shocks or continuous vibration.

CAUTION

• Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.
• The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.
• Always unload the battery from the camera before storing the camera for a long period.

En

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number : FE-220/X-785

Trade Name : OLYMPUS

Responsible Party : OLYMPUS IMAGING AMERICA INC.

Address : 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A.

Telephone Number: 484-896-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

- Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Computer Inc.

- xD-Picture Card™ is a trademark.

- All other company and product names are registered trademarks and/or trademarks of their respective owners.

- The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

Table des matières

Line drawing of a standard Sony DS-108 digital camera (no text or symbols on body)

Simple line drawing of a hook or grip with a black end (no text or symbols)

Courroie

Illustration of a Olympus battery pack with mounting holes (no text or symbols on body)

Illustration of an OMEMS device with a coiled cable and power plug (no text or symbols visible)

Illustration of a cable with three connectors (no text or symbols)

Câble USB CD-ROM Câble AV

OLYMPUS Master

Autres articles

• Manuel de base (ce manuel)

- Manuel Avancé

- Carte de garantie

Line drawing of a Olympus digital camera with cable and scroll cord, showing cable being inserted into the camera (no text or symbols on device body)

Diagram of a digital camera with labeled parts and directional arrows indicating rotation or change.

Diagram of a digital camera with numbered instructions indicating left and right rotation steps

A M J HEURE 2007.08:== ==:= A/M/J ANNULE MENU

Line drawing of a Olympus digital camera with no visible text or symbols on the device body

② Touche ▶ (Lecture)

Line drawing of a Olympus digital camera with lens and control buttons (no text or symbols on body)

Fr

Olympus Master 2 OLYMPUS A file or journal OLYMPUS Master 2 OLYMPUS Master 2 Copyright © OLYMPUS MASTER CORP. © Pigod Nominal

Câble USB (fourni) OUMFUS ② ①

Screenshot of a software interface showing a grid of image thumbnails with Chinese labels, likely from an older photo editing application.

Fr

Conseils

GONMPUS OLYMPUS Master 2 100%

Adresse : 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA

18034-0610, U.S.A.

Line drawing of a standard Sony DS/800 digital camera (no text or symbols on body)

Simple line drawing of a hook-shaped object with a black end (no text or symbols)

Illustration of a Olympus battery pack with mounting holes (no text or symbols on body)

de litio (LI-42B)

Illustration of a device labeled 'OCCAFUS' connected to a coiled cable (no text or symbols on the device itself)

Illustration of a coiled cable with three connectors (no text or symbols)

Cable AV

OLYMPUS Master CD-ROM

Otros artículos

Line drawing of a Olympus digital camera with cable and connector, no text or symbols present

Diagram of a digital camera with labeled parts and directional arrows indicating rotation or change.

Diagram of a digital camera with labeled parts and directional arrow indicating action

Line drawing of a Olympus digital camera with no visible text or symbols on the device body

Line drawing of a Olympus digital camera with lens and control panel (no text or symbols)

Olympus Master 2 Olympus Master 2 Por favor, let prefer to log items Olympus Master 2 OLYMPUS Master 2 (Driver Pack: Total version) Copyright © 2007 OLYMPUS MASTER COMP AI Pilot Module

Screenshot of a software interface showing a grid of image thumbnails with Chinese labels, likely from an older document or photo editing tool.

Consejos

GONMPUS OLYMPUS Master 2 100%

Conector exterior : Jack DC-IN, conector USB, jack A/V OUT (multiconector)

Line drawing of a digital camera with no text or symbols

Simple line drawing of a knuckle or handle (no text or symbols)

Illustration of a Olympus battery pack with mounting holes (no text or symbols on body)

(LI-42B)

Line drawing of an electronic device with a coiled cable and power plug (no text or symbols visible)

Carregador de bateria (LI-40C)

Cabo USB

Cabo AV

CD-ROM OLYMPUS Master

Line drawing of a Olympus digital camera with cable and scroll, showing cable being inserted into the camera (no text or symbols on device)

Diagram of a digital camera with labeled parts and directional arrow indicating rotation

Diagram of a digital camera with labeled parts and directional arrow indicating rotation

Line drawing of a Olympus digital camera with front panel and buttons (no text or symbols on body)

Apagar todas as imagens

Screenshot of a software interface showing a grid of image thumbnails with Chinese labels, likely from an image editing application.

Dicas

COMPUS Olympus Master 2 Hindi 100% 100%

●Requisitos do sistema

Morada : 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610 EUA.

3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support

Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm (Monday to Friday) ET

E-Mail: [e-mail]

Olympus software updates can be obtained at: http://www.olympusamerica.com/digital

To find the nearest Service Centers, please visit: http://www.olympusamerica.com/digital, and click on the Worldwide Warranty icon at the bottom of the page.

Service Centers

U.S.A.:		Brazil:
California	Olympus Imaging America Inc.10805 Holder Street Suite 170Cypress, CA 90630-5145Tel: [phone]	Rio de Janeiro	AssistecRua Uruguaiana, 94-SobrelojaCentro-Rio de Janeiro CEP 20050-091Tel: [phone] Fax: [phone]E-Mail: [e-mail]
New York	Olympus Imaging America Inc.400 Rabro DriveHauppauge, NY 11788-4258Tel: [phone]	Sao Paulo	AssistecRua Avanhandava 126, 3 AndarConsolação, São PauloTel: [phone] Fax: [phone]E-mail: [e-mail]
Canada:Mississauga	Olympus Canada Inc.Consumer Products Group151 Telson RoadMarkham, Ontario Canada L3R 1E7Tel. [phone]		AssistecFilial Shopping EldoradoAv. Rebouças 3970, 1 Subsolo, Loja 1035Pinheiros, Sao PauloTel: [phone] Fax: [phone]E-mail: [e-mail]
Mexico:	Olympus Imaging de Mexico S.A. de C.V.WTC Mexico,Montecito No.38 - Lobby - Office 3Col. Napoles, Mexico D.F. 03810Tel. [phone]E-mail: [e-mail]	Chile:	REIFSCHNEIDER S.A.Camino El Conquistador del Monte 5024Huechuraba, SantiagoTel: 56-2-6781200Fax: [phone]E-mail : [e-mail],[e-mail]
Argentina:	Jesus Labrador S.A.Paraguay 755 PB, C1057 AAI Buenos AiresTel: [phone] Fax: [phone]E-Mail: [e-mail] Labrador S.A.Sucrursal Mitre, Bartolome Mitrte 860C1036AAP Buenos Aires Tel: [phone]E-mail: [e-mail]	Colombia:	CV Tronica LTDACalle 68 No 12-57, BogotaTel: [phone]/348-1573Fax: [phone]E-mail: [e-mail]
		Panama:	FOTOSEREdif. El Paical, Oficina No3, P.A.Urb. Herbruger, Transistmica(Detras del S/M Riba Smith),Tel/Fax: [phone]E-mail: [e-mail]
		Uruguay:	Fotocamara S.R.L.Rondeau 1470 MontevideoTel: [phone] Fax: [phone]E-mail: [e-mail]
		Venezuela:	Micron C.A.4ta. transversal Urb. Horizonte,Edificio América, Mezanine, Caracas 1070-ATel: [phone] Fax: [phone]E-mail: [e-mail]
