Product Type	CD Player/Recorder
Brand	TEAC
Model	VRDS701T
Power Supply (Europe model)	AC 220-240 V, 50/60 Hz
Power Supply (USA/Canada model)	AC 120 V, 60 Hz
Power Consumption	20 W
Standby Power Consumption	0.4 W
Compatible Discs	Audio CD, CD-R, CD-RW (finalized CD-DA format)
Analog Audio Outputs	XLR (1 pair), RCA (1 pair)
Max Analog Output Level (FIXED 0dB)	XLR/RCA: 2.0 Vrms
Analog Output Impedance	XLR: 220 Ω, RCA: 180 Ω
Headphone Output	6.35 mm stereo jack, 500 mW + 500 mW (32 Ω)
Digital Audio Inputs	USB Type-C, COAXIAL (RCA), OPTICAL (TOSLINK)
Supported Digital Audio Formats (USB)	PCM up to 384 kHz/24-bit, DSD up to 22.5 MHz
Clock Sync Input	BNC, 10 MHz, 50 Ω
Digital Audio Outputs	COAXIAL (RCA), OPTICAL (TOSLINK)
External Control	12V TRIGGER IN/OUT (3.5 mm mono mini-jack)
Upsampling	Up to 8× Fs (PCM)
MQA Technology	Built-in MQA Decoder
Remote Control	RC-1338 with supplied AAA batteries
Maintenance	Cleaning with a soft cloth and diluted neutral detergent
Laser Safety	Class 1 Laser Product (IEC 60825-1:2014)
Supplied Accessories	Power cord, remote control, batteries, foot pads, instruction manual
Operating Temperature	+5 °C to +35 °C
Operating Humidity	5% to 85% (no condensation)

Frequently Asked Questions - VRDS701T TEAC

What types of discs can I play with the VRDS701T?

You can play Audio CD, CD-R, and CD-RW discs that have been properly recorded and finalized in Audio CD (CD-DA) format. 8 cm discs are not supported. Do not use cracked, irregularly shaped discs, or discs with adapters.

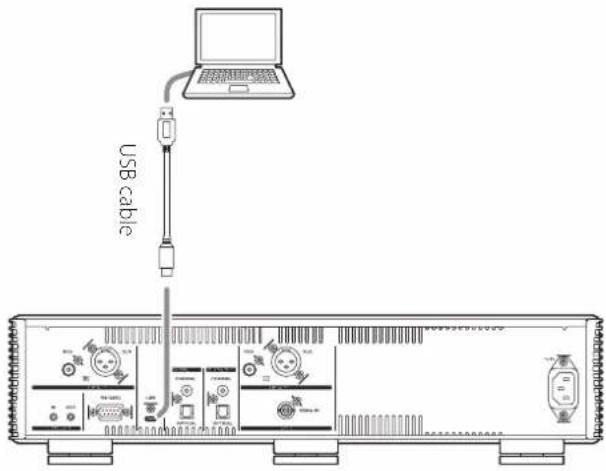

How to connect the player to a computer?

Use a USB Type-C cable between the USB port on the device and the computer. On Windows, first install the dedicated driver available for download on the TEAC website. On Mac, the standard driver is sufficient. Then select the USB source using the SOURCE button.

What to do if no sound comes out?

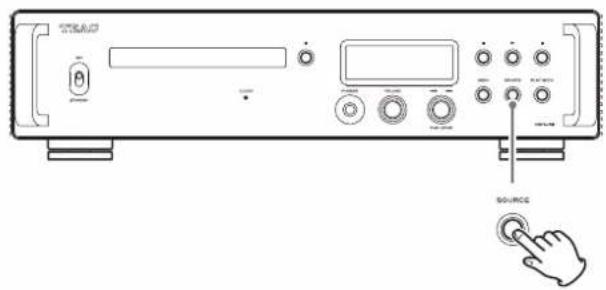

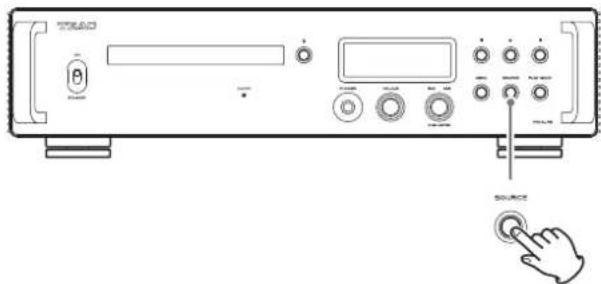

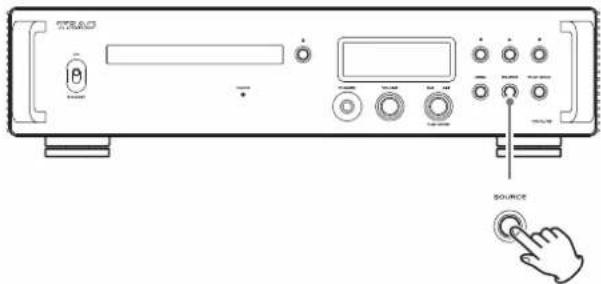

Check that the input source is correctly selected (SOURCE button). Make sure the volume is not at minimum and that MUTE mode is not activated. For analog output, press OUTPUT to choose the active jacks. Also check the connections and that the amplifier is turned on.

How to clean the device?

Unplug the power cord. Use a soft cloth slightly dampened with diluted neutral detergent. Never use chemical products, thinners, or impregnated wipes.

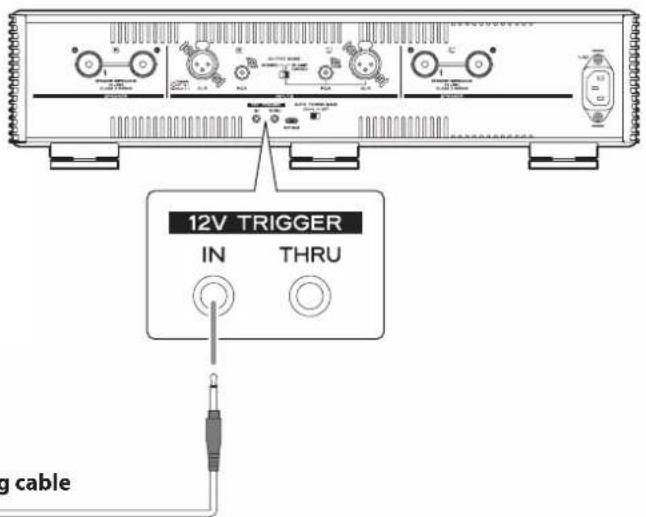

How to use the trigger function?

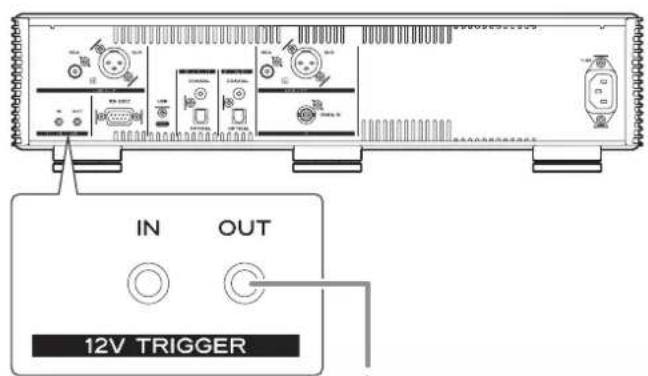

Connect a compatible preamplifier or amplifier via the 12V TRIGGER jacks using a mono mini-jack cable. The OUT jack sends a 12V signal when the unit is turned on, synchronizing the other device. The IN jack allows controlling the standby of the VRDS701T from another device.

What does the flashing CLOCK indicator mean?

The indicator flashes when no 10 MHz clock signal is received or synchronization is not established. Check the connections on the CLOCK (10MHz IN) jack and the settings of the connected device. If you are not using an external clock, set CLOCK SYNC to OFF in the menu.

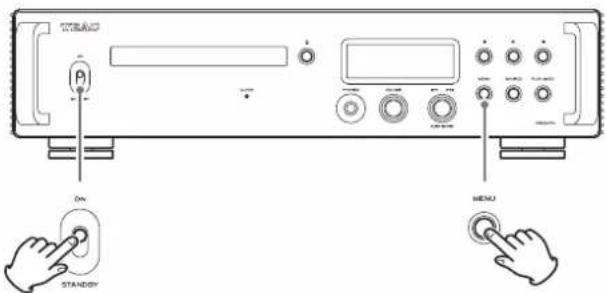

How to reset the device to factory settings?

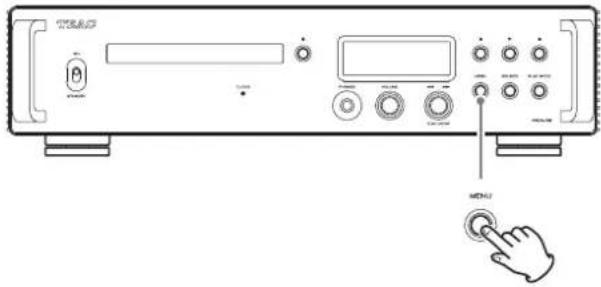

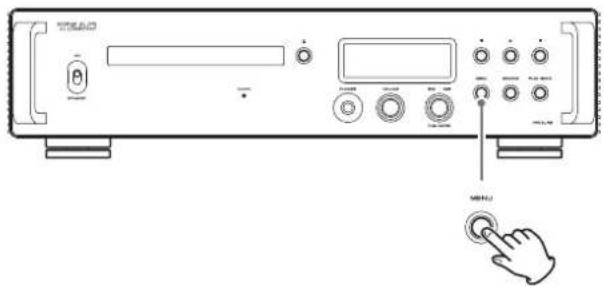

Hold down the MENU button while switching the STANDBY/ON switch to ON. When FACTORY RESET is displayed, release MENU, then press the skip button (|◄◄|). Wait until the normal screen reappears without turning off the power.

What audio formats are supported via USB?

The USB input accepts linear PCM up to 384 kHz/24-bit and DSD up to 22.5 MHz (native or DoP mode). DSD data requires a dedicated driver and compatible software like the TEAC HR Audio Player.

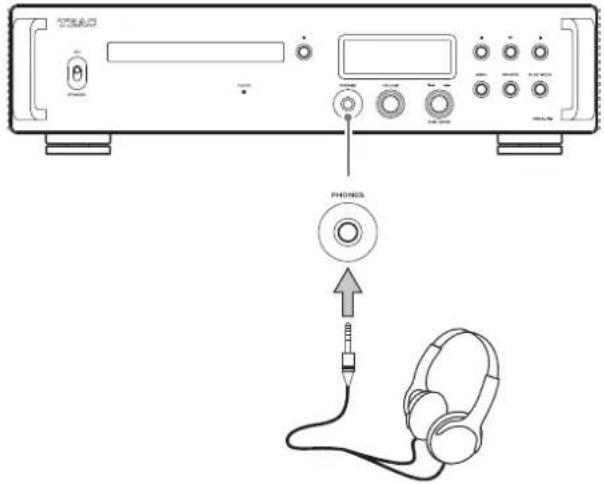

Can I use headphones with the VRDS701T?

Yes, plug headphones with a standard 6.35 mm stereo jack into the PHONES jack on the front. Set the volume to minimum before putting on the headphones, then increase gradually. The headphone output delivers up to 500 mW per channel into 32 Ω.

How to program a custom playlist?

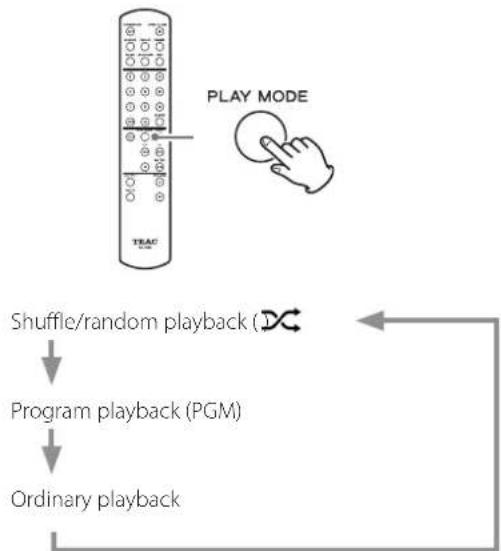

Press PLAY MODE repeatedly until PGM appears at the top of the screen. Use the numeric keys to enter track numbers in the desired order. Press ▶ to start programmed playback. To clear a track, use CLEAR while stopped.

USER MANUAL VRDS701T TEAC

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

●DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
- IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
- USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

●The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
- The mains plug is used as the disconnect device; the disconnect device shall remain readily operable.
●Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

CAUTION

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• The handle-like parts on the left and right sides of the front panel are decorative. Do not put your fingers through them or use them to carry the unit.
• Do not install this apparatus in a confined space such as a book case or similar unit.
  ●The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

WARNING

Products with Class I construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

IN USA/CANADA, USE ONLY ON 120V SUPPLY.

Precautions concerning batteries

Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of nearby things. Please read and observe the following precautions carefully.

• Be sure to insert the batteries with correct positive (⊕) and negative (⊖) orientations.
• Use batteries of the same type. Never use different types of batteries together.
• If the remote control is not used for a long time (more than a month), remove the batteries to prevent them from leaking.
• If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones.
• Do not use batteries of types other than those specified. Do not mix new batteries with old ones or use different types of batteries together.
• Do not heat or disassemble batteries. Never throw batteries into fire or water.
• Do not carry or store batteries with other metallic objects. The batteries could short circuit, leak or explode.
• Never recharge a battery unless it is confirmed to be a rechargeable type.
• Do not expose batteries to extremely low air pressure as it could result in an explosion or leakage of flammable liquids or gases.

Laser information

This laser product is a consumer laser product according to EN 50689:2021 and complies with all consumer laser product requirements except child appealing products.

This product contains a laser system and is classified as a CLASS 1 LASER PRODUCT according to IEC 60825-1:2014. This class does not require special attention in normal use. Do not take apart to prevent being exposed to the laser beam.

Laser:

Type: EP-C101

Manufacturer: EVER BRIGHT ELECTRIC SCIENCE &

TECHNOLOGY(BEIHAI)LTD.

Laser output: 0.7 mW on the objective lens

Wavelength: 790 ±25 nm

Model for USA

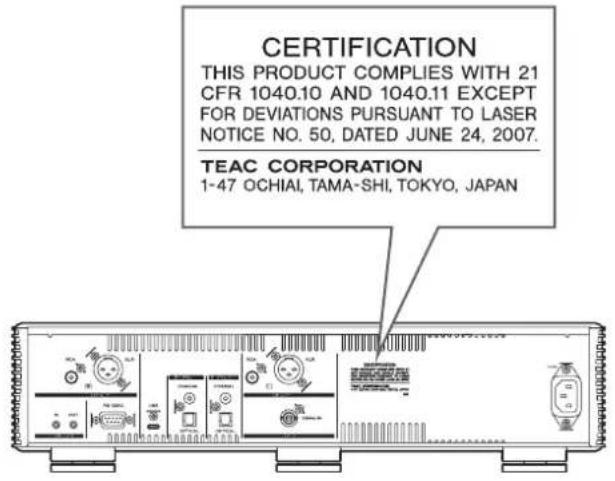

This product has been designed and manufactured according to FDA regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968", and is classified as class I laser product. There is not hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective housings.

The label required in this regulation is as follows:

Model for USA

Supplier's Declaration of Conformity

Model number: VRDS-701

Trade name: TEAC

Responsible party: 11 Trading Company, LLC

Address: 3502 Woodview Trace #200 Indianapolis, IN 46268 U.S.A. URL: https://11tradingcompany.com/contact-us/

This device complies with Part.15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Model for Canada

Innovation, Science and Economic Development Canada's

Compliance Statement:

This Class B digital apparatus complies with Canadian ICES-003.

Model for Europe

This product complies with the European Directives request, and the other Commission Regulations.

Model for UK

This product complies with the applicable UK regulations.

For European Customers

Disposal of electrical and electronic equipment and batteries and/or accumulators

a) All electrical/electronic equipment and waste batteries/accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
d) The Waste Electrical and Electronic Equipment (WEEE) symbols, which show wheeled bins that have been crossed out, indicate that electrical/electronic equipment and batteries/accumulators must be collected and disposed of separately from household waste.
If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC, 2013/56/EU), then the chemical symbols for those elements will be indicated beneath the WEEE
c) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical/electronic equipment and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment.

MQA and the Sound Wave Device are registered trademarks of MQA Limited © 2016

"DSD" is a registered trademark.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac, OS X and macOS are trademarks of Apple Inc., registered in the U.S. and other countries.

Bulk Pet is a registered trademark of INTERFACE CO., LTD.

Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

Contents Floating mounting of the CD

mechanism

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit.

After reading it, keep it in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS 2

Floating mounting of the CD mechanism....5

Discs....6

Included accessories....7

Using the TEAC International Site 7

Before use....7

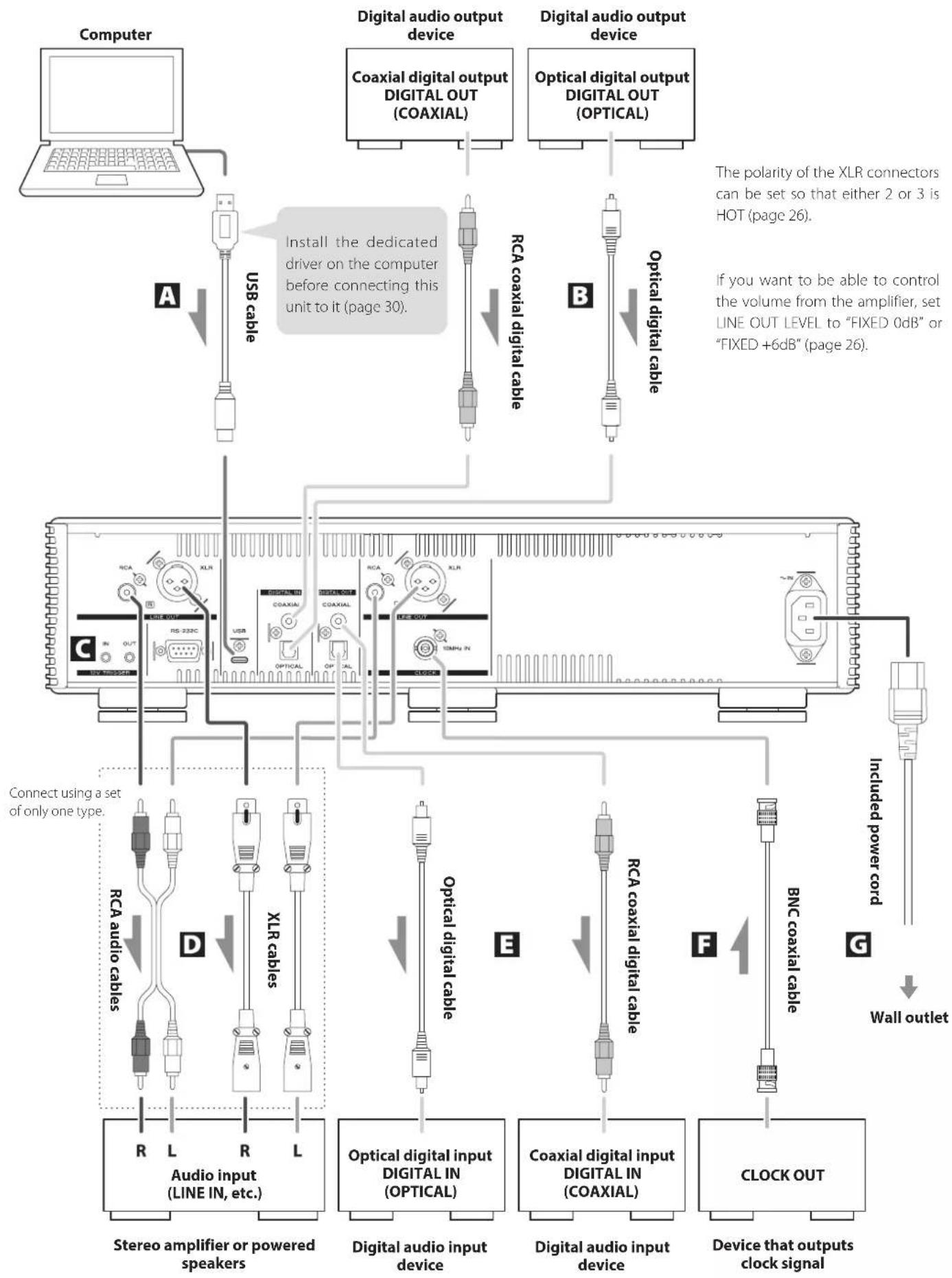

Connections (back) 8

Connections (front)....11

Using the remote control....11

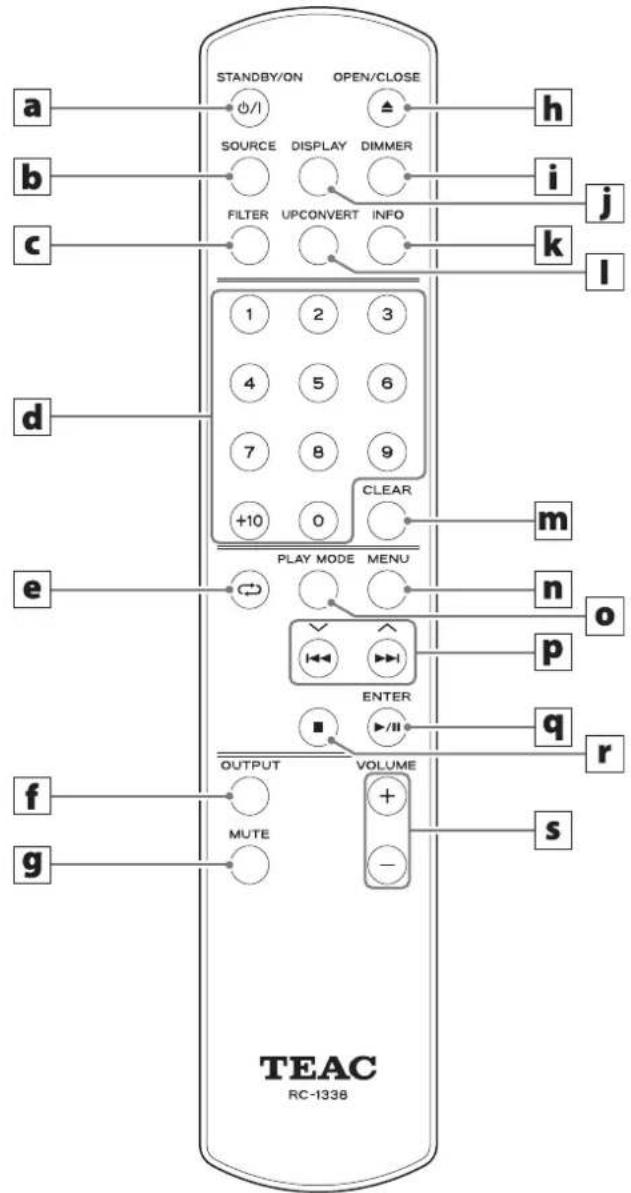

Remote control parts and functions....12

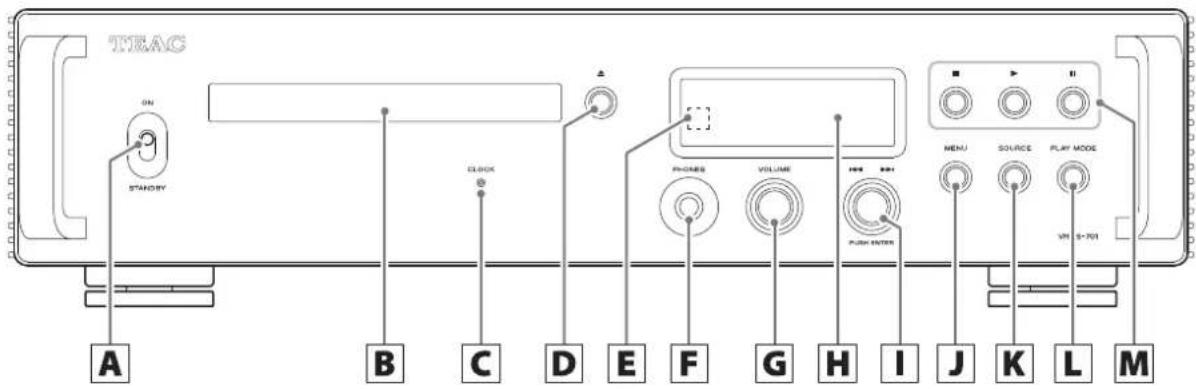

Main unit parts and functions....14

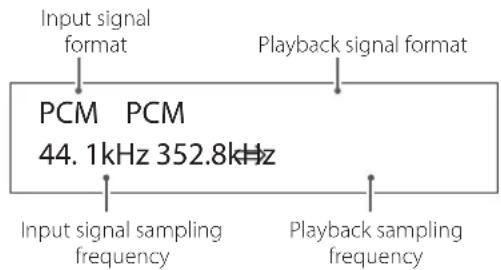

Upconversion 15

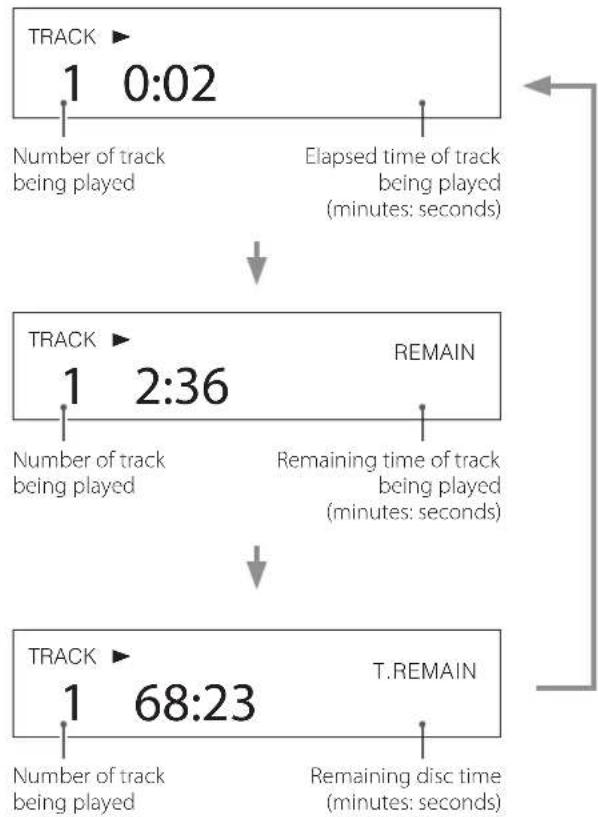

Display....16

Basic operation....18

Listening to CDs....19

Settings 24

Playing back music on a computer....30

MQA (Master Quality Authenticated)....32

Maintenance....32

Troubleshooting....32

Specifications....34

Block diagram 36

In order to enhance the audio quality, the entire CD mechanism employs a floating structure so it is not fixed to the chassis of the unit. The entire mechanism, including the tray, can move slightly forward, backward, left and right. This is by design and no cause for concern.

Types of discs that can be played by this unit

CDs with the "COMPACT disc DIGITAL AUDIO" logo

CD-R and CD-RW discs that have been properly recorded and finalized using the audio CD format.

8cm CDs are not supported.

Adapters cannot be used.

If you try to play any other type of disc with this unit, loud noises that could damage speakers or harm hearing might occur. Never try to play any type of disc other than those shown above.

- This unit might not be able to properly play Copy Control CDs, Dual Discs or other special CDs that do not conform to the Red Book CD standard. Operation and sound quality cannot be guaranteed when special discs are used in this unit. If playback of a special disc should cause trouble, contact the seller of the disc.

CD-R/CD-RW discs

This unit can play CD-R/CD-RW discs that are in audio CD format (CD-DA).

- Be sure to finalize discs created by CD recorders.

- Depending on the quality of the disc and the condition of the recording, playback might not be possible. For details, see the operation manual for the device you are using.

- If you have any questions about how to handle a CD-R or CD-RW disc, contact the seller of the disc directly.

Precautions for use

- Do not use cracked discs because they could damage the unit.

- When writing something on the label side of a disc, use a felt tip permanent marker. The use of a ballpoint pen or other pen with a hard tip could damage the disc, making it unplayable.

- Never use commercially-available CD stabilizers. Doing so could make the disc unplayable or damage the unit.

- Never use discs with irregular shapes, including heart-shaped and octagonal discs, because they could damage the unit.

Four-panel diagram showing a heart-shaped shape with two crossed-out circles, each divided into four quadrants (no text or symbols)

- If a CD-R/CD-RW disc that has a printable label surface is left in this unit for a long time, it could stick to the inside and become extremely difficult to remove and possibly even cause the unit to malfunction.

Always remove such discs and store them in cases when not in use. Moreover, avoid using discs that have just been printed because they are especially prone to sticking.

Handling discs

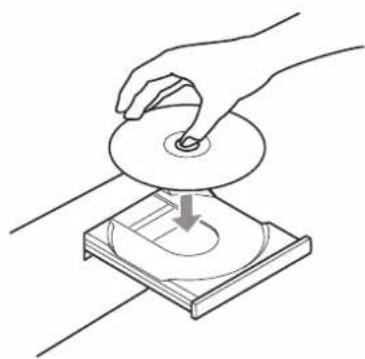

●Always load discs with their labeled sides up.
- Be careful when handling discs. If the side that contains the data (unlabeled side) is scratched, smudged with fingerprints or otherwise dirty or marred, errors could occur during playback.
- To remove a disc from its case, while pressing down on the center of the case, hold the disc by its edges.

Removing discs Holding discs

Storing discs

• Discs should be stored in their cases when not being used. Failure to do so could result in warping and scratches.
• Do not leave discs in places that are exposed to direct sunlight or that are very humid or hot. Doing so could cause discs to become deformed or degraded, making them unplayable.
• CD-R and CD-RW discs are more susceptible to the impacts of heat and ultraviolet rays than ordinary CDs. For this reason, do not leave them for long times in places that are exposed to direct sunlight or near devices that generate heat, for example.
  ● Always clean discs before storing them. Leaving a disc in an unclean state might result in skipping or degraded sound quality.

Maintenance

- If the side of the disc that has the data encoded on it (unlabeled side) becomes dirty with fingerprints or dust, use a soft cloth to wipe the surface from the center directly toward the edge.

- Never use record cleaners, antistatic treatments, thinners or similar chemicals to clean discs. Such chemicals could harm the surface of the disc.

Check to be sure the box includes all the supplied accessories shown below. Please contact the store where you purchased this unit if any of these accessories are missing or have been damaged during transportation.

Power cord × 1

Remote control (RC-1338) × 1

Batteries for remote control (AAA) × 2

Foot pads × 3

Owner's manual (this document, including warranty) × 1

- For information about the warranty, users living in the USA and Canada should see pages 110–111 and the back cover (warranty document). Users living in Europe and other regions should see page 111.

Using the TEAC International Site

You can download updates for this unit from the TEAC International Site:

Click Language at the top right of the page and select the desired country or region to access a page in the corresponding language.

• This equipment is very heavy, so take care to avoid injury when opening the packaging and when moving it.
• The handle-like parts on the left and right sides of the front panel are decorative. Do not put your fingers through them or use them to carry the unit.
• Do not install this unit in a location that could become hot. This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place it on top of an amplifier or other equipment that generates heat. Doing so could cause discoloration, deformation or malfunction.
• Avoid locations that are subject to vibrations or exposed to excessive dust, cold or moisture.
• When installing this unit, leave a little space (at least 3 cm or 1") between it and walls and other devices in order to allow good heat dissipation.

If you put it in a rack, for example, leave at least 5 cm (2") open above and 10 cm (4") open behind it. Failure to provide these gaps could cause heat to build up inside and result in fire.

• Place the unit in a stable location.

• Do not place anything on top of the unit.

• Do not lift or move the unit during playback because the disc rotates at high speed. Doing so could damage the disc.

• Always remove any loaded disc before moving this unit or packing it for installation in a different location, for example. Moving the unit with a disc inside could cause damage.

●The voltage supplied to the unit should match the voltage printed on the back of the unit. If you are in any doubt regarding this matter, consult an electrician.

• Do not open the body of the unit as this might result in damage to the circuitry or cause electric shock. If a foreign object should get into the unit, contact your dealer.
• When removing the power plug from the wall outlet, always pull directly on the plug; never yank on the cord.

Note about pinpoint feet

High-precision metal pinpoint feet are attached to the bottom plate of this unit.

The pinpoint feet and their stands are loose, but when the unit is placed in position, it is supported by these pinpoint feet, which effectively disperse vibrations.

Foot-stand (metal)
Screws that attach foot-stand

●The included foot pads are intended to protect the surface where the unit is placed. Apply them to the bottoms of the foot-stands to avoid scratching the surface where the unit is placed.

A USB port

Use this to input digital audio from a computer. Connect it to a computer's USB port.

Use a commercially available USB Type-C cable for connection.

ATTENTION

Before connecting a computer that is running a Windows OS, you must install the dedicated driver on the computer (page 30).

B COAXIAL/OPTICAL digital audio input connectors

Use these to input digital audio. Connect digital audio output connectors of audio devices here.

Use commercially-available RCA coaxial digital cables or rectangular optical digital cables for connection.

C 12V TRIGGER connectors

Use these to control power from an external source.

Do not connect anything to these connectors when not using them (page 10).

Use commercially-available mono mini plug cables for connections.

D Analog audio output (LINE OUT) connectors

These output 2-channel analog audio. Connect these XLR or RCA connectors to a stereo amplifier or powered speakers.

Use commercially available cables for connections.

XLR: XLR cables

RCA: RCA audio cables

Connect this unit's R connector to the R connector of the amplifier and its L connector to the L connector of the amplifier.

White (L) Red (R)

E COAXIAL/OPTICAL digital audio output connectors

Use these to output digital audio. Connect digital audio input connectors of audio devices here.

Use commercially-available RCA coaxial digital cables or rectangular optical digital cables for connection.

- When the input source is USB, no digital audio will be output.

F CLOCK sync input (10MHz IN) connector

Use this connector to input 10MHz clock synchronization signals (page 35).

Use a commercially available BNC coaxial cable for connection.

- When the input source is COAXIAL or OPTICAL, both this unit and the digital audio output device must be synchronized with the same external clock. If they are not synchronized, the sound might skip or break up.

G Power inlet (\~IN)

Connect the supplied power cord here.

After all other connections are complete, connect the power cord's plug to a wall outlet.

Do not use any power cord other than the one included with this unit. Use of other power cords could result in fire or electric shock.

Disconnect the power plug from the outlet if you will not use the unit for a long time.

Synchronizing external devices with power operations of this unit (trigger function)

The power of a connected preamp or another device that supports trigger functions can be synchronized with the power operations of this unit.

Use commercially-available mono mini plug cables for connections.

12V TRIGGER connectors

OUT

When this unit is turned on, it outputs 12 V.

By connecting this unit's TRIGGER OUT connector to a power amplifier, subwoofer or other device that supports trigger input, the power supply of that device can be synchronized with the power operations of this unit.

IN

Connect this to the trigger output connector of a preamp or other device.

This will make the power operation of that preamp or other device control this unit, putting it in standby and turning it on.

ATTENTION

• To use the trigger input function, set this unit's STANDBY/ON switch to ON.
• When connecting both IN and OUT, be careful not to cause a trigger loop in the entire system.

VRDS-701

Device that supports trigger input (e.g., AP-701 or power amplifier)

Complete all other connections before turning the unit on.

• Carefully read the manuals of the devices that you are connecting and follow their instructions when making connections.
• Do not bundle connecting cables with power cords. Doing so could cause noise.
• Connect all plugs completely.

Connecting headphones

CAUTION

While wearing headphones, do not connect or disconnect them or turn the unit on or off.

Doing so could result in a sudden loud noise that could harm your hearing.

Before putting headphones on, always set the volume to minimum (display should show "0" when set to "STEP (0-100)" or "-∞ dB" when set to "dB") (page 18).

Connect headphones with a standard 6.3mm (1/4") stereo plug here.

Precautions for use

Muse of batteries could cause them to rupture or leak, which might result in fire, injury or the staining of nearby materials. Please read and observe the precautions on page 3 carefully.

• When using the remote control, point it toward the remote control signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control.
  ●The remote control might not work if the remote control signal receiver on the unit is exposed to direct sunlight or bright light. If this occurs, try moving the unit.
• Beware that use of this remote control could cause the unintentional operation of other devices that can be controlled by infrared rays.

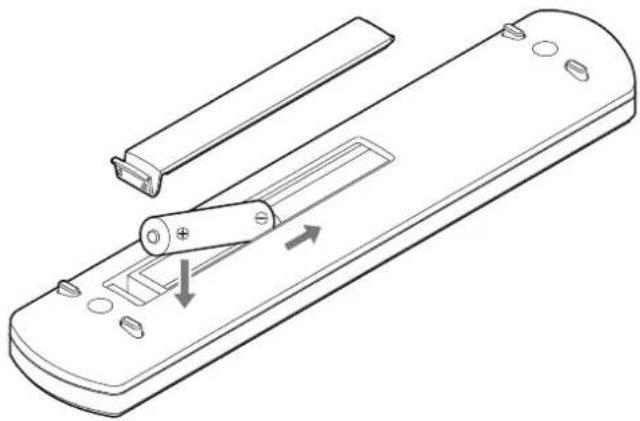

Installing batteries

Remove the cover from the back of the remote control and insert two AAA batteries with their / oriented as shown in the case. Replace the cover.

Line drawing of a remote control device with handle and scroll, showing internal components and directional arrows (no text or symbols)

When to replace batteries

If the distance required between the remote and the main unit decreases or if the main unit stops responding to the remote buttons, replace both batteries with new ones.

Dispose of the used batteries according to the instructions on them or requirements set by your local municipality.

When the main unit and the remote control both have buttons with the same functions, this manual explains how to use one of the buttons. The other corresponding button can be used in the same manner.

a STANDBY/ON button

Press this to put the unit into standby mode or turn it on.

b SOURCE button

Use this to select the playback source.

c FILTER button

Press this to change the DSD low-pass filter setting (page 28).

d Number buttons

Use these to select and program tracks, for example.

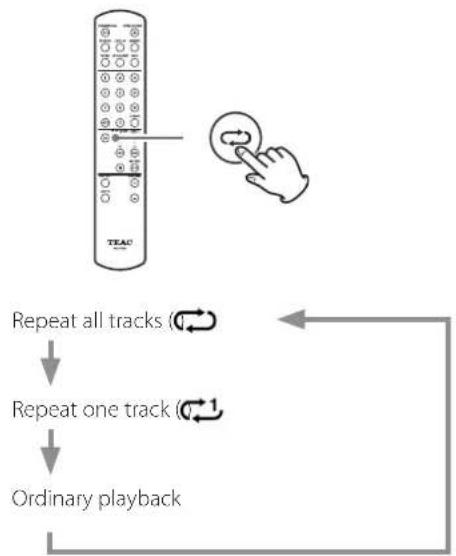

e Repeat ( ⇧ ) button

Use this to change the repeat playback setting (page 20).

f Analog OUTPUT selection button

Switch the output of analog audio between the analog audio output connectors and the headphone jack.

g MUTE button

Press this to minimize the volume.

h Tray OPEN/CLOSE (▲) button

Press this to open and close the disc tray.

i DIMMER button

Press this to adjust the brightness of the main unit's display.

j DISPLAY button

k INFO button

Press this to show information, including upconversion (page 17).

I UPCONVERT button

Press this to change the upconversion setting.

m CLEAR button

Use this to clear programmed tracks.

n MENU button

Press this to enter setting mode (page 24).

Press this when in setting mode to return to the previous screen.

o PLAY MODE button

Press this to switch between program and shuffle playback modes.

p Skip (|◀◀, ▶▶|) buttons/up/down (^, ∨) buttons

When input source set to CD

Use these to skip to the previous or next track.

Press and hold these buttons during playback to search backward/forward (page 20).

When the menu screen is open

Use these buttons to select setting values.

q Play/pause (▶ /II) button/ ENTER button

When input source set to CD

Press this when stopped or paused to start or resume playback.

Press this during playback to pause.

When the menu screen is open

Press this to start or confirm setting value selection.

r Stop (■) button

Press this during playback to stop playback.

s VOLUME (+, -) buttons

Use these to adjust the volume.

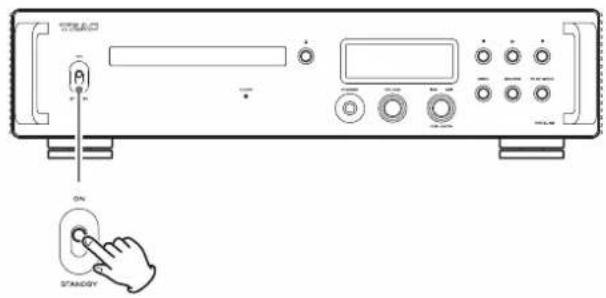

A STANDBY/ON switch

Use this to put the unit into standby mode or turn it on.

• If the display is off even though the STANDBY/ON switch is set to ON, the cause is usually one of the following.
  ●The power is on, but DIMMER (display brightness) is set to AUTO OFF (page 26).
• The automatic power saving function has activated, putting the unit into standby (page 27).
  ●The power cord is disconnected.
  ●The unit is in standby because of the trigger function (page 10).

To turn the unit on when the automatic power saving function has activated, putting the unit into standby, press the STANDBY/ON button on the remote control, or set the STANDBY/ON switch to STANDBY once and then back to ON.

B Disc tray

Load a disc here.

C CLOCK indicator

This shows the clock synchronization status.

Lit: The unit is currently synchronized with the clock from the CLOCK sync input (10MHz IN) connector.

Blinking: No clock is being input, or the unit is trying to syn- chronize with the clock signal.

Unlit: External clock is not being used.

- See page 26 for clock sync settings.

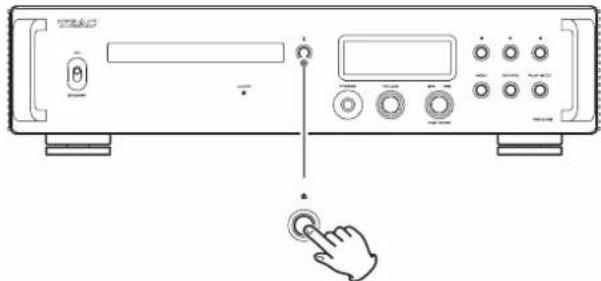

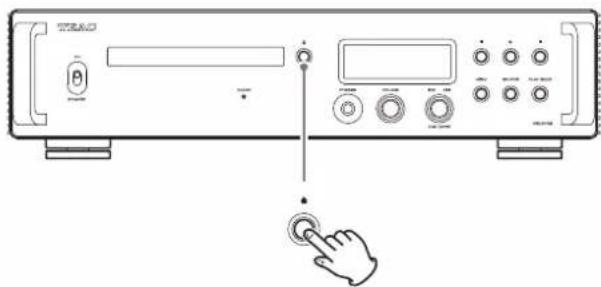

D Tray open/close (▲) button

Press this to open and close the disc tray.

E Remote control signal receiver

This receives signals from the remote control. When operating the remote control, point it at the remote control signal receiver.

F PHONES jack

Connect headphones (with a standard 6.3mm (1/4") stereo plug) here (page 11).

G VOLUME knob

Use this to adjust the volume. Turn it right to increase and left to decrease the volume.

• To enable adjustment of this unit's analog audio output volume, set LINE OUT LEVEL to VARIABLE (page 26). This will enable adjustment of the analog output level using this unit's VOLUME knob.
  ●Volume settings are retained separately for analog audio output and headphone output.

H Display

This display shows information about the audio playing back and menu screens.

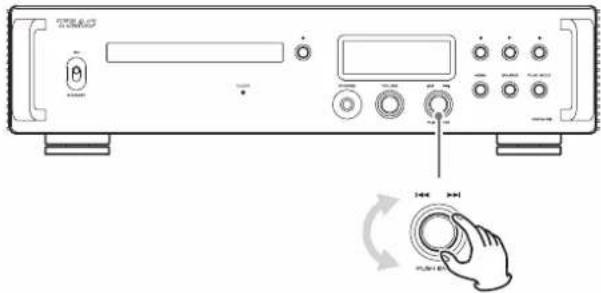

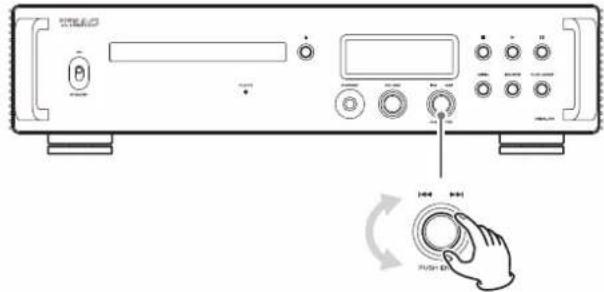

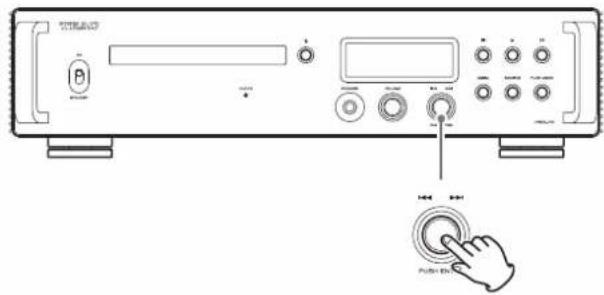

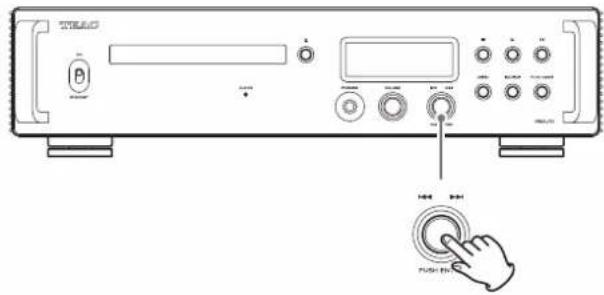

I Skip knob (|◄◄/►►)

When input source set to CD

Use this to skip to the previous or next track (page 20).

When the menu screen is open

Use this to select setting values.

Press this to start or confirm setting value selection.

J MENU button

Press this to enter setting mode (page 24).

Press this when in setting mode to return to the previous screen.

K SOURCE button

Use this to select the active input.

L PLAY MODE button

Use this to switch between the ordinary, shuffle/random and program playback modes.

M Playback control buttons

Use these to control playback when the input source is set to CD.

Stop (■) button

Press this to stop CD playback.

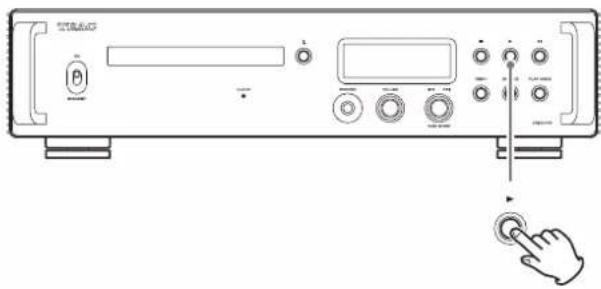

Play (▶) button

Press this when stopped or paused to start playback.

Pause (Ⅲ) button

Press this during playback to pause.

Automatic power saving function

This unit has an automatic power saving function (page 27). By default, the setting is ON.

The unit will automatically enter standby mode if no audio is output and no operation is conducted for about 30 minutes.

Set the automatic power saving function to OFF to disable it (page 27).

Display brightness

You can adjust the brightness of the unit's display (page 26).

By default, the setting is Slightly BRIGHT (Stays lit dimly).

When set to AUTO OFF (automatic illumination off), the display turns off when not being operated.

●NO DISC and other warnings will stay lit.

The upconversion function can be used with input sources (page 25).

The relationships between input sampling frequencies and sampling frequencies after upconversion are as follows.

Input source Upconversion setting
Digital audio input	USB OFF 2× Fs 4× Fs 8× Fs
Input sampling frequency		Sampling frequency after upconversion
[kHz] [kHz]
32 – 32	64 128	256
44.1	44.1	44.1	88.2 176.4	352.8
88.2	88.2	88.2	88.2 176.4	352.8
176.4	176.4	176.4 176.4		352.8
-	352.8	352.8 352.8		352.8 352.8
48	48	48 96 192		384
96	96	96 96 192		384
192	192	192	192	192	384
-	384	384	384	384	384

These values are not converted.

●The maximum upconversion is 8× Fs.

- Upconversion is not possible when the input is DSD.

When on

TEAC

After the display appears as above, it will show the input source status.

Playback source screen (when CD)

When no disc is available

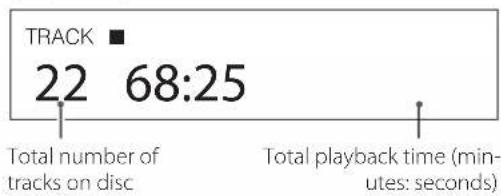

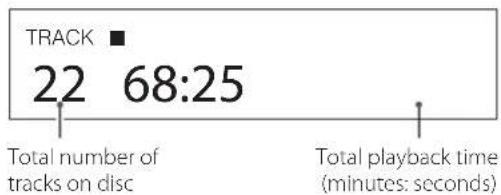

Display example: stopped

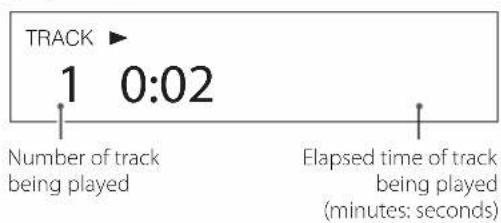

Display example: playing back

When a disc is playing or paused, press the DISPLAY button to change the display as follows.


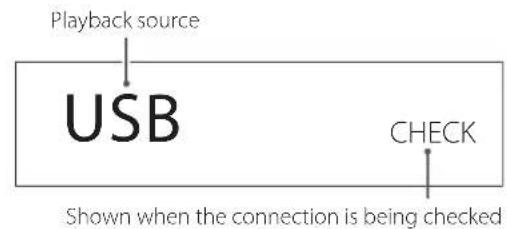

Playback source screen (when not CD)

The playback source screen will appear after turning the unit on as well as after about seven seconds pass without operation when a setting screen is open.

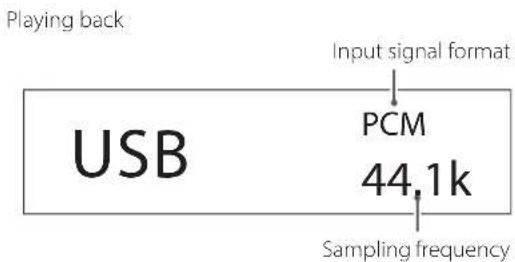

The input signal format or volume is shown to the right of the playback source. Press the DISPLAY button on the remote control to change what is shown.

Display examples

Playback source information screen Stopped

Press the DISPLAY button on the remote control. Volume display

Playback source name

The name of the selected source is shown.

The names on the display correspond to the selected connectors as follows.

The names in parentheses appear when switching.

USB (USB)

USB port

COAX (COAXIAL)

RCA COAXIAL digital audio input connector

OPT (OPTICAL)

OPTICAL digital audio input connector

Input signal status

The input source signal status is shown.

CHECK

The connection is being checked.

PCM 32kHz

PCM 44.1kHz

PCM 48kHz

PCM 88.2kHz

PCM 96kHz

PCM 128kHz

PCM 176.4kHz

PCM 192kHz

PCM 256kHz

PCM 352.8kHz

PCM 384kHz

DSD 2.8MHz

DSD 5.6MHz

DSD 11.2MHz

DSD 22.5MHz

These show the input signal type and sampling frequency.

Playback format information screen

Press the INFO button on the remote control during playback to show playback format information.

- The input signal and playback signal displays will be the same when the upconversion setting is "OFF".

Example when the playback source is USB, COAX or OPT ("8× Fs" upconversion setting)

Volume display

Two types of volume can be shown: STEP and dB.

This is set by the VOLUME TYPE setting (page 27).

The volume setting shown will be enlarged when you turn this unit's VOLUME knob.

VOLUME TYPE set to "STEP (0-100)"

Display example

VOL. 36

The maximum volume level is 100 and the minimum level is 0. Before connecting headphones, set the VOLUME knob to its minimum value (0). Failure to do so might cause sudden loud noises, which could damage headphones, harm hearing or result in other trouble.

VOLUME TYPE set to "dB"

Display example

VOL. -62.0dB

The maximum volume level is +24 dB and the minimum level is - dB (negative infinity). Before connecting headphones, set the VOLUME knob to its minimum value ( - dB). Failure to do so might cause sudden loud noises, which could damage headphones, harm hearing or result in other trouble.

The set output level is shown when LINE OUT LEVEL is set to "FIXED 0dB" or "FIXED +6dB".

Example when VOLUME TYPE set to "dB"

USB + 0.0dB

- If VOLUME TYPE is set to "STEP (0-100)", "VOL. 86" will be shown when set to "FIXED 0dB" and "VOL. 90" will be shown when set to "FIXED +6dB".

When LINE OUT LEVEL is set to "OFF", "VOL. 0" or "-∞ dB" will be shown.

Example when VOLUME TYPE set to "dB"

USB - ∞ dB

When LINE OUT LEVEL is set to FIXED or OFF

Turning the VOLUME knob will cause the following to be displayed.

LINE OUT LEVEL set to FIXED

VOL. FIXED

LINE OUT LEVEL set to OFF

VOL. OFF

1 Shift the STANDBY/ON switch to its ON position to turn the unit on.

- If a stereo amplifier is connected to this unit, always turn the amplifier on very last.

2 Minimize the volume.

Minimize the volume on devices used to control the volume (this unit, the stereo amplifier or other equipment connected to this unit).

3 Press the SOURCE button to select the input source.

The selected source appears on the display.

• You can also use the SOURCE button on the remote control.
• If the input signal is not a digital audio signal or is an audio signal format that is not supported by this unit, such as Dolby Digital or DTS, no audio will be output. Set the digital output of the connected device to PCM audio output.
• To play back audio files when this unit is set to USB, you must first install a dedicated driver on the computer before connecting them (page 30).
  ●DSD data can only be played back when the input source is USB or when using DoP format digital input.

4 Operate the playback device.

Refer to the operation manual of that device.

5 Adjust the volume.

When using the analog audio outputs

When LINE OUT LEVEL is set to VARIABLE, turn this unit's VOLUME knob to adjust the volume.

When LINE OUT LEVEL is set to any other setting, the volume cannot be adjusted from this unit. Use the stereo amplifier or other device connected to this unit to adjust the volume.

When headphones are connected to this unit

Turn this unit's VOLUME knob to adjust the volume.

- When this unit's VOLUME knob is enabled, the volume setting will be shown.

NOTE

●The automatic power saving function is set to ON when shipped new from the factory (page 27).
- When DIMMER (display brightness) is set to AUTO OFF, the display will turn off when not being operated (page 26).

1 Press the SOURCE button to select CD.

Line drawing of a CD-ROM front panel with buttons and a finger pointing to the button (no text or symbols present)

●You can also use the SOURCE button on the remote control.

2 Press the tray open/close (▲) button.

Line drawing of a CD-ROM front panel with control buttons and a finger pressing the button (no text or symbols)

3 Place a disc on the tray with the labeled side up.

Line drawing of a hand using a CD to press down a circular component on a base (no text or symbols)

- Do not put more than one disc onto the tray at a time.

- If the tray is closed while a disc is outside the center guides, the disc might become stuck inside and the tray might not open. Be sure to always place discs within the guides at the center of the tray.

- When the tray is opening or closing, do not force it by hand.

4 Press the tray open/close (▲) button to close it.

Line drawing of a CD-ROM front panel with control buttons and a finger pressing a button (no text or symbols)

CAUTION

Be careful not to let your fingers be pinched when the tray closes.

"READING" will appear on the display and the unit will start loading the disc.

●The unit takes some time to load the disc.

Wait until the total number of tracks and total playback time appear on the display.

When loading completes, the display will appear as follows.

Display example

• When POWER ON PLAY is ON, playback will start immediately after the unit is turned on (page 28).
  ●"NO DISC" appears if no disc has been loaded.
• "No support" appears if a disc that cannot be played is loaded.

5 Press the play (▶) button.

Line drawing of a CD-ROM front panel with buttons and a finger pointing to the button (no text or symbols present)

Playback starts from the first track.

Display example

Skipping to search for a track

Turn the skip (I◄◄/►►) knob. Use it to skip to the previous or next track. Keep turning until the desired track is selected.

After a track is selected, it will start playing back from the beginning.

- During playback, turn the skip knob one click to return to the beginning of the current track. Turn the skip knob continuously to select and play lower-numbered tracks.

Searching for part of a track

During playback, press and hold a skip (I◄◄/►►I) button on the remote control to search backward/forward. Release the skip (I◄◄/►►I) button when you find the part to which you want to listen.

Repeat playback

Press the repeat (↔) button to cycle through repeat modes as follows.

Shuffle/random playback

To switch to shuffle/random playback, press the PLAY MODE button repeatedly until appears at the top right of the display.

Shuffle or random playback will occur according to the setting (page 28).

- Random playback will not stop until the stop (■) button is pressed.

- When random playback is active, the repeat playback setting has no effect.

Using the number buttons to select a track for playback

When playing or stopped, press number buttons to select a track by number and start playback from that track.

To play a track with a single-digit number, press that number button. To play a double-digit track number, press the +10 button as many times as necessary, and then press the corresponding number button for the second digit. Playback starts after the track number is input.

Operation examples

Track 7:

Track 23:

Program playback

Program playback is only possible with audio CDs.

Using program playback

1 Press the PLAY MODE button repeatedly until PGM appears at the top right of the display.

TRACK

PGM

9 25:48

- If PGM is selected during playback, the playing track will be added as program step 1.

NOTE

Programming is possible even when the tray is open. In this case, track numbers 1 - 99 can be programmed. After a CD is loaded, however, track numbers that are not on the CD will be removed.

2 Use the number buttons to input track numbers.

See "Using the number buttons to select a track for playback" for instructions about inputting tracking numbers.

Display example

P01

TRACK

PGM

5 P01 4:04

3 Continue to input the numbers for the tracks you want to program.
4 Press the play/pause (▶ /II) button on the remote control or the play (▶) button on the unit to start program playback.
- Skipping, searching and repeat playback functions can be used during program playback.

NOTE

When "PGM" appears at the top right of the display, what happens when number buttons are used to input track numbers depends on the PROGRAM PLAY setting (page 28).

Checking the program order

Press the skip (1◄◄/►►1) buttons when playback is stopped to change the program step shown, allowing the program order to be checked.

Press the stop (■) button when finished checking.

Changing programmed tracks

Pressing the skip (1◄◄/►►I) buttons when playback is stopped causes the program step to blink, showing the program editing mode is active.

Press the stop (■) button to end program editing mode.

Inserting tracks

1 Use the skip (|◀◀/▶▶|) buttons when play-back is stopped to show the program step where you want to insert a track.

Display example

Program step blinks

2 Use the number buttons to input track numbers.

Display example

• In this example, track number 6 has been added at program step 3. The tracks on all the following program steps will be pushed to later steps.
• Continue inputting track numbers to insert multiple tracks.

3 Press the stop (■) button to end editing.

Clearing selected tracks

1 Use the skip (|◀◀/▶▶|) buttons when play-back is stopped to show the program step with the track you want to clear.

Display example

2 Press the CLEAR button to remove the track from the program.

Display example

- In this example, track number 6 has been cleared at program step 2, bringing tracks at step 3 and later forward.

3 Press the stop (■) button to end editing.

NOTE

Pressing the CLEAR button when stopped will clear the track on the last step added to the program.

Clearing the entire program

Do any of the following to clear the program.

• Press the PLAY MODE button so that "PGM" disappears from the top right of the display.
• Eject a disc.

1 Press the MENU button to open the menu screen.

2 Turn the skip knob (|◄◄/►►|) to show the item that you want to set.

- You can also use the up and down ( , ) buttons on the remote control.

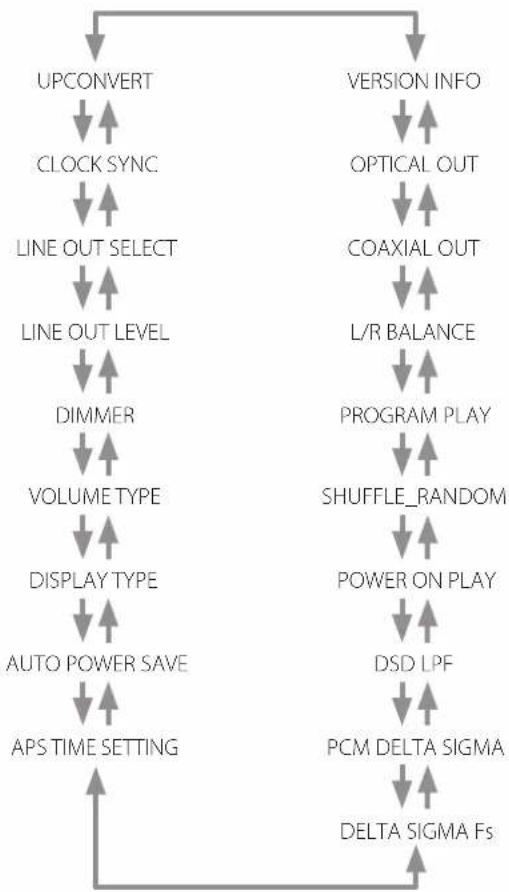

The menu items appear in the following order.

3 Press the skip knob (|◀◀/▶▶|).

- You can also press the ENTER button on the remote control. - The currently set value is shown on the display.

4 Turn the skip knob (|◀◀/▶▶|) to change setting values.

- You can also use the up and down ( , ) buttons on the remote control. - Press the MENU button to return to setting item selection.

5 Press the skip knob (|◀◀/▶▶|).

- You can also press the ENTER button on the remote control.

6 When you are done changing settings, press the MENU button to show the input source status again.

- If you do not do anything for about seven seconds, the display will return to showing the input source status.

Upconversion

Use this to set use of the upconversion circuit when receiving PCM signals.

- See page 15 for the relationships between input sampling frequencies and sampling frequencies after upconversion.

OFF

The input signal is sent as is to the D/A converter without being upconverted.

2× Fs

If the input audio signal is less than 2× a standard sampling frequency, it is upconverted 2× and then sent to the D/A converter.

4× Fs

If the input audio signal is less than 4× a standard sampling frequency, it is upconverted 4× and then sent to the D/A converter.

8× Fs

If the input audio signal is less than 8× a standard sampling frequency, it is upconverted 8× and then sent to the D/A converter.

NOTE

This can be set directly with the remote control UPCONVERT button.

Clock sync

MENU

CLOCK SYNC

OFF

OFF

No clock sync is used.

ON

This unit's master clock will be synchronized to the 10MHz clock input through the CLOCK sync input (10MHz IN) connector.

- When the input source is COAXIAL or OPTICAL, both this unit and the digital audio output device must be synchronized with the same external clock. If they are not synchronized, the sound might skip or break up.

Line output selection

Use this to select which connectors output analog audio.

MENU

LINE OUT SELECT

RCA

RCA

Analog audio signals are output through the RCA connectors.

PIN 2 HOT

Analog audio signals are output through the XLR connectors with 2: HOT polarity.

PIN 3 HOT

Analog audio signals are output through the XLR connectors with 3: HOT polarity.

Line output level

Use this to set the audio level output from the analog audio output (LINE OUT) connectors.

MENU

LINE OUT LEVEL

VARIABLE

FIXED 0dB

A maximum of 2 Vrms is output. Select this if you want to adjust the volume using an amplifier.

FIXED +6dB

A maximum of 4 Vrms is output. Select this if you want to adjust the volume using an amplifier.

- If the sound distorts, set this to FIXED 0dB.

VARIABLE

This will enable adjustment of the analog output level using this unit's VOLUME knob. Select this if you want to adjust the volume using this unit.

OFF

No sound is ever output.

Display brightness

MENU

DIMMER

Slightly BRIGHT

BRIGHT

Stays lit brightly.

Slightly BRIGHT

Stays lit dimly.

DARK

Stays dark.

AUTO OFF

Turns off automatically.

●The display turns off when not being operated.

NOTE

This can be set directly with the remote control DIMMER button.

Volume display

This sets how the volume is shown.

STEP (0-100)

This shows the volume in steps from 0 (minimum) to 100 (maximum).

dB

This shows the volume in decibels (dB).

Screen indication

Select the information shown to the right of the playback source.

VOLUME

The volume is shown.

SAMPLING FREQ.

Information about the playback source is shown.

NOTE

This can be set directly with the remote control DISPLAY button.

Automatic power saving function

This unit has an automatic power saving function.

●The automatic power saving function is ON when the unit is shipped new from the factory.

OFF

The automatic power saving function is disabled.

ON

The unit will automatically enter standby mode if no audio is output and no operation is conducted for about 30 minutes.

●The automatic power saving time setting can be used to change the amount of time until the unit enters standby mode.

Automatic power saving time setting

This sets the amount of time until the automatic power saving function causes the unit to enter standby.

This can be set in a range from 1–255 minutes in 1-minute increments (30 minutes by default).

PCM signal D/A conversion

DELTA SIGMA Fs

This sets the modulator sampling frequency.

Select the sound setting you prefer.

128×Fs

256×Fs

512×Fs

PCM DELTA SIGMA

This sets the modulator output format.

Select the sound setting you prefer.

MULTI BIT

This outputs using multi level.

DSD (1 BIT)

This outputs using DSD format.

DSD low-pass filter

Select the sound setting you prefer.

OFF

The low pass filter is disabled.

FIR 1

FIR low pass filter type 1

FIR 2

FIR low pass filter type 2

- FIR 1 and FIR 2 settings are only effective during DSD input and/or when PCM DELTA SIGMA is set to DSD (1 BIT).

Power on playback function

Playback can start automatically when the unit is turned on if the input source is set to CD.

OFF

Playback will not start automatically when the unit is turned on.

ON

Playback will start automatically when the unit is turned on.

Shuffle and random playback

Shuffle and random playback modes can be selected.

SHUFFLE PLAY

This plays each track on the disc once.

- Unless repeat has also been set, playback will stop after all tracks on the disc have been played.

RANDOM PLAY

This plays the tracks on the disc randomly.

- Regardless of the repeat setting, playback will not stop until the stop (■) button is pressed.

Program playback track input behavior

This sets what happens when the number buttons are used during program playback.

PLAY LATER

The input track number is added to the end of the program. The track that is playing continues to play.

PLAY NOW

The input track number is added to the end of the program and starts playing immediately.

Coaxial digital output

This sets the output from the COAXIAL digital audio output connector.

OFF

No audio signal will be output from the COAXIAL digital audio output connector.

ON

Audio signals will be output from the COAXIAL digital audio output connector.

Optical digital output

This sets the output from the OPTICAL digital audio output connector.

OFF

No audio signal will be output from the OPTICAL digital audio output connector.

ON

Audio signals will be output from the OPTICAL digital audio output connector.

Left-right balance adjustment

Adjust the left-right balance.

This setting can be made for each output.

This can be set from Lch 24.0 dB to Rch 24.0 dB in 0.5dB increments. When the volume is the same for both left and right channels, "ctr. 0.0dB" will be shown.

Information display

This shows the version of the firmware used by the unit.

SYSTEM

The microcomputer firmware version

USB

The USB firmware version

FPGA

The FPGA firmware version

CD DRIVE

The CD drive firmware version

Supported operating systems

This unit can be connected by USB and used with a computer running one of the following operating systems.

Operation with other operating systems cannot be assured (as of March, 2023).

When using Mac

macOS High Sierra (10.13)

macOS Mojave (10.14)

macOS Catalina (10.15)

macOS Big Sur (11)

macOS Monterey (12)

macOS Ventura (13)

When using Windows

Windows 8 (32/64-bit)

Windows 8.1 (32/64-bit)

Windows 10 (32/64-bit)

Windows 11

Installing the driver

When using Mac

This unit can be operated with the standard OS driver, so there is no need to install a driver.

A dedicated driver must be installed on the computer, however, to use Bulk Pet.

When using Windows

To use this unit for playback of files on a computer, install the dedicated driver on the computer.

IMPORTANT NOTICE

You must install the dedicated driver software before connecting this unit with a computer using a USB cable.

If you connect the unit to the computer by USB before installing the driver, it will not function properly.

Depending on the composition of the computer hardware and software, operation might not be possible even with the above operating systems.

Installing the driver on a computer

Install the dedicated driver on the computer after downloading it from the following URL.

For details about installation and OS setting procedures, see the TEAC ASIO USB DRIVER Installation Guide included with the driver.

https://teac.jp/int/product/vrds-701/download

Note about transmission modes

This unit can transfer data using Isochronous or Bulk Pet mode. The sampling frequencies that can be transmitted are 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz and 384 kHz. When properly connected, you will be able to select "TEAC USB AUDIO DEVICE" as an audio output from the computer OS.

●Audio data sent from the computer will be processed using this unit's clock during data transmission, enabling reduction of jitter.

Downloading playback application TEAC HR Audio Player

You can download Mac and Windows versions of our free TEAC HR Audio Player application that supports playback of DSD files from the TEAC International Site.

https://teac.jp/int/product/hr_audio_player/download

TEAC HR Audio Player setting note

To play 22.5MHz DSD recordings with TEAC HR Audio Player, open the Configure window and set the "Decode mode" to "DSD Native."

To play formats other than 22.5MHz DSD, you can set this to either "DSD over PCM" or "DSD Native" as you like.

For details, see "Selecting the DSD decode mode" in the TEAC HR Audio Player Manual.

Playing back audio files from a computer

1 Connect the USB port on the back of this unit to the computer using a USB cable.

• Use a cable with a connector that matches that of this unit.

2 Turn the computer on.

- Confirm that the operating system has started properly.

3 Shift the STANDBY/ON switch to its ON position to turn the unit on.

4 Press the SOURCE button to select USB.

5 Start playback of an audio file on the computer.

By maximizing the output volume from the computer and adjusting the volume output from the stereo amplifier, better sound quality can be achieved.

Minimize the stereo amplifier volume before beginning play-back. Then, gradually increase it.

When using headphones connected to this unit, turn the VOLUME knob counterclockwise to minimize the volume before putting them on. Then, gradually increase it.

●The computer and this unit cannot control each other.

- Do not do any of the following when playing back audio files over the USB connection. Doing so could cause the computer to malfunction. Always quit the audio playback software before conducting any of these operations.

●Unplugging the USB cable
●Turning the unit off or putting it into standby mode
●Changing the current input selection

●Computer operation sounds will also be transmitted when playing back audio files over the USB connection. To avoid outputting these sounds, make the necessary settings on your computer.

- If you start the audio playback software before connecting this unit with the computer or before setting the input to USB, audio files might not play back properly. If this occurs, restart the audio playback software or restart the computer.

MQA (Master Quality Authenticated)

MQA is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download.

Visit mqa.co.uk for more information.

The VRDS-701 includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

'MQA' or 'MQA.' indicates that the product is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. "MQA." indicates it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner.

- When conducting MQA decoding of signals from COAXIAL or OPTICAL sources, signals need to be received as bit-perfect. So, use this function with CLOCK SYNC set to OFF unless the digital audio output device and this unit are synchronized by the same external clock, in which case set CLOCK SYNC set to ON. If set to ON when the other digital output device is not clock synchronized, audio skipping and dropouts could occur.

Display example during MQA playback

TRACK ▶ MQA

1 0:02

Maintenance

Wipe dirt from the top cover and other panel surfaces using a soft cloth that has been slightly dampened with a diluted neutral cleanser.

Do not wipe with chemical cleaning cloths, thinner or other chemical agents. Doing so could damage the surface.

For your safety, disconnect the power cord from the outlet before cleaning.

Troubleshooting

If you experience a problem with this product, please take a moment to review the following information before requesting service. If it still does not operate correctly, contact the retailer where you purchased the unit.

General

The unit does not turn on.

→Check that the power cord is completely plugged into the power outlet. If the outlet is switched, confirm that the switch is in the ON position.
→Connect a different electrical device to the outlet to confirm that it is supplying power.
→If the automatic power saving function has caused the unit to enter standby, press the remote control STANDBY/ON button to turn the unit on again.

The unit automatically enters standby mode.

This is because the automatic power saving function put the unit into standby. Set the STANDBY/ON switch to STANDBY once and then set it to ON again.

Change the automatic power saving setting if necessary (page 27).

Remote control does not work.

→Turn the main unit on (page 18).
→If the batteries are exhausted, replace both of them with new ones (page 11).
The remote control will not work if there are obstructions between it and the main unit. Point the remote control at the front panel of the unit from a distance of less than about 5 m (16 ft) (page 11).

A television or other device is operating improperly.

The use of this unit's remote control might cause some televisions and other devices with wireless remote control functions to operate incorrectly.

There is a humming noise.

If a connecting cable is near a power cord, fluorescent light or similar cause of interference, increase the distance between them as much as possible.

No sound is output.

→ If a stereo amplifier is connected to this unit, adjust its volume.
→If you are using headphones connected to this unit, use the VOLUME knob to adjust the volume.
→Use the SOURCE button to select the input that is connected to the source that you want to hear.
→Press the analog OUTPUT selection button on the remote control to select the connectors that output analog audio.
→Reconfirm the connections with other equipment.

This unit can only play two-channel audio signals. For details about signal formats, see the input signal formats indicated in the specifications.

There is no sound from one side of the headphones.

→Confirm that the headphones plug is inserted completely.

CD Player

Playback is not possible.

→If the disc is upside down, reload it with the labeled side up.
→If the disc is dirty, wipe it clean.
If a blank disc is loaded, replace it with a disc that has recordings on it.
→Depending on the quality and recording conditions of the disc, some CD-R/CD-RW discs cannot be played back.
→This unit cannot play back unfinalized CD-R/CD-RW discs.

The sound skips.

→ Vibrations will cause the sound to skip. Install this unit in a stable location.
→If the disc is dirty, wipe it clean.
→Do not use discs that are scratched or cracked.

Clock sync

The CLOCK indicator does not stop blinking.

→ Set clock synchronization to OFF when not using it.
→A clock signal to which the unit cannot synchronize might be being input. Check the connections of the clock sync connectors and the settings of the connected devices.

Connections with a computer

Computer does not recognize this unit.

→ See page 30 for information about supported operating systems. Operation with unsupported operating systems is not guaranteed.

Noise occurs.

Starting other applications during playback of an audio file may interrupt playback or cause noise. Do not start other applications during playback.
When the unit is connected to a computer via a USB hub, for example, noise might be heard. If this occurs, connect the unit directly to the computer.

Audio files cannot be played back.

Connect this unit to the computer, and set this unit's input to USB before launching audio playback software. If you connect this unit to the computer or set its input to USB after launching audio playback software, audio files might not play back properly.

Playback stopped working.

→ Check the audio output device setting of the operating system. Try deleting the driver and reinstalling it. For details, see the TEAC ASIO USB DRIVER Installation Guide included with the driver.

Since this unit uses a microcontroller, external noise and other interference can cause the unit to malfunction. If this occurs, unplug the power cord, wait for a while, and then turn the unit on again and restart operations.

Note about condensation

If this unit is brought from a cold outdoor environment into a warm room, or the heater has just been turned on in the room where it is located, for example, condensation might occur on operating parts or lenses, resulting in improper operation. If this occurs, leave the product on and wait one to two hours. This should enable normal playback.

Troubleshooting (continued)

Restoring default settings

1 While pressing and holding the MENU button, set the STANDBY/ON switch to ON.

2 Release the MENU button when the FACTORY RESET menu appears.

MENU

The playback source screen will appear after resetting completes.

Display example

NO DISC

ATTENTION

• Do not put the unit in standby until the playback source screen appears.
  ●This operation will restore all settings to their default values.

- The factory default settings are the setting values shown in the screen images used in the explanations of this manual.

playable disc types

Audio CD (including CD-R and CD-RW)

- 8cm CDs are not supported.

Analog audio outputs

Connectors.....XLR connectors × 1 pair (L/R)

RCA connectors × 1 pair (L/R)

Output impedance .... XLR: 220 Ω

RCA: 180 Ω

Maximum output level (1 kHz/full-scale, into 10 kΩ)

FIXED 0dB.... XLR/RCA: 2.0 Vrms

FIXED +6dB ..... XLR/RCA: 4.0 Vrms

VARIABLE....XLR: 12 Vrms

RCA: 6 Vrms

Frequency response ^* 5 Hz - 80 kHz (+1 dB/-6 dB)

S/N ratio*....108 dB (A-Weight, 1 kHz)

Distortion ^* 0.002% (1 kHz, LPF: 20 Hz – 20 kHz)

*Measurement conditions

Input signal: 192 kHz 24-bit PCM

Measurement output: RCA

DSD low-pass filter: FIR 1

Headphones output

Connector.... Standard 6.3mm (1/4") stereo jack x 1

Practical maximum output....500 mW + 500 mW (into 32 Ω)

Applicable load impedance.... 16-600 Ω

Digital audio inputs

USB 1 (Type C port, USB 2.0 or higher)

Input signal formats

Linear PCM..... 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,

192 kHz, 352.8 kHz, 384 kHz

16-bit, 24-bit, 32-bit

DSD.... 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz

COAXIAL digital.... 1

Input level 0.5 Vpp

Input impedance 75 Ω

Input signal formats

Linear PCM

32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

16-bit, 24-bit

DSD.... 2.8 MHz

(supported using 176.4kHz/24-bit DoP transmission)

OPTICAL digital....1

Input level ...... -24.0 dBm to -14.5 dBm peak

Input signal formats

Linear PCM

32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

16-bit, 24-bit

DSD.... 2.8 MHz

(supported using 176.4kHz/24-bit DoP transmission)

Clock sync input

Connector.... BNC

Input sampling frequency 10 MHz

Input impedance....50Ω

Input level..... Rectangle wave: equivalent to TTL levels

Sine wave: 0.5 to 1.0 Vrms

Digital audio outputs

COAXIAL digital.... 1

Output level 0.5 Vpp

Output impedance....75 Ω

OPTICAL digital.... 1

TOS (JEITA RC5720C)

External control

Trigger input (12V TRIGGER IN)....1

Power consumption 20 W

Standby power 0.4 W (in standby mode)

External dimensions (W × H × D, including protrusions)

444×111×333 mm (17 1/2"×4 3/8"×13 1/8")

Weight 11.1 kg (24 1/2 lb)

Operating temperature range ....+5°C to +35°C

Operating humidity range....5% to 85% (no condensation)

Storage temperature range....-20°C to +55°C

Included accessories

Power cord × 1

Remote control (RC-1338) × 1

Batteries for remote control (AAA) × 2

Foot pads × 3

Owner's manual (this document, including warranty) × 1

- For information about the warranty, users living in the USA and Canada should see pages 110–111 and the back cover (warranty document). Users living in Europe and other regions should see page 111.

- Specifications and appearance are subject to change without notice.

●Weight and dimensions are approximate.

● Illustrations in this manual might differ slightly from production models.

EN

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

ATTENTION : POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRIÈRE). AUCUNE PIÈCE INTERNE N'EST RÉPARABLE PAR L'UTILISATEUR. CONFIEZ TOUTE RÉPARATION À UN SERVICE APRÈS-VENTE QUALIFIÉ.

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

MQA and the Sound Wave Device are registered trademarks of MQA Limited © 2016

“DSD” is a registered trademark.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac, OS X and macOS are trademarks of Apple Inc., registered in the U.S. and other countries.

Bulk Pet is a registered trademark of INTERFACE CO., LTD.

MQA (Master Quality Authenticated)....68

Entretien 68

Four abstract diagrams showing overlapping circles within heart-shaped shapes, no text or symbols present

Line drawing of a remote control device with handle and scroll (no text or symbols)

s Touches VOLUME (+,-)

Line drawing of a CD-ROM front panel with buttons and a finger pressing the button (no text or symbols)

Line drawing of a CD-ROM front panel with control buttons and a finger pressing a button (no text or symbols)

Line drawing of a hand using a CD to press down a disc on a base (no text or symbols)

Line drawing of a CD-ROM front panel with buttons and a finger pressing the button (no text or symbols)

Exemple d'affichage

VOLUME

https://teac.jp/int/product/vrds-701/download

https://teac.jp/int/product/hr_audio_player/download

MQA (Master Quality Authenticated)

16 bits, 24 bits, 32 bits

Dimensions externes (L × H × P, saillies incluses)

444×111×333 mm

Poids 11,1 kg

Parte responsible: 11 Trading Company, LLC

Dirección: 3502 Woodview Trace #200 Indianapolis, IN 46268 U.S.A. URL: https://11tradingcompany.com/contact-us/

MQA and the Sound Wave Device are registered trademarks of MQA Limited © 2016

"DSD" is a registered trademark.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac, OS X and macOS are trademarks of Apple Inc., registered in the U.S. and other countries.

Bulk Pet is a registered trademark of INTERFACE CO., LTD.

MQA (Master Quality Authenticated)....104

Line drawing of a remote control device with handle and scroll (no text or symbols)

Line drawing of a CD-ROM front panel with control buttons and a finger pointing to the button (no text or symbols present)

Line drawing of a CD-ROM front panel with control buttons and a hand pressing a button (no text or symbols)

Line drawing of a hand using a CD to press down a disc on a base (no text or symbols)

Line drawing of a CD-ROM front panel with control buttons and a finger pressing a button (no text or symbols)

PRECAUCIÓN

Front view of a CD-ROM drive unit with control panel and buttons, plus a finger pointing to the button (no text or symbols visible)

Ejemplo de pantalla

VOLUME

Salida digital coaxial

https://teac.jp/int/product/vrds-701/download

https://teac.jp/int/product/hr_audio_player/download

MQA (Master Quality Authenticated)

16 bits, 24 bits, 32 bits

Warranty provisions (United States and Canada only)

Length of Warranty

The parts and labor warranty will be effective for one (1) year from the date of the original purchase for products not used for commercial purposes. For products used commercially, the warranty is ninety (90) days for magnetic heads and optical pickups, one (1) year for all other parts and ninety (90) days for labor.

Who Is Covered Under This Warranty

This warranty is valid only in the United States or Canada, dependent upon the country in which original purchase was made, and enforceable only by the original purchaser within the country in which the purchase was made.

This warranty is not valid if the product was purchased through an unauthorized dealer.

What Is Not Covered Under This Warranty

●Damage to or deterioration of the external cabinet.
●Damage resulting from accident, misuse, abuse, or neglect.
- Damage resulting from failure to follow instructions contained in the products owners' manual or otherwise provided with the product.
●Damage occurring during shipment of the product (Claims must be presented to the carrier).
●Damage resulting from the repair or attempted repair by anyone other than TEAC or an authorized TEAC service station.
- Damage resulting from modification or attempted modification of product not authorized by TEAC.
●Damage resulting from causes other than product defects, including lack of technical skills, competence, or experience of the user.
- Damage to any unit that has been altered or which the serial number has been defaced, modified or removed.

What TEAC Will Pay For

TEAC will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is covered in the next section.

How To Obtain Warranty Service

Your unit must be serviced by an authorized TEAC service station within the country in which the product was purchased. If you are unable to locate an authorized service station in your area, please contact TEAC at the applicable address shown at the end of this warranty statement. PLEASE DO NOT RETURN YOUR UNIT TO TEAC WITHOUT OUR PRIOR AUTHORIZATION. You must pay shipping charges if it is necessary to ship the product for service. However, if the necessary repairs are covered by warranty, we will pay the return shipping charges to any destination within the country in which the product was purchased. Whenever warranty service is required, you must present the original dated sales receipt, or other proof indicating the purchase place and date, as proof of warranty coverage.

LIMITATION OF IMPLIED WARRANTIES

ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

EXCLUSION OF DAMAGES

TEAC'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, AT TEAC'S OPTION. TEAC SHALL NOT BE LIABLE FOR DAMAGE BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, INTERRUPTED OPERATION, COMMERCIAL LOSS OR LOST PROFITS, OR ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR OTHERWISE.

SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC RIGHTS, AND MAY VARY FROM SOME OF THE RIGHTS PROVIDED BY LAW. THESE RIGHTS MAY VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, please contact the dealer where you bought the product.

In countries/regions other than the USA, Canada and Europe

This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province.

If you have a warranty claim or request, please contact the dealer where you bought the product.

Dealer's address/Adresse du revendeur

TEAC

TEAC CORPORATION

1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan

This product has a serial number located on the rear panel. Please write it here and retain this for your records.

Model

name:

VRDS-701

Serial

number:
