USER MANUAL CD-1000 TEAC

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

"DSD" is a registered trademark.

"Super Audio CD" is a registered trademark.

Other company names and product names in this document are the trademarks or registered trademarks of their respective owners.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Do not expose this apparatus to drips or splashes. ●

Do not place any objects filled with liquids, such as vases, on the ● apparatus.

Do not install this apparatus in a confined space such as a book ● case or similar unit.

The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.

The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.

The mains plug is used as the disconnect device, the disconnect ● device shall remain readily operable.

- Products with Class I construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

If the product uses batteries (including a battery pack or installed ● batteries), they should not be exposed to sunshine, fire or excessive heat.

CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE ● THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.

IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF ● PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance will void the user's warranty.

For Canada

Industry Canada's Compliance Statement:

This Class B digital apparatus complies with Canadian ICES-003.

For European customers

Disposal of electrical and electronic equipment

(a) All electrical and electronic equipment should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
(b) By disposing of electrical and electronic equipment correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste electrical and electronic equipment can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
(d) The Waste Electrical and Electronic Equipment (WEE symbol, which shows a wheeled bin that has been crossed out, indicates that electrical and electronic equipment must be collected and disposed of separately from household waste.
(e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Disposal of batteries and/or accumulators

(a) Waste batteries and/or accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
(b) By disposing of waste batteries and/or accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste batteries and/or accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in them.
(d) The WEEE symbol, which shows a wheeled bin that has been crossed out, indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC), then the chemical symbols for those elements will be indicated beneath the WEEE symbol.

(e) Return and collection systems are available to end users. For more detailed information about the disposal of waste batteries and/or accumulators, please contact your city office, waste disposal service or the shop where you purchased them.

Contents

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit.

Before Using the Unit 5

Discs....6

Identifying the Parts 8

Basic Operation 10

Troubleshooting 11

Specifications....11

Before Using the Unit (1)

Read before operation

Be careful to avoid injury when moving the unit due to its weight. ● Get someone to help you if necessary.

To protect easily scratched furniture, you may apply the felt pads ● supplied with the unit to the feet.

As the unit may become warm during operation, always leave sufficient space around the unit for ventilation. The ventilation holes should not be covered. Make sure there is at least 20 cm (8") of space above and at least 5 cm (2") of space on each side of the unit. Do NOT place anything on top of the unit.

The voltage supplied to the unit should match the voltage that is ● printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.

Choose the installation location of your unit carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, heat, cold or moisture.

Do not place the unit on an amplifier or any other device that generates heat.

Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the unit, contact your dealer or service company.

When removing the power plug from the wall outlet, always pull directly on the plug, never yank the cord.

Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a clean, dry cloth.

Keep this manual in a safe place for future reference.

When the unit is turned on, if a TV is turned on nearby lines might appear on the TV screen depending on the frequency of the TV broadcast. This is not a malfunction of the unit or the TV. If you see such lines, move the unit and the TV further apart.

Before Using the Unit (2)

DO NOT MOVE THE UNIT DURING PLAYBACK

During playback, the disc rotates at high speed. Do NOT lift or move the unit during playback. Doing so may damage the disc or the laser assembly.

WHEN MOVING THIS UNIT

When relocating or packing the unit for moving, be sure to remove the disc. Moving this unit with the disc loaded may result in damage to this unit.

CAUTION

The product should not be exposed to moisture and no object filled with liquids, such as vases, should be placed on the product.

Do not install this equipment in a confined space such as a book case or similar unit.

Maintenance

If the surface of the unit gets dirty, wipe with a soft cloth or use diluted neutral cleaning liquid. Be sure to remove any fluid completely. Do not use thinner or alcohol as they may damage the surface of the unit.

Discs

This unit can play the following discs:

CDs that bear the "COMPACT disc DIGITAL AUDIO" logo.

• 12cm (4.7") or 8cm (3.15") discs
• Linear PCM digital audio
  Audio CDs are divided into tracks.

Super Audio CDs that bear the "Super Audio CD" logo.

● Single layer, dual layer or hybrid layer
- 12cm (4.7") discs
- Digital audio (DSD)
Super Audio CDs are divided into tracks.

CD-R and CD-RW discs that have been correctly recorded in the audio CD format (CD-DA) and finalized.

Note

• Depending on the quality of the disc and/or the condition of the recording, some CD-R/CD-RW discs may not be playable.
• Copy-protected discs and other discs which do not conform to the CD standard may not play back correctly in this unit. If you use such discs in this unit, TEAC Corporation and its subsidiaries cannot be responsible for any consequences or guarantee the quality of reproduction. If you have problems with such non-standard discs, you should contact the producers of the disc.
  ● Always place the disc on the disc tray with the label side up.
• To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges.

Three-step illustration showing hands holding a CD or DVD disc with an arrow indicating upward motion (no text or symbols)

- Should the disc become dirty, wipe the surface radially (from the center hole outward towards the outer edge) with a soft and dry cloth.

• Never use such chemicals as record sprays, antistatic sprays or fluid, alcohol or thinner to clean the discs. Such chemicals will do irreparable damage to the disc's plastic surface.
• Discs should be returned to their cases after use to avoid dust and scratches that could cause the laser pickup to "skip".
• Do not expose discs to direct sunlight or high humidity and temperature for extended periods. Long exposure to high temperatures will warp the disc.
• Do not play any disc that is warped, deformed or damaged. Playing such discs may cause irreparable harm to the playing mechanisms.
• CD-R and CD-RW discs are more sensitive to the effects of heat and ultraviolet rays than commercial CDs. It is important that they are not stored in a location where they are exposed to direct sunlight, and which is away from sources of heat such as radiators or heat-generating electrical devices.
• While printable CD-R and CD-RW discs utilizing modern printing technologies are generally acceptable, older systems that use adhesives to attach paper type labels to the disc surface are not recommended.
• Do not stick papers or protective sheets on the discs and do not use any protective coating spray.
• Use a soft oil-based felt-tipped pen to write the information on the label side. Never use a ball-point or hard-tipped pen, as this may cause damage to the recorded side.
• Never use a stabilizer. Using commercially available CD stabilizers with this unit will damage the mechanisms and cause them to malfunction.

- Do not play irregular shape CDs (octagonal, heart shaped, business card size, etc.). They can damage the unit.

Four identical heart-shaped diagrams with cross symbols, no text or labels present

- If you are in any doubt as to the care and handling of a CD-R/CD-RW disc, read the precautions supplied with the disc, or contact the disc manufacturer directly.

Front panel

TEAC POWER SAC2 A B D F G H I J K SUR R AUDIO CD PLAYER CD-1000

A POWER indicator
B POWER button
C SACD indicator
D SACD button
E Disc loader
F Multifunction display window

G Remote control receiver
H Open/close button (▲)
1 Stop button (■)
J Play/pause button (▶ /III)
K Previous track button (◀◀)
L Next track button (▶▶▶)

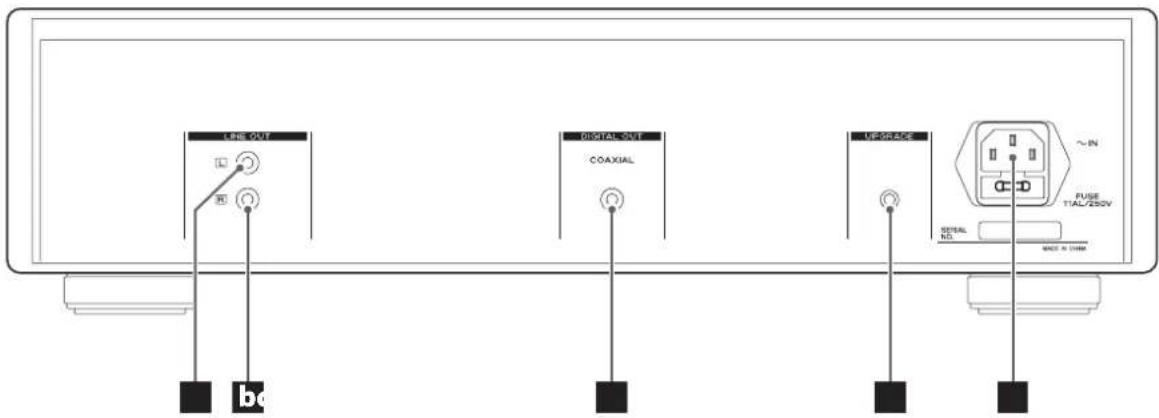

Rear panel

LINE OUT COAXIAL DIGITAL OUT COAXIAL UP-SPACE ~ IN FUSE TIAL/250V HENSAL NO. MAKE IN DREAM

a Left analog signal output
b Right analog signal output
Digital coaxial signal output

d Upgrade port
e AC Power inlet (with fuse)

Remote control

MUTE SRC TUNING PRESET BAND A. SPEAKERS B. INPUT AMP CD TUNER VOLUME + - TINNOR RDS DISP MODE FREQ MEMORY /II f g h i j k TEAC RC-1288

a Fast-backward button (◀◀)
b Fast-forward button (▶▶)
c Previous track button (◀◀)
d Next track button (▶▶)
e Number buttons (0-9)
f Time display button (DISP)

You can also adjust the brightness of characters in the display by holding down this button 2 or 3 seconds.

g Random play button ( )
h Repeat play button (CD)
i Play/pause button (▶/II)
j (CD)Stop button (■)
k CD button

Note before using the remote control

Press the CD button to switch to the CD mode before operating ● the unit by using the remote control.

The effective range of the remote control is no greater than 10 m ● and an angle no greater than 30 degrees.

Buttons that are not listed or mentioned in the remote control ● diagram are not used for this unit. It is normal that there will be no response when you press them.

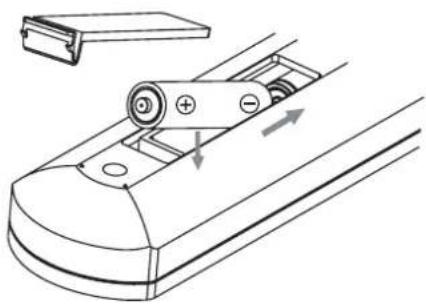

Battery installation

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

1 Open the cover of the remote control unit.
2 Insert two AAA batteries. Make sure that the batteries are inserted with their positive ⊕ and negative ⊖ poles positioned correctly.
B Close the cover.

Power ON / OFF

Connect the power cord and signal cable of the unit.

Then, press the POWER button on the front panel to turn the unit on (—). The power indicator on the front panel is on and the unit is in normal operating mode now.

To turn the unit off, press the POWER button on the front panel. The button is set to the off position (☐), and the power indicator and eventually the unit are off. Disconnect the AC power cord from the main outlet when the appliance is not used for a long period of time.

SACD/CD switching

When a dual-layer SACD/CD disc is loaded and recognized by the unit, press the SACD button on the front panel to switch between the SACD or CD layer.

If the SACD layer is currently being played, the SACD indicator on the front panel will light. If the CD layer is being played, the SACD indicator will not light.

Open/close disc tray

Press the open/close button (▲) on the front panel to open or close the disc tray.

Play/pause

With the disc loaded properly or in stop mode, press the play/pause button (▶/Ⅲ) on the front panel or remote control to play the current disc.

In play mode, press the play/pause button (▶/■) on the unit or the remote control to pause the current disc. Press the button again to return to normal play mode.

Previous/next track

Press the previous track button (1◀◀) on the unit or remote control twice to jump to the beginning of the previous track. Playback starts automatically. If you press the previous track button (1◀◀) only once, playback of the current track starts again from the beginning.

Press the next track button (▶▶▶) on the unit or the remote control to the jump to the next track and play.

Fast-Backward/Fast-Forward

In normal play mode, press the fast-backward button (◀◀) on the remote control for fast-backward. Release the button to return to normal play mode.

In normal play mode, press the fast-forward button (▶▶) on the remote control for fast-forward. Release the button to return to normal play mode.

Track selection with number buttons

To select tracks 1 to 9, press the number buttons 1-9 on the remote control directly. To select track 10 or above, press the number buttons 1-9 on the remote control for the first (tenths place) digit of the track number and then the number buttons 1-9 for the second (ones place) digit within two seconds.

Repeat play

If you want to play the current track repeatedly, press the repeat play button (☐) button on the remote control once. The screen will display "T" before the track number. If you want to play the entire disc repeatedly, press the repeat play button (☐) on the remote control again. The screen will display "A" before the track number.

Random play

In stop or play mode, press the random play button (✗) on the remote control. The screen will display an "R" character, indicating that it is in random play mode.

To cancel this function during random play mode, press the random play button (✗) or the stop button (■) once.

Display brightness adjustment

Press the time display button (DISP) on the remote control to adjust the brightness of characters in the display based on the brightness of the surrounding environment.

If you hold down the time display button (DISP) for 2 or 3 seconds, the display brightness will toggle through "HIGH, LOW and OFF".

The unit automatically defaults to "HIGH" brightness at startup.

Troubleshooting Specificat

If you experience any problems with the unit, please take a moment to look through this chart before asking for repairs. If you still have a problem, contact your dealer or TEAC customer service/technical support (stated on the back cover).

No power

→ Check the connection to the AC outlet. Check and make sure the AC source is not a switched outlet and that, if it is, the switch is turned on. Make sure there is power to the AC outlet by plugging another item such as a lamp or fan into the outlet.

Remote control doesn't work.

→ Press the POWER button of the main unit to turn it on.
→ If the batteries are dead, change the batteries.
→ Within the specified range of 10 m, point the remote control directly at the unit's front panel.
→ Clear any obstacle between the remote control and the main unit.

No sound

→ Check the connection to the amplifier.
→ Check the operation of the amplifier.
→ Depending on the disc, etc. it may not be possible to play back CD-R/RW discs. Try again with another disc.
→ You cannot play back unfinalized CD-R/RW discs. Finalize such a disc in a CD recorder and try again.

Will not play

→ Load a disc with the playback side facing down.
→ If the disc is dirty, clean the surface of the disc.
→ Depending on the disc, etc. it may not be possible to play back CD-R/RW discs. Try again with another disc.
→ You cannot play back unfinalized CD-R/RW discs. Finalize such a disc in a CD recorder and try again.

Sound skips

→ Place the unit on a stable place to avoid vibration and shock.
→ If the disc is dirty, clean the surface of the disc.
→ Never use scratched, damaged or warped discs.

ns

Frequency response 20 Hz - 20 KHz (±0.5 dB)
Dynamic range 98 dB or more (CD) 110 dB or more (SACD)
Signal noise ratio.... 110 dB or more
Total harmonic distortion 0.003% or less
Stereo separation 110 dB or more
Analog output level....2.30 Vrms
Digital output. Coaxial (0.5 Vp-p 75Ω)
Power Requirements.... AC 230 V, 50 Hz
Power Consumption (nominal)....10 W
Dimensions (W x H x D) 435 x 116 x 366 mm
Weight.... 7.2 kg
Operating temperature ....+5°C - +35°C
Operating humidity.... 5% - 85% (no condensation)
Storage temperature.... -10°C - +55°C

Accessories

Power cord x 1
Remote control x 1
AAA battery x 2
Warranty card x 1
Owner's manual x 1

Design and specifications are subject to change without notice. Weight and dimensions are approximate. Illustrations may differ slightly from production models.

Three-step illustration showing hands holding a CD or DVD disc with a central knob, no text or symbols present.

Four-panel diagram showing abstract shapes with crossed-out circles, no text or symbols present

LINE OUT COAXIAL UP-DRACE ~IN FUSE TAL/250V DC/DC AC 1.0mA bc

MUTE SRC TUNING PRESET BAND A. SPEAKERS B. INPUT AMP CD TUNER VOLUME + - TINNOR RDS DISP MODE FREQ MEMORY I/II f g h i j k TEAC RC-1288

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Three-step illustration showing hands performing a press or stamping operation on a CD or DVD disc (no text or symbols present)

Four-panel diagram showing a heart shape with two crossed-out circles, likely illustrating a concept or concept.

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Three hand-drawn diagrams showing a mechanical press or stamping process with no text or symbols

Four-panel diagram showing a heart shape with crossed-out circles, likely illustrating a concept or concept in a mathematical or logical context.

LINE OUT COAXIAL UP-DRACE ~IN FUSE TAL/250V RESID NO. MAKE A DIM

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Three-step illustration showing hands performing a press press operation on a CD or DVD disc (no text or symbols present)

Four-panel diagram showing abstract shapes with crossed-out circles, no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

This device has a serial number located on its rear panel. Please record the serial number and retain it for your records.

Model name: CD-1000 Serial number:
