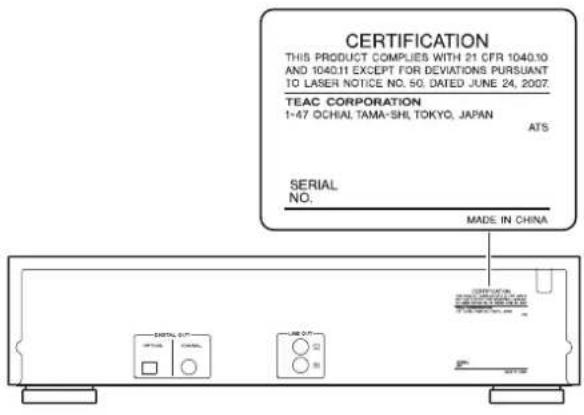

The label required in this regulation is as follows:

CERTIFICATION THIS PRODUCT COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE NO. 50, DATED JUNE 24, 2007. TEAC CORPORATION 1-47 OCHIAL TAMA-SHI, TOKYO, JAPAN ATS SERIAL NO. MADE IN CHINA

Precautions concerning batteries

Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of nearby things. Please read and observe the following precautions carefully.

• Be sure to insert the batteries with correct positive (⊕) and negative (⊖) orientations.
• Use batteries of the same type. Never use different types of batteries together.
• If the remote control is not used for a long time (more than a month), remove the batteries to prevent them from leaking.
• If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones.
• Do not use batteries of types other than those specified. Do not mix new batteries with old ones or use different types of batteries together.
• Do not heat or disassemble batteries. Never throw batteries into fire or water.
• Do not carry or store batteries with other metallic objects. The batteries could short circuit, leak or explode.
• Never recharge a battery unless it is confirmed to be a rechargeable type.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
●The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
- The power plugs are used as disconnect devices; the disconnect devices shall remain readily operable.
- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

CAUTION

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
  ●The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

Contents

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit.

IMPORTANT SAFETY PRECAUTIONS 2

IMPORTANT SAFETY INSTRUCTIONS 4

Before Use 5

Using the TEAC Global Site....6

Product registration 6

Discs....6

Name and Function....8

Remote Control Unit....9

Connection....10

Playback....11

Repeat Playback 13

Shuffle Playback 13

Programed Playback 14

Intro Check....15

Time Display....16

Troubleshooting....17

Specifications 17

Before Use

Read this before operation

• As the unit may become warm during operation, always leave sufficient space around the unit for ventilation.
• The voltage supplied to the unit should match the voltage as printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.
• Choose the installation location of your unit carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, heat, cold or moisture.
• Do not place the unit on the amplifier/receiver.
• Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the unit, contact your dealer or service company.
• When removing the power plug from the wall outlet, always pull directly on the plug, never yank the cord.
• To keep the laser pickup clean, do not touch it, and always close the disc tray.
• Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a clean, dry cloth.
• Keep this manual in a safe place for future reference.

DO NOT MOVE THE UNIT DURING PLAYBACK

During playback, the disc rotates at high speed. Do NOT lift or move the unit during playback. Doing so may damage the disc or the unit.

WHEN MOVING THIS UNIT

When changing places of installation or packing the unit for moving, be sure to remove the disc and return the disc tray to its closed position in the player. Then, press the power switch to turn the power off, and disconnect the power cord. Moving this unit with the disc loaded may result in damage to this unit.

Beware of condensation

When the unit (or a disc) is moved from a cold to a warm place, or used after a sudden temperature change, there is a danger of condensation; vapor in the air could condense on the internal mechanism, making correct operation impossible. To prevent this, or if this occurs, leave the unit for one or two hours with the power turned on. Then the unit will stabilize at the temperature of its surroundings.

Maintenance

If the surface of the unit gets dirty, wipe with a soft cloth or use diluted neutral cleaning liquid. Be sure to remove any fluid completely. Do not use thinner, benzine or alcohol as they may damage the surface of the unit.

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site:

http://teac-global.com/

1) Open the TEAC Global Site.
2) In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.

NOTE

If the desired language does not appear, click Other Languages.

3) Click the "Search by Model Name" section to open the Downloads page for that product.
4) Select and download the updates that are needed.

Product registration

Customers in the USA, please visit the following TEAC website to register your TEAC product online.

http://audio.teac.com/support/registration/

Discs

Discs which can be played on this unit:

- Conventional audio CDs bearing the COMPACT DISC DIGITAL AUDIO logo on the label:

• Properly finalized CD-R and CD-RW discs
- MP3 CDs
- WMA CDs

Note:

• Depending on the quality of the disc and/or the condition of the recording, some CD-R/CD-RW discs may not be playable.
• Copy-protected discs and other discs that do not conform to the CD standard may not play back correctly in this player. If you use such discs in this unit, TEAC Corporation and its subsidiaries cannot be responsible for any consequences or guarantee the quality of reproduction. If you experience problems with such non-standard discs, you should contact the producers of the disc.
• Always place the disc on the disc tray with the label side up. (Compact discs can be played or recorded only on one side.)
• To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges.

How to remove the disc

How to hold the disc

- Should the disc become dirty, wipe the surface radially (from the center hole outward towards the outer edge) with a soft, dry cloth:

• Never use such chemicals as record sprays, antistatic sprays or fluid, benzine or thinner to clean the discs. Such chemicals will do irreparable damage to the disc's plastic surface.
• Discs should be returned to their cases after use to avoid dust and scratches that could cause the laser pickup to "skip."
• Do not expose discs to direct sunlight or high humidity and temperature for extended periods. Long exposure to high temperatures will warp the disc.
• Do not play any disc that is warped, deformed or damaged. Playing such discs may cause irreparable harm to the playing mechanisms.

• CD-R and CD-RW discs are more sensitive to the effects of heat and ultraviolet rays than ordinary CDs. It is important that they are not stored in a location where direct sunlight will fall on them, and away from sources of heat such as radiators or heat-generating electrical devices.

• Printable CD-R and CD-RW discs aren't recommended, as the label side might be sticky and damage the unit.

• Do not stick papers or protective sheets on the discs and do not use any protective coating spray.
• Use a soft oil-based felt-tipped pen to write the information on the label side. Never use a ball-point or hard-tipped pen, as this may cause damage to the recorded side.
• Never use a stabilizer. Using commercially available CD stabilizers with this unit will damage the mechanisms and cause them to malfunction.
• Do not use CDs with an irregular shape (octagonal, heart shaped, business card size, etc.). CDs of this sort can damage the unit:

- If you are in any doubt as to the care and handling of a CD-R/CD-RW disc, read the precautions supplied with the disc, or contact the disc manufacturer directly.

MP3/WMA files

This unit can play MP3 and WMA files that are on CD-R/CD-RW discs.

- Audio file formats that can be played back MP3 (file extension: .mp3)

Bit rate: 8 kbps to 320 kbps

Sampling frequency: 16 kHz to 48 kHz

WMA (file extension: .wma)

Bit rate: 8 kbps to 320 kbps

Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

Note: Digital Rights Management (DRM) is not supported.

- Up to eight levels of folders supported.

Precautions when creating MP3/WMA files on a computer

• Only discs that have been recorded using the ISO 9660 standard can be played by this unit.
• MP3 and WMA files are recognized by their file extensions (".mp3" for MP3 files and ".wma" for WMA files.) Always include the extension in the file name.
• Files without extensions cannot be recognized. A file cannot be played back regardless of the file name extension, if the data is not in the MP3 or WMA format.
• After recording to a CD-R/CD-RW, always close the session (complete disc creation). This unit cannot play a disc if its session has not been closed.
• A maximum of 999 files and 250 folders on a disc can be played. If the media has more than these maximums, this unit might not be able to correctly play any file that is the 1000th or higher or any folder that is the 100th or higher.
• Discs made with multi-session recording are not supported. Only the first session can be played back.
• Depending on the condition of the disc, playback might not be possible or the sound might skip.
• This unit cannot play copyright-protected audio files.


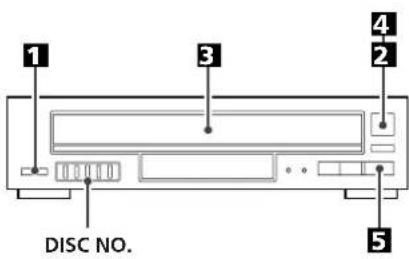

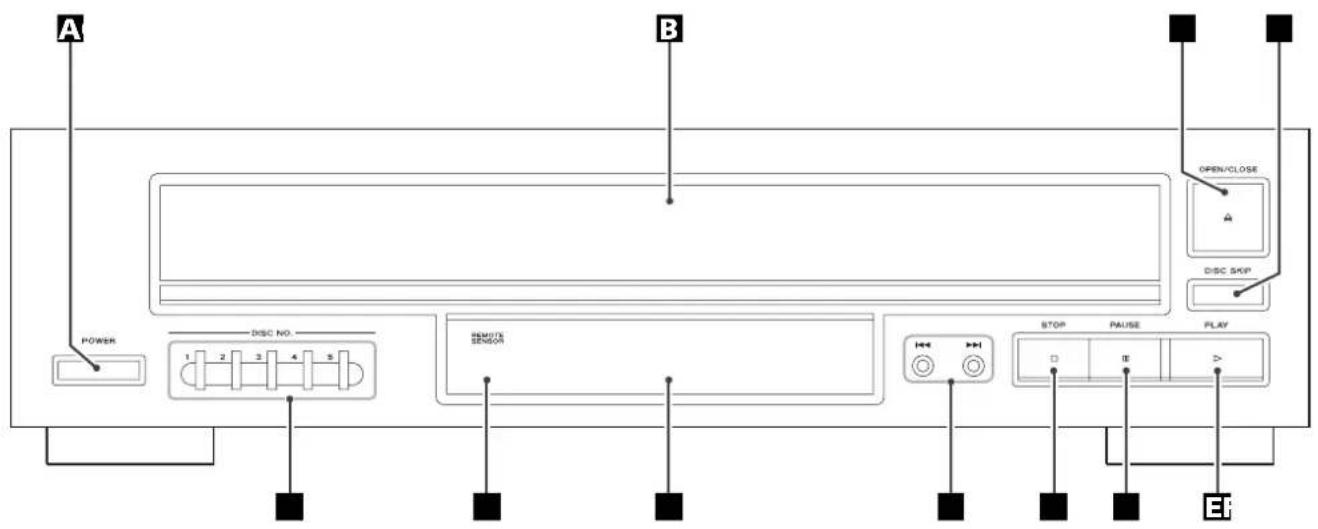

K L M N G F DISC NO. 1 2 3 4 5 DISC SKIP TRACK NO. 1 2 3 4 5 6 7 8 9 O PROGRAM CLEAR SEARCH MUSIC SKIP STOP PAUSE PLAY SHUFFLE O TIME P REPEAT Q INTRO CHECK R PROGRAM CHECK T S U E

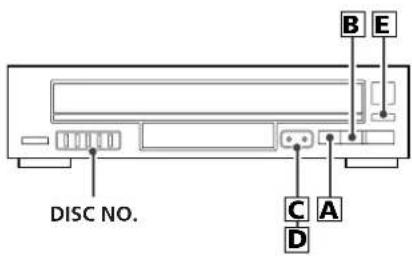

A POWER

Press this button to turn the unit on or off.

The equipment draws nominal non-operating power from the AC outlet with its POWER switch in the OFF position.

B Disc tray

OPEN/CLOSE

Use this button to open and close the disc tray.

DISC SKIP

Use this button to skip discs.

E PLAY (▶)

Use this button to start playback.

F PAUSE (II)

Use this button to pause playback.

STOP (■)

Use this button to stop playback.

H Skip/Search buttons

Use these buttons to skip or search tracks.

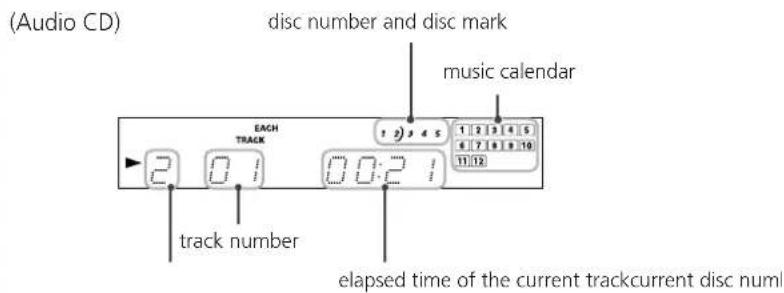

Display

Remote Sensor

When operating the remote control unit, point it towards the remote sensor.

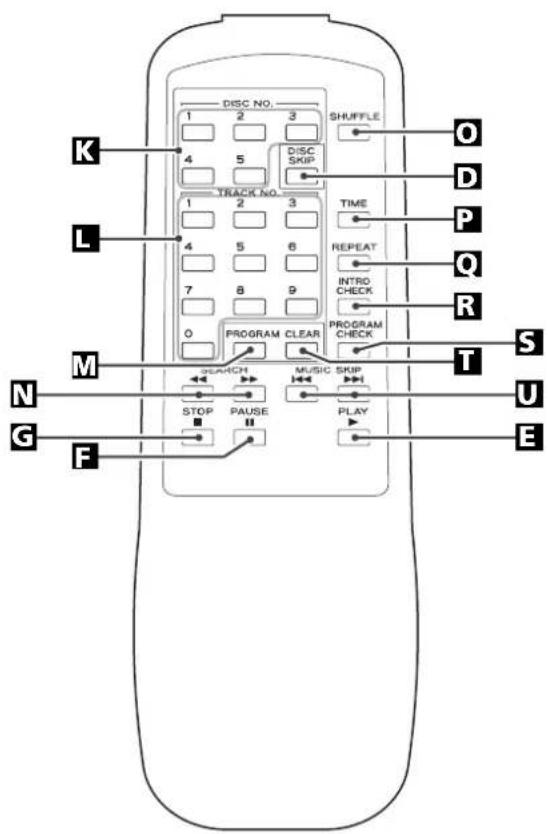

Remote Control Unit

K DISC NO.

Use these buttons to select a disc.

L TRACK NO.

Use these buttons to select a track number.

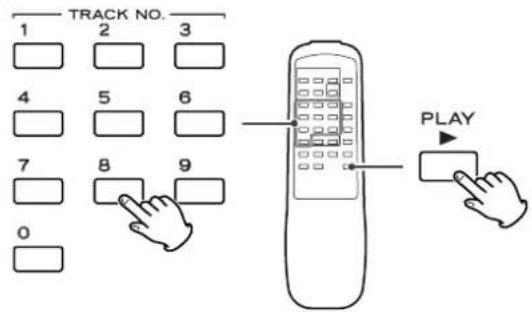

For instance, to select track number 35, press "3" and "5".

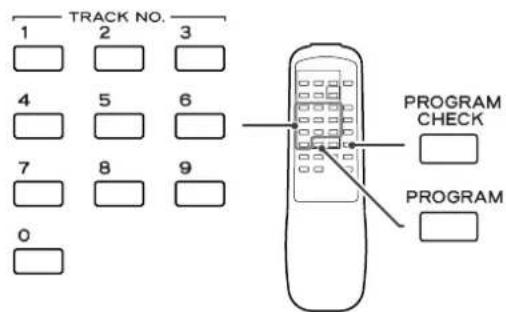

M PROGRAM

Use this button to enter the program mode. In program mode, use this button to enter selections.

N SEARCH (◄◄/►►)

During playback, use these buttons to search the part you want to listen to.

SHUFFLE

Use this button for shuffle playback.

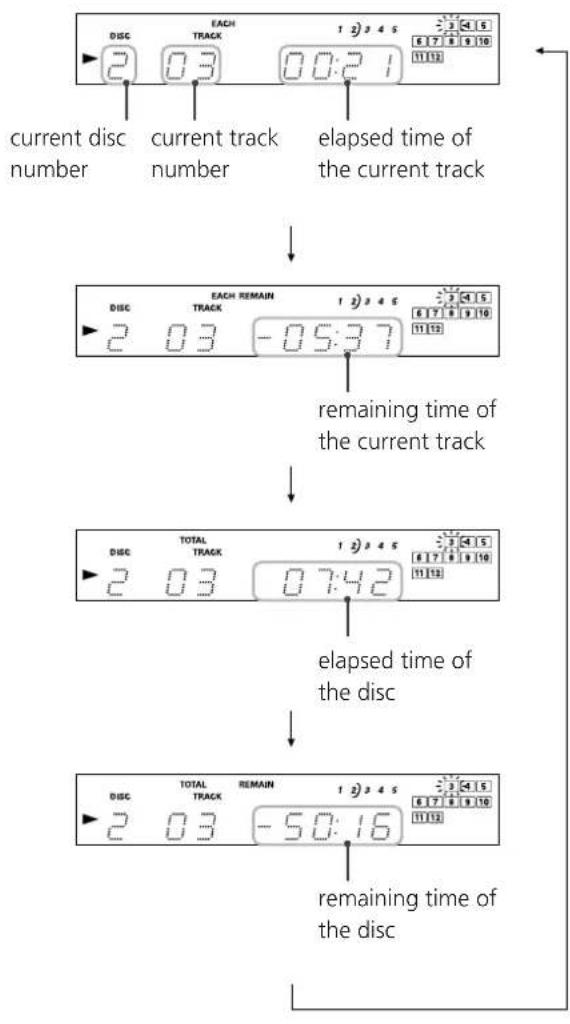

P TIME

During playback, use this button to change the time display.

REPEAT

Use this button to select repeat modes.

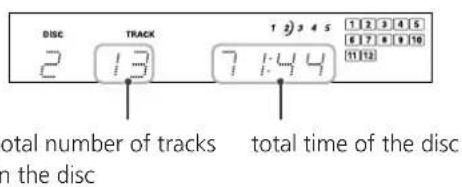

R INTRO CHECK

Use this button to start the intro check playing.

S PROGRAM CHECK

Use this button to check programmed contents.

T CLEAR

Use this button to clear a program.

U SKIP (|◀◀/▶▶)

Use these buttons to skip tracks.

The provided Remote Control Unit allows the unit to be operated from a distance.

When operating the remote control unit, point it towards the REMOTE SENSOR on the front panel of the unit.

• Even if the remote control unit is operated within the effective range, remote control operation may be impossible if there are any obstacles between the unit and the remote control.
• If the remote control unit is operated near other appliances which generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it may operate incorrectly. Conversely, the other appliances may operate incorrectly.

Battery Installation

Diagram of a battery pack with two plates and a separate battery casing (no text or symbols)

1. Remove the battery compartment cover.
2. Insert two "AA" dry batteries. Make sure that the batteries are inserted with their positive "⊕" and negative "⊖" poles positioned correctly.
3. Close the cover.

Battery Replacement

If the distance required between the remote control unit and main unit decreases, the batteries are exhausted. In this case replace the batteries with new ones.

Precautions concerning batteries

• Be sure to insert the batteries with correct positive “⊕” and negative “⊖” polarities.
• Use batteries of the same type. Never use different types of batteries together.
• Rechargeable and non-rechargeable batteries can be used. Refer to the precautions on their labels.
• When the remote control unit is not to be used for a long time (more than a month), remove the batteries from the remote control unit to prevent them from leaking. If they leak, wipe away the liquid inside the battery compartment and replace the batteries with new ones.
• Do not heat or disassemble batteries and never dispose of old batteries by throwing them in a fire.

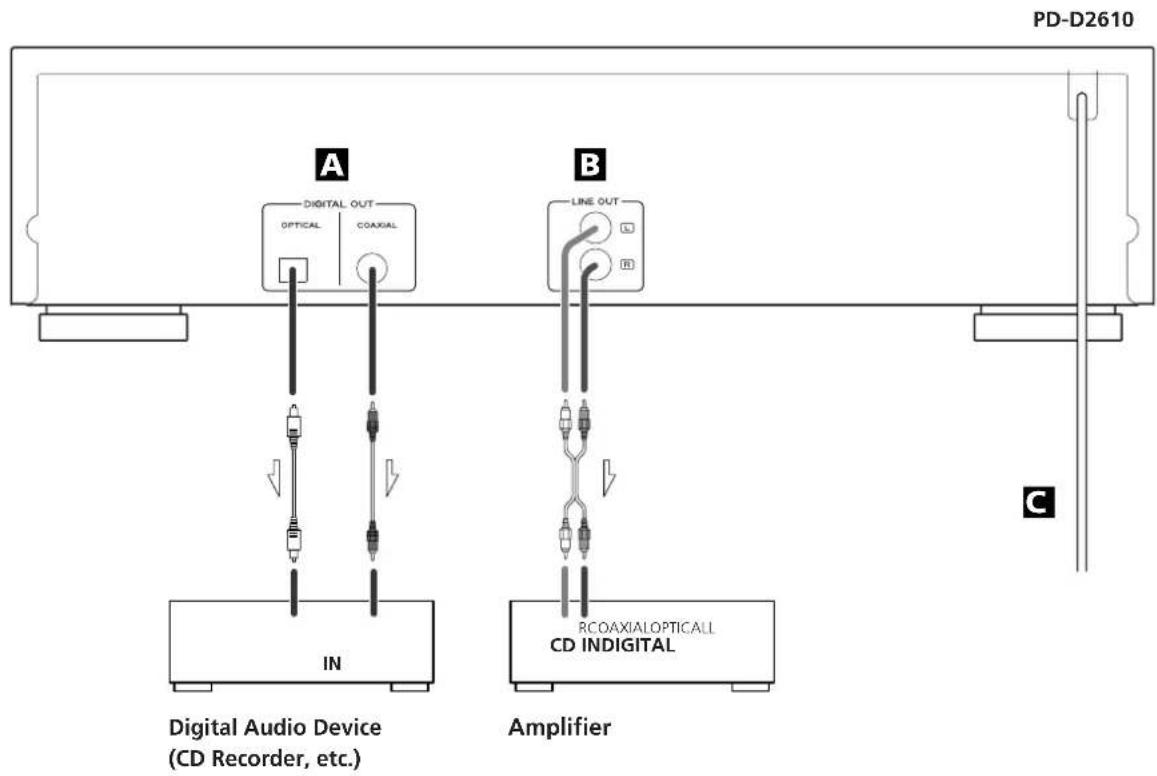

PD-D2610 A DIGITAL OUT OPTICAL COAXIAL B LINE OUT C IN Digital Audio Device (CD Recorder, etc.) Amplifier RCOAXIALOPTICAL CD INDIGITAL

CAUTION:

• Switch off the power to all equipment before making connections.
• Read the instructions of each component you intend to use with this unit.
• Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the signal interconnection cables together with the AC power cord or speaker cables.

A DIGITAL OUT terminal

Connect the digital output terminal to the digital input terminal of a digital device such as a CD recorder, MD deck, etc. Use a commercially-available optical or coaxial digital cable.

- Keep the supplied cap to cover the optical digital terminal when it is not in use.

B LINE OUT jack

Analog 2-channel audio signal is output from this jack. Connect this jack to the CD input jack of the amplifier with an RCA cable.

Make sure to connect : white plug → white jack (L: left channel) red plug → red jack (R: right channel)

AC Power Cord

After all other connections are complete, connect the plug to the AC wall socket.

Be sure to connect the power cord to an AC outlet which supplies the correct voltage.

Grasp the plug, not the cord when plugging or unplugging the power cord.

1 3 4 2 DISC NO. 5

1 Press the POWER button to turn the unit on.

2 Press the OPEN/CLOSE button (▲).

3 Place a disc on a tray with the printed label face up.

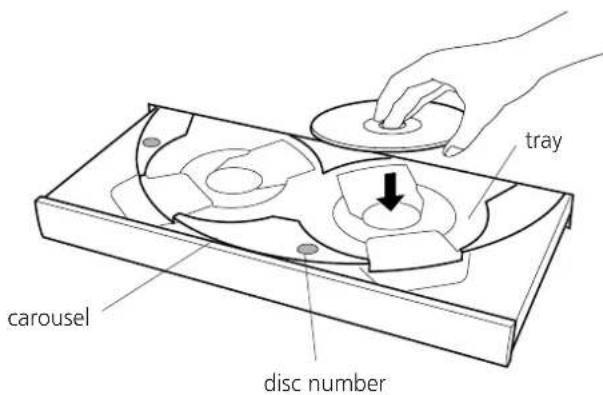

tray disc number carousel

• Never place more than a disc on a tray.
• To place a disc on the hidden tray, press the DISC SKIP button.
• Do not touch the carousel while it is rotating.
• The disc must be loaded centrally into the disc tray. If the disc is not correctly loaded, it may not be possible to open the tray again once it has closed, so you should ensure the disc is always centrally loaded in the tray.
• Do not force open or close the tray.

4 Press the OPEN/CLOSE button (▲) to close the tray.

5 Press the PLAY button (▶) to start playback.

The unit starts searching disc. If a disc is found the playback will start.

- If you want to select other disc, press the DISC SKIP button or the desired DISC NO. button.

(Audio CD) disc number and disc mark music calendar EACH TRACK 1 2) 3 4 5 1 2 3 4 5 4 7 8 9 10 11/12 track number elapsed time of the current trackcurrent disc numl

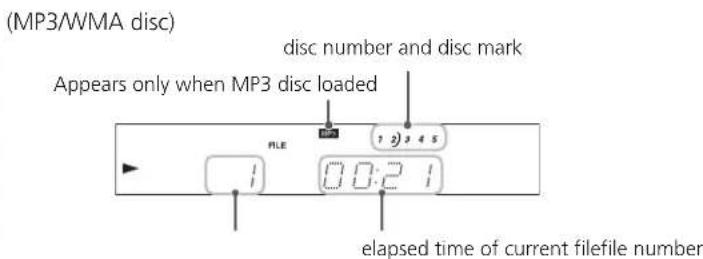

(MP3/WMA disc) Disc number and disc mark Appears only when MP3 disc loaded FILE 1 2 3 4 5 00:2 elapsed time of current filefile number

• All the buttons and switches still function normally even when the tray is opening or closing.
• When the unit detects a disc on the tray, the disc mark " ) will light.
  When the unit detects no disc on the tray, the disc number will go out.
• If the disc is CD, the music calendar lights to show the available unplayed tracks. If there are more than 14 tracks on the disc, the track number 1-14 and OVER will light.

DISC NO. B E C A D

A To stop playback

Press the STOP button (■) to stop playback.

B To suspend playback temporarily (pause mode)

Press the PAUSE button (■) during playback.

Playback stops at the current position, and Ⅱ is displayed.

To resume playback, press the PLAY button (▶) or the PAUSE button (■).

C To skip to the next or a previous track/file

During playback, repeatedly press the SKIP button (I◄◄ or ►►) until the desired track/file is found. The selected track/file will be played from the beginning.

In the stop or pause mode, press the SKIP button (I◄◄ or ►►) repeatedly until the track you want to listen to is found. Press the PLAY button (►) to start playback from the selected track.

• When the ◀◀ button is pressed during playback, the track being played will be played from the beginning. To return to the beginning of the previous track, press the ◀◀ button twice.
• When the ▶▶I button is pressed during playback of the last track of the disc, the first track of next disc will be played. But in the following cases this button will not work.:

During playback of the last track of the disc but there is not next disc.

During playback of the last track of the program

• When the ◀◀◀ button is pressed twice during playback of the first track of the disc, the last track of the same disc will be played.
• During programmed playback, the next or previous track in the program is played.

D Search for a part of a track/file

During playback, hold down the ◀◀◀ or ▶▶▶I button and release it when the part you want to listen to is found.

On the remote control use the SEARCH button (◀◀ or ▶▶).

E To select a disc

Press the DISC SKIP button repeatedly until the desired disc number is displayed, then press the PLAY button (▶).

Or press the DISC NO. button you want to listen to. The selected disc will be played automatically.

DISC SKIP PLAY

DISC 1 2) 3) 4 6 disc number

F Direct Playback

TRACK NO. 1 2 3 4 5 6 7 8 9 0 PLAY

During stop or playback of CD, you can use the numeric buttons of the remote control to select tracks/files.

Press the numeric buttons to select a track/file, then press the PLAY (▶) button. Playback starts from the selected track/file.

For instance, to select track number 35, press "3" and "5".

- Direct Playback do not work with MP3/WMA discs. When you want to select a file, use the SKIP buttons (1◄◄/►►1).

Repeat Playback

REPEAT

Each time the REPEAT button is pressed, the mode is changed as follows:

REPEAT ONE

The track/file being played will be played repeatedly. If you select another track/file in REPEAT ONE mode, the track/file selected will be played repeatedly.

REPEAT ALL

All tracks or files of all discs will be played repeatedly.

- During programmed playback, if the REPEAT button is pressed, the programmed contents will be played repeatedly.

Shuffle Playback

SHUFFLE

Shuffle mode turns on/off by pressing the SHUFFLE button.

During shuffle mode, SHUFFLE indicator lights. In shuffle mode the tracks/files of the disc are played randomly.

When all tracks/files of a disc have been played once, the next disc will shuffle play. The unit will stop when all discs have been played.

- If you press the ▶▶1 button during shuffle playback, next track/file will be randomly selected and played. If you press the ◀◀ button, the currently played track/file will be played from the beginning. In any other cases, one and the same track/file is not replayed.

- If tracks/files are programmed, the SHUFFLE button does not work.

2 3 1 4 5

- Up to 32 tracks can be programmed in the desired order.

1 Press the PROGRAM button in the stop mode.

"PROGRAM" lights on the display.

2 Press the numeric button to select a track or file.

1 2 3 4 5 6 7 8 9 0

PROGRAM DISC 2 TRACK 1 2)3 4 5 0 1 P - 0 1 track/file number

disc number program number

You can also use the SKIP buttons (1◄◄/►►) to select a track.

• If the unit has not yet detected the contents of the disc, you can not enter 3-digit numbers with the numeric buttons. In this case use the SKIP buttons (1◄◄/►►1).
• You can not also enter numbers other than those detected as specifying tracks/files in the disc.

3 Press the PROGRAM button to enter your selection.

Repeat steps 2 to 3 to program more tracks/files.

• If you made a mistake, press the CLEAR button. The last programmed number will be deleted.
• Up to 32 tracks/files can be programmed.

4 When programing has been finished, press the PLAY button to start programmed playback.

When playback of all the programmed tracks has finished, or if one of the following buttons is pressed, the programmed playback stops:

STOP

But the programmed contents aren't lost. You can return to the programmed playback by pressing the PLAY button.

• If the power is turned off, the programmed contents will be erased.
• When in the program mode, the following buttons don't work:

SHUFFLE, INTRO

To check the programmed order

PROGRAM CHECK

In the stop mode, press the PROGRAM CHECK button repeatedly. The track and program numbers will be shown on the display.

To add a track/file to the program

TRACK NO. 1 2 3 4 5 6 7 8 9 0 PROGRAM CHECK PROGRAM

If you want to add a track/file to the end of the program, press the PROGRAM CHECK button repeatedly until "A" appears after the end of the program.

Then select a track/file number using the numeric buttons and press the PROGRAM button. The track/file is added to the program.

- If you want to rewrite a track/file, press the PROGRAM CHECK button repeatedly until the program number which you want to rewrite appears on the display. Then select a new track/file.

To delete a track/file from the program

PROGRAM CHECK CLEAR

In the stop mode, press the PROGRAM CHECK button repeatedly until the program number to be deleted appears on the display, then press the CLEAR button. The selected track/file is deleted from the program.

To clear the program

When stopped, press the stop (■) button twice to clear the program completely.

STOP

- If the power is turned off, the programmed contents will be erased.

Intro Check

INTRO CHECK

Intro check mode turns on/off by pressing the INTRO CHECK button

In intro check mode, INTRO indicator lights. During playback the first 10 seconds of the tracks/files are played. When all tracks/files have been played once, the unit will stop playback.

TIME

During playback, each time the TIME button is pressed the display changes as follows:

When the disc is CD:

In stop mode:

DISC 2 TRACK 1 2) 3 4 5 6 1 7 8 9 10 11 12 total number of tracks total time of the disc in the disc

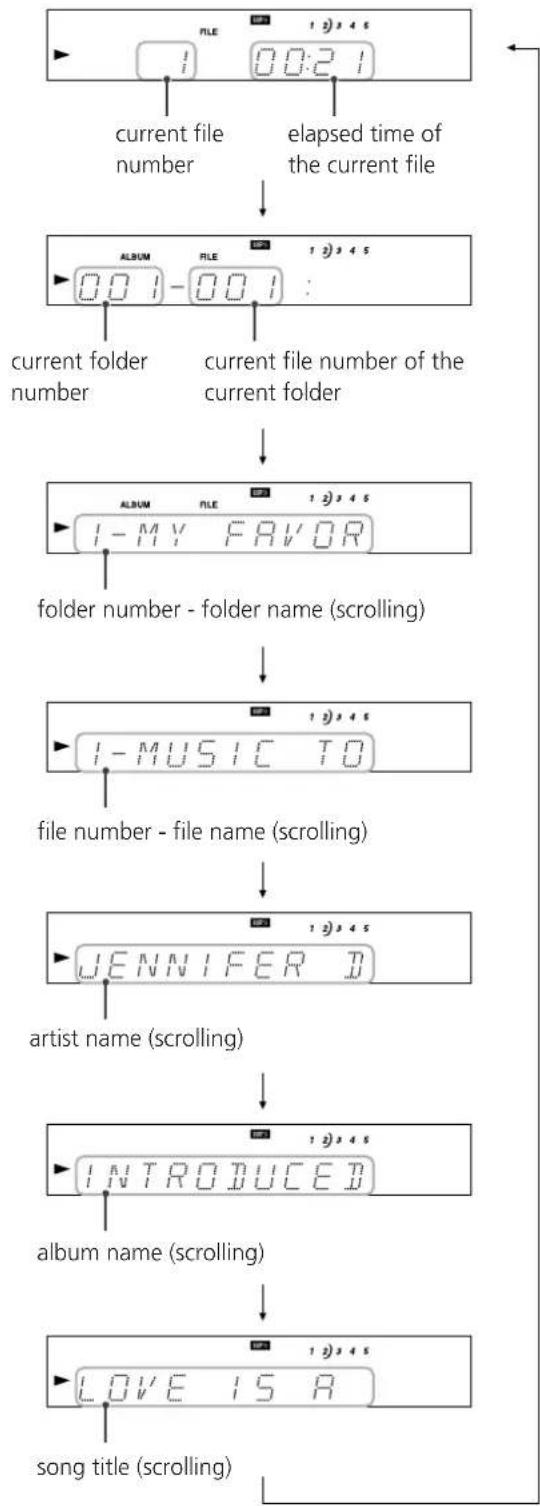

When the disc is an MP3 or WMA disc:

In stop mode:

ALBUM FILE 1 2) 3 4 5 0.15 3.21 total number of folders in the disc total number of files in the disc

- When a WMA CD is loaded, the MP3 indicator will not appear

Troubleshooting

If you experience any problems with the unit, please take a moment to look through this chart and see if you can solve the problem yourself before you call your dealer or a TEAC service center.

General

No power

→ Check the connection to the AC power supply. Check and make sure the AC source is not a switched outlet and that, if it is, the switch is turned on. Make sure there is power to the AC outlet by plugging another item such as a lamp or fan.

No sound

→ Check the connection to the amplifier.
→ Check the operation of the amplifier.

Cannot play.

→ Load a disc with the playback side facing down.
→ If the disc is dirty, clean the surface of the disc.
→ A blank disc has been loaded. Load a prerecorded disc.
→ Depending on the disc, etc. it may not be possible to play back CD-R/CD-RW discs. Try again with another disc.
→ You cannot play back unfinalized CD-R/CD-RW discs. Finalize such a disc in a CD recorder and try again.

Sound skips.

→ Place the unit on a stable place to avoid vibration and shock.
→ If the disc is dirty, clean the surface of the disc.
→ Don't use scratched, damaged or warped discs.

Remote Control Unit

Remote control doesn't work.

→ If the batteries are exhausted, change the batteries.
→ Use remote control unit within an effective range (5m) and point at the front panel.
→ Clear obstacles between the remote control unit and the main unit.
→ If a fluorescent light is near the unit, turn it off.

MP3/WMA

There is no sound even if the PLAY button (▶) is pressed.

→ Non-playable file formats cannot be played.

Some unknown characters are displayed on the display panel.

This unit cannot display symbols and full-size or double-byte characters (such as Japanese, Chinese, etc.) correctly. File name of MP3 should be alphanumeric characters.

If normal operation cannot be recovered, unplug the power cord from the outlet and plug it again.

Specifications

CD Player

Pickup	3-beam laser
D/A converter	Dual 1-bit linear
Digital filter	4-times oversampling
Frequency Response	20 Hz - 20 kHz, ±2.5dB
Total Harmonic Distortion	Less than 0.02 % (1 kHz)
Signal-to-Noise Ratio (S/N)	More than 90 dB
Channel separation	More than 80 dB (1 kHz)
Output	Analog: 2.0 Vrms (RCA)
Digital: COAXIAL/TOS OPTICAL

General

Power Requirement . . . AC 120 V, 60 Hz (U.S.A./Canada Model)

Power Consumption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 W

Dimensions (W x H x D) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (17 1/8" x 4 1/2" x 15 3/8")

Weight (Net) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2 kg (13 11/16 lb)

Operating temperature.	+5°C - +35°C
Operating humidity	5% to 85% (no condensation)
Storage temperature	-20°C - +55°C

Standard Accessory .... RCA cable x 1

Remote control unit (RC-1122) x 1

Batteries (AA) x 2

Owner's manual x 1

Warranty card x 1

• Design and specifications are subject to change without notice.
  • Weight and dimensions are approximate.
• Illustrations may differ slightly from production models.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

ATTENTION : POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRIÈRE). AUCUNE PIÈCE INTERNE N'EST RÉPARABLE PAR L'UTILISATEUR. CONFIEZ TOUTE RÉPARATION À UN SERVICE APRÈS-VENTE QUALIFIÉ.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson Licensing.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Symbolic icon of a person climbing a ladder inside a circle (no text or symbols)

ATTENTION

Diagram of a battery pack with two plates and a separate battery, showing no text or symbols.

DISC NO. B E C A D

PROGRAM CHECK

PROGRAM CHECK CLEAR

INTRO CHECK

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson Licensing.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Symbolic icon of a person pushing a large object through a circular background (no text or symbols)

PRECAUCIÓN

Control remoto....41

Conexión 42

Reproducción 43

Repetición. 45

Beware of condensation

When the unit (or a disc) is moved from a cold to a warm place, or used after a sudden temperature change, there is a danger of condensation; vapor in the air could condense on the internal mechanism, making correct operation impossible. To prevent this, or if this occurs, leave the unit for one or two hours with the power turned on. Then the unit will stabilize at the temperature of its surroundings.

Maintenance

If the surface of the unit gets dirty, wipe with a soft cloth or use diluted neutral cleaning liquid. Be sure to remove any fluid completely. Do not use thinner, benzine or alcohol as they may damage the surface of the unit.

Web global de TEAC

http://audio.teac.com/support/registration/

Discos

Discos utilizables:

H Skip/Search buttons

Diagram of a battery pack with two plates and a separate battery casing (no text or symbols)

A Terminal DIGITAL OUT

DISC NO. B E C A D

PROGRAM CHECK

PROGRAM CHECK CLEAR

INTRO CHECK

1834 Gage Road, Montebello, California 90640 U.S.A. Phone: [phone]

TEAC AUDIO EUROPE Liegnitzer Straße 6, 82194 Gröbenzell, Germany Phone: [phone]

This appliance has a serial number located on the rear panel. Please record the serial number and retain it for your records.

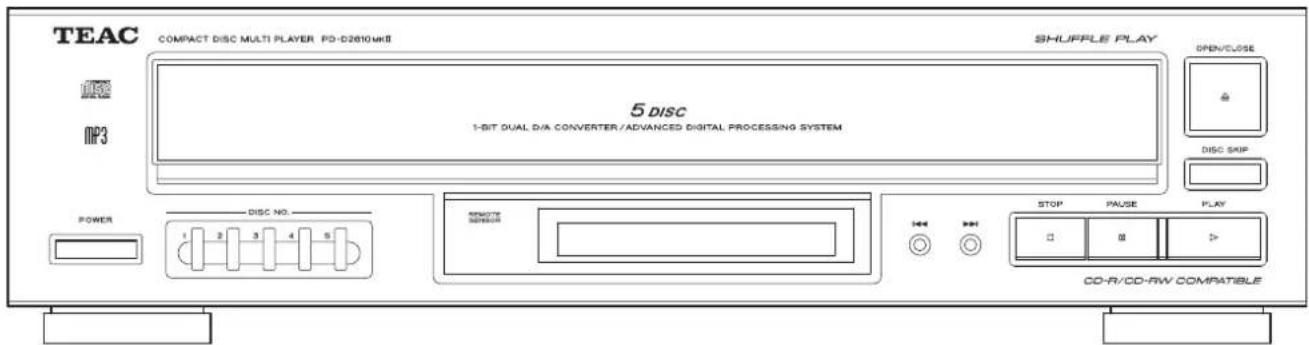

Model name: PD-D2610MKII Serial number
