AC4820 - Air purifier GermGuardian - Free user manual and instructions

Product Type	Air Purifier
Brand	GermGuardian
Model	AC4820
Power Supply	120 V AC, 60 Hz
Filtration System	Pre-filter + Activated Carbon + True HEPA Filter
Number of Speeds	3 (Low, Medium, High)
Warranty	3-year limited
Certification	ENERGY STAR
Filter Replacement Indicator	Yes, flashing red light
Carrying Handle	Yes
HEPA Reset Button	Yes
Filter Maintenance	Vacuum pre-filter, replace every 6 months approx.
Exterior Cleaning	Soft dry cloth, do not use solvents
Safety	Polarized plug, do not immerse, do not use with dimmer
Replacement Parts	Combo Filter FLT22CB4 (pack of 4)
Repairability	No user-serviceable parts; contact support
Customer Service	1.866.603.5900, www.guardiantechnologies.com

Frequently Asked Questions - AC4820 GermGuardian

How do I replace the filter on my GermGuardian AC4820 air purifier?

Turn off and unplug the unit. Press the lock/unlock button to remove the back cover. Remove the old filter and insert the new combo filter (pre-filter + carbon + HEPA) following the arrow direction. Replace the cover and lock it. Finally, press the HEPA reset button for 5 seconds to turn off the red light.

What does the flashing red indicator light mean?

The flashing red power indicator means it is time to replace the filter. Replace the filter and reset the system by pressing the HEPA reset button for 5 seconds.

How do I reset the filter replacement indicator?

After changing the filter, press the HEPA on/off button (reset button) for 5 seconds until the indicator turns green. If the light remains red, check that the filter is properly installed.

Can I wash the filter of my air purifier?

No, never wash the filter. It is designed for single use. You can gently vacuum the pre-filter to remove dust, but do not wash it. Replace the filter every 6 months approximately.

What are the filtration stages of the GermGuardian AC4820?

The system includes three stages: a pre-filter for large particles, an activated carbon filter for odors and gases, and a True HEPA filter for allergens and fine particles. The set is combined into a single filter.

The air purifier suddenly stops. What should I do?

Check that the unit is plugged in and the outlet works. Make sure the HEPA filter is correctly installed and the back cover is properly locked. If the problem persists, contact customer service at 1.866.603.5900.

What is the warranty on the GermGuardian AC4820?

This model comes with a limited 3-year warranty from the original date of purchase. It covers defects in materials and workmanship. To claim warranty, contact customer service with proof of purchase.

Can I use the air purifier in a humid room like a bathroom?

No, do not use this unit outdoors or in a humid environment. It is not designed for use in or near water. Keep it in a dry, well-ventilated area.

What is the power consumption of the air purifier?

The AC4820 model is ENERGY STAR certified. Although the exact consumption is not specified in the manual, it is designed to be energy efficient. For detailed information, visit the manufacturer's website.

How do I clean the exterior of the air purifier?

Unplug the unit before cleaning. Use a soft dry cloth to dust the exterior. Do not use gasoline, benzene, thinner, or harsh cleaners. Never immerse the unit in water.

USER MANUAL AC4820 GermGuardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to GuardianTechnologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

©2016 Guardian Technologies LLC

guardian

technologies™

USE & CARE INSTRUCTIONS

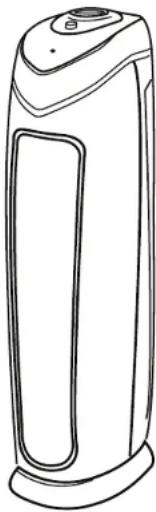

Line drawing of a portable air purifier with a closed lid and control panel (no text or symbols)

Air Cleaning System

Model No. AC4820

3-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only.

REV1218

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Read all instructions before using appliance.
• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
  • To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
  • Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.
  • Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
  • DO NOT run cord under carpeting.
• DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.
• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
• DO NOT use outdoors.
  • DO NOT place anything on top of unit.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
  • Always unplug the unit before before cleaning or servicing in any way.

• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

WARNING: This product can expose you to chemicals including lead or lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov.

ENERGY STAR

This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.

The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model's CADR for Dust and the electrical energy it consumes, or CADR/Watt.

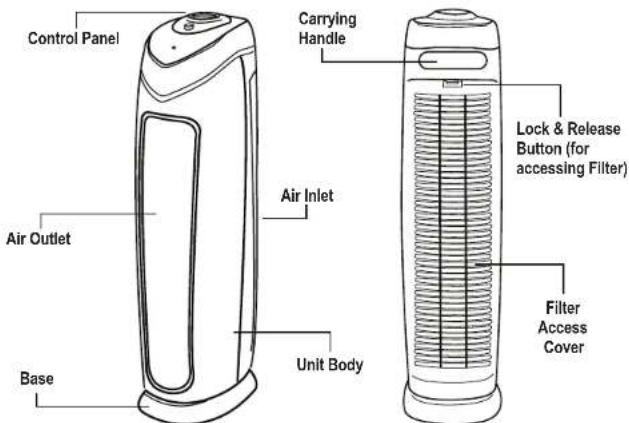

PRODUCT SPECIFICATIONS AND PARTS

Control Panel Carrying Handle Air Outlet Air Inlet Unit Body Base Lock & Release Button (for accessing Filter) Filter Access Cover

FRONT OF UNIT BACK OF UNIT

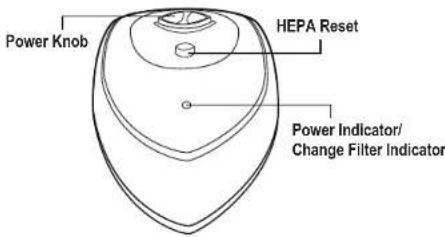

CONTROL PANEL

Power Knob HEPA Reset Power Indicator/ Change Filter Indicator

REPLACEMENT PARTS

FILTER:
Filter B
Model No.
FLT4825

Check out our
AutoShip & Save
Filter Replacement Program
www.guardiantechnologies.com
IMPORTANT: Use Guardian
Technologies GENUINE
Replacement Parts only
To Purchase Contact
Customer Service
REPLACEMENT
CARBON FILTER
4-PACK
Model No.
FLT22CB4

AIR CLEANING SYSTEM

Improve your indoor air quality with your new germguardian® Air Cleaning System. Multiple levels of cleaning include a combination filter that captures allergens, and Charcoal filter to remove odors.

Pre-Filter - Captures initial dust and allergen particles.

Activated Carbon Filter - Charcoal/Activated Carbon contributes to the control and prevention of the growth of bacteria, germs and mold.

*Pre-Filter and Carbon Filter are combined into one layer that attaches to the Filter.

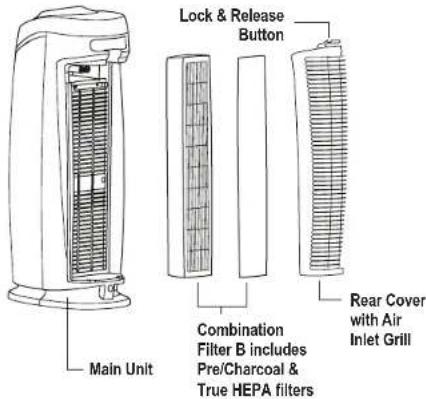

AIR CLEANING LAYERS

Main Unit Lock & Release Button Combination Filter B includes Pre/Charcoal & True HEPA filters Rear Cover with Air Inlet Grill

OPERATING INSTRUCTIONS

1. Carefully remove your air purifier from box and bag.

2. Select a firm, level and at location for the air purifier.

* For proper air flow, locate the unit at least 1 foot from any wall or furniture.

* Make sure none of the grills are blocked.

1. Plug the power cord into a 120V AC outlet.

IMPORTANT: When moving the air purifier, always lift unit by the carrying handle located on back.

1. Turn the air purifier ON by rotating POWER KNOB clockwise.
2. Upon turning the air purifier ON, the power indicator will be lit (green) and the unit will be in LOW mode ( ).
3. Rotate the POWER KNOB clockwise to set the air purifier to MEDIUM (U) or High mode (M).
4. To turn the unit OFF, rotate the POWER KNOB counter-clockwise to OFF mode (•).

FILTER REPLACEMENT

CHANGE FILTER INDICATOR

The green power light on the air cleaner will turn red and flash continuously indicating that it is time to replace the filter. Replace the filter according to the directions then press the HEPA reset button and hold for 5 seconds to restart the system. The light will turn back to green. Depending on usage, filter will last approximately 6 months.

REPLACE FILTER

Line drawing of a blender with a handle and spout, showing a small inset image of water flowing around it (no text or symbols)

1. Turn off and unplug the unit.

2. Press the Lock & Release Button and remove the Rear Cover from the unit.

Line drawing of a portable blender with a handle and spout, showing a side view (no text or symbols)

1. Remove the used Combination Filter.

Line drawing of a portable device with two inserted blades, one showing an arrow indicating rotation (no text or symbols)

1. Insert new Combination Filter into the unit. Consult the arrow on the filter for correct installation direction.

2. Reattach the Rear Cover of the unit and securely latch into place.

3. Push and hold HEPA Reset Button for 5 seconds to reset Filter Change Indicator.

CHECKING AND MAINTAINING FILTER

Maintain the filter by checking it frequently.

Depending on air quality conditions, you may need to replace it more frequently.

Vacuum the carbon filter layer as needed to remove loose debris and dust and to help prolong the life of your filter.

To check the status of the filter, peel back the carbon layer to expose the pleated filter.

If the filter is no longer white and is covered in grey dust/dirt it should be replaced.

IMPORTANT: Do NOT try to wash and re-use the Combination Filter.

IMPORTANT: Use Guardian Technologies GENUINE Replacement Parts only.

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Unit does not operate.	Check that the unit is plugged in.Check that filter is in place.Confirm that filter is Genuine Replacement FilterCall Customer Service.
Unit shuts off unexpectedly.	Check that unit is plugged into a working electrical outlet.Check that filter is firmly in place.Check that the Rear Cover is latched firmly in place.Call Customer Service.
No air circulating from unit.	Unplug unit. Check Pre-/Carbon and filters.Clean Pre-/Carbon Filter if necessary.Replace filter if necessary.
Increase in noise level.	Make sure the filters are clean. Replace if necessary.
Power light is red and flashing.	Replace filter and reset system.

What is CADR?

CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room.

Clean Air Delivery Rate

From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

Refer to website for individual model CADR numbers.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1 866 603-5900

www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

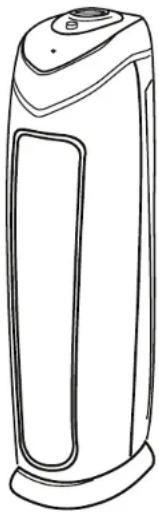

Line drawing of a portable air purifier with a closed lid and control panel (no text or symbols)
