AC9400 - Air purifier GermGuardian - Free user manual and instructions

Product Type	Air Purifier
Brand	GermGuardian
Model	AC9400
Power Supply	120 V AC, 60 Hz
Filter	360° HEPA Filter (replaceable)
Number of Speeds	3 Speeds + Turbo
Timer	Up to 12 hours
Ionizer	Yes, can be turned off
Auto Mode	Yes, adjusts speed according to air quality
Sleep Mode	Yes, reduces display brightness
Child Lock	Yes, control panel lock
Air Quality Monitor	Yes, measures PM2.5 particles with color display
Filter Change Indicator	Yes, flashes to remind replacement
Warranty	3 years limited
Pre-filter Maintenance	Monthly cleaning with brush or vacuum
Filter Replacement	Approximately every 6 months
Motor Protection	Protection circuit with automatic shut-off and "Err" error
Dimensions (approx.)	30 x 30 x 50 cm
Weight (approx.)	5 kg

Frequently Asked Questions - AC9400 GermGuardian

How to install the filter for the first time?

Remove the plastic bag surrounding the new filter, then place it in the compartment with the closed end facing down. Lock by turning the lever to the right and reattach the front panel.

Why won't my purifier turn on?

Check that the front panel is properly closed and the filter is securely locked. Also ensure the appliance is plugged into a working outlet.

How to set the timer?

Press the Timer button to select the desired number of hours (up to 12). To cancel, hold the button for 5 seconds.

What does the colored indicator on the panel mean?

It indicates air quality: green (good, 0-100 PM2.5), yellow (moderate, 101-200), red (poor, 201-300), dark red (very poor, 301-500).

How to activate auto mode?

Press the Auto Mode button (symbol A). The fan speed will automatically adjust based on detected air quality.

How to clean the pre-filter?

Unplug the unit, remove the front panel and filter. Use the provided brush or a vacuum to remove dust from the pre-filter. Reassemble everything.

When should I replace the HEPA filter?

The filter change indicator flashes after approximately 6 months of use. Replace it with an original Guardian Technologies filter.

What to do if the unit stops suddenly?

Unplug the unit for 10 minutes to reset the motor protection. If the problem persists, contact customer service.

Can I use the ionizer continuously?

Yes, the ionizer is safe and improves particle capture. You can turn it on or off at any time by pressing the Ionizer button.

How to lock the controls to prevent children from changing them?

Press the Child Lock button to lock the panel. Only power on remains accessible. Press again to unlock.

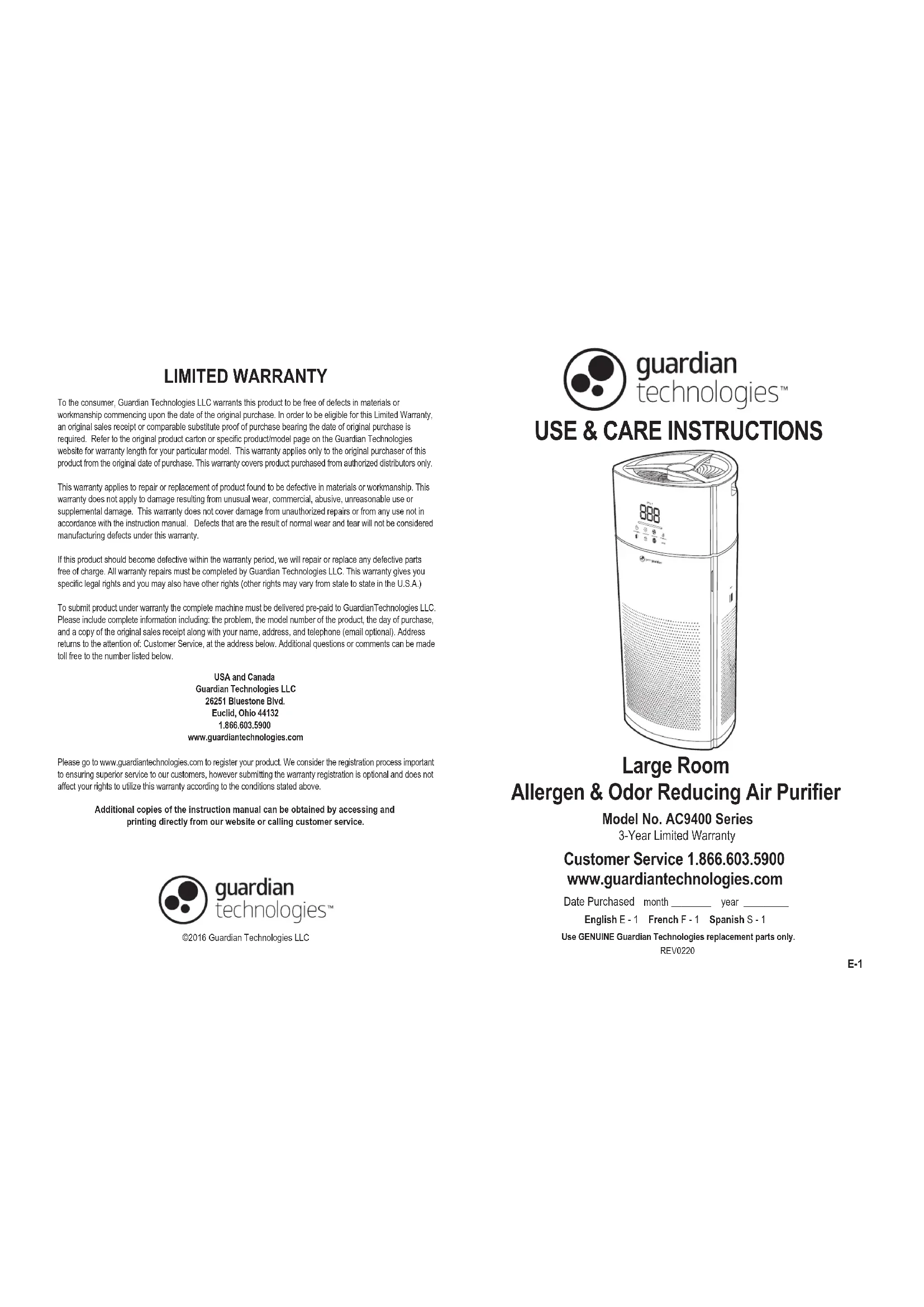

USER MANUAL AC9400 GermGuardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to GuardianTechnologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

©2016 Guardian Technologies LLC

guardian

technologies™

USE & CARE INSTRUCTIONS

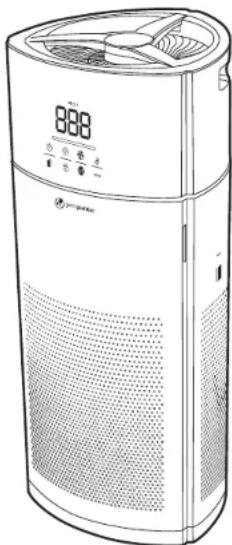

Line drawing of a portable air purifier with digital display and ventilation slots (no text or symbols)

Large Room

Allergen & Odor Reducing Air Purifier

Model No. AC9400 Series

3-Year Limited Warranty

Customer Service 1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only.

REV0220

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

- Read all instructions before using appliance.

• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
  • To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.
• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
  • DO NOT run cord under carpeting.
• DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.
• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
• DO NOT use outdoors.
  • DO NOT place anything on top of unit.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
  • Always unplug the unit before before cleaning or servicing in any way.

• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m ^3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

WARNING: Cancer or Reproductive Harm.

For more information go to www.P65Warnings.ca.gov.

This product earned the ENERGY STAR label by meeting strict energy efficiency guidelines set by the U.S. EPA. Room air cleaners have demonstrated the potential for improving air quality and providing health benefits. EPA does not endorse manufacturer claims regarding the degree to which a specific product will produce healthier indoor air. The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model's CADR for Smoke and the electrical energy it consumes, or CADR/Watt.

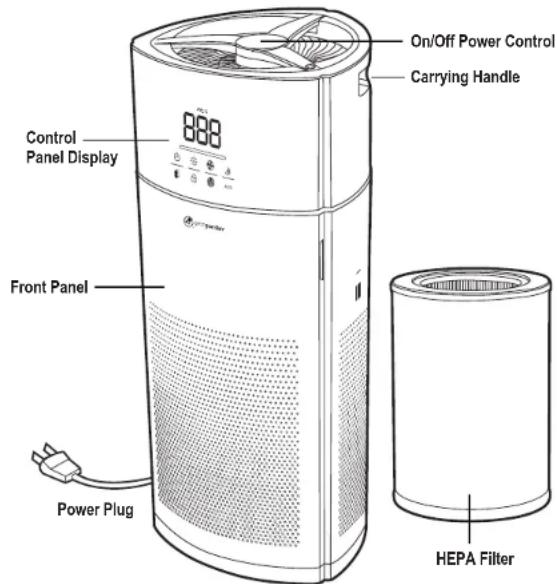

PRODUCT SPECIFICATIONS AND PARTS

On/Off Power Control Carrying Handle Control Panel Display Front Panel Power Plug HEPA Filter

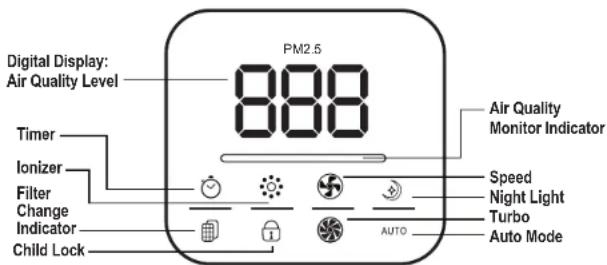

CONTROL PANEL

Digital Display: Air Quality Level PM2.5 888 Timer Ionizer Filter Change Indicator Child Lock Air Quality Monitor Indicator Speed Night Light Turbo Auto Mode

IMPORTANT!

The air purifier is shipped with the filter stored in the filter compartment.

The filter is shipped in a bag to prevent degradation.

Before using, remove and discard bag.

OPERATING INSTRUCTIONS

IMPORTANT: The air purifier is shipped with the filter stored in the filter compartment.

The filter is shipped in a bag to prevent degradation. Before using, remove and discard bag.

Note: Proper filter and front panel installation is necessary for unit to turn on and run.

1. Select a firm, level and flat location for the air purifier.
2. For proper air flow, locate the unit at least 1 foot from any wall or furniture.
3. Make sure none of the grills are blocked.
4. Plug the power cord into a 120V AC outlet.
5. When moving the air purifier, always lift it by the carrying handle.

1. Tum unit power ON by pressing the control on the top of the unit.

Note: The purifier will not work if the front panel is not closed. The first time the unit aged in and power on, the air quality sensor will take a few minutes to calibrate.

elect Fan Speed or Turbo

an: Mode 1, 2, 3

urbo Speed - Maximum Airflow & Allergen Control

timer - If you prefer to run the purifier for a specific number of hours. Press timer control to select hours – up to 12 hours. After selected, the display will refresh to the main display. To cancel timer: hold the timer button for 5 seconds.

leep Mode - Press to dim display lights. When selected, the lights will dim and the air purifier will run in low speed. Press any control to exit from sleep mode.

ionizer - Press to turn on ozone-safe ionizer function. The ionizer can enhance ability to remove particles and keep the air fresh. Press again to turn off.

AB Auto Mode - Press to select Auto Mode and the display will show "A". When in "Auto" the fan speed will change depending on the air quality level in the room. See AQM below. Optical Sensing in "Auto" mode: when the room is dark for over 1 minute, the unit will enter into sleep mode automatically (low fan speed, dim display). When the sensor detects the room is light, the unit will restore to standard Auto mode after 30 seconds.

hild Lock - Press to lock control panel so controls cannot be adjusted, except power. press again to turn feature off.

filter Change Indicator flashes to indicate it is time to change the filter. Replace the filter according to instructions (Pg. E-7). Press and hold Filter Control to reset the reminder. old Filter Control reset down for approximately 8 seconds, the unit will beep before flashing indicator stops.

Air Quality Monitor (AQM): detects the amount of particulate matter (PM2.5) in the air. The light bar under the display is the AQM indicator and it will change colors, indicating the air quality level in the room. The particulate matter value will be displayed on the control panel. See values and status ranges in chart below.

Below are the color values that can be displayed and the fan speed "AUTO" mode will automatically select.

Light Color		Particulate Matter Value (Range)	Air Quality Status	Auto Fan Speed
Green	0-100	Good 1
Yellow	101-200	Average 2
Red	201-300	Poor 3
Red	301-500	Very Poor Turbo

RESETTING THE AIR PURIFIER

The air purifier is equipped with a motor protection circuit. If activated, the overload warning indicator will initiate and cut off the power. An audible warning "chime" will sound for 60 seconds along with a flashing error "Err" warning on the display. To restart the unit, unplug the unit for 10 minutes, then plug back in and power on.

Note: If the unit continues to shut down, there may still be an abnormal condition and the unit may need service. FILTER REPLACEMENT

FILTER REPLACEMENT

The Replace Filter Indicator light will flash when it is time to replace the filter. Depending on usage and environmental conditions the filter will last approximately 6 months. The filter will be covered in dust when it is dirty and needs replacing. It is important to maintain and change the filter to continue to optimize the performance of the purifier.

IMPORTANT: DO NOT wash and re-use the filter. Please contact Customer Service to purchase a replacement filter. Use only Genuine Guardian Technologies Replacement Parts to optimize the performance of your air purifier.

1. Turn off and unplug the unit.
2. Remove the front panel by pulling cover from sides and lift panel from base.
3. Unlock filter by rotating lever to the left.
4. Replace with new filter. Closed end of filter should be on the bottom. Open end on top.
5. Lock filter by rotating lever to the right.
6. Return the front panel. First insert the front panel bottom hooks then close.

NOTE: Make sure front panel is closed properly. Unit will not function when panel is open.

REPLACEMENT FILTER

FILTER:

Filter K

Model No. FLT9400

Check out our

AutoShip & Save

Filter Replacement Program

www.guardiantechnologies.com

IMPORTANT: Use Guardian Technologies GENUINE

Replacement Parts only. Contact Customer Support

or visit our website www.guardiantechnologies.com.

CLEANING & MAINTENANCE

CLEANING

Always unplug the appliance before you clean it. Never immerse the appliance in water or any other liquid. Never use aggressive or flammable cleaning agents such as bleach or alcohol to clean any part of the appliance.

BODY OF THE APPLIANCE

Regularly clean the inside and outside of the body to prevent dust from collecting on the inside and outside.

1. Wipe away dust with a soft dry cloth from the body of the appliance.

2. Clean the air inlet and the air outlet with a soft dry cloth.

PRE-FILTER SCREEN

The pre-filter is designed to collect larger dust and debris and should be cleaned monthly or more frequently depending on use. Clean regularly with the brush attachment or your vacuum cleaner. This will remove the lint and dirt and help maintain the life of the filter (see filter replacement to locate and remove filter).

NOTE: Do NOT stick any foreign objects or your fingers inside of the unit.

CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product.

NEVER use alcohol or other solvents

What is CADR?

CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room.

Clean Air Delivery Rate

From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

Refer to website for individual model CADR numbers.

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Unit shuts off unexpectedly or does not operate.	Check that the unit is plugged into a working electrical outlet.Check that the motor protector is triggered.Check that the filter is in the unit and locked.Check that the front panel is latched firmly in place.
No air circulating from unit.	Unplug unit. Check filter. Replace filter if necessary.
Increase in noise level.	Make sure the filter is clean. Replace if necessary.
Odors and smoke are not removed.	Clean or replace the filter if it appears to be heavily soiled.
The discharged air has an aroma or odor.	Check to see if the filter is heavily soiled. Replace the filter.Tum off the lonizer.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1 866 603-5900

www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

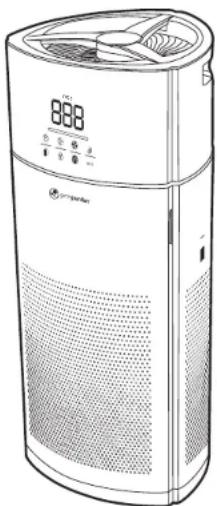

Line drawing of a portable air purifier with digital display and ventilation slots (no text or symbols)

REPLACEMENT DU FILTRE

FILTRE

Filtre K

Modèle n° FLT9400

Check out our

AutoShip & Save

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

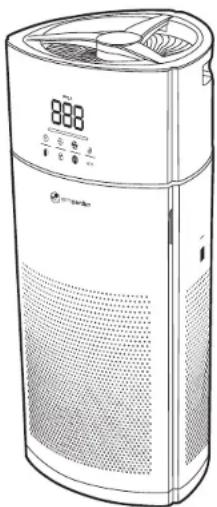

Line drawing of a portable air purifier with digital display and control panel (no text or symbols)
