AC5300 - Air purifier GermGuardian - Free user manual and instructions

Product Type	Air Purifier
Brand	GermGuardian
Model	AC5300
Power Supply	120 V~, 60 Hz
Filtration Levels	Pre-filter, activated carbon filter, HEPA filter, UVC lamp
Filter Type	Combined C filter (pre-filter + carbon + HEPA), model FLT5000
UVC Lamp	5 W, model LB4000
Fan Speeds	3 (1 = low, 2 = medium, 3 = high)
Control	Touch panel with On/Off, Speed, UV buttons, replacement indicators
Filter Life	Approximately 6 months (depending on usage)
UVC Tube Life	Variable, flashing blue light indicates replacement
Maintenance	Vacuum pre-filter if needed; replace filter and UVC tube per indicators
Safety Instructions	Do not immerse; unplug before maintenance; do not block air intakes/outlets; use only authentic parts
Ozone	8-hour average concentration: 0.001 ppmv (complies with standards)
Warranty	Limited 1 year (parts and labor)
Customer Service	1-866-603-5900 (United States and Canada)
Replacement Parts	Filter FLT5000, UVC tube LB4000, pack of 4 filters FLT28CB4
Website	www.guardiantechnologies.com

Frequently Asked Questions - AC5300 GermGuardian

How do I reset the filter replacement indicator?

After replacing the filter, press the UV button for 3 seconds (for AC5300 models) or the Timer button for 3 seconds (for AC5350 models) until the indicator turns off.

How do I replace the UVC tube?

Unplug the unit, remove the back cover and combined filter. Unscrew the 2 screws of the metal protector, then pull the tube to release it. Insert the new tube (LB4000) and reassemble the protector. Reset the system by pressing the UV button for 3 seconds.

What does the flashing blue light on the panel mean?

The flashing blue light indicates it is time to replace the UVC tube. Replace it and reset the system.

How do I clean the filter?

You can vacuum the carbon layer to remove dust. However, do not wash or reuse the combined filter; replace it when dirty.

How often should I replace the filter?

Under normal use, the filter should be replaced approximately every 6 months. The filter replacement indicator lights up when it is time.

Can I run the unit continuously?

Yes, the air purifier is designed for continuous use. It is recommended to leave it on to maintain optimal air quality.

What should I do if the unit does not turn on?

Check that the unit is plugged into a working outlet, the filter is properly installed, and the back cover is locked. If the problem persists, contact customer service.

How do I disable the button beep?

For AC5350 models, press and hold both the Timer and UV buttons simultaneously for 3 seconds. For AC5300, this feature is not available.

What is the warranty on this unit?

The limited warranty is one year from the date of purchase, covering defects in materials and workmanship. A purchase receipt is required.

Where can I buy authentic replacement parts?

You can order parts (filter FLT5000, tube LB4000) by calling 1-866-603-5900 or at www.guardiantechnologies.com.

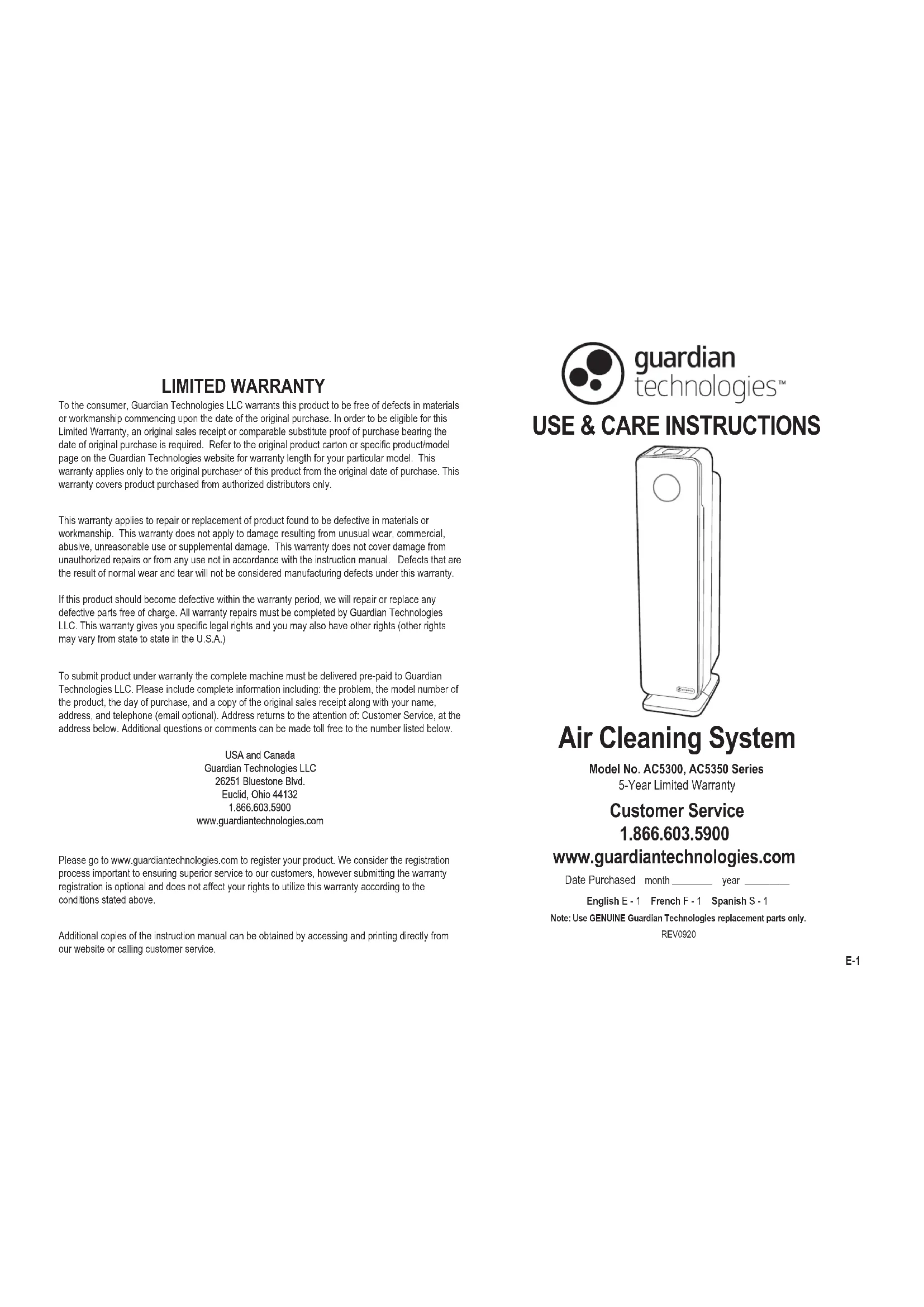

USER MANUAL AC5300 GermGuardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian technologies™

USE & CARE INSTRUCTIONS

Line drawing of a rectangular electronic device with a circular button and base (no text or symbols)

Air Cleaning System

Model No. AC5300, AC5350 Series

5-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E-1 French F-1 Spanish S-1

Note: Use GENUINE Guardian Technologies replacement parts only.

REV0920

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Read all instructions before using appliance.
• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.

- Extreme caution is necessary when any appliance is used by or near children or people with disabilities and whenever the appliance is left operating unattended.

- Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.

- NEVER drop or insert any object into any openings.

• DO NOT run cord under carpeting.

- DO NOT cover cord with throw rugs, runners, or similar coverings.

- DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

- DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.

- Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

- DO NOT use outdoors.

- DO NOT place anything on top of unit.

- NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

- DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp With Lamp Manufactured by Guardian Technologies.
• Always unplug the unit before before cleaning or servicing in any way.
• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m ^3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

WARNING: Cancer or Reproductive Harm.

For more information go to www.P65Warnings.ca.gov.

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup 1-866-284-4010

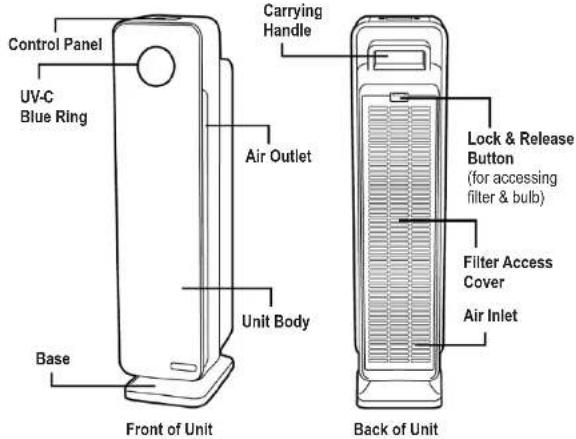

PRODUCT SPECIFICATIONS AND PARTS

Control Panel UV-C Blue Ring Carrying Handle Air Outlet Unit Body Base Front of Unit Back of Unit Lock & Release Button (for accessing filter & bulb) Filter Access Cover Air Inlet

CONTROLS

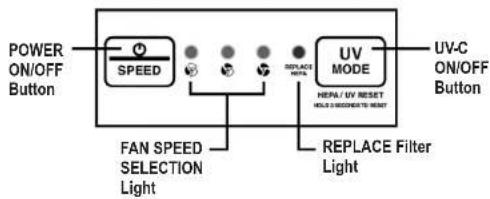

AC5300 Series Control Panel


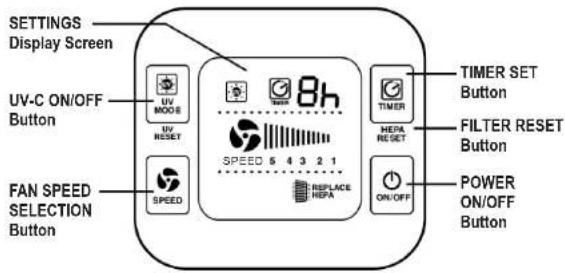

AC5350 Series Control Panel

SETTINGS Display Screen UV-C ON/OFF Button FAN SPEED SELECTION Button UV MODE UV RESET SPEED 8h SPEED 5 4 3 2 1 REPLACE HEPA TIMER SET Button FILTER RESET Button ON/OFF POWER ON/OFF Button

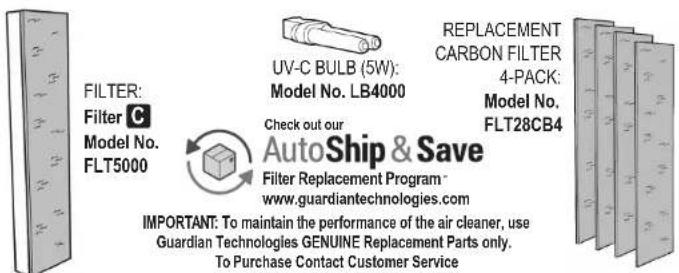

REPLACEMENT PARTS

FILTER: Filter C Model No. FLT5000 UV-C BULB (5W): Model No. LB4000 REPLACEMENT CARBON FILTER 4-PACK: Model No. FLT28CB4 Check out our AutoShip & Save Filter Replacement Program™ www.guardiantechologies.com IMPORTANT: To maintain the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only. To Purchase Contact Customer Service

AIR CLEANING SYSTEM

Improve your indoor air quality with your new gemguardian® Air Cleaning System. Multiple levels of cleaning include a combination filter that captures allergens, and Charcoal filter to remove odors. UV-C light technology enhances germ-killing.

Pre-Filter - Captures initial dust and allergen particles.

Activated Carbon Filter - Charcoal/Activated Carbon contributes to the control and prevention of the growth of bacteria, germs and mold.

UV-C Light - UV-C light technology works with Titanium Dioxide (TiO ^2 ) to enhance the elimination of airborne germs. TiO ^2 is activated by the UV-C light to decompose remaining odor molecules caused by smoking, cooking and pets.

*Pre-Filter and Carbon Filter are combined into one layer that attaches to the Filter.

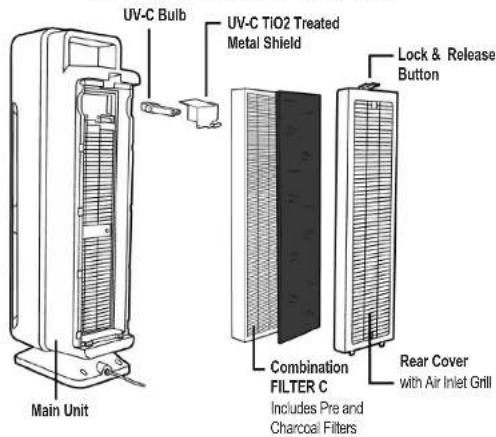

AIR CLEANING LAYERS

UV-C Bulb UV-C TiO2 Treated Metal Shield Main Unit Lock & Release Button Combination FILTER C Includes Pre and Charcoal Filters Rear Cover with Air Inlet Grill

OPERATING INSTRUCTIONS

1. Select a firm, level and flat location for the air purifier.

* For proper air flow, locate the unit at least 1 foot from any wall or furniture.
* Make sure none of the grills are blocked.

1. Plug the power cord into a 120V AC outlet.

IMPORTANT: When moving the air purifier, always lift unit by the carrying handle located on back.

OPERATING THE AIR PURIFIER (AC5300 SERIES):

1. Turn unit power ON. To turn OFF, press and hold button for 3 seconds.

1. Select fan speed MODE 1 - 3
   1 = low, ultra quiet sleep mode
   3 = high

1. Select UV-C ON or OFF using UV-C Mode Button.

Filter Replacement Indicator: The Replace HEPA light on the control panel will illuminate and flicker indicating that it is time to replace your filter. Replace the filter according to directions (E-7) then press and hold the UV Mode button for 3 seconds to reset the system.

UV Bulb Replacement Indicator: The circular blue light on the front panel of the purifier will flicker when it's time to replace the bulb. Replace the bulb according to directions (E-8), then press and hold UV Mode button for 3 seconds to reset the system.

OPERATING THE AIR PURIFIER (AC5350 SERIES):

1. Turn unit power ON.

1. Select fan speed MODE 1 - 5
   1 = low, ultra quiet sleep mode
   5 = high speed allergen control - Default setting is 5

1. Select UV-C ON or OFF using UV-C Mode Button.

1. TIMER: If you prefer to run the purifier for a specific number of hours, you can select between 1 and 8 hours on the display.

Filter Replacement Indicator: The Replace HEPA light on the control panel will illuminate and flicker indicating that it is time to replace your filter. Replace the filter according to directions (E-7) then press and hold the Timer Set button for 3 seconds to reset the system.

UV Bulb Replacement Indicator: The circular blue light on the front panel of the purifier will flicker when it's time to replace the bulb. Replace the bulb according to directions (E-8), then press and hold UV Mode button for 3 seconds to reset the system.

Control Panel Beep/Sound: The sound emitted from pressing the buttons on the control panel can be turned off/on by holding the Speed button for 3 seconds.

E-6

FILTER REPLACEMENT

The Air Cleaner will beep for 30 seconds and the Replace HEPA light will flash continuously indicating that it is time to replace your filter. Replace the filter according to directions then restart the system. Depending on usage, filter will last approximately 6 months.

1. Tum off and unplug the unit.

Diagram of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

1. Press the lock and release button and remove the rear cover from the unit.

Diagram of a device with a black panel and arrow indicating direction (no text or symbols)

1. Remove the used Combination Filter (Filter C) and dispose of it in the garbage.

Diagram of a vertical air conditioner unit with cooling fins and heat sinks, shown in three views (no text or labels)

1. Insert filter system into the unit. Consult the arrow on the filter for correct installation direction.

2. Reattach the rear cover of the unit and securely latch into place.

CHECKING AND MAINTAINING FILTER

Maintain the filter by checking it frequently.

Depending on air quality conditions, you may need to replace it more frequently.

Vacuum the carbon filter layer as needed to remove loose debris and dust and to help prolong the life of your filter.

To check the status of the filter, peel back the carbon layer to expose the pleated filter. If the filter is no longer white and is covered in grey dust/dirt it should be replaced.

I IMPORTANT: Do NOT try to wash and re-use the Combination Filter.

IMPORTANT: To maintain the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only.

INSTALLING & REMOVING UV-C BULB

UV Bulb Replacement Indicator: The UV light on the display will flash when its time to replace the UV bulb.

Diagram of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

1. Turn off and unplug unit. Press the lock and release button and remove the rear cover from the unit.

Diagram of a vertical electric heater with a black panel and arrow indicating direction (no text or symbols)

1. Remove the combination filter.

Line drawing of a portable air conditioner unit with cooling fins and a handle (no text or symbols)

1. Use a Philips head screwdriver to remove 2 screws and detach the UV-C Metal Shield.

2. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit.

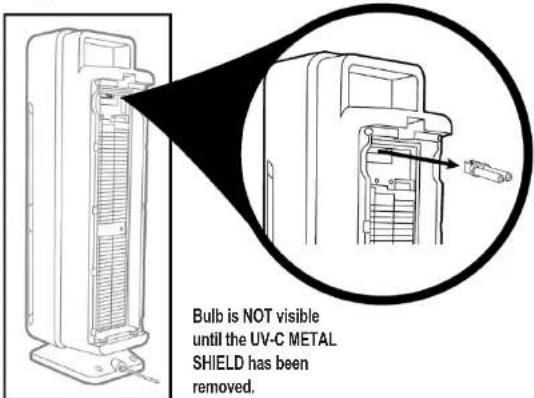

Bulb is NOT visible until the UV-C METAL SHIELD has been removed.

1. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots at the top of the unit.

NOTE: Do NOT stick any foreign objects or your fingers inside of the unit. CAUTION: Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

TROUBLESHOOTING GUIDE

PROBLEM SOLUTION
Unit does not operate. Check that the unit is plugged in.Check that filter is in place.Confirm that filter is Genuine Replacement FilterCall Customer Service.
Unit shuts off unexpectedly.	Check that unit is plugged into a working electrical outlet.Check that filter is firmly in place.Check that the Rear Cover is latched firmly in place.Call Customer Service.
No air circulating from unit. Unplug unit. Check Pre-/Carbon and filters.Clean Pre-/Carbon Filter if necessary.Replace filter if necessary.
Increase in noise level. Make sure the filters are clean. Replace if necessary.
Control buttons "beep"when pushed. 1. Press and hold the TIMER and UV buttons for 3 seconds.(AC5350 Series) 2. Select ON/OFF.'Beeping' will automatically be reset to ON when the unit is unplugged.	To shut off the "beeping" sound when buttons are pushed.
Red light is flashing. Replace filter and reset system.
Blue ring on product Replace bulb and reset system.is flashing.

What is CADR?

CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room.

Clean Air Delivery Rate

From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

Refer to website for individual model CADR numbers.
