AC4300 - Air purifier GermGuardian - Free user manual and instructions

Product Type	Air Purifier
Brand	GermGuardian
Model	AC4300
Power	120 V AC, 60 Hz
Dimensions (approx.)	Height: 43 cm, Width: 20 cm, Depth: 20 cm
Weight (approx.)	4.5 kg
Filtration Levels	Activated carbon pre-filter, Pet Pure filter, UV-C technology with titanium dioxide
Fan Speeds	3 speeds (mode 1 low, mode 3 high)
UV-C Technology	5 W UVC tube with TiO2 coating
Filter Type	Combined filter (charcoal pre-filter + Pet Pure filter); part numbers FLT4825 or FLT4850PT
Filter Life	6 to 8 months depending on usage
Replacement Indicators	Indicator for HEPA filter and UV tube
Cleaning	Vacuum pre-filter weekly; do not wash filter
Safety	Polarized plug; do not immerse; do not block air intake/outlet
Warranty	Limited warranty (see manual for duration)
Customer Service	1.866.603.5900
Website	www.guardiantechnologies.com
Certifications	ENERGY STAR; ozone compliant < 0.05 ppmv

Frequently Asked Questions - AC4300 GermGuardian

How do I replace the filter on my AC4300 purifier?

Turn off and unplug the unit. Press the lock/unlock button on the back, remove the cover. Take out the filter combination. Replace with an authentic filter (ref. FLT4825 or FLT4850PT) following the arrow direction. Replace the cover and lock. Press the UV button for 3 seconds to reset the indicator.

When does the filter replacement indicator light up?

The REPLACE HEPA indicator lights up when the filter needs to be replaced, typically every 6 to 8 months depending on usage and ambient conditions.

How do I reset the filter replacement indicator?

After replacing the filter, press the UV button for 3 seconds until the indicator turns off.

Can I wash the filter?

No, do not wash or reuse the filter combination. The charcoal pre-filter can be cleaned with a vacuum cleaner equipped with a brush, but the Pet Pure filter must be replaced when it becomes gray or black.

How do I replace the UV-C tube?

Unplug the unit, remove the back cover and filter combination. Unscrew the 2 screws of the UV-C tube metal guard. Grasp the tube with a clean cloth and pull to remove. Insert the new tube (ref. LB4000) horizontally into the slot. Reinstall the metal guard, filter, and cover. Press the UV button for 3 seconds to reset.

What to do if the unit does not work?

Check that it is plugged into a working outlet, that the filter is properly in place, and that the back cover is locked. If the on/off indicator flashes red, replace the filter and reset. If the problem persists, contact customer service at 1.866.603.5900.

What is the lifespan of the UV tube?

The manual does not specify an exact lifespan. The flashing blue light on the front ring indicates it is time to replace the UV-C tube.

Does the purifier emit ozone?

This product emits a very low amount of ozone. The 8-hour weighted average concentration is 0.001 ppmv, well below the limit of 0.05 ppmv according to standards. It complies with Health Canada guidelines.

Where to buy genuine replacement parts?

Genuine Guardian Technologies filters and UV-C tubes are available at www.guardiantechnologies.com or by contacting customer service at 1.866.603.5900. Use only genuine parts to ensure proper operation.

How to clean the pre-filter?

The charcoal pre-filter can be cleaned weekly using a vacuum cleaner brush attachment to remove lint and dirt. This extends the filter's lifespan.

USER MANUAL AC4300 GermGuardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

©2016 Guardian Technologies LLC

guardian

technologies™

USE & CARE INSTRUCTIONS

Line drawing of a rectangular electronic device with a circular button and base (no text or symbols)

Air Cleaning System

Model No. AC4300 Series

3 - Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only.

REV0920

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

- Read all instructions before using appliance.

• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
  • To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Extreme caution is necessary when any appliance is used by or near children or people with disabilities and whenever the appliance is left operating unattended.
• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
  • DO NOT run cord under carpeting.
• DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.
• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
  • DO NOT use outdoors.
  • DO NOT place anything on top of unit.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp With Lamp Manufactured by Guardian Technologies.
  • Always unplug the unit before before cleaning or servicing in any way.
• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m ^3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

WARNING: Cancer or Reproductive Harm.

For more information go to www.P65Warnings.ca.gov.

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup 1-866-284-4010

This product eamed the ENERGY STAR label by meeting strict energy efficiency guidelines set by the U.S. EPA. Room air cleaners have demonstrated the potential for improving air quality and providing health benefits. EPA does not endorse manufacturer claims regarding the degree to which a specific product will produce healthier indoor air. The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model's CADR for Smoke and the electrical energy it consumes, or CADR/Watt.

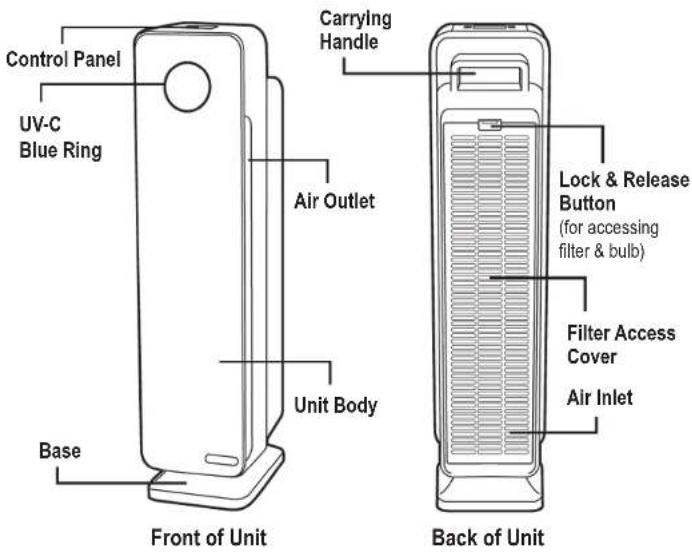

PRODUCT SPECIFICATIONS AND PARTS

Control Panel UV-C Blue Ring Carrying Handle Air Outlet Unit Body Base Front of Unit Back of Unit Lock & Release Button (for accessing filter & bulb) Filter Access Cover Air Inlet

CONTROLS

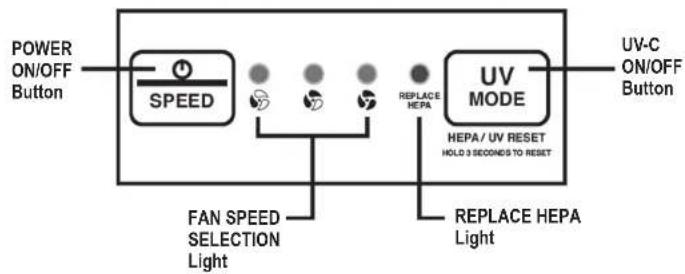

AC4300 Series Control Panel

AIR CLEANING SYSTEM

Improve your indoor air quality with your new germguardian® Air Cleaning System. Multiple levels of cleaning include a combination filter that captures allergens, and Charcoal filter to remove odors. UV-C light technology enhances germ-killing.

Pre-Filter®

Captures initial dust and allergen particles.

Activated Carbon Filter

Activated Carbon Filter traps and controls household odors.

UV-C Light

UV-C light technology works with Titanium Dioxide (TiO2) to enhance the elimination of airborne germs. TiO2 is activated by the UV-C light to decompose remaining odor molecules caused by smoking, cooking and pets.

*Pre-Filter and Carbon Filter are combined into one layer that attaches to the HEPA Filter.

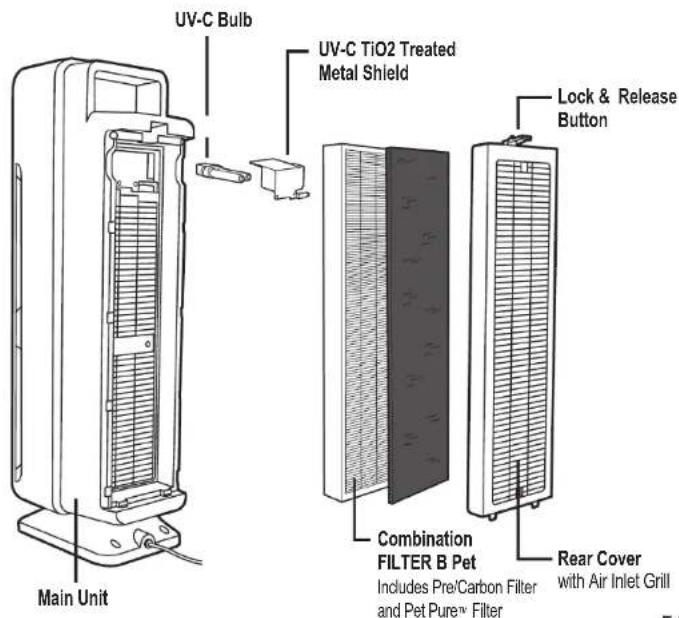

AIR CLEANING LAYERS

UV-C Bulb UV-C TiO2 Treated Metal Shield Lock & Release Button Main Unit Combination FILTER B Pet Includes Pre/Carbon Filter and Pet Pure™ Filter Rear Cover with Air Inlet Grill

OPERATING INSTRUCTIONS

1. Select a firm, level and flat location for the air purifier.

* For proper air flow, locate the unit at least 1 foot from any wall or furniture.

* Make sure none of the grills are blocked.

1. Plug the power cord into a 120V AC outlet.

IMPORTANT: When moving the air purifier, always lift unit by the carrying handle located on back.

OPERATING THE AIR PURIFIER (AC4300 SERIES):

1. Turn unit power ON. To turn OFF, press and hold button for 3 seconds.

1 = low, ultra quiet sleep mode

3 = high

1. Select UV-C ON or OFF using UV-C Mode Button.

*Filter Replacement Indicator: The Replace Filter light on the control panel will illuminate and flicker indicating that it is time to replace your filter. Replace the filter according to directions (E-8) then press and hold the UV Mode button for 3 seconds to reset the system.

*UV Bulb Replacement Indicator: The circular blue light on the front panel of the purifier will flicker when it's time to replace the bulb. Replace the bulb according to directions (E-9), then press and hold UV Mode button for 3 seconds to reset the system.

CLEANING & MAINTAINING AIR PURIFIER

AIR PURIFIER

Use a clean, dry, soft cloth to wipe the external surface of the unit.

CLEANING & MAINTAINING COMBINATION FILTER

ACCESSING COMBINATION FILTER

Illustration of a portable air conditioner unit with cooling fins and a side view showing a water tank (no text or symbols)

1. Turn off and unplug the unit.

2. Press the lock and release button and remove the rear cover from the unit.

Diagram of a vertical device with a grid array and an arrow indicating direction (no text or symbols)

1. Remove the combination filter.

Filter package includes:

• 1 Piece Filter

• 1 Piece Pre/Carbon Filter Filter last approximately 6-8 months depending on use.

Pre/Carbon Filter Maintenance

Clean weekly with the brush attachment of your vacuum cleaner. This will remove lint and dirt and extend the life of your filter.

Genuine Carbon Filter Replacements can be purchased directly at www.guardiantechnologies.com. Part number FLT22CB4.

Pet Pure Filter Replacement

Filter Replacement Indicator: The Replace FILTER light on the control panel will illuminate and flicker indicating that it is time to replace your filter.

CLEANING & MAINTAINING COMBINATION FILTER

Check and Replacing Filter:

Remove the Pre-Carbon Filter to expose the Pet Pure Filter. When the Filter turns from white to grey or black (about every 6 months depending on use and environmental conditions) it should be replaced with a new one. If the filter is still white, it does NOT need to be replaced.

Important: Do NOT try to wash and re-use the Combination Filter.

1. Replace combination filter. Consult the arrow on the filter for correct installation direction.
2. Reattach the rear cover of the unit and securely latch into place.
3. Press and hold the UV Mode button for 3 seconds to reset the system.

Important: Use Guardian Technologies Genuine Replacement Parts only.

Genuine Filter Replacements can be purchased directly at www.guardiantechnologies.com.

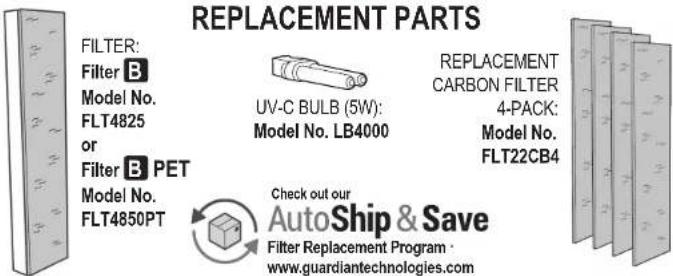

REPLACEMENT PARTS

REPLACEMENT PARTS FILTER: Filter B Model No. FLT4825 or Filter B PET Model No. FLT4850PT UV-C BULB (5W): Model No. LB4000 REPLACEMENT CARBON FILTER 4-PACK: Model No. FLT22CB4 Check out our AutoShip & Save Filter Replacement Program · www.guardiantechnologies.com

IMPORTANT: Use Guardian Technologies GENUINE Replacement Parts only. To Purchase Contact Customer Service

NOTE: Do NOT stick any foreign objects or your fingers inside of the unit.

CAUTION: Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product.

NEVER use alcohol or other solvents.

What is CADR?

CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room.

Clean Air Delivery Rate

From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

Refer to website for individual model CADR numbers.

INSTALLING & REMOVING UV-C BULB

UV Bulb Replacement Indicator: The circular blue light on the front panel of the purifier will flicker when it's time to replace the bulb.

Diagram of a portable air conditioner unit with cooling fins and ventilation slots, showing internal structure and airflow direction (no text or symbols)

1. Turn off and unplug unit. Press the lock and release button and remove the rear cover from the unit.

Diagram of a portable air conditioner unit with a black cover and arrow indicating direction (no text or symbols)

1. Remove the combination filter.

Line drawing of a portable electric water heater with cooling fins and a handle (no text or symbols)

1. Use a Philips head screwdriver to remove 2 screws and detach the UV-C Metal Shield.

2. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit.

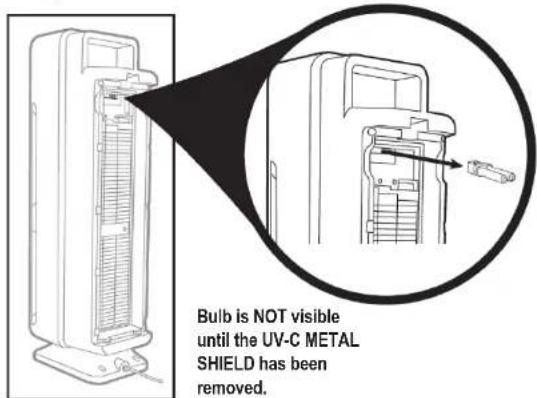

Bulb is NOT visible until the UV-C METAL SHIELD has been removed.

1. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots at the top of the unit.
2. To reset the UV-C Replacement Indicator, press and hold the UV Mode button for 3 seconds.

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Unit does not operate. Check that the unit is plugged in.Check that filter is in place.Confirm that filter is Genuine Replacement FilterCall Customer Service 1.866.603.5900.
Unit shuts off unexpectedly. Check that unit is plugged into a working electrical outlet.Check that HEPA filter is firmly in place.Check that the Rear Cover is latched firmly in place.Call Customer Service 1.866.603.5900.
No air circulating from unit. Unplug unit.Clean Pre-/Carbon Filter if necessary.Replace HEPA Filter if necessary.	Check Pre-/Carbon and HEPA Filters.
Increase in noise level. Make sure the filters are clean. Replace if necessary.
Red light is flashing. Replace filter and reset system. See E-7, E-8.
Blue ring on product is flashing. Replace UV-C bulb and reset system. See E-9.
