Product type	Convection heater (thermoconvector)
Brand	Bimar
Model	HC511
Power supply	220-240 V ~ 50/60 Hz
Maximum power	2000 W (Rapid mode)
Minimum power	1000 W (Eco mode)
Temperature adjustment	Adjustable room thermostat (turn the knob)
Operation indicator	Indicator light (lights up when thermostat is active)
Tip-over switch	Yes, built-in (shuts off the device if tipped over)
Overheat safety device	Yes, automatic shutdown in case of overheating
Body material	Painted steel (estimate)
Dimensions (W x D x H)	Approx. 40 x 30 x 70 cm (estimate)
Net weight	Approx. 5 kg (estimate)
Color	White or gray (according to photo)
Power cord length	Approx. 1.5 m (estimate)
Feet with casters	Yes, supplied with fixing screws
Recommended use	Additional heating for rooms up to 20 m² (estimate)
Maintenance and cleaning	Unplug and let cool; clean the grilles with a vacuum cleaner; body with a slightly damp soft cloth
Available spare parts	Feet, casters, power cord (replacement by manufacturer or qualified technician)
Repairability	Repairs by manufacturer or qualified technician only
Warranty	Standard (not specified, usually 2 years)
General information	Indoor use, do not cover, do not use near water

Frequently Asked Questions - HC511 Bimar

How to install the device?

Assemble the two feet with the supplied screws, insert the casters into the lower part of the feet. Place the device upside down, attach the feet near the end of the base. Ensure the device is in an upright position and the wheels adhere to the floor.

How to turn on and adjust the temperature?

Plug in the device. Turn the thermostat knob (B) to the desired temperature. Select the power with the selector (C): Eco position for 1000 W, Rapid for 2000 W. The indicator light (A) turns on when the thermostat is operating.

Why does the device turn off by itself?

This may be due to overheating. Check that the air intake and outlet grilles are not obstructed. If the thermal protection has been triggered, unplug the device, wait 20 to 30 minutes for it to cool down, then plug it back in. The device may also turn off if it tips over thanks to the tip-over switch.

How to clean the device?

Turn off, unplug, and let cool completely. Use a vacuum cleaner to clean the grilles without damaging the heating element. For the body, use a slightly damp soft cloth (no abrasive pads). Do not immerse in water.

Can the device be used in a bathroom?

No, the device must not be used in the immediate vicinity of a bathtub, shower, or swimming pool. Avoid humidity and splashes.

What is the maximum power and consumption?

Maximum power: 2000 W (Rapid mode), minimum: 1000 W (Eco mode). Actual consumption depends on the thermostat setting.

Can I use an extension cord?

The use of adapters or extension cords is not recommended. If essential, use an extension cord that complies with safety standards and has a current capacity at least equal to that of the device.

What to do if the device does not heat?

Check that the device is plugged in and that the selector is in a position other than 0. Make sure the thermostat is set above room temperature. If the indicator light does not turn on, the thermostat may be in the minimum position. If the problem persists, consult a qualified technician.

How to store the device in summer?

After cleaning, unplug it and store it in a dry place, preferably in its original packaging to protect it from dust and humidity.

Is the device safe for children?

Yes, but with precautions. Children under 3 years must be kept away. Children aged 3 to 8 can turn on/off under supervision, but must not clean or adjust the device. Always supervise children near the device, as some parts become very hot.

USER MANUAL HC511 Bimar

This product is only suitable for well insulated spaces or occasional use.

Ce produit convient uniquement à des espaces bien isolés ou occasionnels. Dieses Produkt ist für gut isolierte Räume oder gelegentlichen Gebrauch geeignet. Este producto está indicado únicamente en lugares abrigados o para una utilización puntual.

SINCE 1974 bimar® LIVE • SMART

Technical line drawing of a car body with three views: top view showing hand placement, middle view showing internal structure, and bottom view showing mechanical assembly (no text or symbols)

USO

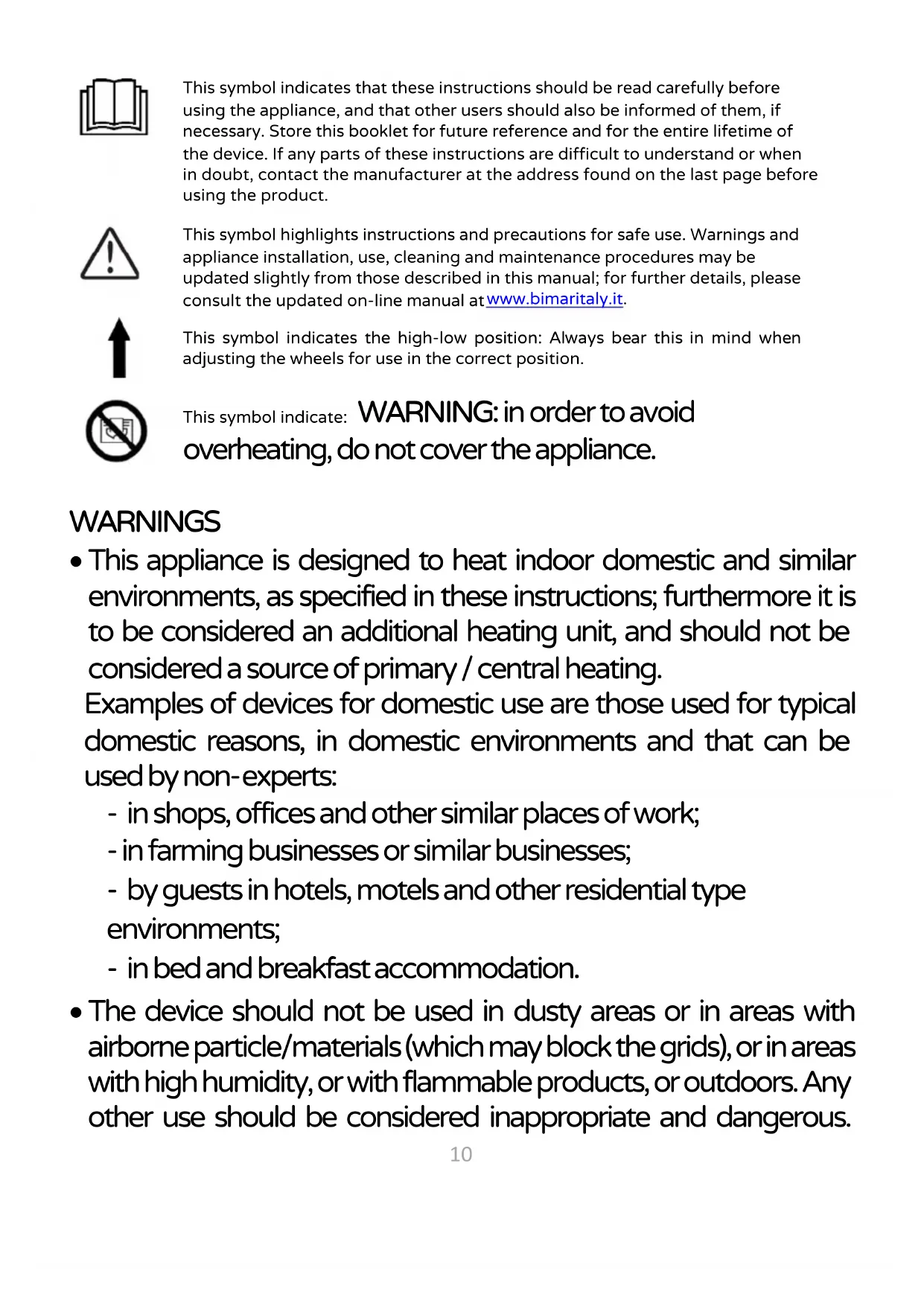

This symbol indicates that these instructions should be read carefully before using the appliance, and that other users should also be informed of them, if necessary. Store this booklet for future reference and for the entire lifetime of the device. If any parts of these instructions are difficult to understand or when in doubt, contact the manufacturer at the address found on the last page before using the product.

This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it.

This symbol indicates the high-low position: Always bear this in mind when adjusting the wheels for use in the correct position.

This symbol indicate: WARNING: in order to avoid overheating, do not cover the appliance.

WARNINGS

- This appliance is designed to heat indoor domestic and similar environments, as specified in these instructions; furthermore it is to be considered an additional heating unit, and should not be considered a source of primary / central heating. Examples of devices for domestic use are those used for typical domestic reasons, in domestic environments and that can be used by non-experts:

• in shops, offices and other similar places of work;
• in farming businesses or similar businesses;
• by guests in hotels, motels and other residential type environments;
• in bed and breakfast accommodation.

- The device should not be used in dusty areas or in areas with airborne particle/materials (which may block the grids), or in areas with high humidity, or with flammable products, or outdoors. Any other use should be considered inappropriate and dangerous.

The manufacturer cannot be held responsible for any damages caused by improper, incorrect or irresponsible use and/or by repairs done by an unqualified person.

- The appliance heats up when it is running. Therefore only touch the sides and the control panel. Avoid touching the surface since it becomes very hot. The heat supplied by the appliance is variable and can become so hot that it will burn skin that comes into direct contact with it. The use of this appliance is not recommended for people with reduced sensitivity to heat or who are not able to react quickly enough to avoid skin burns.

- The grid and the panel do not provide complete protection to children or to people with reduced physical, sensory or mental capacity.

- Ensure that the convection heater does not come into contact with water or any other liquid. If water or any other liquid comes in contact with the appliance, first turn off the power outlet by switching it off on the electrical panel, and only then remove the plug from the socket. Carefully dry both the plug and the socket before restoring power. Plug into the plug point and then continue using the device. If in doubt consult a qualified professional.

CAUTION:

- some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- when using electrical appliances, always adhere to basic safety precautions to prevent the risk of fire, electric shocks and physical injury.

• Do not use in small rooms where there are people who are unable to leave the room unaided, unless they are under constant supervision.
• Do not use this appliance in a room with an area of less than 4m^2 .

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children younger than 3 years of age must be kept away from the appliance unless they are being constantly supervised. Children between the ages of 3 and 8 years should only turn on / off the unit as long as it has been placed or installed in its normal operating position, and as long as they are supervised or receive instructions concerning the safe use of the appliance and understand the hazards involved. Children between the ages of 3 and 8 years should not plug it in, adjust or clean the appliance or perform user maintenance.

Danger:

• The heater must not be located immediately below a socket-outlet.
• The plug point must be easily accessible so as to easily remove the plug in case of an emergency.
• Do not use this heater with programmers, timers or with any other device that automatically turns on the appliance, as this

could pose a fire risk should the device be covered or positioned incorrectly.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified in order to avoid a hazard.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• In order to protect yourself from electric shocks, do not immerse the plug, the power cable or the appliance in water or any other liquid.

• If the appliance is not being used, unplug it from the mains.
• Do not touch the appliance with wet hands or feet.
• Do not move the appliance when it is in operation.
• Do not leave the appliance exposed to atmospheric conditions (sun, rain, etc..).
• Should the appliance fall or not work correctly, disconnect the electric cable immediately. Check that it is not damaged, and thereafter turn it back on: if in any doubt, consult a qualified professional.
• Do not pull on the power cable or the appliance itself to unplug the appliance from the mains.
• Do not pull on the power cable to move the appliance.
• Do no use the appliance if it does not work properly or if it appears damaged; when in doubt, contact a qualified technician.
• Avoid allowing the appliance to overheat; to this end, check that the inlet and outlet are free from obstructions: do not leave anything hanging over or under the unit. Should overheating occur, the in-built safety device will stop the convection heater

from running. To restore operation, remove the plug from the mains and wait for it to cool (about 20-30 minutes) and insert the plug into the plug point once again.

INSTALLATION

After unpacking, check the integrity of the appliance; if in doubt, do not use it and contact a qualified technician. The packaging materials (plastic bags, polystyrene, metal staples, etc.) must not be left within reach of children, as they constitute possible safety risks and must be disposed of according to applicable regulations.

All packaging elements must be disposed of according to their raw material (see the symbol stamped on each one) and according to the provisions of their municipality. The bag which is unmarked due to its small size, therefore you have to follow the procedures for the disposal of their municipality.

• Before connecting the heater check that the voltage shown on the specifications plate corresponds to that of the electrical supply, and that the plug is effectively grounded. In the event of incompatibility between the power supply and the plug, have the plug replaced with a suitable model by a qualified professional, who should ensure that the size of the cable is suitable for the power used by the unit. The use of adaptors or extensions is generally not advisable; if it is necessary to use them, they must comply with safety regulations and the total current (amps) must not be rated lower than the maximum current of the appliance.
• Place the convection heater far from any other source of heat, from flammable material (curtains, tapestries, etc.), from flammable gases or flammable material (spray cans) and from materials that can be deformed by heat. Make sure there is 100cm of free space in front of the heater and 30cm free space on both sides and at the back (at the portable installation).
• The surface must be stable, not sloping (as the unit may fall over), heat resistant.
• Ensure that the power cable is correctly positioned and does not come into contact with hot parts or sharp edges, nor become wound around the appliance itself, is not twisted and does not snag, in order to prevent the appliance from falling. Make sure there's no risk of tripping, to prevent people from accidentally tripping over it or being injured.
• Make sure that the air inlet and outlet are not blocked, to prevent fire hazards or possible overheating; do not cover the device, nor use it for drying laundry.
• If there is a fault or the appliance is not working correctly, switch it off and have it checked by a qualified professional. Repairs done by an unqualified person can be dangerous and cause the guarantee to become void.

Warning: the appliance must run only if its feet are correctly assembled.

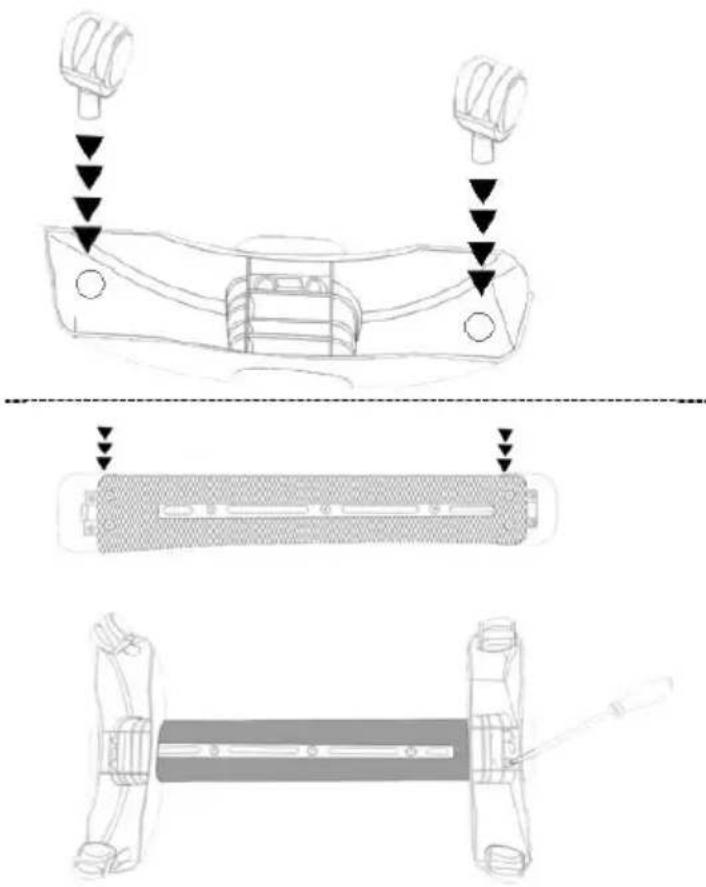

To use the machine, equally assemble the two feet with wheels supplied as follows (see figures):

1. Always unplug the appliance before you assemble.

2. Insert the wheels into the bottom part of the supporting feet, and to be sure it is tight enough.

3. Place the appliance upside down, position the feet near the end of the base, making sure that the protrusion of the head of the 2 screws coincides with the round cavities of the feet.

4. Fix each foot by the supplied screws, screwing with a force just to lock them: the feet must perpendicular to the body, and the 4 wheel must be in adhesion to floor surface.

Technical diagram showing three mechanical assembly states: top view of a vehicle with hand gestures, middle view of a cylindrical component with arrows indicating motion, and bottom view of a cylindrical device with a tool handle (no text or symbols present)

USE

Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk.

The appliance can be adjusted as follows:

-Selector. Turn the relative knob (C) clockwise to select functions: 0= off, = minimum

(1000W), rapid = maximum (2000W).

- Room thermostat. Set (using relative knob B) the room temperature and start the appliance in continuous mode until the set temperature is reached: if these drops, the appliance restarts for the time necessary to re-establish the set value. If the knob is turned completely anti-clockwise, the appliance remains off “-”, if it is turned completely clockwise the maximum temperature is set “+”; for intermediate values the temperature increases as the knob is turned towards the Maximum position and vice versa.

The lamp (A) is on when the thermostat is active for the positions of the selectors (eco).

and (trepid), if it reaches the set temperature, the light goes out and turns back on as soon as it decreases.

The appliance has an anti-tipping switch inside which allows it to function only when the appliance is vertical, and switches it off if it tilts.

First use

Warning: run the appliance for at least a few hours to eliminate the "new smell" and any oil residue from the manufacturing process. During this operation, ventilate the room well to eliminate the "new smell" that is given off.

Follow these steps to use the appliance correctly:

1) Insert the plug into the power socket.
2) Turn the thermostat dial (B) to the position of the required temperature.
3) Use the specific switches (C) to turn on the appliance and to select the required power:
4) Turn the switches to "0" position to turn off the appliance, and remove the plug from the power socket.
5) To switch off the appliance, turn the thermostat knob to minimum (-), the selector to "0" and remove the plug from the power socket.

Never leave the appliance connected to the socket if it is not in use, especially for long periods.

CLEANING AND MAINTENANCE

Warning: before cleaning the appliance, turn it off, unplug the plug from the mains and wait until it cools down.

• Periodically check that the air inlet and outlet are not blocked by lint; to clean use a vacuum cleaner if necessary, taking care not to damage the heating element.
• To clean the main casing using a soft, damp cloth; do not use steel wool or abrasive products.
• If the heater is not used for long period of time, cover it and store it in a dry place; it is advisable to place it in the original packaging to protect it from dust and moisture.
• If you decide to no longer use the appliance, it is recommended that it is made inoperative by cutting the power cable (first ensure that the appliance has been unplugged from the power supply), and ensure that any parts that could represent a risk to playing children are put away.

Correctly disposing of the product as per European Directive 2011/65/UE

At the end of its lifespan, the product must not be disposed of as part of ordinary waste.

It can be handed in to specific collection points set up by the municipality, or to retailers who provide such a service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and human health resulting from inappropriate disposal and allows the recovery of the materials of which it is made in order to obtain significant savings in energy and resources. As a reminder of the obligation to dispose of appliances separately, the product is marked with a wheeled bin symbol. Incorrect disposal of the product by the user will lead to administrative sanctions according to current regulations.

Technical diagram showing three mechanical assembly states with downward arrows indicating motion or force directions.

UTILISATION

Line drawing of a car interior with two sensor heads and directional arrows indicating motion (no text or symbols)

Diagram of a cylindrical device with internal components and two downward arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical assembly with two vertical supports and a central shaft (no text or symbols)

BEDIENUNG

Line drawing of a car interior with two sensor heads and directional arrows indicating motion (no text or symbols)

Cross-sectional diagram of a cylindrical object with measurement markings (no text or symbols)

Technical line drawing of a mechanical assembly with two flanged components and a central rod (no text or symbols)

USO
