Pierrade PI131O - Griddle TEFAL - Free user manual and instructions

Product type	Plancha / Stone grill
Brand	TEFAL
Model	Pierrade PI131O
Usage	Household use only
Cooking surface	Natural stone
Adjustable thermostat	Yes (depending on model)
Preheating time	5 to 10 minutes
Thermal inertia	Stays hot about 10 minutes after turning off
Recommended quantity	Approximately 200 g of ingredients per person
Food preparation	Cut into strips 0.5 cm thick and 5-6 cm wide
Not recommended foods	Frozen, deep-frozen, acidic foods (vinegar, mustard, pickles)
Included accessories	Scraper (depending on model)
Cleaning the stone	Wipe with a scraper or spatula after cooling; do not immerse
Cleaning the base	Do not immerse; wipe with a dry cloth
Cleaning the heating element	Wait until cool, rub with a dry cloth

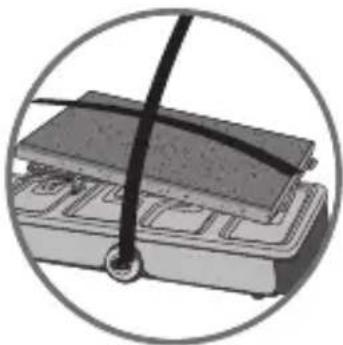

Power cord	Removable or fixed depending on model; replace by manufacturer if damaged
Power supply	Grounded outlet required
Safety	Hot surface; do not leave unattended; keep out of reach of children
Precautions	Do not place the stone on the hot heating element; do not move the appliance while hot
Environment	Recyclable appliance; do not dispose of with household waste

Frequently Asked Questions - Pierrade PI131O TEFAL

How to clean the stone after use?

Let the stone cool, then use the provided scraper (depending on model) or a spatula to remove residues. Wipe with a dry cloth. Never immerse the stone in water, as it could crack during the next heating.

Can I use frozen foods on the stone grill?

No, it is not recommended to place frozen or deep-frozen foods on the hot stone. Use only fresh products for optimal cooking and to avoid damaging the stone.

What to do if the stone cracks?

Small cracks are normal and do not affect the operation of the appliance. They are due to the natural expansion of the stone. No claims are accepted for this reason.

How long does it take to preheat the appliance?

Preheating takes about 5 to 10 minutes. Set the thermostat (depending on model) to the desired position. The stone takes this time to respond to the setting change due to its inertia.

How much food to plan per person?

Plan about 200 g of ingredients per person. Cut the meat, fish, vegetables, or fruits into strips about 0.5 cm thick and 5 to 6 cm wide.

Can I immerse the stone in water to clean it?

No, never immerse the stone. Water would penetrate its pores and could cause it to crack or burst during the next heating. Clean it only dry after cooling.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a similarly qualified person. Do not use the appliance with a damaged cord.

The appliance emits an odor or smoke during first use, is this normal?

Yes, a slight emission of odor or smoke may occur during the first use. This is normal and will disappear after a few uses.

Can I use acidic foods (vinegar, mustard) on the stone?

No, avoid direct contact of acidic foods such as vinegar, mustard, pickles, or gherkins with the stone, as they could damage it.

How to clean the heating element?

The heating element does not need cleaning. If it is very dirty, wait until it is completely cool and rub it with a dry cloth. Never use water or liquid.

USER MANUAL Pierrade PI131O TEFAL

Diagram showing a box being cut with a moving arrow and a briefcase, no text or symbols present

Circular diagram showing various electrical components including a battery pack, switch, and motor (no text or labels)

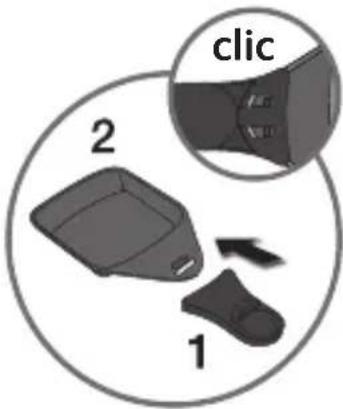

clic 2 1

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Illustration of hands using a tool to adjust or install an electronic device (no text or symbols visible)

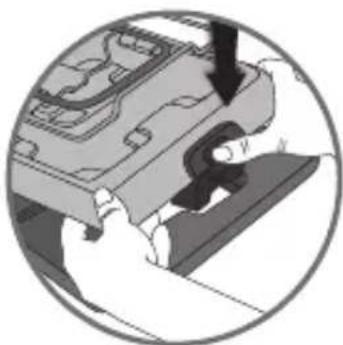

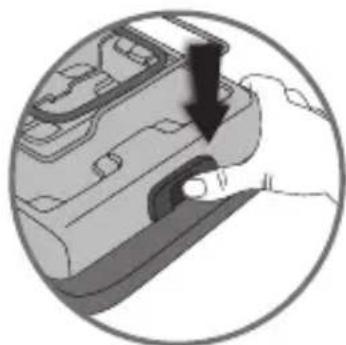

Illustration of a hand pressing down on a device component with a black arrow indicating the process (no text or symbols present)

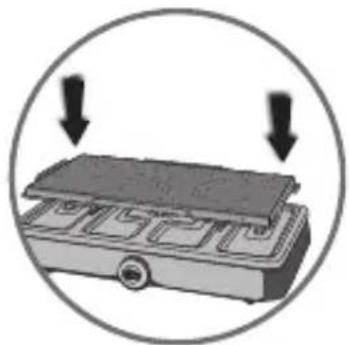

Diagram of a mechanical device with two downward arrows indicating force or movement (no text or symbols present)

Illustration of a mechanical device with a curved blade and base, enclosed in a circular frame (no text or symbols)

Illustration of a microwave oven with a diagonal line crossing through it, enclosed in a circular frame (no text or symbols)

Diagram of a portable stove with a crossed-out cable, no text or symbols present

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

* selon modèle • afhankelijk van de model • je nach Model • depending on model • Secondo il modello • según modelo • consoante o modelo • ανάλογα με το μοντέλο • Modele göre • Afhængigt af modellen • Avhengig av modell • Mallista riippuen • Beroende på modell • برحسب مدل • حسب الموديل

* selon modèle • afhankelijk van de model • je nach Model • depending on model • Secondo il modello • según modelo • consoante o modelo • ανάλογα με το μοντέλο • Modele göre • Afhængigt af modellen • Avhengig av modell • Mallista riippuen • Beroende på modell • برحسب مدل • حسب الموديل

1.

Illustration of a heat exchanger or cooling device with steam rising from top (no text or symbols)

Illustration showing four different stages of a food preparation or cooking process, including heating and drying steps (no text or symbols present)

Illustration of a bus with a cross symbol indicating flight or landing (no text or symbols present)

1.

Diagram showing three electronic components and a close-up of a circular component with concentric rings (no text or symbols)

3 4 5 6 1

1 2

Diagram illustrating heating process with electric heater, thermometer, and power outlet, showing cooling and heating states with temperature indicators.

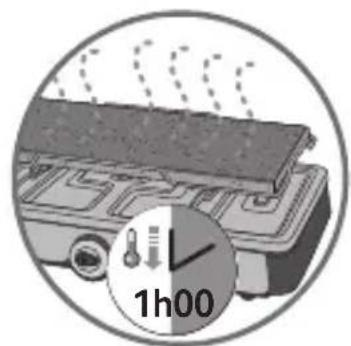

Illustration of a kitchen appliance with a clock showing 1h00 (no text or symbols on the appliance itself)

Illustration of a hand using a pipette to process a small container with liquid, enclosed in a circular frame (no text or symbols)

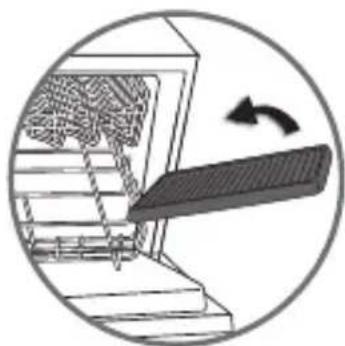

Diagram showing a window with mesh pattern and two stacked bags, enclosed in a circular frame (no text or symbols)

Diagram of a mechanical device with a rotating lever and textured internal structure (no text or symbols)

* selon modèle • afhankelijk van de model • je nach Model • depending on model • Secondo il modello • según modelo • consoante o modelo • ανάλογα με το μοντέλο • Modele göre • Afhængigt af modellen • Avhengig av modell • Mallista riippuen • Beroende på modell • برحسب مدل • حسب الموديل

1.

1.

Diagram of a mechanical or electrical component with layered structure and wiring (no text or symbols)

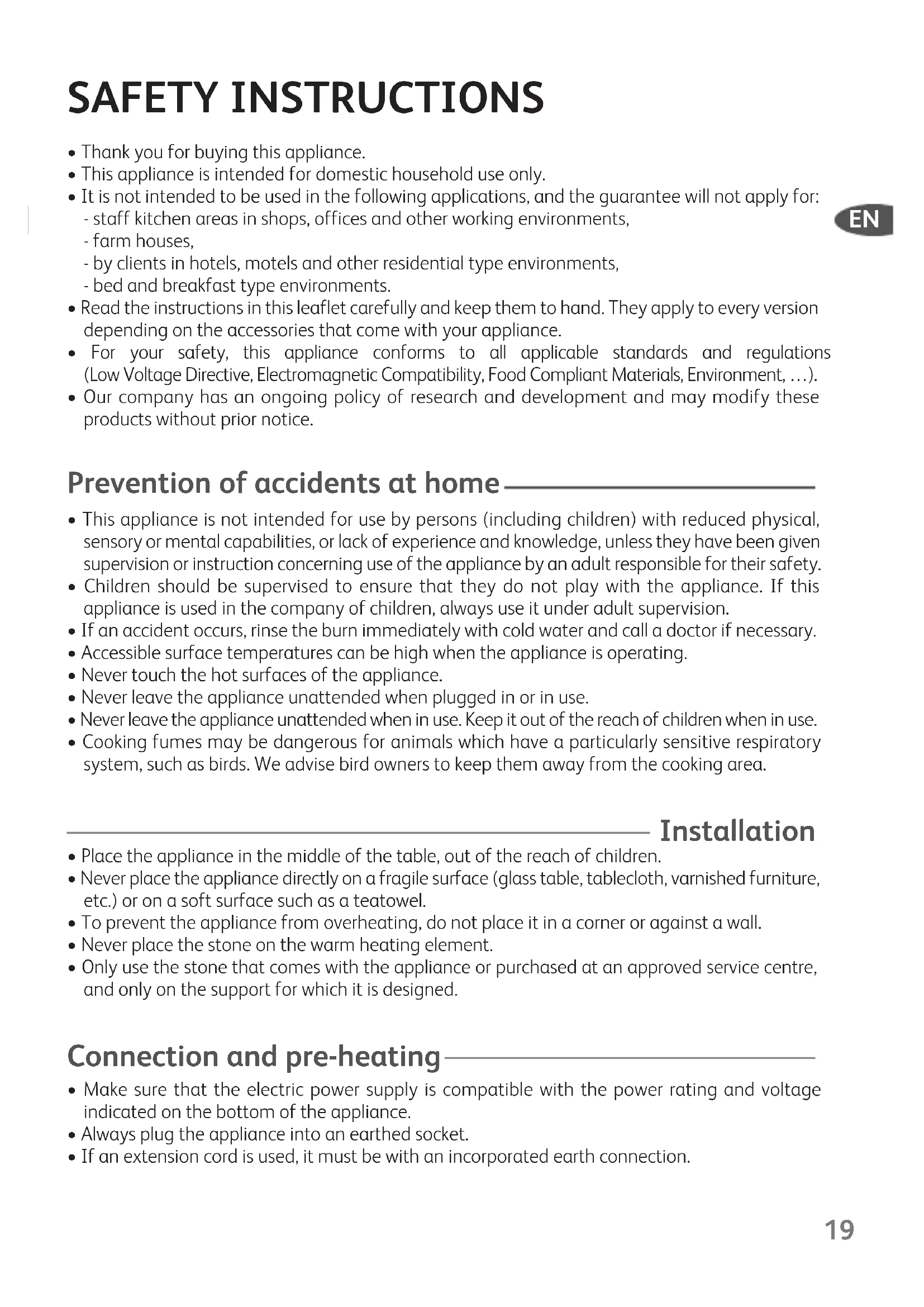

CONSIGNES DE SÉCURITÉ

• Thank you for buying this appliance.
• This appliance is intended for domestic household use only.
• It is not intended to be used in the following applications, and the guarantee will not apply for:
• staff kitchen areas in shops, offices and other working environments,
• farm houses,
• by clients in hotels, motels and other residential type environments,
• bed and breakfast type environments.

- Read the instructions in this leaflet carefully and keep them to hand. They apply to every version depending on the accessories that come with your appliance.

- For your safety, this appliance conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).

- Our company has an ongoing policy of research and development and may modify these products without prior notice.

Prevention of accidents at home

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance. If this appliance is used in the company of children, always use it under adult supervision.
• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.
• Accessible surface temperatures can be high when the appliance is operating.
• Never touch the hot surfaces of the appliance.
• Never leave the appliance unattended when plugged in or in use.
• Never leave the appliance unattended when in use. Keep it out of the reach of children when in use.
• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.

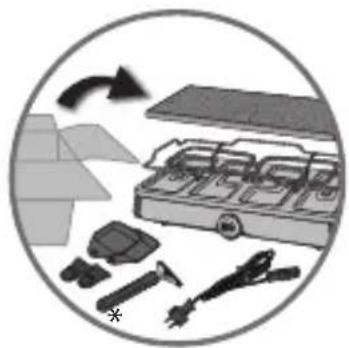

Installation

• Place the appliance in the middle of the table, out of the reach of children.
• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a teatowel.
• To prevent the appliance from overheating, do not place it in a corner or against a wall.

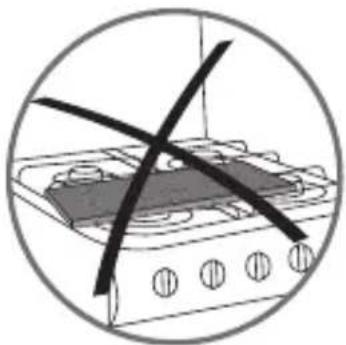

• Never place the stone on the warm heating element.
• Only use the stone that comes with the appliance or purchased at an approved service centre, and only on the support for which it is designed.

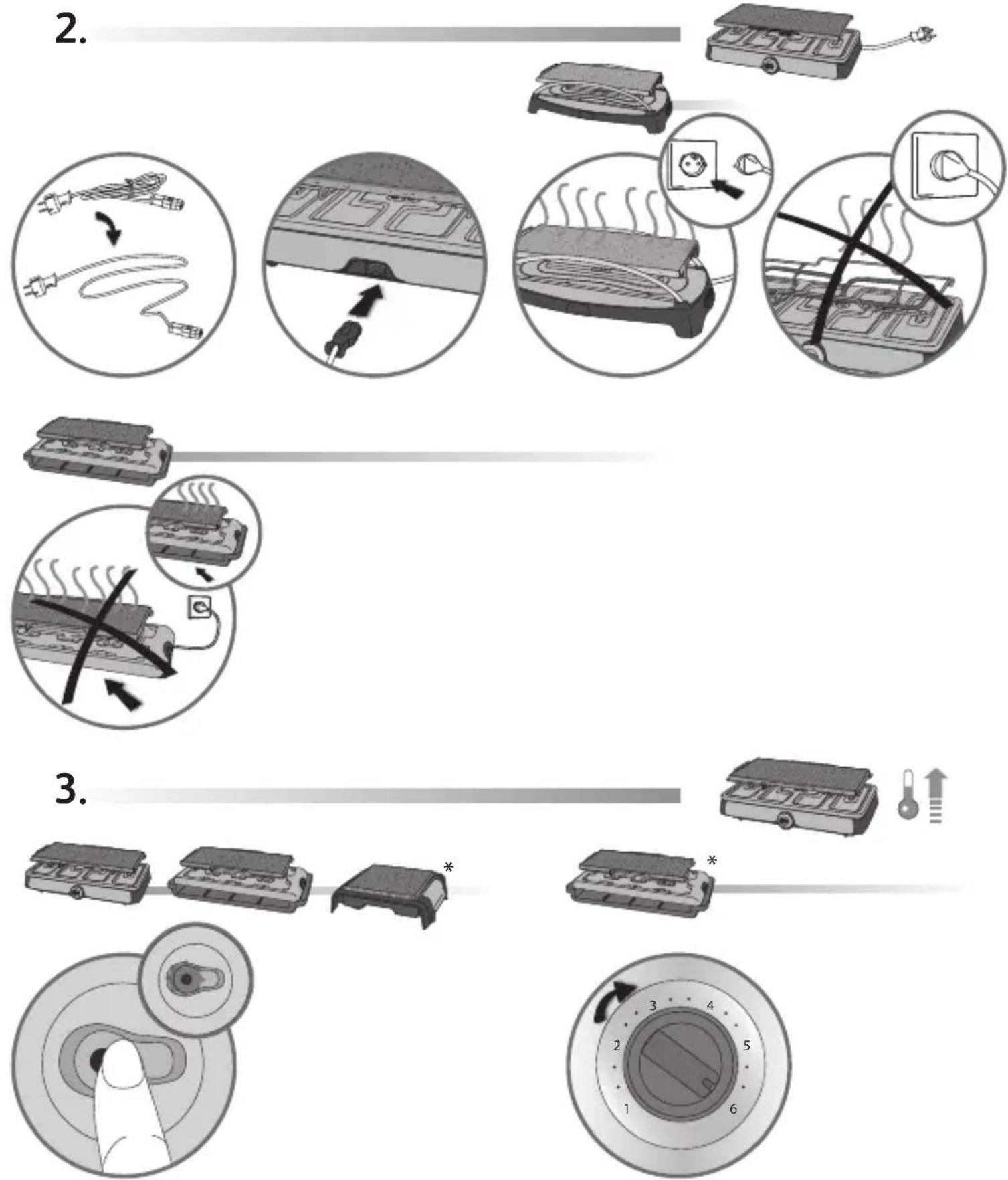

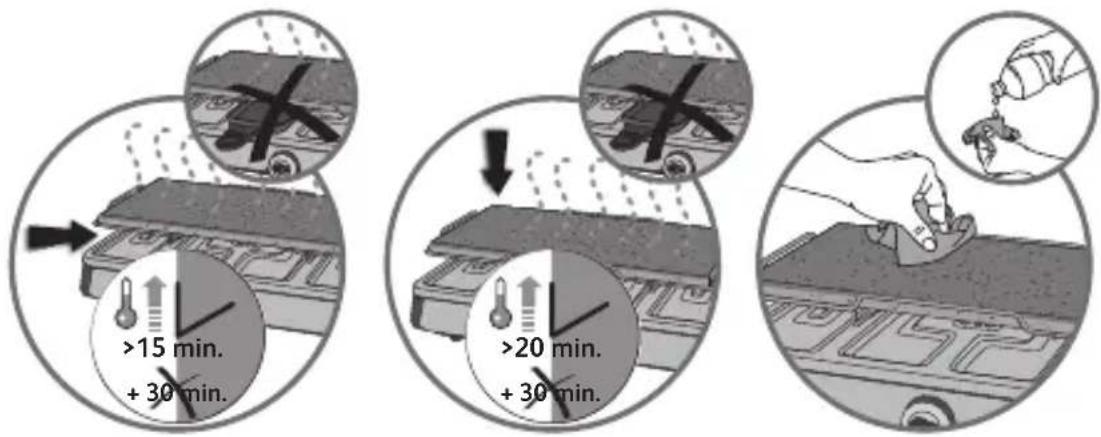

Connection and pre-heating

• Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.
  • Always plug the appliance into an earthed socket.
• If an extension cord is used, it must be with an incorporated earth connection.

If your appliance is fitted with a removable power cord

If the power cord is damaged, it must be replaced by a special cable or unit available from the manufacturer or its after-sales service.

If your appliance is fitted with a fixed power cord

If the power supply cord is damaged, it must be replaced by the manufacturer or a service agent or a similarly qualified person in order to avoid a hazard.

• If need be, make sure to choose an extension lead of equivalent diameter with an earthed socket; take all necessary precautions to prevent anyone tripping over an extension cord.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

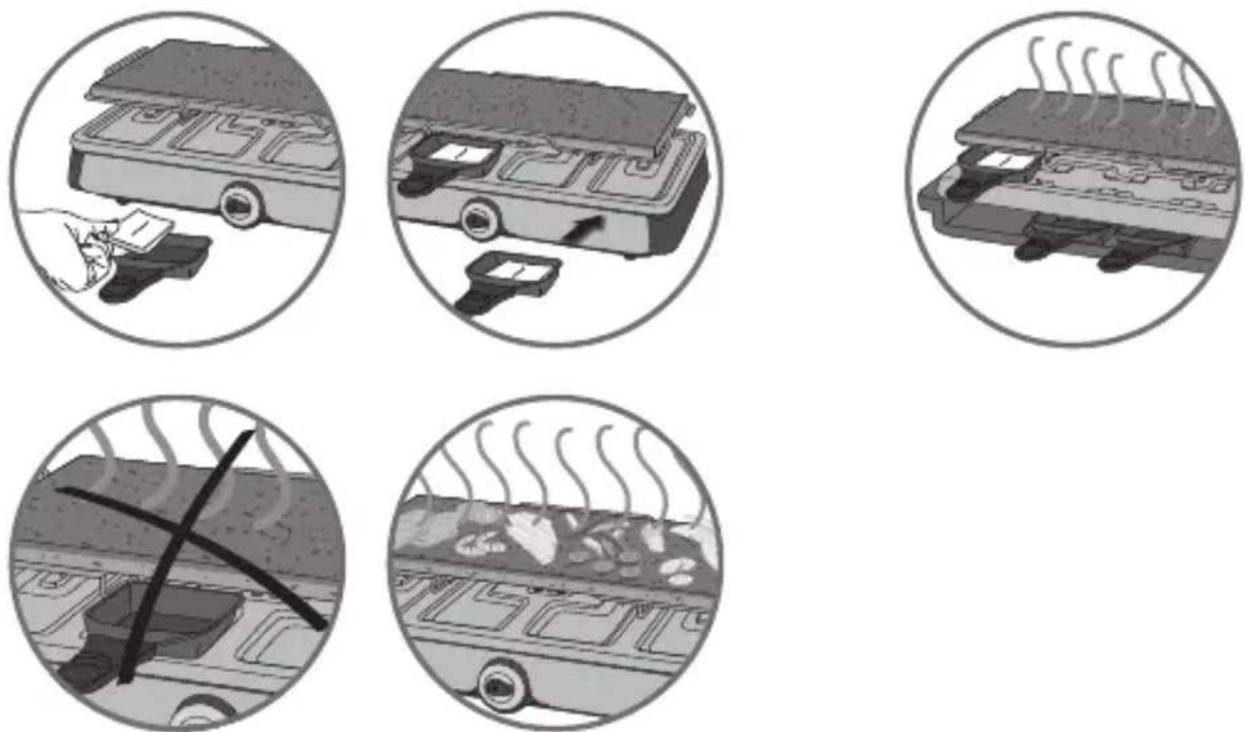

Cooking

• After pre-heating, the appliance is ready to be used.

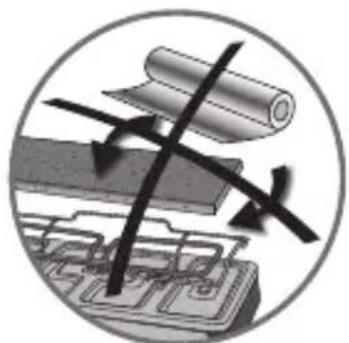

- Do not wrap the food in foil while cooking.
- Do not place frozen or heavy food on the warm stone.
- Do not place the stone in contact with acidic foods such as vinegar products, mustard, pickled gherkins, pickles, etc. as they will damage the stone.

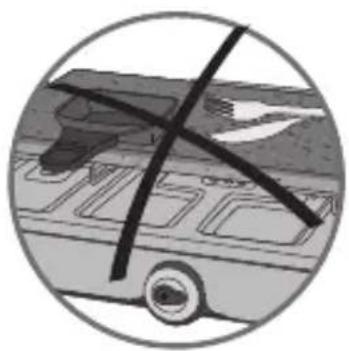

- Never place objects (other than food) on the stone.
- Any small cracks or fissures are due to the stone expansion and are natural and will not affect the function of the appliance. They are therefore not a reason for replacement.
• After a few uses, the stone will permanently turn a darker, deeper colour.
- On first use, there may be a slight odour and a little smoke during the first few minutes.
- Do not move or carry the appliance when hot.

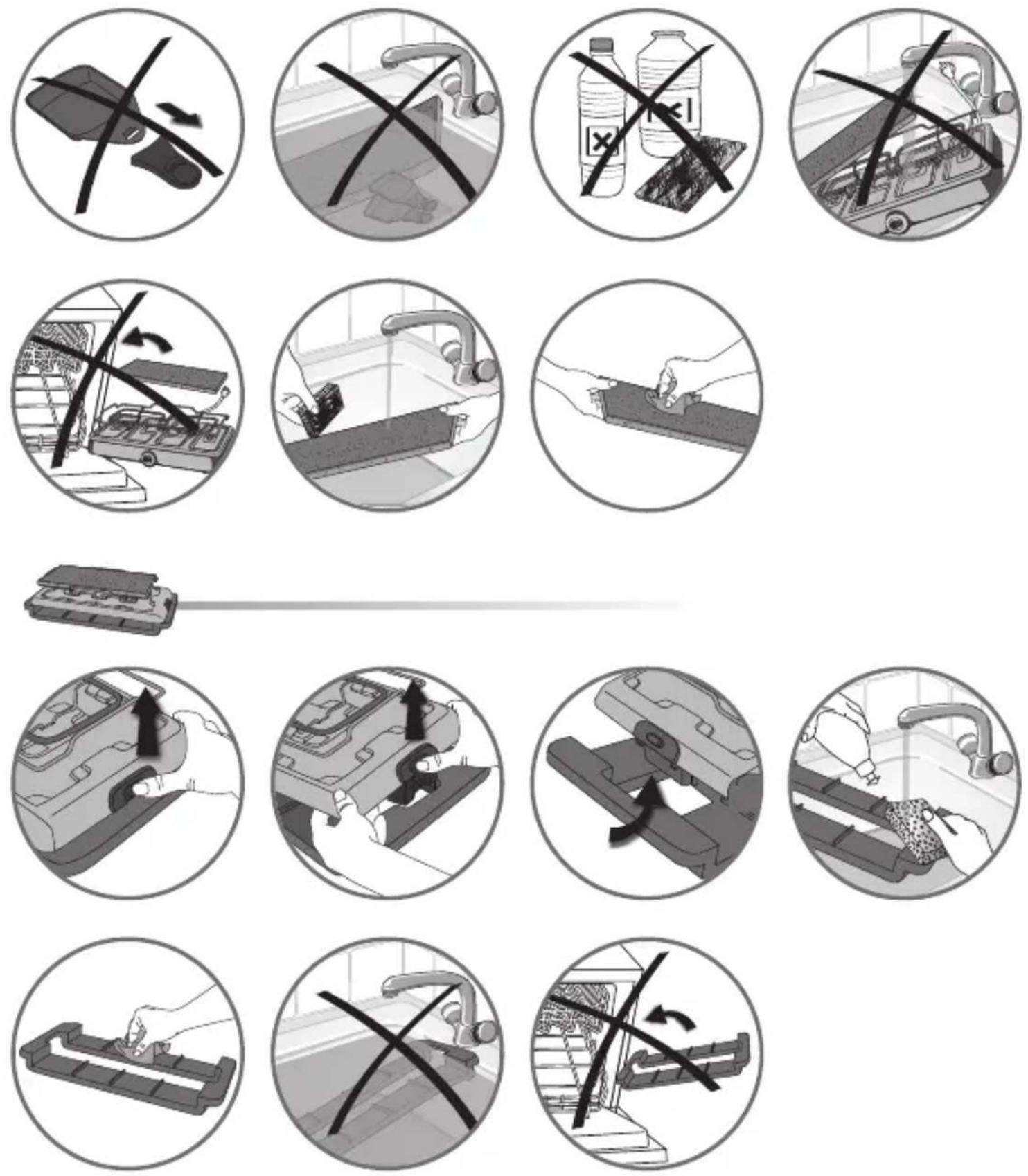

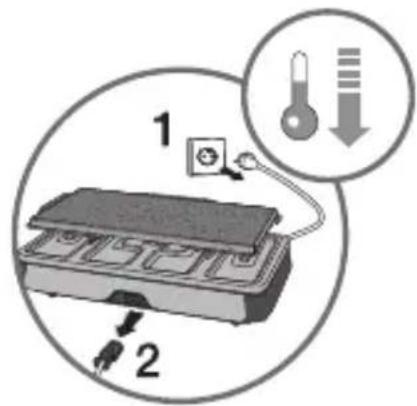

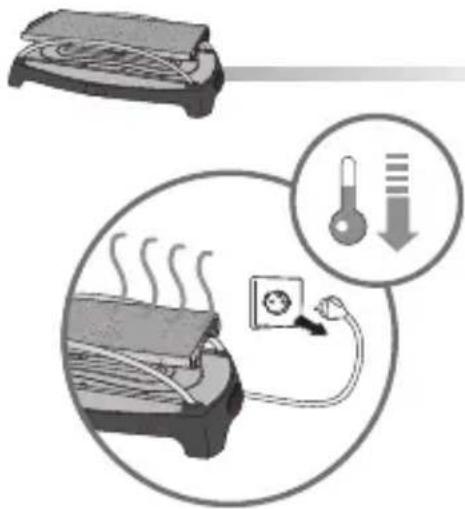

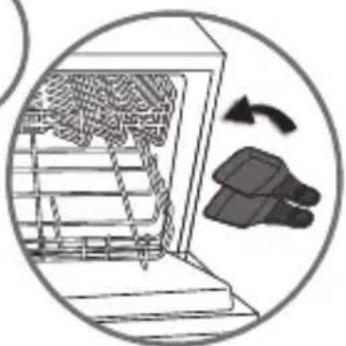

After use

• Do not immerse the appliance in water. Never immerse the appliance and the cord in water.
• Keep the appliance out of the reach of children when it is cooling down.

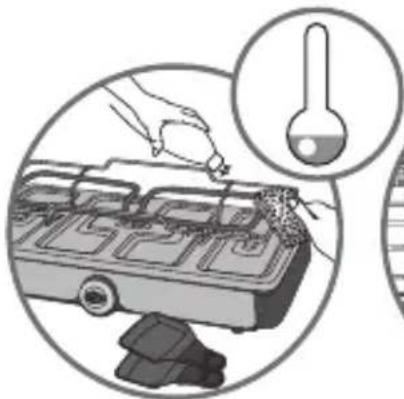

• The heating element is not to be cleaned. If it is really dirty, wait until it has cooled down and wipe with a dry cloth.

Precautions for cleaning the stone

Each stone is a natural unique material. It can be more or less permeable depending on how porous the stone is. A stone immersed in water during cleaning may crack or break the next time it is heated on the appliance.

Precautions for cleaning the wooden support

• Each support is made from wood which is a unique natural material.
• Wood is permeable, depending on its porosity, and if the wooden support is immersed in water during cleaning it may crack or break.
• Keep the appliance out of the reach of children.

Environment protection first!

i Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

[phone] (ROI)

Use about 200 g of food per person: use fresh products only (not frozen unless completely thawed first).

Remove gristle and fat from meat. Debone fish. Cut thick shellfish in half.

Cut meat, fish, vegetables or fruits in slices of about 1/2 cm thick and 5 - 6 cm long. Cooking irregular-sized pieces will not give the best results with this appliance.

The Pierrade is not suitable for cooking large pieces of food such as steaks, chicken pieces etc or fatty foods such as bacon, sausages or burgers.

If preparing a large or complete meal (firm textured fish, shellfish (shelled), lean meat and boneless poultry and fruits), it is recommended you clean the stone between different kinds of food (e.g. meat and fruits) in order to fully appreciate the taste and flavour. To clean, use the scraper supplied with the appliance (depending on model) or a spatula. Then wipe the stone to remove any remaining food particles using kitchen paper.

Do not clean the stone with water, as this may cause thermal shock which will break it.

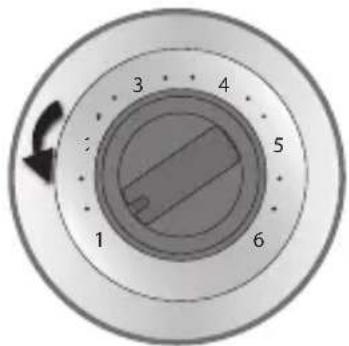

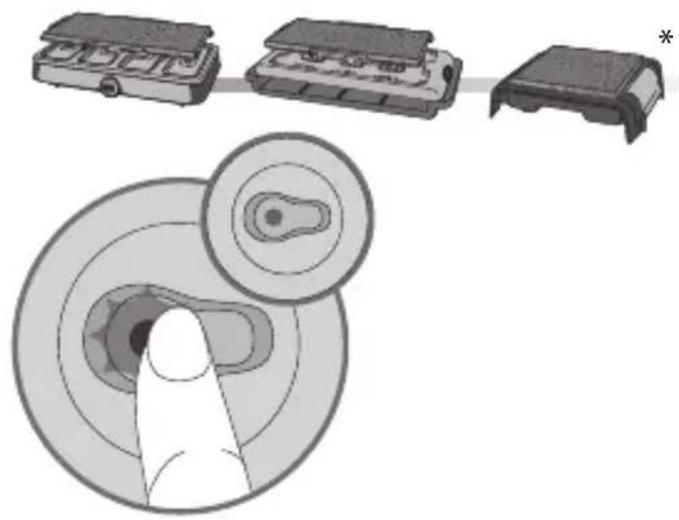

Set the thermostat (depending on model) to the position of your choice. Due to the denseness of the stone, it will take 5 to 10 minutes to respond to a change in temperature setting when the appliance is in use.

Turn off the appliance before the end of the meal: the stone will remain hot for at least ten minutes, and the last pieces of food will continue to cook.

Recipes:

Place slices of meat, fish, vegetables or fruits on the stone and cook to your taste. Season to taste on your plate. Accompany with cold sauces, salad and potatoes.

Basic Pierrade®

- Beef (rump steak, sirloin steak) • chicken or turkey fillet • veal fillet

Farmer's Pierrade®

- Thinly sliced beef • veal escalope • lamb fillet • poultry (duck or turnkey)

Seafood Pierrade®

- Monkfish or sea bass fillets • prawns or salmon • scallops • crayfish

Gourmet Pierrade®

- Prawns • scallops • salmon or sea bass fillets • beef (fillet steak) • pork fillet medaillons • duck fillet

Fruit Pierrade®

- Oranges • apples • bananas • apricots

Cooks slices of fruit on the stone.

Drizzle melted chocolate, fruit coulis and whipped cream over the fruit on your plate.
