Product type	Toaster
Brand	Krups
Model	Signature 2F KH732
Number of slots	2
Material	Plastic and stainless steel
Dimensions (approx.)	30 x 20 x 22 cm
Weight (approx.)	1.5 kg
Power supply	220-240 V, 50/60 Hz
Power (approx.)	850 W
Power cord	Short, with built-in cord storage
Functions	Toasting, defrost, reheat, bagel
Toast levels	6 (from 1 to 6)
Control buttons	Cancel, Defrost, Reheat, Bagel
Crumb tray	Removable, easy to clean
Safety	Auto shut-off, polarized plug, do not immerse
Care	Clean with a damp cloth; do not use abrasives
Warranty	2 years (Krups international warranty)
Repairability	Repairable by Krups; parts available 5 to 7 years after manufacture
Use	Household use only

Frequently Asked Questions - Signature 2F KH732 KRUPS

How to use the defrost function?

Insert frozen bread, select the desired toasting level, lower the lever, then press the Defrost button. The button lights up and the adapted cycle starts.

How to clean the toaster?

Unplug the appliance and let it cool down. Remove the crumb tray and empty it. Clean the body with a damp cloth. Never immerse the toaster in water.

What to do if bread gets stuck?

Unplug immediately and let it cool down completely. Carefully remove the bread without using a metal object to avoid damaging the heating elements.

How to adjust the toasting level?

Turn the toasting control knob (H) to select a level from 1 (light) to 6 (dark). You can adjust during the cycle by turning the knob.

Can I toast bagels?

Yes, use the Bagel function. Place the bagel cut side inward, select the toasting level, lower the lever, and press the Bagel button. The toaster toasts the inside and warms the outside.

What to do if there is smoke?

Press the Cancel button to stop the cycle. If smoke persists, unplug the appliance and let it cool. Check that the toasting level is not too high.

The toaster does not turn on, why?

Check that the plug is properly inserted and the outlet works. Make sure the lever is lowered correctly. If the problem persists, contact a Krups authorized service center.

Can I use an extension cord?

Yes, but use an extension cord with a rating equal to or higher than the appliance's. Position it to avoid tripping or pulling by a child.

How to store the cord?

Use the cord storage under the appliance. Wind the cord around the hooks provided. Never wind the cord around the toaster.

What does the warranty cover?

The Krups international warranty covers manufacturing and material defects for 2 years from the date of purchase. It does not cover damage due to misuse, normal wear and tear, or the use of inappropriate consumables.

USER MANUAL Signature 2F KH732 KRUPS

ENFRES

Diagram of a mechanical or electronic component with internal channels and wiring, no visible text or symbols

Illustration of a 2sX2 toaster with two shades of heat (no text or symbols)

Illustration of a 4S X4 toaster with four heat sinks (no text or symbols on the device itself)

Close-up of a kitchen rotary knob with a curved arrow indicating rotation (no text or symbols visible)

Illustration of a 2sX2 toaster with two round blades and a handle (no text or symbols)

Illustration of a 4S X4 toaster with four wheels and control knobs (no text or symbols)

Illustration of a hand using a toaster with a handle (no text or symbols visible)

Illustration of a microwave oven with a crossed-out arrow indicating rotation (no text or symbols)

Illustration of a toaster with a black X mark on top, no text or symbols present

Technical illustration of a mechanical device with a cross mark and screwdriver (no text or symbols)

Illustration of a toaster with a crossed X mark indicating heat or smoke (no text or symbols present)

Illustration of a toaster with a double-headed X mark indicating heat or smoke (no text or symbols present)

Illustration of a mechanical device with a cross symbol and a gear mechanism (no text or labels)

Illustration of a cooking pot with a crossed-out pan and a stirring rod (no text or symbols)

Illustration of a toaster with a crossed X-shaped object on top (no text or symbols)

Illustration of a toaster with a crossed-out black X mark (no text or symbols)

TABLE OF CONTENTS

1. IMPORTANT SAFEGUARDS....p.2
2. CAUTION ......p.3
3. SAFETY INSTRUCTIONS......p.3
   4.DESCRIPTION p.5
4. BEFORE FIRST USE......p.5
5. TOASTING BREAD ......p.5
6. DEFROST FUNCTION......p.6
7. REHEAT FUNCTION....p.6
8. BAGEL FUNCTION....p.6
9. CLEANING....p.6
10. TROUBLESHOOTING....p.6
11. DISPOSAL....p.7
12. KRUPS INTERNATIONAL LIMITED GUARANTEE ......p.7

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use the handles or knobs to avoid any injuries.
3. To protect against electrical shock do not immerse cord, plugs, or this appliance in water or other liquid.
4. Not intended for use by children. Close supervision is necessary for any appliance being used near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. When you do not use your appliance, always check that nothing is pushing the Toasting levers (C) down.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
8. The use of accessory attachments, not recommended by the appliance manufacturer, may cause injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. To shut down your appliance press the Cancel button (D), then unplug from wall outlet.
13. Do not use appliance for other than intended use.
14. Oversize foods, metal foil packages, or utensils must not be inserted in toaster as they may involve a risk of fire or electric shock.
15. A fire may occur if toasters are covering or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
16. Do not attempt to remove food when toaster is plugged in.
17. Do not operate unattended.
18. When heating toaster pastries, always use the lightest toast color setting.
19. WARNING - To prevent electric shock, unplug before cleaning.

SAVE THESE INSTRUCTIONS

CAUTION

■ The toaster must always be used in the upright position (not on its side or tilted forward or back) Fig. 15.
■ Before each use, make sure that the crumb tray is in its proper location.
■ Regularly remove crumbs from crumb tray.
■ The toasting lever must be in the raised position before plugging in or unplugging from an outlet.

■ If bread jams in the slots after toasting, the unit will automatically shut off. Unplug immediately from the outlet and wait for the toaster to cool before attempting to remove.

DO NOT

■ Never leave the toaster unattended during operation, particularly when toasting for the first time or when changing settings.
■ Do not touch the metal parts or hot surfaces of the appliance when it is working.
■ Do not try to toast breads with ingredients that melt or drip in the toaster (iced breads or stuffed breads) and do not toast very small pieces of bread or croutons as this may damage the appliance or cause a fire.
■ Do not toast breads thicker than 1 inch in the toasting slots.
- Bread can burn; do not cover this appliance while in use and do not use this appliance near any flammable materials such as curtains, under shelving or wall cupboards, etc. It should be attended when in use.
■ Do not put paper towels, cardboard or plastic in, on or under the toaster.
■ If flames were to arise from parts of the toaster, never attempt to extinguish them with water. Unplug the appliance and smother the flames with a damp cloth.
■ Do not use this appliance as a source of heating or drying.
■ Do not use the toaster for cooking, grilling or defrosting frozen food other than bread products.
■ Do not unplug appliance by pulling on cord. Instead grasp plug and pull to disconnect.
■ Never wrap cord around toaster. Use cord storage on the underside of unit.
■ Never use the appliance with the cord on the toaster, it could heat it Fig. 16.
■ This product has been designed for household use only. Any professional use, inappropriate use or failure to comply with the instructions will void the warranty.

CAUTION

■ Do not immerse toaster in water or run water into the toaster Fig. 17.
■ Do not operate toaster under or around any flammable materials Fig. 18.
■ Do not insert objects into the toaster Fig. 19.
■ Do not place the toaster in the dishwasher Fig. 20.
■ Do not cover toast chambers when in use Fig. 21.
■ Do not transport the toaster by grabbing the bread slots Fig. 22.
■ Do not put your hands in the bread slots Fig. 22.
■ Do not cover the top of the toaster with any bread. Fig. 23

SAFETY INSTRUCTIONS

■ For your safety, this appliance complies with applicable technical rules and norms.
- Check that the main voltage corresponds to the voltage indicated on the appliance (alternating voltage only).
■ Use a stable work surface, away from any contact with water and never in a built-in kitchen alcove.
■ Do not move the appliance when working.

POLARIZED PLUGS

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD

a A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance, and

2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

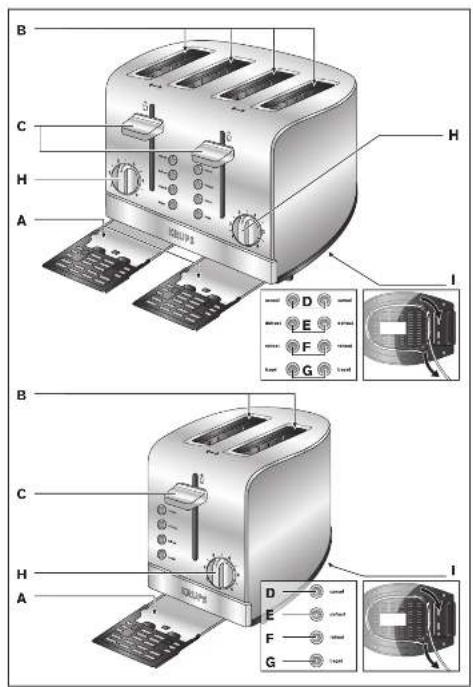

F Reheat button
G Bagel button
H Browning control
I Cord storage area

5. BEFORE FIRST USE

■ Remove any stickers and wipe the body of the toaster with a damp cloth.
■ Before you use the appliance for the first time, we advise you to let the appliance complete a few toasting cycles without slices of bread on the highest browning setting in a properly ventilated room.
This burns off any dust that may have accumulated on the heating elements and prevents unpleasant smells when toasting bread.

6. TOASTING BREAD

• Put the appliance on a stable and flat surface, away from curtains and other combustible materials. Plug the appliance into the wall.
  ■ To adjust the length of the cord, wrap part of it round the brackets located on the base of the appliance (Fig. 1).

Never let the toaster operate unattended.

• Put one or two slices (2 slice model) or one to four slices (4 slice model) of bread in the toaster (Fig. 2 or Fig. 3.).
  ■ Select the desired browning setting (Fig. 4).

• Select a low setting (1-2) for lightly toasted bread and a higher setting (5-6) for darker toasted bread.

• 4 slice model: If you only toast one or two slices of bread, select the desired browning setting for the side where you put the bread. If you toast three or four slice of bread, select the desired browning settings for both sides of the appliance.

■ Push down the toasting lever to begin the toasting process (Fig. 5).

• 4 slice model: If you only toast one or two slices of bread, push down the toasting lever on the side where you put the bread. If you toast three or four slices of bread, push down both toasting levers.
• The toasting lever only stays down when the appliance is plugged in and bread is being toasted.

■ The cancel button will light up (Fig. 6).

Caution: The metal parts of the toaster will become hot during toasting. Do not touch them.

Note: You can stop the toasting process and pop up the bread at any time by pressing the cancel button on the toaster.

■ To adjust the browning setting during toasting, turn the browning control.
■ When the toast is ready, it pops up and the toaster switches off.
■ Remove the toasted bread. To remove smaller items, move the toasting lever upwards a little further.

- If bread gets stuck inside the toaster, remove the plug from the wall socket, let the appliance cool down completely and carefully remove the bread from the toaster.

Caution: Do not use a knife or another sharp metal tool to remove bread from the toaster and do not touch the metal internal parts as well as heating elements of the toaster.

7. DEFROST FUNCTION

■ The toaster has a preprogrammed defrost function : toasting frozen bread takes longer than toasting defrosted bread.
- Put one or two slices (2 slice model) or one to four slices (4 slice model) of frozen bread in the toaster.
■ Select the desired browning setting and push down the toasting lever (see section 'Toasting bread').
■ Press the defrost button (Feig.07)t
■ The defrost button will light up.

8. REHEAT FUNCTION

The toaster has a preprogrammed reheat function that reheats your toast without making it browner. The toasting time is automatic and shorter than a normal toasting cycle, about 30 sec. shorter than the toasting position you choose.

■ Put the toasted bread back into the toaster.
■ Push down the toasting lever.
■ Press the reheat button (Efga8).
■ The reheat button will light up.

9. BAGEL FUNCTION

The toaster has a preprogrammed bagel function that toasts the bagel on the cut sides and warms it on the outside.

■ Insert the bagel as shown (Fig. 9 or Fig. 10.), with the cut sides facing inwards.
■ Select the desired browning setting and push down the toasting lever (see section 'Toasting bread').
■ Press the BAGEL button (Figel1).
■ The bagel button will light up.

10. CLEANING

■ Unplug the appliance and let it cool down (Fig. 12).
■ To remove crumbs from the appliance, gently slide it out from the appliance and empty it (Fig. 13).

Caution: Do not hold the appliance upside down and do not shake it to remove the crumbs.

■ Clean the body of the appliance with a damp cloth (Fig. 14).

Danger: Never immerse the appliance in water.

Caution: Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Caution: Any other servicing should be performed by an authorized service representative.

11. TROUBLESHOOTING

PROBLEM SOLUTION
The toaster does not work. M	make sure the plug is properly inserted into the wall.
	If the toaster still does not work, take it to a service center authorized by Krups for examination.
Bread gets stuck in the appliance.	Unplug the appliance and let it cool down. Carefully remove the bread from the toaster. Take care not to damage the heating elements when you remove the bread. Never use a metal object for this purpose.
The toast is too dark/too light.	Check the browning setting selected for toasting. Select a lower setting next time if your toast is too dark and a higher setting if your toast is too light.Also check that the Defrost button or Reheat button are not selected.
The bread pops up almost immediately without having been toasted.	Make sure you push down the toasting lever all the way. Also check that the Reheat button is not selected.If the bread still does not stay down, take the appliance to a service center authorized by Krups for examination.
Smoke comes out of the toaster.	You may have chosen a browning setting too high.Push the cancel button to stop the toasting process.
The cord is damaged. If the	cord to this appliance is damaged, it must always be replaced by a service center authorized by Krups.

12. DISPOSAL

The packaging comprises exclusively environmentally-friendly materials which should be disposed of according to the local recycling arrangements.

Disposal methods for the appliance itself can be found at the appropriate department of the local authority in your area.

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point or at an approved service centre.

13. KRUPS INTERNATIONAL LIMITED GUARANTEE

: www.krups.com

This product is repairable by KRUPS during and after the guarantee period.

KRUPS endeavours to keep most of the stock of the spare parts available for the repair of your product for up to 5 to 7 years on average, from the last date of production.

Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the KRUPS internet site www.krups.com

The Guarantee

This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Guarantee) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase.

The international manufacturer's guarantee by KRUPS is an extra benefit which does not affect consumer's Statutory Rights.

The international manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At KRUPS's choice, a replacement product may be provided instead of repairing a defective product. KRUPS's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

The international KRUPS guarantee only applies within the guarantee period and for those countries listed in the country list attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorised service centre. Full address details for each country's authorised service centres are listed on KRUPS website (www.krups.com) or by calling the appropriate telephone number as set out in the country list to request the appropriate postal address.

KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

This guarantee will not cover any damage which occurs as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• mechanical damages, overloading
• damages or poor results due to wrong voltage or frequency
• accidents including fire, flood, thunderbolt, etc
• professional or commercial use
• damage to any glass or porcelain ware in the product

This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.

In order to offer the best possible after-sales service and constantly improve customer satisfaction, KRUPS may send a satisfaction survey to all customers who have had their product repaired or exchanged in a KRUPS authorised service centre.

The international KRUPS guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country:

a) The international KRUPS guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications
b) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS
c) In cases where the product is not repairable in the new country, the international KRUPS guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.

Consumer Statutory Rights

This international KRUPS guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

TABLE DES MATIÈRES

1. MISES EN GARDE IMPORTANTES ......p.10
2. ATTENTION ......p.10
3. CONSIGNES DE SÉCURITÉ ......p.12
4. DESCRIPTION DE LA MACHINE....p.13
5. AVANT LA PREMIÈRE UTILISATION ......p.13
6. GRILLER DU PAIN ......p.13
7. FONCTION DÉCONGELER ......p.14
8. FONCTION RÉCHAUFFER ......p.14
9. FONCTION BAGEL ......p.14
10. NETTOYAGE....p.14
11. DÉPANNAGE....p.14
12. ÉLIMINATION DES MATÉRIAUX D'EMBALLAGE ET DE L'APPAREIL .....p.15
13. KRUPS GARANTIE INTERNATIONALE....p.15

MISES EN GARDE IMPORTANTES
