MHC706 - Lamp Fuzzix - Free user manual and instructions
Find the device manual for free MHC706 Fuzzix in PDF.
| Product type | Effect lamp with integrated smoke machine |
| Brand | Fuzzix |
| Model | MHC706 |
| Power supply | 220-240 V~, 50 Hz |
| Fuse | 10-16 A |
| Operating temperature | 5 °C to 35 °C |
| Minimum distance to flammable materials | 50 cm |
| Safety distance from public | 1 m |
| Minimum distance from smoke nozzle | 50 cm |
| Smoke fluid type | Water-based, recommended by dealer |
| LED functions | RGB, white strobe mode, automatic speed program |
| Smoke function | Wireless control (remote) |
| Remote control type | Wireless |
| Recommended cleaning | Use special cleaning fluid, purge the tank |
| Repairability | Original parts only, intervention by qualified technician |
| Safety | Do not look directly at the lens, do not open the housing, grounding required |
| Usage | Indoor only, reserved for professional use |
Frequently Asked Questions - MHC706 Fuzzix
User questions about MHC706 Fuzzix
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lamp in PDF format for free! Find your manual MHC706 - Fuzzix and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MHC706 by Fuzzix.
USER MANUAL MHC706 Fuzzix
Party smoke machine F500 series
Ref. nr.: 160.305; 160.307; 160.310; 160.312; 160.316
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
MANUEL D'INSTRUCTIONS
INSTRUKCJA OBSLUGI
V1.0

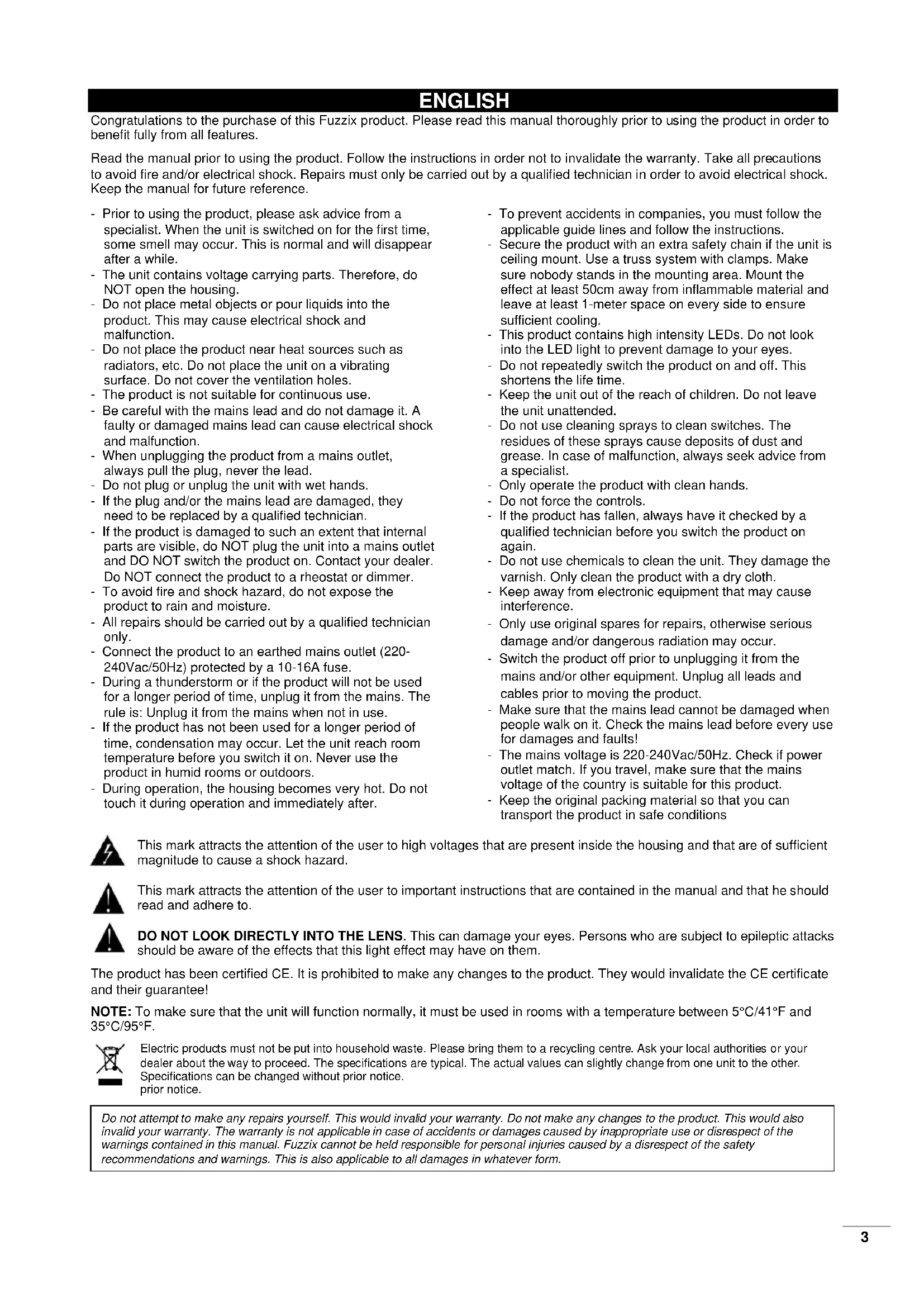

ENGLISH
Congratulations to the purchase of this Fuzzix product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.
Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.
- Prior to using the product, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
- The unit contains voltage carrying parts. Therefore, do NOT open the housing.
- Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
- Do not place the product near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
- The product is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
- When unplugging the product from a mains outlet, always pull the plug, never the lead.
- Do not plug or unplug the unit with wet hands.
- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
- If the product is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the product on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
- To avoid fire and shock hazard, do not expose the product to rain and moisture.
- All repairs should be carried out by a qualified technician only.
- Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
- If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.
-
During operation, the housing becomes very hot. Do not touch it during operation and immediately after.
-
To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
- Secure the product with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1-meter space on every side to ensure sufficient cooling.
- This product contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
- Do not repeatedly switch the product on and off. This shortens the life time.
- Keep the unit out of the reach of children. Do not leave the unit unattended.
- Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
- Only operate the product with clean hands.
- Do not force the controls.
- If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
- Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
- Keep away from electronic equipment that may cause interference.
- Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
- Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
- Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
- Keep the original packing material so that you can transport the product in safe conditions
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.
DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.
The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!
NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
Prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fuzzix cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.
UNPACKING INSTRUCTION
CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.
INSTALLATION
CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!
Attention:
- When smoke machine has a built-in fluid tank, then should be transport and operated in an upright position.
- Use only water-based fluid recommended by your dealer. Poor liquid caused permanent damage, bad effect, clogging, spitting of evaporated liquid etc.
- Be sure that the smoke machine is positioned on a stable, non-slip surface.
- Be sure that no ventilation slots on the product's housing are blocked.
- Don't put any objects on the smoke machine.
- Always install the smoke machine in an area with adequate ventilation.
- Never connect the smoke machine to a dimmer or rheostat.
- In the event of a serious operating problem, stop using the product immediately.
- When mounted at height, use the bracket and use add a safety cable.
The installation of the smoke machine has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year. - Never aim the smoke at yourself, people or animals.
- Never aim the output nozzle directly at people or at open flames.
The smoke machine has to be installed out of the reach of people and animals. - Drain the tank before transporting or storing the product.
- Never drink smoke fluid or use it on the inside or outside of a human body. If fluid gets in contact with skin or eyes, rinse thoroughly with water and call a doctor immediately!
- Keep out of the reach of children.
- For indoor use only.
CAUTION: When installing the smoke machine, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min. 20inch or 0.5 meter.
OPERATION
Connect the power lead into the fog machine and earthed mains outlet. Then you can switch the power on by ON/OFF switch.
After a certain warm-up time, the fog machine is ready to operate. Then the stand-by LED of the remote control lights up. By operating the smoke switch on the remote control the smoke emission starts. It may happen that the stand-by lamp turns off and the smoke emission stops. In this case the device is heating up again and will be ready to operate again.
Switch off when fog machine not used and unplug from mains if not use for long periods.
Do not allow the pump to run dry!
WIRELESS REMOTE CONTROL
A = Speed auto program of the LED's ()
B = Smoke on/off
C = Color RGB in several color modes or white strobe mode. ()
D = power LED on/off (*)
(^*) This feature is not available on 160.305
CLEANING
The fog machine must be cleaned to avoid deposits in the machine, pump and heater.
Run clean procedure in a well-ventilated area!
Procedure:
- Remove smoke fluid from the tank, fill "smoke machine cleaner fluid" into empty tank.
- Switch the power on and wait until smoke machine is warmed up.
- Press on the button of remote control and pump the liquid through the machine.
- Perform the above operation until the tank is empty.
- Fill the tank with smoke fluid.
REPLACING THE FUSE
If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.
NEDERLANDS
REEMPLACEMENT DU FUSIBLE
| F500S | F503L | F509L | F509LW | F506V | |
| Ref nr: | 160.305 | 160.307 | 160.310 | 160.312 | 160.316 |
| Heating element: | 500 Watt | ||||
| LED: | - | 3x RGB leds | 9x RGB leds | 9x RGB leds | 6x RGB leds |
| Wired remote: | No | ||||
| Wireless remote: | Yes | Yes | Yes | Yes | Yes |
| Heat-up time: | 160 seconds | ||||
| Re-heat time: | 30 seconds | ||||
| Output volume: | 50m³ | ||||
| Tank capacity: | 0.25L | ||||
| Power supply: | 220-240VAC 50Hz | ||||
| Dimensions: | 255 x 130 x 160mm | ||||
| Weight: | 1.6kg | ||||
The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
The products referred to in this manual conform to the European Community Directives to which they are subject:
European Union
Trionios B.V.,
7602KR Almelo, The Netherlands
2014/35/EU
2014/30/EU
2011/65/EC
United Kingdom
Tronios Ltd.,
130 Harley Street,
London W1G 7JU, United Kingdom
S.I. 2016:1101
S.I. 2016:1091
S.I. 2012:3032
Specifications and design are subject to change without prior notice.
