USER MANUAL MKB40C1B Avanti

Line drawing of a microwave oven with two top ovens and control knobs (no text or symbols on the device itself)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Important Safety Instructions	3
Help Us Help You	4
Parts and Features	5
Installation Instructions	6
Before Using Your Appliance	6
Installation of Your Appliance	6
Electrical Connection	6
Operating Your Appliance	7
Control Panel	7
Using Your Oven	8 – 10
Care and Maintenance	11
Cleaning Your Appliance	11
Storing Your Appliance	11
Troubleshooting Guide	12
Service for Your Appliance	12
Your Avanti Products Warranty	13
Instrucciones en Español	14 - 17
Instructions de Français	18 – 29
Registration Information	Last Page

IMPORTANT SAFETY INSTRUCTIONS

\~ WARNING\~

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

When using electrical appliances, basic safety precautions should always be followed including the following:

READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE USING THE APPLIANCE.

• Do not touch hot surfaces, use handles or knobs. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Allow the unit to cool thoroughly before putting in or taking off parts.
• When the unit is not in use and before cleaning, unplug the appliance from the wall outlet. Make sure the appliance is turned off before unplugging.
  • To protect against risk of electrical shock, do not immerse the appliance in water or any other liquids.
• Don't leave children alone or unattended where the appliance is hot or in operation. This appliance is not designed to be used by children.
  • Never use your appliance for heating the room. Your oven is not designed to heat your kitchen.
• Do not operate this or any appliance with a frayed or damaged cord or plug, after the appliance malfunctions, is dropped or has been damaged in any manner.
• Do not use attachments not recommended by the manufacturer; they may cause fire, electric shock or personal injury.

- Do not use outdoors or for commercial purposes.

- Do not use this appliance for other than its intended use.

- Do not let the cord dangle over the edge of a tabletop, countertop or to touch hot surfaces.

- Do not place the appliance near a hot gas, electric burner or in a heated oven.

• Extreme caution should be used when using containers constructed of other than metal or glass.

- A fire may occur if the appliance is covered or touching flammable materials, including curtains, draperies, walls, etc., when in operation. Do not store any items on top of the appliance when in operation.

- Do not store any materials, other than manufacturer's recommended accessories in this unit when not in use.

- Do not place any flammable materials in the appliance, such as paper, cardboard, plastic or any materials that may catch fire or melt.

• Never clean the appliance with flammable liquids. The fumes can create a fire hazard or explosion.

- Do not cover the appliance with metal foil. This will cause overheating of the appliance.

- Oversized foods or metal utensils must not be inserted in the appliance as they may create a fire or risk of electrical shock.

- Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electrical shock.

- When broiling, use extreme caution when removing tray or disposing of hot grease.

- To turn this appliance off, return all controls to the "0" / "OFF" position, then remove the plug from wall outlet.

• Cooked food can be very hot, especially pastry filling. Handle with care.

- Never pick up a flaming pan. Turns the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well fitting lid.

- Do not use water on grease fires. Flaming grease outside a pan can be put out by covering it with baking soda, multipurpose dry chemical, or fire extinguisher. Flame in the oven can be smothered completely by closing the oven door and turning the oven off or by using baking soda, multipurpose dry chemical, or fire extinguisher.

This Unit Is For Household Use Only

- SAVE THESE INSTRUCTIONS -

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new appliance properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a label located on the back side of the unit.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your appliance.

If you received a damaged appliance, immediately contact the dealer (or builder) that sold you the appliance.

Save time and money. Before you call for service, check the Problem Solver Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your appliance. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

PARTS AND FEATURES

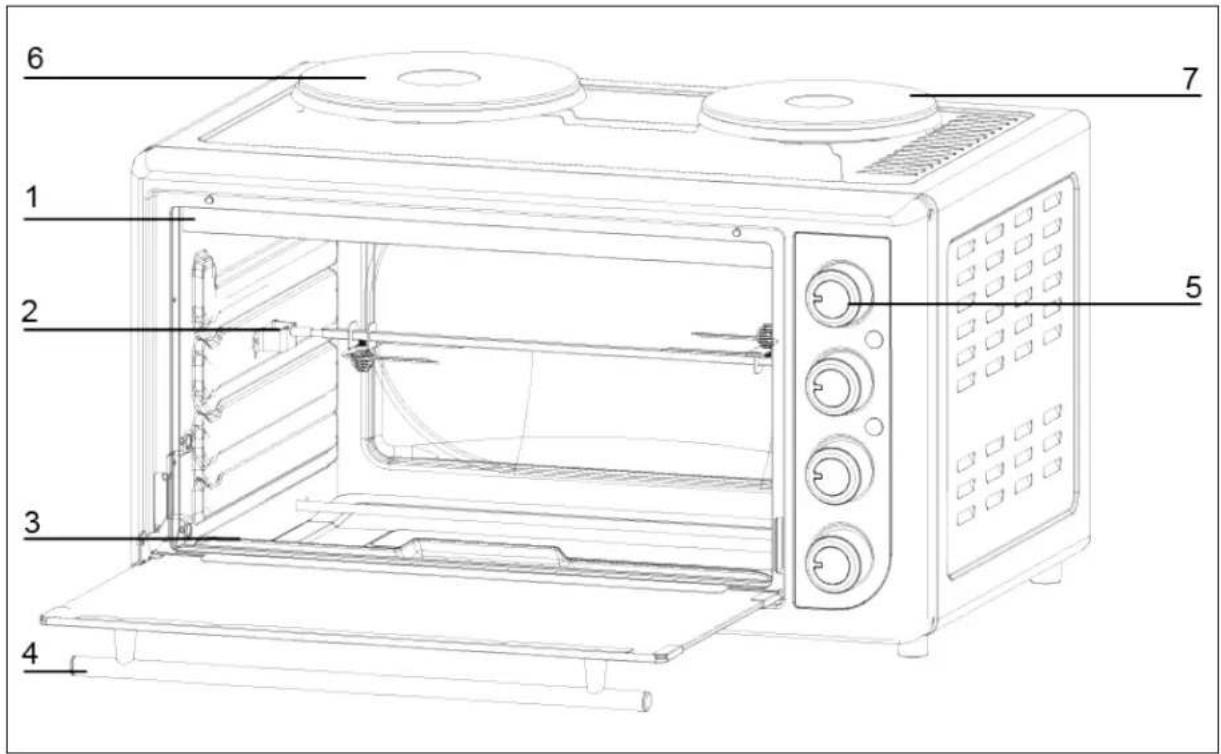

Technical diagram of a microwave oven with numbered parts labeled for identification.

1	Upper Heating Element	5	Control Panel
2	Rotisserie	6	Left Burner
3	Lower Heating Element	7	Right Burner
4	Door with Handle
	Not Shown:1 – Oven Rack1 – Backing / Broiling Tray1 – Tray removal Tool1 – Crump Tray

INSTALLATION INSTRUCTIONS

ÿ Before Using Your Appliance

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:

• 1 Bake/Broil/Drip Pan
- 1 Oven Rack
- 1 Crumb Tray
• 1 Bake/Broil/Drip Pan Removal Tool
• 1 Rotisserie Spit with Forks
• 1 Instruction Manual

• Remove all the items inside your oven and clean the interior surface with lukewarm water using a soft cloth.
• Do not attempt to repair or replace any part of your oven unless it is specially recommended in this manual.
  • This appliance requires 1700W and should be the only appliance operating on the circuit.

NOTICE

BEFORE YOU USE THIS OVEN FOR THE FIRST TIME: THE HEATING ELEMENTS HAVE A PROTECTIVE COATING, WHICH MUST BE BURNED OFF BEFORE USE. TO DO THIS, OPEN THE OVEN DOOR AND SET THE TEMPERATURE TO MAX. LEAVE THE APPLIANCE SWITCHED ON FOR APPROXIMATELY 15 MINUTES. IT IS IMPORTANT TO ENSURE ADEQUATE VENTILATION DURING PERIOD AS A BURNING SMELL IS NORMAL DURING THIS PROCESS.

Installation of Your Appliance

Select a location for the appliance. The location should be in an open area on a flat counter where the plug will reach an outlet.

• When positioning the appliance, it should be set on a flat, steady surface.
• Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause the appliance failure.
• Keep the appliance away from hot air, steam or splashing liquids when choosing a place to locate it, otherwise, the unit's operation may be adversely affected, causing it to break down.
• Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Plug the appliance into an exclusive properly installed grounded wall outlet. Any questions concerning power should be directed toward a certified electrician or an authorized Avanti Products service center.
• Do not place anything on the top of the broiler oven and automatic toaster.
• Keep the appliance at least 5 inches away from rear wall to ensure the proper ventilation.

Electrical Connection

• The appliance has a polarized plug (One blade is wider than the other), to reduce the risk of electric shock, this plug is intended to fit into the polarized outlet only one way. If the plug does not fit fully into the outlet, reserve the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• A short power cord is provided to reduce the hazards resulting from entanglement or tripping over a longer cord. An extension cord may be used with care, however, be sure the marked electrical rating is at least as great as the rating of this appliance. The extension cord should be positioned such that it does not drape over the counter or tabletop where it can be pulled on by children or tripped over. The electrical rating of this appliance is listed on the bottom panel of the appliance.

OPERATING YOUR APPLIANCE

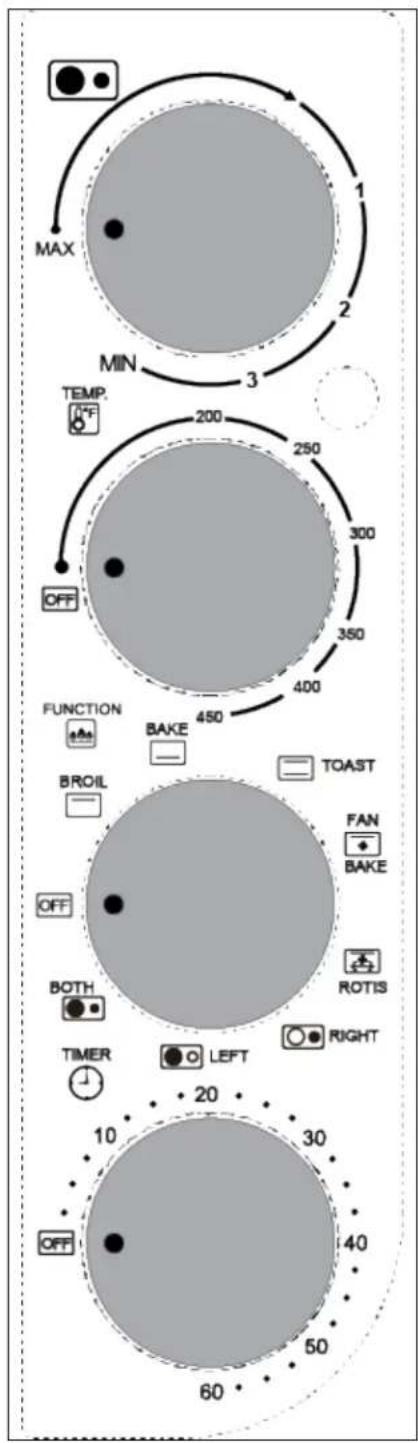

ÿ Control Panel

MAX MIN 1 2 3 TEMP. 200 250 300 350 400 450 FUNCTION BAKE BROIL TOAST FAN BAKE OFF BOTH ROTIS TIMER LEFT RIGHT 10 30 40 60 50

FUNCTION SELECTOR KNOB

Select the appropriate function for your use.

TIMER SELECTOR KNOB

You can set cooking time up to 60 minutes. It will automatically turn the oven OFF at the end of the cooking time selected with the sound of a bell signal.

To switch off the oven turn the timer selector to the "OFF" setting position.

POWER INDICATOR LIGHT

The indicator will come ON when the oven is in use.

COOK-TOP

• Place your cooking pan on the desired burner.
  • Turn the BURNER selector to the desired position.
  • Turn the TIMER selector knob to your desired cooking time. Then range top will operate.
  • There are three different types of dual burner combinations for your choice (See graphic below).
• After using your range top, turn both the TIMER and BURNER selector knobs to the OFF / position.
• Note: Do not use pans with a diameter less than that of burner. It is advisable to use pans, which have flat bottom of good thickness. The burners should not be used without a pot or pan on them. If any liquid spillage occurs it is recommended to wait for the burners to cool down then wipe with a cloth.

ÿ Using Your Oven

Push the Operation Selector button (rocker-switch) to the "OVEN" position.

Be sure that the function selector knob is in the "OFF" position and the timer control knob is in the "OFF" position before plugging the cord into the outlet for use and when unplugging the appliance after use.

Preheating The Oven

Turn the function selector control knob to the desired function either BAKE or BROIL.

Turn the timer selector knob to the "5 minutes marking" for the oven to preheat.

To Use The BAKE Function

Turn the function selector knob to the BAKE position, turn the temperature control knob to the desired oven temperature.

Turn the timer knob to the desired cooking time (max 60 minutes). At the end of the cooking time a bell signal sounds and the oven will turn OFF automatically

Only the bottom heating element will cycle ON and OFF to maintain the selected temperature.

Arrange food on the wire rack or in the Bake/Broil/Drip pan.

When BAKING is completed, open door fully and remove food carefully.

To Use The BROIL Function

Arrange food on broiler pan. Place broiler pan on oven rack. Close the door to the first notch, leaving approximately a 2 inch gap at the top. This will ensure adequate airflow during broiling.

Turn the function selector to the BROIL setting.

Turn the temperature control knob to the desired oven temperature.

Turn the timer knob to the desired cooking time (max 60 minutes). At the end of the cooking time a bell signal sounds and the oven will turn OFF automatically.

Only the top heater elements will operate. For best results the oven should be preheated 20 minutes before adding the food to be broiled.

Turn food over about halfway through the broiling time.

When BROILING is completed, open door fully and remove food carefully,

To Use the TOAST Function

No preheat period is required before toasting.

Place the bread to be toasted directly on the rack in the center of the oven, close the door.

Turn the function selector to the TOAST setting, then turn the temperature control knob to the desired oven temperature and turn timer selector knob to your selected cooking time (max 60 minutes). At the end of the cooking time a bell signal sounds and the oven will turn off automatically. Both the top and bottom elements will operate when TOAST function is used.

Both the upper and bottom heating elements will cycle ON and OFF to maintain the selected temperature.

When toasting is completed, open door fully and remove food carefully.

Different types of bread require different toasting times. Lighter breads and waffles require a shorter toasting time. Darker breads, muffins, and English muffins require a longer toasting time.

To Use The CONVECTION BAKE Function

Turn the function selector knob to the CONV BAKE position, turn the temperature control knob to the desired oven temperature.

Turn the timer knob to the desired cooking time (max 60 minutes). At the end of the cooking time a bell signal sounds and the oven will turn OFF automatically

Both the bottom and top heating elements will cycle ON and OFF in addition to the convection fan circulating the air to maintain the selected temperature.

Arrange food on the wire rack or in the Bake/Broil/Drip pan.

When BAKING is completed, open door fully and remove food carefully.

To Use The ROTISSERIE Function

Turn the function selector knob to the ROTIS position, turn the temperature control knob to the desired oven temperature.

Turn the timer knob to the desired cooking time (max 60 minutes). At the end of the cooking time a bell signal sounds and the oven will turn OFF automatically

The top heating element will cycle ON and OFF in addition to the rotisserie motor circulating to rotate the food to be cooked and maintain an even bake.

When completed, open door fully and remove food carefully.

CARE AND MAINTENANCE

ÿ Cleaning Your Appliance

Before cleaning your appliance, unplug it and allow it to cool.

Remove the crumb tray, wire rack and drip/baking pan.

Use a damp cloth to wash the inside with warm water and a mild detergent. Do not Immerse in Water!

Abrasive cleaners, scrubbing brushes and chemical cleaners may damage the continuous clean coating on this unit.

Wash the crumb tray, wire rack, drip/baking pan and metal handling tool with a mild detergent solution.

The glass oven door should be cleaned regularly with a non-abrasive liquid cleaner.

Rinse with a damp cloth and then a dry one.

The outside of the appliance should be cleaned with mild detergent and warm water.

CAUTION

Failure to unplug the appliance could result in electrical shock or personal injury.

ÿ Storing Your Appliance

Allow the appliance to cool completely before storing. If storing the appliance for long periods of time make certain that the appliance is clean and free of food particles. Store the appliance in a dry location such as on a table or countertop or in a cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.

PROBLEMS WITH YOUR APPLIANCE?

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEMS	POSSIBLE CAUSES/SOLUTIONS
• Appliance does not operate.	• Unit not plugged in. Plug the unit into a 120V AC electrical outlet.• The circuit breaker tripped or a blown fuse.• Be sure that the temperature, function and timer selectors are set.
• Only one heating element is heating up.	• Function setting selection determines which heating element will operate.• When toasting, make sure the oven is not set to BROIL or BAKE setting.
• Heating elements are not heating up.	• Heating elements will cycle ON and OFF to maintain proper heat. Make sure function selector is positioned to the desired cooking setting.
• Overcooked/undercooked Foods	• Rack placement. Rack may need to be adjusted to accommodate different foods.
• Burnt Smell	• Food build-up inside appliance, on heating elements or in drip/baking pan. Refer to “Cleaning Your Appliance”

SERVICE FOR YOUR APPLIANCE

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

YOUR AVANTI WARRANTY
LENGTH OF WARRANTY WE WILL PAY FOR

FULL ONE YEAR WARRANTY FROM DATE OF PURCHASE ON ALL PARTS EXCEPT GLASS PARTS, AND/OR PARTS DAMAGED AS A RESULT OF MISUSE OR LACK OF REASONABLE CARE.	REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIALS OR WORKMANSHIP. SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.
FULL 30-DAY WARRANTY FROM DATE OF PURCHASE ON GLASS PARTS AND FINISH OF PORCELAIN ENAMEL, PAINTED OR BRIGHT METAL FINISHED PARTS	REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIAL OR WORKMANSHIP. SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.

CARRY IN SERVICE ONLY.

CUSTOMER WILL BE RESPONSIBLE FOR ALL TRANSPORTATION CHARGES TO AND FROM THE AUTHORIZED SERVICE COMPANY, ALSO MAKE SURE TO SEND A COPY OF PROOF OF PURCHASE WHEN SENDING THE UNIT FOR SERVICE REPAIRS.

AVANTI PRODUCTS SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

This warranty is not valid outside the Continental United States.

Technical diagram of a microwave oven with numbered parts labeled for identification.

PROBLÈMES AVEC VOTRE APPAREIL?

AVANTI PRODUCTS NE SERA PAS RESPONSABLE DES DOMMAGES ACCESSOIRES OU INDIRECTS.

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products, LLC.

P.O.Box 520604 - Miami, Florida 33152

ÿ Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

ÿ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

Name			Model # Serial #
Address			Date Purchased Store / Dealer Name
City	State	Zip	E-mail Address
Area Code	Phone Number		Occupation
Did You Purchase An Additional Warranty			As your Primary Residence, Do You:
£ Extended			£ Own £ Rent
£ None			Your Age:
Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:			£ under 18 £ 18-25 £ 26-30£ 31-35 £ 36-50 £ over 50Marital Status:£ Married £ Single
£ Price			Is This Product Used In The:£ Home £ Business
£ Product Features
£ Avanti Reputation
£ Product Quality
£ Salesperson Recommendation			How Did You Learn About This Product:£ Advertising£ In-Store Demo£ Personal Demo
£ Friend / Relative Recommendation
£ Warranty
£ Other:

Comments:

MKB40C1B - 12/03/2020

PRINTED IN CHINA
