Product type	DishDrawer™ Drawer Dishwasher
Brand	Fisher & Paykel
Model	DD24ST4NX9
Number of drawers	1 (single model)
Wash programs	Heavy, Medium, Eco, Fast, Delicate, Rinse
Modification options	Extra Dry, Quick, Sanitize
Delay start	Yes, 1 to 12 hours
Key lock	Yes (Keylock)
Child lock	Yes (Childlock)
Connectivity	Built-in Wi-Fi, control via Fisher & Paykel mobile app
Power supply	120 V, 60 Hz (estimate)
Built-in water softener	Yes (some models, adjustable)
Detergent dispenser	Main and secondary, powder only
Rinse aid dispenser	Yes, adjustable (1-5)
Salt reservoir capacity	Approximately 350 g
Tub material	Stainless steel (likely)
Recommended maintenance	Monthly cleaning of drain filter, spray arm, and filtration plate
Safety	Child lock, automatic shutdown, grounding
Power cord length	Not specified
Country of origin	Not specified

Frequently Asked Questions - DD24ST4NX9 Fisher & Paykel

How do I start a wash program?

Add detergent, select the program with the key, then press ▶ and close the drawer within 4 seconds.

What should I do if dishes are still dirty after washing?

Check the selected program, spray arm rotation, filtration plate, and filter. Make sure the drawer is not overloaded and detergent is suitable.

How do I use the Sanitize option?

Select a compatible program (Heavy, Medium), then press * until Sanitize lights up. The temperature reaches 70°C to sanitize.

What does error code A1 mean?

Code A1: water supply failure. Check that the water tap is open, then press ▶ twice to clear the code.

How do I activate child lock?

Press and hold the * key until two beeps and the Ⓗ icon lights up. To deactivate, tap the closed drawer three times.

Can I use detergent tablets?

Yes, place them in the utensil basket or on the tablet tray, never directly in the dispenser or at the bottom of the drawer.

How do I adjust the water softener?

Access the Preferences menu (hold key and * for 4 seconds), then adjust the water hardness level (0 to 5) according to your water hardness.

What if the drawer won't open?

Check if child lock or automatic lock is activated. If so, disable it. Otherwise, wait for the cycle to finish.

How do I clean the dishwasher?

Clean the drain filter, filtration plate, and spray arm once a month with warm soapy water. Wipe surfaces with a damp cloth.

What happens in case of a power outage during a cycle?

Wait for the power to restore; the program will resume automatically from where it stopped.

USER MANUAL DD24ST4NX9 Fisher & Paykel

DISHDRAWER™ DISHWASHER

DOUBLE MODELS

Safety and warnings 5

First use 8

Loading suggestions 10

Wash programs 11

Operating instructions 12

Wash modifiers 13

Delay start 15

Keylock & Childlock 16

Detergent 17

Rinse aid 20

Water softener (some models only) 22

Preferences 24

Wi-Fi connection & remote mode 26

Racking features 28

Maintenance 33

Troubleshooting 37

Fault codes 41

Warranty and service 43

Registration

To register your product visit our website: fisherpaykel.com/register

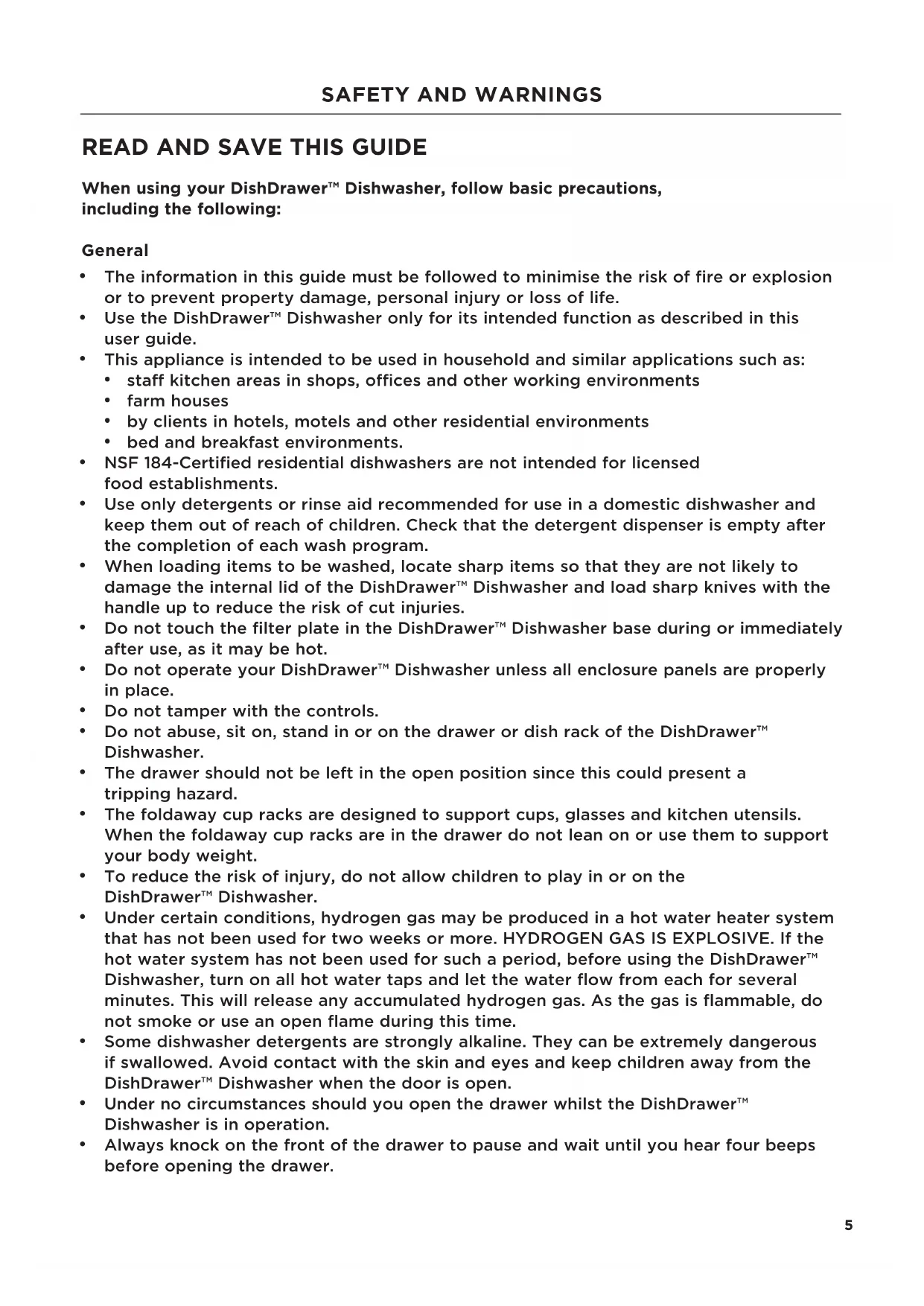

READ AND SAVE THIS GUIDE

When using your DishDrawer™ Dishwasher, follow basic precautions, including the following:

General

• The information in this guide must be followed to minimise the risk of fire or explosion or to prevent property damage, personal injury or loss of life.
• Use the DishDrawer™ Dishwasher only for its intended function as described in this user guide.
  • This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments
- farm houses
• by clients in hotels, motels and other residential environments
• bed and breakfast environments.

• NSF 184-Certified residential dishwashers are not intended for licensed food establishments.
- Use only detergents or rinse aid recommended for use in a domestic dishwasher and keep them out of reach of children. Check that the detergent dispenser is empty after the completion of each wash program.
- When loading items to be washed, locate sharp items so that they are not likely to damage the internal lid of the DishDrawer™ Dishwasher and load sharp knives with the handle up to reduce the risk of cut injuries.
- Do not touch the filter plate in the DishDrawer™ Dishwasher base during or immediately after use, as it may be hot.
- Do not operate your DishDrawer™ Dishwasher unless all enclosure panels are properly in place.
- Do not tamper with the controls.
- Do not abuse, sit on, stand in or on the drawer or dish rack of the DishDrawer™ Dishwasher.
- The drawer should not be left in the open position since this could present a tripping hazard.
- The foldaway cup racks are designed to support cups, glasses and kitchen utensils. When the foldaway cup racks are in the drawer do not lean on or use them to support your body weight.
- To reduce the risk of injury, do not allow children to play in or on the DishDrawer™ Dishwasher.
- Under certain conditions, hydrogen gas may be produced in a hot water heater system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the DishDrawer™ Dishwasher, turn on all hot water taps and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
- Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the DishDrawer™ Dishwasher when the door is open.
- Under no circumstances should you open the drawer whilst the DishDrawer™ Dishwasher is in operation.
- Always knock on the front of the drawer to pause and wait until you hear four beeps before opening the drawer.

- The DishDrawer™ Dishwasher must be used with the motor assembly, filter plate, drain filter and spray arm in place. To identify what these parts are refer to 'Maintenance'.

- Take care not to load dishware items so they prevent the internal lid from properly sealing with the drawer. Items should be placed so they do not protrude above the drawer.

- Cleaning and maintenance shall not be done by children without supervision.

- Do not allow children to play inside, on or with this appliance or any discarded appliance.

- If the DishDrawer™ Dishwasher is not being used for long periods of time, turn the electricity and water supply off.

- Household appliances are not intended to be used by children. Children of less than 8 years old must be kept away from the appliance unless continuously supervised. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and they understand the hazards involved.

- If a dishwasher cleaner is used, we recommend running a wash program with detergent immediately afterward to prevent any damage.

- The DishDrawer™ Dishwasher is designed for washing normal household utensils. Items that are contaminated by petrol, paint, steel, iron debris, corrosive, acidic or alkaline chemicals are not to be washed in the DishDrawer™ Dishwasher.

- Do not wash plastic items unless they are marked dishwasher safe or equivalent. For plastic items not marked, check the manufacturer's recommendations.

Installation

- This DishDrawer™ Dishwasher must be installed and located in accordance with the Installation instructions before it is used. If you did not receive Installation instructions with your DishDrawer™ Dishwasher, you can order them by calling your Authorised Repairer or download them from our local Fisher & Paykel website, listed on the back cover.

• Installation and service must be performed by a Fisher & Paykel trained and supported service technician.

- If the power supply cord is damaged, it must be replaced by a Fisher & Paykel trained and supported service technician or a qualified trades person in order to avoid a hazard.

- Ensure the DishDrawer™ Dishwasher is secured to adjacent cabinetry using the brackets provided. Failure to do so may result in an unstable product, which may cause damage or injury.

- Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has missing or broken parts, including a damaged power supply cord or plug.

- Do not store or use petrol, or other flammable vapours and liquids in the vicinity of the DishDrawer™ Dishwasher.

- Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.

- Ensure the power supply cord is located so that it will not be stepped on, tripped over or otherwise subject to damage or stress.

- Do not install or store the DishDrawer™ Dishwasher where it will be exposed to temperatures below freezing or exposed to weather.

- Do not use an extension cord or a portable electrical outlet device (e.g. multi-socket outlet box) to connect the DishDrawer™ Dishwasher to the power supply.

• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
• This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances. Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or Fisher & Paykel trained and supported service technician if you are in doubt as to whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance; if it will not fit the outlet, contact a Fisher & Paykel trained and supported service technician or qualified electrician.
• If the DishDrawer™ Dishwasher is installed as a permanently connected appliance, this appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Maintenance

• Disconnect the appliance from the power supply before any cleaning or maintenance.
• When disconnecting the appliance pull the plug rather than the power supply cord or junction of cord to avoid damage.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in this guide. We recommend contacting a Fisher & Paykel trained and supported service technician or Customer Care.
• Keep the floor around your appliance clean and dry to reduce the possibility of slipping.
• Keep the area around/underneath your appliance free from the accumulation of combustible materials, such as lint, paper, rags and chemicals.

Wi-Fi

• Do not change or modify the wireless communication device in any way. Changes or modifications not expressly approved by Fisher & Paykel could void the user's authority to operate the equipment.
• This device contains licence-exempt transmitter/receiver that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

• This device may not cause interference.
- This device must accept any interference, including interference that may cause undesired operation of the device.

• WARNING: The incorporated Wi-Fi module in this appliance is to operate only from channel 1 to channel 11 as per FCC rules.
• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

- this device must accept any interference received, including interference that may cause undesired operation.

• Ensure the installer has completed the 'Final checklist' in the Installation instructions.
• Read this guide, taking special note of the 'Safety and warnings' section.
• Remove all internal and external packaging and dispose of it responsibly. Recycle items that you can.

DishDrawer™ Dishwasher features

① Upper tub
② Lower tub
③ Toe kick

Double model illustrated

Control panel overview

The control panel is located on the inside of the drawer. Opening the drawer will automatically turn the DishDrawer™ Dishwasher on.

Control panel features

① Wash program selector
② Wash modifier selector
③ Start
④ Wash program indicators

⑤ Wash modifier indicators
⑥ Delayed start indicator
⑦ Lock indicator
⑧ Wi-Fi indicator

Dishware

The combination of high temperatures and dishwasher detergent may cause damage to some items. Refer to the manufacturer's guidance or wash by hand if in doubt.

Cutlery & silverware

All cutlery and silverware should be rinsed immediately after use to prevent tarnishing, RINSE cycle is recommended. Silver should not come into contact with stainless steel, mixing these can cause staining. Remove silver cutlery from the DishDrawer™ Dishwasher and hand dry immediately.

Aluminium

Aluminium can be dulled by detergent. The degree of change depends on the quality of the detergent or aluminium.

Other metals

Iron and cast iron can rust and stain other items. Copper, pewter and brass tend to stain.

Woodware

Woodware is generally sensitive to heat and water. Regular use in the DishDrawer™ Dishwasher may cause deterioration over time.

Glassware

Most glassware is dishwasher safe. Crystal, very fine and antique glassware may etch and will develop a cloudy appearance.

Plastics

Some plastics may change shape or colour with hot water. Refer to the manufacturer's guide. Dishwasher safe plastic should be weighed down so it does not flip and fill with water or fall through the base rack during the wash.

Decorated items

Most modern china patterns are dishwasher safe. Antique items, those with a pattern painted over the glaze, gold rims or hand painted china may be more sensitive to machine washing.

Glued items

Certain adhesives are softened or dissolved in machine washing.

Water hardness

Hard water is water with a high concentration of minerals such as calcium and magnesium. It can be detrimental to the performance of your DishDrawer™ Dishwasher and parts can fail over time. Glassware washed in hard water will become cloudy and dishes will become spotted or covered in a white film over time. Water hardness varies by geographical location.

If you live in a hard water area, and your DishDrawer™ Dishwasher does not have a built-in water softener, we recommend fitting a water softener to the household water supply.

If your home has hard water

• Refer to 'Powdered detergent quantity recommendations' and 'Water softener'.
- Use rinse aid. We recommend you raise the rinse aid setting to 5 to help improve wash performance. Refer to 'Preferences' for details.

Use a dishwasher cleaner/descaler regularly, or whenever you notice a build-up of limescale deposits in your DishDrawer™ Dishwasher.

If your home has soft or softened water

- Avoid using too much detergent.

Scrape food off dishware before carefully loading into the drawer. When loading your drawer ensure items are placed so water coming from the rotating spray arm below can reach all areas. Wash performance will be reduced if it can't.

Technical line drawing of a mechanical assembly with cylindrical components and structural brackets (no text or symbols)

Ensure

• Spray arms can rotate freely.
  • Glass and other fragile items are stable.
  • All dish openings are facing downwards.
• Plates are evenly spaced.
• All sharp objects are located securely to avoid injury or damage to the product.

Technical line drawing of a steel rebar framework with no visible text or symbols

Avoid

• Overcrowding.
- Any protrusions below the racks and basket that may prevent spray arm rotation.
• Any protrusions at the top of the drawer.*
- Blocking water from any items on the foldaway cup racks.

*maximum dishware height for standard tub models is 280mm and 310mm for tall tub models.

Your DishDrawer™ Dishwasher has a number of wash programs designed to suit your needs. Selecting the most appropriate cycle for each load will help ensure the best wash results.

The Eco program is the most efficient program in terms of combined energy and water consumption. Loading the dishwasher to capacity will contribute to water and energy savings. Pre-rinsing of tableware items will increase water and energy consumption and is not recommended. Washing tableware with a household dishwasher usually consumes less energy and water than hand washing, when used according to manufacturer's instructions.

WASH PROGRAM DESCRIPTION

HEAVY	Heavily soiled pots, pans and dishes
MEDIUM	Dishes that are quite heavily soiled or food soils that have been left to dry overnight
ECO	Normally soiled dishes for optimum water and energy usage
FAST	Lightly soiled dishes
DELICATE	Lightly soiled and heat sensitive crockery and glassware
RINSE	Prevents odors and soils from drying on dishes

Setting a wash program

1

Ensure DishDrawer™ Dishwasher is turned on and detergent has been added.

Press » to scroll through the available wash programs. The selected wash program will illuminate on the display.

3

Press ▶ to start the wash and close the door within 4 seconds.

Pausing a wash

Close-up of a wooden plank with visible grain texture and no text or symbols

Knock twice on the door.

Wait for three short and one long tone before opening the drawer. Forcing it open mid cycle may cause damage or injury.

If the drawer is not restarted within 7 minutes it will tone intermittently until it is restarted.

Resuming a wash

To resume, press▶ and close the drawer.

Canceling a wash

Press and hold ▶.

If there is any water in the drawer, it will drain before the DishDrawer™ Dishwasher turns off.

WASH MODIFIERS

After setting the wash program, you may select one of the following the additional options. Only one modifier can be set at a time.

EXTRA DRY

Increases the final rinse temperature and the length of the drying phase.

QUICK

Uses additional water and energy for a faster wash time.

SANITIZE

Raises the water temperature during the rinse phase to sanitize.

WASH PROGRAM MODIFIER AVAILABLE

Heavy Extra Dry, Quick, Sanitize
Medium Extra Dry, Quick, Sanitize
Eco n/a
Fast Extra Dry
Delicate Extra Dry, Quick
Rinse n/a

Setting a wash modifier

Ensure DishDrawer™ Dishwasher is turned on, detergent has been added and a wash program has been selected.

Press *to scroll through the wash modifier options. The selected wash modifier indicator will illuminate on the display.

Press ▶ to start the wash and close the drawer within 4 seconds.

Using SANITIZE

The SANITIZE wash modifier adjusts the wash program to meet the conditions required by Section 6, NSF 184 for sanitization to occur. While SANITIZE is running, the wash program is monitored to ensure that these conditions are met.

Only programs utilising the SANITIZE wash modifier are certified to meet the conditions required by Section 6, NSF 184. Other wash programs may not reach the temperatures required for sanitization to occur. See table on previous page for wash programs that have sanitize available.

For sanitization to occur, the temperature of the water needs to reach 70^ C. Ensure all items are dishwasher safe before running the sanitize modifier.

If the wash is interrupted or the water supply is turned off during the program, the heating conditions for sanitization may not be met. You may need to run the program again.

If sanitization has been successful

The wash will finish as normal.

If sanitization has not been successful

An alert will sound and when the drawer is opened the SANITIZE indicator will flash.

① Check if the water supply has been turned off or the wash program interrupted.
② Press and hold▶ once to stop the beeping and then again to clear the alert code.
③ Reset SANITIZE and run the cycle again

For more information, refer to 'Fault codes'.

DELAY START can delay the start of the wash program between 1-12 hours. The display will show the number of hours until the wash program is set to begin.

Press and hold ▶ to set the delay start time. Each tone indicates a 1h delay.

will illuminate and a tone will sound to indicate each hour of delay.

Close the drawer. The wash will start when the delay time is over.

If the drawer is not closed within four seconds of setting DELAY START, or the drawer is opened after DELAY START has been set, DELAY START will be paused after closing the drawer. Press ▶ and close the drawer to resume.

If you scroll past 12 hours the DishDrawer™ Dishwasher will exit DELAY START mode.

Canceling Delay start

Open the drawer, then press and hold until ⚙dims.

Keylock

KEYLOCK disables all buttons across the control panel and door for the selected drawer.

To activate KEYLOCK

Press and hold ✦ until you hear a tone and Ⓤ illuminates.

Childlock

CHILDLOCK disables all buttons across the control panel and door and locks the selected drawer closed.

To activate CHILDLOCK

Press and hold ✦until you hear two tones and Ⓧ illuminates.

Canceling Keylock or Childlock

If the drawer is open

Press and hold until dims.

If the drawer is closed

Knock three times on the drawer.

WARNING: Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children and infirm persons away from the dishwasher when it is open. Check the powdered detergent dispenser is empty after each wash.

Detergent may cause discoloration on aluminum handles. Remove immediately if spilled.

Unsuitable detergents

These types of detergent are not suitable and may damage your DishDrawer™ Dishwasher and lead to a service call that is not covered by warranty:

• Liquid detergents
• Laundry detergents
  • Hand washing liquids

Using powdered detergent

Use the markings to help you measure the correct quantities. Do not place tablets or pouches in the dispenser. Refer to the following 'Powdered detergent quantity recommendations' table and the detergent manufacturer's guidance. No detergent is needed for RINSE.

Diagram of a medical device with a central component and a circular base, labeled with number 1 (no text or symbols on the diagram itself)

Press the latch down to open the dispenser. Check that the dispenser is empty and dry.

Add detergent and close the dispenser until it clicks shut.

The detergent will automatically be released into the drawer during the wash program.

When washing heavily soiled dishware in hard water, more detergent may be required. Refer to 'Powdered detergent quantity recommendations'.

Using solid tablets or pouches

Using tablets could improve wash performance in hard water areas. Follow manufacturer guidance. Some tablets or pouches may not be suitable for all wash programs.

Isometric line drawing of a modular storage unit with a central box and handle, no text or symbols present

Place in cutlery basket

Place tablet or pouch in cutlery basket, ensuring it doesn't come in direct contact with dishes or cutlery.

Isometric line drawing of a mechanical device with a central component and surrounding grid structure (no text or symbols)

Place on tablet tray

Place tablet or pouch on tablet tray in cutlery basket ensuring it doesn't come in direct contact with dishes or cutlery.

Technical line drawing of a mechanical assembly with no visible text or symbols

Place directly in tub

Place the tablet or pouch between the racking at the side as shown.

Do not place on the base of the drawer as it may interfere with the spray arm rotation and affect wash performance.

Powdered detergent quantity recommendations

The recommended detergent quantity depends on water hardness and the soil level of your dishes. Use the table below to determine the optimal powdered detergent quantity based on water hardness and soil level. Refer to 'Wash program' descriptions to select a program for soil level.

WATER HARDNESS	SOIL LEVEL	POWDER QUANTITY PER DRAWER		TABLET
SOFT <100PPM	LIGHT	10g 1/3		Not recommended
	MEDIUM	20g 2/3 OK
	HEAVY	30g Full OK
MODERATE 100-250PPM	LIGHT	20g 2/3		Not recommended
	MEDIUM	20g 2/3 OK
	HEAVY	30g Full OK
HARD >250PPM	LIGHT	30g Full OK
	MEDIUM	30g Full OK
	HEAVY	>30g	Fill main and secondary dispensers	OK

Rinse aid provides a streak-free finish to glass and dishware as well as preventing metal from tarnishing. We recommend using a liquid rinse aid regularly for optimal drying results. During dispensing, a pulsing sound may be heard, this is normal.

The rinse aid dispenser is located on the inside of the drawer underneath the detergent dispenser. It holds approximately 1.7 fl oz (50ml) of rinse aid.

How much rinse aid to use

The amount of rinse aid dispensed in each wash may need adjusted to suit your water conditions. Refer to 'Preferences' and 'Water softener' for guidance.

When to refill rinse aid

• If the indicator glows or flashes bright red, refill rinse aid.
- If the indicator glows or flashes dimly or not at all, you do not need to refill – there is enough rinse aid for the wash.

When using lighter coloured rinse aids, the indicator may not dim as prominently as when using darker rinse aids.

How to refill rinse aid

①

Simple line drawing of a device casing with a circular button and arrow indicating rotation (no text or symbols)

Turn the plug anticlockwise and remove.

②

Line drawing of a hand inserting a small object into a device (no text or symbols)

Pour rinse aid into the opening, taking care not to spill any into the drawer or on the aluminum handles.

Spillages must be wiped up immediately as spilled rinse aid will cause excessive foaming which may result in a service call that will not be covered by warranty. It may also discolor the aluminum.

③

Simple line drawing of a device casing with a circular component inside, no text or symbols present.

Refit the plug, turning clockwise until secure.

Ensure the plug is closed tight with the hand grip in a vertical position.

The salt reservoir must always be filled with granular salt designed for dishwasher water softening. We do not recommend the use of cooking salt like table salt, rock salt or pellets as they may contain impurities that will damage the water softener. Do not add detergent or rinse aid to the salt reservoir. This will cause damage.

The salt reservoir is located on the inside of the drawer next to the detergent dispenser. It holds up to approximately 0.8lb (350g) of salt (actual capacity will vary depending on brand and grain size of salt used).

Double models: each drawer has a separate salt reservoir.

Water hardness recommendations

• Use the table below to determine the optimal water hardness setting. Your local water company will be able to help.
• If you have a household water softener installed, use the setting recommended for water with a hardness under 100 ppm/6 gpg, irrespective of the water hardness in your area.
• If your water hardness is above 625 ppm/36 gpg, the wash performance of your DishDrawer™ Dishwasher will decline over time. The rinse aid setting should be at 5.

SETTING	WATER HARDNESS SCALES
	PPM GPG °DH °FH °E / °CLARK MMOL/L
0 0-100 0-6	0-5.6 0-10	0-7 0-0.1
1	100-250	6-14	5.6-14	10-25	7-17.5	0.1-2.5
2	250-350	14-20	14-19.6	25-35	17.5-24.5	2.5-3.5
3	350-450	20-26	19.6-25.2	35-45	24.5-31.5	3.5-4.5
4	450-550	26-32	25.2-30.8	45-55	31.5-38.5	4.5-5.5
5	550-625	32-36	30.8-35	55-62	38.5-43.8	5.5-6.2

Using the salt reservoir

You may hear some noises when the water softener is operating, this is normal.

Turn the cap anticlockwise and remove.

Simple line drawing of a funnel with a circular base, no text or symbols present

Place the salt into the salt container and carefully pour into the reservoir.

When filling the salt reservoir, you may notice water being displaced from the water softener overflow. This is normal.

Diagram showing a circular component with internal structure and a rectangular housing, no text or symbols present

Refit the cap, turning clockwise until secure. If you are not washing your dishes immediately after filling the salt reservoir, we recommend running a RINSE cycle to remove any salt water or spilt granules.

When to refill the salt reservoir

If the salt indicator is red, the salt reservoir must be filled. If the salt indicator is black, there is enough salt in the reservoir.

You can adjust any of the settings of the below options prior to starting a wash cycle.

Wi-Fi

Allows your DishDrawer™ Dishwasher to connect to your home network. Refer to 'Wi-Fi connection & remote mode' for details.

Rinse aid

Controls the amount of rinse aid dispensed. Refer to 'Rinse aid' for details.

Water softener\*

Refer to 'Water softener' for details.

Auto power-on\*\*

Your DishDrawer™ Dishwasher is set to automatically power on for 30 seconds after a drawer is opened. This can be turned off.

Autolock

Allows the drawer to automatically lock 30 seconds after it's closed.

Tones

Adjusts tone settings. When set to OFF all tones will be silenced except fault alerts.

Settings displays

OPTION DISPLAY SETTINGS
Wi-Fi	Extra DryQuickSanitize	Disconnected					Connected
Rinse aid Off Max: 5	Extra DryQuickSanitize		Heavy	Medium	Eco	Fast	Delicate		Heavy	Medium	Eco Fast Delicate
Water softener* Off Max:5	Extra DryQuickSanitize		Heavy	Medium	Eco	Fast	Delicate		Heavy	Medium	Eco Fast Delicate
Auto power-on** On Off	Extra DryQuickSanitize		Heavy	Medium	Eco	Fast	Delicate		Heavy	Medium	Eco Fast Delicate
Autolock On Off	Extra DryQuickSanitize		Heavy	Medium	Eco	Fast	Delicate		Heavy	Medium	Eco Fast Delicate
Tones On Off	Extra DryQuickSanitize		Heavy	Medium	Eco	Fast	Delicate		Heavy	Medium	Eco Fast Delicate

Changing the settings

Ensure there is no wash in progress, then open the drawer.

Press and hold » and *together for four seconds.

Press * to scroll through the available options.

Press » to change the setting within an option. The wash program indicators will display which setting is selected.

Press ▶ to save the new setting and leave the preference menu. If at any time, you want to exit the menu, press and hold ▶ to cancel.

Double models only

You can use either drawer to change the settings. Changing the settings in one tub will set your preferences for both drawers.

Your appliance can be connected to your home wireless network and operated remotely using the app.

Getting started

• Ensure your home Wi-Fi network is turned on.
• You will be given step by step guidance on both your appliance and mobile device.
• It may take up to 10 minutes to connect your appliance.
• For further guidance and troubleshooting, please refer to the app.

On your mobile device:

① Download the app from www.fisherpaykel.com/connect
② Register and create an account.
③ Add your appliance and set up the Wi-Fi connection.

Connecting to your home Wi-Fi

Ensure there is no wash in progress, then open the drawer. Press and hold» and ★ together for four seconds.

Press and hold » to connect to the Wi-Fi network.

When ✉ flashes, follow the prompts within the app to complete set-up.

Press ▶to save and leave the menu after Wi-Fi is connected. If at any time, you want to exit the menu, press and hold ▶to cancel.

Enabling remote mode

With your DishDrawer™ Dishwasher connected to your Wi-Fi network, press and hold » for 4 seconds.

While 🔺 is flashing, close the drawer to enable REMOTE MODE.

If the drawer is not closed within 4 seconds, while 🔺 is flashing, REMOTE MODE will not be enabled.

Disabling remote mode

REMOTE MODE will automatically be disabled after 72 hours or if a fault occurs. Opening the drawer will also disable REMOTE MODE.

Cutlery basket

To reduce the risk of injury, we recommend loading knives and sharp utensils with handles facing up. Mix spoons, knives and forks within each section to stop cutlery nesting together and to ensure the water circulates freely. Keep stainless steel from touching silver cutlery to avoid staining.

Cutlery basket features and accessories

① Cutlery basket
② Removable anti-nesting grid
③ Removable tablet tray
④ Removable small items container

Cutlery basket accessories

Technical line drawing of a modular building structure with grid framework and structural supports (no text or symbols)

Removable anti-nesting grid

Use the anti-nesting grid to separate cutlery items and stop them from nesting together. The grid clips onto the top of the cutlery basket.

Isometric line drawing of a two-walled basket with a central tray and handle (no text or symbols)

Removable tablet tray

If you are using dishwasher tablets or gel packs, place them on the removable tablet tray. Ensure the tablets are not in direct contact with dishes or cutlery.

See 'Detergent' for more information.

Isometric line drawing of a modular industrial or storage unit with grid panels and structural supports (no text or symbols)

Removable small items container

Small, light items like baby bottle teats are best placed into the small items container to prevent them from being displaced during the wash.

The container can clip to the side of the cutlery basket, into the cutlery basket or can be placed elsewhere in the drawer.

If you place the container elsewhere in the drawer, ensure water from the spray arm can still access items in and around the container. If laid flat, ensure the solid plastic side is facing up.

Racking features

① Folding tine rack
② Adjustable tine rack
③ Base rack

④ Trap door

Not illustrated: foldable cup racks, knife clip, glass supports

Foldable cup racks

Each cup rack can be folded away independently to create more space within the drawer and are height adjustable.

3D technical line drawing of a rectangular mechanical component with internal grooves and mounting holes (no text or symbols)

To adjust height

① Fold up to unlock the rack.
② Adjust the height to suit by sliding up or down.
③ Fold back down to lock in the position.

Knife clip Glass supports

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

This clips onto the adjustable racks and supports knives and other utensils during the wash.

Always ensure that knife blades are facing down.

Technical line drawing of two structural beams or truss structures with support beams and supports (no text or symbols)

These removable clips provide extra stability when needed.

Folding tine rack

The folding tines can be removed if desired, however it is recommended the tines are folded down rather than removed if more space required.

Technical line drawing of a structural framework with an inset magnified detail (no text or symbols)

To remove

① Fold tines down towards each other.
② Unclip the rack at each end by pulling firmly towards you.

To replace

① Line up the clips with the base rack.
② Push firmly to click rack into place.

Adjustable tine rack

This rack is designed to fit deep bowls or small plates by adjusting the spacing of the tines.

To adjust spacing

Technical line drawing of a mechanical component with multiple vertical rods and a handle (no text or symbols)

Slide the tines backward or forward by pushing or pulling the front handle.

To remove

Technical line drawing of a multi-level parking garage structure with vertical supports and an upward arrow indicating direction (no text or symbols)

Grip the front and back handles and pull up to unclip.

To replace

Technical line drawing of a multi-level mechanical structure with internal components and an inset magnified detail (no text or symbols)

Align front and rear clips with the base rack and clip into place.

Disconnect the DishDrawer™ Dishwasher from the power supply and allow it to cool before undertaking any cleaning or maintenance.

Tub features

① Drain filter
② Filter plate
③ Spray arm

Cleaning surfaces

Wipe with a damp cloth and dry using a lint-free cloth.

We do not recommend using the following cleaning aids as they may damage the surfaces:

• Plastic or stainless steel scouring pads
• Abrasive, solvent, household cleaners
• Acid or alkaline cleaners

• Hand washing liquids or soap
• Stainless steel cleaners or polishes
• Laundry detergents or disinfectants

Cleaning the drain filter, spray arm and filter plate

We recommend that the drain filter and filter plate in each drawer are removed and cleaned once a month or whenever there is evidence of food particles. The spray arm in normal use should require cleaning less frequently. These parts can be shaken to remove any foreign material, cleaned in hot water, rinsed in clean water, then dried with a damp cloth.

The DishDrawer™ Dishwasher must be used with the filter plate, drain filter and spray arm correctly in place. We recommend that you always use the DishDrawer™ Dishwasher with the right hand folding tine rack in place.

If a dishwasher cleaner/descaler is used, you must run a wash program with detergent immediately afterward to prevent any damage to your DishDrawer™ Dishwasher.

Extended periods of disuse

If the DishDrawer™ Dishwasher is not going to be used for some time we recommend turning off the power and water supply, leaving it clean and empty with the drawers ajar.

When using your DishDrawer™ Dishwasher for the first time after a long period away, we recommend pouring 3 cups of water into the drawer before use. This helps lubricate components that may have dried out during dis-use.

For ease of access to the drain filter and filter plate, the base rack can be removed by lifting it from the rear. Alternately, remove the cutlery tray, lift the trap door and remove the fixed tine rack. Refer to 'Racking features' for details.

Removing and cleaning the drain filter

①

Technical line drawing of a mechanical component with an arrow indicating a specific feature (no text or symbols present)

Twist the drain filter counter-clockwise and lift to remove.

②

Separate the holder and the mesh by pinching one side of the mesh and pulling.

Do not attempt to remove the mesh by pinching both sides as this may cause damage.

Clean under hot soapy water and rinse thoroughly.

Replacing the drain filter

①

Technical line drawing of a mechanical component with no visible text or symbols

Click the drain filter mesh back onto the holder and twist until the arrows on the mesh and holder align.

②

Diagram of a circular device with a rotating arrow, no text or symbols present

Push the drain filter back into the tub and rotate clockwise until the arrows on the filter and base of the drawer align.

Removing and cleaning the drain filter plate

Technical line drawing of a mechanical component with a circular hole and a handle, no text or symbols present

With the drain filter removed, carefully lift the drain filter plate up and out. Clean under hot soapy water and rinse thoroughly.

Refitting the drain filter plate

Technical line drawing of a mechanical component with a circular feature and a downward arrow indicating direction (no text or symbols)

Push the drain filter plate back onto the tub ensuring there are no particles in the recess.

Removing and cleaning the spray arm

Lift the spray arm off the impeller. Shake to dislodge any loose particles, rinse under running water and wipe with a damp cloth.

Refitting the spray arm

Technical line drawing of a mechanical component with a central hub and circular base (no text or symbols)

Place the spray arm to the impeller. Ensure the arm rotates freely when refitted.

Winterizing (cold climates)

If the DishDrawer™ Dishwasher is installed in a cold climate where temperatures fall below zero, we recommend winterizing.

Turn off the water supply.

Disconnect the drain hoses from the sink drain pipe and the water inlet pipe from the water valve.

Drain the water from the hoses, inlet pipe and water valve, using a bucket or pan to collect the water.

Reconnect the water inlet pipe to the water valve and hoses to the sink drain pipe.

Technical line drawing of a mechanical component with two circular features and directional arrows (no text or symbols)

Remove the drain filter and the filter plate from the bottom of the drawer. Use a sponge to remove any remaining water from underneath before replacing.

PROBLEM POSSIBLE CAUSES WHAT TO DO

Unclean dishes Unsuitable wash program for load selected.	Select the appropriate wash program for the load. Refer to 'Wash programs'.
Spray arm unable to rotate.	Ensure no items are obstructing the spray arm path. Make sure the spray arm is mounted correctly and free to rotate.
Drawer incorrectly loaded.	Refer to 'Loading suggestions'.
Filter plate or filter is incorrectly inserted.	Refer to 'Maintenance'.
Filter plate or filter is blocked.	Clean the filter plate and drain filter. Refer to 'Maintenance'.
Detergent put in the wrong compartment of the dispenser.	Detergent must be placed in the large compartment. Refer to 'Detergent'.
Incorrect detergent use. Refer to 'Detergent' and follow the detergent manufacturer's instructions.
Excess food on dishware.	Scrape all food scraps prior to loading.
Spray arm holes are blocked.	Clean the spray arm.
Spray arm rotation blocked.	Remove any protrusions below the rack and ensure the spray arm can rotate freely.
Hard water. Increase the rinse aid setting and the amount of detergent used. Refer to 'Water hardness'.
Hard water Increase the rinse aid setting and the amount of detergent. Refer to 'Water hardness'. Water softener models: Increase the water softener setting. Refer to 'Water softener'. Non-water softener models: If living in an area with very hard water, consult a plumber on installing a household water softener.

PROBLEM POSSIBLE CAUSES WHAT TO DO

Foaming Incorrect detergent use. Refer to 'Detergent'.
	Egg left on plates. Rinse excess egg prior to loading.
	Rinse aid setting too high.	Decrease the rinse aid setting.
	Rinse aid dispenser plug not closed properly.	Ensure the plug is closed tight with the hand grip in a vertical position. Refer to 'Rinse aid'.
Water leaking Drain hose disconnected from waste pipe.		Reconnect the drain hose to the waste pipe.
Knocking on the door doesn't pause the wash cycle	Knock to Pause sensor is incorrectly installed or calibrated.	Contact Customer Care.
DishDrawer^TM Dishwasher^TM Dishwasher is pausing inadvertently	Knock to Pause sensor is recognising taps and bumps as knocks.	Contact Customer Care.
Drawer will not open (no tones or wash in progress)	CHILDLOCK is on.	Turn CHILDLOCK off. Refer to 'Keylock & Childlock'.
	Closed drawer auto lock is on.	Knock once on the door and open drawer within 30 seconds.
Power failure during wash program	Power outage in your home or area.	Wait until power resumes, program will restart in same part of wash program.
Flashing wash modifier indicators	A fault has occurred. Refer to 'Fault codes'.
Intermittent beeping	DishDrawer^TM Dishwasher is paused.	Open the drawer and press▶ then close the drawer to resume the program.
PROBLEM POSSIBLE CAUSES WHAT TO DO
DishDrawer^TM Dishwasher will not start	Power supply is not connected.	Connect the power supply.
	The drawer is not closed properly.	Ensure the drawer is firmly closed.
	KEYLOCK or CHILDLOCK feature is on.	Turn KEYLOCK or CHILDLOCK off. See your Quickstart guide for instructions.
	Cycle not started.	Press ▶.
	Too much time passed between pressing ▶ and closing the drawer.	Open the drawer and press ▶ then close the drawer within 4 seconds.
	DishDrawer^TM Dishwasher is in Demo mode.	Contact Customer Care.
Fan noise after a wash program has finished	This is normal. The fan continues to run to assist with drying.	The fan will automatically stop after a set time, or when the drawer is opened. The fan may resume when the drawer is closed again.
Fan noise starts when I close the drawer, even though I didn't start a new wash	This is normal. In some cases, the fan will run when the drawer is closed for a set time after a program has finished.	No action required. The fan will automatically stop after the set time is over.
No powdered detergent dispensed	Detergent dispenser was wet when loaded.	Clean the dispenser and ensure it is dry before adding detergent. Refer to 'Detergent'.
The wash seems to have finished, but the drawer will not open	The wash program is still in progress. It is in a quiet phase that is needed for optimal performance.	No action required. The program will transition into a more audible phase after the quiet phase is over.
Water pooling on inner rim of drawer after a wash	This is normal condensation.	Wipe dry.
Water under the filter	This is normal. No action required.
Excess water in the drawer	Drain hose(s) bent. Straighten the drain hose(s).
	Blocked filters. Refer to 'Maintenance'.

PROBLEM POSSIBLE CAUSES WHAT TO DO

Water marks on the dishes	Rinse aid depleted. Refill the rinse aid dispenser.
	Rinse aid setting too low.	Increase/turn on the rinse aid setting.
	DishDrawer^TM Dishwasher overloaded/ incorrectly loaded.	Refer to 'Loading suggestions'.
Drawer interior is stained	Some foods may stain the inside of the drawer.	Pre-rinse dishes before placing in the drawer. Alternatively, using RINSE after adding the dishes may minimise staining.

How do I know if there is a fault?

Your DishDrawer™ Dishwasher will beep continuously and the indicators on the control panel will light up and flash. There are two types of fault codes – 'F' and 'A'.

• If the wash modifier and lock indicators are flashing, it is an 'F' fault.
• If only the wash modifier indicators are flashing, it is an 'A' fault.
• With both F and A faults, one or more wash program indicators are also lit.

Double models only

• There may be a fault in one or both of the drawers and the fault codes may be different in each.
• If a fault occurs in one drawer only you are still able to use the other drawer.

To fix a fault

First try to fix the issue and clear the code according to the steps in the following tables. If the problem persists:

① Note down the fault code.
② Contact Customer Care for support or to organize a visit by a service technician. Refer to the Service and Warranty document for contact details.

'F' fault codes

You may be able to clear the fault by resetting the DishDrawer™ Dishwasher, follow the steps below. When the flashing indicators have disappeared the fault has been reset and you can continue to use your DishDrawer™ Dishwasher.

DISPLAY POSSIBLE CAUSE WHAT TO DO

	Fault on drawer	1 Press to stop the beeping, then again to turn the DishDrawerTM Dishwasher off.2 Wait a few seconds. Press again to turn the DishDrawerTM Dishwasher back on.
Fast Delicate Rinse Extra Dry Quick Sanitize
Wash program + lock + one or more modifiers

'A' fault codes

Follow the steps below to try and fix the issue.

DISPLAY POSSIBLE CAUSE WHAT TO DO
RINSE + all modifiers	A1: Water Supply fault.	1 Ensure the water supply is turned on.2 Press▶ once to stop the beeping, then again to clear the fault.3 Press▶ to resume the wash program.
DELICATE, RINSE + all modifiers	A3: Drawer cannot drain. The drainage hose may be blocked or kinked, or the connection to drainage pipe may be blocked.	1 Ensure the drainage hose and connection to pipes are not blocked.2 Press▶ once to stop the beeping, then again to clear the fault.3 Press▶ to resume the wash program.
FAST, DELICATE + all modifiers	A6: The spray arm has loosened or come off its mounting, or water pressure is too low, or a combination of low water pressure and excessive foaming.	1 Open the drawer and check the spray arm.2 If the spray arm has loosened or come off its mounting, re-fit it. Check that it is firmly seated and turns freely. Refer to 'Maintenance'.3 Press▶ once to stop the beeping, then again to clear the fault.4 Press▶ to resume the wash program.
FAST, DELICATE + RINSE + all modifiers	A7: Auto recovery program - DishDrawerTM Dishwasher has detected excess foam in the drawer.	1 Let the auto recovery program run until it is complete. The wash program will resume when the auto recovery program has completed.2 Check that you are using the right detergent before running another wash program.3 If the drawer is still filled with foam at the end of the wash program, contact Customer Care.
Current wash program + SANITIZE	A09: Sanitize cycle hasn't met temperature needed to sanitize dishes.	1 Check if the water supply has been turned off or the wash program interrupted.2 Press▶ once to stop the beeping, then again to clear the fault.3 Run the sanitize cycle again.

Before you call for service or assistance

Check the things you can do yourself. Refer to the installation instructions and your user guide and check that:

① Your product is correctly installed.
② You are familiar with its normal operation.

If after checking these points you still need assistance or parts, please refer to the Service & Warranty book for warranty details and your nearest Authorised Service Centre, Customer Care, or contact us through our website www.fisherpaykel.com.

Wash program data & standards test information

Wash program data and standards test information can be viewed online by going to https://www.fisherpaykel.com and searching your model code.

Complete and keep for safe reference:

Model
Serial No.
Purchase Date
Purchaser
Dealer
City
State
Zip
Country

FISHERPAYKEL.COM

© Fisher & Paykel Appliances 2023. All rights reserved.

The models shown in this guide may not be available in all markets and are subject to change at any time.

The product specifications in this guide apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.

For current details about model and specification availability in your country, please go to our website or contact your local Fisher & Paykel dealer.

FISHER & PAYKEL

LAVE-VAISSELLE DISHDRAWER™

MODÈLES DOUBLES

Plain wood grain background with no visible text, symbols, or markings

Pour activer KEYLOCK (VERROU DES TOUCHES)

Pour activer CHILDLOCK (VERROU POUR ENFANTS)

Diagram of a medical device with an arrow pointing to a component, labeled with number 1 (no text or symbols on the diagram itself)

Isometric line drawing of a wireframe basket with a small rectangular object on top, no text or symbols present

Isometric line drawing of a mechanical device with a central component and surrounding grid structure (no text or symbols)

Technical line drawing of a mechanical assembly with structural beams and a highlighted component (no text or symbols)

Simple line drawing of a device casing with a circular button and arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to clean or store items inside a rectangular container (no text or symbols)

Simple line drawing of a device casing with a circular button and arrow indicating rotation (no text or symbols)

Diagram showing a circular component with a rotating arrow and a rectangular device with internal components (no text or symbols)

Simple line drawing of a funnel with a circular opening, no text or symbols present

Diagram showing a circular component with an arrow indicating rotation and a rectangular housing with internal oval cutouts (no text or symbols)

Technical line drawing of a modular building structure with grid framework and structural supports (no text or symbols)

Grillage anti-emmêlement amovible

Isometric line drawing of a rectangular basket with a handle and internal grid pattern (no text or symbols)

Isometric line drawing of a modular industrial or storage unit with grid-patterned top panel and rectangular base (no text or symbols)

3D technical line drawing of a rectangular mechanical component with internal grooves and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

Technical line drawing of two structural beams or truss structures with support beams and supports (no text or symbols)

Technical line drawing of a structural framework with an inset magnified detail (no text or symbols)

Pour retirer

Technical line drawing of a mechanical component with multiple vertical rods and a handle, no text or symbols present

Technical line drawing of a multi-level industrial structure with vertical supports and an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with multiple vertical rods and a magnified inset showing a close-up detail (no text or symbols)

Technical line drawing of a mechanical component with a central hub and circular base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a circular device with directional arrow, no text or symbols present

Technical line drawing of a mechanical component with a circular hole and a handle, showing no text or symbols.

Technical line drawing of a mechanical component with a circular feature and a downward arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a central hub and circular base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

PROBLÈME CAUSES POSSIBLES SOLUTION
