USER MANUAL TWM 0975 Orbegozo

Exterior view of a modern office building (no signage)

TWM 0975

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Protruding Part Base A Pillar

Bottom Center

3. FUNCIONAMIENTO

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Never insert fingers, pencils or any other object through the grille when fan is running.

16. Disconnect the plug when moving from one location to another.
17. Be sure fan is on a stable, even surface when operating to avoid overturning.
18. DO NOT use fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.
19. Do not hang or mount fan on a wall or ceiling.
20. While cleaning, be sure to not splash water and do not use oil, alcohol or chemical articles as they may cause distortion of fan body and cause electrical hazards.
    • Make sure to keep the fan far away from humidity, chemical articles and oil.
21. Keep away from curtain, clothing or other something may affect the fan's working.
22. Turn off all switches and pull out power supply plug when you go out for long time.
23. The fan should not be used without a base or on the side.
24. Do not use this fan outside.

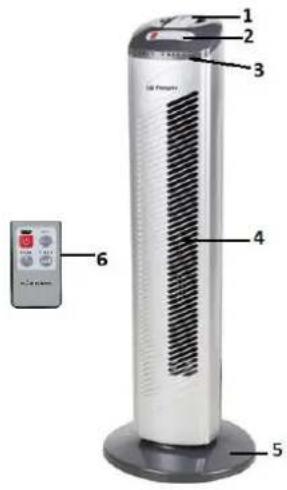

1. DESCRIPTION

1. Remote control support
2. Control panel
3. Indicator lights
4. Air outlet
5. Base
6. Remote control

2. ASSEMBLY INSTRUCTIONS

1. Place the main body of fan on a table to assemble base B. Route the fan cable through the hole in the base B.

Base B Button

1 2 3 4 5 6

1. Install base B at the bottom of the fan leaving the cable outlet facing the back of the fan. Install the base A. Pass the cable through the cable outlet.

Protruding Part Base A Pillar

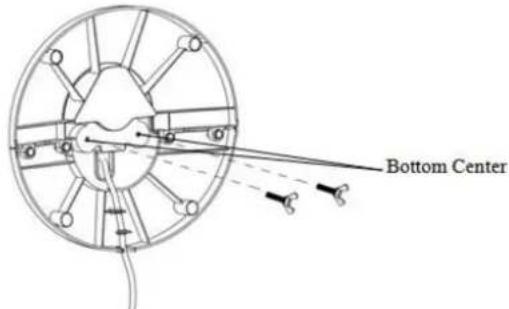

1. Please tightly fix the 2 screw in foundation which is located in the center of bottom.

Bottom Center

1. HOW TO USE (Caution: Fan must be assembled with the base before use!)

2. Connect the machine to the power supply.

3. Press the "ON/OFF" button to turn on the fan.
4. Press the "ON/OFF" button again, fan will be switch off.
5. Select Low, Medium and High speed by pressing "SPEED" button.
6. Press "OSC" button to turn on the oscillation function. Press again to turn off.
7. Press "TIMER" button, to set up to 0.5 hour to 4 hours timer setting.

- Disconnect the power cord after each use.

4. SPECIFICATIONS

Model Number: TWM 0975

Voltage: 230V\~50Hz

Power: 42W

Oscillation: 80 degrees

Weight: 3.20 kg

Dimensions:L280xW250xH775mm

5. CLEANING AND MAINTENANCE

Always unplug the cord before moving or cleaning. Clean with a soft dry cloth and store in a cool, dry place. Store it in a dry place when you do not use.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that

when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
