Brand	Sun Joe
Model	SJHDFC1
Product Type	Foldable utility cart
Maximum capacity	136 L
Maximum load	68 kg
Dimensions (unfolded)	64 cm (H) x 85 cm (W) x 50 cm (D)
Net weight	10.6 kg
Frame material	Steel
Wall material	Polyester
Adjustable handle angle	0° - 75°
Wheel type	360° swivel wheels (front) and rear wheels
Included accessories	Storage bag, support plate, manual and registration card
Assembly	Tool-free, easy fold with Velcro strap
Cleaning	Damp cloth, no chemicals
Intended use	Storage and transport of household items
Safety	Do not overload (>68 kg), do not carry passengers, do not tow
Warranty	2 years for residential use (wear parts excluded)
Customer service	1-866-SNOWJOE (1-866-766-9563)
Country of origin	Not specified

Frequently Asked Questions - SJHDFC1 Sun Joe

What is the maximum load capacity of the Sun Joe SJHDFC1 cart?

The maximum load is 68 kg (150 lb). Do not exceed this limit to avoid damage.

What are the dimensions of the cart when unfolded?

Unfolded dimensions: 64 cm height, 85 cm width, and 50 cm depth.

Is the cart easy to assemble?

Yes, assembly is tool-free: simply unfold the cart, secure the handle with the locking ring, and place the support plate at the bottom.

How to fold and store the SJHDFC1 cart?

Remove the support plate, release the handle, fold it down, then pull the handle inward to collapse the cart. Wrap the Velcro strap and slide it into the included storage bag.

Can I use the cart to transport hot items?

No, the cart is not designed to transport hot items (food, drinks, pots, etc.). This could damage the polyester walls.

How to clean the Sun Joe cart?

Empty debris, wipe with a damp cloth. Do not use chemicals. The support plate should only be cleaned with a damp cloth. Air dry.

What is the weight of the empty cart?

The net weight is approximately 10.6 kg.

Is the cart covered by warranty?

Yes, the warranty is 2 years for normal residential use. Wear parts (belts, chains, etc.) are not covered. Online registration is recommended.

Can I tow the cart with a bicycle?

No, it is strictly prohibited to tow this cart with a bicycle or any motorized vehicle. It is designed to be pulled by hand.

Where can I find replacement parts?

Replacement parts can be ordered online at snowjoe.com or by calling customer service at 1-866-SNOWJOE. Wear parts are not covered by warranty.

USER MANUAL SJHDFC1 Sun Joe

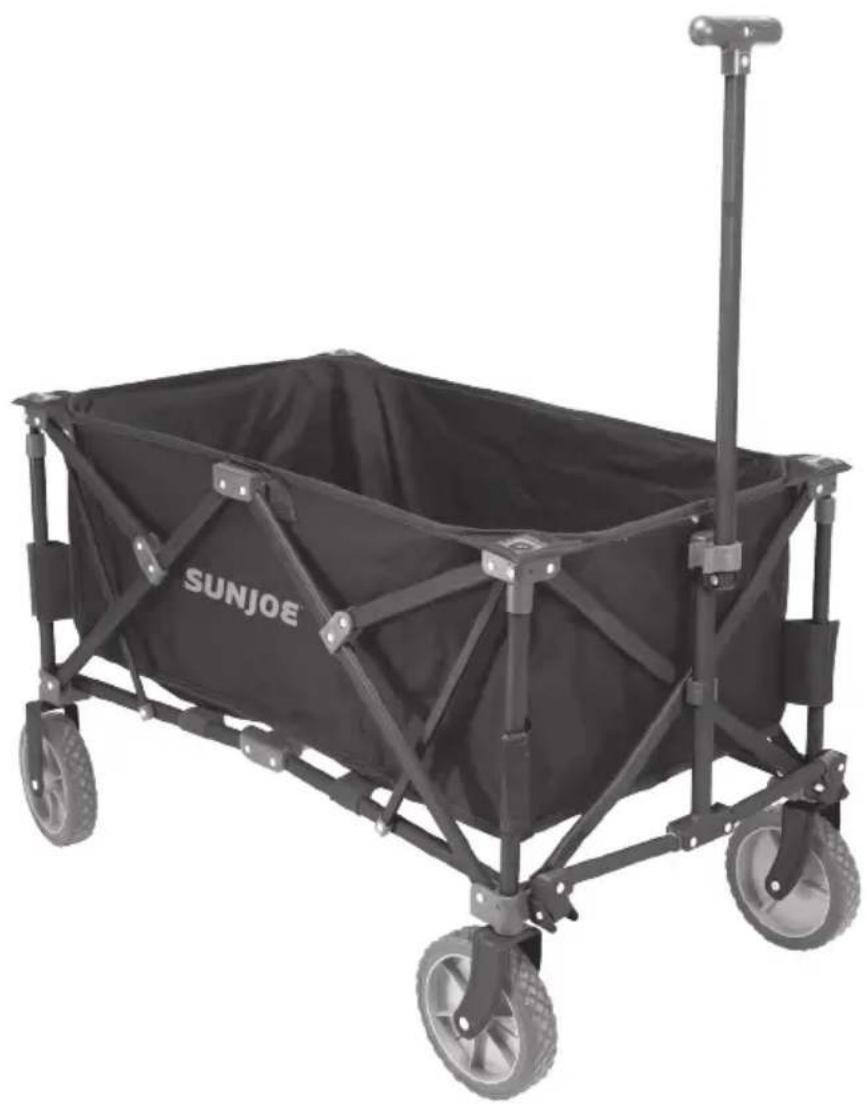

Black outdoor wagon with a handle and wheels, no visible text or symbols on the main body

If you have any questions or comments, please call the Snow Joe® + Sun Joe® customer service department at:

1-866-SNOWJOE (1-866-766-9563)

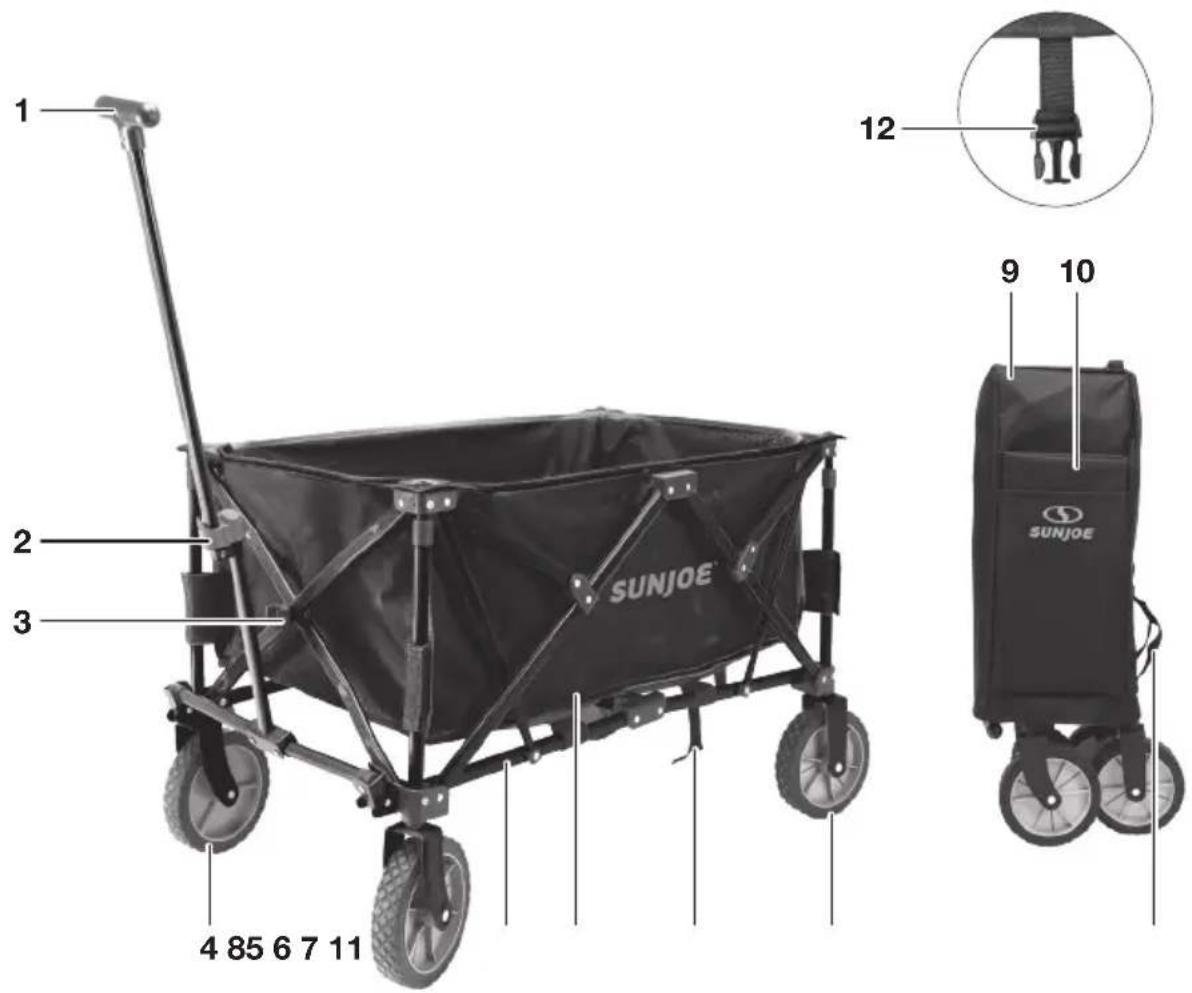

Know Your Utility Wagon

Read the owner's manual and safety rules carefully before using your utility wagon. Compare the illustration below to the actual item in order to familiarize yourself with the location of the various quirks and features. Save this manual for future reference.

1. Adjustable handle
2. Locking collar
3. Plastic clip

4. 360° swivel front wheels

5. Steel frame

6. Fabric wagon bed
7. Velcro straps

8. Rear wheels

9. Storage bag

10. Base plate
11. Storage bag handle
12. Storage bag buckle

Technical Data

Max Capacity 4.8 cu ft (136 L)

Max Load 150 lbs (68 kg)

Expanded ......25.2" H x 33.5" W x 19.7" D

Dimensions (64 cm H x 85 cm W x 50 cm D)

Frame Steel

Fabric wagon bed.... Polyester

Adjustable handle angle 0°–75°

Net Weight 23.4 lbs (10.6 kg)

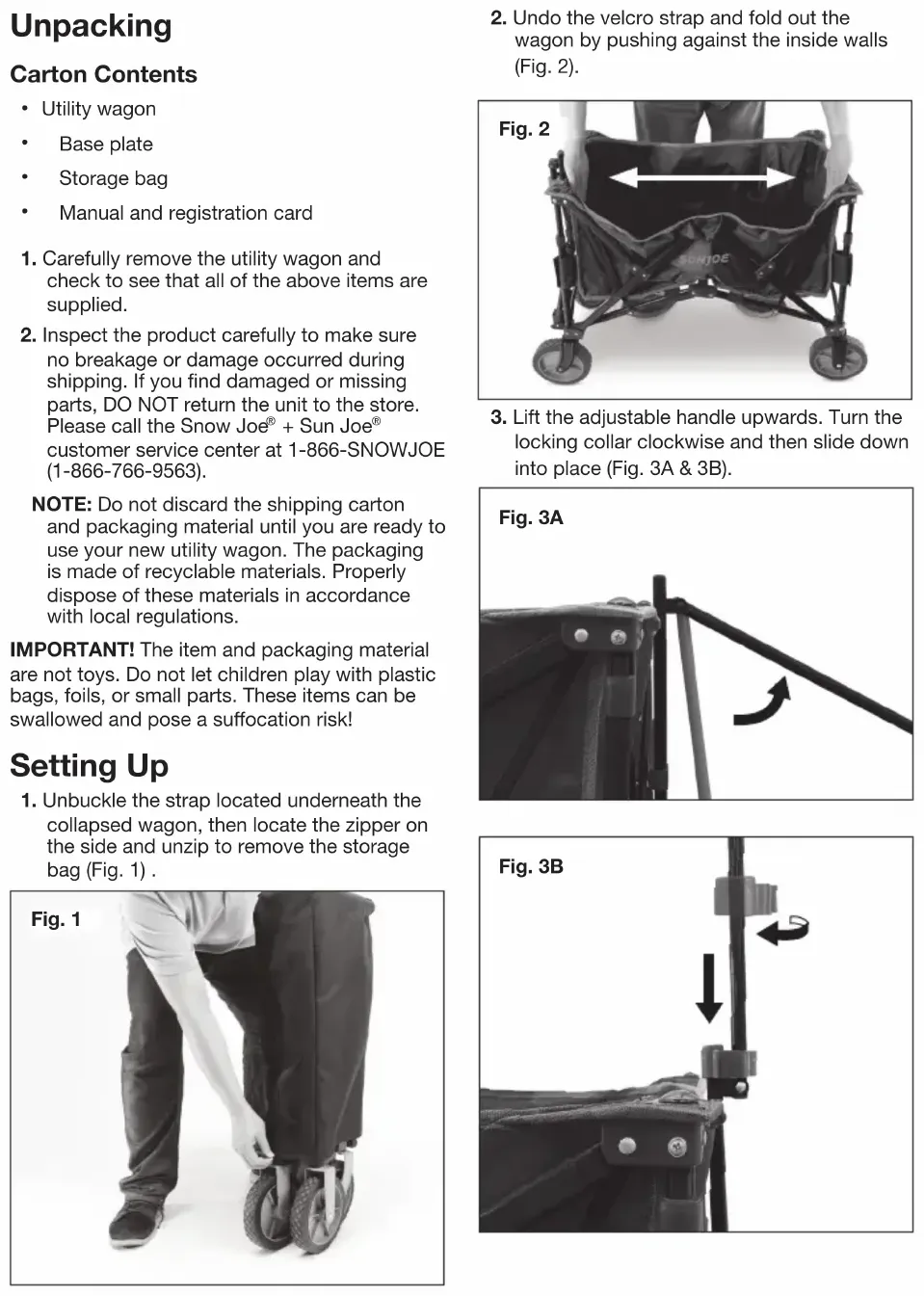

Unpacking

Carton Contents

• Utility wagon
• Base plate

• Storage bag
  • Manual and registration card

• Carefully remove the utility wagon and check to see that all of the above items are supplied.

• Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new utility wagon. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The item and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Setting Up

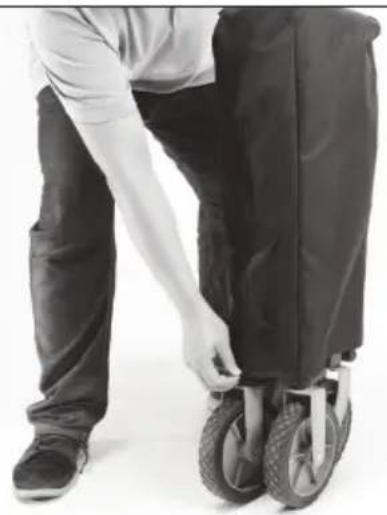

1. Unbuckle the strap located underneath the collapsed wagon, then locate the zipper on the side and unzip to remove the storage bag (Fig. 1).

Fig. 1

Person sitting on a wheeled cart with hands adjusting the wheel (no text or symbols visible)

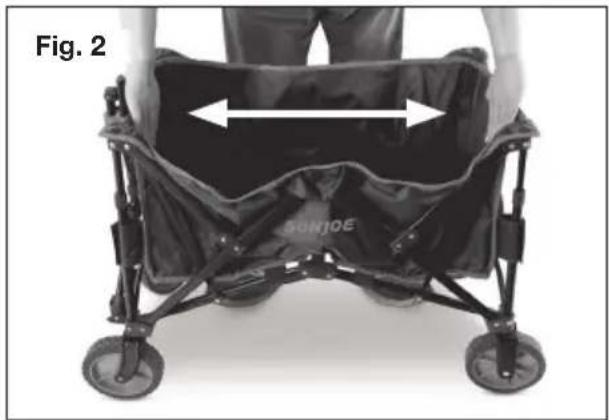

1. Undo the velcro strap and fold out the wagon by pushing against the inside walls (Fig. 2).

Person wearing a sunjoe gumbra with wheels, shown in a black frame (no text or symbols on the device itself)

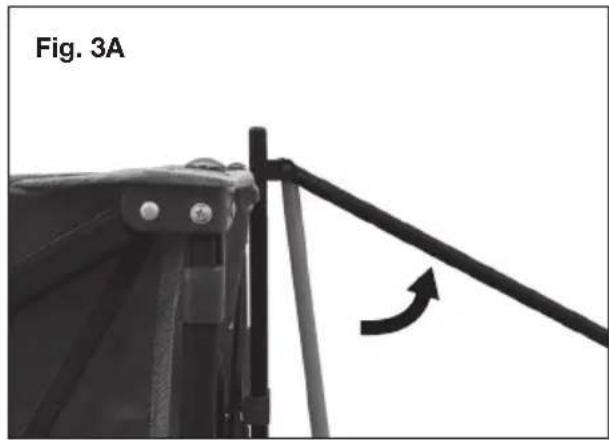

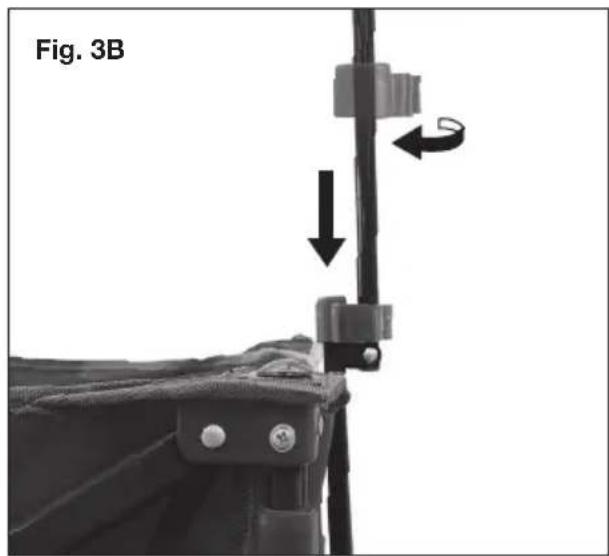

1. Lift the adjustable handle upwards. Turn the locking collar clockwise and then slide down into place (Fig. 3A & 3B).

Close-up of a mechanical component with a black rod and arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with arrows indicating motion, labeled 'Fig. 3B' (no readable text or symbols)

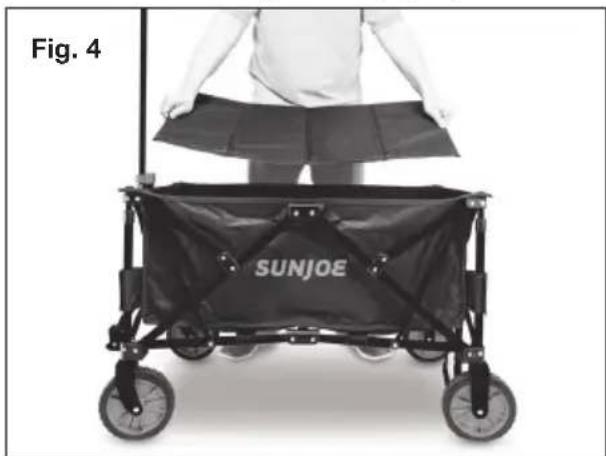

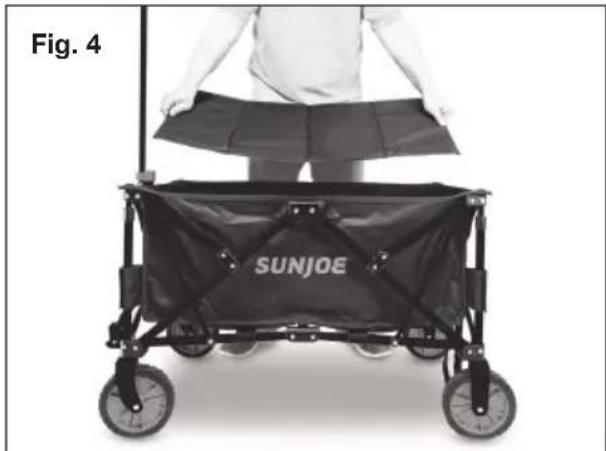

1. Unfold the base plate and place into the bottom of the wagon bed (Fig. 4).

Person standing beside a black sunjoe waffle cart (no text or symbols on the cart itself)

DO NOT load this wagon with more than 150 lbs.

CAUTION! This product is designed for storing and transporting only. Do not carry passengers or allow children to sit in it. Not intended for use by children.

CAUTION! Do not tow this product with bicycle or motorized vehicle.

CAUTION! Do not use for hot items like food, drinks, pans, grills, hot plates, etc.

Storing Away

1. Once all items have been removed from the wagon, take out base plate and put aside.

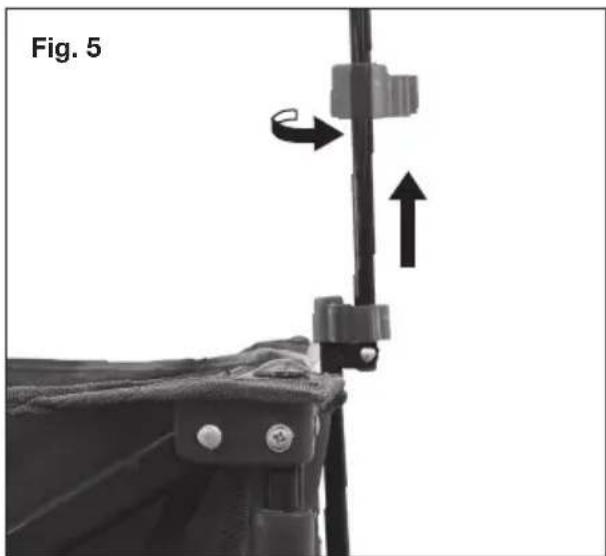

2. Release the locking collar on the adjustable handle by sliding it upward. Turn the locking collar counter-clockwise and fold the handle down (Fig. 5).

Mechanical assembly diagram showing a vertical rod with two directional arrows indicating movement or force (no text or symbols present)

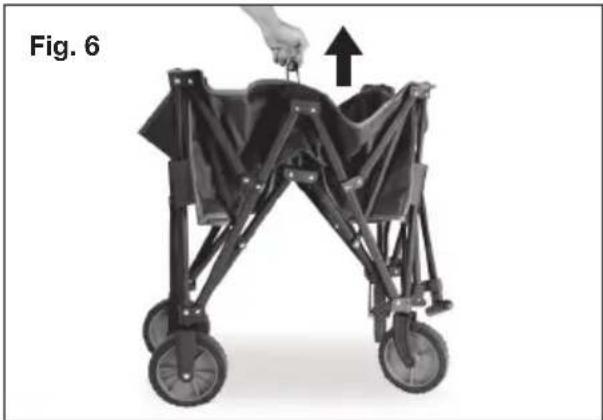

1. Pull the handle in the center of the wagon bed upward to collapse the wagon (Fig 6).

Illustration of a baby stroller with hand holding a clip, labeled Fig. 6 (no text or symbols on the device itself)

1. Wrap the velcro strap around the collapsed wagon to make it tight and secure.

2. Place the storage bag over the collapsed wagon, buckle the strap underneath and zip up the bag. Store the folded base plate in the pocket of the storage bag.

CAUTION! Use caution when folding and unfolding the wagon as there is a pinch hazard on the frame.

Care and Maintenance

In the event that the utility wagon needs cleaning, empty all debris from the wagon completely and use a damp cloth to wipe clean. Do not use chemicals to clean this product. The base plate cannot be washed. Clean base plate with a damp cloth only. Air dry.

CAUTION! Keep away from cigarettes, sparks or flames.

Service + Support

If your Auto Joe™ SJ-HDFC1 multi-purpose utility wagon requires service or maintenance, please call Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the registration card. Copy these numbers into the space provided below.

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
