Product Type	Water Filter
Brand	Everpure
Model	PBS400
Usage	Cold Water Only
Temperature Range	2 to 38 °C
Operating Pressure	0.7 - 8.6 bar
Service Flow Rate	8.3 L/min
Total Capacity	11,355 L
Dimensions (L x W x H)	12.7 x 12.7 x 51 cm
Chlorine Reduction	≥ 97.6%
Particulate Reduction (Class I)	≥ 99.9%
Parasite Filtration	Cryptosporidium and Giardia
Certification Standards	NSF/ANSI 42 and 53
Included Parts	QL3 filter head, filter cartridge, fittings, braided hose, Timestrip meter
Compatible Cartridges	EF-1500, EF-3000, EF-6000
Required Tools	Phillips screwdriver, adjustable wrench, tape measure, pencil
Installation	Under sink, wall mount
Maintenance	3-minute flush for new cartridges
Cartridge Replacement	Indicated by the Timestrip meter
Warranty	Consult the Everpure website

Frequently Asked Questions - PBS400 Everpure

How to install the PBS400 filter?

Installation is done under the sink. Secure the filter head to the wall using the provided screws, then connect the cold water supply line to the head inlet and the faucet to the outlet. Follow the detailed steps in the manual, using the required tools: Phillips screwdriver, adjustable wrench, tape measure, and pencil.

How often should I replace the cartridge?

The cartridge must be replaced when the Timestrip meter turns completely red. The total capacity is 11,355 L, which corresponds approximately to 6 months of use for a family of 4, depending on consumption.

What is the capacity of the PBS400 filter?

The total capacity is 11,355 liters (3000 gallons). The service flow rate is 8.3 L/min.

How to flush the new cartridge?

After installation, open the faucet and let the water flow for at least 3 minutes with the shut-off valve handle in the low position to expel air and loose carbon particles.

What if the water is milky after installation?

Milky water is normal at first due to air in the filter and hoses. Continue flushing. If the water remains milky after one week, contact Everpure technical support at 800-279-9404.

Can I use the filter with hot water?

No, the filter is designed for use with cold water only. The temperature range is 2 to 38 °C.

What contaminants are reduced by the filter?

The filter reduces chlorine (≥ 97.6%), Class I particles (≥ 99.9%), and parasites such as Cryptosporidium and Giardia. It is certified NSF/ANSI 42 and 53.

How to activate the Timestrip meter?

Pinch the bubble on the meter until you feel a change in resistance. A thin red line will appear in the white window, indicating that the Timestrip is activated. Then peel off the film and stick the meter in a visible place.

What tools are needed for installation?

You will need a Phillips screwdriver, an adjustable wrench, a tape measure, and a wooden pencil.

Where can I find replacement parts?

Replacement parts (QL3 filter head, EF-1500/3000/6000 cartridges, fittings) are available on the Everpure website or from authorized dealers. Refer to the manual for part numbers.

USER MANUAL PBS400 Everpure

Line drawing of a cylindrical water filter or separator with no visible text or symbols

Thank you for purchasing an Everpure by Pentair commercial grade water filtration system for your home. With your Everpure by Pentair system, you get premium quality water direct from your tap that's great-tasting, healthful and convenient for you and your family.

PRODUCT SPECIFICATIONS

• For Cold Water Use Only
  • Temperature Range: 35-100°F (2-38°C)
• Min.-Max. Working Pressure: 10-125 psi (0.7-8.6 bar)
  • Service Flow Rate: 2.2 gpm (8.3 Lpm)
  • Capacity: 3,000 gallons (11,355 L)

TOOLS REQUIRED FOR INSTALLATION

• Phillips Screwdriver
- Adjustable Wrench
- Tape Measure
- Pencil

BASIC INSTALLATION INSTRUCTIONS

1. Open Carton & Inspect Parts

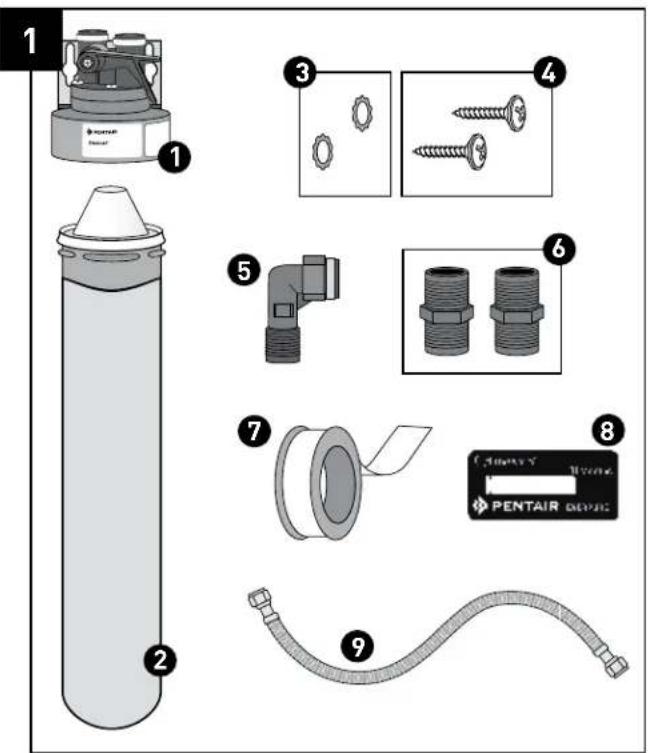

Installation Parts

Key Description Part No.

1 QL3 Filter Head EV927082
2a EF-1500 Filter Cartridge EV985850
2b EF-3000 Filter Cartridge EV985750
2c EF-6000 Filter Cartridge EV985550
3 2 Locking Washers EV306204
4 2 Screws EV306196
5 3/8-inch MPT x 3/8-inch FTP Elbow EV310852
6	Fitting, 3/8-inch NPT x 3/8-inch Comp	EV315121
7	Plumber Tape	EV312119
8	Everpure Filter Timer	EV314160
9	Braided Hose3/8-inch Comp x 3/8-inch Comp	EV315229

2. Verify Under-Sink Mounting Location

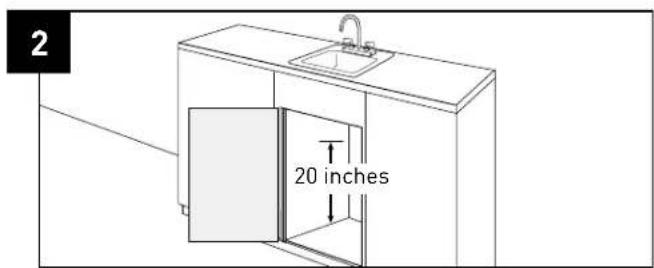

Measure 20 inches from the base of the cabinet, and mark the mounting location for the top of the filter head. Make sure there is adequate space above the head to open and close the built in shut-off valve and to avoid crimping the water line tubing. Also, make sure your chosen location offers easy access for future filter cartridge changes.

DIMENSION	Width	Mounting Height	Depth
PBS-400	5 inches	20 inches	5 inches

NOTE: The filter head and filter cartridge must be mounted in the vertical position, with the cartridge hanging down.

BASIC INSTALLATION INSTRUCTIONS

CONTINUED

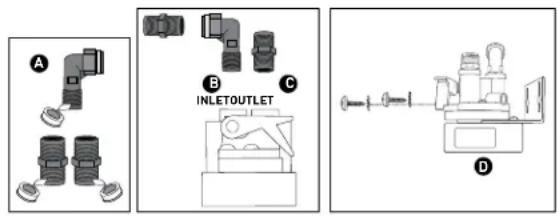

3. Installing Union Connections

NOTE: Two union connections and a stainless steel braided hose are included to allow installation to a 3/8" cold water supply line. A 90 degree plastic elbow fitting is included to prevent kinking of supply hose.

A. Apply plumber tape to the 3/8" NPT threads on both union fittings and elbow fitting. Wrap tape in direction of the threads to assure a tight fit and avoid small leaks.
B. Screw elbow fitting into the inlet port of the filter head.
C. Install union fittings onto filter head and elbow.
D. Securely mount the filter head on the cabinet wall using the enclosed mounting screws and washers.

4. Connect Inlet Water Supply

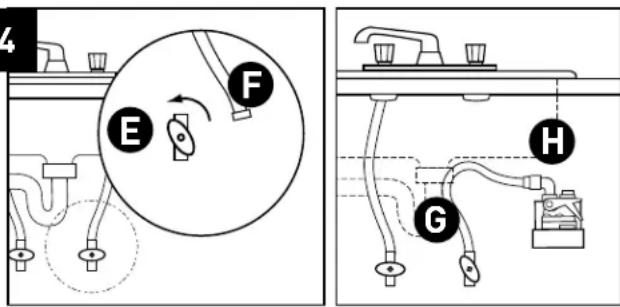

E. Locate and close the cold water shut-off valve under your sink. Open cold water line of faucet to release water pressure.
F. Unscrew and disconnect the braided tubing from the cold water supply line.
G. Attach one end of the supplied braided tubing to the top of the cold water supply line.
H. Attach the other end of the supplied braided tubing to the inlet connection of the filter head.

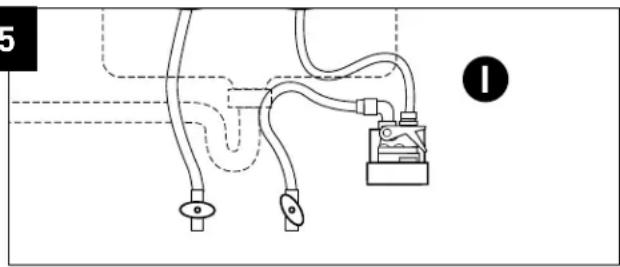

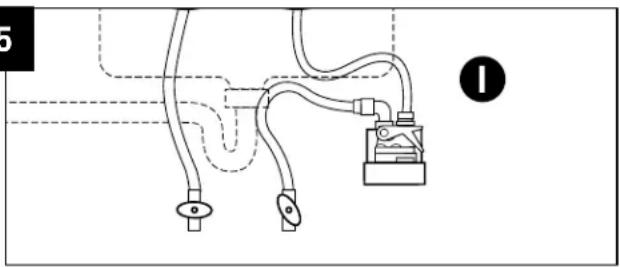

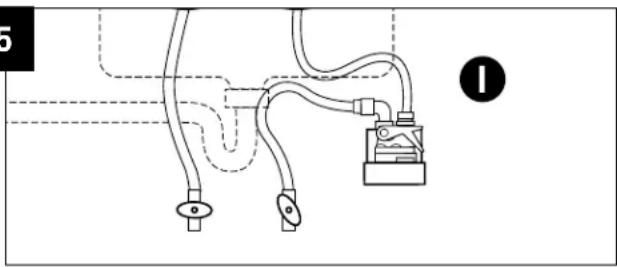

5. Connect System to Faucet

1. Attach open end of existing Braided Tubing to Union Fitting on outlet side (right) of new system. Hand tighten to avoid damage to fittings.

6. Install And Flush Filter Cartridge

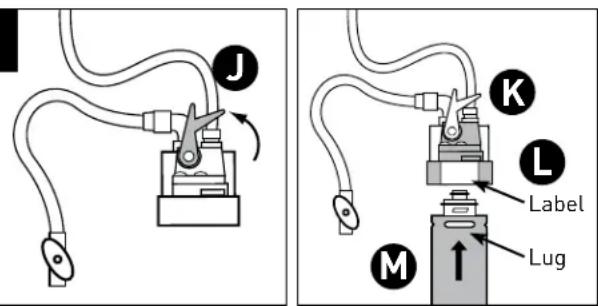

J. Lift handle of the build-in shut off (QC Valve) on the Filter Head.
K. Hold Head firmly with one hand.
L. Align filter cartridge lug with label on filter Head.

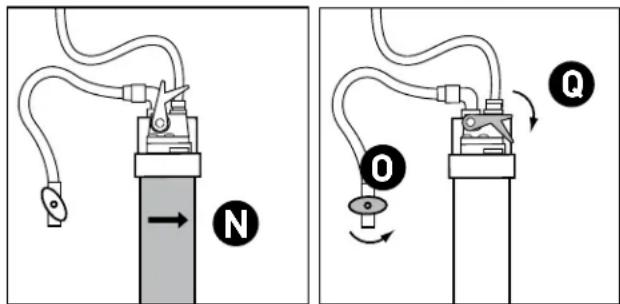

M. Insert filter cartridge—Push upwards.
N. Turn it to the right—About 1/4 turn—Until rotation stops.
0. Open cold water valve and check for leaks up to Inlet Elbow Fitting.
P. Open Water Faucet (not pictured).
Q. Lower the QC Valve Handle to flush water to the sink.

NOTE: Flush new filter cartridge for at least 3 minutes to remove air and any loose carbon. At first the water may appear cloudy due to trapped air in the filter and tubing. If water continues to be cloudy for more than one week, please contact Pentair Technical Support for assistance: [phone]

R. Activate Filter Timer by pinching bubble until you feel a change in resistance as the Filter timer "pops." Within a few seconds, a thin RED line will appear in the white window showing the Timestrip(R) has been activated. Peel away backing and adhere to desired location. When the white window is completely filled with RED, it is time to replace your product.

3

4

5

Pure electrical circuit lines without any symbols

6

PERFORMANCE DATA PBS-400

This system has been tested according to NSF/ANSI 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

Substance

Influent Challenge Concentration

Max. Permissible Product Water Concentration

Reduction Requirements

Minimum Reduction

Average Reduction

Standard 42—Aesthetic Effects

Chlorine 2.0 mg/L ± 10% ≥ 50% >97.6%

Particulate,Class Iparticles0.5 to <1μm

at least 10,000particles/mL

≥slant 85% >99.9%

Standard 53—Health Effects

Cysts*

Minimum50,000/L

99.95% 99.99% >99.99%

Lead 8.5 0.15 mg/L ± 10% 0.010 mg/L 94.1% >98.5%
Lead 6.5 0.15 mg/L ± 10% 0.010 mg/L 98.9% >99.7%

*NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.

NOTE: This installation must comply with all applicable state and local regulations.

NOTE: Maximum working pressure 125 psi.
NOTE: Do no use with water that is microbiologically unsafe or unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on waters that may contain filterable cysts.
NOTE: Testing was performed under standard laboratory conditions, actual performance may vary.
NOTE: This drinking water system must be maintained according to manufacturer's instructions, including replacement of filter cartridges.
NOTE: An absorption product used will not be regenerated for reuse. If an absorption product is affected by chlorine, the water supply should be treated to remove chlorine before introducing the filter.

CALIFORNIA PROPOSITION 65 WARNING

WARNING:

This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm.

EPA Est. No. 002623-IL-002

C US

The PBS-400 is tested and Certified by NSF International against CSA B483.1 and NSF/ANSI standard 42 and 53 for the claims specified on the performance data sheet.

Two diagrams showing screw and nut components, labeled 3 and 4, with no text or symbols beyond numbers.

Simple line drawing of a test tube with a conical top and label '2' (no text or symbols on the tube itself)

Simple line drawing of a wavy pipe with a numbered circle at the center (no text or symbols)

2

INSTRUCCIONES BÁSICAS DE

5

Pure electrical circuit lines without any symbols

Diagram of a mechanical device with hoses and a vertical shaft, showing directional arrow and north indicator (no text or symbols)

DATOS DE DESEMPEÑO PBS-400

Simple line drawing of a test tube with a conical cap and label '2' (no text or symbols on the tube itself)

Simple curved pipe diagram with a numbered circle at the center (no text or symbols)

2

INSTRUCTIONS D'INSTALLATION DE

BASE CONTINUÉ

3. Installation de raccords union

5

Pure electrical circuit lines without any symbols

INSTRUCTIONS D'INSTALLATION DE BASE CONTINUÉ

Parasite*

Minimale50,000/L

99.95%

99.99%

>99.99%

Plomb 8.5 0.15 mg/L ± 10% 0.010 mg/L 94.1% >98.5%

Plomb 6.5 0.15 mg/L ± 10% 0.010 mg/L 98.9% >99.7%

pentair.com/assets/residential-filtration-warranty

PENTAIR

13845 Bishops Dr. | Suite 200 | Brookfield, WI 53005 | United States

P: 262.238.4400 | Customer Service: 800.279.9404 | [e-mail] | pentair.com

All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.

© 2020 Pentair. All rights reserved.

4004796 REV B JN20
