USER MANUAL H300NXT Everpure

PENTAIR EVERPURE PENTAIR EVERPURE H-300-HSD QUICK-CHANGE FILTER CARTRIDGE RUTTER PLATE: H-300-HSD CHRONIC WATER FILTER Schematic of PENTAIR Enhanced anti-GP model to drill scale build-up that is drain capacity HSD-HSD: The range 50% certified to ensure quick reach for the process. Use standard materials by mechanical ventilation. BEANS Pb 1200 gm 1200 gm 1200 gm 1200 gm 300 Safety 75°C Supercritical inflammation

INSTALLATION INSTRUCTIONS - ENGLISH

Product Specifications ...... Page 3

Tools Required Page 4

Basic Installation Instructions......Page 4

H-1200 Installation Instructions ......Pages 6-7

Claims & Notes......Page 7

Thank you for purchasing an Everpure commercial-grade water filtration system for your home. With your Everpure system, you get premium quality water direct from your tap that's great-tasting, healthful and convenient for you and your family.

Product Specifications:

•For Cold Water Use Only
•Temperature Range: 35-100°F (2-38°C)
•Min.-Max. Working Pressure:
10-125 psi (0.7-8.6 bar)
• Service Flow Rate: 0.5 gpm (1.9 Lpm)

THE OWNER'S GUIDE IS APPLICABLE FOR THE FOLLOWING EVERPURE FILTER MODELS:

Model H-54 Rated Capacity: 750 gal (2,839 L) ^†

Model H-300 Rated Capacity: 300 gal (1,136 L)†

Model H-104 Rated Capacity: 1,000 gal (3,785 L)†

Model H-300-HSD Rated Capacity: 300 gal (1,136 L)†

Model H-300-NXT Rated Capacity: 300 gal (1,136 L)†

Model H-1200 Rated Capacity: 1,000 gal (3,785 L)

^ For optimum performance, cartridge replacement is required once a year, or sooner if flow becomes too slow for convenience, or if the unit's rated capacity is reached.

For purchase of replaceable components, please contact your local distributor.

H-1200 customers: Instructions for installing the H-1200 begin on page 6 of this Installation and Operation Guide.

WARNING The Universal Plumbing Code adopted by over 20 states, and other specific state and county codes, prohibit the use of saddle valves and their use is never recommended. You must adhere to your state/local plumbing codes. Consult your licensed plumber if you have related questions.

⚠ WARNING Do NOT use copper tubing with the John Guest Fittings provided with your Everpure Filter System. Copper tubing may appear to fit, but water leaks will develop over time and use. If copper tubing is required, you must use copper compression fittings available from any hardware/plumbing supply.

Multiple Appliance Connections: You can also connect your Everpure Filter to the refrigerator for ice and water, an instant hot water dispenser or chiller, or a plumbed-in coffee brewer. Simply install connection "tees" (available from any hardware/plumbing supply) in the water line between the filter and the faucet adaptor, and run new tubing to each appliance.

NOTE: Spent adsorption media will not be regenerated and used.

NOTE: If adsorption media is affected by chlorine, water supply should be treated to remove chlorine prior to entering filter.

NOTE: DO NOT connect this system to a commercial ice maker. These appliances require flow and volume beyond the design limits of your under-sink filter system.

NOTE: If connecting to a home ice maker and there is no filter faucet connection under the sink, a flush valve is required.

BASIC INSTALLATION INSTRUCTIONS

Tools Needed For Installation

• #2 Phillips Screwdriver • Wrench • Pencil
• Utility Knife • Measuring Tape

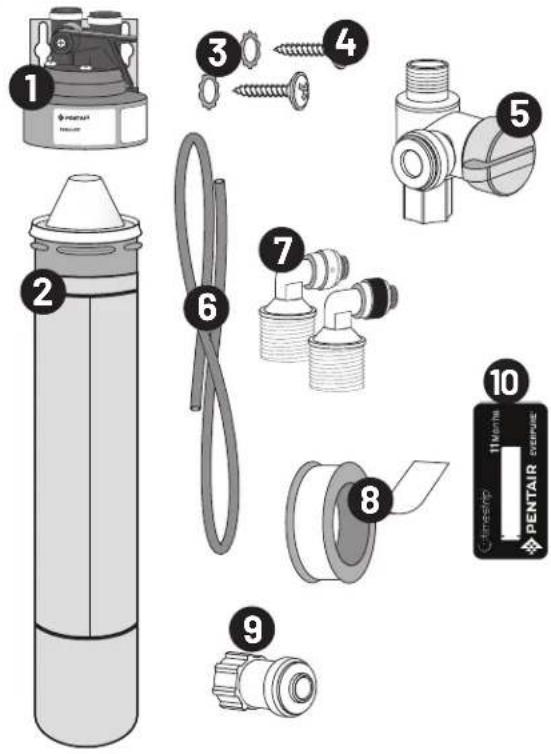

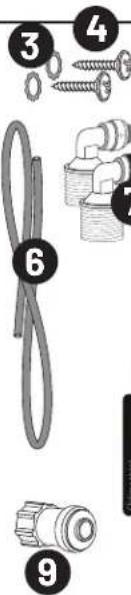

1. OPEN CARTON & INSPECT PARTS

Installation Parts

Key Description Part No.
1 QL3 Filter Head(incl. Qty. 2 ea of 3 & 4)		EV925831
2	Filter Cartridge (incl.10)
	- Model H-54 EV925268
	- Model H-300 EV927072
	- Model H-104 EV961211
	- Model H-300-HSD EV927075
	- Model H-300-NXT EV927441
3 Locking Washers (2 req.)		EV306204
4 Screws (2 req.)		EV306196
5 Angle Stop Valve Adaptor EV312120
6 Tubing, 1/4" poly (per foot)		A0860119
7	Elbow Fitting Pack Restrictor(incl. Qty. 2 ea of 3 & 4)	EV308168
8 Plumbers Tape EV312119
9 Faucet Connector EV312135
10 Everpure Filter Timer EV314160

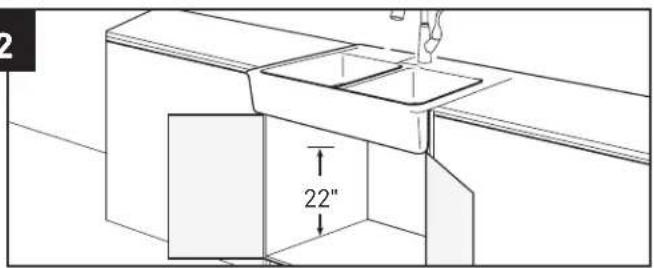

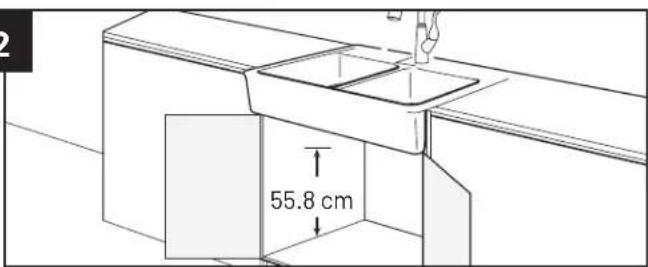

2. VERIFY UNDER-SINK MOUNTING LOCATION

Measure 22" from the base of the cabinet, and mark the mounting location for the top of the filter head. Make sure there is adequate space above the head to open and close the built-in shut off valve and to avoid crimping the water line tubing. Also, make sure your chosen location offers easy access for future cartridge changes.

1

1 2 3 4 5 6 7 8 9 10 PENTAIR OVERPUE PENTAIR TIMNNA

2

2 22"

DIMENSION Width Height Depth

H-54 5" 15" 5"

H-104 5" 20" 5"

H-300 5" 22" 5"

H-300-HSD 5" 22" 5"

H-300-NXT 5" 22" 5"

NOTE: The head and cartridge must be mounted in the vertical position, with the cartridge hanging down.

3. MOUNT FILTER HEAD UNDER SINK

A. Identify Filter Head and the two Elbow Fittings, and note that the Outlet Fitting has a black band. This fitting includes a small restrictor insert to ensure maximum flow at 0.5 gpm (1.9 Lpm) per minute.
B. Apply Plumbers Tape to the threads of each Elbow Fitting. Wrap tape in direction of the threads to assure a tight fit and avoid small leaks.
C. Screw Inlet Elbow Fitting into the left side of the filter head, and hand tighten only.
D. Screw Outlet Elbow Fitting (black band) into the right side of the filter head in the same manner.

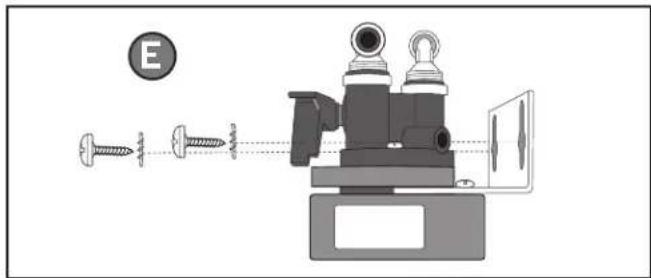

E. Securely mount the filter head on the cabinet wall using the enclosed mounting screws and washers.

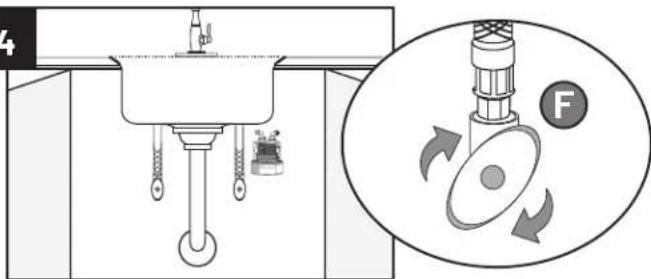

4. ATTACH INLET WATER SUPPLY

F. Locate and close the cold water Angle Stop Valve under your kitchen sink. Open cold water line of faucet to release water pressure.
G. Unscrew and disconnect the braided tubing on top of the Angle Stop Valve.
H. Attach the bottom of Angle Stop Adaptor to the existing cold water Angle Stop Valve.
I. Attach the braided tubing to the top of the Angle Stop Adaptor.
J. Close side valve on Angle Stop Adaptor and open cold water Angle Stop Valve to return water service to kitchen sink. Check for leaks.

NOTE: Plumbers Tape should not be required for these next steps.

K. Measure length of tubing needed to connect Angle Stop Adaptor to Inlet Elbow Fitting on Filter Head. Allow adequate tubing to avoid sharp turns.

L. Cut tubing at a 90° angle using a sharp knife

M. Insert ends of tubing into quick-connect fittings. Push tube into fitting and gently pull to confirm a tight fit.

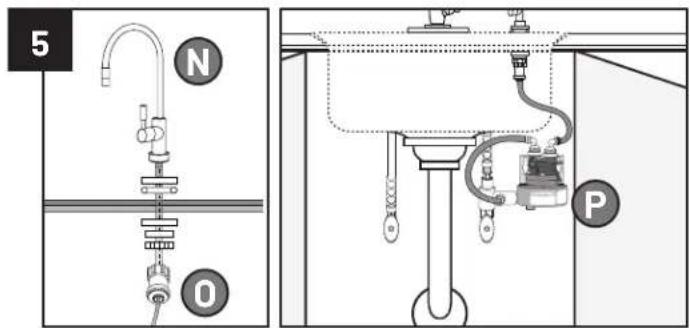

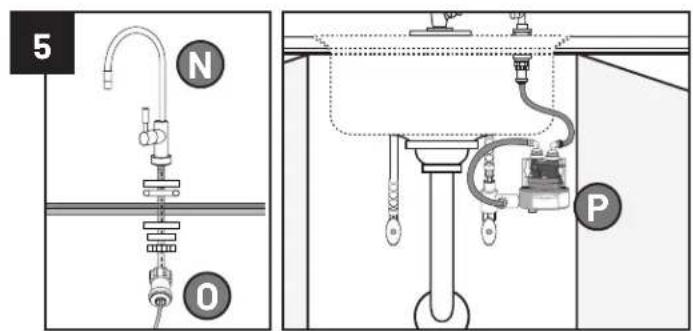

5. ATTACH FILTERED WATER TO SINK FAUCET

N. Install separate faucet for filtered drinking water. Follow individual manufacturer's instructions.
0. Attach Faucet Connector Fitting to bottom end of threads on new faucet assembly. Plumbers Tape should not be required for this step.

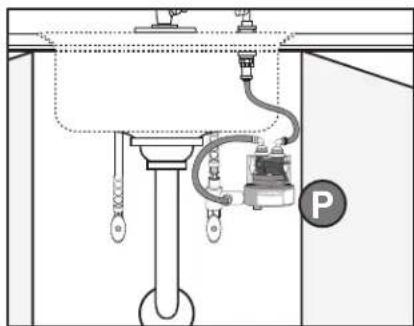

P. Measure length of tubing needed to connect the Outlet Elbow Fitting on Filter Head to the new Faucet Connector Fitting. Allow adequate tubing to avoid sharp turns. Cut and insert each end of the tubing into the fittings.

3

Illustration of a mechanical joint or connector with labeled component B (no text or symbols present)

Mechanical device diagram with labeled components C and D (no text or symbols on the device itself)

E

4

Technical diagram showing a mechanical assembly with labeled components and a circular inset showing rotational flow or force application.

Diagram of a mechanical assembly with a threaded component and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical joint or connector (no text or symbols)

Mechanical diagram showing a pipe fitting with a valve and a circular indicator labeled 'I' (no text or symbols beyond the label)

Pure mechanical diagram showing a shaft and motor without any text or symbols

Mechanical device with hoses and a cylindrical housing (no visible text or symbols)

5

5 N 0

Technical diagram of a mechanical or electrical setup with no visible text, numbers, or symbols.

6. INSTALL AND FLUSH FILTER CARTRIDGE

Q. Lift handle of the built-in shut off Valve on the Head.
R. Hold Head firmly with one hand.
S. Align cartridge lug with label on filter Head.
T. Insert filter Cartridge - Push upwards.
U. Turn it to the right - About 1/4 turn - Until rotation stops.
V. Open Side Valve of Angle Stop Adaptor and check for leaks up to Inlet Elbow Fitting.
W. Open Filtered Water Faucet.
X. Lower handle of built-in shut off valve on the Head, to flush water to the sink.

NOTE: Flush new filter cartridges for at least 5 minutes to remove air and any loose carbon. At first the water may appear cloudy due to trapped air in the filter and tubing. If water continues to be cloudy for more than one week, please contact Everpure Technical Services for assistance.

Y. Activate Filter Timer by pinching bubble until you feel a change in resistance as the filter timer "pops". Within a few seconds, a thin RED line will appear in the white window showing the Timestrip has been activated. Peel away backing and adhere to desired location. When the white window is completely filled with RED, it is time to replace your product.

6

Mechanical assembly diagram showing a rotating component with labeled parts O and R (no text or symbols beyond labels)

S Label T Lug

Mechanical component diagram showing a rotating arm and housing (no text or symbols)

Diagram of a gas pressure regulator with valve and pump components (no text or labels)

Simple line drawing of a kitchen sink with faucet and hand tool, no text or symbols present

Diagram showing a gasifier with a valve and a crosshair labeled 'X' pointing to the valve.

timestrip® 11 Months PENTAIR EVERPURE®

H-1200 INSTRUCTIONS

Tools Needed For Installation

• #2 Phillips Screwdriver
- Wrench
• Utility Knife
- Measuring Tape
- Pencil

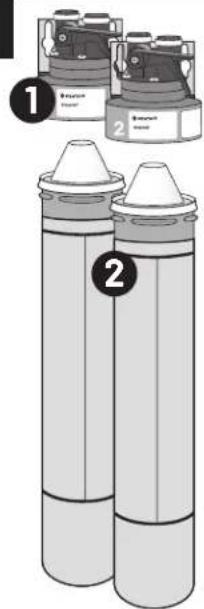

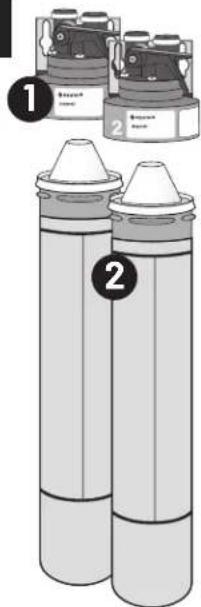

1. OPEN CARTON & INSPECT PARTS

Installation Parts

Key Description Part No.

1 Twin Filter Head N/A

2 H-1200 Filter Cartridges (Set of 2)(Includes 10)

EV928201

3 Locking Washers(2 req.) EV306204

4 Screws(2 req.) EV306196

5 Angle Stop Valve Adaptor EV312120

6 Tubing, 1/4" poly (per foot) A0860119

7 Elbow Fitting Pack Restrictor (incl. Qty. 2 ea of #3 & #4)

EV308168

8 Plumbers Tape EV312119

9 Faucet Connector EV312135

10 Everpure Filter Timer EV314160

11 Shut Off Valve, 3/8" John Guest x 3/8" FPT

EV309860

12 Coupler, 3/8" FPT Stainless EV312350

1

Diagram showing two cylindrical containers with labeled parts, one with a device and the other with a device, both marked with numbered annotations.

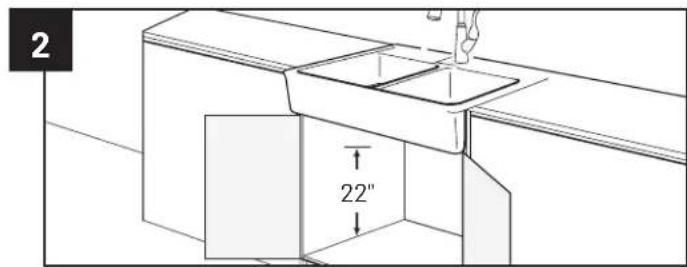

2. VERIFY UNDER-SINK MOUNTING LOCATION

Measure 22" from the base of the cabinet, and mark the mounting location for the top of the filter head. Measure 13" for the width required for the H-1200 System with dual cartridges. Make sure there is adequate space above the head to open and close the shut-off valve and to avoid crimping the water line tubing. Also, make sure your chosen location offers easy access for future cartridge changes.

DIMENSION

Width Height Depth

H-1200 13" 22" 5"

NOTE: The head and cartridge must be mounted in the vertical position, with the cartridge hanging down.

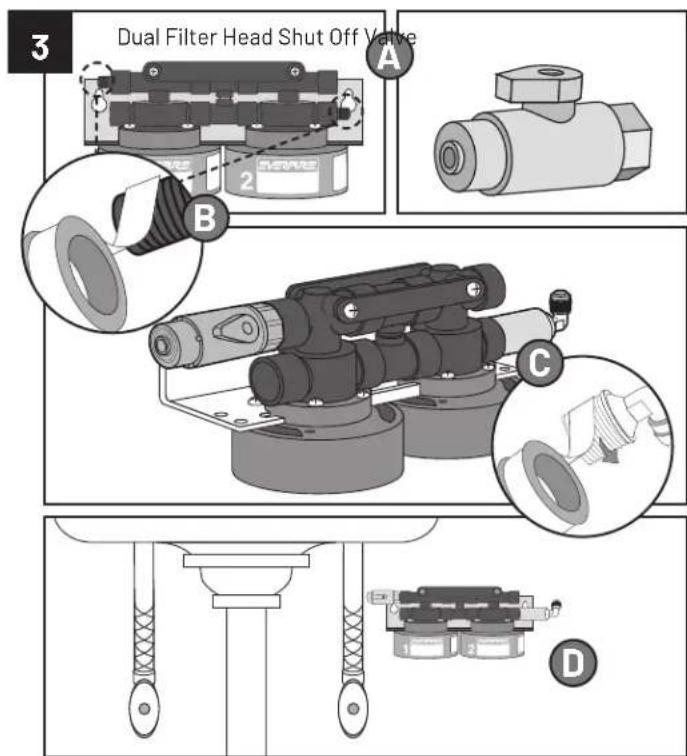

3. MOUNT FILTER HEAD UNDER SINK

A. Identify Dual Filter Head and Shut Off Valve (EV309860).
B. Apply Plumbers Tape to the threads on the inlet (left) side of the Head. Screw on the new Shut Off Valve and hand tighten. Repeat for the Stainless Coupler (EV312350) for the outlet (right) side of the Head.
C. Apply Plumbers Tape to the threads of the Outlet Elbow Fitting (black band). Screw into the outlet of the Stainless Coupler. Wrap tape in direction of the threads to assure a tight fit and avoid small leaks.
D. Securely mount the filter head on the cabinet wall using the enclosed mounting screws and washers.

1. Go to page 5 and follow Basic Installation Instructions, Steps 4, 5, and 6, to complete the H-1200 System installation.

CLAIMS & NOTES

This installation must comply with all applicable state and local regulations.

Do not use with water that is microbiologically unsafe or unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on waters that may contain filterable cysts.

Spent adsorption media will not be regenerated and used.

If adsorption media is affected by chlorine, water supply should be treated to remove chlorine prior to entering filter.

Testing was performed under standard laboratory conditions, actual performance may vary.

EPA Est. No. 002623-IL-002

The H-54, H-300, H-104, H-300-HSD, & H-1200 are Tested and Certified by NSF International against CSA B483.1 and NSF/ANSI 42 and 53 for the claims specified on the Performance Data Sheet.

The H-300-NXT is Tested and Certified by NSF International against CSA B483.1 and NSF/ANSI 42, 53 and 401 for the claims specified on the Performance Performance Data Sheet.

2 22"

3 Dual Filter Head Shut Off Valve A B C D

H-104 Cartridge - Part No. EV9612-11, EV9612-16

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs. It is recommended that, before purchasing a water treatment unit, you have your water tested to determine your actual treatment needs.

FEATURES

- if requested web per room to do working and

cooking.

- Reduces chlorine taste and odor.

manganese, and sulfides.

• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
• Reduces common earthy, moldy, fishy tastes and odors.
• Reduces lead to below the Federal Action Level.
• Reduces particles as small as 0.5 micron in size by mechanical means.

HEALTH CLAIM PERFORMANCE CERTIFIED BY NSF/ANSI\*

This system has been tested according to NSF/ANSI 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

Substance	Influent Challenge Concentration	Max. Permissible Product Water Concentration	Reduction Requirements	Minimum Reduction	Average Reduction
Standard 42—Aesthetic Effects
Chlorine	2.0 mg/L ± 10%		°50%		87.8%
Particulate, Class I particles 0.5 to <1 μm	at least 10,000 particles/mL		°85%		98.8%
Standard 53—Health Effects
Cyst	Minimum 50,000/L		99.95%	99.99%	99.99%
Lead 8.5	0.15 mg/L ± 10%	0.010 mg/L		99.3%	99.3%
Load 6.5	0.15 mg/L ± 10%	0.010 mg/L		98.7%	99.3%

*Tested using flow rate = 0.5 gpm; pressure = 60 psig; pH = 7.5 ± 0.5; temp. = 20° ± 2.5°C

OPERATING SPECIFICATIONS

• Capacity: 1,000 gallons (3,780L)
• Pressure requirement: 10-125 psi (0.7 - 8.6 bar), non-shock
• Temperature: 35-100°F (2°-38°C)
• Flow Rate: 0.5 gpm (1.9 Lpm)

EPA Est. 002623-IL-002

GENERAL INSTALLATION/OPERATION/MAINTENANCE REQUIREMENTS

• Spacered 5x 5x 2013x 13x 51 cribbling

2½ inches of clear space under unit for cartridge change.

• Install vertically with cartridge hanging down.
• Use minimum length of tubing possible.
- Flush new cartridge at full flow for three minutes to purge air.

haflygptdR

too slow, but at least annually.

SPECIAL NOTICES

• Installation instructions, parts and service availability, and standard warranty are included with the product.
• This drinking water system must be maintained according to manufacturer's instructions, including replacement of filter cartridges. Suggested retail \$122.99.
• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.
• The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water.
• Check for compliance with state and local laws and regulations.
• Tested under standard laboratory conditions, actual performance may vary.
• Spent adsorption media will not be regenerated and used.
• If adsorption media is affected by chlorine, water supply should be treated to remove chlorine prior to entering filter.

System Tested and Certified by NSF International against CSA B483.1 and NSF/ANSI 42 and 53 for the claims specified on the Performance Data Sheet.

H-54 Cartridge - Part No. EV9730-06, EV9252-68, EV9252-66, EV9252-67

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs. It is recommended that, before purchasing a water treatment unit, you have your water tested to determine your actual treatment needs.

FEATURES

cooking.

- Reduces chlorine taste and odor.

manganese, and sulfides.
- NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
- Adsorbs common earthy, moldy, fishy tastes and odors.
- Reduces lead to below the Federal Action Level of 10 ppb.
- Reduces particles as small as 0.5 micron in size by mechanical means.

HEALTH CLAIM PERFORMANCE CERTIFIED BY NSF/ANSI\*

This system has been tested according to NSF/ANSI 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

Substance	Influent Challenge Concentration	Max. Permissible Product Water Concentration	Reduction Requirements	Minimum Reduction	Average Reduction
Standard 42—Aesthetic Effects
Chlorine	2.0 mg/L ± 10%		≥ 50%		86.8%
Particulate, Class I particles 0.5 to <1	at least 10,000 particles/mL		≥ 85%		98.8%
Standard 53—Health Effects
Cyst	Minimum 50,000/L		99.95%	99.99%	99.99%
Lead 8.5	0.15 mg/L ± 10%	0.010 mg/L		98.7%	99.3%
Lead 6.5	0.15 mg/L ± 10%	0.010 mg/L		99.3%	99.3%

^* Tested using flow rate = 0.5 gpm; pressure = 60 psig; pH = 7.5 ± 0.5; temp. = 20° ± 2.5°C

OPERATING SPECIFICATIONS

• Capacity: 750 gallons [2,839L]
• Pressure requirement: 10-125 psi (0.7 - 8.6 bar), non-shock
• Temperature: 35-100°F (2°-38°C)
• Flow Rate: 0.5 gpm (1.9 Lpm)

EPA Est. 002623-IL-002

GENERAL INSTALLATION/OPERATION/MAINTENANCE REQUIREMENTS

• Spacedrod 5x 5x 13x 13x 38cm rolling 2½ inches

of clear space under unit for cartridge change.

• Install vertically with cartridge hanging down.
- Use minimum length of tubing possible.
- Flush new cartridge at full flow for three minutes to purge air.

http://bjjgust.net/

too slow, but at least annually.

SPECIAL NOTICES

• Installation instructions, parts and service availability, and standard warranty are included with the product when shipped.
• This drinking water system must be maintained according to manufacturer's instructions, including replacement of filter cartridges. Suggested list price: \$100.99.
• Do not use with water that is microbiologically unsafe, or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.
• The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water.
• Check for compliance with state and local laws and regulations.
• Tested under standard laboratory conditions, actual performance may vary.
• Spent adsorption media will not be regenerated and used.
• If adsorption media is affected by chlorine, water supply should be treated to remove chlorine prior to entering filter.

System Tested and Certified by NSF International against CSA B483.1 and NSF/ANSI 42 and 53 for the claims specified on the Performance Data Sheet.

H-300 Cartridge - Part Nos. EV9270-71, EV9270-72

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs. It is recommended that, before purchasing a water treatment unit, you have your water tested to determine your actual treatment needs.

FEATURES

• Finely polishes treated water to premium quality for drinking and cooking.
• Reduces chlorine taste and odor.
• Reduces dirt, rust and other particulates such as oxidized iron, manganese, and sulfides.
  • NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
• Controls even extreme levels of common "off" tastes and odors, including those which are earthy, moldy and fishy.
• Reduces lead to below the Federal Action Level.
  • Effectively reduces Volatile Organic Chemicals (VOCs), including Trihalomethanes (THMs).
• Reduces particles as small as 0.5 micron in size by mechanical means.

HEALTH CLAIM PERFORMANCE CERTIFIED BY NSF/ANSI\*

This system has been tested according to NSF/ANSI 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

Substance	Influent Challenge Concentration	Max. Permissible Product Water Concentration	Reduction Requirements	Minimum Reduction	Average Reduction
Standard 42—Aesthetic Effects

Chlorine 2.0 mg/L ± 10% ≥ 50% 86.8%

Particulate,

Class I particles 0.5

at least 10,000 particles/mL

to <1 μm

Standard 53—Health Effects

Cyst Minimum 50,000/L 99.95% 99.99% 99.99%

Lead 6.5 0.15 mg/L ± 10% 0.010 mg/L 99.3% 99.3%

Lead 8.5 0.15 mg/L ± 10% 0.010 mg/L 98.7% 99.3%

Chloroform

0.300 mg/L

0.015 mg/L

95.8%

98.9%

(VOC surrogate chemical)

*Tested using flow rate = 0.5 gpm; pressure = 60 psig; pH = 7.5 ± 0.5; temp. = 20° ± 2.5°C

EPA Est. 002623-IL-002

The H-300 is Tested and Certified by NSF International against CSA B483.1 and NSF/ANSI 42 and 53 for the claims specified on the Performance Data Sheet.

NOTE: Spent adsorption media will not be regenerated and used. If adsorption media is affected by chlorine, water supply should be treated to remove chlorine prior to entering filter.

OPERATING SPECIFICATIONS

• Capacity: 300 gallons (1,135L)
• Pressure requirement: 10-125 psi [0.7 - 8.6 bar], non-shock
• Temperature: 35-100°F (2-38°C)
• Flow Rate: 0.5 gpm (1.9 Lpm)

Performance Data Sheet Reduction Claims

for Organic Chemicals Included by Surrogate Testing

Substance	Influent Challenge Concentration mg/L	Maximum permissible Product Water Concentration mg/L
alachlor	0.050	0.001
alazine	0.100	0.003
benzene	0.081	0.001
carbofuran	0.190	0.001
carbon tetrachloride	0.078	0.0018
chlorobenzene	0.077	0.001
chloropicrin	0.015	0.0002
2,4-D	0.110	0.0017
diromochloropropane (DBCP)	0.052	0.00002
o-dichlorobenzene	0.080	0.001
p-dichlorobenzene	0.040	0.001
1,2-dichloroethane	0.088	0.0048
1,1-dichloroethylene	0.083	0.001
cis-1,2-dichloroethylene	0.170	0.0005
trans-1,2-dichloroethylene	0.086	0.001
1,2-dichloropropane	0.080	0.001
cis-1,3-dichloropropylene	0.079	0.001
dinosob	0.170	0.0002
endrin	0.053	0.00059
ethylbenzene	0.088	0.001
ethylene dibromide (EDB)	0.044	0.00002
halocetonitriles (HAN):
bromochloroacetonitrile	0.022	0.0005
dibromoacetonitrile	0.024	0.0006
dichloroacetonitrile	0.0096	0.0002
trichloroacetonitrile	0.015	0.0003
haloketones (HK):
1,1-dichloro-2-propanone	0.0072	0.0001
1,1,1-trichloro-2-propanone	0.0082	0.0003
heptachlor	0.025	0.00001
heptachlor epoxide	0.0107	0.0002
hexachlorobutadiene	0.044	0.001
hexachlorocyclopentadiene	0.060	0.000002
lindane	0.055	0.00001
methoxychlor	0.050	0.0001
pentachlorophenol	0.096	0.001
simazine	0.120	0.004
styrene	0.150	0.0005
1,1,2,2-tetrachloroethane 0.081	0.001
tetrachloroethylene	0.081	0.001
toluene	0.078	0.001
2,4,5-TP(silvex) 0.270	0.0016
tribromoacetic acid	0.042	0.001
1,2,4-trichlorobenzene	0.160	0.0005
1,1,1-trichloroethane	0.084	0.0046
1,1,2-trichloroethane	0.150	0.0005
trichloroethylene	0.180	0.001
trihalomethanes (includes):
chloroform (surrogate chemical)
bromoform	0.300	0.015
bromodichloromethane chlorodibromomethane
xylenes (total)	0.070	0.001

H-1200 Cartridge - Part Nos. EV9282-01, EV9282-03

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs. It is recommended that, before purchasing a water treatment unit, you have your water tested to determine your actual treatment needs.

FEATURES

• Finely polishes treated water to premium quality for drinking and cooking.
• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
• Reduces dirt, rust and other particulates sulfides (oxidized iron and manganese - As tested by Everpure).
• Controls even extreme levels of common "off" tastes and odors, including those which are earthy, moldy, and fishy.
• Reduces lead to below the Federal Action Level of 15 ppb.
• Effectively reduces volatile organic chemicals (VOCs), including trihalomethanes (THMs).
  • Effectively reduces methyl tertiary-butyl ether (MTBE).
• Reduces particles as small as 0.5 micron in size by mechanical means.

HEALTH CLAIM PERFORMANCE CERTIFIED BY NSF/ANSI\*

This system has been tested according to NSF/ANSI 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

Substance	Influent Challenge Concentration	Max. Permissible Product Water Concentration	Reduction Requirements	Minimum Reduction	Average Reduction
Standard 42—Aesthetic Effects
Chlorine 2.0 mg/L ± 10% ≥ 50% 86.8%
Chloramine 3.0 mg/L ± 10% 0.5 mg/L 98.3%
Particulate,Class I particles 0.5 to <1 μm	at least 10,000 particles/mL		≥ 85% 98.8%
Standard 53—Health Effects
Cyst Minimum 50,000/L 99.95% 99.99% 99.99%
Lead 6.5 0.15 mg/L ± 10% 0.010 mg/L			99.3%	99.3%
Lead 8.5 0.15 mg/L ± 10% 0.010 mg/L			98.7%	99.3%
Methyl tert-butyl ether	0.015 mg/L ± 20%	0.005 mg/L		73.5%	90.2%
Chloroform	0.300 mg/L	0.015 mg/L		99.8%	99.8%
/(VOC surrogate chemical)*Tested using flow rate = 0.5 gpm; pressure = 60 psig; pH = 7.5 ± 0.5; temp. = 20° ± 2.5°C

EPA Est. 002623-IL-002

The H-1200 is Tested and Certified by NSF International against CSA B483.1 and NSF/ANSI 42 and 53 for the claims specified on the Performance Data Sheet.

NOTE: Spent adsorption media will not be regenerated and used. If adsorption media is affected by chlorine, water supply should be treated to remove chlorine prior to entering filter.

OPERATING SPECIFICATIONS

• Capacity: 1,000 gallons (3,780L)
• Pressure requirement: 10-125 psi (0.7 - 8.6 bar), non-shock
• Temperature: 35-100°F (2-38°C)
• Flow Rate: 0.5 gpm (1.9 Lpm)

Performance Data Sheet Reduction Claims for Organic Chemicals Included by Surrogate Testing

Substance	Influent Challenge Concentration mg/L	Maximum permissible Product Water Concentration mg/L
alachlor	0.050	0.001
alazine	0.100	0.003
benzene	0.081	0.001
carbofuran	0.190	0.001
carbon tetrachloride	0.078	0.0018
chlorobenzene	0.077	0.001
chloropicrin	0.015	0.0002
2,4-D	0.110	0.0017
dibromochloropropane (DBCP)	0.052	0.00002
o-dichlorobenzene	0.080	0.001
p-dichlorobenzene	0.040	0.001
1,2-dichloroethane	0.088	0.0048
1,1-dichloroethylene	0.083	0.001
cis-1,2-dichloroethylene	0.170	0.0005
trans-1,2-dichloroethylene	0.086	0.001
1,2-dichloropropane	0.080	0.001
cis-1,3-dichloropropylene	0.079	0.001
dinoseb	0.170	0.0002
endrin	0.053	0.00059
ethylbenzene	0.088	0.001
ethylene dibromide (EDB)	0.044	0.00002
halocetonitriles (HAN):
bromochloroacetonitrile	0.022	0.0005
dibromoacetonitrile	0.024	0.0006
dichloroacetonitrile	0.0096	0.0002
trichloroacetonitrile	0.015	0.0003
haloketones (HK):
1,1-dichloro-2-propanone	0.0072	0.0001
1,1,1-trichloro-2-propanone	0.0082	0.0003
heptachlor	0.080	0.0004
heptachlor epoxide	0.0107	0.0002
hexachlorobutadiene	0.044	0.001
hexachlorocyclopentadiene	0.060	0.000002
lindane	0.055	0.00001
methoxychlor	0.050	0.0001
pentachlorophenol	0.096	0.001
simazine	0.120	0.004
styrene	0.150	0.0005
1,1,2,2-tetrachloroethane 0.081	0.001
tetrachloroethylene	0.081	0.001
toluene	0.078	0.001
2,4,5-TP(silvex) 0.270	0.0016
tribromoacetic acid	0.042	0.001
1,2,4-trichlorobenzene	0.160	0.0005
1,1,1-trichloroethane	0.084	0.0046
1,1,2-trichloroethane	0.150	0.0005
trichloroethylene	0.180	0.001
trihalomethanes (includes):
chloroform (surrogate chemical)
bromoform	0.300	0.015
bromodichloromethane
chlorodibromomethane
xylones (total)	0.070	0.001

H-300-HSD Cartridge - Part Nos. EV9270-74, EV9270-75

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs. It is recommended that, before purchasing a water treatment unit, you have your water tested to determine your actual treatment needs.

FEATURES

• For high silt density water vs. standard H-300.
• Finely polishes treated water to premium quality for drinking and cooking.
• Reduces chlorine taste and odor.
• Reduces dirt, rust and other particulates such as oxidized iron, manganese, and sulfides.
  • NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
• Controls even extreme levels of common "off" tastes and odors, including those which are earthy, moldy and fishy.
• Reduces lead to below the Federal Action Level of 15 ppb.
  • Effectively reduces Volatile Organic Chemicals (VOCs).
• Reduces particles as small as 0.5 micron in size by mechanical means.

HEALTH CLAIM PERFORMANCE CERTIFIED BY NSF/ANSI\*

This system has been tested according to NSF/ANSI 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

Substance	Influent Challenge Concentration	Max. Permissible Product Water Concentration	Reduction Requirements	Minimum Reduction	Average Reduction
Standard 42—Aesthetic Effects
Chlorine 2.0 mg/L ± 10% ≥ 50% 86.8%
Particulate, Class I particles 0.5 to <1 μm	at least 10,000 particles/mL		≥ 85% 98.8%

Standard 53—Health Effects

Cyst Minimum 50,000/L 99.95% 99.99% 99.99%

Lead 6.5 0.15 mg/L ± 10% 0.010 mg/L 99.3% 99.3%

Lead 8.5 0.15 mg/L ± 10% 0.010 mg/L 98.7% 99.3%

Chloroform 0.300 mg/L 0.015 mg/L 95.8% 98.9%

(VOC surrogate chemical)

^* Tested using flow rate = 0.5 gpm; pressure = 60 psig; pH = 7.5 ± 0.5; temp. = 20° ± 2.5°C

EPA Est. 002623-IL-002

The H-300-HSD is Tested and Certified by NSF International against CSA B483.1 and NSF/ANSI 42 and 53 for the claims specified on the Performance Data Sheet.

NOTE: Spent adsorption media will not be regenerated and used. If adsorption media is affected by chlorine, water supply should be treated to remove chlorine prior to entering filter.

OPERATING SPECIFICATIONS

• Capacity: 300 gallons (1,135L)
• Pressure requirement: 10-125 psi (0.7 - 8.6 bar), non-shock
• Temperature: 35-100°F (2-38°C)
• Flow Rate: 0.5 gpm (1.9 Lpm)

Performance Data Sheet Reduction Claims

for Organic Chemicals Included by Surrogate Testing

Substance	Influent Challenge Concentration mg/L	Maximum permissible Product Water Concentration mg/L
alachlor	0.050	0.001
alazine	0.100	0.003
benzene	0.081	0.001
carbofuran	0.190	0.01
carbon tetrachloride	0.078	0.0018
chlorobenzene	0.077	0.001
chloropicrin	0.015	0.0002
2,4-D	0.110	0.0017
dibromochloropropane (DBCP)	0.052	0.00002
o-dichlorobenzene	0.080	0.001
p-dichlorobenzene	0.040	0.001
1,2-dichloroethane	0.088	0.0048
1,1-dichloroethylene	0.083	0.001
cis-1,2-dichloroethylene	0.170	0.0005
trans-1,2-dichloroethylene	0.086	0.001
1,2-dichloropropane	0.080	0.001
cis-1,3-dichloropropylene	0.079	0.001
dinosob	0.170	0.0002
endrin	0.053	0.00059
ethylbenzene	0.088	0.001
ethylene dibromide (EDB)	0.044	0.00002
halosacetonitriles (HAN):
bromoachloroacetonitrile	0.022	0.0005
dibromoacetonitrile	0.024	0.0006
dichloroacetonitrile	0.0096	0.0002
trichloroacetonitrile	0.015	0.0003
haloketones (HK):
1,1-dichloro-2-propanone	0.0072	0.0001
1,1,1-trichloro-2-propanone	0.0082	0.0003
heptachlor	0.080	0.0004
heptachlor epoxide	0.0107	0.0002
hexachlorobutadiene	0.044	0.001
hexachlorocyclopentadiene	0.060	0.000002
lindano	0.055	0.00001
methoxychlor	0.050	0.0001
pentachlorophenol	0.096	0.001
simazine	0.120	0.004
styrene	0.150	0.0005
1,1,2,2-tetrachloroethane 0.081	0.001
letrachloroethylene	0.081	0.001
toluene	0.078	0.001
2,4,5-TP(silvex) 0.270	0.0016
tribromoacetic acid	0.042	0.001
1,2,4-trichlorobenzene	0.160	0.0005
1,1,1-trichloroethane	0.084	0.0046
1,1,2-trichloroethane	0.050	0.0005
trichloroethylene	0.190	0.001
trihalomethanes (includes); chloroform (surrogate chemical)
bromoform bromodichloromethane	0.300	0.015
chlorodibromomethane
xylones (total)	0.070	0.001

H-300-NXT Cartridge - Part Nos. EV927441, EV927446

IMPORTANT NOTICE: Read this Everpure* Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs. It is recommended that, before purchasing a water treatment unit, you have your water tested to determine your actual treatment needs.

FEATURES

• Finely polishes treated water to premium quality for drinking and cooking.
• Reduces chlorine taste and odor.
• Reduces dirt, rust and other particulates such as oxidized iron, manganese, and sulfides - As tested by Pentair.
• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means.
• Controls even extreme levels of common "off" tastes and odors, including those which are earthy, moldy and fishy.
• Reduces lead.
  • Effectively reduces Volatile Organic Chemicals (VOCs).
• Reduces particles as small as 0.5 micron in size by mechanical means.
• NSF/ANSI Standard 401 certified for the reduction of the incidental contaminants/emerging compounds listed in the performance data sheet.

HEALTH CLAIM PERFORMANCE CERTIFIED BY NSF/ANSI

This system has been tested according to NSF/ANSI 42, 53 and 401 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53 and 401.

Substance	Influent Challenge Concentration	Max. Permissible Product Water Concentration	Reduction Requirements	Minimum Reduction	Average Reduction
Standard 42—Aesthetic Effects
Chlorine 2.0mg/L ± 10% ≥ 50% 86.8%
Particulate, Class I particles 0.5 to <1 μm	at least 10,000 particles/mL		≥ 85% 98.8%
Standard 53—Health Effects
Cyst Minimum 50,000/L 99.95% 99.99% 99.99%
Lead 6.5 0.15 mg/L ± 10% 0.010 mg/L 99.3% >99.3%
Lead 8.5 0.15 mg/L ± 10% 0.010 mg/L 98.7% 99.3%
Chloroform	0.300 mg/L	0.015 mg/L 95.8% 98.9%
(VOC surrogate chemical)
*Tested using flow rate = 0.5 gpm; pressure = 60 psig; pH = 7.5 ± 0.5; temp. = 20° ± 2.5°C

Standard 401—Emerging Contaminants ^
Phenytoin	200 ± 20% ng/L 0.000030 mg/L	>96.3%
Ibuprofen	400 ± 20% ng/L 0.000060 mg/L	>95.8%
Naproxen	140 ± 20% ng/L 0.000020 mg/L	>96.8%
Estrone	140 ± 20% ng/L 0.000020 mg/L	>97.2%
Bisphenol A (BPA)	2,000 ± 20% ng/L 0.000300 mg/L	>99.2%
Nonylphenol	1,400 ± 20% ng/L 0.000200 mg/L	>97.1%

NSF/ANSI Standard 401 have been deemed as "incidental contaminants/emerging compounds". Incidental contaminants are those compounds that have been detected in drinking water supplies at trace levels. While occurring at only trace levels, these compounds can affect the public acceptance/perception of drinking water quality.

NOTE: Spent adsorption media will not be regenerated and used. If adsorption media is affected by chlorine, water supply should be treated to remove chlorine prior to entering filter.

OPERATING SPECIFICATIONS

• Capacity: 300 gallons (1,136L)
• Pressure requirement: 10-125 psi (0.7 - 8.6 bar), non-shock
• Temperature: 35-100°F (2-38°C)
• Flow Rate: 0.5 gpm (1.9 Lpm)

Performance Data Sheet Reduction Claims for Organic Chemicals Included by Surrogate Testing

Substance	Influent Challenge Concentration mg/L	Maximum permissible Product Water Concentration mg/L
alachlor	0.050	0.001
atrazine	0.100	0.003
benzene	0.081	0.001
carbofuran	0.190	0.001
carbon tetrachloride	0.078	0.0018
chlorobenzene	0.077	0.001
chloropicrin	0.015	0.0002
2,4-D	0.110	0.0017
dibromochloropropane (DBCP)	0.052	0.00002
c-dichlorobenzene	0.080	0.001
p-dichlorobenzene	0.040	0.001
1,2-dichloroethane	0.088	0.0048
1,1-dichloroethylene	0.083	0.001
cis-1,2-dichloroethylene	0.170	0.0005
trans-1,2-dichloroethylene 0.086	0.001
1,2-dichloropropane 0.080	0.001
cis-1,3-dichloropropylene	0.079	0.001
dinoseb	0.170	0.0002
endrin	0.053	0.00059
ethylbenzene	0.088	0.001
ethylene dibromide (EDBI)	0.044	0.00002
halocetonitriles (HANI):
bromochloroacetonitrile	0.022	0.0005
dibromoacetonitrile	0.024	0.0006
dichloroacetonitrile	0.0096	0.0002
trichloroacetonitrile	0.015	0.0003
halicketones (HK):
1,1-dichloro-2-propanone	0.0072	0.0001
1,1,1-trichloro-2-propanone	0.0082	0.0003
heptachlor	0.080	0.0004
heptachlor epoxide	0.0107	0.0002
hexachlorobutadiene	0.044	0.001
hexachlorocyclopentadiene	0.060	0.000002
lindane	0.055	0.00001
methoxychlor	0.050	0.0001
pentachlorophenol	0.096	0.001
simazine	0.120	0.004
styrene	0.150	0.0005
1,1,2,2-tetrachloroethane	0.081	0.001
tetrachloroethylene	0.081	0.001
toluene	0.078	0.001
2,4,5-TP(silvex) 0.270	0.0016
tribromoacetic acid	0.042	0.001
1,2,4-trichlorobenzene	0.160	0.0005
1,1,1-trichloroethane	0.084	0.0046
1,1,2-trichloroethane	0.150	0.0005
trichloroethylene	0.180	0.001
trihalomethanes (includes):
chloroform (surrogate chemical)
bromoform	0.300	0.015
bromodichloromethane
chlorodibromomethane
xylenes (total)	0.070	0.001

The H-300-NXT is Tested and Certified by NSF International against CSA B483.1 and NSF/ANSI 42, 53, and 401 for the claims specified on the Performance Data Sheet.

EPA Est. 002623-IL-002

Exploded view diagram of a pressure regulator with numbered parts including valve, hose, and connector components

2

2 55.8 cm

3. MONTE EL CABEZAL DEL FILTRO DEBAJO DEL FREGADERO

Diagram illustrating a mechanical device with labeled parts and directional arrow, likely illustrating a tool or assembly process.

5 N 0 P

Diagram of a mechanical device with labeled components and directional arrows, including symbols Q and R.

S Etiqueta Lengüeta T

Mechanical component diagram showing a rotating assembly with labeled U (no text or symbols beyond the label)

Diagram of a gas pressure regulator with valve and pump components (no text or labels)

Diagram of a kitchen sink with faucet and hand tool, no text or symbols present

Diagram showing a mechanical device with a labeled component and directional arrow, likely illustrating a process or system.

timestrip® 11 Months PENTAIR EVERPURE®

1

Diagram showing two cylindrical containers with labeled parts, one with a device and the other with a device labeled 'Brewen' and part number 2.

Diagram showing numbered steps of a mechanical assembly or repair procedure, including rope, bolts, and tool.

5 8 11 12

Quistes Minimo 50,000/L 99.95% 99.99% 99.99%

Plomo 6.5 0.15 mg/L = 10% 0.010 mg/L 99.3% 99.3%

Plomo 8.5 0.15 mg/L = 10% 0.010 mg/L 98.7% 99.3%

Cloroformo 0.300 mg/L 0.015 mg/L 95.8% 98.9%

Exploded view diagram of a water filter component with numbered parts and a PentaID card.

2

55.8 cm

3. MONTAGE DE LA TÊTE DE FILTRE SOUS L'ÉVIER

Diagram illustrating a mechanical device with labeled parts and directional arrow, likely illustrating a tool or assembly process.

5 N 0 P

Diagram of a mechanical device with labeled components and directional arrows, including symbols O and R.

S Etiquette Patte T

Mechanical component diagram showing a rotating assembly with labeled U (no text or symbols beyond label)

Diagram of a gas pressure measurement device with labeled components and directional arrows indicating flow or movement.

Diagram of a kitchen sink with faucet and hand gesture, no text or symbols present

Diagram showing a gas washing machine with a valve and a magnified view of the device's internal structure.

timestrip® 11 Months PENTAIR EVERPURE®

CONSIGNES D'UTILISATION POUR L'H-1200

Outils nécessaires

Diagram showing two cylindrical containers with labeled parts, likely illustrating a mechanical or electrical assembly.

Chemistry Tinoris PENTAIR TINER 10 11 12

12 Accouplement, 3/8 po filetage gaz femelle, acier inoxydable

EV312350

2. VÉRIFIEZ L'EMPLACEMENT DE MONTAGE SOUS L'ÉVIER

EVERPURE.COM | CUSTOMER SERVICE: 800.279.9404 | [e-mail] | pentair.com

©2020 Pentair Residential Filtration, LLC. All rights reserved.

All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.

EV307043 REV AH SE20
