USER MANUAL KITCHENmini Wasserkocher 0 8l WMF

Modern stainless steel water heater with black handle and logo (no visible text or symbols on body)

Simple illustration of a plant with leaves and a plug, no text or symbols present

Close-up of a metallic mechanical component with a central scale and mounting bracket (no visible text or symbols)

Important safety instructions

These devices can be used by children older than eight years old as well as by persons with limited physical, sensory or mental capabilities, persons lacking experience and/or lacking knowledge if they are supervised or have received instructions regarding how the device is to be used safely and have understood the resulting risks. Children shall not play with the device. Cleaning and user maintenance shall not be made by children, unless they are older than 8 years old and supervised.
- Keep the device and its cord out of the reach of children under 8 years old.
- Only operate the electric kettle with the appropriate base.
- Boiling water may splash out if the device is overfilled or operated when the lid is not closed.
- Do not immerse the pot and base in water.
- If the appliance's supply cord is damaged then it must be replaced by the manufacturer's central customer service department or by a similarly qualified person. Improper repairs may constitute a serious threat for users.
- This device is intended to be used in household and similar applications, such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

The device is not intended for purely commercial use.

■ After using the appliance and accessories, clean all surfaces/parts that have come into contact with food. Follow the instructions in the "Cleaning and care" section.
■ Always use the appliance in accordance with these instructions. Improper use can result in electric shocks and other hazards.
- Caution! Risk of burns! The temperature of accessible surfaces can become very hot. They also remain hot for some time after the appliance has been switched off.

Prior to use

Read the operating manual carefully. It contains important information about the use, safety and maintenance of the appliance.

It should be kept in a safe place and passed on to further users if appropriate. The device may only be used for the intended purpose according to these operating instructions.

Observe the safety instructions during use.

Technical Data

Rated voltage: 220 - 240 V\~ 50-60 Hz

Power consumption: 1650 - 1960 W

Protection class: I

Safety instructions

• Only connect the device to properly installed earthed sockets. The wire and plug must be dry.
• Do not pull the connecting cable over sharp edges or clamp it. Do not let it hang down and protect it from heat and oil.
• Never disconnect the mains plug from the socket by the cord or with wet hands.
• Stop using the appliance and/or disconnect it from the mains plug immediately if:

- The appliance or mains cable is damaged;

- the device is not leak-proof;

• there is any suspicion of a fault after dropping the appliance or similar.

In such cases, send the appliance to be repaired.

• Do not place the kettle on hot surfaces, such as hot plates or similar, or near open flames. It could melt.
• Do not place the device on water-sensitive surfaces. Water spray may damage them.
• Do not operate the device under delicate furniture. Escaping steam from boiling could damage the furniture.
• Never operate the kettle unattended.
• Do not switch on the device without water.
  ■ Take the pot for filling from the base.
• Only fill with clean water, not milk, coffee, etc.
• Do not move the device during operation and do not pull on the mains cable.
• Caution: the device is hot. Risk of scalding from escaping steam. Only take hold of the hot kettle from the handle and do not open the lid when pouring.
• Always completely empty the pot. Do not let any residual water remain in the device for a long period of time.
• The mains plug is to be pulled:
• if malfunctions occur during use,
• before cleaning and care,
• after use.
• No liability is accepted for any damages resulting from misuse, incorrect operation or improper repairs. Claims under warranty are likewise excluded in such cases.

- Packaging material, such as plastic film bags, do not belong in the hands of children.

Simple illustration of a plant with leaves and a plug, no text or symbols present

45 % Space savings* 43 % Resource savings* 45 % Energy savings*

100 % Performance

* Compared to WMF LONO kettle.

Confirmed by technikzuhause.de. Resource savings refer to material usage and transportation volume. Measurement of energy savings by cooking water until automatic shut-off at maximum water capacity.

Start-up

Thoroughly clean the inside of the pot prior to the first use. To do so, open the lid by pressing the button on the handle.

A strainer insert in the pour spout ensures that larger limescale particles are kept back when pouring.

The unnecessary length of the connecting cable can be wound at the bottom of the base part.

Connect the mains plug to an earthed socket.

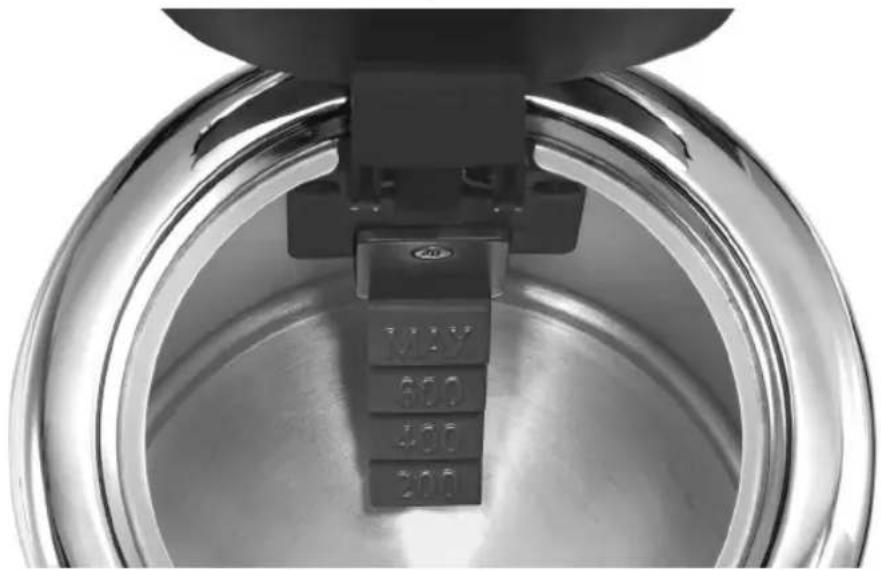

Fill with the desired amount of water up to the Max line.

Close-up of a metallic mechanical component with a central square component and a circular base (no visible text or symbols)

Close the lid. Only in this way does the automatic boil stop work reliably.

Place the pot on the base in any position. Now you can press down the power switch below the handle. The control lamp in the power switch shows that the device is heating.

The power switch only engages if the pot is on the base.

Do not use the water from the first boiling process for food preparation.

Automatic shutoff

The automatic boil stop switches off the device shortly after the water is boiled. The shutoff time is extended if the pot is only filled with a little water.

If only warm water is desired, the heating process can always be stopped by pressing the power switch. The shutdown takes place automatically if the pot is lifted from the base.

For functional reasons, some condensation may run out of the outlet openings at the bottom of the handle to the edge of the base. This happens for technical reasons and does not impair the safety of the device.

Safety system

A thermostat protects the kettle from overheating due to accidental operation without water by switching off the device.

It is essential to allow the pot to cool down before filling with water.

Should the first thermostat malfunction due to improper use, an additional temperature limiter ensures reliable protection.

Cleaning and maintenance

Remove the mains plug and allow the device to cool down. Do not immerse the device in water, but rather clean them with a damp cloth with a little washing-up fluid and then dry off.

Do not use any sharp and abrasive cleaning agents.

The pot is made of stainless steel. Should rust spots nevertheless appear, they are only deposits adhered to the surface. They should be removed immediately with a stainless steel cleanser.

The strainer insert in the pour spout can be removed for cleaning when the lid is open. To do so, press its upper clip upward. When inserting, place the strainer in the middle of the base and then snap it forward into place.

Descaling

Limescale deposits lead to losses of energy and impair the service life of the device. It shuts off prematurely if the limescale layer is too thick. It can then only be removed with great difficulty. Therefore descale regularly.

We recommend using Cromargol®. This is highly effective and non-abrasive.

• Prior to descaling, unplug the device and allow it to cool. Remove the strainer and place on the base of the kettle.
• Replace the strainer after descaling has finished.
• Fill with one portion (100 ml) of Cromargol® and leave the device until the limescale layer on the bottom is removed. Then fill the device with cold tap water to cover the limescale ring on the wall and allow to stand for 15 minutes.
• Then pour out and thoroughly rinse with cold tap water.
• Dose and use other descaling agents according to the manufacturer's instructions.

Do not heat the solution during descaling.

Attention: there is no claim under warranty for damages caused by not observing the descaling instructions.

Cromargol® Label in-Butter for 200 ml test Premium Addition for all products 1. Dampere with 100 gm or in optimal solution 2. Solid with 100 gm or in optimal solution Aminimodiponol® in the first batch of a dyeing solution (or 40% yield) Application status: 1. Use of a mixture of 100 gm/100 gm 2. Use of a mixture of 100 gm/100 gm 3. Use of a mixture of 100 gm/100 gm

Causes for malfunctions

■ If the pouring behaviour worsens/ diminishes:
check the strainer and descale/clean the strainer if necessary
■ Device switches off before boiling:
Bottom of the pot is too strongly calcified, it is not filled with enough water

■ Device does not switch off:

Lid is not closed

■ Device will not switch on:

The device has not sufficiently cooled down following operation with no or too little water.

If it is not possible to fix this problem, submit the device for repair.

For UK use only

• This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a non-rewireable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock.

- The replacement of the plug at the mains lead has to be done according to the following instructions:

Warning - This appliance must be earthed

Important: The wires in this mains lead are coloured in accordance with the following code:

green/yellow Earth

blue Neutral

brown Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• the wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol ⏚ or coloured green or green and yellow,
• the wire which is coloured blue must be connected to the terminal which is marked the letter N or coloured black,
• the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

- If a 13 A (BS 1363) plug is used it must be fitted with a 13 A fuse conforming to BS 1362 and be ASTA approved. If any other type of plug is used, the appliance must be protected by a 10 A fuse either in the plug or adapter or at the distribution board.

If in doubt - consult a qualified electrician.

- Never use the plug without closing the fuse cover.

The appliance complies with European directives 2006/95/EC, 2004/108/EC and 2009/125/EC.

At the end of its life, this product must not be disposed of in normal household waste but must instead be delivered to a collection point for recycling electric and electronic appliances.

The materials are recyclable in accordance with their labelling. The reuse, recycling or other use of old appliances makes an important contribution to protecting our environment.

Please ask your local administration for the appropriate disposal point.

Subject to alterations
