USER MANUAL DHR164ZJ MAKITA

Cordless Rotary Hammer Instruction Manual

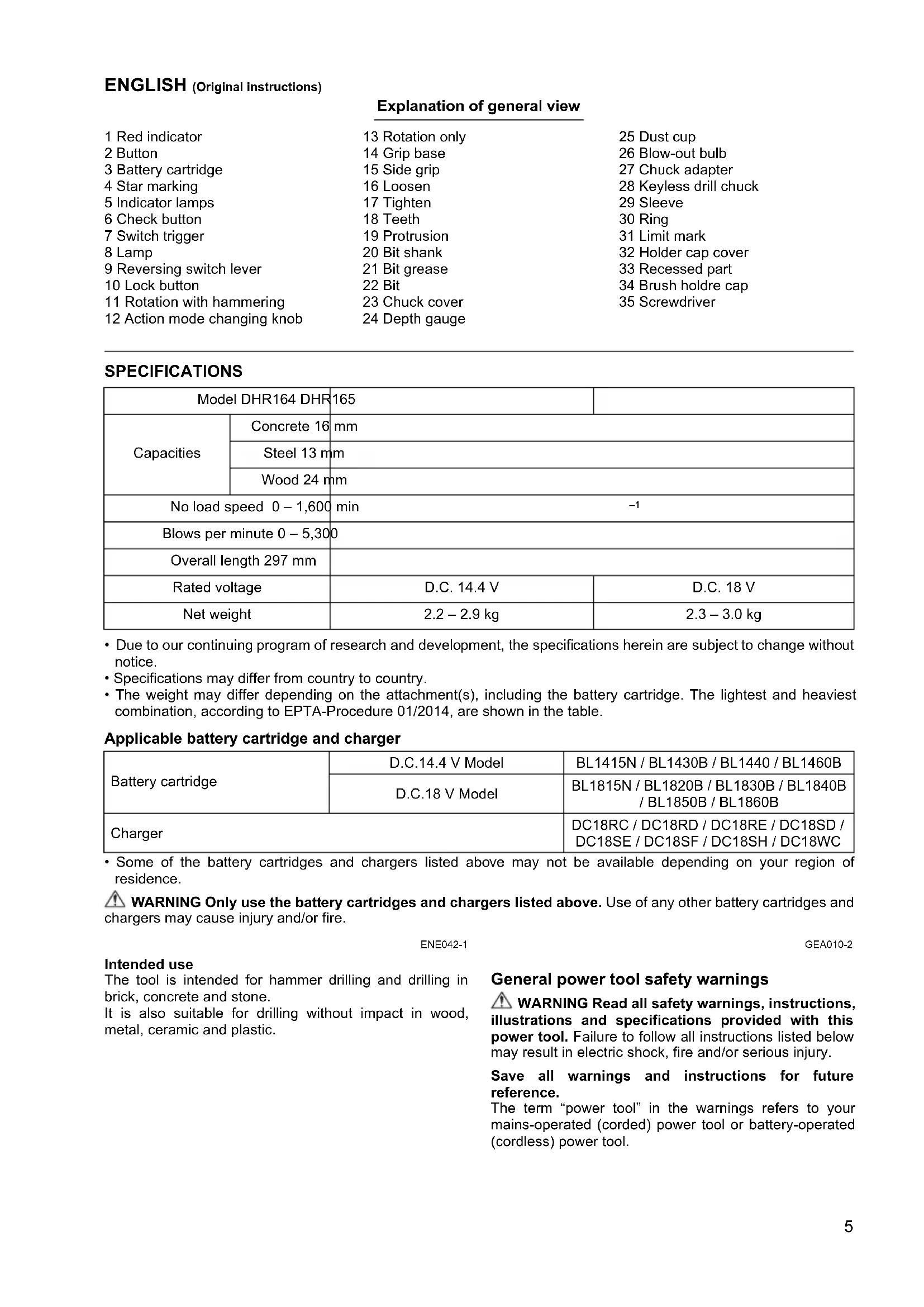

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications may differ from country to country.

• The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heaviest combination, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence. WARNING Only use the battery cartridges and chargers listed above. Use of any other battery cartridges and chargers may cause injury and/or fire. ENE042-1 Intended use The tool is intended for hammer drilling and drilling in brick, concrete and stone. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. GEA010-2 General power tool safety warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Model DHR164 DHR165 Capacities Concrete 16 mm Steel 13 mm Wood 24 mm No load speed 0 – 1,600 min

WARNINGS Safety instructions for all operations

1. Wear ear protectors. Exposure to noise can cause

2. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

3. Hold the power tool by insulated gripping

surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Safety instructions when using long drill bits with rotary hammers

1. Always start drilling at low speed and with the bit

tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

2. Apply pressure only in direct line with the bit

and do not apply excessive pressure. Bits can bend, causing breakage or loss of control, resulting in personal injury. Additional safety warnings

1. Wear a hard hat (safety helmet), safety glasses

and/or face shield. Ordinary eye or sun glasses are NOT safety glasses. It is also highly recommended that you wear a dust mask and thickly padded gloves.

2. Be sure the bit is secured in place before

3. Under normal operation, the tool is designed to

produce vibration. The screws can come loose easily, causing a breakdown or accident. Check tightness of screws carefully before operation.

4. In cold weather or when the tool has not been

used for a long time, let the tool warm up for a while by operating it under no load. This will loosen up the lubrication. Without proper warm- up, hammering operation is difficult.

5. Always be sure you have a firm footing. Be sure

no one is below when using the tool in high locations.

6. Hold the tool firmly with both hands.

7. Keep hands away from moving parts.

8. Do not leave the tool running. Operate the tool

only when hand-held.

9. Do not point the tool at any one in the area when

operating. The bit could fly out and injure someone seriously.

10. Do not touch the bit, parts close to the bit, or

workpiece immediately after operation; they may be extremely hot and could burn your skin.

11. Some material contains chemicals which may be

toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

12. Always be sure that the tool is switched off and

the battery cartridge and the bit are removed before handing the tool to other person.

13. Before operation, make sure that there is no

buried object such as electric pipe, water pipe or gas pipe in the working area. Otherwise, the drill bit/chisel may touch them, resulting an electric shock, electrical leakage or gas leak.

14. Do not operate the tool at no-load unnecessarily.

SAVE THESE INSTRUCTIONS.

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. ENC007-17

1. Before using battery cartridge, read all

instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge. It may result in a fire, excessive heat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them out

with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material. (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery

cartridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if it

is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a fire, excessive heat, or explosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation requirements. For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required. Please also observe possibly more detailed national regulations.7 Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove it

from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specified by Makita. Installing the batteries to non- compliant products may result in a fire, excessive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the handling of hot battery cartridges.

15. Do not touch the terminal of the tool immediately

after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge. It may cause heating, catching fire, burst and malfunction of the tool or battery cartridge, resulting in burns or personal injury.

17. Unless the tool supports the use near high-

voltage electrical power lines, do not use the battery cartridge near high-voltage electrical power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION:

• Only use genuine Makita batteries. Use of non- genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery cartridge.

Overcharging shortens the battery service life.

3. Charge the battery cartridge with room

temperature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove it

from the tool or the charger.

5. Charge the battery cartridge if you do not use it

for a long period (more than six months). FUNCTIONAL DESCRIPTION CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge (Fig. 1) CAUTION:

• Always switch off the tool before installing or removing of the battery cartridge.

• Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury. To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. CAUTION:

• Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

• Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. Battery protection system (Lithium-ion battery with star marking) (Fig. 2) Lithium-ion batteries with a star marking are equipped with a protection system. This system automatically cuts off power to the tool to extend battery life. The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

• Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. In this situation, release the trigger switch on the tool and stop the application that caused the tool to become overloaded. Then pull the trigger switch again to restart. If the tool does not start, the battery is overheated. In this situation, let the battery cool before pulling the trig- ger switch again.

• Low battery voltage: The remaining battery capacity is too low and the tool will not operate. In this situation, remove and recharge the battery.8 Indicating the remaining battery capacity (Fig. 3) Only for battery cartridges with the indicator Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for a few seconds.

• Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

• The first (far left) indicator lamp will blink when the battery protection system works. Switch action (Fig. 4) CAUTION:

• Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released. To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop. Lighting up the lamp (Fig. 5) CAUTION:

• Do not look in the light or see the source of light directly. Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The light automatically goes out 10 – 15 seconds after the switch trigger is released. NOTE:

• Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.

• Do not use thinner or gasoline to clean the lamp. Such solvents may damage it. Reversing switch action (Fig. 6) This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation. When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled. CAUTION:

• Always check the direction of rotation before operation.

• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.

• When not operating the tool, always set the reversing switch lever to the neutral position. Selecting the action mode Rotation with hammering (Fig. 7) For drilling in concrete, masonry, etc., depress the lock button and rotate the action mode changing knob to the symbol. Use a tungsten-carbide tipped bit. Rotation only (Fig. 8) For drilling in wood, metal or plastic materials, depress the lock button and rotate the action mode changing knob to the m symbol. Use a twist drill bit or wood bit. CAUTION:

• Do not rotate the action mode changing knob when the tool is running. The tool will be damaged.

• To avoid rapid wear on the mode change mechanism, be sure that the action mode changing knob is always positively located in one of the action mode positions. Torque limiter The torque limiter will actuate when a certain torque level is reached. The motor will disengage from the output shaft. When this happens, the bit will stop turning. CAUTION:

• As soon as the torque limiter actuates, switch off the tool immediately. This will help prevent premature wear of the tool.

• Hole saws cannot be used with this tool. They tend to pinch or catch easily in the hole. This will cause the torque limiter to actuate too frequently. ASSEMBLY CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. Side grip (auxiliary handle) (Fig. 9) CAUTION:

• Always use the side grip to ensure operating safety. Install the side grip so that the teeth on the grip fit in between the protrusions on the tool barrel. Then tighten the grip by turning clockwise at the desired position. It may be swung 360° so as to be secured at any position. Bit grease Coat the bit shank head beforehand with a small amount of bit grease (about 0.5 – 1 g). This chuck lubrication assures smooth action and longer service life. Installing or removing the bit Clean the bit shank and apply bit grease before installing the bit. (Fig. 10) Indicator lamps Remaining capacity Lighted Off Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned.9 Insert the bit into the tool. Turn the bit and push it in until it engages. If the bit cannot be pushed in, remove the bit. Pull the chuck cover down a couple of times. Then insert the bit again. Turn the bit and push it in until it engages. (Fig. 11) After installing, always make sure that the bit is securely held in place by trying to pull it out. To remove the bit, pull the chuck cover down all the way and pull the bit out. (Fig. 12) Depth gauge (Fig. 13) The depth gauge is convenient for drilling holes of uniform depth. Loosen the side grip and insert the depth gauge into the hole in the side grip. Adjust the depth gauge to the desired depth and tighten the side grip. NOTE:

• The depth gauge cannot be used at the position where the depth gauge strikes against the gear housing. Dust cup (optional accessory) (Fig. 14) Use the dust cup to prevent dust from falling over the tool and on yourself when performing overhead drilling operations. Attach the dust cup to the bit as shown in the figure. The size of bits which the dust cup can be attached to is as follows.

OPERATION Hammer drilling operation (Fig. 15) Set the action mode changing knob to the symbol. Position the bit at the desired location for the hole, then pull the switch trigger. Do not force the tool. Light pressure gives best results. Keep the tool in position and prevent it from slipping away from the hole. Do not apply more pressure when the hole becomes clogged with chips or particles. Instead, run the tool at an idle, then remove the bit partially from the hole. By repeating this several times, the hole will be cleaned out and normal drilling may be resumed. CAUTION:

• There is a tremendous and sudden twisting force exerted on the tool/bit at the time of hole break- through, when the hole becomes clogged with chips and particles, or when striking reinforcing rods embedded in the concrete. Always use the side grip (auxiliary handle) and firmly hold the tool by both side grip and switch handle during operations. Failure to do so may result in the loss of control of the tool and potentially severe injury. NOTE:

• Eccentricity in the bit rotation may occur while operating the tool with no load. The tool automatically centers itself during operation. This does not affect the drilling precision. Blow-out bulb (optional accessory) (Fig. 16) After drilling the hole, use the blow-out bulb to clean the dust out of the hole. Drilling in wood or metal (Fig. 17 & 18) Use the optional drill chuck assembly. When installing it, refer to “Installing or removing the bit” described on the previous page. Set the action mode changing knob so that the pointer points to the m symbol. CAUTION:

• Never use “rotation with hammering” when the drill chuck assembly is installed on the tool. The drill chuck assembly may be damaged. Also, the drill chuck will come off when reversing the tool.

• Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool.

• There is a tremendous twisting force exerted on the tool/bit at the time of hole breakthrough. Hold the tool firmly and exert care when the bit begins to break through the workpiece.

• A stuck bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly.

• Always secure small workpieces in a vise or similar hold-down device. MAINTENANCE CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. Replacing carbon brushes (Fig. 19, 20 & 21) Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. Remove holder cap covers by inserting the slotted bit screwdriver into the recessed part in the tool and lifting it up. Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps. Remount the holder cap covers on the tool. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Dust extractor attachment

• Plastic carrying case

• Makita genuine battery and charger NOTE:

• Some items in the list may be included in the tool package as standard accessories. They may differ from country to country. ENG905-1 Noise The typical A-weighted noise level determined according to EN62841-2-6: Model DHR164 Sound pressure level (L

): 87 dB (A) Sound power level (L

): 86 dB (A) Sound power level (L

• The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.

• The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

• Wear ear protection.

• The noise emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). ENG900-1 Vibration The vibration total value (tri-axial vector sum) determined according to EN62841-2-6: Model DHR164 Work mode: hammer drilling into concrete Vibration emission (a h, HD ): 13.0 m/s

Model DHR165 Work mode: hammer drilling into concrete Vibration emission (a h, HD ): 12.2 m/s

• The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.

• The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

• The vibration emission during actual use of the power tool can differ from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
