Product Type	Portable hi-fi system with CD player, USB/SD, Bluetooth
Brand	Vonyx
Model	ST095
Mains power supply	100-240 V~, 50-53 Hz, 0.8-0.4 A
External DC power supply	12 V DC (observe polarity)
Built-in battery	Rechargeable lead-acid accumulator
Power consumption	0.8-0.4 A
Operating temperature	5°C to 35°C (indoor)
Fuse	T2A
UHF frequency (wireless microphone)	863.1 MHz
Supported audio formats	MP3, WMA
Audio inputs	2 x microphone (6.3 mm jack), 1 x aux (6.3 mm jack)
Audio outputs	RCA line out
Equalizer	Flat, Classic, Rock, Pop, Jazz, Bass
Microphone effects	Echo, Repeat, Speed
Controls	Volume, treble, bass, master buttons, IR remote control
CD player	Audio CD, mechanical ejection
USB/SD ports	USB type A, SD/MMC
Bluetooth	Yes, built-in
Wireless microphone	Yes, UHF (863.1 MHz)
Laser class	1 (CD safety)
Cleaning	Dry cloth, no chemicals
Authorized countries of use (UHF microphone)	BE, DK, FI, FR, DE, HU, IT, NL, NO, PL, PT, RO, SI, ES, SE, CH, GB

Frequently Asked Questions - ST095 Vonyx

How to charge the internal battery for the first time?

Before first use, charge the accumulator for at least 12 hours and at most 72 hours. Plug in the mains cord, the red indicator lights up. Once charged, the green indicator lights up.

Can the device be used while charging?

Yes, the device can operate while charging. For faster charging, turn off the device.

How to connect a device via Bluetooth?

Press the Mode button until Bluetooth mode is selected. Enable Bluetooth on your device and search for 'Vonyx ST095' or similar. Pair without a code.

What to do if the sound is distorted or absent?

Check the master volume and volume settings (microphone, aux). Make sure the source is selected correctly (CD/BT/USB/SD mode). Check the cables and power supply polarity.

How to adjust the echo effect on the microphone?

Turn the Echo knob to adjust the effect intensity. Use Repeat and Speed to set the repetition and speed of the effect.

The wireless microphone is not working, what to do?

Check that the device is on and the microphone is powered. Make sure the frequency (863.1 MHz) is allowed in your country. The LED indicator on the microphone should be lit.

Can I use the device outdoors?

No, the device is designed for indoor use only. Avoid humidity, rain, and temperatures outside the range 5°C to 35°C.

How to maintain the device?

Clean with a dry cloth. Do not use chemicals. Do not force the controls. Keep away from heat sources and metal/liquid objects.

What to do if the CD does not play?

Check that the CD is inserted correctly, printed side up. Make sure the disc is not scratched or dirty. Use a standard audio CD. If the problem persists, try another CD.

How to reset the device in case of a freeze?

Turn off the device with the main switch, unplug the mains cord for a few minutes, then plug back in and turn on. If the problem persists, contact a technician.

USER MANUAL ST095 Vonyx

Black and silver VONYX remote control case with black mesh backrest and metal frame (no visible text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

OPERATION

1. Volume control Microphone 1

2. Volume control Microphone 2

3. Volume control Aux

4. Treble control

5. Bass control

6. Master Volume control

7. RCA Line Input and output

8. Microphone 1 Input, 6.3mm Jack

9. Microphone 2 Input, 6.3mm Jack

10. Aux Input, 6.3mm Jack

11. Echo, effect for microphone

12. Repeat, effect for microphone

13. Speed, effect for microphone

14. Power Switch ON/OFF

15. Fuse holder, T2A

16. Power Input, 100-240Volt

17. Power LED Indicator

18. Battery LED Indicator, Low voltage and Charge

19. Wireless microphone LED Indicator

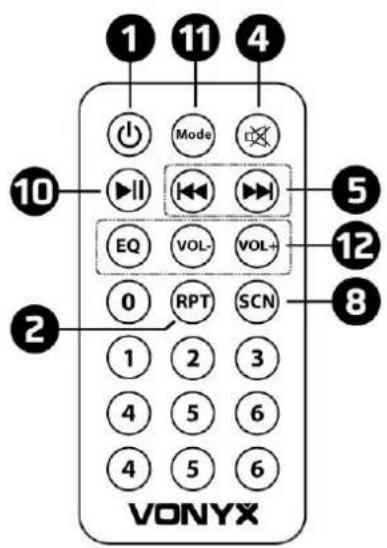

MEDIAPLAYER

1. Power - Press the button to turn the power on/off the player.

2. Repeat - Press the button to choose the repeat mode in between one or all.

3. Folder search - Press the button to select previous or next folder map.

4. Mute - Press the button to enable and disable between mute function.

5. Previous or next track - Press the button shortly to play the previous or next track. Press and hold to rewind back or fast forward the track and release the button to resume playing.

6. Program - Press the button to create playlist.

7. CD Eject - Press the button to eject or load your CD.

8. Shuffle/Enter - Press the button to change the play mode, songs are played in a randomized order.

9. IR - Infrared sensor for the remote control.

10. Play/Pause - Press the button to toggle between play and pause function.

11. Mode - Press the button to switch between CD/ BT / USB / SD card mode.

12. Volume/Setup - Turn the knob anti-clockwise to reduce the volume. Turn the knob clockwise to increase the volume. Press the knob to select standard equalizer setting Flat, Class, Rock, Pop, Jazz or Bass.

13. CD-Slot - Put the CD to this slot to play music.

14. USB-Slot - Connect your USB devices to this slot to play music with MP3 or WMA format.

15. SD/MMC-Slot - Connect your SD/MMC devices to this slot to play music with MP3 or WMA format.

OPERATION INSTRUCTIONS

External AC

Plug one end of the AC cord provided into the AC input jack (1) on rear side of the amplifier. Then plug the other end of AC cord into AC power outlet. Turn on the unit using the main power switch.

External DC

This unit can be powered also using external 12V DC power. Connect external 12V DC power to DC input connector on rear side of the amplifier. Observe the correct polarity!

Rechargeable Battery

This unit can be powered internally using the built-in rechargeable battery. When AC power is connected, CHARGE LED indicator will light red. The rechargeable battery is being charged. If FULL LED indicator light green, the battery is fully charged and ready to power the unit alone.

Shut off the power switch and disconnect the AC power. Turn the unit back "ON" and the rechargeable battery will power the unit alone.

Note: Turning off the unit power switch will allow the battery to be charged more quickly.

ATTENTION:

Before the device the first time is actuated, please charge the battery at least 12 hours and max. 72 hours!

Battery should be regularly charged. For optimal battery life the battery should be charged at least 1x per month.

Please note that if you do not load within 6 weeks, the battery becomes defective !!

Warning!

This device is equipped with a class 1 laser diode. To ensure a safe operation do not remove any covers or attempt to access the inside of the product. There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers.

No license required
(excluding geographical restrictions)

BE	DK	F	FI	DE
HU	IT	NL	NO	PL
PT	RO	SI	ES	SE
CH	GB

Belgium (BE), Denmark (DK), France (F), Finland (FI), Germany (DE), Hungary (HU), Italy (IT), Netherlands (NL), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Spain (ES), Sweden (SE), Switzerland (CH), Great Britain (GB)

NEDERLANDS

INSTRUCTIONS FONCTIONNEMENT

Alimentation AC externe

Batterie rechargeable

Output power: 250Watt

Battery: 12V / 4.5Ah

Frequency response: 20Hz – 20.000Hz

THD: <0.01%

Diameter woofer: 8"

Frequency mic.: 863.1MHz

Dimensions: 310 x 290 x 585mm

Weight: 13.5kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2022 by TRONIOS the Netherlands
