Product type	Portable hi-fi system with multimedia player
Brand	Vonyx
Model	ROCK300
Mains power	220-240 V AC / 50 Hz, fuse 10-16 A
Battery power	Built-in lead-acid battery, recharge every 3 months if not in use
Audio inputs	AUX 3.5 mm, microphone 6.3 mm, guitar 6.3 mm, USB (MP3 playback)
Wireless connectivity	Bluetooth (range approx. 10 m)
Playback functions	USB, Bluetooth, AUX, repeat modes, EQ (indoor/outdoor)
Audio controls	Master volume, guitar volume, mic volume, bass, treble, mic reverb, mic echo
Voice effects	4 voice change effects (Crack)
Microphone priority function	Yes, activatable via dedicated button
Stereo pairing	Ability to pair two ROCK300 speakers for stereo sound
Remote control included	Yes, with buttons: mode, stop, mute, volume, tracks, repeat, EQ, numeric keypad
Display	LCD
Ventilation	Do not block ventilation slots
Operating temperature	5 °C to 35 °C
Care and cleaning	Clean with a dry cloth, without chemicals
Repairability	Repairs by specialized technician only, use original parts
Safety	Do not open the casing, do not expose to moisture, unplug during storms
Included accessories	Mains adapter, remote control (as per manual)

Frequently Asked Questions - ROCK300 Vonyx

How to connect my phone via Bluetooth?

Activate Bluetooth on your phone. On the speaker, press the MODE button to switch to Bluetooth mode. Select "VONYX" from the list of available devices. The range is about 10 meters without obstacles.

Can I pair two ROCK300 speakers for stereo sound?

Yes, turn on both speakers and set them to Bluetooth mode. Press and hold the MODE button on one until an audible confirmation. One will display "Blue" (master), the other "SLA" (slave). Connect your phone to the speaker showing "Blue". The speakers will automatically reconnect if both are in Bluetooth mode.

How to play music via a USB stick?

Insert your USB stick into the USB port. Press the MODE button to select USB mode. Use the PREVIOUS/NEXT buttons to change tracks and PLAY/PAUSE to control playback. The stick must contain MP3 files.

How to adjust microphone echo and reverb?

Use the M-REVERB (reverb) and M-ECHO (echo) knobs on the panel. Rotate them to adjust the effect to your preference.

How to activate microphone priority?

Press the MIC PRIORITY button on the panel. When this function is active, the mic cuts the current music when you speak.

What to do if the speaker does not turn on?

Check that the mains adapter is properly connected and the socket works. Make sure the fuse has not blown. If the device runs on battery, check that the battery is charged. If the problem persists, contact a specialized technician.

Can I use the speaker outdoors?

The device is designed for indoor use only. Do not expose it to rain or moisture. Use the outdoor mode (SOUND MODE) to adapt the sound, but the device must remain sheltered.

How to clean the speaker?

Use a dry, soft cloth. Do not use chemicals or aerosols that could damage the finish or switches.

What do the symbols on the device mean?

The lightning bolt in a triangle indicates dangerous voltage inside. The exclamation mark in a triangle signals important instructions to follow. Respect these instructions to avoid any risk of electrocution.

How to save the battery during prolonged non-use?

If the speaker contains a lead-acid battery, recharge it every 3 months even if you do not use it. This prevents permanent battery damage.

USER MANUAL ROCK300 Vonyx

Black and orange VONYX portable electronic device with mesh grille and control buttons (no visible text or symbols on body)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

- Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.

- The product contains voltage carrying parts. Therefore, do NOT open the housing.

- Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.

- Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.

- The product is not suitable for continuous use.

- Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.

- When unplugging the product from a mains outlet, always pull the plug, never the lead.

- Do not plug or unplug the product with wet hands.

- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.

- If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.

- To avoid fire and shock hazard, do not expose the product to rain and moisture.

- All repairs should be carried out by a qualified technician only.

- Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.

- During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.

- If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

- To prevent accidents in companies, you must follow the applicable guidelines and follow the instructions.

- Do not repeatedly switch the product on and off. This shortens the lifetime.

- Keep the product out of the reach of children. Do not leave the product unattended.

- Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.

- Do not force the controls.

- If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.

- If this product has a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.

- If the battery is damaged, please replace with same specifications battery. And dispose the damaged battery environment friendly.

- If the product has fallen, always have it checked by a qualified technician before you switch the product on again.

- Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.

- Keep away from electronic equipment that may cause interference.

- Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.

- Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.

- Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!

- The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.

- Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

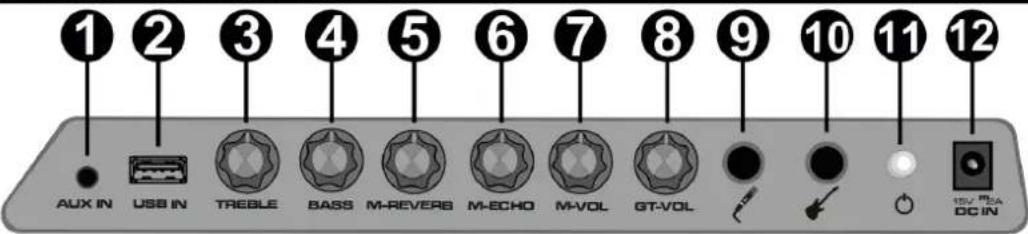

CONTROLS AND CONNECTIONS

1. AUX INPUT

3.5mm auxiliary line input jack.

1. USB PORT

Connect your USB drive to this slot to play music with MP3-format in USB mode.

1. TREBLE

Turn to adjust the high tones (range between -10dB to +10dB).

1. BASS

Turn to adjust the low tones (range between -10dB to +10dB).

1. M-REVERB

Turn to adjust the microphone reverb effect.

1. M-ECHO

Turn to adjust the microphone echo effect.

1. M-VOL

Adjust the microphone volume.

1. GT-VOL

Adjust the guitar volume.

1. MIC JACK

6.3mm microphone jack.

1. GUITAR JACK

6.3mm guitar jack.

1. POWER ON/OFF

Power switch.

1. DC POWER INPUT

Connector for inserting the supplied power adapter.

MEDIA PLAYER

1. MODE

Press to switch between USB and BT modes.

1. PREVIOUS

Press to play the previous track.

1. REPEAT MODES

Press to cycle between different repeat modes.

1. MIC PRIORITY

Press to toggle microphone priority mode on/off.

1. NEXT

Press to play the next track.

1. PLAY/PAUSE

Press to play/pause USB or BT media.

1. SOUND MODE

Switch to toggle sound mode between indoor- and outdoor mode.

1. CRACK

Press to toggle between 4 different voice changing effects.

1. LCD DISPLAY

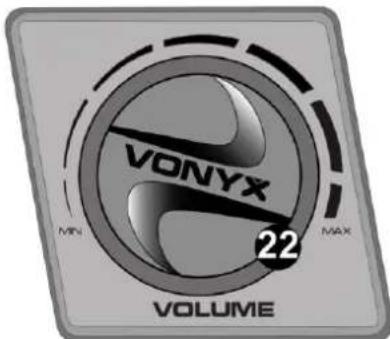

2. VOLUME CONTROL

Turn to adjust the master volume.

REMOTE

1. STAND-BY

Use this button to put the unit into or out of standby mode.

2. MODE

Press to switch between playback modes.

3. STOP

Press to stop playback.

4. MUTE

Press to mute the device.

5. VOLUME +

Press to increase the volume.

6. PREVIOUS

Press to change to the previous track.

7. PLAY/PAUSE

Press this button to start/resume or pause play.

8. NEXT

Press to change to the next track.

9. VOLUME -

Press to decrease the volume.

10. REPEAT

Press to change repeat modes.

11. EQ

Switch to toggle sound mode between indoor- and outdoor mode.

12. NUM PAD

Numeric keyboard.

BT CONNECTION

1. Activate the BT on your device (Mobile phone, tablet etc.) which you want to play the music. See the operating instructions for that device.

2. Press the "MODE" button and activate the BT-function.

3. Select "VONYX" on your BT device and pair.

Attention: BT distance is approx. 10meter without any barrier.

STEREO PAIRING

When having two Rock300 portable systems, it's possible to initiate a link (pairing) between the two. Both portable systems will be emitting the same signal from the streaming audio function. To set up this stereo pairing, please follow the below steps:

1. Turn on the power on both Rock300 portable systems.
2. Change the operating mode to BT streaming on both Rock300 portable systems.
3. Press and hold the mode button on one of the Rock300 portable systems.
4. A sound will be emitted to confirm the pairing, one portable system will show "Blue" (main device), another will show "SLA" (slave device).
5. Connect your portable device with "VONYX", the portable device will connect with the portable system showing "Blue".

When repairing after shutdown or power down of both portable systems, the pairing will be "remembered". When setting both portable systems to BT streaming mode, they will automatically pair after about 5 seconds.

NEDERLANDS

AFSTANDBEDIENING

1. STAND-BY

FERNBEDIENUNG

1. STAND-BY

CONTROL REMOTO

1. STAND-BY

TÉLÉCOMMANDE

1. STAND-BY

ZDALNE STEROWANIE

1. STAND-BY

1. Activate the BT on your device (Mobile phone, tablet etc.) which you want to play the music.
   See the operating instructions for that device.
2. Press the "MODE" button and activate the BT-function.
3. Select "VONYX" on your BT device and pair.

Attention: BT distance is approx. 10meter without any barrier.

PAROWANIE STEREO

Output power MAX: 180W

Battery: 12V-5Ah

Frequency response: 30Hz-19KHz

Tweeter type: High Compression Driver

Diameter woofer: 8"

Magnet type: Ferrite

Magnet weight: 20 oz

Input connections: 3.5mm Jack, 6.3mm Jack, USB

Power supply: 100-240VAC 50/60Hz (15V adapter)

Dimensions (L x W x H) : 295 x 400 x 345mm

Weight: 7.25kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.
