USER MANUAL ADV2S AYA

SATEFY INSTRUCTIONS -1-

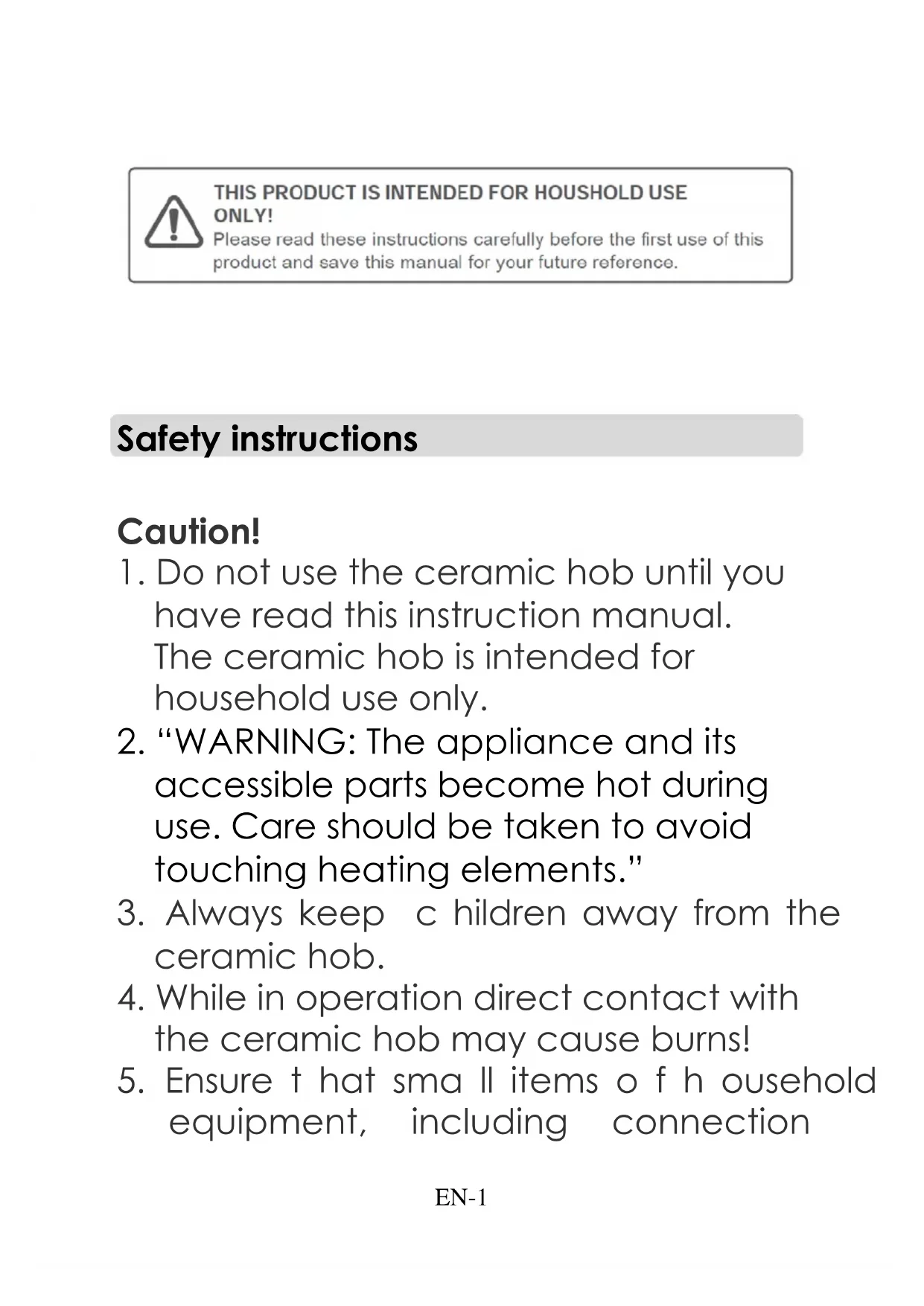

1. Do not use the ceramic hob until you

have read this instruction manual. The ceramic hob is intended for household use only.

2. “WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching heating elements.”

3. Always keep c hildren away from the

4. While in operation direct contact with

the ceramic hob may cause burns!

5. Ensure t hat sma ll items o f h ousehold

equipment, including connectionEN-2 leads, do n ot t ouch the h ob a s t he insulation m aterial o f t his e quipment is u sually n ot r esistant to h igh temperatures.

6. Do not switch on the hob until a pan

has been placed on it.

7. Do not put pans weighing over 25kg

8. Do n ot us e t he c eramic h ob in t he

event of a technical fault. Any faults must b e f ixed b y a n a ppropriately qualified and authorized person.

9. ln the event of any incident caused

by a t echnical fault, d isconnect the power a nd r eport th e f ault to th e service centre to be repaired.

10. The rules and provisions contained in

this i nstruction m anual sh ould b e strictly o bserved. Do n ot al low anybody who is not familiar with the contents of this instruction manual to operate the ceramic hob.

11. The ceramic hob should not be

cleaned using steam cleaningEN-3 equipment. IMPORTANT: The adjacent furniture or housing and all materials used in the installation must be able to withstand a minimum temperature of 85°C above the ambient temperature of the room it is located in, whilst in use. Any damage can be caused by the appliance being installed in contravention of this temperature limit, or by placing adjacent cabinet materials closer than 4mm to the appliance. This appliance complies with all current European safety legislation. We do wish to emphasize that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.EN-4 Child Safety

We strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.

Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reducedEN-5 physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not

store items on the cooking surfaces. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. Do not allow electrical fittings or cables to come into contact with areas on the appliance that get hot. Do not use the appliance to heat the room it is located in or to dry clothing.EN-6 Do not install the appliance next to curtains or soft furnishings. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The appliance is not intended to be operated by means of an external timer or separate remote-control system.

WARNING: Use only hob guards

designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accident.

WARNING: Unattended cooking on a

hob with fat or oil can be dangerous and may result in fire. CAUTION: The cooking process has to be supervised. A short term cookingEN-7

process has to be supervised continuously.

WARNING: If the surface is cracked,

switch off the appliance to avoid the possibility of electric shock. The fixed wiring for applicant shall have an all-pole disconnection device

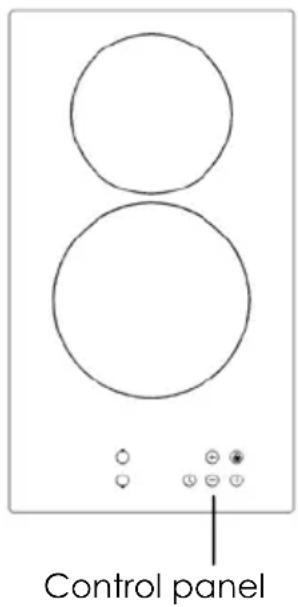

Control panel layout

3. Cooking zone indicator of NO.1

4. Cooking zone indicator of NO.2

control, multi-ring sign and High temperature warning sign (“ ”) of the cooking zone.

2) Two digits digital tube ：Display the corresponding parameters of the

time and child safety lock sign.EN-9

Installing the ceramic hob The kitchen area should be dry and aired and equipped with efficient ventilation. When installing the ceramic, easy access to all control elements should be ensured. This is a Y-type design built-in ceramic, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall .Coating or veneer used on fitted furniture must be applied with a heat-resistant adhesive (100℃).This prevents surface deformation or detachment the coating. Hoods should be installed according to the manufacturer’s instructions. Assembly of ceramic hob : Put a towel or cloth on the work surface.Place the hob face down on the protected surface.

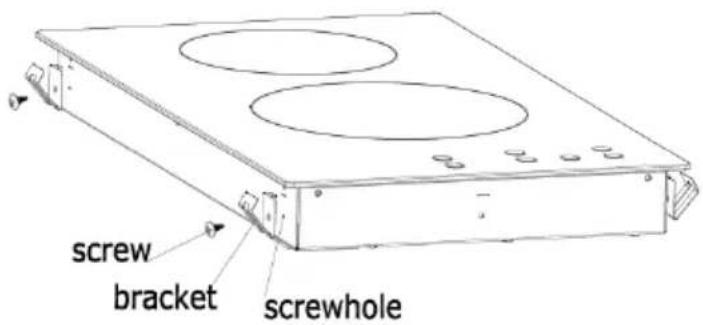

Apply the strip seal, supplied with the hob, which is for sealing it onto the work surface. Do not use silicone. Apply the seal to the edge of the bottom of the hob, leaving about 3mm from the edge of the glass. Apply the seal all around the circumference. Cut any excess and bring the two ends of the seal together so they match. Make an opening with the dimensions given in the diagram for the hob to be mounted on the worktop． Check seal for perfect fit and overall cover. Lower the electric hob into place and align correctly. Using a standard screwdriver, tighten the tension clamps evenly starting at the centre and moving diagonal, until the built-in rim is tight on the worktop.EN-10

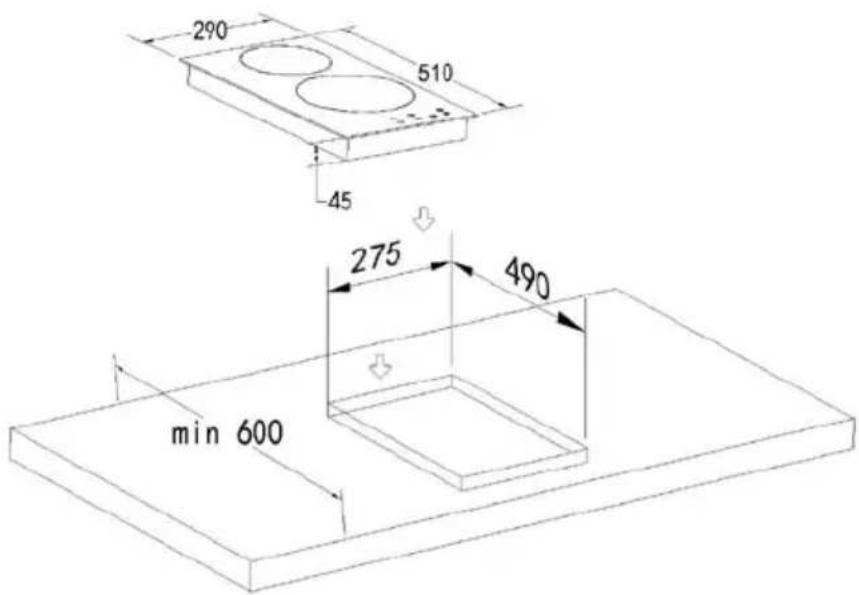

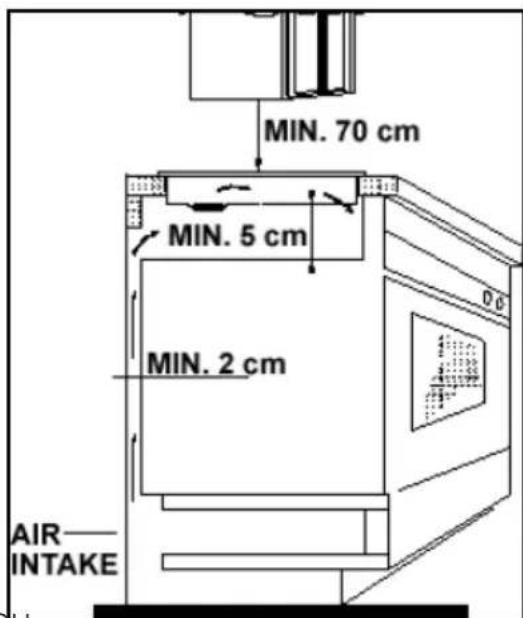

Cut a hole in the worktop that corresponds with the drawing shown above . IMPORTANT: Y ou mu st o bserve t he v entilation r equirements s hown i n t he drawing opposite. IMPORTANT: There are ventilation holes around the outside of the hob. YOU MUST ensure that these holes are not blocked by the work top, when you put the hob into position (see drawing opposite). IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the hob from the aperture in future, particularly if it needs to be serviced Carefully turn the hob back over and then gently lower it into the aperture hole that you have cut out. There are holes on the base or the sides of the hob that you can fix the four brackets to. You should place the bracket on the underneath of the hob, in a position that is a ppropriate f or t he a perture that you have cut out. Using the screws provided, fix the bracket to the hob. These screws MUST be securely tightened.EN-11

Replacing the mains supply cable If the mains supply cable is damaged, then i t must be replaced by an appropriate replacement. The mains s upply c able s hould be replaced in accordance with the following instructions: Switch the appliance off at the control switch. Open t he t erminal b lock o n t he underside of the hob. Unscrew the terminal screws fixing the cable. The “ green-yellow” e arth wi re m ust b e connected t o the terminal marked

It must be about 10 mm longer than the live and neutral wires. The “ blue” neutral w ire m ust b e connected t o t he terminal marked w ith letter ( N) - the live wire must be connected to the terminal marked with letter (L).EN-12

Before first use IMPORTANT: You sh ould c lean t he c eramic h ob su rface (see “Cleaning and maintenance” section). You should switch on one cooking z one a t a time, for 5 minutes a t the maximum s etting. This w ill help t o e liminate a ny n ew s mell t hat e xists a nd evaporate a ny h umidity t hat h as f ormed o n the h eating e lements du ring transit. Do not burn off more than one zone at once. You must place a saucepan filled half full with cold water on each zone as you burn it off.

After switch on the appliance, the hob will beep for once to remind power on,all of the indicator digital tubes on the display screen will lit on for 2s, then the appliance goes into shutdown mode. Shutdown status: All the display will close except the high temperature warning s ymbol “ ”; At t his t ime, o nly t he p ower b utton “ ” c an operated b y pressing and h olding, a nd other button o perations a re invalid.

Standby mode Under shutdown status, press and hold “ ” button for 3s, the hob will beep for once and then enter standby mode. All the indicator digital tubes of the c ooking zone will display “ ”(The symbol “ ” w ill s how i n t he cooking z one indicator if t here is r esidual heat), timer place will show “ ” as well, it will not heat at this time.EN-13 Under standby mode, if no any cooking zone heating operation, the appliance w ill g o i nto s hutdown s tatus a utomatically a fter 1 0s a nd beep once.

Under standby mode, you can choose the cooking z one by pressing the c ooking z one se lect b utton, t hen p ress plus o r m inus b utton o r to adjust the power level of the corresponding c ooking z one. Press and hold plus “ ” or minus “ ” buttons can continuously to increase or decrease the power level. When the h ob t op i s i n heating st atus, p ress a nd h old “ ” power button for 3s to switch off, and stop all the cooking zones to heat. The corresponding cooking zone indicator of the hob top which has heated before will display high temperature warning symbol “ ”. Under st andby mode, i f some h ob t ops still e xist r esidual h eat, d isplay will show “

If needing to switch off one of the cooking zones, you can select that zone f irst, then p ress t he m inus b utton “ ” until “0” power l evel to switch o ff that z one, a nd w ill n ot affect the h eating o f t he o ther cooking z ones. When p ower l evel reaches “0”, t he corresponding cooking z one i ndicator of t he h ob t op which h as h eated b efore w ill display high temperature warning symbol “

If m ore t han o ne z one is operating at the same time, t otal power w ill equal to the sum of the powers of all the working cooking zones, each cooking zone will work according to their power modulation ratio, and will not affect each other. Note: 1. During the same period,only one hob top button is valid,that is only one decimal point “ ” can be displayed.

Power level adjustment

Under the standby mode, press cooking zone select button to choose the c orresponding cooking z one, c orresponding cooking zone d igital tube decimal point “ ” and heating level will display. You can press the plus “ ”and minus “ ” buttons to adjust suitable power level. By holding down either of these buttons, the value on the zone indicator will adjust up or down. Each pressing “ ” button, power level will a dd o ne, u ntil l evel 9, a nd di splayed o n its corresponding di gital tube. Each pressing “ ” button, power level will reduce one, until level 0(Each pressing o f “+” o r “ -” b utton, a s hort a udible s ignal w ill b e heard).Keep pressing “ ”, “ ” buttons will make continuously increasing or decreasing effect. Upon c ompletion o f p ower l evel a djustment, t he d ecimal p oint “ ”of digital tube will stop flashing and normally display the power level within 10 seconds of no operation. When switching any of the cooking zone power level to 0, it will stop the power output of that cooking zone. If a cooking zone has been heated,power level of all the cooking zone are “0”, the appliance will automatically enter into shutdown status after 1 minute no operation.

Your hob can auto-heating following the below steps:

6.1 Turn on automatic heating :Press plus or mimus button to set the power to

level 9,then touch plus button “ ” to let the power level alternately display “ ” and “ ”.At this time, press minus button“ ” to adjust the auto-heating level you need, such as level 6. In this automatic heating process, the corresponding power level indicating digital tube is alternately display “ ” and “ ”. Alternate display time is 2.5 minutes.EN-15

6.2 Press plus button to set the power to level 9, then touch plus button “ ”

to let the power level alternately display “ ” and “ ”.At this point, the default timing has started.For example, after “ ” and “ ”alternately display for 10 seconds ,press the“ ” to adjust the power level to level 6. The icons “ ” and “ ” will display for 2 minutes and 20 seconds.After 2 minutes and 20 seconds, the hob will turn to normal heating mode , corresponding power level indicating digital tube will display “

When setting the automatic heating function, the corresponding cooking zone will be heated in level 9 for a period of time (heating time depends on the subsequent reduction to several levels, the heating time of each level is as follows) , then continue working in the final adjusted heating level. For example, set the heating level to 9th level and activate the automatic heating function by pressing the “ ” key (alternately display “ ” “ ”).Then set the automatic heating function level to level 6 by minus button “ ”. In this setting, the cooking zone is heated by level 9 for 2.5 minutes. The cooking zone indicating digital tube is alternately display “ ” and “ ”. Then continue heating at level 6, the digital tube will display “ ”.

6.3 The power level and time corresponding tables of auto-heating are as

6.4 Automatic heating level adjustment : When entering automatic heating

mode ,only if auto-heating at max power within 30s,press minus button“ ” can reduce the power. After more than 30 seconds, pressing the minus button“ ”can not reduce the automatic heating level, it will exit the auto- heating mode. After more than 30 seconds, as long as it is still in the automatic heating mode and the automatic heating level is less than 9th level, press the plus button“ ” to increase the automatic heating level, and the system continues to be in the automatic heating mode.EN-16 For example, after entering the automatic heating mode, within 30 seconds touch minus button “ ” to adjust auto-heating level to level 8. The indicating digital tube will display “ ” and “ ”. And then reduce to level 7, the indicating digital tube will display “ ” and “ ”. At this moment,the hob is still in the automatic heating mode. When more than 30 seconds, the level 7 can not be reduced to level 6, the automatic heating mode can be exited, and the hob change to normal heating mode, the indicating digital tube will display “ ”.

6.5 When changing the automatic heating level, the elapsed time will be

automatically calculated into the time corresponding to the new automatic heating level. For example, you have selected the automatic heating level to be level 1 (1 minute), and after 30 seconds you change the level to level 4 (6.5 minutes). This automatic heating function will run accurately for 6 minutes (6.5 minutes minus 30 seconds).

6.6 Within 30 seconds of automatic heating mode operation, press the minus

button “ ” to adjust to a certain level, then the running time is counted in the set level time. For example, when the indicating digital tube “ ” and “ ” is alternately displayed and has been running for 20 seconds. Press the minus button “ ” to adjust to 6th level, then the 20 seconds that have been run will be automatically counted in the 2.5 minutes of the 6th level, while the 6th level will continue to run for 2.5 minutes minus 20 seconds, that is 2 minutes and 10 seconds. Then turn back to normal heating mode.

After selecting the corresponding power of the cooking zone, press the time button“ ”, the timer digital tube will display “00” and the decimal point on the right will display “

At this time, the timing mode is entered, and the timing time of the selected burner can be set; (The following operations are required in In timing mode) If you set the timing of two hobs at the same time, the timing remaining time will be displayed alternately.EN-17

If you want to cancel the timing, you can adjust the timing time to zero. The first time you press the plus button“ ”, the timing starts from 1 minute, after which you can press the plus or minus button to adjust the timing time. Press the plus button“ ” for each time, the buzzer will beep once, and the heating time will be increased by 1 minute. The timing will be continuously changed between 1-99minutes . The maximum adjustment to 99 minutes; Press the minus button “ ” for each time, the buzzer will beep once, and the timing will be reduced by 1 minute. After the timer countdown is 0, the buzzer will continue to sound for 2 minutes, and you can press any button to turn off the beep.

Under standby mode or heating mode, long press “ ” button for 3s, a short audible signal will be heard,the appliance will go into power off mode. If the corresponding cooking zone surface has residual heat at this time, the digital tube of power level indicator will flash display “ ”,and indicate residual heat warning.

The control panel can be locked by pressing and holding the child safety lock button“ ” for 3 seconds whilst the appliance is under standby status or heating status.The safety lock icon will display.When the appliance switch off the safety lock icon will extinguish. Under the child safety lock mode, the “ ” will display and flash(1s/time).If the cooking zone has set the time,the digital tube willEN-18 display the time and “ ” alternately. If not, it will display “ ” and

Under the child safety lock mode, you can unlock it by pressing and holding the child lock button “ ” for about 3 seconds. In the child safety lock mode, except for pressing and holding the power button to turn off, as well as press and hold the child lock button to unlock, the other buttons are invalid.

All the cooking zones have default timing function. The relationship of default timing and power level refers to table below: Power Level 1 2 3 4 5 6-9 Default timing(h) 6h 6h 5h 5h 4h 1.5h When all the default timing is reached, the cooking zones will switch off automatically and enter into standby mode.

High temperature warning

Press a nd h old p ower b utton “ ” m anually fo r 3s t ill s witch o ff, t he whole appliance will stop heating, but the cooking surface still has high temperature, the indicator digital tube of corresponding cooking zone which stop heating will show residual heat warning symbol “ ”, to indicate corresponding cooking surface high temperature. As long as the cooking zone has heated before, the high temperature warning symbol “ ” will display for 35 minutes continually after the hob turn off.EN-19

High temperature protection: The electronic temperature sensor on the control panel will transmit the real-time temperature to the chip of the control panel. The control sensor starts p rotection when the electronic temperature s ensor g auge t he cu rrent t emperature i s h igher t han a certain value, to reduce the heating level of the cooking zone currently, and resumes the heating level after the temperature drops. Residual heat protection: When the whole appliance stops heating, the digital tube o f the relative heating zone will display high temperature warning symbol “ ”, indicating that cooking surface temperature is too high, please do not touch to avoid getting burned.

PCB board fault codes and solutions

When a PC B b oard f ailure o ccurs, t he t imer di gital t ubes o n t he di splay panel always display the fault code, and all the burners that are being heated stop heating, and automatically return to the shutdown state after 1 minute. For t he b urners t hat h ave b een worked, the c orresponding digital tube continues to display the high temperature warning sign " ". When the fault c ode a ppears, please r efer t o t he s cheme i n t he f ollowing t able t o solve. Fault code Type of fault Solution

The display board does not receive the signal of power supply board. The communication line failure of power supply board or display board can cause communication anomalies. Replace the display board first. If the fault persists, replace the power supply board. E2 The power supply board does not receive the signal of display board.EN-20

Power supply board relay failure Replace the power supply board. E4 1.Open circuit of the display board NTC. 2.short circuit of the display board NTC. Replace the display board E5 High temperature protection on the display board NTC. Replace the Insulated silicone strip of circuit panel first. If the fault persists, replace the display board .

The first few times the hob top is used, it may give off an acrid, burning smell. This smell will disappear completely with repeated use. The worktop is fitted with cooking areas of different diameter and power. The positions where the heat will radiate from are clearly marked on the hob top. The saucepans must be positioned exactly on these zones for efficient heating to occur. Pans should have the same diameter as the cooking zone that they are being used on. You should not use saucepans with rough bottoms, as this can scratch the ceramic surface. Before use, make sure that the bottoms of the saucepans are clean and dry. When c old, t he b ottom o f t he p ans sh ould b e sl ightly c oncave, a s t hey expand when hot and lie flat on the surface of the hob. This will allow the heat to transfer more easily. The best thickness for the bottom of the pans is 2 – 3 mm of enameled steel and 4 – 6 mm for stainless steel with sandwich type bottoms.EN-21

If these r ules a re no t f ollowed, t hen t here w ill b e a g reat l oss o f heat a nd energy. Heat not absorbed by the saucepan, will spread to the hob, frame and surrounding cabinets. Preferably cover pans with a lid to permit cooking at a lower heat. Always c ook v egetables and potatoes, e tc. i n a s l ittle w ater t o r educe cooking times. Food o r l iquid t hat h as h igh s ugar c ontent m ay damage t he h ob t op i f i t comes into contact with the c eramic hob surface. Any spillages should be wiped up immediately, however this may not prevent the hob surface from becoming damaged. IMPORTANT: The ceramic hob surface is tough; however it is not unbreakable and can be damaged. Especially if pointed or hard objects are allowed to fall on it with some force. DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD SWITCH OFF T HE APPLIANCE TO AVOID THE POSSIBILITY OF ELEC TRIC SHOCK AND CONTACT THE BAUMATIC CUSTOMER CARE DEPARTMENT IMMEDIATELY.

CLEANING AND MAINTENANCE

Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process.EN-22 Cleaning the ceramic hob top

Any residues that are left on the hob top surface from cleaning agents will damage it. You should remove any residues with warm water mixed with a little washing up liquid. Abrasive cleaners or sharp objects will damage the hob surface; you should clean it using warm water mixed with a little washing up liquid. You may find it easier to clean some deposits whilst the hob surface is still warm. However you should take care not to burn yourself if cleaning the hob surface when it is still warm. After each use Wipe the appliance over with a damp cloth. Dry the appliance by rubbing the surface with a clean cloth.

Type of deposit Remove immediately? Remove when the appliance has cooled down? What should I use to remove the deposit? Sugar or food/liquid containing sugar Yes No Ceramic hob scraper Tin foil or plastic Yes

Ceramic hob scraper Fat splashes

Yes Ceramic hob cleaner Metallic discolouration No Yes Ceramic hob cleaner Water splashes or water rings

Yes Ceramic hob cleanerEN-23

Important! The inside of the hob should only be washed with warm water and a small amount of washing-up liquid. Caution! Ensure the heating plate is clean-a soiled zone does not transfer all of the heat. Protect the hob against corrosion. Switch off the hob against corrosion. Do not leave pans with prepared dishes based on fats and oils unattended on the switched-on plate; hot fat can spontaneously catch fire. IMPORTANT: If your appliance appears not to be operating correctly, Please contact with dealer. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge. The appliance must be accessible for the engineer to perform any necessary repair. If your appliance is installed in such a way that an engineer is concerned that damage will be caused to the appliance or your kitchen, then he will not complete a repair.

Rated Voltage: 220 – 240 V~, 50 - 60 Hz Supply Connection: 16 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 3.0 kW

Energy informationEN-24 Information for domestic electric hobs Table-Information for domestic electric hobs

Symbol Value Unit Model identification

Number of cooking zones and/or areas

Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates) - Radiant - For circular cooking zones or area:diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5mm

rear zone:16,5 For non-circular cooking zones or areas:length and width of useful surface area per electric heated cooking zone or area,rounded to the nearest 5mm

Energy consumption per cooking zone or area calcuated per kg ECelectric cooking front zone:180,4 Wh/kg rear zone:185,2 Energy consumption for the hob calculated per kg ECelectric hob 182,8 Wh/kg The measurement and calculation method of the above table was done in accordance with commission regulation(EU) No 65/2014 & 66/2014. The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process. (1).Use suitable size of pan for cooking. (2).Cover the pan with lid if possible during cooking. (3).Choose pan which has better retaining heat capacity.EN-25 (4).If possible, defrost frozen food in a way which does not need any power consumption. (5).It takes less time to cook food which has large surface area to volume ratio.

Information for dismantling Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice, This appliance is marked according to the European directive 2012/19/EU on Waste electrical and Electronic Equipment (WEEE).By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health ,which could otherwise be caused by inappropriate waste handling of this product.Tous les papiers se trient et se recyclent BUT INTERNATIONAL 1 Avenue Spinoza 77184 Emerainville, France
