SC EWM 9 - Waffle Maker Efbe-Schott - Free user manual and instructions

Product type	Waffle maker
Brand	Efbe-Schott
Model	SC EWM 9
Category	Waffle maker for bubble waffles
Power	1000 W (estimated)
Input voltage	220-240 V ~ 50-60 Hz (European standard)
Plate material	Non-stick coating
Indicator lights	Power indicator (red) and temperature indicator (green)
Thermostat	Automatic temperature control
Number of waffles	1 at a time
Cooking time	Approximately 3 to 6 minutes
Dimensions (L x W x H)	Approximately 25 x 20 x 10 cm (estimated)
Weight	Approximately 1.5 kg (estimated)
Cleaning	Damp cloth; do not immerse or use abrasive sponge
Recommended accessories	Wooden or heat-resistant plastic spatula
Usage	Household use only
Precautions	Unplug after use; do not touch hot surfaces; keep out of reach of children under 8 years
Storage	In vertical position to save space
After-sales service	Qualified competent service (see warranty card)

Frequently Asked Questions - SC EWM 9 Efbe-Schott

How to use the SC EWM 9 waffle maker for the first time?

Remove the packaging, clean the plates with a damp cloth and lightly grease them. Plug in the appliance, the red and green indicators light up. Preheat for 10 minutes to eliminate odors. Pour the batter, close and let cook for 3 to 6 minutes depending on desired doneness.

What to do if the green indicator light flashes or turns off?

This is normal: the thermostat regulates the temperature. The green light turns off when the temperature is reached and turns back on when it drops. Continue using normally.

How much batter should I put in the waffle maker?

Use a measuring cup or spoon to spread the batter on the lower plate, without overfilling to avoid overflow. The ideal amount depends on the recipe, but generally 50 to 80 ml is sufficient.

Can I use metal utensils on the plates?

No, never use metal, sharp or abrasive objects as they would damage the non-stick coating. Use a wooden or heat-resistant plastic spatula instead.

How to clean the waffle maker after use?

Unplug the appliance and let it cool completely. Wipe the exterior with a damp cloth. Clean the plates with a soft cloth or paper towel. Never immerse the appliance in water and do not use abrasive sponges.

Can I cook other foods besides waffles?

The appliance is designed for cooking waffle batter. It is not recommended to cook other foods, as the coating and specific shape may not be suitable.

What to do if a waffle sticks to the plates?

Make sure to grease the plates with butter, margarine or oil before each use. Use a wooden spatula to gently loosen the waffle. If the problem persists, check the condition of the non-stick coating.

Can the waffle maker be used by children?

Yes, from 8 years old under adult supervision. Children must not play with the appliance. Cleaning and maintenance should only be done by children if they are over 8 and supervised.

How to store the waffle maker after use?

Let it cool completely, clean it and store it in vertical position to save space. Make sure the cord is not wrapped around the appliance.

Where can I find suitable recipes?

The manual provides a basic batter recipe and variations (blueberry, muesli, ham-cheese). You can also consult recipe books or specialized websites for bubble waffles.

USER MANUAL SC EWM 9 Efbe-Schott

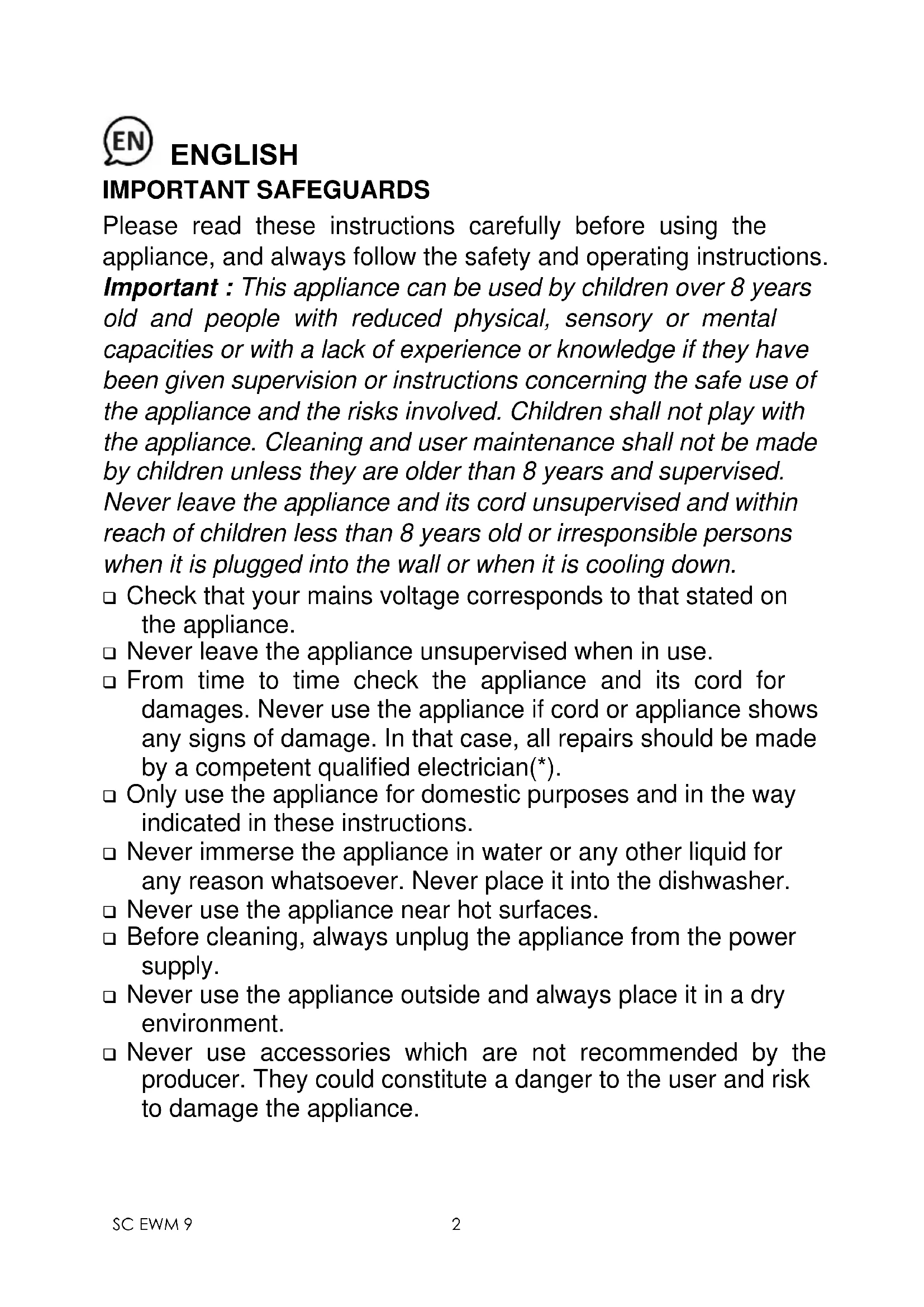

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important : This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons when it is plugged into the wall or when it is cooling down.

☐ Check that your mains voltage corresponds to that stated on the appliance.

□ Never leave the appliance unsupervised when in use.

From time to time check the appliance and its cord for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, all repairs should be made by a competent qualified electrician(*).

☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.

□ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

□ Never use the appliance near hot surfaces.

Before cleaning, always unplug the appliance from the power supply.

□ Never use the appliance outside and always place it in a dry environment.

□ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

□ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

☐ Stand the appliance on a table or flat surface.

☐ Make sure the appliance has cooled down before cleaning and storing it.

☐ Make sure the cord never comes into contact with the hot parts of the appliance.

☐ The temperature of the accessible surfaces may be very high when the appliance is in use. Make sure not to touch these hot parts of the appliance.

☐ Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc. when it is in use, as a fire might occur.

☐ Be careful not to scratch the special coating of the cooking plates : use a wooden or heat-resistant plastic spatula.

□ Always unplug the appliance when it is not in use, especially since it is not equipped with an on/off switch.

☐ Only use the appliance for food that is supposed to be cooked.

☐ Your appliance must never be switched on through an external timer or any kind of separate remote control system.

☐ It is necessary to keep this appliance clean at all time because it is in direct contact with food (see section: cleaning).

☐ Please note: Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means: CAUTION, this surface may get very hot during use.

(*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

BEFORE FIRST USE

• Remove the packaging completely.
• Clean the baking plates with a damp cloth or sponge.
• Grease the baking plates slightly.
  • Always ensure that no water gets into the device.

- It is recommended to preheat the appliance for 10 minutes before using it for the first time so that the odor disappears.

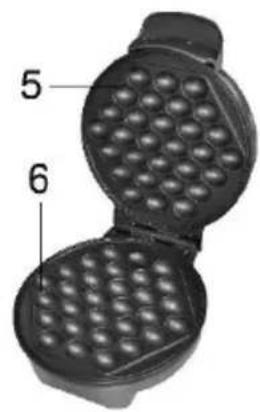

PARTS DESCRIPTION

1 2 3 4

5 6

1. Top housing
2. Heating indicator light
3. Ready indicator light
4. Bottom housing
5. Upper baking plate
6. Lower baking plate

FIELD OF APPLICATION/FUNCTION

• Use the appliance only for household purposes as specified in the operating instructions.
  • This device is suitable for household applications such as:

Kitchen corners reserved for personnel in shops, offices and other professional environments.

Farms.

The use by clients of hotels, motels and other environments with a residential character.

Environments of the „bed and breakfast" type.

GETTING STARTED

• Close the device and plug in the plug. The red pilot light and the green ready light will come on to indicate that the appliance is switched on and heating.
• The green ready light will go out when the cooking temperature is reached. During use, this ready light will come on and off regularly. This simply means that the thermostat is regulating the appliance's temperature.
  • Danger! During use, the baking plates become hot. Do not touch them.
• Once heated, open the appliance and lightly grease the baking plates with butter, margarine or cooking oil. This will facilitate the removal of the waffles once they are baked.
• Spread the batter on the lower baking plate as described in the recipes. Do not fill in too much batter, it will run out the sides if the appliance is overfilled. Use a measuring cup, spoon or piping bag to fill the baking plate with batter. CAUTION: Do not use plastic tools as they may melt on contact with the baking plates.
• Close the cover carefully.
  • Bake the waffles according to the desired degree of browning (about 3-6 minutes).

Note : These pre-settings are for reference only. As foods differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your foods.

• When the waffles are ready, remove them with a wooden or plastic spatula. Do not use sharp, pointed or metal objects, these might damage the non-stick coating of the baking plates.
• After completing the baking process, unplug the power cord and leave the appliance off to allow the baking plates to cool.

RECIPES

Basic batter

125 g of flour

25 g of cornstarch

1 TL baking powder

2 eggs

65 g of butter

120 g of sugar

1 packet of vanilla sugar

1 pinch of salt

2 tablespoons of evaporated milk

150 ml of milk

2 tablespoons vegetable oil

1 tablespoon vanilla pudding powder

(optional, makes the batter smoother)

Blueberry waffles

Basic batter

2 tablespoons blueberry jam

30 pieces of fresh blueberries

Muesli waffles

Basic batter

4-6 pieces of dried apricots (finely diced)

2 tablespoons apricot jam

Ham and cheese waffles

Basic batter (without sugar and pudding powder)

35 g ham cubes (lean)

25 g parmesan cheese or grated

Gouda cheese

CLEANING

• Before cleaning, unplug and wait for the appliance to cool down.
• Wipe the outside with a damp cloth, making sure that no moisture, oil or grease penetrates the device.
• Wipe the inside and the edges of the baking plates with a paper towel or a soft, damp cloth.
• Do not clean the inside or outside with abrasive scouring pads or metal objects.
• Do not immerse the appliance in water or any other liquid.
• Grease the device slightly before using it again.
  • For space-saving storage, the egg waffle maker can be stored in upright position.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2012/19/EU

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

ERP DECLARATION – REGULATION 1275/2008/EC

We, Efbe-Schott, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Admittedly, our product does not dispose of a function to minimize the power consumption, which should according to regulation 1275/2008/EC put the product in off or standby mode after finishing the main function, but this is practically impossible, as it would compromise the main function of the product so strongly, that using the product would no longer be possible!

For this reason we always tell the customer in our instruction manual to unplug the appliance immediately after use.

The user manual is by simple request also available in electronic format from the after-sales service.
