USER MANUAL HP333DSAX1 MAKITA

Applicable battery cartridge and charger Battery cartridge Charger

WARNING: Only use the battery cartridges and chargers listed above.

ing without impact in wood, metal, ceramic and plastic. Noise

Sound pressure level (L

Sound power level (L

WARNING: Wear ear protection.

use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.

WARNING: Be sure to identify safety measures

tion of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries only

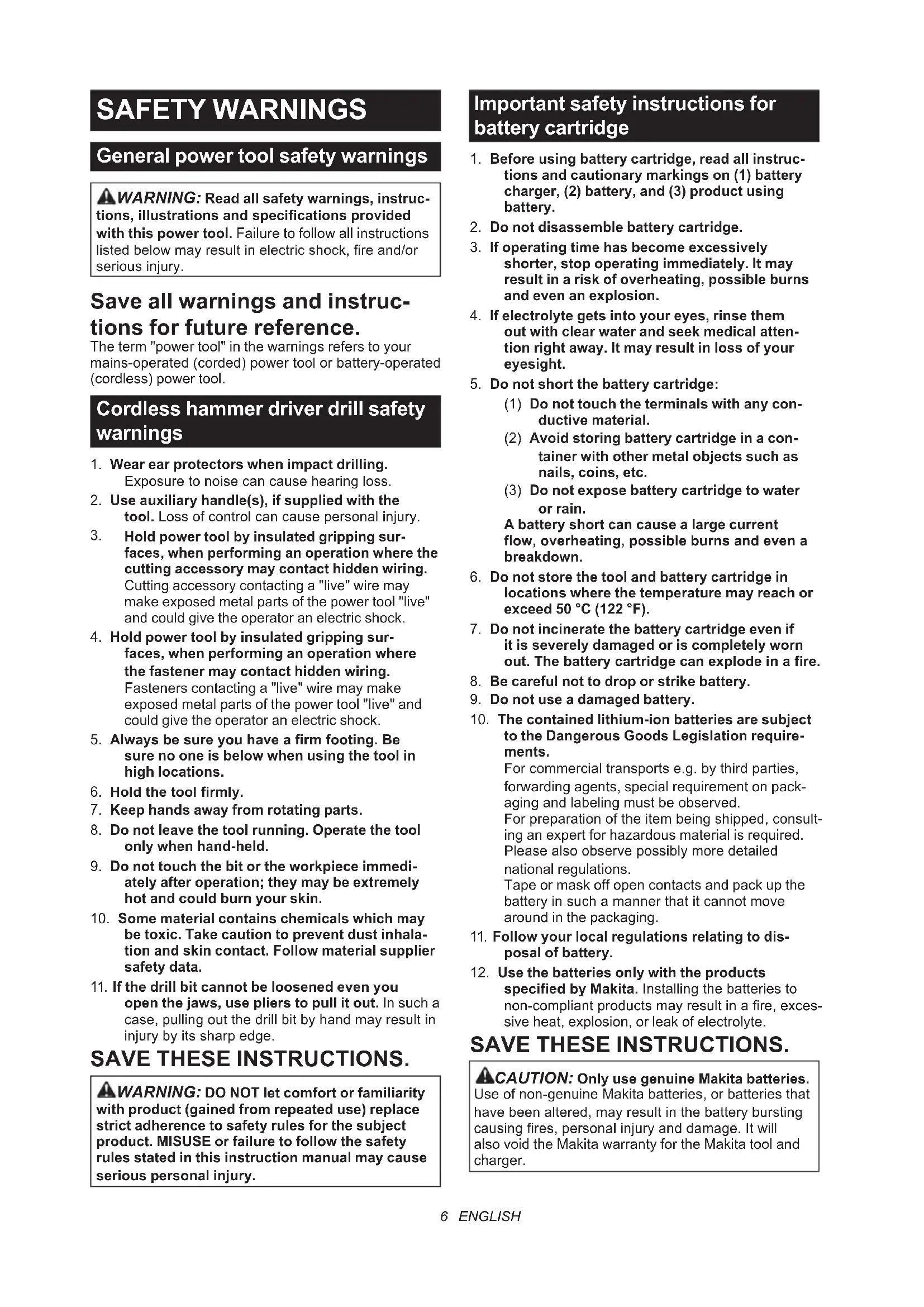

to this instruction manual.6 ENGLISH SAFETY WARNINGS General power tool safety warnings

WARNING: Read all safety warnings, instruc-

with this power tool. Failure to follow all instructions

Save all warnings and instruc- tions for future reference. The term "power tool" in the warnings refers to your

(cordless) power tool. Cordless hammer driver drill safety warnings

1. Wear ear protectors when impact drilling.

2. Use auxiliary handle(s), if supplied with the

Hold power tool by insulated gripping sur- faces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

4. Hold power tool by insulated gripping sur-

faces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

sure no one is below when using the tool in high locations.

7. Keep hands away from rotating parts.

8. Do not leave the tool running. Operate the tool

only when hand-held.

9. Do not touch the bit or the workpiece immedi-

ately after operation; they may be extremely hot and could burn your skin.

10. Some material contains chemicals which may

be toxic. Take caution to prevent dust inhala- tion and skin contact. Follow material supplier safety data.

11. If the drill bit cannot be loosened even you

open the jaws, use pliers to pull it out. In such a

SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current

6. Do not store the tool and battery cartridge in

locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments.

forwarding agents, special requirement on pack-

ing an expert for hazardous material is required.

national regulations. Tape or mask off open contacts and pack up the

around in the packaging.

11. Follow your local regulations relating to dis-

12. Use the batteries only with the products

sive heat, explosion, or leak of electrolyte. SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries.

also void the Makita warranty for the Makita tool and charger.7 ENGLISH Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it. FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch off the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car-

it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the

CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not,

you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is

Battery protection system

This system automatically cuts off power to the motor to

The tool will automatically stop during operation if the

Overloaded: The tool is operated in a manner that causes it to draw

In this situation, turn the tool off and stop the application

the tool on to restart.

Low battery voltage:

Indicating the remaining battery capacity Only for battery cartridges with the indicator Fig.2: 1. Indicator lamps 2.

light up for a few seconds. Indicator lamps RemainingcapacityLighted Off75% to 100%50% to 75%25% to 50%0% to 25% NOTE: Depending on the conditions of use and the

from the actual capacity. Switch action Fig.3: 1. Switch trigger CAUTION: Before installing the battery car- tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. To start the tool, simply pull the switch trigger. Tool

trigger. Release the switch trigger to stop. Lighting up the front lamp Fig.4: 1. Lamp CAUTION: Do not look in the light or see the source of light directly.

The lamp goes out approximately 10 seconds after releasing the switch trigger. NOTE: Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.8 ENGLISH Reversing switch action bFig.5: 1. Reversing switch lever CAUTION: Always check the direction of rotation before operation. CAUTION: Use the reversing switch only after the tool comes to a complete stop. Changing the

age the tool. CAUTION: When not operating the tool, always set the reversing switch lever to the neu- tral position. This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the %J;- terclockwise rotation. When the reversing switch lever is in the neutral posi-

Speed change bFig.6: 1. Speed change lever CAUTION: Always set the speed change lever fully to the correct position. If you operate the tool with the speed change lever positioned halfway

damaged. CAUTION: Do not use the speed change lever while the tool is running. Position of speed change lever Speed Torque Applicable operation 1 Low High Heavy load- ing operation 2 High Low Light loading operation

torque. Be sure that the speed change lever is set to the

If the tool speed is coming down extremely during the operation with "2", slide the lever to the "1" and restart the operation. Selecting the action mode CAUTION: Always set the ring correctly to your desired mode mark. If you operate the tool with the ring positioned halfway between the mode marks, the tool may be damaged. CAUTION: When you change the position from " " to other modes, it may be a little dif-

this case, switch on and run the tool for a second at the " " position, then stop the tool and slide the ring to your desired position. bFig.7: 1.%2.% ring 3. Graduation 4.% This tool has three action modes.

Drilling mode (rotation only)

Hammer drilling mode (rotation with hammering)

Screwdriving mode (rotation with clutch)

action mode changing ring and align the mark that you

Adjusting the fastening torque bFig.8: 1.%2.% ring 3. Graduation 4.% j/'% j*Zj/' Before actual operation, drive a trial screw into your material or a piece of duplicate material to determine which

the screw size and graduation. Graduation 1234567891011121314151617181920 Machine screw M4 M5 M6 Wood screw Soft wood (e.g. pine) – 3.5 x 22 4.1 x 38 Hard wood (e.g. lauan) – 3.5 x 22 – – 4.1 x 389 ENGLISH ASSEMBLY CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. Installing or removing driver bit/ drill bit Optional accessory bFig.9: 1. Sleeve 2. Close 3. Open Turn the sleeve counterclockwise to open the chuck $+J as it will go. Turn the sleeve clockwise to tighten the

counterclockwise. Installing hook CAUTION: When installing the hook, always If not, the hook may come off from the tool and result in the personal

bFig.10: 1. Groove 2. Hook 3. Screw The hook is convenient for temporarily hanging the tool.

the hook, insert it into a groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out. Installing driver bit holder Optional accessory bFig.11: 1.2.

on either right or left side and secure it with a screw.

:=&J OPERATION CAUTION: Always insert the battery cartridge all the way until it locks in place. If you can see the

locked completely. Insert it fully until the red indicator

you. CAUTION: When the speed comes down extremely, reduce the load or stop the tool to avoid the tool damage.

control the twisting action. bFig.12 Screwdriving operation CAUTION: Adjust the adjusting ring to the proper torque level for your work. CAUTION: Make sure that the driver bit is inserted straight in the screw head, or the screw and/or driver bit may be damaged. First, turn the action mode changing ring so that the

apply pressure to the tool. Start the tool slowly and then increase the speed gradually. Release the switch trigger as soon as the clutch cuts in. NOTE: When driving wood screw, pre-drill a pilot hole /+XKJ and prevents splitting of the workpiece. Hammer drilling operation CAUTION: There is a tremendous and sudden twisting force exerted on the tool/drill bit at the time of hole breakthrough, when the hole becomes clogged with chips and particles, or when striking reinforcing rods embedded in the concrete. First, turn the action mode changing ring so that the arrow

then pull the switch trigger. Do not force the tool. Light

and prevent it from slipping away from the hole.

clogged with chips or particles. Instead, run the tool at

Blow-out bulb Optional accessory bFig.13: 1.;&

dust out of the hole. Drilling operation

the marking. Then proceed as follows. Drilling in wood

with wood drills equipped with a guide screw. The guide

the workpiece. Drilling in metal

hole, make an indentation with a center-punch and

CAUTION: Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your drill

service life of the tool. CAUTION: when the drill bit begins to break through the workpiece. There is a tremendous force exerted on

CAUTION: A stuck drill bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool

CAUTION: Always secure workpieces in a vise or similar hold-down device. CAUTION: If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery. Using the tool as a hand screwdriver Fig.14 Switch off the tool. Move the reversing switch lever to the neutral position. Turn the action mode changing ring so that the arrow points to the marking. Turn the tool. NOTE: This use is convenient for checking the screwdriving. NOTE: Do not use the tool for work requiring exces-

screws. Using holster Optional accessory CAUTION: When using the holster, remove a driver bit/drill bit from the tool. CAUTION: Turn off the tool and wait until it comes to a complete stop before placing it in the holster. Be sure to close the holster securely with the

MAINTENANCE CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool The use of any other accessories or attachments might present a risk of

for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.
