KMMF330PPS - Microwave Oven KITCHENAID - Free user manual and instructions

Brand	KitchenAid
Model	KMMF330PPS
Product Type	Built-in Microwave Oven
Total Width	30 po (76 cm)
Total Height	17 7/8 po (45.4 cm)
Depth with Door	12 po (32.4 cm)
Depth with Door Open at 90°	41.4 po (105.3 cm)
Cavity Dimensions (H x W x D)	9.1 x 18.1 x 11 po (23 x 46 x 27.9 cm)
Power Supply	120 V AC, 60 Hz, 15-20 A
Main Functions	Microwave, ventilation with recirculation or external exhaust
Ventilation Configuration	Recirculation by default, possibility of top or rear exhaust
Certifications	UL, CUL or CSA
Supported Weight by Structure	150 lb (68 kg) including the appliance and cabinet
Recommended Cabinet Depth	12 to 16 po (30.5 to 40.6 cm) depending on mounting model
Care and Cleaning	Clean interior with a damp cloth and mild detergent. Do not use abrasive products.
Spare Parts and Repairability	Parts available through KitchenAid authorized service. Professional repair recommended.

Frequently Asked Questions - KMMF330PPS KITCHENAID

What are the exact dimensions of the KitchenAid KMMF330PPS built-in microwave?

Width: 30 po (76 cm), height: 17 7/8 po (45.4 cm), depth with door: 12 po (32.4 cm), depth with door open at 90°: 41.4 po (105.3 cm).

What type of electrical supply is required?

A 120 V AC, 60 Hz outlet, protected by a 15 or 20 A fuse. A dedicated circuit is recommended.

Can this microwave be installed flush?

Yes, for certain cabinet depths. Consult the installation guide for precise measurements and the optional flush mount trim kit.

What is the interior capacity of the oven?

The cavity measures 9.1 po (23 cm) in height, 18.1 po (46 cm) in width, and 11 po (27.9 cm) in depth.

How to install the ventilation?

The oven is factory-configured for recirculation. For external exhaust, follow the installation guide instructions to configure top or rear exhaust.

Which models are compatible with this manual?

Many KitchenAid and Whirlpool models, including KMMF330P, WMMF5930P, JMHF730R, etc. See the full list in the manual.

What weight can the mounting cabinet support?

The structure must support a load of 150 lb (68 kg) including the microwave and the upper cabinet with its contents.

How to clean the interior of the microwave?

Use a soft cloth and mild detergent. Avoid abrasive cleaners. For tough stains, a mixture of water and vinegar is effective.

Where to find spare parts?

Spare parts are available from KitchenAid authorized service or authorized dealers. Use the model number to order.

Is this microwave certified?

Yes, it is UL, CUL or CSA certified, ensuring compliance with safety standards.

USER MANUAL KMMF330PPS KITCHENAID

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030P/KMMF330P/YKMMF330P/WMMF7330R/YWMMF7330R/WMMF7530R/MMMF8030P/YMMMF8030P/KMMF530P/YKMMF530P/KMMF730P/YKMMF730P/JMHF730R/YJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Overall Width (A) 30 76
Overall Height (B) 17	78	45.4
Height of the door (C) 15 38.2
Depth with door (D) 12 34 32.4
Depth with door open 90° (E) 41.4 105.3
Depth with door with Bump Out Kit (L hook) (F1) 13.8 35.0
Depth with door with Bump Out Kit (M hook) (F2) 14.3 36.3
Depth with door with Bump Out Kit (N hook) (F3) 14.8 37.6
Depth with door with Bump Out Kit (P hook) (F4) 15.3 38.9
Depth with door with Bump Out Kit (R hook) (F5) 15.8 40.2
Depth with door open 90° with Bump Out Kit (L hook) (G1)	42.5 107.8
Depth with door open 90° with Bump Out Kit (M hook) (G2)	43.0 109.1
Depth with door open 90° with Bump Out Kit (N hook) (G3)	43.5 110.4
Depth with door open 90° with Bump Out Kit (P hook) (G4)	44.0 111.7
Depth with door open 90° with Bump Out Kit (R hook) (G5)	44.5 113.0

A C B

FRONT VIEW

E D Back of Cabinet

SIDE VIEW

Mounting Plate A D E

TOP VIEW

Bump Out Kt A F1~5 G1~5

TOP VIEW WITH BUMP OUT KIT
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

MICROWAVE INTERIOR CAVITY DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Cavity Height (A) 9.1 23
Cavity Width (B) 18.1 46
Cavity Depth (C) 11 27.9

B A

C Back of Cabinet

CAVITY INTERIOR FRONT VIEW CAVITY INTERIOR SIDE VIEW

MICROWAVE OVEN

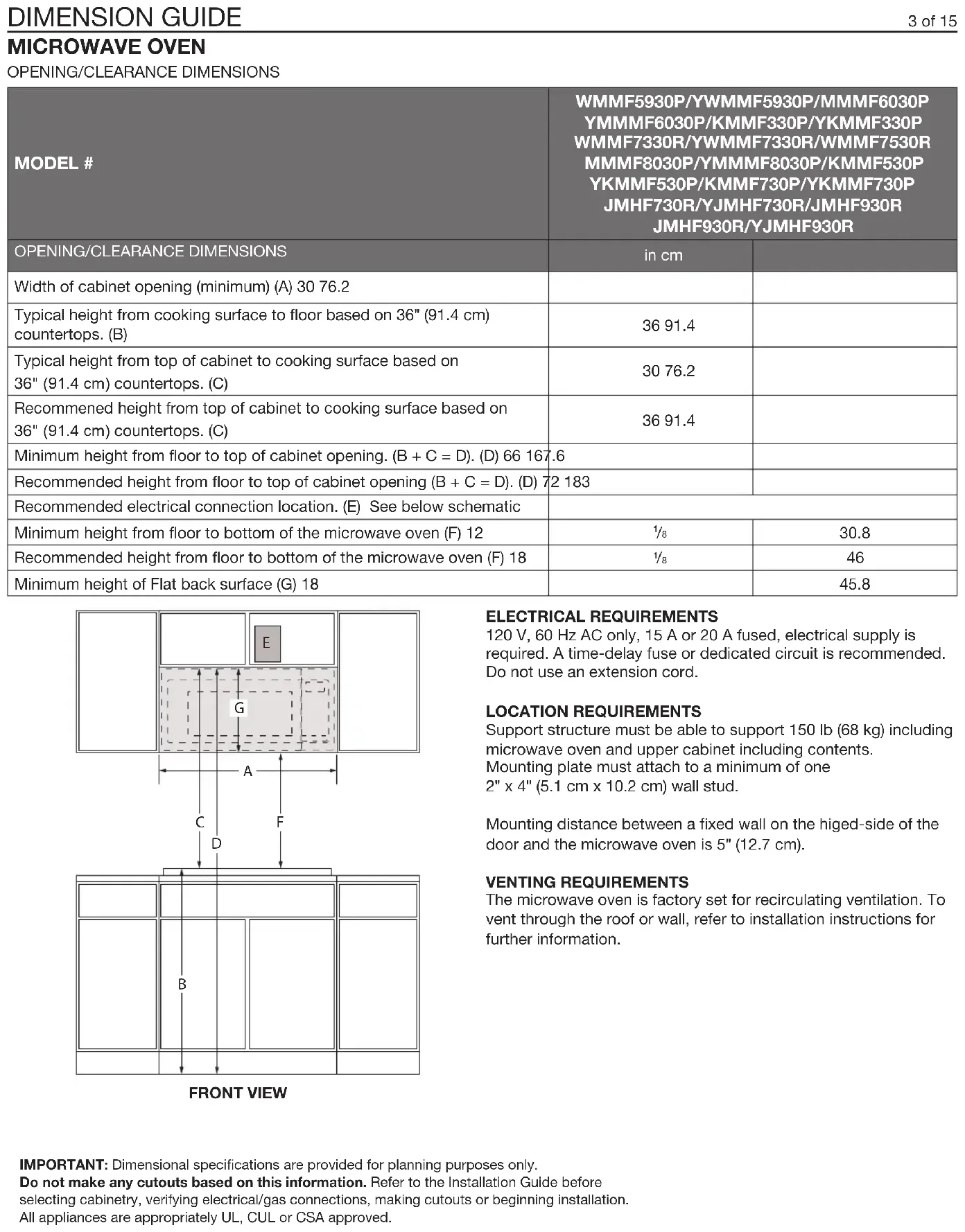

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930RJMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm
Width of cabinet opening (minimum) (A) 30 76.2
Typical height from cooking surface to floor based on 36" (91.4 cm) countertops. (B)	36 91.4
Typical height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	30 76.2
Recommended height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	36 91.4
Minimum height from floor to top of cabinet opening. (B + C = D). (D) 66 167.6
Recommended height from floor to top of cabinet opening (B + C = D). (D) 72 183
Recommended electrical connection location. (E) See below schematic
Minimum height from floor to bottom of the microwave oven (F) 12	18	30.8
Recommended height from floor to bottom of the microwave oven (F) 18	18	46
Minimum height of Flat back surface (G) 18		45.8

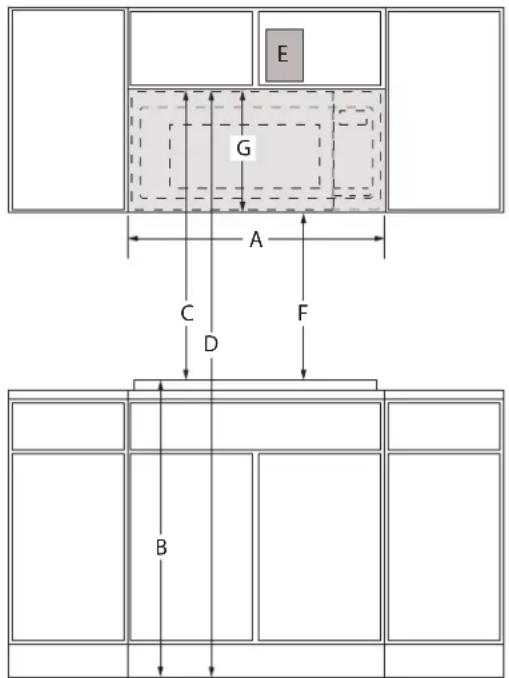

E G A C D F B

FRONT VIEW

ELECTRICAL REQUIREMENTS

120 V, 60 Hz AC only, 15 A or 20 A fused, electrical supply is required. A time-delay fuse or dedicated circuit is recommended. Do not use an extension cord.

LOCATION REQUIREMENTS

Support structure must be able to support 150 lb (68 kg) including microwave oven and upper cabinet including contents. Mounting plate must attach to a minimum of one 2" x 4" (5.1 cm x 10.2 cm) wall stud.

Mounting distance between a fixed wall on the higed-side of the door and the microwave oven is 5" (12.7 cm).

VENTING REQUIREMENTS

The microwave oven is factory set for recirculating ventilation. To vent through the roof or wall, refer to installation instructions for further information.

IMPORTANT: Dimensional specifications are provided for planning purposes only. Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Opening/Clearance Measurement in cm
Depth of upper cabinet (minimum-maximum) Stand Out* (A)	12~12.75 30.5~32.4
Depth of upper cabinet (minimum-maximum) Flush* (B)	12.75~13 32.4~33
Depth of upper cabinet (minimum-maximum)* (C)	0.5 1.27
Can this product be installed flush? Flush refers to there appliance not protruding past the cabinet depth. (Y/N)	(A) N(B) Y

*This microwave oven is factory set for 12" (30.5 cm)\~13" (33.02 cm) depth of upper cabinet, install with the provided mouting plate.

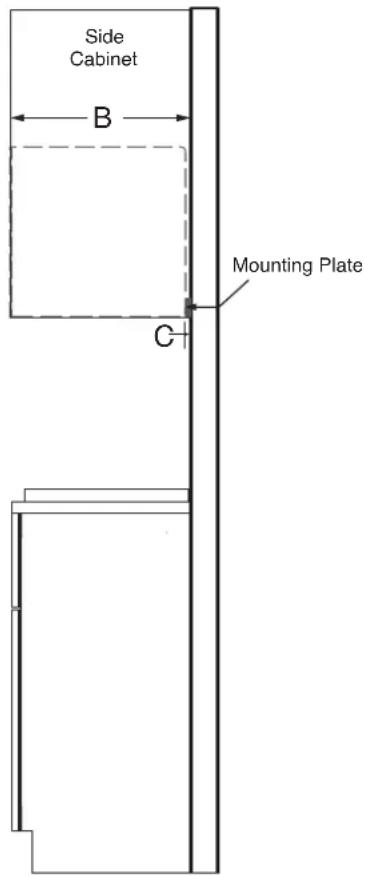

Side Cabinet B Mounting Plate C

SIDE VIEW SIDE VIEW

Mounting Plate

BACK VIEW

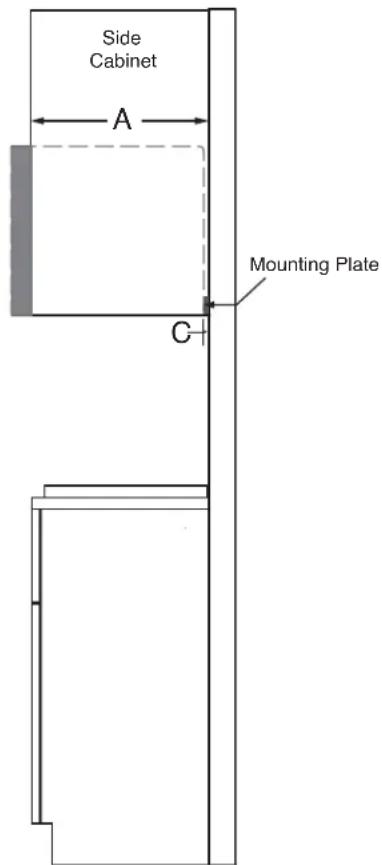

Side Cabinet A Mounting Plate C

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before

selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm
Depth of upper cabinet (minimum-maximum) Flush* (A1) 13 34 ~14	35~35.6
Depth of upper cabinet (minimum-maximum) Stand out* (A2) 13~	13 34 33~35
Depth of upper cabinet (minimum-maximum) Flush* (B1) 14 14 ~14	12 36.2~36.8
Depth of upper cabinet (minimum-maximum) Stand out* (B2) 14~	14 14 35.6~36.2
Depth of upper cabinet (minimum-maximum) Flush* (C1) 14 34 ~15	37.5~38.1
Depth of upper cabinet (minimum-maximum) Stand out* (C2) 14 12 ~	14 34 36.8~37.5
Depth of upper cabinet (minimum-maximum) Flush* (D1) 15 14 ~15	12 38.7~39.4
Depth of upper cabinet (minimum-maximum) Stand out* (D2) 15~	15 14 38.1~38.7
Depth of upper cabinet (minimum-maximum) Flush* (E1) 15 34 ~16	40~40.6
Depth of upper cabinet (minimum-maximum) Stand out* (E2) 15 12 ~	15 34 39.4~40
Back of the microwave oven to back of the cabinet or Wall (F) 1.5~	3.5 3.8~8.9
Can this product be installed flush? Flush refers to the appliance not protruding past the cabinet depth. (Y/N)	(A1, B1, C1, D1, E1) Y(A2, B2, C2, D2, E2) N

D-Depth of upper cabinet

*For the depth of upper cabinet larger than 13" (33.02 cm), and less than or equal to 16" (40.64 cm) depth of upper cabinet, install with the optional bump out mounting kit W11630300, the bump out mounting kit is not provided, but can purchased from Whirlpool®.

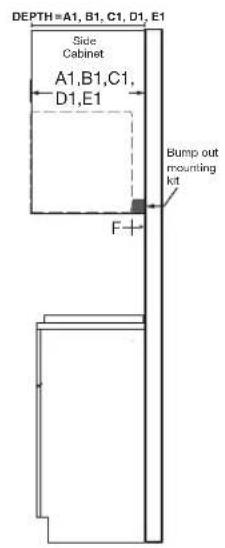

DEPTH=A1, B1, C1, D1, E1 Side Cabinet A1,B1,C1, D1,E1 Bump out mounting kit F

SIDE VIEW

Bump Out Mounting Plate

BACK VIEW

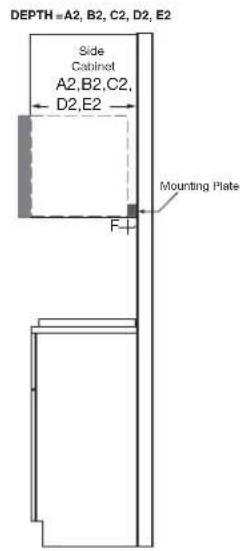

DEPTH=A2, B2, C2, D2, E2 Side Cabinet A2,B2,C2, D2,E2 Mounting Plate F

SIDE VIEW

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.

FOUR À MICRO-ONDES

DIMENSIONS DU PRODUIT

E G A C D F B

VUE DE FACE

DIMENSIONES DEL PRODUCTO

E G A C D F B

VISTA FRONTAL

^* /TM ©2023 All rights reserved. Used under license in Canada.
