Product type	Audio CD/MP3 player/recorder
Mains power supply	Adapter 100-240 V, 50/60 Hz, output 4.5 V / 600 mA
Battery power	2 UM-3 (AA) 1.5 V batteries (alkaline recommended)
Battery charging	Rechargeable Ni-MH batteries via mains adapter (ON/OFF switch)
Playable formats	Audio CD, CD-R/RW, MP3 CD
Anti-shock protection	Yes (ASP – Digital Anti-Shock Protection)
Playback modes	Normal, repeat (track/disc/folder), intro, random, programmed (64 tracks)
Equalizer	BBS, Pop, Jazz, Rock, Classical
Resume function	Yes – restarts at last position
Auto off	Yes – after 30 seconds in stop mode
Volume limit	Yes – enable/disable via EQ button
Display	LCD screen
Audio output	3.5 mm headphone jack
Laser	Class 1 – invisible radiation when open
Cleaning	Dry cloth only, no detergents
Maintenance	Do not open – refer to qualified personnel
Used batteries	Do not dispose of with household waste – mandatory recycling
Operating environment	Indoors, dry, moderate climates only

Frequently Asked Questions - FS2 FineSound

What types of discs can I play with the FineSound FS2?

The FS2 plays audio CDs, CD-R/RW, and MP3 CDs. Insert the disc with the label facing up.

How to activate anti-shock protection?

The anti-shock protection (ASP) activates automatically as soon as you press PLAY/PAUSE. The 'ASP' symbol appears on the screen.

Can I use the device while charging the batteries?

Yes, you can play CDs while charging Ni-MH batteries. Set the charge switch to ON and plug in the mains adapter.

How to program a custom playlist?

In stop mode, press PROG. Select the track or folder with the ◀/▶ buttons, then press PROG again to confirm. You can program up to 64 tracks.

What to do if the volume is too low even at maximum?

The device has a default volume limit. To disable it, hold down the EQ button until 'HIGH' flashes, then press EQ again.

How to clean the CD player?

Use only a soft, dry cloth. Never use detergents, solvents, or abrasive cloths.

The device turns off by itself, is that normal?

Yes, that's the auto-off function. If the player remains in STOP mode for about 30 seconds, it turns off to save batteries.

Can I use standard rechargeable batteries?

Only rechargeable Ni-MH batteries are recommended for charging. Do not use standard alkaline batteries for charging – always set the CHARGE switch to OFF with non-rechargeable batteries.

What does the crossed-out wheelie bin symbol on the device mean?

It indicates that the device should not be disposed of with household waste. Take it to a collection point for recycling of electrical and electronic waste.

How to change the battery when low battery?

When the low battery icon appears on the screen, replace both batteries with new ones of the same type (AA 1.5 V). Observe the polarity indicated in the compartment.

USER MANUAL FS2 FineSound

White Finland Sound CD-ROM with earphones and a digital display (no visible text or symbols on the device body)

FS2

DEUTSCH

ENGLISH

FRANÇAIS

NEDERLANDS

ITALIANO

Copyright by Woerlein GmbH, 90556 Cadolzburg

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

WARNINGRisk of electric shockDo not open!

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind.

Only return fully discharged batteries

*) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

CLASS 1 LASER PRODUCTKLASS 1 LASER APPARATLUOKEN 1 LAISERLAITEKLASSE 1 LASER PRODUKT

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

Safety, Environmental and Setup Instructions

• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
• Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

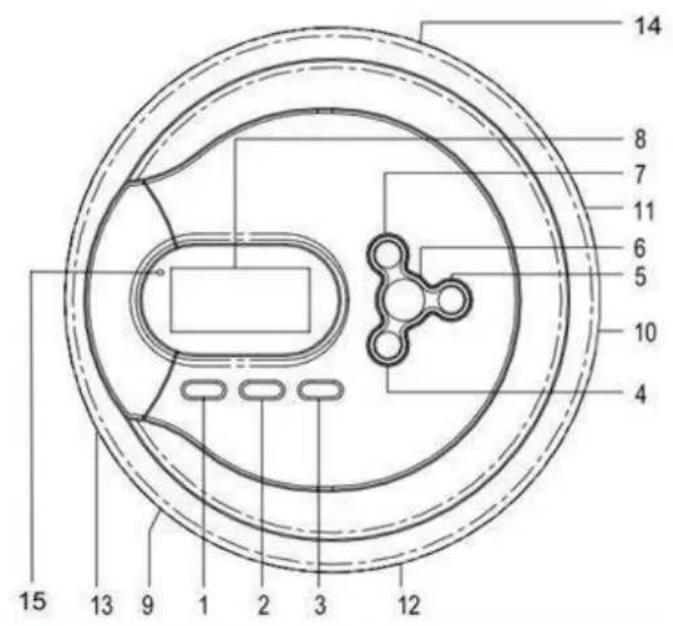

LOCATION OF CONTROLS

UNIT

1 DIR.UP / ASP button
2 EQ button
3 MODE / PROG button
4 SKIP / SEARCH DN button
5 ■ STOP button
6 PLAY / PAUSE button
7 SKIP / SEARCH UP button
8 LCD display
9 Battery Compartment
10 Open knob
11 Volume knob
12 Phone jack
13 DC jack
14 Recharge switch
15 Recharge Indicator

INSTALLATION

Content of Delivery

Main Unit
Headphone

AC Adapter
Instruction Manual

Battery Installation

ATTENTION!!!

On operation with standard/conventional batteries, be sure that the charging switch „RECHARGE“ is on „OFF“ position, otherwise the batteries may become hot and explode.

1. Open the Battery Compartment cover.
2. Insert 2 batteries ( UM-3, "AA", LR6 or equivalent ) in the correct polarity as indicated. Heavy duty batteries are recommended and close the clover.

Note:

If you want to use the CD player with batteries, disconnect the AC/DC adapter and set the RECHARGE switch to the „OFF" position.
➢ Please do not mix old and exhausted batteries or different types.
➢ Please remove the batteries when not in use for a longer period of time.

AC Adapter

1. Make sure that your mains supply matches the type plate of the mains adapter.
2. Connect the AC adapter cable to the DC power jack and the AC adapter to a wall outlet.

Rechargeable battery operation

1. Open the battery compartment cover and insert two of the recommended rechargeable batteries, matching polarity. (Both batteries must be of rechargeable nickel-cadmium type, otherwise the batteries may explode or leak).
2. Plug in the AC adaptor and set the Recharge switch to ON position to start charging. (Use only the AC adaptor supplied with the set for charging.)
3. After 15 hours. Please unplug the AC adaptor and switch the Recharge switch to the "OFF" position (Do not charge continuously for 24 hours or more. Doing so can cause the performance of the rechargeable battery to deteriorate).

Note: You may play DISCS whilst charging the batteries.
4. If the operating time decreases drastically even when the rechargeable nickel-cadmium batteries are properly recharge, purchase a new set of rechargeable nickel-cadmium batteries.

When charging for the first time or after a long time, playing time may be reduced. In this case, charge and discharge the batteries several times.

Low Battery Alert

When the low battery indicator appears on the display, please prepare to replace the new batteries.

Automatic Turn Off

IMPORTANT! If the player is in Stop mode for approximately 30 seconds, the player will turn off automatically.

BASIC OPERATIONS

Unit On/Off

Turn unit on: Push the PLAY/PAUSE button.

Turn unit off: Push the STOP button.

Adjust the volume

Rotate the Volume knob to adjust the desired volume.

Switch off the volume restriction

To protect your hearing, after switching on the device, only reduced volume is available. You can switch off this "Volume restriction".

1. Press and hold the EQ button until "High" flashes in the display.
2. Press again the EQ button to switch off the volume restriction.
   Note: The volume restriction is reactivated after switching off or changing the disk.

Anti-Shock Function

The player has an Anti-Shock function. The function is automatically switched on when MP3 is used. For audio CD playback, press the DIR. UP/ASP button. "ASP" appears in the display. To deactivate the anti-shock function, press the DIR. UP/ASP key again.

CD

1. Insert the headphone plug to the PHONE JACK.
2. Slide the OPEN knob to the right side and the CD door opens. Put a disc into the CD compartment with the label side upward and close the CD door.
3. The player now reads the CD, which may take a few seconds, and then automatically starts playing the first track.

General Operation

PLAY/PAUSE button	Press once to start the playback.
	Press the once again to interrupt the playback.
STOP button	Press once to stop the playback.
	Press the button once again to turn off the player.
SKIP/SEARCH button	Press the button to skip to the next track or to the previous track.
	Press and hold the button to search forward or backward.
DIR.UP/ASP button	Anti-Shock funktion on/off (for CD).
	Folder+ function (MP3).

Resume function

This player is equipped with a resume function. That means the CD will start automatically at the position, where the CD was stopped by last use.

ATTENTION! This function works only, when no other disc was insert meantime into the player. If you wish to start with track 1, press the ▶button repeatedly until track 1 is shown in the display.

Playing modes

Press the MODE button during the playback.

By CD playback

1. Repeat function

➢ Press the MODE button once to play the current track repeatedly. The repeat indicator CD1 will appear in the display.
➢ Press the MODE button twice to play the entire disc repeatedly. The repeat indicator ⏻ ALL will appear in the display.
➢ To deactivate the function, press the MODE button until the repeat indicator disappears.

2. Intro function

➢ Press the MODE button three times, the INT indicator will appear in the display. Press the PLAY/PAUSE button to play the first 10 seconds of each track.
➢ To deactivate the function, press the MODE button until the INT indicator disappears.

3. Random function

➢ Press the MODE button four times, the SHUF indicator will appear in the display. Press the PLAY/PAUSE button, all the tracks on the disc will be played in random sequence.
➢ To deactivate the function, press the MODE button until the SHUF indicator disappears.

By CD-MP3 playback

1. Repeat function

➢ Press the MODE button once to play the current track repeatedly. The repeat indicator CD1 will appear in the display.
➢ Press the MODE button twice to play the entire disc repeatedly. The repeat indicator ⏻ ALL will appear in the display.
➢ Press the MODE button three times to play the current folder repeatedly. The repeat indicator ⏻ will appear in the display.
➢ To deactivate the function, press the MODE button until the repeat indicator disappears.

2. Intro function

➢ Press the MODE button four times, the INT indicator will appear in the display. Press the PLAY/PAUSE ▶ button to play the first 10 seconds of each track.
➢ To deactivate the function, press the MODE button until the INT indicator disappears.

3. Random function

➢ Press the MODE button five times, the SHUF indicator will appear in the display. Press the PLAY/PAUSE button, all the tracks on the disc will be played in random sequence.
➢ To deactivate the function, press the MODE button until the SHUF indicator disappears.

Program Play

For Audio-CD

1. In stop mode, press the PROG button.
2. “PGM 00 01” will appear in the display. “00” means track number to memory and “01” means program number.
3. Press the 10 button to select the desired track.
4. Press the PROG button to enter the track into the memory.
5. Repeat the steps 3 – 4 until all desired tracks are stored (max. 64).
6. Press the button to start the playback.
7. To stop the playback, press the STOP button.
8. To erase the program memory, stop the playback and open the CD door.

For CD-MP3

1. In stop mode, press the PROG button.
2. “PGM 000 01” will appear in the display. „000“ = track number / „01“ = program number
3. Press the DIR.UP/ASP button to select the desired folder. ^PGM 000 01 01", "01" = folder number.
4. Press the 10 button to select the desired track.
5. Press the PROG button to enter the folder and the track into the memory.
6. Repeat the steps 3 - 5 until all desired tracks are stored (max. 64).
7. Press the button to start the playback.
8. To stop the playback, press the STOP button.
9. To erase the program memory, stop the playback and open the CD door.

EQUALIZER

During playback you can choose between the following Sound Effects:" BBS, Pop, Jazz, Rock, and Classic" by pressing the EQ button repeatedly. To turn off the effects, press the EQ button repeatedly until the "Sound Effects" indicator disappears.

TECHNICAL SPECIFICATION

Power supply	: Use only the supplied power adapter
Power input	: 100-240V~50/60Hz
Power output	: 4,5V=500mA ⊙←⊕
Battery operation	: 2 x UM-3/AA 1.5 Battery

Technical changes and misprints reserved.

Copyright by Woerlein GmbH, 90556 Cadolzburg

Duplication only with the permission of Woerlein GmbH
