USER MANUAL JX2030DMBB GE

Installation Built-In Trim Kits Instructions JX2027 and JX2030

Questions? In the U.S., call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com. In Canada, call 1.800.561.3344 or Visit our Website at: GEAppliances.ca.

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• For easier installation and personal safety, we recommend that two people install this microwave oven.

WARNING — This oven must be plugged into a properly ended 3-hole, 120V receptacle as required by the National Electrical Code e Canadian Electrical Code.

• Do not alter or modify any part of this kit or the oven.
• Unplug the microwave oven before attempting installation of this kit.
• Skill level – Installation of this appliance requires basic mechanical and electrical skills.
  • Completion time – 1-3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• This kit is UL/CSA listed for installation alone or over any GE/GE Profile single electric wall oven. Not for use adjacent to (within 2 feet of) any gas or electric range, cooktop or oven.
• This kit is for use on models: PEB2060DMBB, PEB2060DMWW, PEB2060DMCC, PEB2060SMSS, JEB1860DMBB, JEB1860DMWW, JEB1860DMCC, JEB1860SMSS, PEB206CDNBB, PEB206CSNSS, PEB206CDNWW, JEB186CDNWW, JEB186CDNBB and JEB186CSNSS.

FOR YOUR SAFETY:

WARNING – Before beginning the

installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

TOOLS YOU WILL NEED

□ Phillips screwdriver

□ Pencil

□ Awl or punch

□ Level

Drill with 764 " bit or #35

Tape measure

□ Scissors (optional)

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PARTS INCLUDED

PART QUANTITY
	☐ Trim Frame 1
	☐ Bottom Duct 1
	☐ Side Duct 1
	☐ 4 mm × 12 mm 23 Round-Head Screws	(21 required for installation)
	☐ 4 mm × 14 mm 6 Flat-Head Screws	(4 required for installation)
	☐ Anti-Tip Brace	1
	☐ Anti-Tip Bracket	1
	☐ Upper Duct	1
	☐ Top Bracket	1
	☐ Bottom Bracket	1
	☐ Templates	2

NOTE: This kit has extra screws to prevent the technician from spending extra time locating a replacement screw in case they lose one during installation.

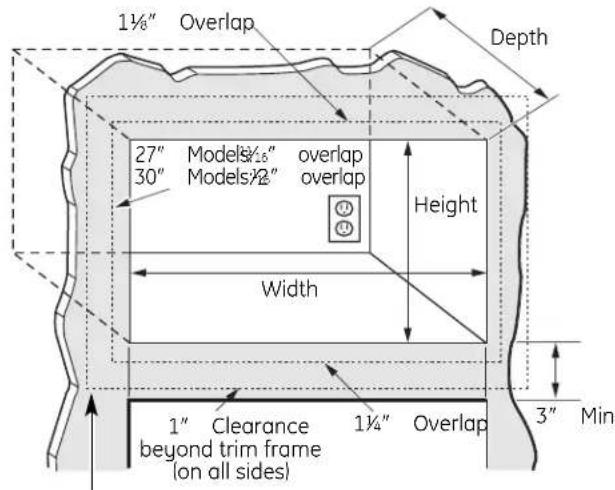

□ 1 CUTOUT DIMENSIONS

Models 27" 30"
Height 16	34" 16	34"
Width 25	12" 25	12"
Depth (min.)* 19	12" or 22"	1912" or 22"

* Min. depth with receptacle outside cabinet 19½" Min. depth with receptacle inside cabinet 22" 120 volt-60 Hertz grounded power receptacle

1½" Overlap Depth 27" Models½" overlap 30" Models½" overlap Height Width 1" Clearance 1¼" Overlap beyond trim frame (on all sides) 3" Min.

Bottom of trim kit must be minimum of 36" from floor

⚠ WARNING — This trim kit uses air flow from the top, bottom and sides of the trim frame. Blocking the air flow can cause the microwave to function improperly and may cause damage to the microwave.

Allow a 1" clearance beyond the edge of the trim frame to provide proper air flow.

On 27" models, allow 14 " at the top, 116 " on the sides and 114 " at the bottom for overlap of the Trim Frame over the edges of the cutout.

On 30" models, allow 1/8 " at the top, 2/6 " on the sides and 114 " at the bottom for overlap of the Trim Frame over the edges of the cutout.

FOR INSTALLATION ABOVE A BUILT-IN OVEN:

Microwave oven should be installed on a 3/8" plywood base and supported by 2x4 or 1x2 equivalent runners on all sides. Base must be capable of supporting a minimum of 100 lbs (45.3 kg).

☐ 2 INSTALL THE ANTI-TIP BRACE

A Draw a line on the cutout floor at the center of the cutout, and extend the line 1/2" down the face of the cabinet.
B Draw a line on the top front face of the cabinet at the center of the cutout. The line should extend 1/2" up the face of the cabinet. This center line will be used for mounting the top bracket (see step 7).
C Fold or cut the front edge of the template, along the front guide line. Place the template flush along the front edge of the cutout floor, aligning the center line of the template with the center line of the cutout floor. Mark the center positions with an awl or center punch for the anti-tip brace location as shown.

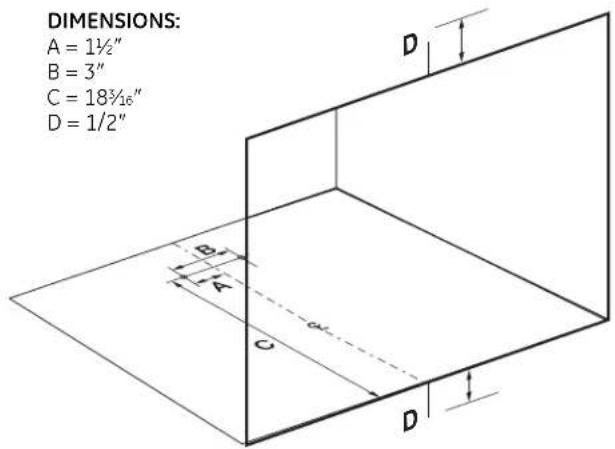

DIMENSIONS: A = 1½" B = 3" C = 18¾/₁₆" D = 1/2"

D Drill two holes for the anti-tip brace.

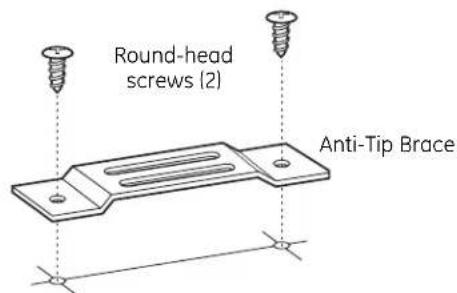

Round-head screws (2) Anti-Tip Brace

E Install the anti-tip brace onto the cutout floor using two round-head screws.

$$ 1 ^ {\prime} = 0. 3 \mathrm{m} $$

$$ 1 ^ {\prime \prime} = 2. 5 \mathrm{cm} $$

☐ 3 INSTALL ANTI-TIP BRACKET AND BOTTOM DUCT

A Disconnect the microwave oven before proceeding with the installation.

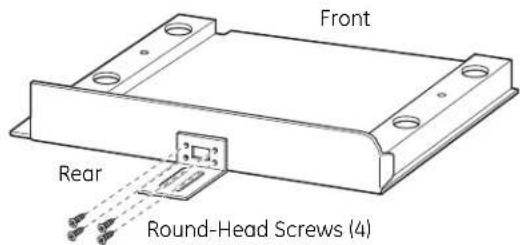

B Fasten the anti-tip bracket to the bottom duct by using four round-head screws.

Front Rear Round-Head Screws (4)

C Remove any loose items inside the microwave oven, including the turntable and turntable support. Carefully turn the microwave upside down.

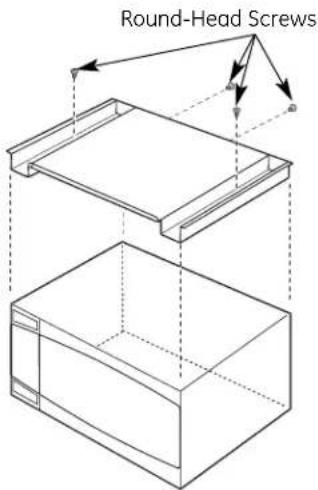

D Install bottom duct with four round-head screws as shown.

Round-Head Screws

Microwave Oven Upside Down

☐ 4 INSTALL SIDE DUCT AND UPPER DUCT

A Connect the side duct to the upper duct as shown.

1. Insert projecting tabs of the upper duct into the holes of the side duct.
2. Bend the tabs up with caution as shown.

NOTE: Remove any oil or dirt on the surface of the microwave oven before the ducts are attached.

Upper Duct 3 Tabs 3 Holes (1) Side Duct

☐ 4 INSTALL SIDE DUCT AND UPPER DUCT (cont.)

B Set the microwave upright, being careful not to bend the front flange. Remove the one existing screw from the left side of the microwave oven.
C As indicated on the supplied template (publication #31-41003-1), fold or cut along the "cut lines" and place the template on top of the microwave oven. By aligning the template with the outside edges of the oven, you will see exactly where to place the upper duct assembly. Peel off the backing from the double-sided tape. Carefully position the side duct and upper duct assembly on the microwave cabinet, aligning with the bottom screw hole. Press down firmly on the ducts. Fasten the duct assembly to the left side of the cabinet with the screw removed above.

Existing Screw (1)

☐ 5 INSTALL MICROWAVE OVEN INTO CABINET

A Slide the microwave oven part way into the cabinet opening.

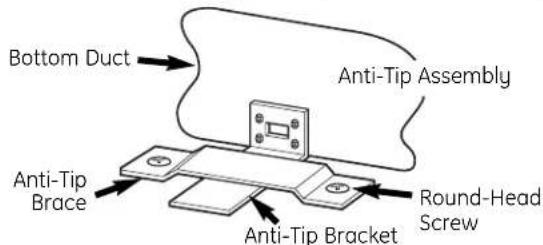

Bottom Duct Anti-Tip Assembly Anti-Tip Brace Anti-Tip Bracket Round-Head Screw

B Plug in the microwave oven.
C The anti-tip bracket must be flat to the cutout floor to engage correctly with the anti-tip brace as shown. Carefully slide the microwave back, making sure the power cord is not mashed or cut.
D Center the microwave oven within the cutout opening and slide the microwave oven in place, engaging the anti-tip brace.
E Ensure the microwave oven is accurately centered.

6 CHECK LEVELING

Check the leveling by placing a level at the front and sides of the microwave. It may be necessary to add wood shims under the bottom duct to level the microwave front to back or side to side.

Line drawing of a door handle with hand positioning on the side (no text or symbols)

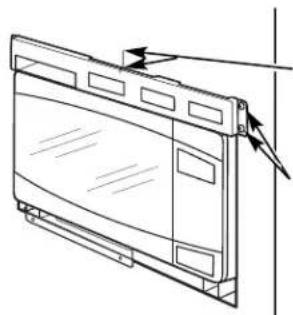

INSTALL THE TOP BRACKET

Ensure that Top Bracket is Level

Line drawing of a computer monitor with scroll panels and ventilation slots (no text or symbols)

Align Center Lines on Cabinet and Top Bracket

Mark Screw Hole Locations (also on left side of bracket)

A Place the top bracket flange on top of the upper duct with the opening of the top bracket lined up with the opening on the upper duct.
B Align the center line marking on the top bracket with the center line drawn on the top front face of the cabinet at the center of the cutout.
C Ensure the top bracket is level and mark screw hole locations on the cabinet face.
D Drill pilot holes through the side holes in the top bracket. Secure the top bracket to the cabinet using four round-head screws (see illustration in step 8).

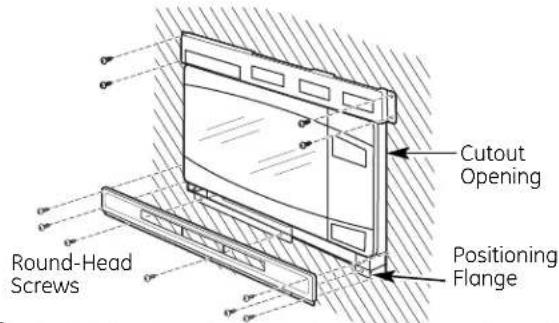

☐8 INSTALL THE BOTTOM BRACKET AND SECURE THE TOP BRACKET

Round-Head Screws Cutout Opening Positioning Flange

A Drill pilot holes through the three holes on the front flange of the bottom duct assembly.
B Hold the bottom bracket against the front flange of the bottom duct assembly, lining up the three holes in the bottom bracket with the three holes in the bottom duct. Screw in three round-head screws. Drill pilot holes through the four holes in the tabs on the sides of the bottom bracket. Screw in four round-head screws.

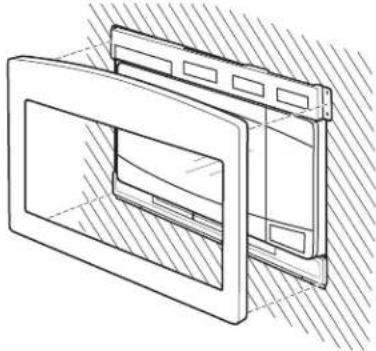

9 INSTALL THE TRIM FRAME

A Place the trim frame over the microwave oven with the curved edge at the top.
B Press the trim frame into the opening until all sides snap into place.

Technical line drawing of a mechanical component with hatched shading (no text or symbols)

C Open the microwave oven door. Secure the trim frame using four flat-head screws (two on the inside top and two on the inside bottom).

Flat-Head Screws Flat-Head Screws

☐ 10 REPLACE ANY LOOSE ITEMS

A Your trim kit is now fully installed. Replace the turntable and turntable support that were removed from the inside of the microwave oven.
B Keep these installation instructions and extra screws for future reference and need. Do not place them in the microwave oven.
C Replace house fuse or close circuit breaker.

MFL38268402

49-40552-1
