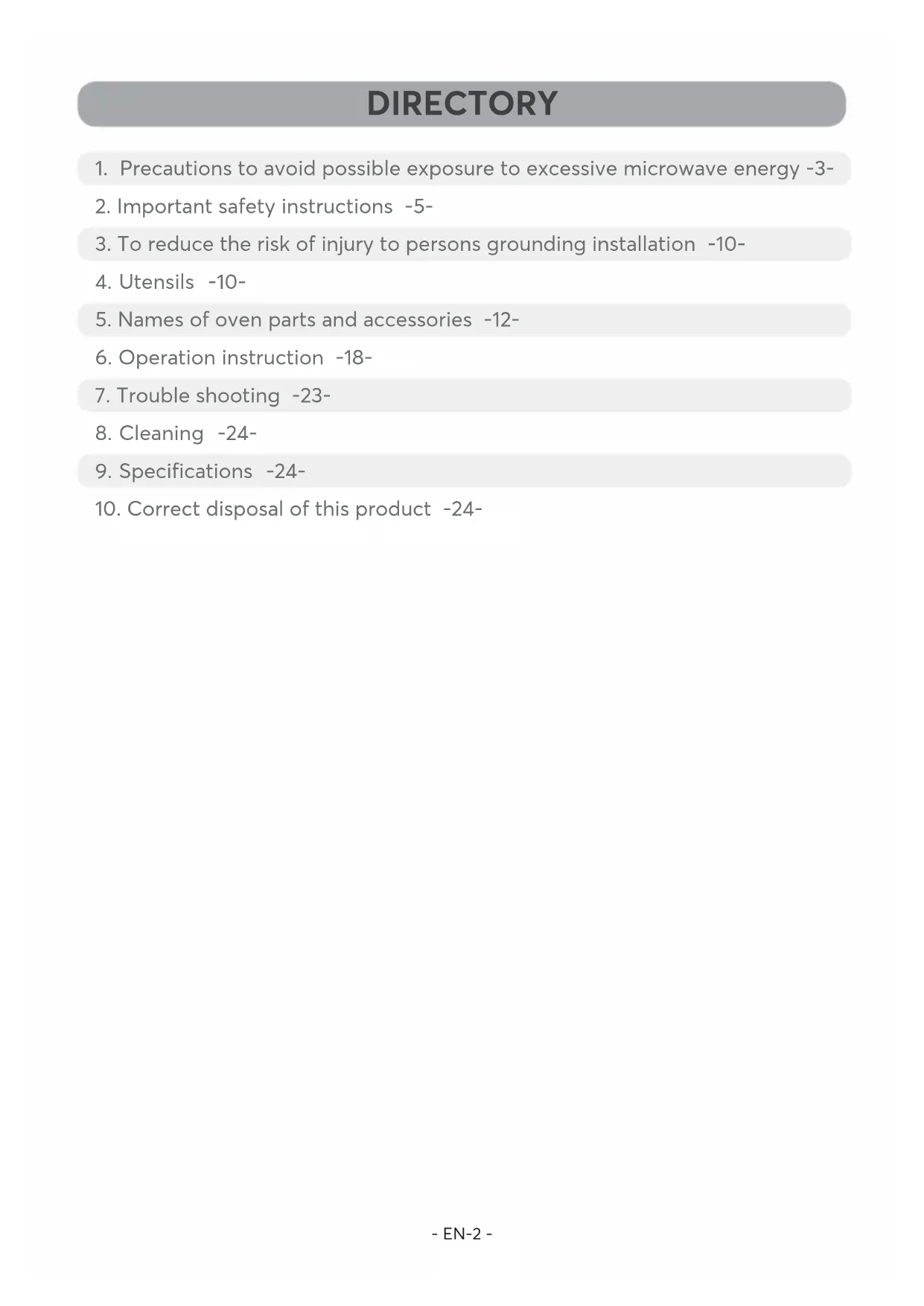

USER MANUAL SMO250IX SIGNATURE

1. Precautions to avoid possible exposure to excessive microwave energy -3-

2. Important safety instructions -5-

3. To reduce the risk of injury to persons grounding installation -10-

5. Names of oven parts and accessories -12-

6. Operation instruction -18-

10. Correct disposal of this product -24-- EN-3 -

Please read these instructions carefully before the first use of this product and save this manual for your future reference. Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.- EN-4 - (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.- EN-5 -

2. IMPORTANT SAFETY INSTRUCTIONS

WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific:

"PRECAUTIONS TO AVOID POSSIBLE

2. This appliance can be used by children

aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

3. Keep the appliance and its cord out of reach

of children less than 8 years.

4. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order- EN-6 - to avoid a hazard.

5. WARNING: Ensure that the appliance is

switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other

than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not

be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper

containers, keep an eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in

10. If smoke is emitted, switch off or unplug the

appliance and keep the door closed in order to stifle any flames.

11. Microwave heating of beverages can result in

delayed eruptive boiling, therefore care must be taken when handling the container.

12. The contents of feeding bottles and baby

food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

13. Eggs in their shell and whole hard-boiled- EN-7 -

eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. The oven should be cleaned regularly and

any food deposits removed.

15. Failure to maintain the oven in a clean

condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. This appliance is intended to be used in

household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; farm houses; - bed and breakfast type environments.

17. The microwave oven is intended for heating

food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.- EN-8 -

18. Metallic containers for food and beverages

are not allowed during microwave cooking.

19. The appliance shall not be cleaned with a

20. Care should be taken not to displace the

turntable when removing containers from the appliance.

21. The microwave oven is intended to be used

22. Steam cleaner is not to be used.

23. Surface of a storage drawer can get hot.

24. WARNING: The appliance and its accessible

parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

25. During use the appliance becomes hot. Care

should be taken to avoid touching heating elements inside the oven.

26. WARNING: Accessible parts may become hot

during use. Young children should be kept away.- EN-9 -

27. The appliance must not be installed

behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

28. WARNING: When the appliance is operated

in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

29. Do not use harsh abrasive cleaners or sharp

metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

READ CAREFULLY AND KEEP FOR FUTURE

30. The appliance must not be placed in a

DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming

entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great

as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top or

tabletop where it can be pulled on by children or tripped over unintentionally.

CAUTION Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. UTENSIL TEST:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave

Materials you can use in microwave oven Utensils Remarks Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metal- trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack.- EN-12 -

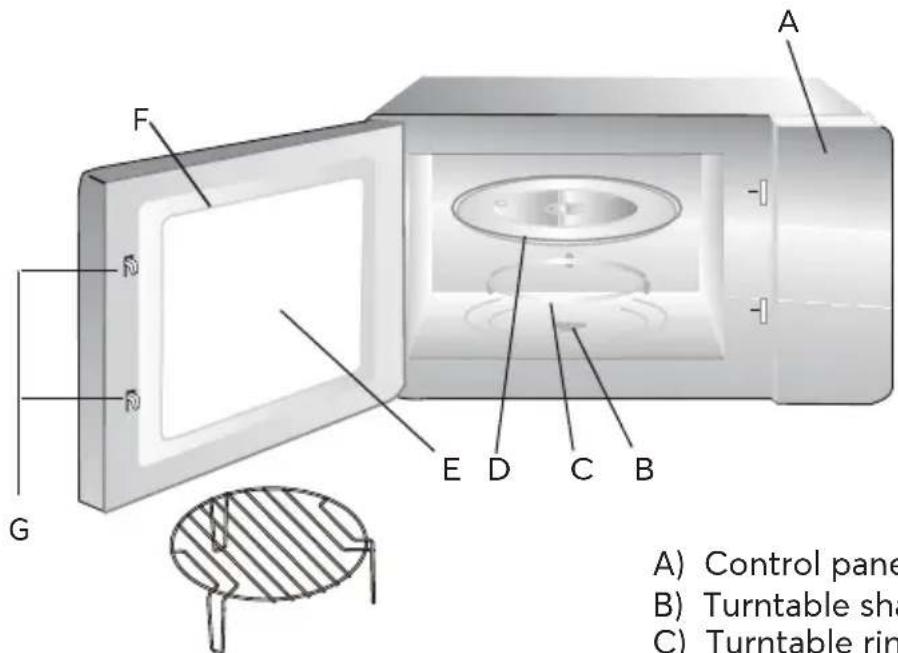

5. NAMES OF OVEN PARTS AND

ACCESSORIES Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system Grill Rack (Can not be used in microwave function and must be placed on the glass tray) Turntable Installation Hub (underside) Glass tray Turntable shaft Turntable ring assembly a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.- EN-13 - Installation and connection

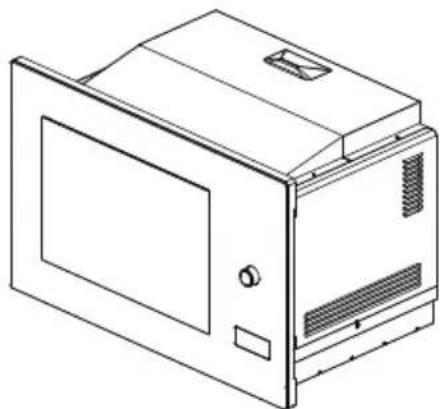

1. This oven is intended for built-in use only. It is not intended for counter-top use or for

use inside a cupboard.

2. Please observe the special installation instructions.

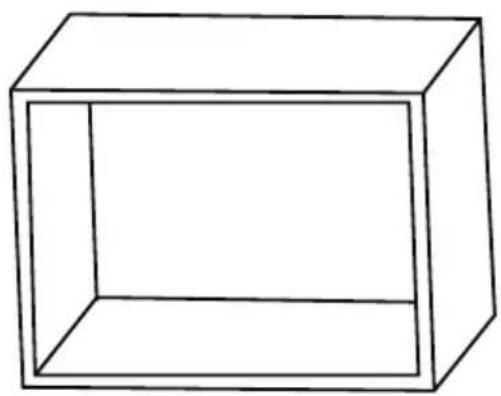

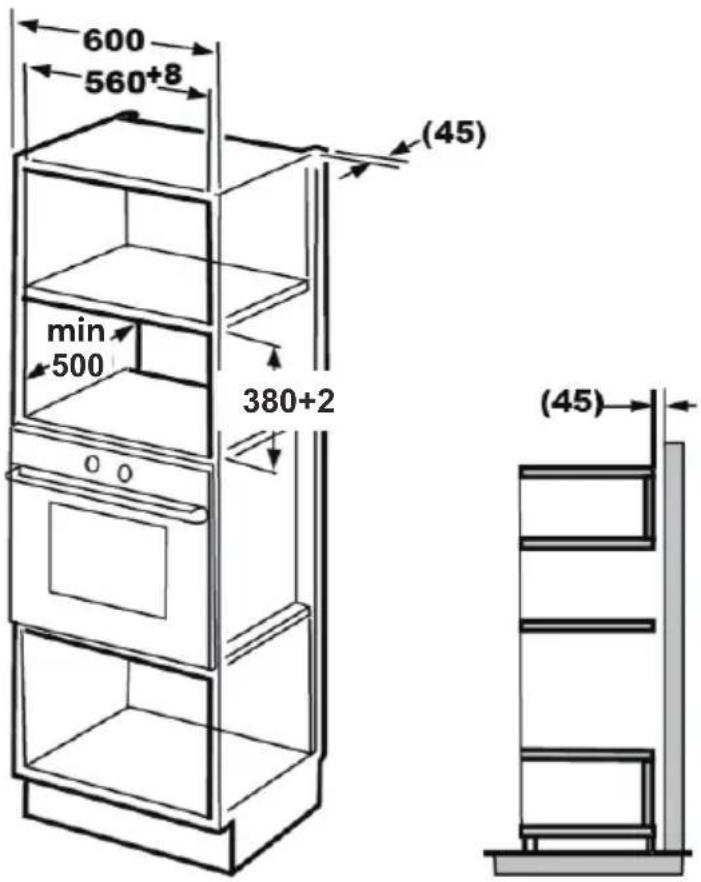

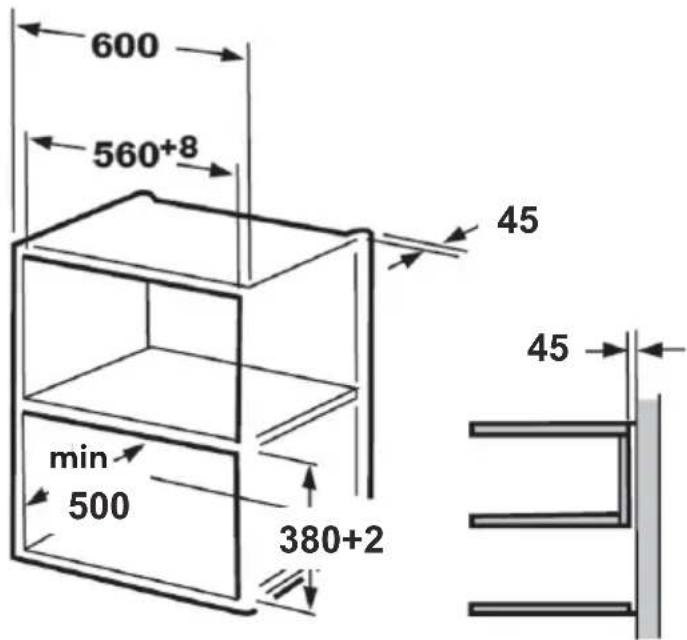

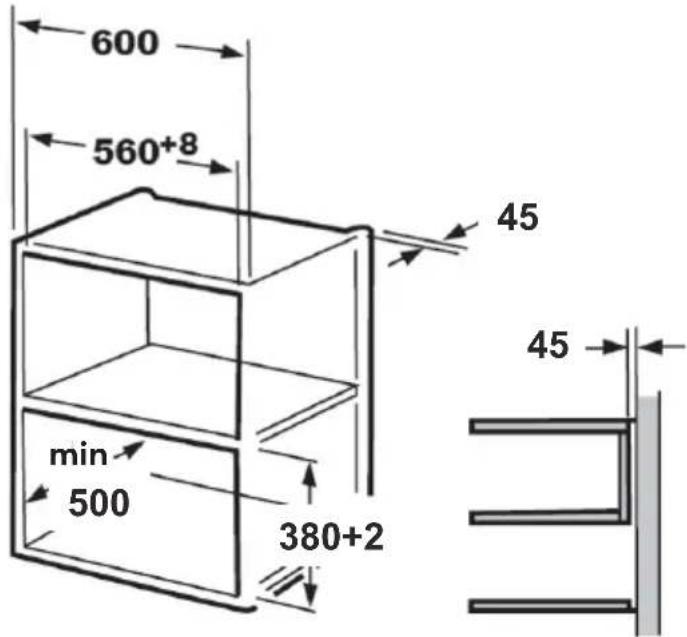

3. The appliance can be installed in a 60cm wide wall-mounted cupboard.

4. The appliance is fitted with a plug and must only be connected to a properly installed

6. The socket must be installed and connecting cable must only be replaced by a qualified

electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.

7. Adapters, multi-way strips and extension leads must not be used. Overloading can result

in a risk of fire. The accessible surface may be hot during operation. Installation Instructions Please Read the Manual Carefully Before Installation Please note The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm. The fitted cupboard must not have a back wall behind the appliance. A gap must be maintained between the wall and the base of the unit above. Specific gap size could be referenced by the diagrams. Minimum installation height: 85 cm. Do not cover ventilation slots and suction holes. Note: Do not trap or bend the power cable. Screw A Screw B Mounting Plate Trim-kit plastic cover- EN-14 - A. Built-in furniture

min Note:The mounting plate and bottom cupboard template are needed when installating in both installations.- EN-15 - B. Prep are the cupboard

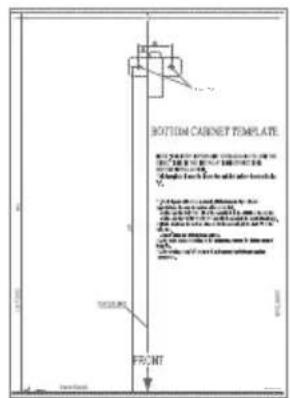

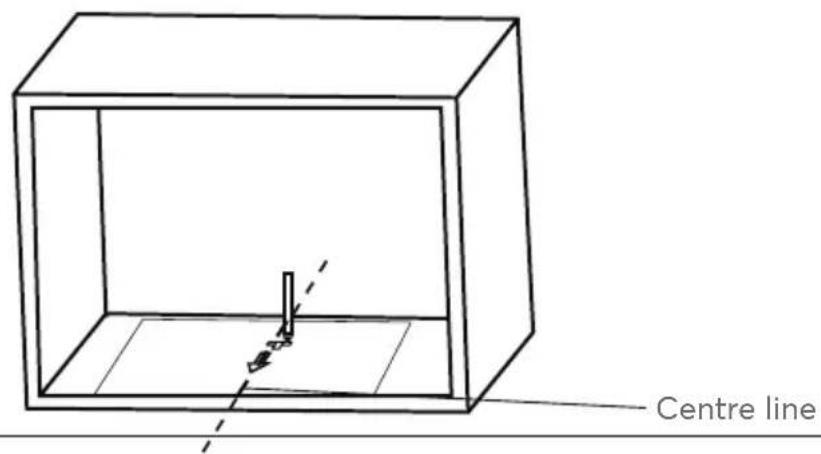

1. Read the instruction on the BOTTOM CUPBOARD TEMPLATE, put the template on the

bottom plane of cupboard. Holes ""a" PN:261800316968

2. Make the marks on the bottom plane of cupboard according to marks"a" of the template.

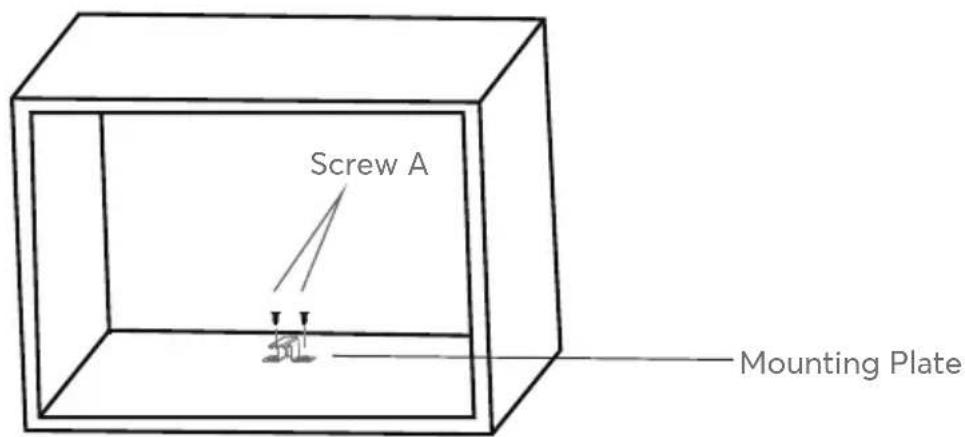

3. Remove the bottom cupboard template and fix the mounting plate with screw A.

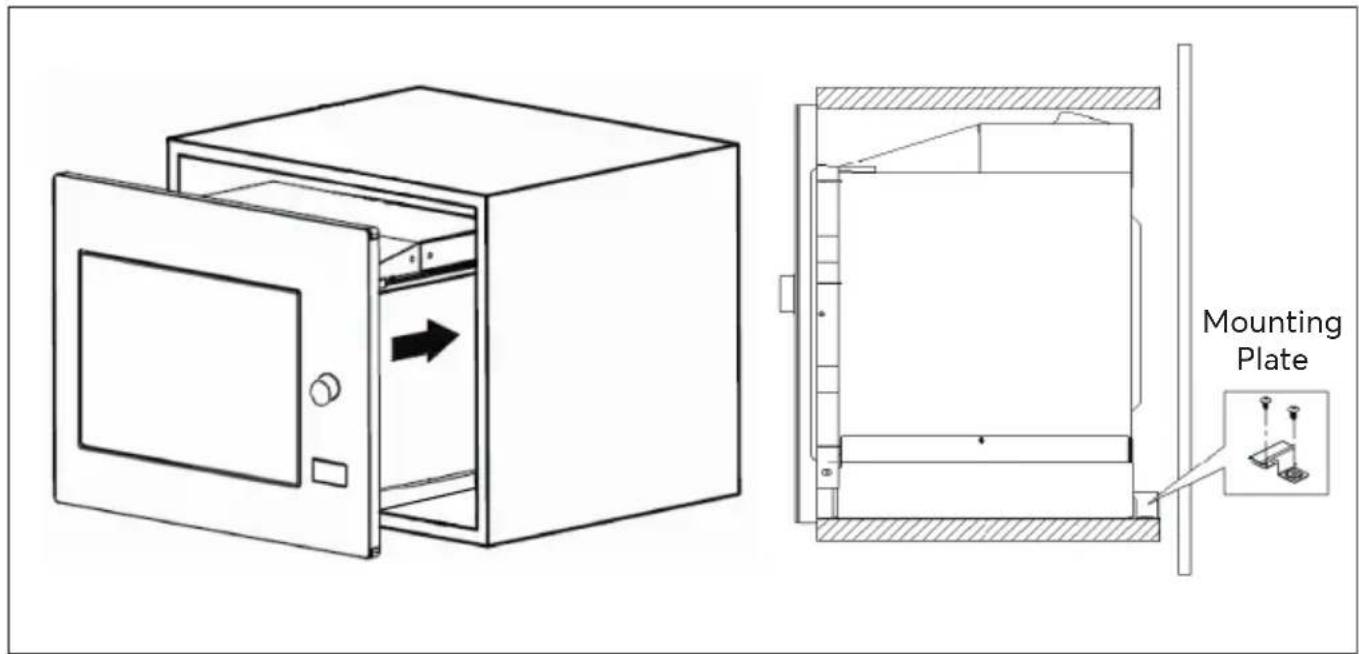

Screw A Mounting Plate- EN-16 - C. Install the oven

4. Install the oven to the cupboard.

- Make sure the back of the oven is locked by mounting plate. - Do not trap or kink the power cord. Mounting Plate

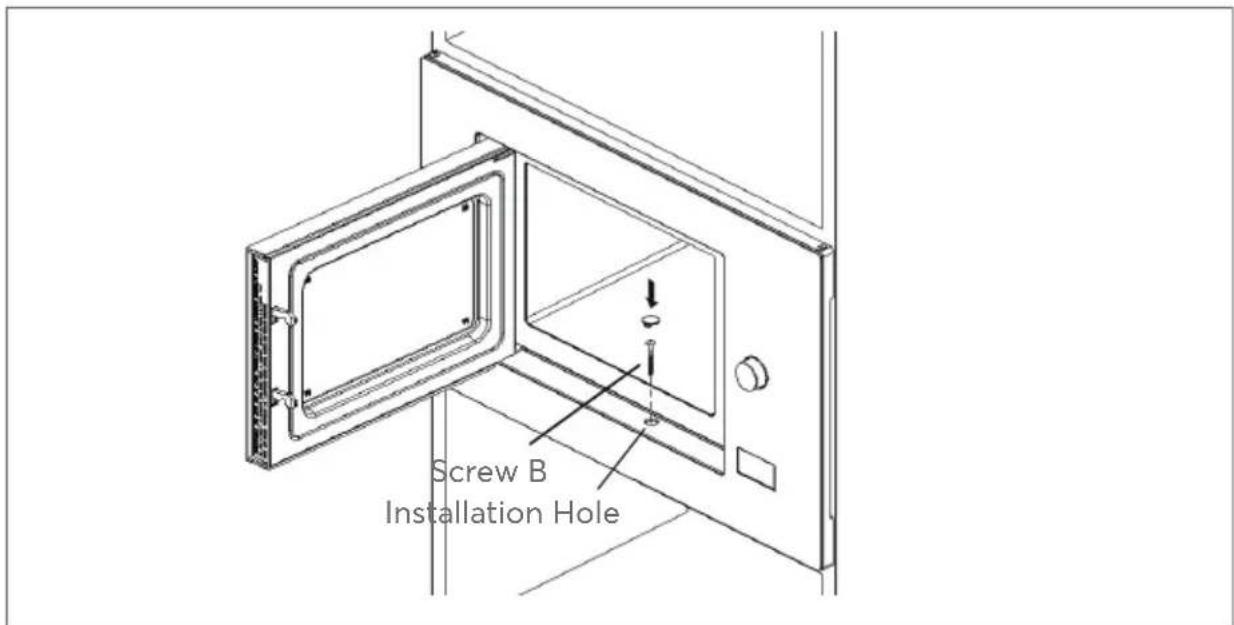

5. Open the door, fix the oven to the cupboard with Screw B, at the installation hole.

Then fix the Trim-kit plastic cover to the installation hole. Screw B Installation Hole- EN-17 - Control Panel and features Instructions Micro./Grill/Combi. Weight/Time Defrost Clock/Kitchen Timer Stop/Clear Start/+30Sec./Confirm Timer Auto menu Weight- EN-18 -

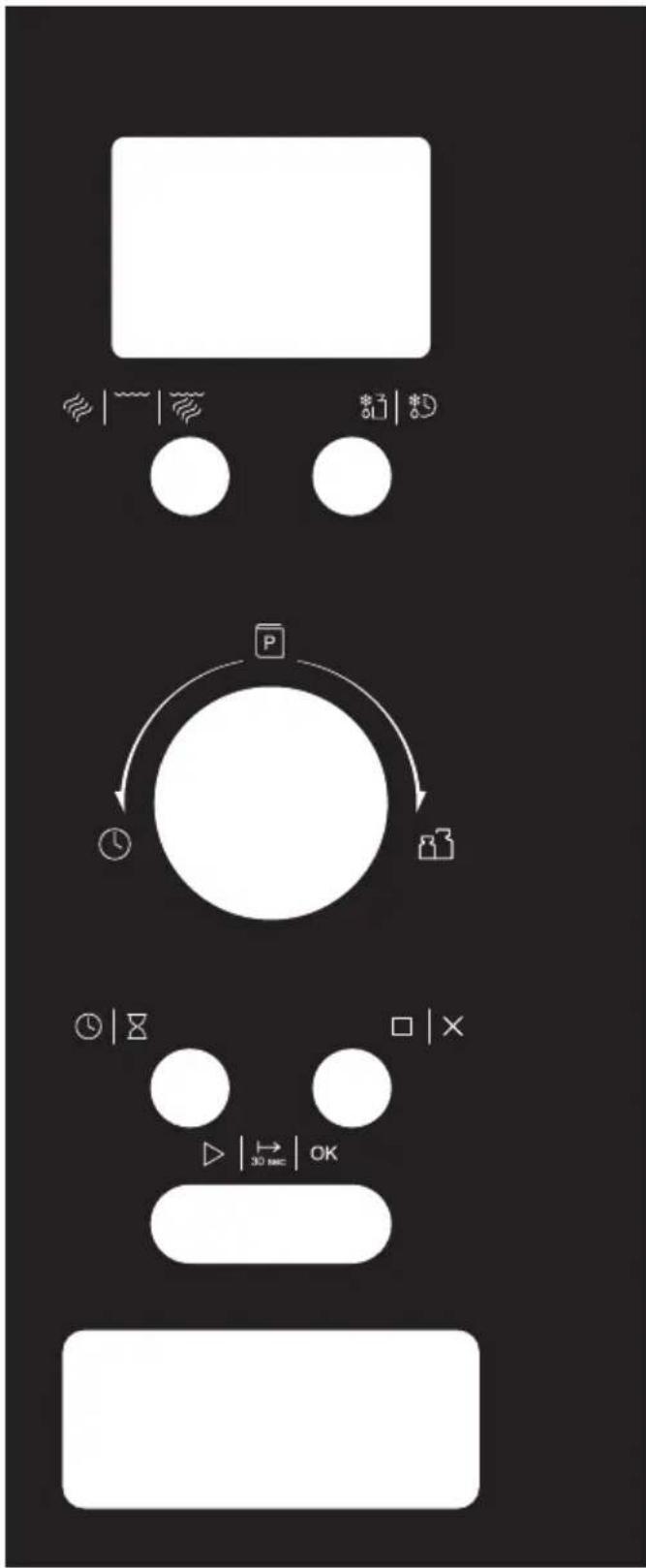

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) Press Clock/ Kitchen Timer once to select clock function, the hour figures will flash.

2) Turn " " to adjust the hour figures, the input time should be within 0--23.

3) Press Clock/ Kitchen Timer, the minute figures will flash.

4) Turn " " to adjust the minute figures, the input time should be within 0--59.

5) Press Clock/ Kitchen Timer" to finish clock setting. ":" will flash, and the time will light.

Notes: (1) The clock will not work if it is not set when powered. (2) During the process of clock setting, if you pres Stop/Clear, the oven will go back to the previous status automatically.

2. Microwave Cooking

Press Micro./Grill/Combi. once, the screen will display "P100". Press Micro./Grill/Combi. repeatedly or turn " " to choose the microwave power you want, and "P100", "P80" "P50", "P30" or "P10" will display for each added press. Then press Start/+30Sec./Confirm to confirm, and turn " " to set cooking time from 0:05 to 95:00. Press Start/+30Sec./Confirm again to start cooking. Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press Micro./Grill/Combi. once, the screen display "P100".

2) Press Micro./Grill/Combi. once again or " " to choose 80% microwave power.

3) Press Start/+30Sec./Confirm to confirm, and the screen displays "P80".

4) Turn " " to adjust the cooking time until the oven displays "20:00".

5) Press Start/+30Sec./Confirm to start cooking.

" to choose the cooking modeyou want, and "G", "C-1" or "C-2" will display for each added press. Then press Start/+30Sec. /Confirm to confirm, and turn "

" to set cooking time from 0:05 to 95:00. Press Start/+30Sec. /Confirm again to start cooking. Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press Micro./Grill/Combi. once, the screen display "P100".

2) Press Micro./Grill/Combi. repeatedly or turn "

3) Press Start/+30Sec./Confirm to confirm, and the screen displays "C-1".

" to adjust the cooking time until the oven displays "10:00".

5) Press Start/+30Sec./Confirm to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press Start/+30Sec./Confirm to continue cooking. If no operation, the oven will continue working.

1) In waiting state, Press Start/+30Sec./Confirm to start cooking with 100% power, each

added press will increase 30 seconds cooking time up to 95 minutes.

2) In microwave, grill, combination cooking or time defrost state each press of

Start/+30Sec./Confirm can increase 30 seconds of cooking time.

3) In waiting state, turn "

" left to set cooking time with 100% microwave power. After adjusting cooking time, then press Start/+30Sec./Confirm to start cooking.

5. Defrost By Weight

1) Press Weight Time Defrost " once, and the oven will display "dEF1".

" to select the weight of food from 100 to 2000 g.

1) Press Weight Time Defrost twice and then the screen will display "dEF2".

" to select the defrost time. The MAX time is 95 minutes.

3) Press Start/+30Sec./Confirm " to start defrosting. The defrost power is P30, and it will

" to enter the correct timer. (The maximum cooking time is 95 minutes.)

3) Press Start/+30Sec./Confirm to confirm setting.

4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring

5 times. If the clock be set (24-hour system), the screen will display the current time. Note: The kitchen Time is different from 24-hour system, Kitchen Timer is a timer.

" right to choose the menu, and "A-1" to "A-8" will display.

2) Press Start/+30Sec./Confirm to confirm.

" to choose the default weight as the menu chart.

4) Press Start/+30Sec./Confirm " to start cooking.

Example: If you want to use "Auto Menu" to cook fish for 350g.

2) Press Start/+30Sec./Confirm to confirm.

" to select the weight of fish till "350" display.

4) Press Start/+30Sec./Confirm to start cooking.- EN-21 -

The automatic menu procedure: Menu Weight Display A-1 Auto Reheat 200 g 200 g 400 g 400 g 600 g 600 g A-2 Vegetable 200 g 200 g 300 g 300 g 400 g 400 g A-3 Fish 250 g 250 g 350 g 350 g 450 g 450 g A-4 Meat 250 g 250 g 350 g 350 g 450 g 450 g A-5 Pasta 50 g (with water 450ml) 50 g 100 g (with water 800ml) 100 g A-6 Potato 200 g 200 g 400 g 400 g 600 g 600 g A-7 Pizza 200 g 200 g 400 g 400 g A-8 Soup 200 ml 200 ml 400 ml 400 ml- EN-22 -

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section automatically. Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press Weight/Time Defrost twice, and the oven will display "dEF2".

" to choose 80% microwave power.

5) Press Start/+30Sec./Confirm to confirm, and the screen displays "P80".

7) Press Start/+30Sec./Confirm to start cooking, and buzzer will sound once for the first

section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

10. Inquiring Function

1. In states of microwave, grill and combination cooking, press Micro./Grill/Combi., the

current power will be displayed for 3 seconds.

2. In cooking state, press Clock/ Kitchen Timer to inquire the time and the time will display

11. Lock-out Function for Children

Lock: In waiting state, press Stop/Clear for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the screen will display " ". Lock quitting: In locked state, press Stop/Clear for 3 seconds, there will be a long "beep" denoting that the lock is released.- EN-23 -

Normal Microwave oven interfering TV reception Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. Dim oven light In low power microwave cooking, oven light may become dim. It is normal. Steam accumulating on door, hot air out of vents In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal. Oven started accidentally with no food in. It is forbidden to run the unit without any food inside. It is very dangerous. Trouble Possible Cause Remedy Oven cannot be started. Power cord is not plugged in tightly. Unplug. Then plug again after 10 seconds. Fuse blowing or circuit breaker works. Replace fuse or reset circuit breaker (repaired by professional personnel of our company) Trouble with outlet. Test outlet with other electrical appliances. Oven does not heat. Door is not closed well. Close door well.- EN-24 -

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp

cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass

since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch:

Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

Model: Rated Voltage: 230V~50Hz Rated Input Power (Microwave): 1450W Rated Output Power (Microwave): 900W Rated Input Power (Grill): 1000W

10. CORRECT DISPOSAL OF THIS PRODUCT

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection. We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet. In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years. To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97 Monday to Friday from 9:00 am to 19:00 pm Saturday from 9:00 am to 18:00 pm (local call price).
