USER MANUAL ACE31IX SIGNATURE

1. Precautions to avoid possible exposure to excessive microwave

2. Important safety instructions

3. Grounding Installation

5. Setting up your oven

Specifications Cleaning and care

6. Operation Instruction

Read these instructions carefully before using If you follow the instructions, your oven will

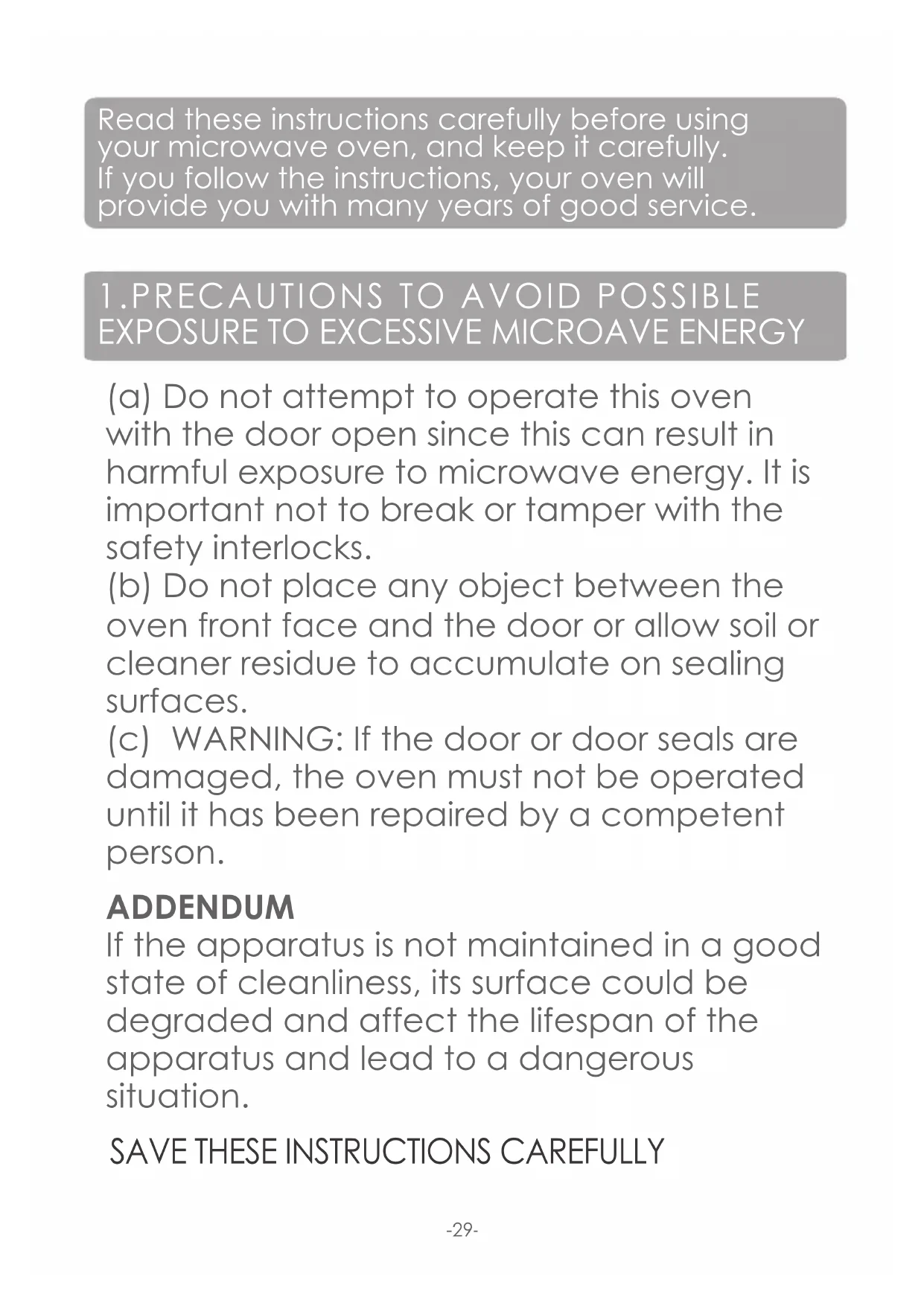

1.PRECAUTIONS TO AVOID POSSIBLE

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

your microwave oven, and keep it carefully. provide you with many years of good service.

-29-2.IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when usingyour appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not

be heat ed in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other

than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

4. Keep the appliance and its cord out of

reach of children less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. -30-5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and

any food deposits should be removed.

7. Read and follow the

8. When heating food in plastic or paper

containers, keep an eye on the oven due to the possibility of ignition.

10. Do not overcook food.

11. Do not use the oven cavity for storage

purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles

from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in

accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled

eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. If smoke is emitted, switch off or unplug the the appliance and keep the door closed in irder to stifle any flames.

-31-15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

16. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

18. Do not use this oven near water, in a wet

basement or near a swimming pool.

may be high when the appliance is operating. The surfaces are liable to get hot during use.Keep cord away from heated surface, and do not cover any vents on the oven.

21. Failure to maintain the oven in a clean

condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. -32-24. Children should be supervised to ensure that they do not play with the appliance.

25. The microwave oven shall not be placed

in a cabinet unless it has been test e d in a cabinet

26. Appliances are not intended to be

operated by means of an external timer or separate remote-control system.

22. The contents of feeding bottles and baby

food jars shall be stirred or shaken and the temperature checkedbefore consumption, in order to avoid burns.

27. Accessible parts may become hot during

use. Young children should be kept away.

28. Steam cleaner is not to be used.

30. WARNING: The appliance and its

accessible parts become hot during use.Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. comes hot. Care should be taken to avoid touching heating elements inside the oven.

29. During use the appliance be

iling, therefore care must be taken when handling the container. in delayed eruptive bo

21. Microwave heating of beverages can result

-33-31. Surface of a storage cabinet can get hot.

33. The door or the outer surface may get

hot when the appliance is operating.

34. The rear surface of appliance shall be

placed against a wall.

35. It is recommended to check regularly the

supply cord for any sign of possible deterioration,and the appliance should not be used if the cable is damaged.

36. This appliance has been incorporated

with a grounded plug. Please ensure the wall outlet in your house is well earthed.

37. The contents of feeding bottles and baby

food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

38. The microwave oven must be operated

with the decorative door open. (for ovens with a decorative door.)

household and similar applications such as: – staff kitchen areas in shops, offices and – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments. other working environments; 32.This appliance is intended to be used in

-34-READ CAREFULLY AND KEEP FOR

FUTUREREFERENCE minimum 30 cm of free space above the top surface of the oven. food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. of the details for cleaning door seals, cavities and adjacent parts, thanks to refer to the section “Cleaning and care”.

40. The microwave oven is intended for heating

41. Regarding the instructions

WARNING: When the appliance is operated

in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

-35-Two-round-pin plug Grounding Installation 3.To Reduce the Risk of Injury to Persons DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. is properly installed and grounded.

WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet Consult a qualified electrician or serviceman if the grounding instructions are not the appliance

properly use only a 3-wire extension cord.

Note: 1.A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as

2) The extension cord must be a grounding type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top or

n or tripped over unintentionally. Do not disassemble this appliance. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that until appliance is properly installed and grounded. comp;letely understood or if doubt exists as to whether grounded. If it is necessary to use an extension cord, great as the electrical rating of the appliance. tab;etop where it can be pulled on by childre

or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

3. Do not use harsh abrasive cleaners

-36-4.UTENSILS CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or r which gives protection against See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test: 1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil 2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

ex[posure to microwave energy. repair operation that involves the removal of a covein question. Materials to be avoided in microwave oven Utensils Remarks Aluminum tray Food carton with metal handle Metal or metal- trimmed utensils Metal twist ties Paper bags Plastic foam Wood Metal shields the food from microwave energy. Metal trim arcing. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when high temperature. oW od will dry out when used in the microwave oven and may May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. May cause arcing and could cause a fire in the oven. exposed to split or crack. may cause

-37-Materials you can use in microwave oven Utensils Remarks Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer 's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Use as a cover to prevent splattering or a wrap for steaming. Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Use as a cover to prevent splattering and retain moisture. Browning dish Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic Plastic wrap Dinnerware WWaW x paper

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest

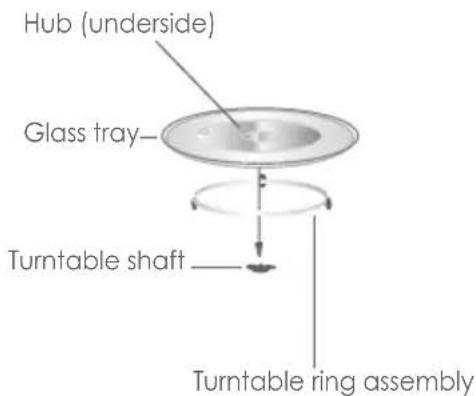

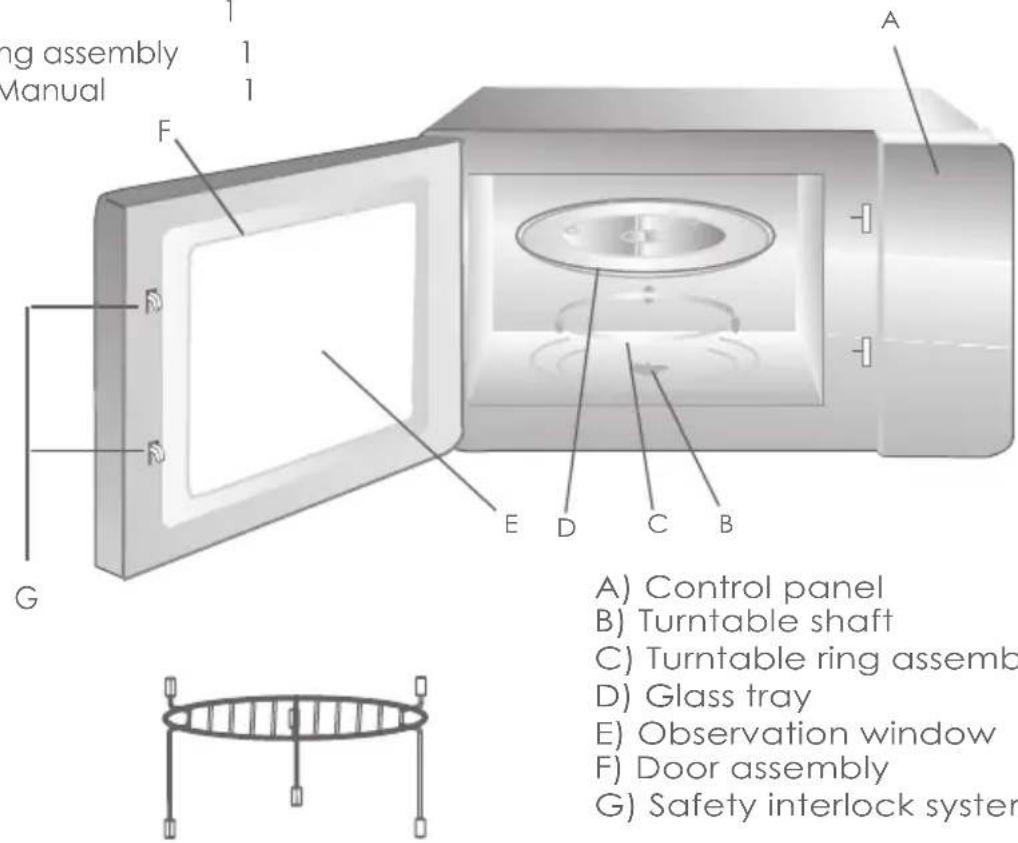

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity.Your oven comes with the following accessories:Glass tray 1Turntable ring assembly 1Instruction Manual 1Grill Rack( Only for Grill series )

Countertop Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect Installation

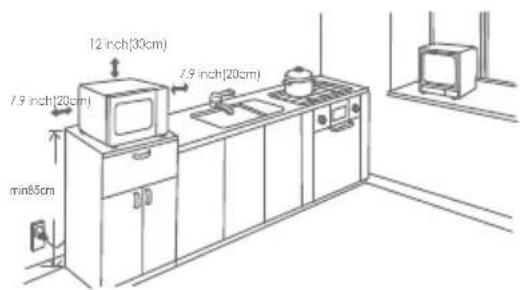

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any (1) Leave a minimum clearance of 12 inches (30cm) above the oven. (2) Do not remove the legs from the bottom of the oven. (3) Blocking the intake and/or outlet openings can damage the oven. (4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a standard household outlet. Be sure the voltage and the

WWWWWWWWWARNING : Do not install oven over a range cooktop or other heat-producing appliance.

installed near or over a heat source, the oven could be damaged and the warranty would be void. The accessible surface may be hot during operation. the magnetron. adjacent walls. frequency is the same as the voltage and the frequency on the rating label.

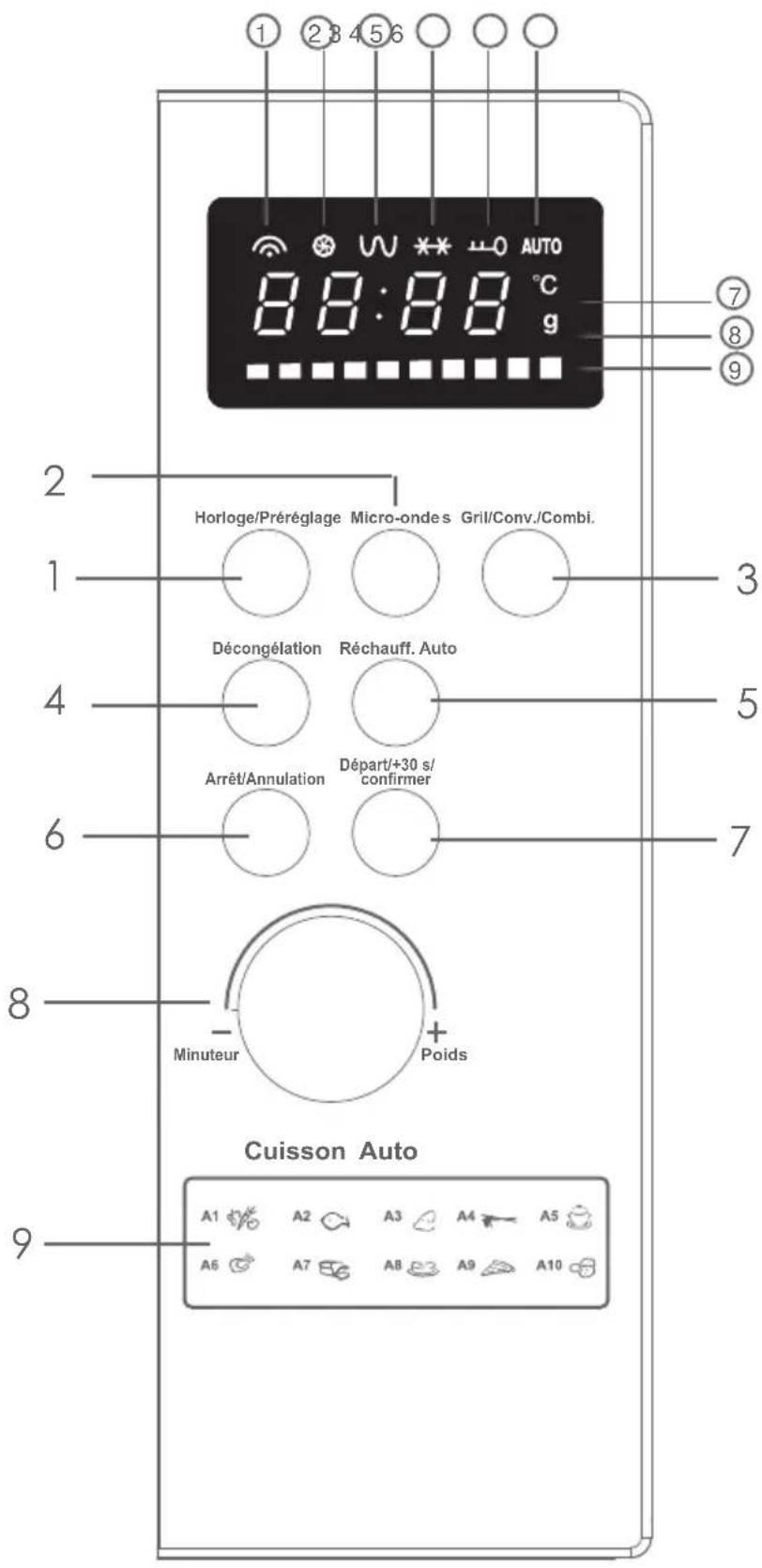

( °C ) Microwave Cooking Convection Cooking Grill Cooking Defrost Lock-out Function for Children Auto Menu Article temperature CLOC /PRE-SET

This microwave oven uses modern electronic control to adjust cooking parametersto meet your needs better for cooking.

2. Microwave Cooking

Press " "several times to select the function you want. Turn " " toadjust the cooking time. Press " " to start cooking. Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.1) Press " " once, screen will display "P100", " " indicator will be lighted. When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once.

2) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour)

3) Press " ", the minute figures will flash.

5) Press " " to finish clock setting. ":" will flash.

Note: 1) If the clock is not set after electrified , "0:00" is displayed.

2) During the process of clock setting, if you press " ", the oven

will go back to the previous status automatically.

2) Press " " again to choose 80% power, screen will display "P80".

3) Turn " " to adjust the cooking time until the oven display"20:00"

(The maximum cooking time is 95 minutes.)4) Press " " to start cooking, ":" will light and the " " indicator will flash.

" to choose 12-hour or 24-hour.NOTE : The step quantities for the adjustment time of the coding switch are as follow: 0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes

4) Turn " " to adjust the minute figures, the input time should be within 0--59.

4) Press the " " key to start cooking. The" " will flash, ":"

3) Turn " " to adjust the cooking time. (The maximum cooking time is 95 minutes.)

1) Press the " " key once , " G-1 " will flash.2) Press the " " to confirm."G-1" is displayed.1) Press the "" key once, " G-1 " will flash.2) Turn " " to select the way of combination function.(C-1,C-2,C-3 or C-4)3) Press " " to confirm the function you need.

4) Turn " " to adjust the cooking time. (The maximum cooking time is 95 minutes.)

5) Press the " " key to start cooking.

The cooking indicators will flash and ":" will light. InstructionsMicrowaveGrillDisplayConvection

C-1 C-2 C-3 C-4 Note: Combination instructions Note: If half the grill time passes, the oven sounds twice, and this is normal. You can just leave it continue cooking. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then " " to continue cooking. If there is no operation , the oven will not pause and continue working.preess

Départ/ + 30 s/Confirmer5. Convection Cooking( With preheating funtion)

6. Convection Cooking( W ithout pre-heating function)

1) Press the " " key once, "G-1" flash.

2) Turn " " to select the convection function. " " flash." " light.

To choose the convection temperature you need by keeping turning it.3) Press the " " to confirm the temperature .4) Press the " " to start preheating.When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. The preheated temperature is displayed and flash.5) Put the food into the oven and close the door. Turn " to adjust the cooking time.(T he maximum setting time is 95 minutes.)6) Press the " " key to start cooking.1) Press the " " key once, "G-1" flash.

2) Turn " " to select the convection function. " " flash." " light.

To choose the convection temperature you need by keeping turning it.3) Press the " " to confirm the convection temperature.

4) Turn " " to adjust the cooking time. (The maximum setting time is

95 minutes.)5) Press the " " key to start cooking.Note:the temperature can be chosen from 140 degrees to 230 degrees.The convection cooking can let you to cook the food as a traditional oven. Microwave Note: a. Cooking time cannot be input until the preheating temperature arrives. If the temperature arrives, door must be opened to input the cooking time. b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting state.temperature before placing the food in the oven.is not used. It is recommended that you should preheat the oven to the appropriate

1) Set the clock first. (Consult the instruction of clock setting. This must be done.)

2) Input the cooking program. Three stages can be set at most. Defrosting

should not be set here. Memory cooking and auto menu cannot be set in

7.Multi-Stage Cooking Three stages of cooking can be maximumly set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage Note: Auto menu cannot be set as one of multi-stage cooking

7) Press " " to finish setting. ":" will light, buzzer will

ring twice when the time arrives, then cooking will start automatically.

5) Press " ", the minute figures will flash .

6) Turn " " to adjust the minute figures, the input time should be within 0--59.

4) Turn " " to adjust the hour figures, the input time should be within

0--23(24-hour) or 1--12(12-hour).

". The current clock is displayed. The hour figure flash;In waiting state, press " " key to cook with 100% power levelfor 30 seconds. Each press on the same key can increase 30 seconds. The maximumcooking time is 95 minutes.Note: this function cannot work under defrost, auto menu and multi-stage state.1) Press " " once to choose 100% microwave power; Note: clock must be set first. Otherwise,pre-set function will not work. Example: if you want to cook with 100% microwave power for 10 minutes+ 80%microwave power for 5 minutes. The steps are as following:2) Turn " " to adjust the cooking time of 10 minutes;3) Press" " twice to choose 80% microwave power;4) Turn " " to adjust the cooking time of 5 minutes;5) Press " " to start cooking.a.Press " " once to choose 100% microwave power;Example: if you want to cook with 100% microwave power for 10 minutes.The steps are as following:b. Turn " " to adjust the cooking time of 10 minutes;c. Do not press " " to start cooking.will begin. multi-stage.

11. Defrost by Weight

13. Inquiring Function

(1) In cooking state, press ""," "," Rotisserie" , the current power will be displayed for 2-3 seconds.(2) In pre-set state, press " " to inquire the time for delay start cooking. The pre-set time will flash for 2-3 seconds.(3) During cooking state, press "" to check the current time. It will be displayed for 2-3 seconds. In waitting state, turn " " anti clockwisely to choose the cooking time directly; press " " to cook with 100% microwave power.

1) Press " " key several times, the oven will display "d-2","d-3" and "d-4".

2) Turn " to select the cooking time. The maximum setting time is 95 minutes.

3) Press " " key to start defrosting. " " and " " indicators will flash .1) Press " " pad once,the oven will display "d-1".3) Press " " key to start defrosting" " and " " indicators will flash and "g" indicator will go out.2) Turn " " to select the weight of food.At the same time, "g" will lights, The weight should be 100-2000g.Note: this can be set as one of the multi-stage.1). In waiting states, turn " " clockwisely, "A1" flash;5) Press " " to start cooking. 2). Turn " repeat edly to choose the different menu; A1,A2...A can be chosen. 3). Press " " to confirm the menu you need. 4). Turn " " to choose the weight or portion of menu.

50(with cold water 450ml) 100(with cold water 800ml) 150(with cold water 1200ml) 200ml 400ml 600ml

1(about 230g) 2(about 460g) 3(about 690g) Auto menu Chart Menu W ight(g)

Lock: In waiting state, press "" for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and screen will display 0:00 or current time. Lock quitting: In locked state, press "" for 3 seconds, there will be a long "beep"denoting that the lock is released.

(1) The buzzer will sound once when turning the knob at the beginning;(2) " " must be pressed to continue cooking if the door (3) Once the cooking programme has been set , " " is not (4) The buzzer sounds once by efficient press, inefficient press will be no responce.(5) The buzzer will sound five times to remind you when cooking is finished.1) Press " "key ,the oven display "h-1".2) Turn " " to select weight or portion.3) Press key to start. " " and " " indicators will flash and "g" indicators will go out. Menu W eight(g)Display h-1 (Auto Reheat) h-2 (Dinner Plate) h-3 (Coffee) h-4 (Roll)

1(approximately 240g)2(approximately 480g)3(approximately 720g)1(approximately 70g)2(approximately 140g)3(approximately 210g)

pressed in 5 minutes. The current time will be displayed. The setting will be cancelled.is opened during cooking;

Départ/ + 30 s/ConfirmerIt is forbidden to run the unit without any food inside.It is very dangerous.Radio and TV reception may be interfered whenmicrowave oven operating. It is similar to theinterference of small electrical appliances, likemixer, vacuum cleaner, and electric fan.It is normal.In low power microwave cooking, oven light maybecome dim. It is normal.In cooking, steam may come out of food. Most willget out from vents. But some may accumulate oncool place like oven door. It is normal.Microwave oven interferingTV reception.Dim oven light.Steam accumulating ondoor, hot air out of vens. Oven started accidentally with no food in. Oven can not be started. Oven does not heat. Glass turntable makes noise when microwave oven operates. (1) Power cord not plugged in tightly. (2) Fuse blowing or circuit breaker works. (3) Trouble with outlet. (5) Dirty roller rest and oven bottom. Unplug. Then plug again after 10 seconds. Replace fuse or reset circuit breaker(repaired by professional personnel of our company). Test outlet with other electrical appliances. Refer to "Cleanning " to clean dirty parts. (4) Door not closed well. Close door well. Trouble Possible Cause Remedy Normal 7.Trouble shooting -49-Model Rated Voltage :Rated Input PowerRated Output Power(Microwave) :Rated Input Power(Grill) :Oven Capacity :Turntable Diameter External Dimensions :Net Weight : (Microwave): WWWWWWWWWWWWWWWe decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet. This marking indicates that this product should not be disposed with other household wastes throughout the EU . To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

CORRECT DISPOSAL OF THIS PRODUCT

315mm520X438X3 Turn off the oven and remove the power plug from the wall socket before cleaning. splatters or spilled liquids adhere to oven walls, wipe with

damp cloth. Mild detergent may

the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner. Do not allow the control panel to become wet. Clean with a soft, damp cloth. W hen cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

KKeKKKKKK ep the inside of the oven clean. WWWWW WWhen food K W

30L 8.Cleaning and care

ACE3 X Be sure to unplug the appliance from the power supply. Clean the inside of the oven after using with a slightly damp cloth. Clean the accessories in the usual way in soapy water. The door frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.

Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.
