USER MANUAL B10 Eurolite

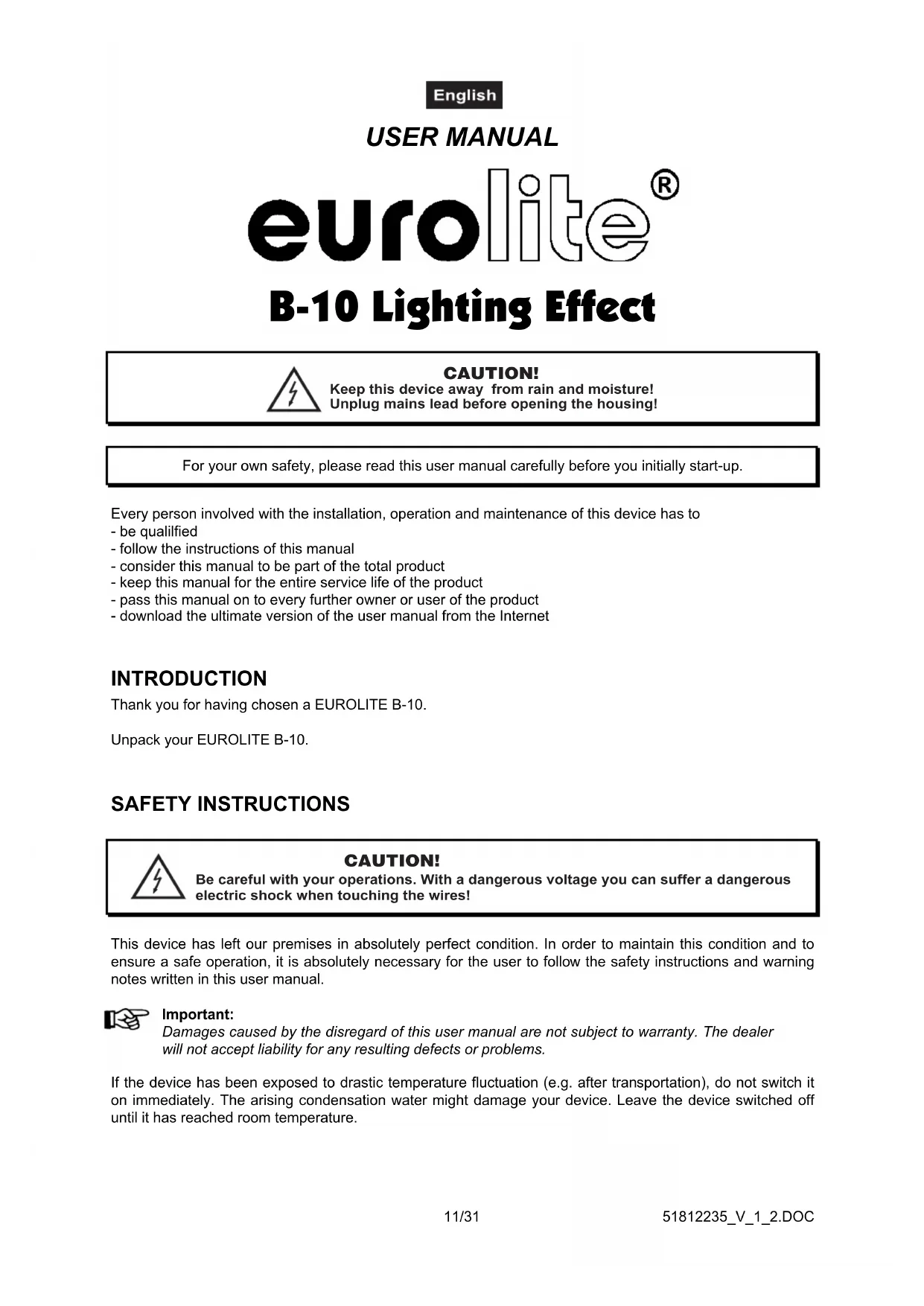

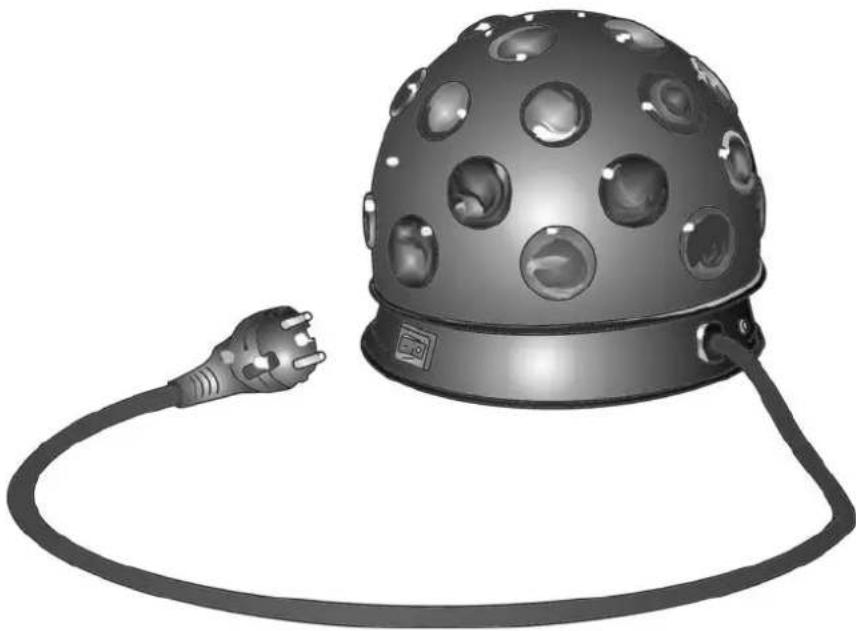

USER MANUAL B-10 Lighting Effect CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! For your own safety, please read this user manual carefully before you initially start-up.Every person involved with the installation, operation and maintenance of this device has to- be qualilfied- follow the instructions of this manual- consider this manual to be part of the total product- keep this manual for the entire service life of the product- pass this manual on to every further owner or user of the product- download the ultimate version of the user manual from the Internet INTRODUCTION Thank you for having chosen a EUROLITE B-10.Unpack your EUROLITE B-10. SAFETY INSTRUCTIONS CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.Important:Damages caused by the disregard of this user manual are not subject to warranty. The dealerwill not accept liability for any resulting defects or problems. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.51812235_V_1_2.DOC 12/31 Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer. This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet. The voltage and frequency must exactly be the same as stated on the device. Wrong voltages or power outlets can lead to the destruction of the device and to mortal electrical shock. Always plug in the power plug last. The power plug must always be inserted without force. Make sure that the plug is tightly connected with the outlet. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never touch them with wet hands, as this could lead to mortal electrical shock. Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages, fire or mortal electrical shock. The cable insert or the female part in the device must never be strained. There must always be sufficient cable to the device. Otherwise, the cable may be damaged which may lead to mortal damage. Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time. If extension cords are used, make sure that the core diameter is sufficient for the required power consumption of the device. All warnings concerning the power cords are also valid for possible extension cords. Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. Otherwise, the cable or plug can be damaged leading to mortal electrical shock. If the power plug or the power switch is not accessible, the device must be disconnected via the mains. If the power plug or the device is dusty, the device must be taken out of operation, disconnected and then be cleaned with a dry cloth. Dust can reduce the insulation which may lead to mortal electrical shock. More severe dirt in and at the device should only be removed by a specialist. There must never enter any liquid into power outlets, extension cords or any holes in the housing of the device. If you suppose that also a minimal amount of liquid may have entered the device, it must immediately be disconnected. This is also valid, if the device was exposed to high humidity. Also if the device is still running, the device must be checked by a specialist if the liquid has reduced any insulation. Reduced insulation can cause mortal electrical shock. There must never be any objects entering into the device. This is especially valid for metal parts. If any metal parts like staples or coarse metal chips enter into the device, the device must be taken out of operation and disconnected immediately. Malfunction or short-circuits caused by metal parts may cause mortal injuries. During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective. Caution: During the operation, the housing becomes very hot. Do not switch the device on and off in short intervals as this would reduce the lamp’s life. HEALTH HAZARD! Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially meant for epileptics)!51812235_V_1_2.DOC 13/31 Keep away children and amateurs! Never leave this device running unattended. OPERATING DETERMINATIONS This device is a lighting effect for creating decorative effects. This product is only allowed to be operated with an alternating voltage of 230 V, 50 Hz and was designed for indoor use only. This device is designed for professional use, e.g. on stages, in discotheques, theatres etc. Lighting effects are not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The device must never be installed over areas, where persons may be seated or walk by. Do not shake the device. Avoid brute force when installing or operating the device. When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. You endanger your own and the safety of others! This device must never be operated or stockpiled in sourroundings where splash water, rain, moisture or fog may harm the device. Moisture or very high humidity can reduce the insulation and lead to mortal electrical shocks. When using smoke machines, make sure that the device is never exposed to the direct smoke jet and is installed in a distance of 0.5 meters between smoke machine and device. The room must only be saturated with an amount of smoke that the visibility will always be more than 10 meters. The ambient temperature must always be between -5° C and +45° C. Keep away from direct insulation (particularly in cars) and heaters. The relative humidity must not exceed 50 % with an ambient temperature of 45° C. This device must only be operated in an altitude between -20 and 2000 m over NN. Never use the device during thunderstorms. Over voltage could destroy the device. Always disconnect the device during thunderstorms. The symbol ---m determines the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 0.5 meters. The housing must never touch surrounding surfaces or objects. Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture. The maximum ambient temperature T

= 45° C must never be exceeded. Operate the device only after having become familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation! Please use the original packaging if the device is to be transported. Please consider that unauthorized modifications on the device are forbidden due to safety reasons! If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short- circuit, burns, electric shock, lamp explosion, crash etc.51812235_V_1_2.DOC 14/31 INSTALLATION Installing/Replacing the lamps DANGER TO LIFE! Only install the lamps with the device switched off! Unplug from mains before! The lamp has to be replaced when it is damaged or deformed due to the heat! CAUTION! Before replacing the lamp, unplug mains lead and let the lamp cool down (approx. 5 minutes). During the installation do not touch the glass-bulbs bare-handed! Please follow the lamp manufacturer's notes! Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device was not designed for. Damages caused by non-observance are not subject to warranty. For the installation, you need two 230 V/40 W E-14 lamps. During the operation, the lamp reaches temperatures of up to 240° C. Procedure: Step 1: Unscrew the screws on top of the ball. Step 2: Remove the ball from the housing cover. Step 3: If replacing the lamp, remove the old lamp from the lamp-socket. Step 4: Put the new 230 V/40 W E-14 lamp into the lamp-socket. Step 5: Replace the ball onto the holder. Step 6: Tighten the screws. Do not operate this device with opened housing-ball! Rigging DANGER OF FIRE! When installing the device, make sure there is no highly-inflammable material (decoration articles, etc.) within a distance of min. 0.5 m. The device can be installed on the ground or on the wall or ceiling. Hanging installation51812235_V_1_2.DOC 15/31 The installation of the device has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails. When rigging, derigging or servicing the device staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden. The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time. The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test. The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year. Procedure: The device should be installed outside areas where persons may walk by or be seated. IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the device. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and or damage to property. The device has to be installed out of the reach of people. The device must never be fixed swinging freely in the room. Caution: Devices in hanging installations may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the device! Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight. The device must be installed in an absolutely horizontal position. Always install the device via all fixation holes. Do only use appropriate screws and make sure that the screws are properly connected with the ground. DANGER TO LIFE! Before taking into operation for the first time, the installation has to be approved by an expert! Procedure: Step 1: Unscrew the screws on top of the ball. Step 2: Remove the ball from the housing cover. Step 3: Unscrew the hexagon nuts with washer on the housing cover. If needed, you have to hold the screws on the bottom of the housing with a cross screwdriver in order to loosen the nuts. Step 4: Carefully remove the housing cover from the baseplate. Step 5: Hold the baseplate onto the location where the B-10 is to be installed. Step 6: Mark the boreholes with a pen or a suitable tool. Step 7: Drill the holes with a 6-mm drill and use 6-mm dowels. Step 8: Make sure that the counter-nuts of the baseplate-screws are fixed.51812235_V_1_2.DOC 16/31 Step 9: Hold the baseplate in the desired position and tighten it with 4-mm screws. Step 10: Make sure that you connected the earthing. Step 11: Replace the housing cover onto the baseplate and tighten the nuts. Connection with the mains Connect the device to the mains with the power-plug. The occupation of the connection-cables is as follows: Cable Pin International Brown Live L Blue Neutral N Yellow/Green Earth The earth has to be connected! If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation. The device must only be connected with an electric installation carried out in compliance with the IEC- standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum fault current of 30 mA. OPERATION With the POWER-switch, you can switch the device on and off, and the B-10 starts running. The lamps begin to burn and the ball starts rotating.

CLEANING AND MAINTENANCE

The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test. The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year. The following points have to be considered during the inspection:

1) All screws used for installing the devices or parts of the device have to be tighly connected and must not

2) There must not be any deformations on housings, fixations and installation spots (ceiling, suspension,

sediments. Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed. Disconnect from mains before starting maintenance operation! DANGER TO LIFE! We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use alcohol or solvents!51812235_V_1_2.DOC 17/31 The lenses have to be replaced when they are obviously damaged, so that their function is impaired, e. g. due to cracks or deep scratches! CAUTION! The lenses will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light- output very quickly. The interior of the device should be cleaned at least annually using a vacuum-cleaner or an air-jet. There are no serviceable parts inside the device except for the lamp. Maintenance and service operations are only to be carried out by authorized dealers. Please refer to the instructions under "Installing/Replacing the lamps". Should you need any spare parts, please use genuine parts. If the power supply cable of this device becomes damaged, it has to be replaced by authorized dealers only in order to avoid hazards. Should you have further questions, please contact your dealer. TECHNICAL SPECIFICATIONS Power supply: 230 V AC, 50 Hz ~ Power consumption: 85 W Rotation-speed: circa 22 RPM Dimensions (LxWxH): 195 x 195 x 155 mm Weight: 1.2 kg Fitting lamp: 2 x 230 V/40 W E-14 Maximum ambient temperature T

45° C Maximum housing temperature T
