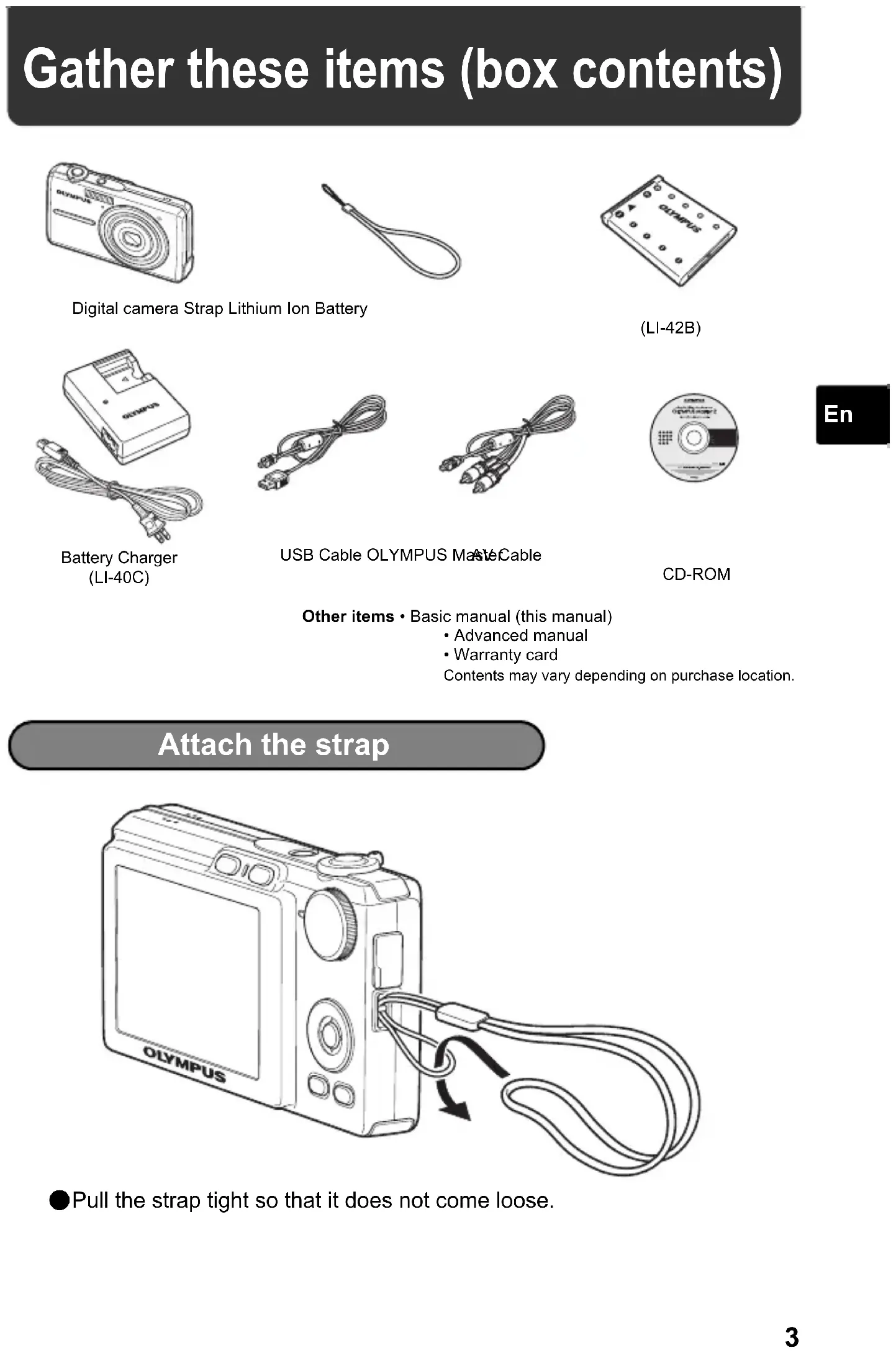

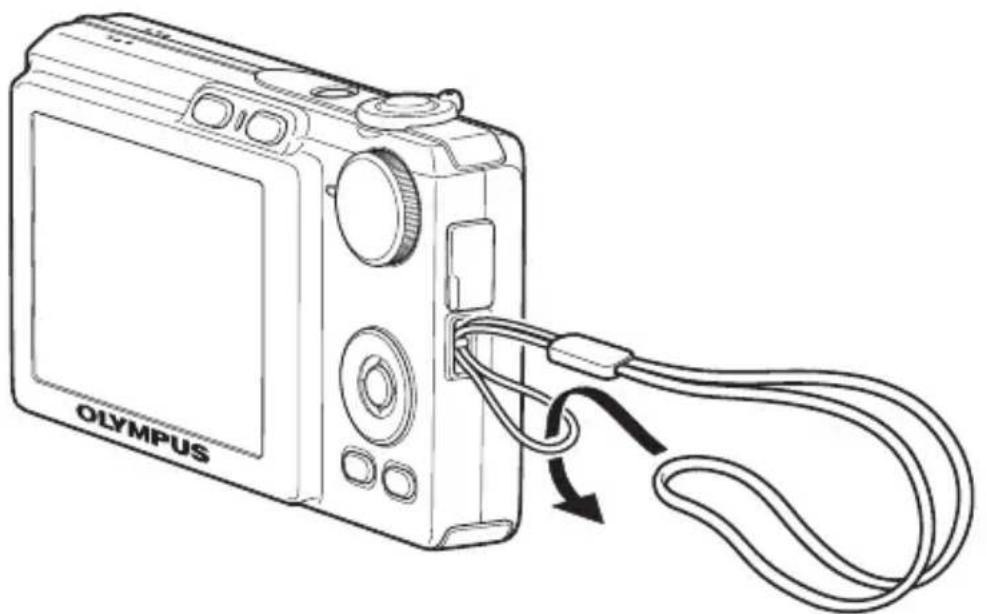

Gather these items (box contents) Attach the strap ( Pull the strap tight so that it does not come loose. Digital camera Strap Lithium Ion Battery (LI-42B)Battery Charger (LI-40C)USB Cable OLYMPUS Master CD-ROMOther items • Basic manual (this manual)• Advanced manual• Warranty cardContents may vary depending on purchase location.AV Cable d4337_oai_e_basic_00_bookfile.book Page 3 Wednesday, November 29, 2006 5:45 PM4

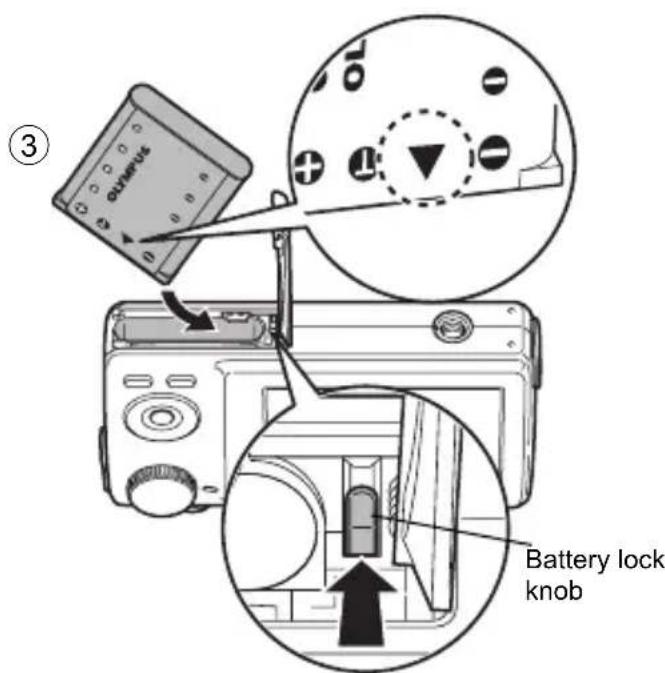

Prepare the battery a. Charge the battery ( Battery comes partially charged. b. Insert the battery in the camera ( This camera does not require an optional xD-Picture Card™ (hereinafter referred to as “the card”) to take pictures. For details on inserting an optional Card, please refer to Advanced Manual.Charging IndicatorRed light on: ChargingLight off: Charging complete(Charging time: Approx. 300 minutes)AC Wall Outlet

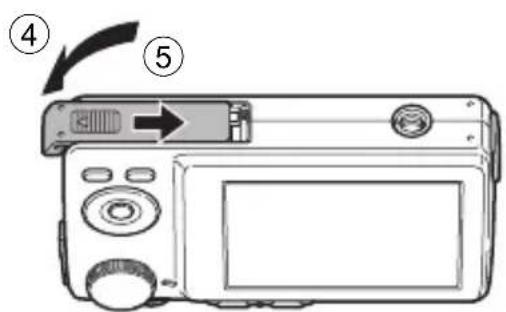

To remove the battery, press the battery lock knob in the direction of the arrow.

Insert the battery in the direction indicated by the mark.Battery lock knob d4337_e_basic_03_camera_7.fm Page 4 Friday, December 8, 2006 1:03 PM5

Turn the camera on This section explains how to turn on the camera in shooting mode. a. Set the mode dial to h Still picture shooting modes b. Press the o button ( To turn off the camera, press the o button again. The directions of the arrow pad (ONXY) are indicated with ONXY in this manual. h The camera determines the optimum settings and shoots the picture.h This function reduces the blur caused by a moving subject or camera movement when taking pictures.B Suitable for taking pictures of people.E Suitable for taking pictures of landscapes.M Suitable for taking pictures of people at night.f You can select a scene mode from among 10 set for various shooting conditions.g This function allows you to take the best picture by following the shooting guide displayed on the screen.When shooting moviesWhen shooting still picturesMode dialo buttonThis screen appears if the date and time have not been set. MENU CANCEL

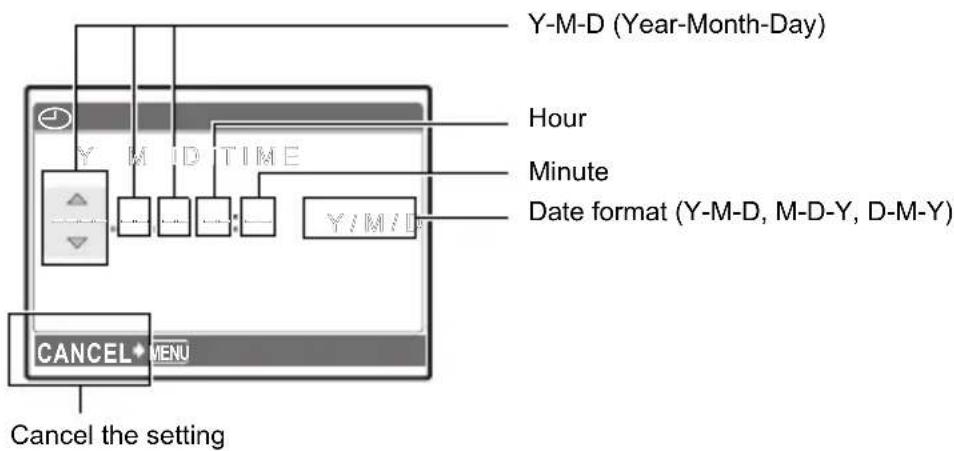

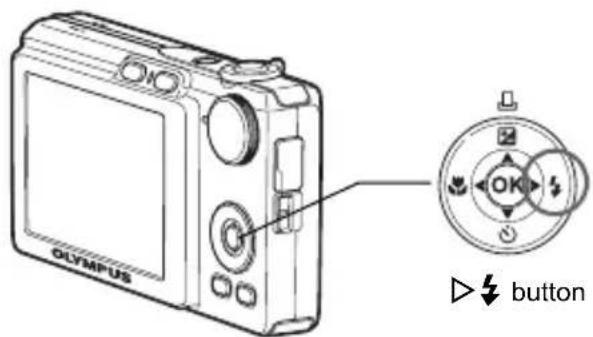

Set date and time About the date and time setting screen

Press the OF/< button and

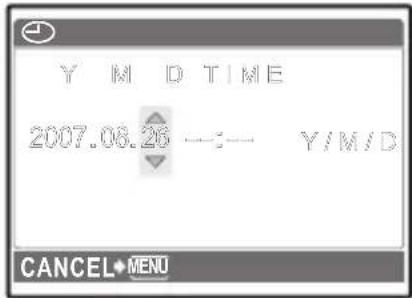

button to select [Y]. ( The first two digits of the year are fixed. b. Press the Y# button. c. Press the OF/< button and the NY button to select [M]. Y-M-D (Year-Month-Day)Cancel the settingMinuteDate format (Y-M-D, M-D-Y, D-M-Y) Hour MENU CANCEL Y/M/D Y / M / D

Y M D T I M E Y/M/D Y / M / D Y# button

Y M D T I M E Y/M/D Y / M / D d4337_oai_e_basic_00_bookfile.book Page 6 Wednesday, November 29, 2006 5:45 PM7

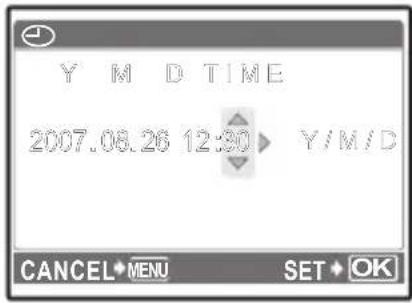

NY button to select [Y/M/D]. j. After all items have been set, press the i button. ( For a more accurate setting, you can press the i button when the time signal hits 00 seconds.

Y M D T I M E i button

d4337_oai_e_basic_00_bookfile.book Page 7 Wednesday, November 29, 2006 5:45 PM8

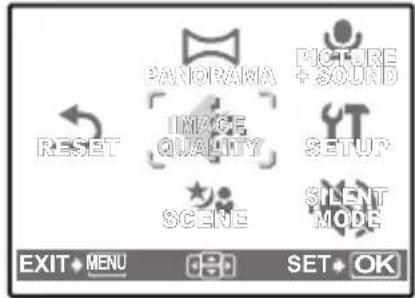

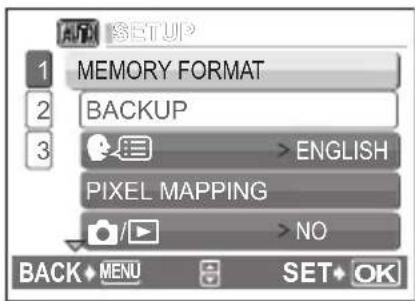

Select a Language a. Press the MENU button to display the top menu. b. Press the Y# button to select [SETUP] and then press the i button. c. Press the OF/< button and NY button to select [W] and then press the i button. d. Press the arrow pad (ONXY) to select a language and then press the i button. ( You can add other languages to your camera with the provided OLYMPUS Master software. Please refer to the Advanced Manual.

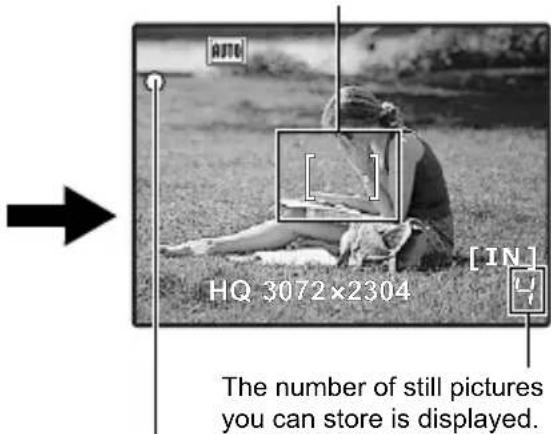

The green lamp indicates that the focus and exposure are locked. Place this mark over your subject. The number of still pictures you can store is displayed. Presss completely Shutter button The card access lamp blinks. d4337_oai_e_basic_00_bookfile.book Page 9 Wednesday, November 29, 2006 5:45 PM10

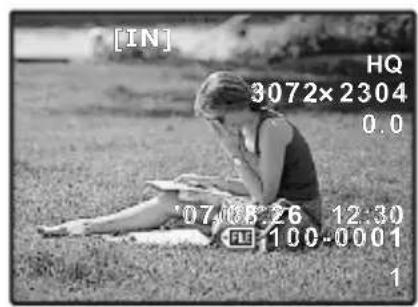

Basic Operation Shooting Mode Buttons While in shooting mode, use these buttons for quick access to some of the more commonly used features. 1 K button (Shooting) Selects the shooting mode. 2 q button (Playback) Selects the playback mode. 3 MENU button Displays the top menu on the monitor. 4 X& button (Macro Mode) Use MACRO or SUPER MACRO mode when taking close-up pictures such as of a flower. 5 OF/< button (Exposure Compensation) Press in shooting mode to make the picture overexposed (+) or underexposed (–). 6 Y# button (Flash Mode) Select from 4 flash modes - FLASH AUTO, ! REDEYE, # FILL IN, or $ FLASH OFF. 7 i button Press to confirm settings. 8 NY button (Self-timer) Select the self-timer to delay the shot approximately 12 seconds from when the shutter button is pressed. 9 Arrow pad (ONXY) Selects scenes, playback pictures and menu items.

d4337_oai_e_basic_00_bookfile.book Page 11 Wednesday, November 29, 2006 5:45 PM12

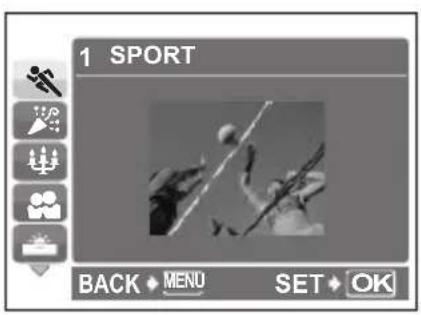

Mode Dial Set the desired mode and turn the camera on. You may select the desired mode before or during use. SCENE Modes Select the shooting mode depending on an object. 1 Set the mode dial to f, and select the other scene. 2 Press O/N to select the scene modes and press i.

The camera determines the optimum settings and shoots the picture. This function reduces the blur caused by a moving subject or camera movement when taking pictures.B Suitable for taking pictures of people.l Suitable for taking pictures of landscapes.M Suitable for taking pictures of people at night. You can select a scene mode from among 10 set for various shooting conditions.n This function lets you record movies. This function allows you to take the best picture by following the shooting guide displayed on the screen.

Shooting SCENE Modes Macro Mode & This mode lets you take pictures as close as 10 cm (3.9 in.) to your subject. (Most wide-angle side) % Use this mode to take pictures as close as 5 cm (2.0 in.) to your subject. In % mode, the position of the zoom lens is fixed. 1 Press X& repeatedly to select [&] or [%] and press i. Flash Modes 1 Press Y# repeatedly to select the flash mode and press i. 2 Press the shutter button halfway. When the flash is set to fire, the # mark lights. 3 Press the shutter button completely to take the picture.

• R SELF PORTRAIT Icon Flash Mode Description AUTO FLASH AUTO The flash fires automatically in low light or backlight conditions. REDEYE The red-eye reduction flash mode significantly reduces this phenomenon by emitting pre-flashes before firing the regular flash. FILL IN The flash fires regardless of the available light. FLASH OFF The flash does not fire even in low light conditions. d4337_oai_e_basic_00_bookfile.book Page 13 Wednesday, November 29, 2006 5:45 PM14

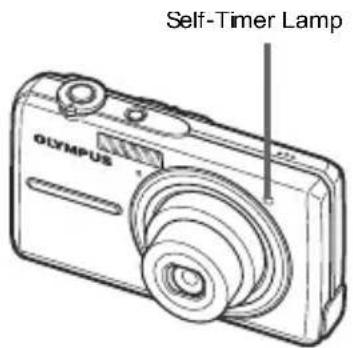

Self-Timer 1 Press NY to select [Y] and press i. 2 Press the shutter button completely to take the picture. After setting the self-timer, press the shutter button completely. Then the self-timer lamp lights for approximately 10 seconds, blinks for approximately 2 seconds, and the shutter is released. Power Save Feature To save battery power, the camera automatically enters sleep mode and stops operating if not used for approximately 3 minutes. Press the shutter button or zoom lever to reactivate the camera. If the camera is not operated for 12 minutes after the camera enters sleep mode, it automatically retracts the lens and turns off. To resume operation, turn on the power again.

amp d4337_oai_e_basic_00_bookfile.book Page 14 Wednesday, November 29, 2006 5:45 PM15

Menus and Settings Top Menu 1 Press MENU to display the top menu. 2 Use the arrow pad (O/N/X/Y) to select menu items, and press i to set them.PANORAMAPanorama shooting lets you create a panoramic picture, using the OLYMPUS Master software from the provided CD-ROM. An Olympus xD-Picture Card is required for panorama shooting.PICTURE + SOUND (Still picture shooting mode only)Select whether to record 4 second audio or not after taking every picture.MOVIE W/ SOUND (Movie shooting mode only)Select whether to record sound or not during move recording.RESETReturn the changed shooting functions back to default settings.IMAGE QUALITYSet the image quality of the picture you will shoot according to its intended purpose.SETUPSet the date, time, language, and operation sound, etc.SCENESelect a scene mode depending on the subject and shooting condition when the f mode is selected.SILENT MODETurn off operational sounds that occur during shooting and playback. Erase All Pictures 1 Press MENU in playback mode to display the top menu and select [ERASE] > [ALL ERASE]. 2 Select [YES], and press i. All the pictures are erased.

d4337_oai_e_basic_00_bookfile.book Page 15 Wednesday, November 29, 2006 5:45 PM16

Connecting the Camera Playback on a TV Use the AV cable provided with the camera to playback recorded images on your TV. Both still pictures and movies can be played back. 1 Make sure that the TV and camera are turned off. Connect the multi-connector on the camera to the video input terminal on the TV using the AV cable. 2 Turn the TV on and set it to the video input mode. For details of switching to video input, refer to your TV’s instruction manual. 3 Turn on the camera and then press q to enter playback mode. The last picture taken is displayed on the TV. Use the arrow pad (O/N/X/Y) to select the picture you want to display.AV Cable (provided)Multi-ConnectorConnector CoverConnect to the TV’s video input (yellow) and audio input (white) terminals. d4337_oai_e_basic_00_bookfile.book Page 16 Wednesday, November 29, 2006 5:45 PM17

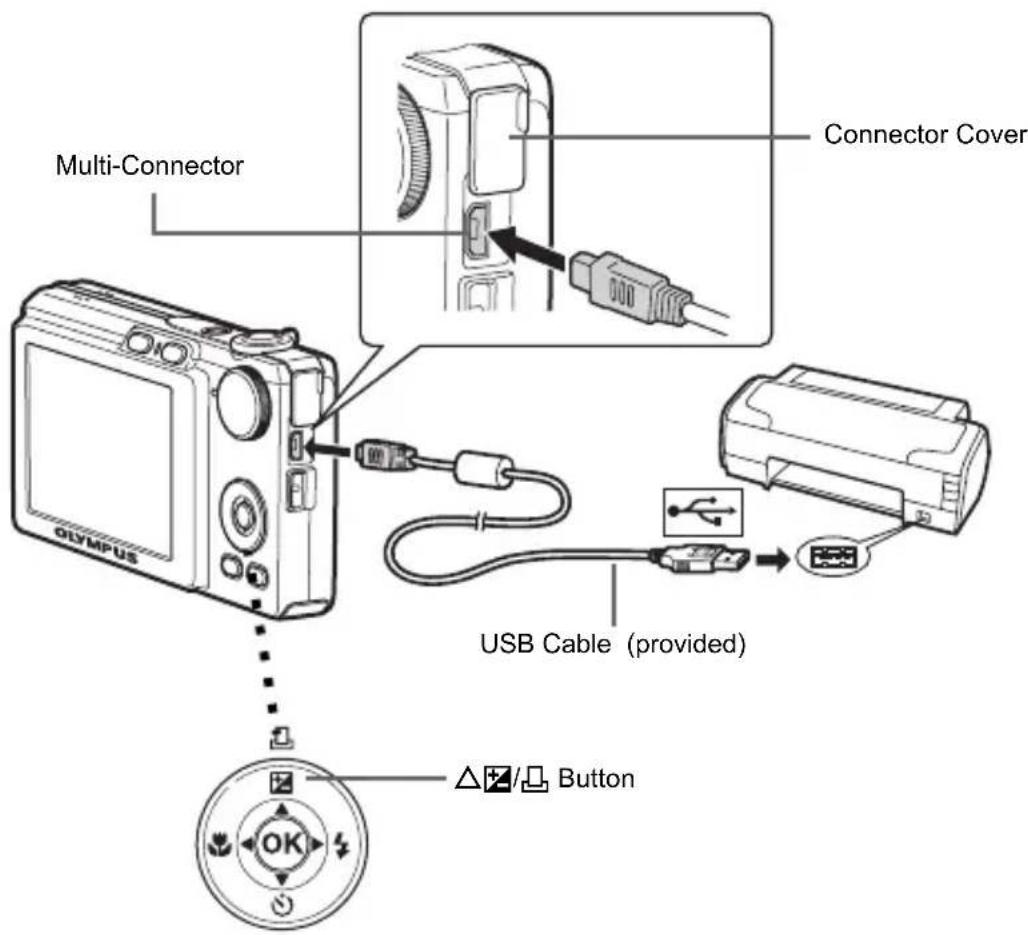

Direct Printing (PictBridge) Using the provided USB cable, you may connect your camera directly to a PictBridge compatible printer to make prints. You can print a picture with simple operations. 1 In playback mode, display the picture you want to print out on the monitor. 2 Connect one end of the provided USB cable into the camera’s multi-connector and the other end into the printer’s USB connector. 3 Press OF/<. Printing starts. When printings finished, disconnect the USB cable from the camera with the picture selection screen displayed.USB Cable (provided)Multi-ConnectorConnector CoverOF/< Button

CUSTOM PRINT d4337_oai_e_basic_00_bookfile.book Page 17 Wednesday, November 29, 2006 5:45 PM18

Transfer Images Install the software 1 Insert the OLYMPUS Master CD-ROM. 2 Windows: Click the “OLYMPUS Master 2“ button.Macintosh: Double-click the “Setup“ icon. 3 Simply follow the on-screen instructions. Connect the camera to the computer 1 Connect the camera and computer using the USB cable (included). The monitor will turn on automatically. 2 Select [PC] on the monitor, and press i. Your PC will now recognize your camera as a removable storage drive.USB Cable (provided)

EXIT SET d4337_oai_e_basic_00_bookfile.book Page 18 Wednesday, November 29, 2006 5:45 PM19

Transfer images to the computer 1 With the camera now connected, open OLYMPUS Master. 2 Click “Transfer Images” on the browse window, and then click “From Camera” . 3 Simply follow the on-screen instructions. Tips

• For more detailed information regarding camera setup and usage, please refer to the camera’s “Advanced Manual” provided on CD-ROM.

• For additional assistance, refer to the “Help” file in the OLYMPUS Master software. d4337_oai_e_basic_00_bookfile.book Page 19 Wednesday, November 29, 2006 5:45 PM20

OLYMPUS Master Software OLYMPUS Master Software: Use this software to download pictures from the camera, view, organize, retouch, e-mail and print your digital pictures, movies and more! (System Requirements For the latest support information, visit the Olympus website (http://www.olympus.com/digital) Windows 2000 Professional/XP Home Edition/XP Professional/Vista or Mac OS X (10.3 or later) CPU Pentium III 500 MHz/Power PC G3 500 MHz/Intel Core Solo/Duo 1.5 GHz, or laterRAM 256 MB or moreHard Disk 500 MB or more free spaceConnection USB port/IEEE 1394 portMonitor 1024 × 768 pixels resolution or more with minimum 65,536 colors (Windows), 32,000 colors (Macintosh)Other Internet Explorer 6 or later (Windows), Safari 1.0 or later, QuickTime 6 or later (Macintosh) Register your camera when you install OLYMPUS Master to activate your warranty, receive notifications of software and camera firmware updates, and more. User Registration d4337_oai_e_basic_00_bookfile.book Page 20 Wednesday, November 29, 2006 5:45 PM21

Specifications (Camera Product type : Digital camera (for shooting and displaying) Recording system Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF)) Applicable standards : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge Sound with still pictures : Wave format Movie : AVI Motion JPEG Memory : Internal memory xD-Picture Card (16 MB to 2 GB) (TypeH/M, Standard) No. of effective pixels : 7,100,000 pixels Image pickup device : 1/2.5" CCD (primary color filter), 7,400,000 pixels (gross) Lens : Olympus lens 6.3 to 18.9 mm, f3.1 to 5.9 (equivalent to 38 to 114 mm on 35 mm film) Photometric system : Center-weighted metering Shutter speed : 4 to 1/2,000 sec. Shooting range : 0.6 m (2 ft.) to ∞ (W)/ 1.0 m (3.3 ft.) to ∞ (T) (normal mode)

Monitor : 2.5" TFT color LCD display, 154,000 pixels Outer connector : DC-IN jack, USB connector, A/V OUT jack (multi- connector) Automatic calendar system : 2000 up to 2099 Operating environment Temperature : 0 to 40°C (32°F to 104°F) (operation)/-20 to 60°C (-4°F to 140°F) (storage) Humidity : 30 to 90% (operation)/10 to 90% (storage) Power supply : One Olympus lithium ion battery (LI-42B/LI-40B) or specified AC adapter Dimensions : 92 mm (W) × 55 mm (H) × 20 mm (D) (3.6 × 2.2 ×

0.8 in.) (excluding protrusions)

Weight : 122 g (4.3 oz) (without battery and card) d4337_oai_e_basic_00_bookfile.book Page 21 Wednesday, November 29, 2006 5:45 PM22

(Lithium ion battery (LI-42B) Product type : Lithium ion rechargeable battery Standard voltage : DC 3.7 V Standard capacity : 740 mAh Battery life : Approx. 300 full charges (varies on usage) Operating environment Temperature : 0°C to 40°C (32°F to 104°F) (charging)/ -10°C to 60°C (14°F to 140°F) (operation)/ -20°C to 35°C (-4°F to 95°F) (storage) Dimensions : 31.5 × 39.5 × 6mm (1.2 × 1.5 × 0.2 in.) Weight : Approx. 15 g (0.5 oz) (Battery charger (LI-40C) Power requirements : AC 100 to 240 V (50 to 60 Hz)

3.2 VA (100 V) to 5.0 VA (240 V)

Output : DC 4.2 V, 200 mA Charging time : Approx. 300 min Operating environment Temperature : 0°C to 40°C (32°F to 104°F) (operation)/ -20°C to 60°C (-4°F to 140°F) (storage) Dimensions : 62 × 23 × 90 mm (2.4 × 0.9 × 3.5 in.) Weight : Approx. 65 g (2.3 oz) Please note that design and specification improvements may result in unannounced changes. d4337_oai_e_basic_00_bookfile.book Page 22 Wednesday, November 29, 2006 5:45 PM23

Safety Precautions General Precautions Read All Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference. Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product. Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus. Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofing sections. Location — To avoid damage to the product, mount the product securely on a stable tripod, stand, or bracket. Power Source — Connect this product only to the power source described on the product label. Lightning — If a lightning storm occurs while using an AC adapter, remove it from the wall outlet immediately. Foreign Objects — To avoid personal injury, never insert a metal object into the product. Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers. CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.DANGERIf the product is used without observing the information given under this symbol, serious injury or death may result.WARNINGIf the product is used without observing the information given under this symbol, injury or death may result.CAUTIONIf the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.WARNING!TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN d4337_oai_e_basic_00_bookfile.book Page 23 Wednesday, November 29, 2006 5:45 PM24

Handling the Camera WARNING ( Do not use the camera near flammable or explosive gases. ( Do not use the flash on people (infants, small children, etc.) at close range.

• You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash too close to the subject’s eyes could cause a momentary loss of vision. ( Keep young children and infants away from the camera.

• Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.

• Accidentally swallowing the battery, cards or other small parts.

• Accidentally firing the flash into their own eyes or those of another child.

• Accidentally being injured by the moving parts of the camera. ( Do not look at the sun or strong lights with the camera. ( Do not use or store the camera in dusty or humid places. ( Do not cover the flash with a hand while firing. CAUTION ( Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

• Never remove the batteries with bare hands, which may cause a fire or burn your hands. ( Never hold or operate the camera with wet hands. ( Do not leave the camera in places where it may be subject to extremely high temperatures.

• Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger or AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in fire. ( Handle the camera with care to avoid getting a low-temperature burn.

• When the camera contains metal parts, overheating can result in a low- temperature burn. Pay attention to the following:

• When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.

• In places subject to extremely cold temperatures, the temperature of the camera’s body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures. ( Be careful with the strap.

• Be careful with the strap when you carry the camera. It could easily catch on stray objects - and cause serious damage. d4337_oai_e_basic_00_bookfile.book Page 24 Wednesday, November 29, 2006 5:45 PM25

• The camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified charger. Do not use any other chargers.

• Never heat or incinerate batteries.

• Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.

• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.

• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, by soldering, etc.

• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.

• Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately. WARNING

• Keep batteries dry at all times.

• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.

• Insert the battery carefully as described in the operating instructions.

• If rechargeable batteries have not been recharged within the specified time, stop charging them and do not use them.

• Do not use a battery if it is cracked or broken.

• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera.

• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.

• Never subject batteries to strong shocks or continuous vibration. Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns. d4337_oai_e_basic_00_bookfile.book Page 25 Wednesday, November 29, 2006 5:45 PM26

• Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.

• The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.

• Always unload the battery from the camera before storing the camera for a long period. d4337_oai_e_basic_00_bookfile.book Page 26 Wednesday, November 29, 2006 5:45 PM27
