MO125236.5 - Oven Emerio - Free user manual and instructions

Product type	Multifunction oven with hot plates
Brand	Emerio
Model	MO125236.5
Power supply	220-240 V ~ 50/60 Hz
Maximum power	3200 W
Oven functions	Convection (top, bottom, both)
Hot plates	Large and small plate with setting 1/2/3/MAX
Maximum capacity on rack	3.5 kg
Maximum temperature	230 °C
Interior lighting	Yes, automatic
Included accessories	Rack, baking tray, tray handle
Door material	Glass
Cleaning	Housing: damp cloth; rack and tray: dishwasher
Safety	Hot surface, automatic stop when door opened not specified
Warranty	2 years
Country of origin	Not specified

Frequently Asked Questions - MO125236.5 Emerio

How to use the oven for the first time?

Before first use, run the empty oven for about 15 minutes on the 'top and bottom' (☐) function to remove any residues. A slight odor or smoke is normal.

What is the maximum power of the device?

Total power is 3200 W. To use the oven and both plates simultaneously, ensure your electrical installation supports 16 A.

How to clean the oven?

Unplug the device and let it cool. Clean the exterior with a damp cloth. Never immerse in water. The rack and baking tray are dishwasher safe.

Can I use aluminum foil in the oven?

No, do not cover any part of the oven with aluminum foil, as this could cause overheating.

How to set the temperature and cooking time?

Turn the temperature knob to the desired level (up to 230°C) and the function knob. There is no built-in timer, so monitor cooking and turn off manually.

What to do if the oven does not heat up?

Check that the cord is properly plugged in and the fuse has not blown. If the problem persists, contact customer service.

Can the door glass break?

Avoid putting water on the glass when hot, as this could cause it to shatter. Handle with care.

Can I leave the oven unattended?

No, never leave the appliance unattended while it is operating. Unplug it after use.

What utensils can I use in the oven?

Use only oven-safe containers (metal, heat-resistant glass). Do not put cardboard, plastic, or paper.

How to change the interior light?

The interior light is not mentioned as user-replaceable. Contact an authorized service center in case of failure.

USER MANUAL MO125236.5 Emerio

Black portable toaster oven with two top ovens and a temperature control panel (no visible text or symbols on the main subject)

Multi Oven (EN)

Kleinküche (DE)

Instruction manual – English ...... - 2 -

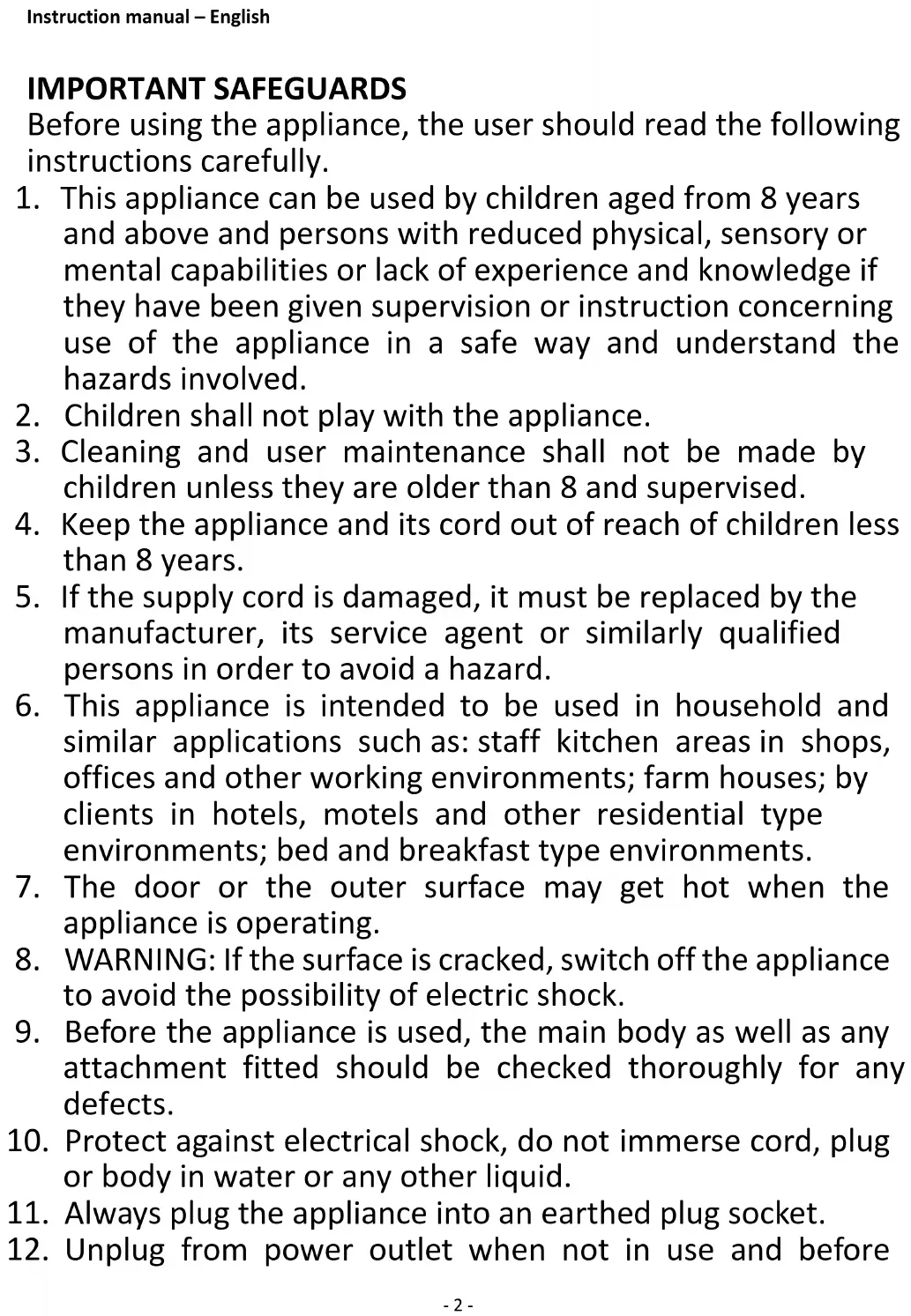

Before using the appliance, the user should read the following instructions carefully.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
7. The door or the outer surface may get hot when the appliance is operating.
8. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
9. Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects.
10. Protect against electrical shock, do not immerse cord, plug or body in water or any other liquid.
11. Always plug the appliance into an earthed plug socket.
12. Unplug from power outlet when not in use and before

cleaning. Allow to cool completely before putting on or taking off parts.

1. While using the oven, do not apply water to the glass door, otherwise the door may get broken.

2. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the distributor (or any authorized service facility) for examination, repair or adjustment.

3. The use of accessory attachments not recommended by us may cause injuries.

4. Do not use outdoors.

5. Do not let supply cord hang over edge of tables or counters, or touch hot surfaces.

6. Do not place the appliance on or near heat sources such as a gas or electric burner.

7. Caution must be taking hard when putting in or removing food out from appliance.

8. Do not leave the appliance unattended while in use and remove the plug from wall socket after use.

9. Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any inflammable materials, and do not position any objects on top of the appliance.

10. Warning: When in use, the oven is hot! Never touch the hot surfaces and the glass door. Use handles or knobs.

11. The oven can't be put into the water or washed with water.

12. This product is for household use only.

13. The appliance should be stood on a level, stable and clean surface while it is in use.

14. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

15. When operating the oven, keep at least four inches of free space on all sides (except back side) of the oven to allow for adequate air circulation. And the rear surface of appliances shall be placed against wall.

16. The oven must be placed against a wall. Regarding the information pertaining to the cleaning of the appliance, please refer to the below paragraph of the manual.

29.

Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Do not cover any part of the oven with metal foil. This may cause overheating of the oven.

2. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.

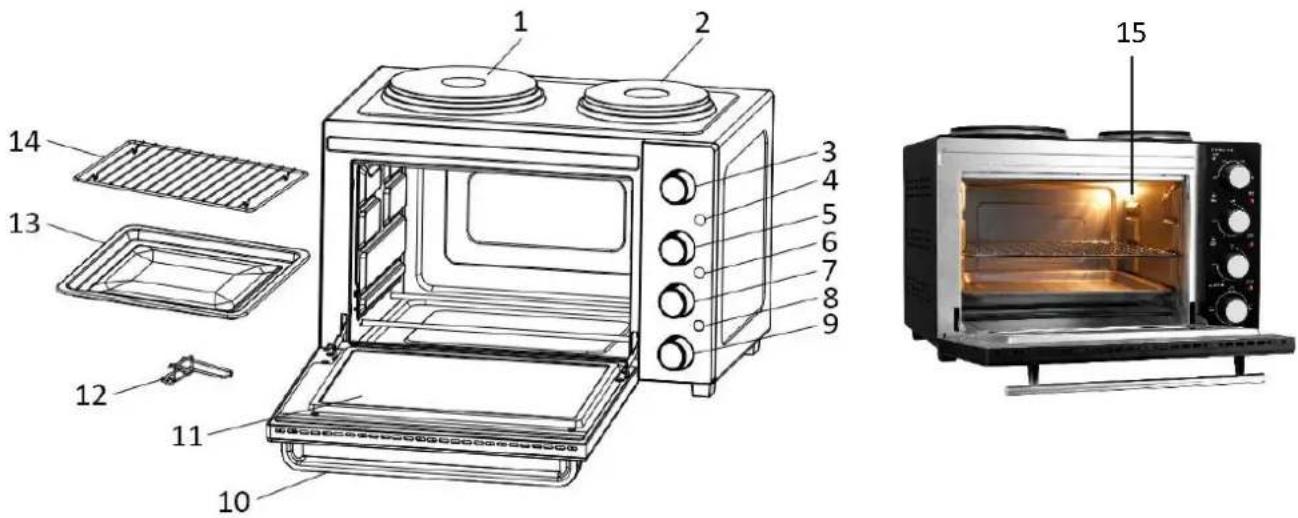

PARTS DESCRIPTION

1. Big hotplate
2. Small hotplate
3. Temperature knob
4. Big hotplate indicator light
5. Big hotplate knob
6. Small hotplate indicator light
7. Small hotplate knob
8. Oven indicator light
9. Function knob
10. Door handle
11. Glass door
12. Tray handle
13. Baking tray
14. Wire rack
15. Inner lamp

BEFORE USE

• Remove all packaging materials from the appliance. Clean the appliance according to the section "HOW TO CLEAN" below.
  • Make sure the appliance is unplugged.
• Before initial use, it is recommended that you run the oven with the function “☐” for approximately 15 minutes to eliminate the remaining packing residue and odor.

NOTE: Initial start-up operation may result in slight smell and smoke. It is due to the burning of protective substance applied to the heating elements. This is normal and harmless.

OPERATION

1. Place the appliance on a flat and heat resistant surface. Make sure that there is enough ventilation around the appliance.
2. Insert the power plug into the socket.
3. Slide the wire rack with food into the slot of the appliance. And then slide the baking tray under the wire rack to collect the dripping oils. You can also directly put food on the baking tray itself. Choose your desired

rack position according to the food height and type.

1. Close the oven door, and turn the function knob to choose the desired function “☐” (The top element will heat.), “☐” (The bottom element will heat.), or “☐” (Both top and bottom elements heat simultaneously.). Turn the temperature knob to choose the desired temperature.
2. Close the oven door. Turn the big hotplate knob “☐” and/or small hotplate knob “☐” to choose the desired heating level from 1/2/3/MAX. The bigger numeral stands for higher heating level. The big and/or small hotplate will work. To turn the hotplate(s) off, just turn the hotplate knob(s) to the position “OFF”.
3. When using both hotplates and the oven at the same time the power consumption will be 3200 watt. This will demand that you use the product with a home fuse of 16 ampere. If the home is using a 10 ampere fuse we don't recommend to use all functions at the same time.
4. The inner lamp, helping you check the food status, automatically shines on when the oven is working. This oven has no timer, you should always switch off the oven manually by turning the function knob to the position "OFF" when the proper time has passed.

Note: The corresponding indicator light shines on when the oven / hotplate is working.

RECOMMENDED COOKING TABLE

MEAT	OVEN TEMPERATURE (°C)	COOKING TIME(Minutes)
RIB STEAK	230	20-25
T-BONE STEAK	230	20-25
HAMBURGER	230	15-25
PORK CHOPS	230	25-35
LAMB CHOPS	230	30-40
CHICKEN LEGS	230	25-35
FISH FILETS	200	15-25
SALMON STEAKS	200	15-25

WARNING: Food should not touch the heating elements. This table is for reference only, always keep an eye on the baking process.

Note:

1. For the best taste, preheating is recommended.
2. Try to place the food on the backing tray evenly.
3. Wire rack should be positioned with the indentations pointing down.
4. The weight of the food which is put on the baking tray/wire rack cannot be over 3.5kg.

Caution: Always use extreme care when removing baking tray, wire rack or any hot container from a hot oven. Always use an oven mitt when removing hot items from the oven.

HOW TO CLEAN

1. Unplug the supply cord from the power outlet.
2. Let the appliance cool down completely.
3. Clean the housing with a damp, lint-free cloth. DO NOT IMMERSE THIS APPLIANCE INTO WATER.
4. Clean the door, the inside walls with wet and dry cloth. Do not use abrasive detergents.
5. Wash the wire rack and baking tray in hot soapy water. Rinse and dry.
6. Only Wire rack and tray handle can be cleaned in a dishwasher.

SPECIFICATIONS

Supply Voltage: 220-240V \~ 50/60Hz

Power consumption: 3200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Manufactured by: Emerio B.V.

Oudeweg 115, 2031 CC Haarlem, The Netherlands

Attention, surface chaude.
