Product Type	Soft Baby Carrier
Brand	Joie
Model	Savvy Lite
Category	Baby Products
Safety Standards	EN 13209-2:2015
Minimum Child Weight	3.5 kg
Carrying Positions	Newborn (integrated seat), facing you, outward facing
Shoulder Buckles	Magnetic
Headrest	Adjustable with buttons, for babies from 3.5 to 6.5 kg
Leg Opening Adjustment	Adjustment buttons for M position
Lumbar Support	Abdominal support buckle
Included Accessories	Bib, harness covers (x2), sunshade, personal protector
Sunshade	Integrated in the headrest pocket, adjustable
Bib	Removable, attaches to the headrest and shoulder straps
Harness Covers	Removable, attach to the shoulder buckles
Care	Machine wash in laundry bag, follow care label
Spare Parts	Use exclusively parts provided by Joie
Storage	Store in a mesh laundry bag
Contraindications	Do not use with a pacemaker, nor for sports activities

Frequently Asked Questions - Savvy Lite Joie

How to install the baby carrier in newborn mode?

For newborn mode, use the integrated seat by attaching the hook button 2 around the adjustment buttons and narrowing the leg opening. Attach the headrest and fasten the magnetic buckles. Refer to images ② to ③ in the manual.

What is the minimum weight to use the baby carrier?

The minimum weight is 3.5 kg. Do not use the carrier with newborns below this weight.

How to adjust the leg opening for the M position?

Use the leg opening adjustment buttons (no. 4) to adjust the width. Make sure the child's legs are in the M position, recommended by the International Hip Dysplasia Institute.

Can I use the baby carrier if I have a pacemaker?

No, because the magnetic buckles may interfere with the pacemaker's operation. Consult your doctor before use.

How to clean the Savvy Lite baby carrier?

Machine wash the carrier in a mesh laundry bag, following the care label. Also store it in a mesh bag when not in use.

From what age can I carry my baby facing outward?

Outward-facing mode is possible when the child holds their head up (around 4 months). Use the hook button 1 for this mode. See images 18-24 of the manual.

How to attach the sunshade?

Take out the sunshade from the pocket on the headrest flap. Attach the sunshade straps to the attachments on the shoulder straps. Adjust as needed.

What to do if parts are damaged or missing?

Stop using the carrier immediately. Use only replacement parts provided by Joie. Regularly check the condition of seams, straps, and closures.

Can I use the baby carrier during sports activities?

No, the carrier is designed for activities such as walking, standing, or sitting. Do not use it for sports, running, or cycling.

How to install the harness covers?

Fold down the headrest and secure it with the lower buttons. Store the excess shoulder buckle in the pocket. Install the covers around the shoulder buckles and attach the straps and hooks.

USER MANUAL Savvy Lite Joie

Line drawing of a robotic device with multiple arms and buttons (no text or symbols)

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. Use Modes and Requirements

Newborn Mode with Integrated Newborn Seat

Line drawing of a person wearing a helmet and gear, with a numbered label (7) in the corner (no text or symbols on the diagram itself)

Illustration of a person using a red belt buckle to adjust the seat (no text or symbols present)

Infant Facing-In Mode

Line drawing of a person wearing a full-body exoskeleton device (no text or symbols)

Line drawing of a backpack with straps and buttons, no text or symbols present

Line drawing of a person wearing a full-body exoskeleton device (no text or symbols)

Infant Facing-Out Mode

Line drawing of a person seated in a chair with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person's seatbelt with an arrow indicating direction (no text or symbols)

Line drawing of a person wearing a baby baza life vest (no text or symbols)

Illustration of a person's seatbelt with a directional arrow indicating movement (no text or symbols)

Line drawing of a person wearing a full-body medical device with limbs and straps (no text or symbols)

"M" Position

Line drawing of a person in a full-body safety harness with a child, no text or symbols present

Line drawing of a person in a seated posture with hands placed on the chest, no text or symbols present

Illustration of hands cutting a rolled-up sheet of paper with scissors (no text or symbols)

Illustration of a person's seatbelt being adjusted with a bandage, showing motion (no text or symbols)

Privacy Shield and Sun Protection

Line drawing of a mechanical component with a yellow arrow indicating direction (no text or symbols)

Simple line drawing of a curved surface with three circular markers and an orange sun in the corner (no text or symbols)

Bib

Simple curved diagram with five dots and a number 27 in the top-left corner (no text or symbols within the diagram itself)

Line drawing of a mechanical component with a highlighted arrow indicating a downward motion (no text or symbols)

Illustration of a medical or anatomical device with a numbered label (29) and a circular symbol on the body, no readable text or symbols present.

Line drawing of a hand holding a small object with two square cutouts, enclosed in a circular frame (no text or symbols)

Line drawing of a garment sleeve with buttons and a belt (no text or symbols)

Harness Covers

Line drawing of a mechanical buckle with a highlighted section and arrow (no text or symbols)

NOTE

Line drawing of a mechanical component with a numbered label '33' (no text or symbols on the diagram itself)

Simple line drawing of a mechanical component with no text or symbols

Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited to be part of your life with your little one. While using the Joie savvy" lite, your baby is enjoying a high quality, fully certified carrier, approved to European safety standards EN 13209-2-2015. Please carefully read this manual and follow each step to ensure a comfortable carrying and best protection for your child.

Please keep the Instruction Manual handy for future reference.

Visit us at Joiebaby.com to download manuals and see more exciting Joie products.

IMPORTANT!

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

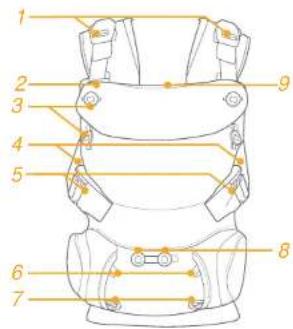

Parts List

Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model. No tools are required for assembly.

1 Magnetic Shoulder Buckles
2 Head Support
3 Head Support Buttons
4 Leg Opening Adjustment Buttons
5 Side (Leg) Buckles
6 Adjustment Button Hooks 1
7 Adjustment Button Hooks 2

8 Adjustment Buttons
9 Privacy Shield and Sun Protection Pocket
10 Privacy Shield and Sun Protection Snaps
11 Shoulder Strap Adjustment Buckle
12 Lumbar Support Buckle
13Bib(X1)
14 Harness Covers (X2)

WARNING

Check to assure all buckles, snaps, straps, and adjustments are secure before each use.
Check for ripped seams, tom straps or fabric and damaged fasteners before each use.
1 Stop using the carrier if parts are missing or damaged.
Child must face towards you until he or she can hold head upright.
Ensure proper placement of child in product including leg placement.
Make sure baby's legs are straddling the seat and arms extend through arm holes.
! Regularly check that your child is comfortably and securely seated in the baby carrier.
To prevent hazards from falling, ensure that your child is securely positioned in the carrier.
Hold your baby closely at all times until correctly attached.
1 Premature infants, infants with respiratory problems, and infants under 4 months are at greatest risk of suffocation.
For low birth weight babies and children with medical conditions, seek advice from a health professional before using the product.
1. When using the soft carrier, monitor your child.
Be aware of hazards in the domestic environment e.g. heat sources, spilling of hot drinks.
Take care when bending or leaning forward or sideways.
Your balance may be adversely affected by your movement and that of your child.
This baby carrier is designed for use by adults while walking, standing or sitting only.
This baby carrier is not suitable for use during sporting activities.
DO NOT use this soft carrier if you use a pacemaker, as the magnetic buckles can interfere with the pacemaker.
! NEVER use a soft carrier when balance or mobility is impaired because of exercise, drowsiness, or medical conditions.
NEVER use a soft carrier while engaging in activities such as cooking and cleaning which involve a heat source or exposure to chemicals.
NEVER wear a soft carrier while driving or being a passenger in a motor vehicle.
NEVER lie down or sleep with baby in the baby carrier.

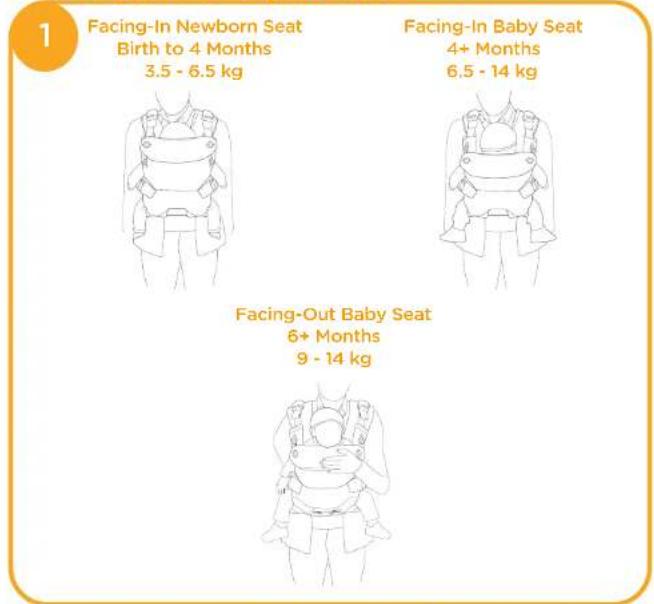

Use Modes and Requirements

see image 1

Please refer to the wording below for proper usage of each product mode to ensure the safety of your child. There are three carry modes. DO NOT use carrier for newborns under 3.5 kg.

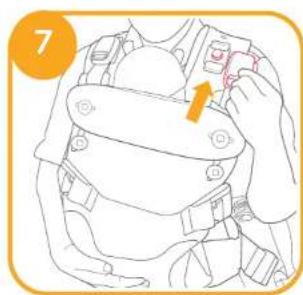

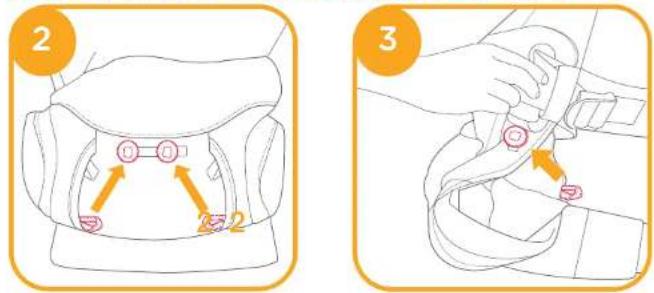

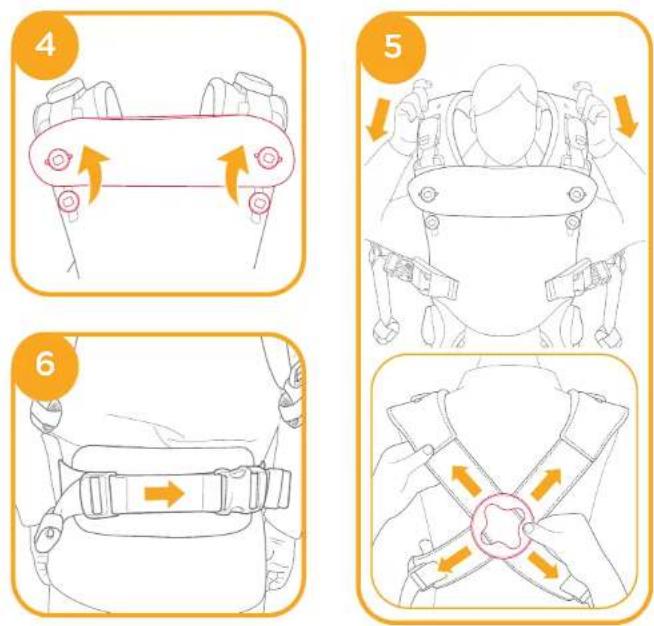

Newborn Mode with Integrated Newborn Seat

see images ② - ③

Child should be positioned close to you and high on your body. Keep your child's face visible to you at all times. Use head support for children weighing 3.5 - 6.5 kg. Your baby's head should be supported until he or she has a strong head control (approximately 4 months of age).
1. Loop button hooks 2 around the adjustment buttons.
2. Fasten leg hole adjustment button to adjust the leg opening to the smallest, comfortable size.
3. Fasten two upper buttons to use the head support.
4. Fasten shoulder strap adjustment buckle and put head through opening with buckle landing on your back.
5. Fasten waist support buckle and adjust to fit snugly around waist.
6. Place child in the carrier and hold snugly against you with one hand. Use other hand to fasten magnetic shoulder buckles one at a time.

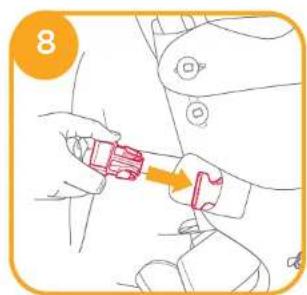

7. Fasten the leg buckles and adjust to appropriate size.

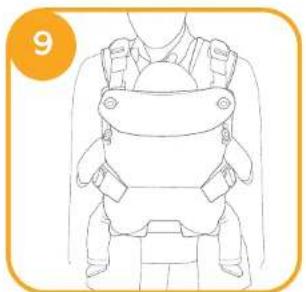

8. Carrier is ready to use in Newborn Mode with Integrated Newborn Seal.

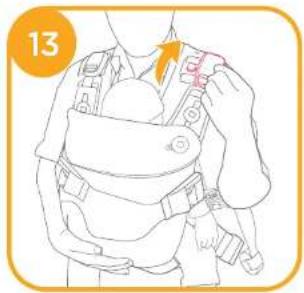

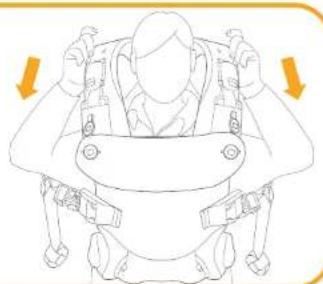

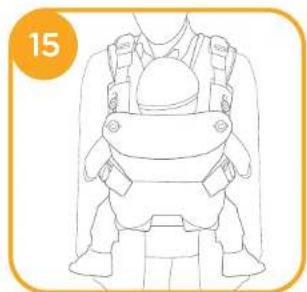

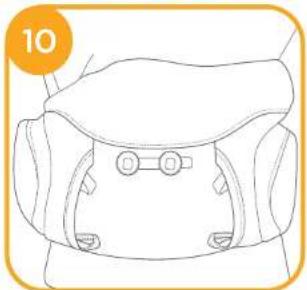

Infant Facing-In Mode

see images 10 - 15

1. No adjustment buttons are required for Facing-In Baby Seat.

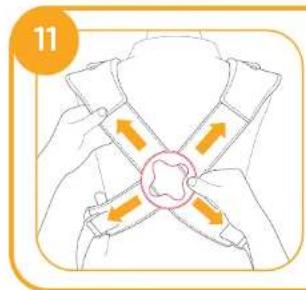

2. Fasten shoulder strap adjustment buckle and put head through opening with buckle landing on your back.

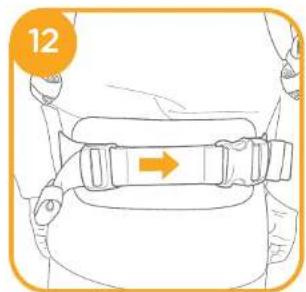

3. Fasten waist support buckle and adjust to fit snugly around waist.
4. Place child in the carrier and hold snugly against you with one hand. Use other hand to fasten magnetic shoulder buckles one at a time.

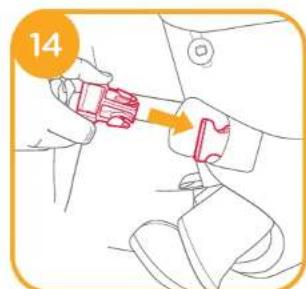

5. Fasten the leg buckles and adjust to appropriate size.
6. Carrier is ready to use in Infant Facing In mode.

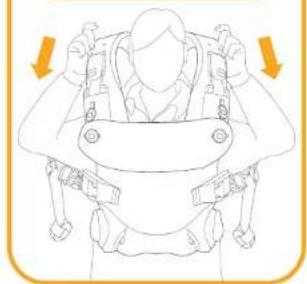

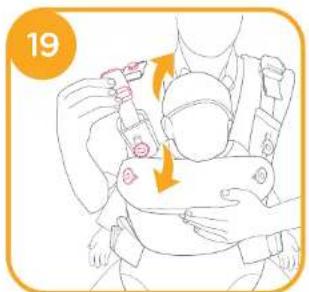

Infant Facing-Out Mode

see images 15 - 24

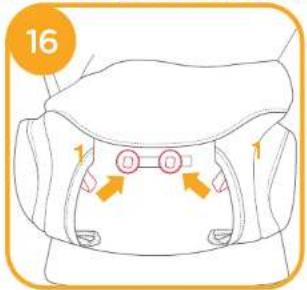

1. Loop button hooks 1 around the center adjustment buttons.

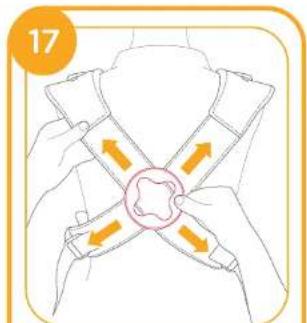

2. Fasten shoulder strap adjustment buckle and put head through opening with buckle landing on your back.
3. Fasten waist support buckle and adjust to fit snugly around waist.
4. Place child in the carrier and hold snugly against you with one hand. Use the other hand to fasten magnetic shoulder buckles one at a time.

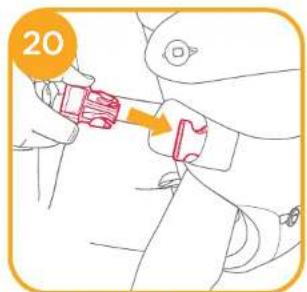

5. Fasten the leg buckles and adjust to appropriate size.

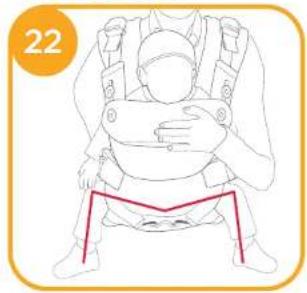

6. Carrier is ready to use in Infant Facing Out mode. CHECK: Make sure that child's legs fall in the "M" position as recommended by The International Hip Dysplasia Institute.

7. Optional: Roll up the unused length of the adjustment straps. Secure the roll by wrapping the small loop around it.

Privacy Shield and Sun Protection

see images

Ensure that the privacy shield is not covering the child's mouth or secured too tight over their head.

1. Make sure head support is fully fastened and pull the sun shade out of the pocket on the top of the head support flap.
2. Fasten the sun shade straps to the snap on carrier shoulder straps.
3. Sun protection is adjustable and can be adjusted to appropriate lit by attaching to different snaps on the sun protection.

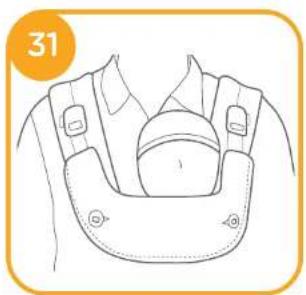

Bib

see images 20 - 3

1. Make sure that the head support is folded down and secured into place with the lower head support buttons. Store the extra length of shoulder buckle adjustment in the pocket on shoulder buckle strap.
2. Cover the front of the head support with the bib by attaching it to the two buttons.
3. Wrap the top flaps of the bib around both shoulder buckle straps and fasten each hook and loop straps.

⑦ ⑧

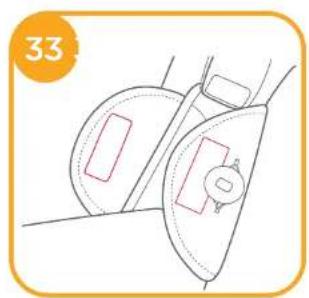

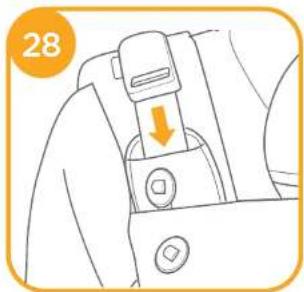

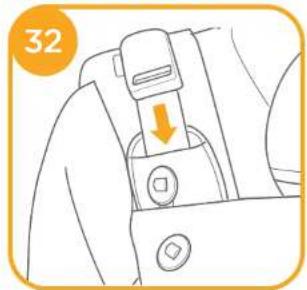

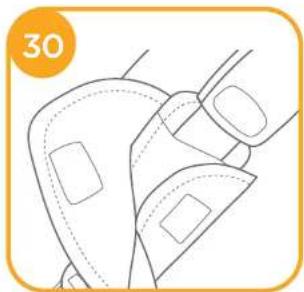

Harness Covers

see images ② - ④

1. Make sure that the head support is folded down and secured into place with the lower head support buttons. Store the extra length of shoulder buckle adjustment in the pocket on shoulder buckle strap.
2. Wrap harness covers around shoulder buckle strap, covering the top head support button, and fasten the hook and loop straps.

Care and Maintenance

1. Refer to care tag attached to carrier fabric for wash and dry instruction. Carrier MUST be washed inside a mesh laundry bag.
2. Store carrier, harness covers and bibs in mesh laundry bag when not using.
3. It is normal for fabric to fade from sunlight and to show wear and tear after a long period of use.
4. For safety purposes, ONLY use parts provided by jola.
5. CHECK regularly that everything is functioning properly. If any parts are torn, broken or missing, STOP using this product.
