09745 - Blender Gourmetmaxx - Free user manual and instructions

Product type	Blender
Brand	Gourmetmaxx
Model	09745
Reference	Z 09745
Power supply	230 V~, 50 Hz
Power	250 W
Bowl capacity	500 ml (max)
Main functions	Mix, blend, grind, puree, whip cream
Bowl material	Plastic
Protection class	II
Safety	Sharp blades; automatic stop if bowl is not properly fixed; do not immerse the motor unit
Maintenance	Blades, bowl and lid dishwasher safe; wipe motor unit with a damp cloth
Spare parts	Cross blades, blender bowl, storage lid available via customer service
After-sales service	DS Produkte GmbH, phone [phone]
Country of origin	Germany (importer)

Frequently Asked Questions - 09745 Gourmetmaxx

How to use the Gourmetmaxx 09745 blender?

Place the motor unit on a dry, flat surface. Pour ingredients into the bowl (max 500 ml, respect the MAX mark). Screw the cross blades onto the bowl. Turn the bowl over and insert it into the motor unit, aligning the pins. Plug in the appliance, then apply slight pressure to the bowl while turning it clockwise until it clicks. Hold the motor unit firmly during operation. To stop, turn the bowl counterclockwise.

Can you blend hot food?

No, never fill the bowl with hot food or liquids. Contents must not exceed 50 °C to avoid burns.

What is the maximum capacity of the bowl?

The blender bowl has a maximum capacity of 500 ml. Do not exceed the MAX mark to avoid overflow.

How to clean the cross blades?

The cross blades are very sharp. Always handle them by the plastic housing. They can be washed in the dishwasher or by hand with warm water and dish soap. Dry thoroughly before reuse.

What to do if the appliance does not start?

First check that the power outlet works and the fuse has not tripped. Make sure the cross blades are properly screwed onto the bowl and the bowl is correctly engaged on the motor unit. The appliance will only start if the bowl is properly positioned.

Can you crush ice cubes with this blender?

No, the appliance is not designed to crush ice cubes. It is intended for mixing, blending, grinding, pureeing, and whipping cream.

How to correctly assemble the blender bowl?

Screw the cross blades onto the blender bowl until they stop. Turn the bowl over and place it on the motor unit, ensuring the three pins of the bowl engage in the motor unit's slots. Turn the bowl clockwise until it clicks.

Is the appliance suitable for nuts and hard cheese?

Yes, it can grind and crush foods such as fruits, vegetables, hard cheese, nuts, or herbs. Be careful not to overload the bowl.

How to store the appliance after use?

Clean and dry all parts. Store the appliance in a dry, clean place out of reach of children and animals. Do not bend the power cord.

Where to find spare parts?

Contact customer service via the manufacturer's website or call [phone]. Spare parts (blades, bowl, lid) are available.

USER MANUAL 09745 Gourmetmaxx

Black-and-white photo of a Brandy-Magic blender with berries and berries, no visible text or symbols on the device itself.

Z 09745

DE

Gebrauchsanleitung

ab Seite 3

EN

Instruction manual

starting on page 12

FR

Mode d'emploi

www.service-shopping.de

Close-up of a mechanical component with a threaded tip and arrow indicator (no text or symbols)

Clear glass container with a lid and internal granular liquid, no visible text or symbols

Hand pouring a container into a glass jar with food inside (no visible text or symbols)

Close-up of hands holding a transparent jar with a lid, showing a curved arrow indicating rotation or change (no text or symbols visible)

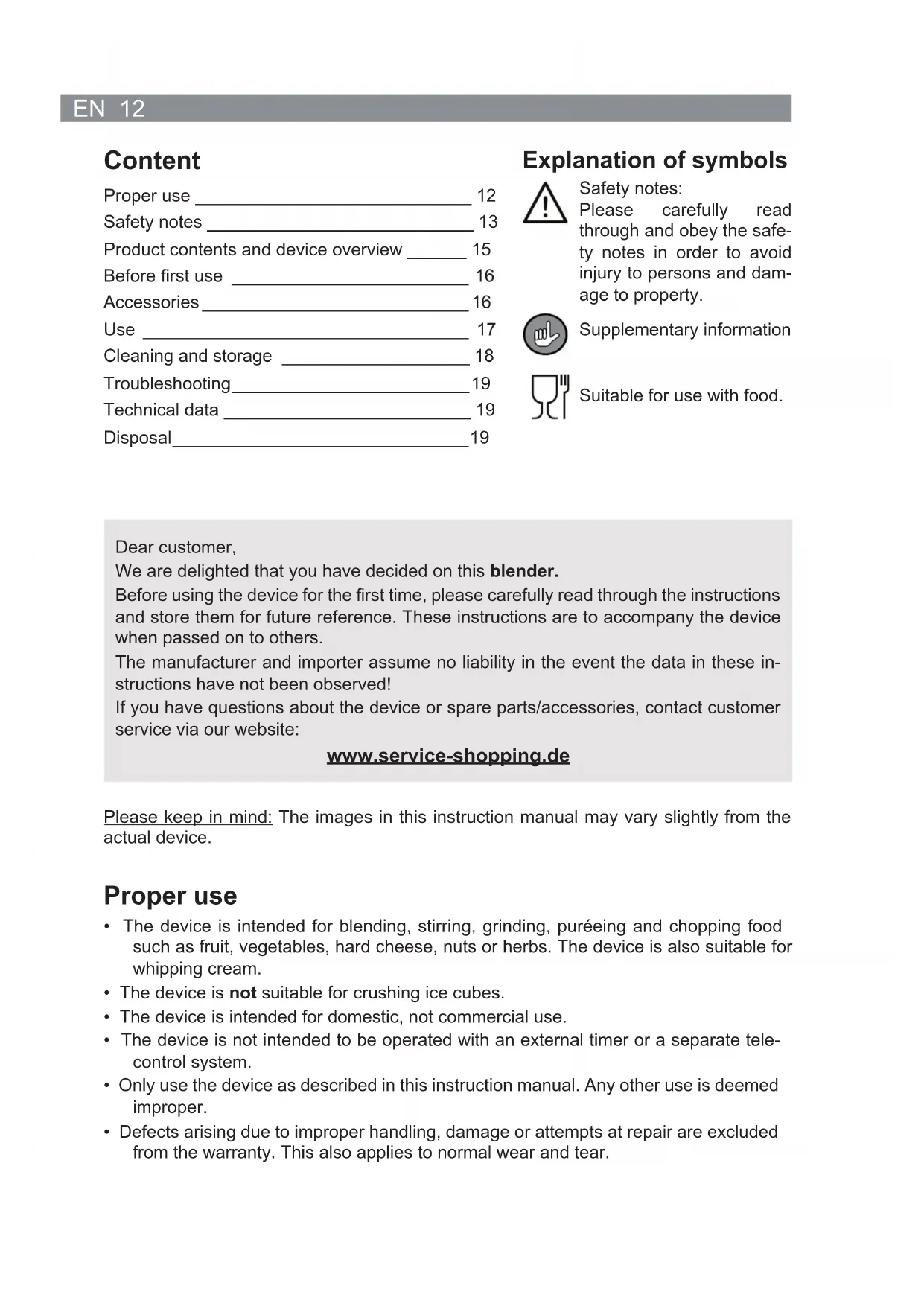

Product contents and device overview 15

Before first use 16

Accessories 16

Use 17

Cleaning and storage 18

Troubleshooting 19

Technical data 19

Disposal 19

Explanation of symbols

Safety notes:

Please carefully read through and obey the safety notes in order to avoid injury to persons and damage to property.

Supplementary information

Suitable for use with food.

Dear customer,

We are delighted that you have decided on this blender.

Before using the device for the first time, please carefully read through the instructions and store them for future reference. These instructions are to accompany the device when passed on to others.

The manufacturer and importer assume no liability in the event the data in these instructions have not been observed!

If you have questions about the device or spare parts/accessories, contact customer service via our website:

www.service-shopping.de

Please keep in mind: The images in this instruction manual may vary slightly from the actual device.

Proper use

• The device is intended for blending, stirring, grinding, puréeing and chopping food such as fruit, vegetables, hard cheese, nuts or herbs. The device is also suitable for whipping cream.
• The device is not suitable for crushing ice cubes.
• The device is intended for domestic, not commercial use.
• The device is not intended to be operated with an external timer or a separate telecontrol system.
• Only use the device as described in this instruction manual. Any other use is deemed improper.
• Defects arising due to improper handling, damage or attempts at repair are excluded from the warranty. This also applies to normal wear and tear.

Safety notes

Risks of injury

• Risk of suffocation! Keep children and animals away from the packaging material.
  This device may be used by persons with impaired physical, sensory or mental abilities or who lack experience and/or knowledge if they are supervised or have been instructed on how to use the device safely and have understood risks arising from using the device. Children may not play with the device.
  ■ Children and animals must be kept away from the device and the connection line! Store the device so that it is not accessible to children or animals!
• Risk of injury associated with sharp blades! The blades are sharp! Handle the cross-blade adapter with care in order to prevent cut injuries.
  If the device is not supervised, before assembling, disassembling and cleaning the device, it must always be disconnected from the mains.
• Burn hazard! Never fill the device with hot food or liquids! The content must not be warmer than 50 °C.
  ■ Ensure that your work area is well lit when you use the unit.

For your health

• There may be some production residue stuck to the device. To avoid health risks, clean it thoroughly before first use (see chapter “Cleaning and storage”).
• Clean the accessories thoroughly with warm water and a small amount of mild detergent immediately after each use to prevent the build-up of germs. Do not allow any residual food to dry onto it.
• Be absolutely sure to store prepared meals in the fridge. Do not consume any spoiled food and only use ingredients whose best before date has not expired yet.

Risk of electric shock and fi re

■ Only use the device in enclosed areas.
■ Always place the device on a dry, level and solid base.

• Keep a sufficient distance from other heat sources, e.g. hobs or ovens.
• Never cover the device with cloths or the like. Danger of overheating!
• The device should never be set up when highly flammable materials are nearby (curtains, textiles, etc.).
• Do not place any flammable materials such as paper, cardboard or plastic in or on the device.
• Never submerge the motor unit in water or other liquids! Make sure that the motor unit, the cord or the plug can not fall in water or get wet.
  If the motor unit falls in water, immediately disconnect the power supply.
  ■ Never touch the motor unit, the cord or the plug with wet hands.
• Only connect the device to a socket, which has been properly installed and complies with the device's technical data (see chapter “Technical data”).
• Lay the cord such that it is not crushed or creased and such that it does not come into contact with hot surfaces.
• Pull the mains plug out of the socket if you do not use the device, if a defect occurs while in use or before a storm.
  If you want to remove the mains plug from the socket, never pull on the cable, but always on the plug.

Beware of damage to the device and property

• Check the device for damages prior to each use. The device must not be used if the motor unit, the accessories, the mains cord or plug exhibit visible damages. Do not attempt to repair the device or replace the cable and/or plug yourself. In the event of damage, promptly contact the customer service department.
  ■ Each time before using the device, check whether the device is clean and dry and whether it has been correctly assembled and closed.

15 EN

• Do not use any additional accessories. Only use the enclosed accessories from the manufacturer.
• Do not let the motor run if the device is empty.
  ■ Make sure that the maximum filling capacity (MAX mark in the blending container) is not exceeded!
• Do not leave the device unattended when in operation.
• The device must not be transported when switched on. Always pull the mains plug out of the socket and allow the motor to come to a full stop prior to moving the device.
• Do not allow the device to fall and do not subject it to strong percussions.
• Do not subject the device to extreme temperatures, severe changes in temperature, direct sunlight or moisture.

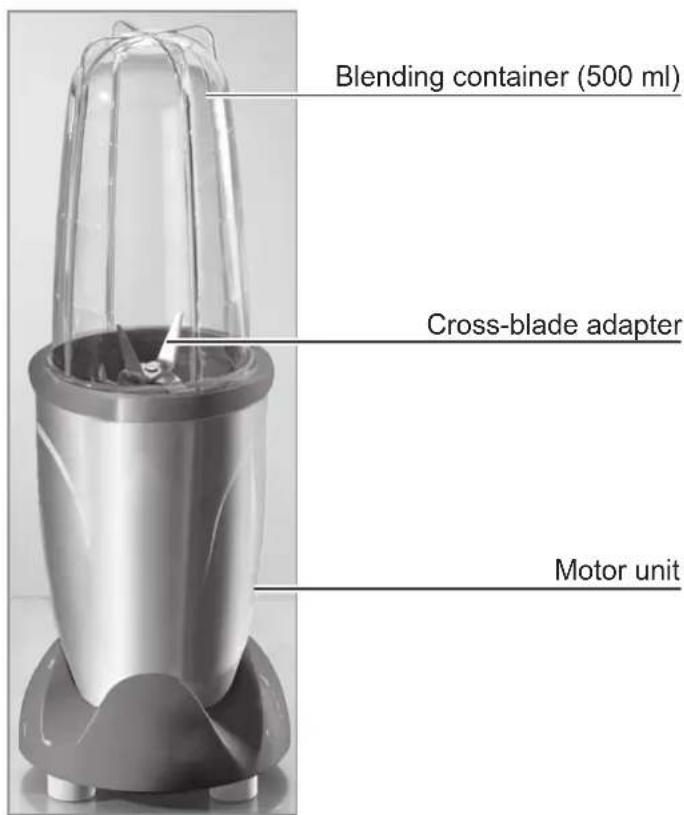

Product contents and device overview

Blending container (500 ml) Cross-blade adapter Motor unit

(Illustration only)

Also included in the product contents: 1 freshness lid for the blending container

Before fi rst use

ATTENTION!

■ Caution! Danger of suffocation! Keep children and animals away from the packaging material.

1. Unpack all parts and make sure that the product contents are complete (see chapter "Product contents and device overview") and check for any damages from transport. If you identify damages to the components, do not use them (!), instead contact our customer service centre.
2. Remove any existing protective foils and stickers from the device.
3. Clean the accessories before first use as there may be some production residue stuck to them. Follow the instructions in the chapter "Cleaning and storage" to do so.
4. Familiarise yourself with the accessories. Please read the following chapter to this end.

Accessories

Cross-blade adapter

ATTENTION!

Risk of injury associated with sharp blades! Never hold the cross-blade adapter by the blades. Handle the cross-blade adapter with care in order to prevent cut injuries.

The cross-blade adapter is suitable for grinding, mincing and puréeing foods as well as for stirring and blending beverages like milk shakes. It is also suitable for whipping and stirring cream or cremes.

The blade adapter is suitable for the dishwasher.

Close-up of a gray plastic brush head with a black arrow pointing to the tip (no text or symbols visible)

A gasket is fitted in the plastic casing of the cross-blade adapter. This gasket ensures that the blending container does not leak while processing food.

Each time before you use the device, make sure that the gasket is properly inserted in the groove.

Blending container and freshness lid

ATTENTION!

The maximum filling capacity of the blending container amounts to 500 ml. Do not overfill it. Keep an eye on the MAX mark on the blending container!
- Be absolutely sure to store prepared meals in the fridge. Do not consume any spoiled food and only use ingredients whose best before date has not expired yet.

Clear glass container with a lid and internal granular liquid, no visible text or symbols

The food being mixed will be processed and stored in the blending container. Screw the freshness lid onto the blending container for storage.

Both the blending container and the freshness lid are suitable for cleaning in the dishwasher.

A gasket is located in the freshness lid. This gasket ensures that the blending container can be sealed air-tight and does not leak.

Each time before you use the device, make sure that the gasket is properly inserted in the groove.

Use

ATTENTION!

Risk of injury associated with sharp blades! Never hold the cross-blade adapter by the blades. Handle the cross-blade adapter with care in order to prevent cut injuries.
- Risk of damage due to insufficient cooling! Never place the motor unit on a soft base. The vents on the side and bottom of the motor unit must not be covered.
- Burn hazard! Never fill the blending container with boiling hot food or liquids! The content must not be warmer than 50 °C.
Before you use the device, make sure that all parts of the device are properly seated.
The maximum filling capacity of the blending container amounts to 500 ml. Do not overfill it. Keep an eye on the MAX mark on the blending container!
■ Always firmly hold the motor unit with one hand during preparation.
■ Always pull the mains plug out of the socket and let the blades come to a full stop prior to removing the blending container.
■ The device must not be transported when switched on.
- Do not leave the device switched on continuously for more than 1 minute. Then allow it to cool off for 2 minutes before continuing.

1. Place the motor unit on a dry, level and solid base.

Hand pouring a container into a glass jar with food items (no visible text or symbols)

1. Place the desired ingredients in the blending container (do not exceed the MAX mark in the blending container!).
2. Screw the cross-blade adapter up to the stop on the blending container.

Close-up of hands using a blender to press or adjust a product, showing a black arrow indicating rotation (no text or symbols visible)

1. Turn the blending container upside down and place the cross-blade adapter in the motor unit. The 3 catches on the blending container must be inserted in the corresponding recesses in the motor unit for this.
2. Connect the mains plug to a properly installed, easily accessible socket.

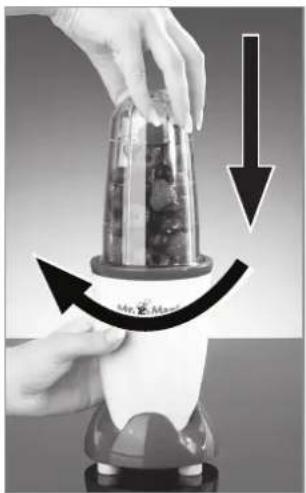

3. Switch the device on. To do so, gently push the blending container down and, at the same time, turn it clockwise until it locks into place. Always hold the motor unit fi rmly with one hand during preparation!
4. To switch the device off, turn the blending container counterclockwise up to the stop.

5. Wait until the blades have come to a complete stop. Then remove the blending container.

6. Turn the blending container over and screw the cross-blade adapter off.

7. Clean the accessories immediately after each use to prevent the formation of germs (see chapter "Cleaning and storage"). Do not allow any residual food to dry onto it.

Cleaning and storage

ATTENTION!

■ Danger of electrocution! Prior to each cleaning, pull the mains plug out of the socket.
- Danger of electrocution! Keep the motor unit, mains cord and plug away from water or other liquids! Never touch them with wet hands. The motor unit is not suitable for cleaning in the dishwasher.
Risk of injury associated with sharp blades! Be very careful when handling the cross-blade adapter. The cutting blades are extremely sharp. Never touch the blades with your bare hands. When removing, inserting or cleaning the cross-blade adapter, always hold it by the plastic housing.
The surfaces could be damaged! Do not use any scouring or abrasive cleaners or scouring sponges to clean the device.

The cross-blade adapter, blending container and lid are suitable for cleaning in the dishwasher.

- Immediately clean the device and accessories after use to prevent the formation of germs:

1. Ensure that the device is disconnected from the mains supply!
2. Clean the accessory parts used (cross-blade adapter, blending container and lid) with clean, warm water and a small amount of mild detergent or in the dishwasher.
3. If necessary, wipe the motor unit off with a damp cloth. Dry it off with a soft cloth.
4. Let all parts dry completely before reassembling them.
5. Store the device in a clean, dry area that is not accessible to children and animals.

NOTE: The plastic parts may discolour with time. However, this is of no concern with respect to health or the functioning of the device parts.

Troubleshooting

If the device is not working properly, please check whether you are able to rectify the problem yourself first.

Do not attempt to repair a defective device yourself!

If you are unable to switch the device on, check the following:

• Is the mains plug properly connected with the socket?
• Is the socket defective? Try another socket.
• Was the fuse for your mains connection triggered?
• Has the blade adapter been correctly screwed onto the blending container?
• Is the blending container correctly fitted in the motor unit? The device can only be activated if the blending container has been properly fitted in the motor unit and has locked in place.

Technical data

Product number: Z 09745

Model: 3531

Voltage supply: 230 V\~, 50 Hz

Output: 250

Safety class: II

W

Customer service / importer:

DS Produkte GmbH

Am Heisterbusch 1

19258 Gallin

Germany

Tel.: [phone]

(Calls (subject to a charge. Costs vary depending on the provider.)

Disposal

The packaging material is recyclable. Dispose of the packaging in an environmentally-friendly manner and make it available to the collection service for recyclable materials.

Dispose of the device in an environmentally-friendly manner. It does not belong in the household garbage. Dispose of it at a recycling centre for old electrical and electronic equipment.

For more information, please contact the administration in your community.
