04389 - Blender Gourmetmaxx - Free user manual and instructions

Brand	Gourmetmaxx
Model	04389
Product type	Blender (mixer)
Power supply	230 V~, 50 Hz
Power	400 W
Cup capacity	500 ml
Protection class	II
Color	Silver/black
Main functions	Mix, blend, grind, puree, crush foods (fruits, vegetables, hard cheese, nuts, herbs), whip cream
Maximum content temperature	50 °C
Max operating time	1 minute without interruption
Required cooling time	2 minutes
Blade material	Stainless steel (estimated)
Included accessories	Mixing cup, cross-blade attachment, storage lid, sealing ring
Care and cleaning	Accessories dishwasher-safe; wipe motor block with a damp cloth; do not immerse
Safety	Sharp blades (handle with care); do not use with hot foods; automatic stop if cup is not properly positioned
After-sales service	DS Produkte GmbH, Germany, tel. [phone]

Frequently Asked Questions - 04389 Gourmetmaxx

How to use the Gourmetmaxx 04389 blender?

Place the ingredients in the cup, screw on the cross-blade attachment, then place the cup on the motor block aligning the notches. Plug in. To start, tilt the cup slightly and turn it clockwise until it clicks. To stop, turn counterclockwise. Do not exceed 1 minute of continuous use.

Can I blend ice cubes with this blender?

No, this appliance is not designed to crush ice cubes. Use it only for soft or liquid foods at room temperature.

What is the capacity of the cup?

The cup has a capacity of 500 ml. Do not fill beyond the MAX mark to avoid overflow.

How to clean the blender?

Always unplug the appliance before cleaning. Wash the accessories (cup, lid, attachment) in hot water with dish soap or in the dishwasher. Wipe the motor block with a damp cloth. Never immerse the motor block in water.

What to do if the appliance does not start?

Check that the cup is properly screwed and locked onto the motor block. Make sure the outlet works and the fuse is not blown. If the problem persists, contact after-sales service.

Can I use the blender to whip cream?

Yes, the cross-blade attachment allows you to whip and aerate fresh cream or any other cream. Use the appropriate cup.

What is the maximum temperature of ingredients?

Never put hot foods or liquids. The content temperature must not exceed 50 °C.

How long can I use the appliance continuously?

The continuous operating time is limited to 1 minute maximum. After that, let the appliance cool down for 2 minutes before reusing.

Where can I find spare parts?

Contact DS Produkte GmbH's after-sales service by phone at [phone] or through their website for spare parts and accessories.

How to store the blender?

Store the appliance in a dry, clean place out of reach of children. Ensure all parts are completely dry before assembling or storing.

USER MANUAL 04389 Gourmetmaxx

Black and white photo of a Brandy-Magic blender with fruit toppings, surrounded by fresh berries (no text or symbols visible on the device body)

DE

Gebrauchsanleitung

ab Seite 3

EN

Instruction manual

starting on page 11

FR

Mode d'emploi

www.service-shopping.de

Close-up of a cylindrical mechanical component with a metallic tool inserted (no visible text or symbols)

Close-up of a transparent plastic container filled with dark liquid, no visible text or symbols

Hand pouring a chocolate cup into a glass jar filled with small objects (no text or symbols visible)

Close-up of a hand holding a blender with chocolate chips, showing a downward arrow (no text or symbols on the device itself)

Items supplied and device overview ____ 14

Accessories 14

Before initial use 15

Use 15

Cleaning and storage 16

Troubleshooting 17

Technical data 17

Disposal 17

Explanation of symbols

Safety instructions:

Please read these carefully and comply with them in order to prevent personal injury and damage to property.

Supplementary information

Suitable for use with food.

Protection class II

Dear customer,

We are delighted that you have decided on this blender.

Before using the device for the first time, please carefully read through the instructions and store them for future reference. These instructions are to accompany the device when passed on to others.

The manufacturer and importer assume no liability in the event the data in these instructions have not been observed!

If you have questions about the device or spare parts/accessories, contact customer service via our website:

www.service-shopping.de

Please keep in mind: The images in this instruction manual may vary slightly from the actual device.

Proper use

• The device is intended for blending, stirring, grinding, puréeing and chopping food such as fruit, vegetables, hard cheese, nuts or herbs. The device is also suitable for whipping cream.
• The device is not suitable for crushing ice cubes.
• The device is intended for domestic, not commercial use.
• The device is not intended to be operated with an external timer or a separate telecontrol system.
• Only use the device as described in this instruction manual. Any other use is deemed improper.
• Defects arising due to improper handling, damage or attempts at repair are excluded from the warranty. This also applies to normal wear and tear.

Safety notes

This device may be used by persons with impaired physical, sensory or mental abilities or who lack experience and/or knowledge if they are supervised or have been instructed on how to use the device safely and have understood risks arising from using the device. Children may not play with the device.
Children and animals must be kept away from the device and the connection line! Store the device so that it is not accessible to children or animals!
If the device is not supervised, before assembling, disassembling and cleaning the device, it must always be disconnected from the mains.
If the device, the connecting cable or the plug of the device is damaged, it must be replaced by the manufacturer or customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

Risks of injury

Risk of suffocation! Keep children and animals away from the packaging material.
Risk of injury associated with sharp blades! The blades are sharp! Handle the cross-blade adapter with care in order to prevent cut injuries.
Burn hazard! Never fill the device with hot food or liquids! The content must not be warmer than 50 °C.
■ Ensure that your work area is well lit when you use the unit.
- Ensure that it is not possible for others to trip over the connected mains cable. Do not allow the cable to hang over the edge of tables or kitchen counters. Others may become caught and pull the device down.

Risk of electric shock and fi re

■ Only use the device in enclosed areas.
■ Always place the device on a dry, level and solid base.
- Keep a sufficient distance from other heat sources, e.g. hobs or ovens.
■ Never cover the device with cloths or the like. Danger of overheating!
- The device should never be set up when highly flammable materials are nearby (curtains, textiles, etc.).
- Do not place any flammable materials such as paper, cardboard or plastic in or on the device.
■ Never submerge the motor unit in water or other liquids! Make sure that the motor unit, the cord or the plug can not fall in water or get wet.
If the motor unit falls in water, immediately disconnect the power supply.

13 EN

■ Never touch the motor unit, the cord or the plug with wet hands.
- Only connect the device to a socket, which has been properly installed and complies with the device's technical data (see chapter "Technical data").
- Lay the cord such that it is not crushed or creased and such that it does not come into contact with hot surfaces.
- Pull the mains plug out of the socket if you do not use the device, if a defect occurs while in use or before a storm.
If you want to remove the mains plug from the socket, never pull on the cable, but always on the plug.

Avoiding damage to materials, property and the device

• Check the device for damages prior to each use. The device must not be used if the motor unit, the accessories, the mains cord or plug exhibit visible damages. Do not attempt to repair the device or replace the cable and/or plug yourself. In the event of damage, promptly contact the customer service department.
  ■ Each time before using the device, check whether the device is clean and dry and whether it has been correctly assembled and closed.
• The device should only be used when it is fully assembled, undamaged, and operational!
  ■ Always place the device on a dry, even, and firm base.
• Do not use any additional accessories. Only use the enclosed accessories from the manufacturer.
• Do not let the motor run if the device is empty.
  ■ Make sure that the maximum filling capacity (MAX mark in the blending container) is not exceeded!
• Do not use the device for longer than 1 minute without interruption. A cooling-down period of 2 minutes must then be maintained.
• Do not leave the device unattended when in operation.
  The device must not be transported when switched on. Always pull the mains plug out of the socket and allow the motor to come to a full stop prior to moving the device.
• Do not allow the device to fall and do not subject it to strong percussions.
• Do not subject the device to extreme temperatures, severe changes in temperature, direct sunlight or moisture.

Hygienic notes

There may be some production residue stuck to the device. To avoid health risks, clean it thoroughly before first use (see chapter "Cleaning and storage").
- Clean the accessories thoroughly with warm water and a small amount of mild detergent immediately after each use to prevent the build-up of germs. Do not allow any residual food to dry onto it.
- Be absolutely sure to store prepared meals in the fridge. Do not consume any spoiled food and only use ingredients whose best before date has not expired yet.

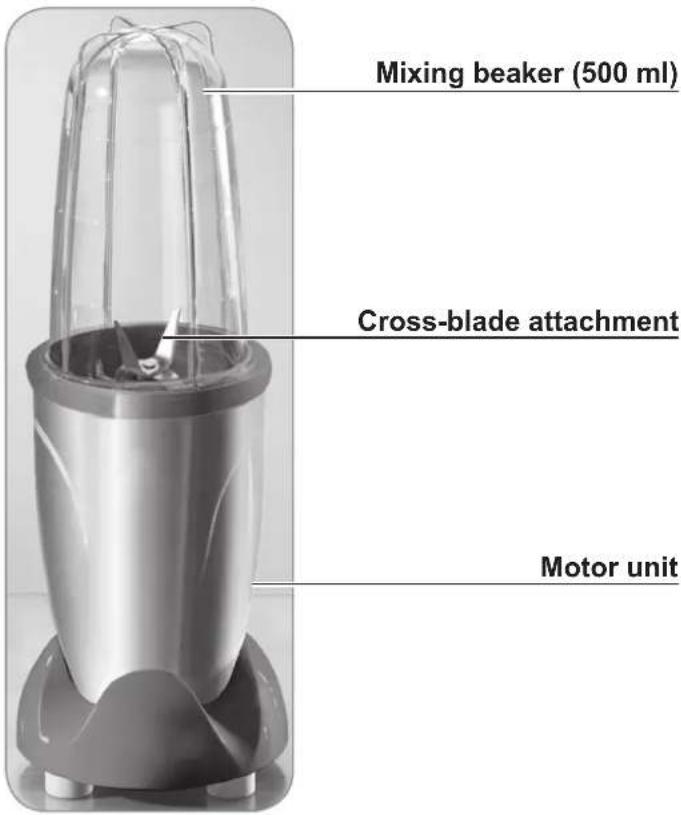

Items supplied and device overview

Mixing beaker (500 ml) Cross-blade attachment Motor unit

Also included in the product contents:

• 1 keep-fresh lid for the mixing beaker

Accessories

Cross-blade attachment

PLEASE NOTE!

The blades are sharp! Be careful when handling the cross-blade attachment in order to prevent any cut injuries.

Close-up of a cylindrical electronic component with a metallic blade and threaded shaft (no visible text or symbols)

The cross-blade attachment is suitable for grinding, mashing and chopping up foodstuffs such as apples, nuts, onions or herbs and for stirring and mixing drinks such as milkshakes.

The cross-blade attachment is also suitable for whipping and stirring cream or mousses

• The blade attachment is dishwasher-safe.
- A sealing ring is located in the attachment. This ring ensures that the mixing beaker does not leak during preparation. After each cleaning operation, check whether the sealing ring is still in the correct position.

Beaker and keep-fresh lid

PLEASE NOTE!

It is essential that you store the prepared food in the fridge. Do not eat any food that has gone off and only use fresh ingredients that have not yet passed the best-before date.

Transparent plastic container with liquid and a lid, no visible text or symbols

The beaker is suitable for portions up to 500 ml. For storage purposes, you can seal the beaker shut with a keep-fresh lid after you have finished preparation.

• The beaker and keep-fresh lid are dishwasher-safe.
• A sealing ring is located in the keep-fresh lid. This ring ensures that the beaker can be sealed airtight and does not leak. After each cleaning operation, check whether the sealing ring is still in the correct position.

Before initial use

Before you can use the device, you must:

• unpack the items supplied,
• clean the device (see the "Cleaning and storage" chapter).

Unpacking the items supplied

PLEASE NOTE!

■ Danger of suffocation! Keep the packaging material away from children and pets.

Unpack all parts and check the items supplied for completeness (see the "Items supplied and device overview" chapter) and transport damage. If you find any damage to the components, do not use them (!), but contact the customer service.

Use

PLEASE NOTE!

The blades are sharp! Be careful when handling the cross-blade attachment in order to prevent any cut injuries.
■ Always keep hold of the motor unit with one hand while preparing food.
■ Always pull the mains plug out of the plug socket and allow the blades to come to a complete standstill before you remove and / or replace the mixing beaker.
■ The device may not be moved or transported while it is switched on.
- Do not use the device for longer than 1 minute without interruption. A cooling-down period of 2 minutes must then be maintained.

- Never fill the device with boiling-hot food or liquids! The contents must not be hotter than 50 °C.

1. Always place the motor unit on a dry, even, and firm base. You may wish to place a non-slip mat underneath the motor unit so that the surface is not damaged.

Hand pouring a small container into a jar with small objects inside (no text or symbols visible)

1. Pour the ingredients you want into the mixing and screw the cross-blade attachment onto the beaker.

Close-up of a hand holding a blender with a black arrow pointing downward (no text or symbols visible)

1. Now place the filled mixing beaker into the motor unit (the blade attachment is "sunk" into the motor unit; see illustration). Make sure that the locking lugs on the mixing beaker rest correctly in the recesses of the motor unit.

2. Insert the mains plug into a properly installed mains socket that is easily accessible.

3. To switch on the device, press the mixing beaker down slightly and at the same time turn it clockwise until it engages. Always keep hold of the motor unit with one hand while preparing food.

4. To switch off the device, turn the mixing beaker anticlockwise again until you feel some resistance. Always wait until the blades have come to a complete standstill before you remove the container.

Cleaning and storage

PLEASE NOTE!

■ Remove the plug from the mains socket before cleaning the device.
- Never immerse the device in water or other liquids! Ensure that the device, cable or mains plug do not fall into water or become wet.
■ After every use, thoroughly clean the accessories immediately with warm water and a little mild detergent to prevent the formation of germs. Do not allow any food residues to dry on.
All accessories, apart from the motor unit(!), can be cleaned in the dishwasher.
- Do not use corrosive or abrasive cleaning agents to clean the device. These could damage the surface.

• Clean the accessories which have been used with clear, warm water and some mild detergent. The accessories can also be cleaned in the dishwasher.
• Only wipe the motor unit with a slightly damp cloth and then dry it thoroughly.
• Allow all parts to dry completely before assembling the device again and/or putting it away for storage. Store the device in a dry, clean place that is not accessible to children.

NOTE: The plastic parts may discolour with time. However, this is of no concern with respect to health or the functioning of the device parts.

Troubleshooting

If the device is not working properly, please check whether you are able to rectify the problem yourself first.

Do not attempt to repair a defective device yourself!

If you are unable to switch the device on, check the following:

• Is the mains plug properly connected with the socket?
• Is the socket defective? Try another socket.
• Was the fuse for your mains connection triggered?
• Has the blade adapter been correctly screwed onto the blending container?
• Is the blending container correctly fitted in the motor unit? The device can only be activated if the blending container has been properly fitted in the motor unit and has locked in place.

Technical data

Product numbers:

-03531 (red/white)
-04361 (limegreen/white)
-04389 (silver/black)

Model: 3531

Voltage supply: 230 V\~, 50 Hz

Output: 400 W

Safety class: II

Customer service /importer:

DS Produkte GmbH

Am Heisterbusch 1

19258 Gallin

Germany

Tel.: [phone]

(Calls(subject to a charge. Costs vary depending on the provider.)

Disposal

The packaging material is recyclable. Dispose of the packaging in an environmentally-friendly manner and make it available to the collection service for recyclable materials.

Dispose of the device in an environmentally-friendly manner. It does not belong in the household garbage. Dispose of it at a recycling centre for old electrical and electronic equipment.

For more information, please contact the administration in your community.
