Product type	Mobile LED projector
Brand	Brennenstuhl
Model	professionalLINE X 8050 M
Category	Lamp
Light source	Integrated non-replaceable LED
Power	Approx. 70 W (calculated)
Rated voltage	220-240 V AC, 50/60 Hz
Power factor	0.9
Rated current	0.34 A
Protection rating (IP)	IP54
Protection rating (IK)	IK08
Protection class	I
Cable length	5 m (H07RN-F 3G1,5)
Operating temperature range	-20°C to +50°C
Dimensions (L x W x H)	31 x 31 x 9.7 cm
Weight	3.7 kg
Maximum projection area	0.096 m²
Admissible power of integrated socket	80 W
Maximum socket load (total)	3400 W
Functions	On/off, stepped dimming (100%, 50%) and progressive, foldable adjustable handle, possible tripod mounting
Maintenance	Clean with a dry or slightly damp cloth, without solvent or abrasive products
Repairability	No repairable components, non-replaceable light source, do not open
Safety	Do not look directly at the beam, keep out of reach of children, do not use with an external dimmer, observe the minimum distance to illuminated objects
Use	Indoor and outdoor (IP54)
General information	Compliant with WEEE directive 2012/19/EU, declaration of conformity available from the manufacturer

Frequently Asked Questions - professionalLINE X 8050 M BRENNENSTUHL

How to turn the projector on and off?

Use the switch at the back (B). Press once to turn on, again to turn off. For quick shut-off, press and hold for more than 3 seconds, then release.

How to adjust the light intensity?

The projector offers stepped dimming (100% and 50%) by pressing the switch twice, or gradual dimming by holding the switch down. The intensity slowly decreases or increases.

Can the projector be mounted on a tripod?

Yes, thanks to the holes on the handle, the projector can be attached to a suitable tripod (e.g., Brennenstuhl tripods). A screw kit is included.

How to clean the projector?

First unplug it. Use a dry or slightly damp cloth. Never use solvents, abrasive products, or similar cleaners.

Is the light source replaceable?

No, the light source is integrated and non-replaceable. At the end of its life, the entire projector must be replaced. Do not open the device.

What is the maximum admissible load on the rear socket?

The integrated socket can supply up to 80 W. The total load (projector + connected devices) is limited to 3400 W on the X 8050 M model.

Can the projector be used outdoors?

Yes, thanks to IP54 protection rating, it is protected against water splashes and dust. Suitable for indoor and outdoor use.

What safety precautions should be observed?

Never look directly at the light beam. Keep the device out of reach of children. Use only on a stable surface. Do not use with an external dimmer. Maintain a minimum distance from illuminated objects to avoid overheating.

How to dispose of the projector at the end of its life?

Do not throw the device in household waste. In accordance with the WEEE directive, deposit it at a collection point for recycling of electrical equipment. Contact your local municipality.

Can the power cable be replaced?

No, the cable is integrated and cannot be replaced. If damaged, the projector must be discarded.

USER MANUAL professionalLINE X 8050 M BRENNENSTUHL

Operating instructions

Mobile LED light

X 8050 M • X 8051 M • X 8002 M

X 12050 M • X 12051 M • X 12002 M

Note: Before using the product, please carefully read the operating instructions and store them in a proper location!

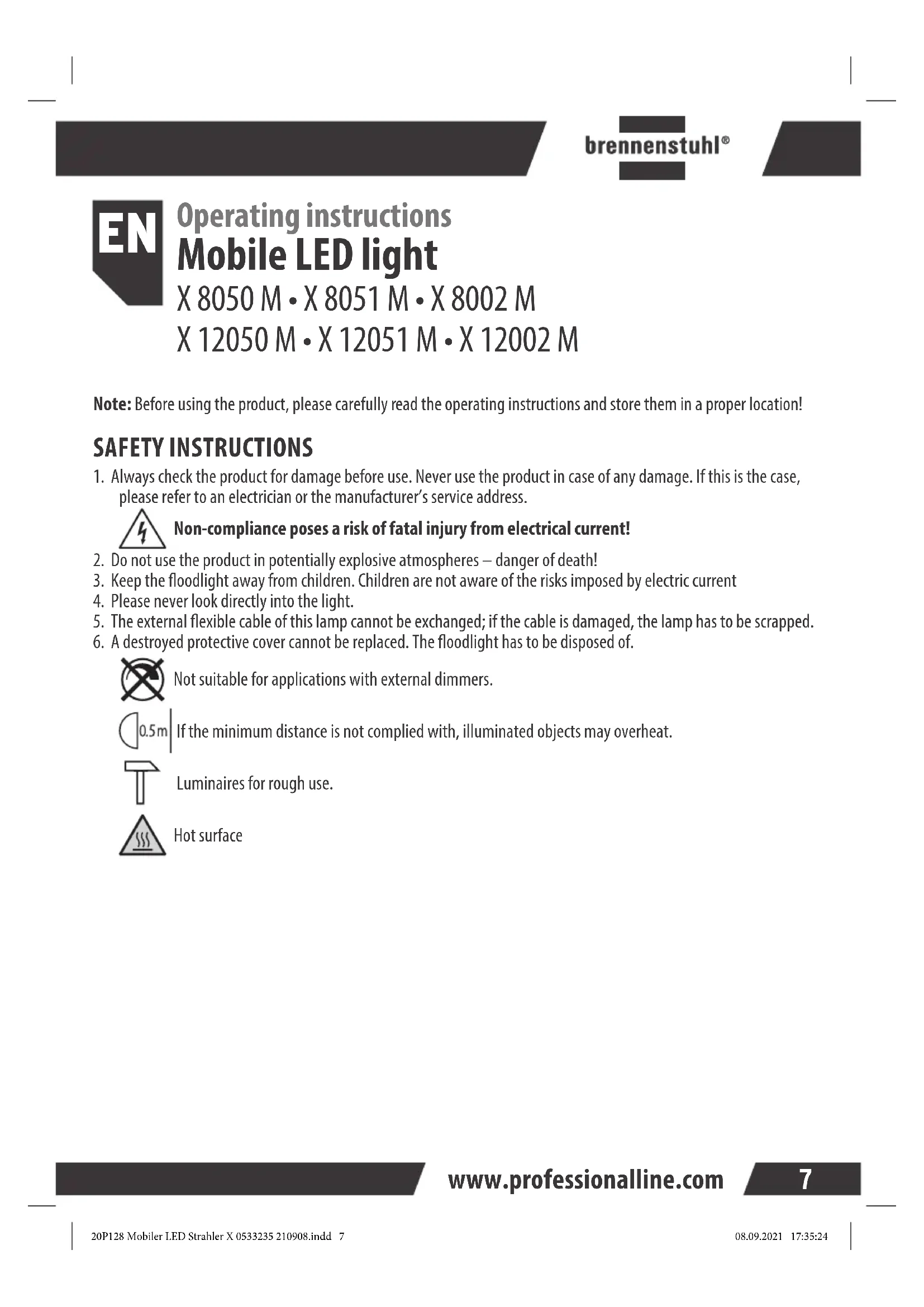

SAFETY INSTRUCTIONS

1. Always check the product for damage before use. Never use the product in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

1. Do not use the product in potentially explosive atmospheres – danger of death!
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current
3. Please never look directly into the light.
4. The external flexible cable of this lamp cannot be exchanged; if the cable is damaged, the lamp has to be scrapped.
5. A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

Luminaires for rough use.

Hot surface

www.professionalline.com

7

professionalLINE

TECHNICAL DATA

Type designation X 8050 M/X 8051 M	X 8002 M X 12050 M/X	12051 M X 12002 M
Power socket
Output
Nominal voltage	50/60 Hz	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz
Power factor	0.9	0.9	0.9	0.9
Mains current	0.34 A	0.34 A	0.52 A	0.52 A
IP, IK	IP 54. IK 08	IP 54. IK 08	IP 54. IK 08	IP 54. IK 08
Protection class	I	I	I	I
Connection cable	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5
Loading capacity socket	max. 3400 W	max. 2000 W	max. 3400 W	max. 2000 W
Operational temperature range	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C
Size	31 x 31 x 9.7 cm	31 x 31 x 9.7 cm	31 x 31 x 10.4 cm	31 x 31 x 10.4 cm
Weight	3.7 kg	3.7 kg	4.15 kg	4.15 kg
Maximum projected area	0.096 m2	0.096 m2	0.096 m2	0.096 m2

This product is suitable for indoor and outdoor lighting purposes.

OPERATION

Setting up and turning on the light

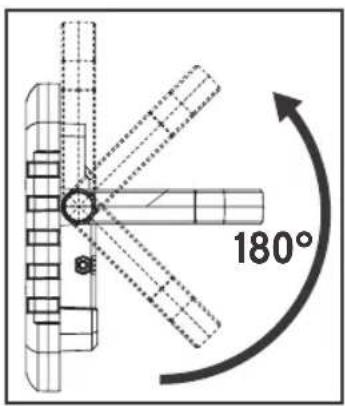

Place the light on a dry, flat surface. Only use the light with the bracket A extended. The adjustable bracket A can be adjusted to several levels and can be used to set the light at different tilt angles.

Mounting the light on a tripod

The light can be mounted on a suitable tripod using the holes on bracket (mounting material not included!). Make sure the tripod is sufficiently stable and the light is securely mounted.

Switching and Dimming the light

Switch on the spotlight with the switch B on the back.

The light intensity can be adjusted in steps and continuously:

Steps dimming: by pressing the switch twice, 100 and 50% light can be adjusted.

Stepless dimming: press the switch permanently – the light intensity is slowly reduced.

Proceed in the same way to increase the intensity again.

If the switch is left in any of its "on" positions for longer than 3 seconds, then pressing it once again will always turn it off.

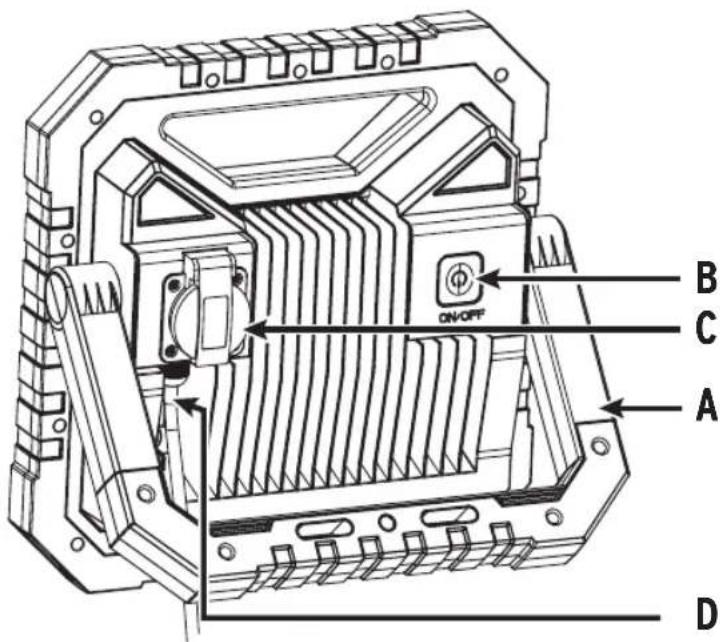

ILLUSTRATED COMPONENTS

A Folding clamp
B On/Off and function switch
C Power socket
D Connection cable

Power socket

At the back side of the floodlight, there is a power socket © by means of which it can also be used as power distributor. The power socket © is also functional when the light is switched off.

OPTIONAL STAND (not included in the scope of delivery)

You can find suitable accessories on our homepage www.brennenstuhl.com.

TRIPOD MOUNTING

By means of the holes in the holding bracket, the floodlight can be mounted on a Brennenstuhl tripod.

SCOPE OF DELIVERY

A screw set is included for mounting the spotlight on Brennenstuhl tripods. 1 x M6 x 45 screw + 1 x washer, 2 x M6 x 60 screws, 2 x washers and 2 x nuts

www.professionalline.com

professionalLINE

MAINTENANCE

ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

CLEANING

Before cleaning, disconnect the floodlight from the mains power.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electrical devices in an environmentally friendly way!

Electrical devices do not belong in the household rubbish!

According to the European Directive 2012/19/EU on old electrical and electronic devices, used electrical devices must be collected separately and turned over for environmentally friendly recycling. You can find out about options for disposal of the out-of-service device at your town or city administration.

CE EU DECLARATION OF CONFORMITY

The EU declaration of conformity is deposited at the manufacturer.

ADRESSES

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.
