professionalLINE X 8002 M - Lamp BRENNENSTUHL - Free user manual and instructions

Brand	Brennenstuhl
Model	professionalLINE X 8002 M
Product type	Mobile LED floodlight
Usage	Indoor and outdoor
Dimensions	31 x 31 x 9.7 cm
Weight	3.7 kg
Rated voltage	220-240 V AC, 50/60 Hz
Power consumption	80 W
Rated current	0.34 A
Power factor	0.9
Protection rating	IP54
Impact resistance rating	IK08
Protection class	I
Power cable	5 m, H07RN-F 3G1.5
Integrated power outlet	Yes, max. load 2000 W
Operating temperature	-20 °C to +50 °C
Light source	Non-replaceable LED
Light functions	Stepped dimming (100%/50%) and gradual
Tilt angle	Adjustable via carrying handle
Tripod mounting	Possible (tripod not included)
Package contents	Floodlight, screw set for tripod (1x M6x45 + washer, 2x M6x60 + washers + nuts)
Maintenance	Clean with a dry or slightly damp cloth, no solvents
Repairability	No repairable components, replace the unit at end of life

Frequently Asked Questions - professionalLINE X 8002 M BRENNENSTUHL

How to turn the floodlight on and off?

Use the switch at the back of the floodlight (mark B). One press turns the light on or off.

How to adjust the brightness?

The brightness can be adjusted in two ways: stepped (press twice for 100% and 50%) or continuous (press and hold to gradually decrease or increase).

Can I use an external dimmer?

No, the floodlight is not suitable for use with external dimmers.

Does the power outlet at the back work when the light is off?

Yes, the integrated outlet remains powered even when the floodlight is off.

What is the maximum power I can plug into the outlet?

The maximum permissible load of the outlet is 2000 W (connected devices).

How to mount the floodlight on a tripod?

Use the holes on the carrying handle to attach the floodlight to a suitable tripod. A set of screws is provided for mounting.

Can I replace the light source?

No, the LED light source is not replaceable. At end of life, replace the entire floodlight.

How to clean the floodlight?

First unplug the floodlight. Clean with a dry or slightly damp cloth. Do not use solvents or abrasive products.

What to do if the power cable is damaged?

The cable cannot be replaced. If damaged, the floodlight must be disposed of.

Can the floodlight be used in the rain?

Yes, the IP54 protection rating allows outdoor use, but it must be protected from water jets and not immersed.

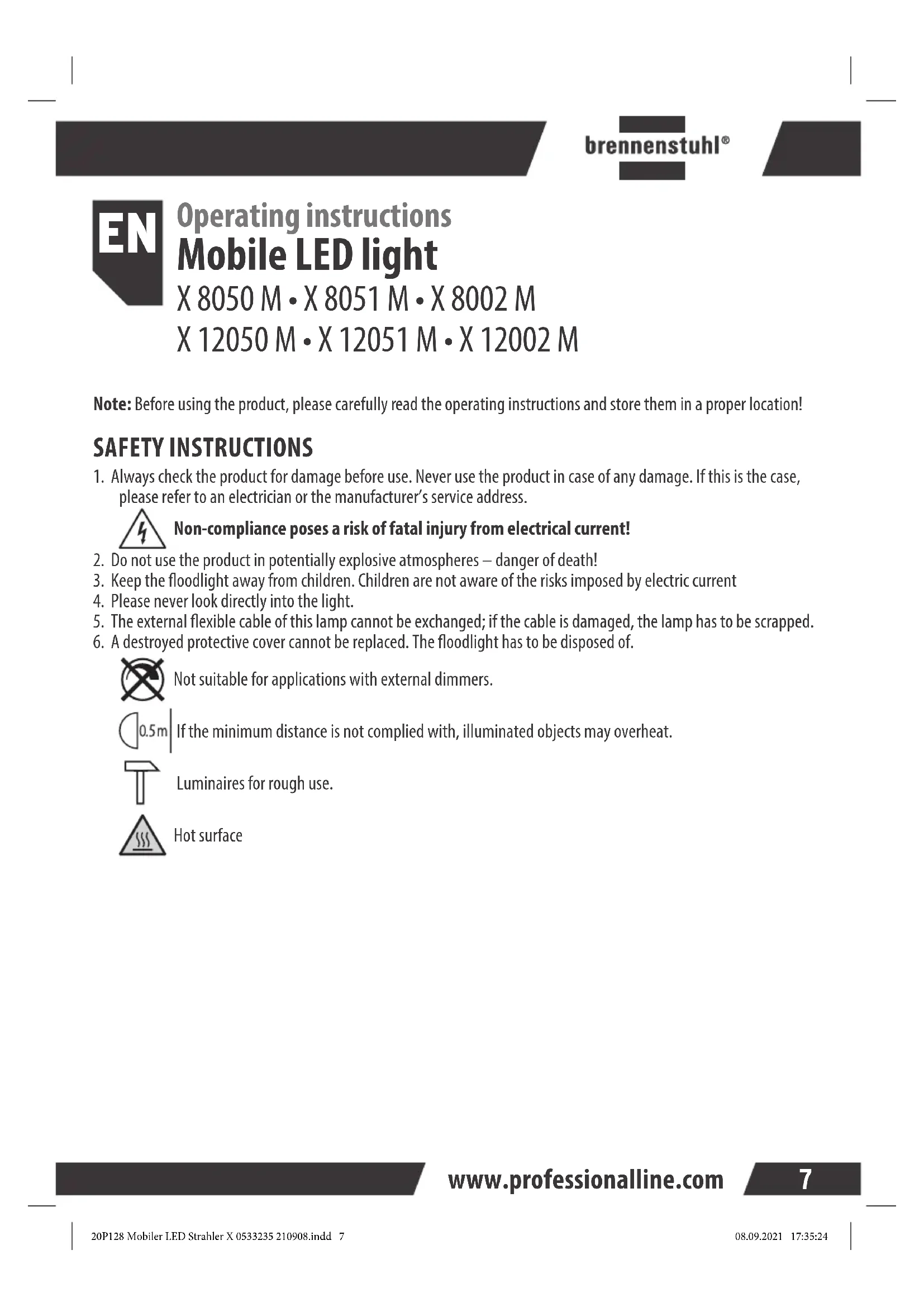

USER MANUAL professionalLINE X 8002 M BRENNENSTUHL

Operating instructions

Mobile LED light

X 8050 M • X 8051 M • X 8002 M

X 12050 M • X 12051 M • X 12002 M

Note: Before using the product, please carefully read the operating instructions and store them in a proper location!

SAFETY INSTRUCTIONS

1. Always check the product for damage before use. Never use the product in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

1. Do not use the product in potentially explosive atmospheres – danger of death!
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current
3. Please never look directly into the light.
4. The external flexible cable of this lamp cannot be exchanged; if the cable is damaged, the lamp has to be scrapped.
5. A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

Luminaires for rough use.

Hot surface

www.professionalline.com

7

professionalLINE

TECHNICAL DATA

Type designation X 8050 M/X 8051 M	X 8002 M X 12050 M/X	12051 M X 12002 M
Power socket
Output
Nominal voltage	50/60 Hz	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz
Power factor	0.9	0.9	0.9	0.9
Mains current	0.34 A	0.34 A	0.52 A	0.52 A
IP, IK	IP 54. IK 08	IP 54. IK 08	IP 54. IK 08	IP 54. IK 08
Protection class	I	I	I	I
Connection cable	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5
Loading capacity socket	max. 3400 W	max. 2000 W	max. 3400 W	max. 2000 W
Operational temperature range	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C
Size	31 x 31 x 9.7 cm	31 x 31 x 9.7 cm	31 x 31 x 10.4 cm	31 x 31 x 10.4 cm
Weight	3.7 kg	3.7 kg	4.15 kg	4.15 kg
Maximum projected area	0.096 m^2	0.096 m^2	0.096 m^2	0.096 m^2

This product is suitable for indoor and outdoor lighting purposes.

OPERATION

Setting up and turning on the light

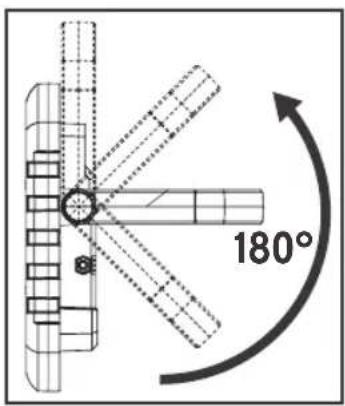

Place the light on a dry, flat surface. Only use the light with the bracket A extended. The adjustable bracket A can be adjusted to several levels and can be used to set the light at different tilt angles.

Mounting the light on a tripod

The light can be mounted on a suitable tripod using the holes on bracket (mounting material not included!). Make sure the tripod is sufficiently stable and the light is securely mounted.

Switching and Dimming the light

Switch on the spotlight with the switch B on the back.

The light intensity can be adjusted in steps and continuously:

Steps dimming: by pressing the switch twice, 100 and 50% light can be adjusted.

Stepless dimming: press the switch permanently – the light intensity is slowly reduced.

Proceed in the same way to increase the intensity again.

If the switch is left in any of its "on" positions for longer than 3 seconds, then pressing it once again will always turn it off.

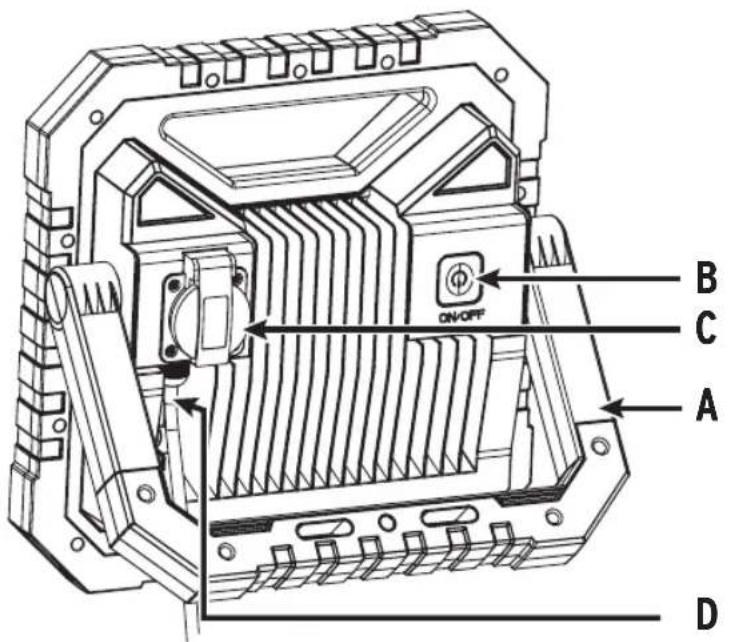

ILLUSTRATED COMPONENTS

A Folding clamp
B On/Off and function switch
C Power socket
D Connection cable

Power socket

At the back side of the floodlight, there is a power socket © by means of which it can also be used as power distributor. The power socket © is also functional when the light is switched off.

OPTIONAL STAND (not included in the scope of delivery)

You can find suitable accessories on our homepage www.brennenstuhl.com.

TRIPOD MOUNTING

By means of the holes in the holding bracket, the floodlight can be mounted on a Brennenstuhl tripod.

SCOPE OF DELIVERY

A screw set is included for mounting the spotlight on Brennenstuhl tripods. 1 x M6 x 45 screw + 1 x washer, 2 x M6 x 60 screws, 2 x washers and 2 x nuts

www.professionalline.com

professionalLINE

MAINTENANCE

ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

CLEANING

Before cleaning, disconnect the floodlight from the mains power.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electrical devices in an environmentally friendly way! Electrical devices do not belong in the household rubbish!

According to the European Directive 2012/19/EU on old electrical and electronic devices, used electrical devices must be collected separately and turned over for environmentally friendly recycling. You can find out about options for disposal of the out-of-service device at your town or city administration.

CE EU DECLARATION OF CONFORMITY

The EU declaration of conformity is deposited at the manufacturer.

ADRESSES

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.
