HG00180A - Parasol Livarno Lux - Free user manual and instructions

Product type	Patio umbrella
Brand	Livarno Lux
Model	HG00180A
Use	Outdoor sun protection for domestic use
Opening mechanism	Sliding handle with click lock
Tilt	Adjustable via tilt adjustment button
Recommended minimum base weight	50 kg
Minimum embedment depth in base	40 cm
Warranty	3 years from date of purchase
Reference number (IAN)	373395_2104
UV protection	Protects against direct rays, sunscreen still needed
Assembly	Two vertical tube parts to join and secure with locking knob
Care	Clean with a slightly damp lint-free cloth, soapy water if necessary
Winter storage	In a cool, dry place
Canopy material	Not specified, but UV resistant
Spare parts	Available during the warranty period
After-sales service France	Tel.: [phone], email: [e-mail]

Frequently Asked Questions - HG00180A Livarno Lux

How to assemble the Livarno Lux HG00180A patio umbrella?

Insert the upper vertical tube part into the lower part at least 10 cm, then secure with the locking knob. Use a base weighing at least 50 kg by inserting the lower bar at least 40 cm. Refer to the manual for details.

What base weight is recommended for this umbrella?

The base must weigh at least 50 kg and the lower bar must be inserted at least 40 cm to ensure sufficient stability.

How to open and tilt the umbrella?

Pull the sliding handle upward until it clicks. To tilt, press the tilt adjustment button and gently orient the umbrella toward the sun.

Does this umbrella protect against UV?

Yes, it protects against direct UV rays, but it is recommended to also use sunscreen as reflected rays are not filtered.

What to do in strong wind?

Close the umbrella and secure it with a cover or cord to prevent it from opening unintentionally. Never leave it open unattended in strong wind.

How to clean the umbrella?

Use a slightly damp lint-free cloth. For stubborn dirt, dampen it with soapy water. Do not use chemical detergents or sharp objects.

How to store the umbrella in winter?

Store it in a cool, dry place. Make sure it is closed and, if possible, protected with a cover.

What is the warranty period?

This product has a 3-year warranty from the date of purchase. Keep the receipt as proof.

Where to find the product reference number?

The IAN number (373395_2104) is on the identification plate, on the title page of the manual, or on a sticker on the back or underside of the product.

How to contact after-sales service?

In France, call 0800904879 or write to [e-mail]. In Belgium: 080071011 or [e-mail]. For Luxembourg: 80023970.

USER MANUAL HG00180A Livarno Lux

PDF ONLINE www.lidl-service.com

SONNENSCHIRM / PARASOL / PARASOL

DE AT CH

SONNENSCHIRM

Assembly, operating and safety instructions

NL BE

PARASOL

Technical line drawing of a structural support structure with an inset showing a close-up of a mechanical component (no text or symbols present)

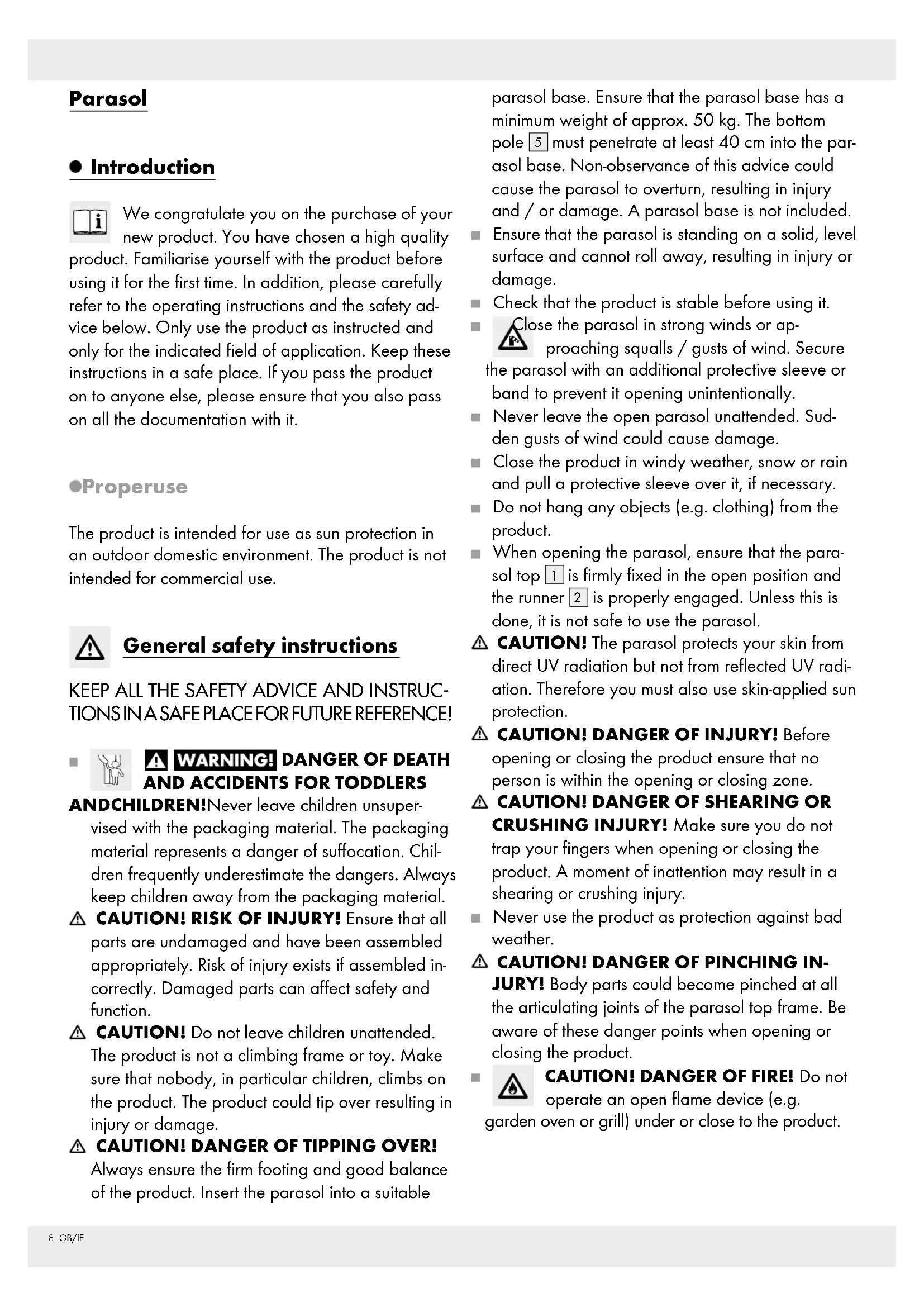

Sonnenschirm

- Einleitung

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

●Properuse

The product is intended for use as sun protection in an outdoor domestic environment. The product is not intended for commercial use.

General safety instructions

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS

ANDCHILDREN! Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

⚠️ CAUTION! RISK OF INJURY! Ensure that all parts are undamaged and have been assembled appropriately. Risk of injury exists if assembled incorrectly. Damaged parts can affect safety and function.

⚠ CAUTION! Do not leave children unattended. The product is not a climbing frame or toy. Make sure that nobody, in particular children, climbs on the product. The product could tip over resulting in injury or damage.

⚠️ CAUTION! DANGER OF TIPPING OVER!

Always ensure the firm footing and good balance of the product. Insert the parasol into a suitable

parasol base. Ensure that the parasol base has a minimum weight of approx. 50 kg. The bottom pole 5 must penetrate at least 40 cm into the parasol base. Non-observance of this advice could cause the parasol to overturn, resulting in injury and / or damage. A parasol base is not included.

- Ensure that the parasol is standing on a solid, level surface and cannot roll away, resulting in injury or damage.

- Check that the product is stable before using it.

Close the parasol in strong winds or approaching squalls / gusts of wind. Secure the parasol with an additional protective sleeve or band to prevent it opening unintentionally.

■ Never leave the open parasol unattended. Sudden gusts of wind could cause damage.

- Close the product in windy weather, snow or rain and pull a protective sleeve over it, if necessary.

- Do not hang any objects (e.g. clothing) from the product.

- When opening the parasol, ensure that the parasol top 1 is firmly fixed in the open position and the runner 2 is properly engaged. Unless this is done, it is not safe to use the parasol.

⚠️ CAUTION! The parasol protects your skin from direct UV radiation but not from reflected UV radiation. Therefore you must also use skin-applied sun protection.

⚠️ CAUTION! DANGER OF INJURY! Before opening or closing the product ensure that no person is within the opening or closing zone.

⚠️ CAUTION! DANGER OF SHEARING OR CRUSHING INJURY! Make sure you do not trap your fingers when opening or closing the product. A moment of inattention may result in a shearing or crushing injury.

- Never use the product as protection against bad weather.

⚠️ CAUTION! DANGER OF PINCHING INJURY! Body parts could become pinched at all the articulating joints of the parasol top frame. Be aware of these danger points when opening or closing the product.

CAUTION! DANGER OF FIRE! Do not operate an open flame device (e.g. garden oven or grill) under or close to the product.

- Assembly

- Assembling / disassembling the parasol (see Fig. A)

Note: For assembly you will need a working space at least 2 m in diameter.

Note: If possible have a second person help you with the assembly.

Follow these steps:

1. Unpack the parasol carefully.

2. Insert the top pole 3 into the bottom pole 5.
   Note: Ensure that the end of the top pole 3 penetrates at least 10 cm into the bottom pole 5.

3. Turn the locking knob 4 clockwise to fix the top pole 3 in place.

4. Place the parasol in a suitable parasol stand (not contained in delivery).

Note: Always comply with the safety and operating instructions of the manufacturer.

Note: Ensure that the parasol base has a minimum weight of approx. 50 kg. The bottom pole ^5 must penetrate at least 40 cm into the parasol base. Non-observance of this advice could cause the parasol to overturn, resulting in injury and / or damage. A parasol base is not included.

1. When disassembling the parasol, follow the instructions in reversed order.

- Opening/tilting the parasol

Open the parasol by sliding the runner 2 upwards until you hear it engage.
☐ Press the tilt button 6 and tilt the parasol carefully to the side to suit the direction of the sunshine (see Fig. B).

- Closing the parasol

☐ Press the tilt button 6 to bring the parasol once more into the upright position (see Fig. B).
☐ Press the unlocking button on the runner 2 and close the parasol.

- Cleaning and storage

□ Clean the product using a slightly moist, fluff-free cloth. For more stubborn dirt you may also apply a weak soap solution to the cloth.
- Do not use chemical cleaners, scouring agents or sharp objects for cleaning the device, otherwise the product could be damaged.
■ Store the product in a cool, dry place over the winter.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 373395_2104) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you.

Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB ServiceGreatBritain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

Parasol
