| Product type | Cordless electric tiller |
| Brand | Craftsman |
| Model | CMCTL320 |
| Rated voltage | 20 V Max (18 V nominal) |
| Battery type | Lithium-ion |
| Battery system | CRAFTSMAN 20V |
| Speeds | 2 (HI/LO) |
| Auxiliary handle | Height adjustable |
| Tines | Removable, color-coded for correct installation |
| VersaTrack hook | Integrated for wall storage |
| Electronic protection | Yes (overload, overheat, deep discharge) |
| Fuel gauge | On some batteries (LED) |
| Usage | Household and consumer |
| Tool warranty | 3 years |
| Battery warranty | 2 years |
| Satisfaction guaranteed warranty | 90 days |
| After-sales service | CRAFTSMAN authorized service center |
| Spare parts | Available through service center |
| Cleaning | Damp cloth, no water or solvents |
| Maintenance | Regular cleaning, light lubrication of metal parts |
Frequently Asked Questions - CMCTL320 Craftsman
User questions about CMCTL320 Craftsman
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cultivator in PDF format for free! Find your manual CMCTL320 - Craftsman and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CMCTL320 by Craftsman.
USER MANUAL CMCTL320 Craftsman
English (original instructions) 4
1 Upper pole
2 Lower pole

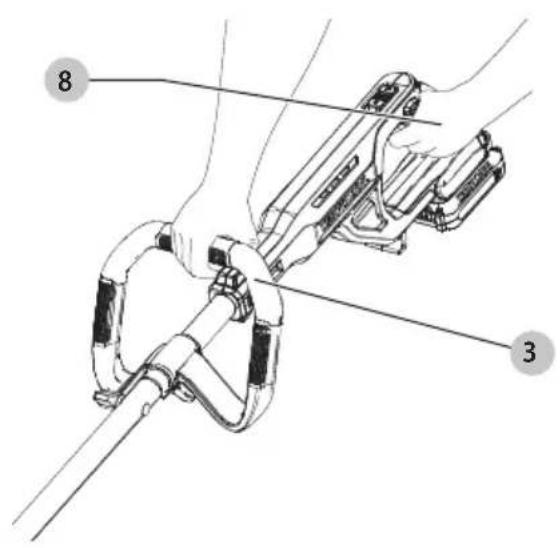

3 Auxiliary handle

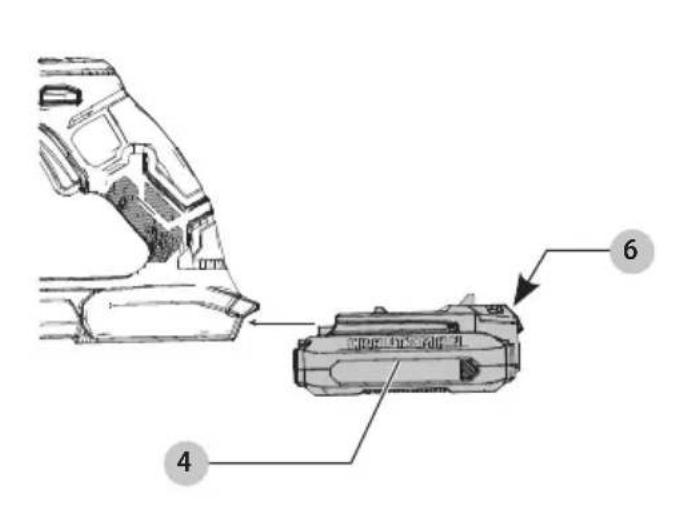

4 Battery pack
5 Battery housing
6 Release button
7 Tines
8 Main handle

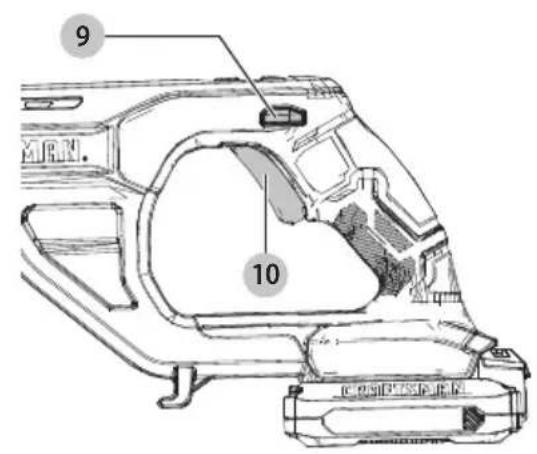

9 Lock-off button
10 Trigger
11 Speed control switch
12 Versatrack hook


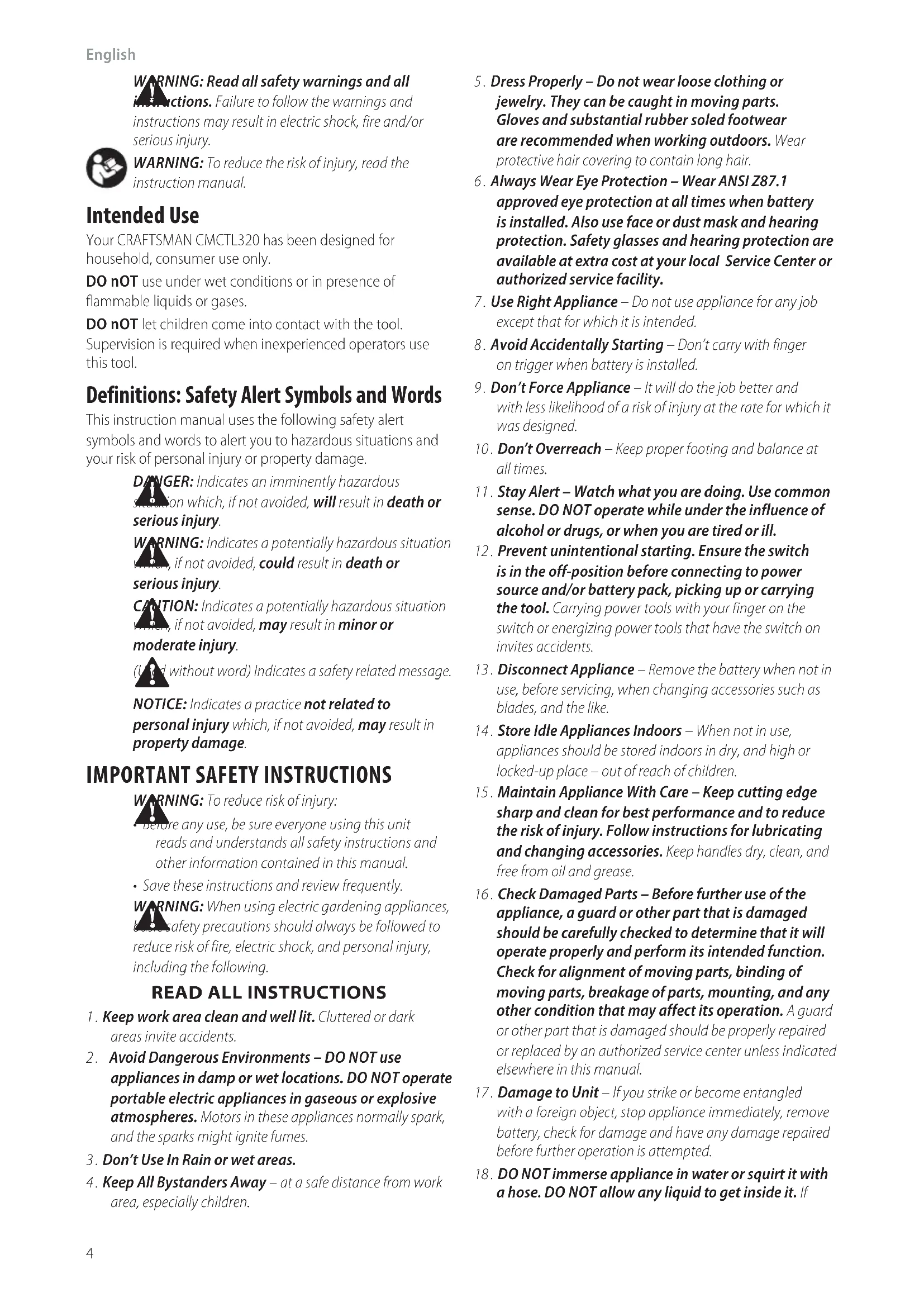

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING: To reduce the risk of injury, read the instruction manual.
Intended Use
Your CRAFTSMAN CMCTL320 has been designed for household, consumer use only.
DO nOT use under wet conditions or in presence of flammable liquids or gases.
DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.
Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation when, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce risk of injury:
• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual.
- Save these instructions and review frequently.
WARNING: When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.
READ ALL INSTRUCTIONS
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
- Avoid Dangerous Environments – DO NOT use appliances in damp or wet locations. DO NOT operate portable electric appliances in gaseous or explosive atmospheres. Motors in these appliances normally spark, and the sparks might ignite fumes.
- Don't Use In Rain or wet areas.
-
Keep All Bystanders Away – at a safe distance from work area, especially children.
-
Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Gloves and substantial rubber soled footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
- Always Wear Eye Protection – Wear ANSI Z87.1 approved eye protection at all times when battery is installed. Also use face or dust mask and hearing protection. Safety glasses and hearing protection are available at extra cost at your local Service Center or authorized service facility.
- Use Right Appliance – Do not use appliance for any job except that for which it is intended.
- Avoid Accidentally Starting – Don't carry with finger on trigger when battery is installed.
- Don't Force Appliance – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
- Don't Overreach – Keep proper footing and balance at all times.
- Stay Alert – Watch what you are doing. Use common sense. DO NOT operate while under the influence of alcohol or drugs, or when you are tired or ill.
- Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
- Disconnect Appliance – Remove the battery when not in use, before servicing, when changing accessories such as blades, and the like.
- Store Idle Appliances Indoors – When not in use, appliances should be stored indoors in dry, and high or locked-up place – out of reach of children.
- Maintain Appliance With Care – Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease.
- Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.
- Damage to Unit – If you strike or become entangled with a foreign object, stop appliance immediately, remove battery, check for damage and have any damage repaired before further operation is attempted.
- DO NOT immerse appliance in water or squirt it with a hose. DO NOT allow any liquid to get inside it. If
appliance does get wet, allow to dry for a minimum of 48 hours.
- DO NOT store the appliance on or adjacent to fertilizers or chemicals.
- Don't grasp the exposed cutting blades or cutting edges when picking up or holding the appliance.
- DO NOT clean with a pressure washer.
- DO NOT charge appliance in rain, or in wet locations.
- DO NOT use battery-operated appliance in rain.
- Remove or disconnect battery before servicing, cleaning or removing material from the gardening appliance.
- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- SERVICE- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
SAVE THESE INSTRUCTIONS
Additional Safety Information
WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.
WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.
WARNING: Some dust contains chemicals known to state of California to cause cancer, birth defects
or other reproductive harm. Some examples of these chemicals are:
• compounds in fertilizers,
• compounds in insecticides, herbicides and pesticides,
• arsenic and chromium from chemically treated lumber. To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.
- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.
WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.
WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.
CAUTION: When not in use, place tool on its side on a small surface where it will not cause a tripping or falling hazard. Some tools with a large battery pack will stand upright but may be easily knocked over.
- Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.
The label on your tool may include the following symbols. The symbols and their definitions are as follows:
V....volts
Hz hertz
min......minutes
or DC.....direct current
Class I Construction (grounded)
.../min.....per minute
BPM.....beats per minute
\~or AC......alternating current
or AC/DC.... alternating or direct current
☐...... Class II Construction (double insulated)
n_0 .....no load speed n .....rated speed
PSI..... pounds per square inch
earthing terminal
⚠️......safety alert symbol
α......visible radiation do not stare into the light
......wearrespiratory protection
wear eye protection
O....wearhearing protection
read all documentation do not expose to rain
BATTERIES AND CHARGERS
The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage.
READ ALL INSTRUCTIONS
Important Safety Instructions for All Battery Packs
WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
ENGLISH
- Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.
- NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.
- Charge the battery packs only in CRAFTSMAN chargers.
• DO NOT splash or immerse in water or other liquids.
• DO NOT allow water or any liquid to enter battery pack.
- Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F (40 °C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location.
NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.
- Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
- Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
- Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
- If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
- Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
- Battery liquid may be flammable if exposed to spark or flame.
- Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.
Storage Recommendations
The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of the charger.
Battery Pack Cleaning Instructions
Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.
Fuel Gauge Battery Packs (Fig. B)
Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end-user application.
Transportation
WARNING: Fire hazard. Do not store, carry, or transport the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li-ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry-on baggage.
The RBRC® Seal
Please take your spent battery packs to an authorized CRAFTSMAN service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org, or call the toll free number in the RBRC® Seal.
RBRC ^® is a registered trademark of Call 2 Recycle, Inc.
Important Safety Instructions for All Battery Chargers
WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
- DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger.
CRAFTSMAN chargers and battery packs are specifically designed to work together.
• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock or electrocution.
- Do not expose the charger to rain or snow.
- Do not allow water or any liquid to enter charger.
- Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.
- Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
- When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords plugged together, and nameplate ampere rating. If in doubt, use the next heavier gauge.
Minimum Gauge for Cord Sets
| Volts | Total Length of Cord in Feet (meters) | ||||
| 120V 25 (7.6) | 50 (15.2) 100 | (30.5) 150 (45.7) | |||
| Ampere Rating | American Wire Gauge | ||||
| More Than Not More Than | |||||
| 0 6 18 | 16 16 14 | ||||
| 6 10 | 18 16 14 12 | ||||
| 10 12 | 16 16 14 12 | ||||
| 12 16 | 14 12 | Not | Recommended | ||
- Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
- Do not operate the charger with a damaged cord or plug. Have them replaced immediately.
- Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.
- Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
- The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.
- Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.
• Always unplug the charger from the power supply when there is no battery pack in the cavity.
Charging a Battery (Fig. C, D)
- Plug the charger into an appropriate outlet.
- Insert and fully seat battery pack 4. Green charging light(s) will continuously blink while charging.
- Charging is complete when the green charging light(s) remain(s) continuously ON. Battery pack can be left in charger or removed.
WARNING: Only charge batteries in air temperature over 40°C (+4.5°C) and below 104°F (+40°C).
- Charger will not charge a faulty battery pack, which may be indicated by the charging light(s) staying OFF. Take charger and battery pack to an authorized service center if light(s) stay(s) OFF.
NOTE: Refer to label near charging light(s) on charger for blink patterns.
NOTE: To remove the battery pack, some chargers require the battery pack release button to be pressed.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.
A cold battery pack may charge at a slower rate than a warm battery pack.
The hot/cold pack delay will be indicated by the green light(s) continuing to blink but with the red light continuously ON. Once the battery pack has reached an appropriate temperature, the red light will turn OFF and the charger will resume the charging procedure.
Electronic Protection System
Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to be recharged.
Important Charging Notes
- Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65^ F – 75^ F ( 18^ C– 24^ C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the battery pack.
- The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.
- If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp or other appliance;
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
English
c. If charging problems persist, take the tool, battery pack and charger to your local service center.
- You may charge a partially used pack whenever you desire with no adverse effect on the battery pack.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.
Wall Mounting
Some CRAFTSMAN chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm) long, with a screw head diameter of 0.28–0.35" (7–9 mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.
nOTE: Do not attempt to mount CMCB101 charger under a bench or table.
nOTE: Only mount CMCB101 charger with the charging lights pointed upward toward the ceiling.
VersaTrack™
WARNING: Do not charge batteries while charger is hanging on Trackwall.
CRAFTSMAN chargers, except the CMCB101, can be stored on CRAFTSMAN VersaTrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the VersaTrack™ Trackwall accessory sheet for further information.
NOTE: The CMCB101 charger is not CRAFTSMAN VersaTrack™ Trackwall compatible.
SAVE THESE INSTRUCTIONS FOR FUTURE USE
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.
Assembling the Pole (Fig. E)
CAUTION: NEVER use a sharp object to move jacketed wires out of the way.
- Remove knob 18, washer 20, and curved head bolt 19 from handle tube mounting hole.
- Remove tape which secures internal jacketed cable to tubes.
- Slide upper tube 1 into lower tube 2 and fasten handle tubes together with the knob, washer and
curved head bolt.
nOTE: When you first insert the bolt it may be necessary to wiggle it carefully to get it past the jacketed cable inside the tube.
WARNING: Do not drive bolt through with hammer or other tool.
Attaching the Auxiliary Handle (Fig. F)
- Remove handle knob 18 and handle bolt 19 from the auxiliary handle 3.
- Push the auxiliary handle 3 onto the top of the upper pole 1 as shown in Fig. F.
- Thread the handle bolt 19 through the mounting hole on the auxiliary handle 3.
- Thread the handle knob 18 onto the handle bolt 14 and firmly tighten. Ensure the handle is secured in position before using.
- To adjust the position of the auxiliary handle, loosen the handle knob 18 and slide the auxiliary handle 3 up or down the pole until it is in the desired location. Tighten the handle knob 18 to secure the auxiliary handle 3 in position.
Removing and Installing Tines (Fig. G)
WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.
WARNING: To reduce the risk of serious personal injury, always wear gloves to protect your hands when touching tines. Tines are sharp.
nOTE: The tines should be removed and cleaned after each use.
- Remove the battery pack from the appliance. Place appliance on a flat level surface.
- Wearing gloves, clear away any excessive debris or dirt from the tines 7 and tine shaft with a screwdriver or a stick.
- Wearing gloves, remove the clip pin 15 and washer 16 from each end of the tine shaft 17.
- Wearing gloves, slide the tines off the tine shaft.
- Clean the tine shaft of any dirt with a damp rag and allow to dry.
- Wearing gloves, clean the tines of any dirt with a damp rag and allow to dry.
- The tines are keyed and only correctly install one way so that the hole for the clip pin is exposed as shown in Fig. G.
- Wearing gloves, slide the clean and dried tines onto each side of clean and dried tine shaft.
- Wearing gloves, install the washer and then the clip pin on each side of the tine shaft.
OPERATION
WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.
WARNING: Before Landscaping or Tilling, inspect and ensure there are no exposed or buried cables, pipes or other objects that may create a hazard or interfere with operating the edger. Set depth to only that required for the job. Do not overload. If tool slows, pull back slightly and wait until blade comes up to normal speed.
Installing and Removing the Battery Pack (Fig. H)
WARNING: Ensure the tool/appliance is in the off position before inserting the battery pack.
NOTE: For best results, make sure your battery pack is fully charged.
- To install the battery pack 4 into the tool handle, align the battery pack with the rails inside the tool's handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.
- To remove the battery pack from the tool, press the release button 6 and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of this manual.
Proper Hand Position (Fig. I)
WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.
Proper hand position requires one hand on the main handle 8 and one hand on the auxiliary handle 3.
Switching Trimmer On and Off (Fig. A)
WARNING: Never attempt to lock the trigger in the composition.
- To turn the appliance on, press the lock-off button 9 and then squeeze the trigger 10. Once the unit is running, you may release the lock-off button.
- To turn the appliance off, release the trigger.
Speed Control Switch (Fig. A)
The CMCTL320 gives you the choice to operate tines at a low speed for hard or compacted soil, or accelerate the tine speed for existing loose soil.
- For maximum tine speed, push the speed control switch 11 forward toward the auxiliary handle 3 into the "HI" position. This mode is best to till through loose soil and for applications that need higher RPM.
- For slower tine speed and more power, pull the speed control switch back toward the battery housing 5 into the "LO" position. This mode is best for hard or compacted soils.
NOTE: When in "HI" mode, runtime will be decreased as compared to when in "LO" mode.
Tilling
WARNING: When operating this appliance always wears long pants, boots and gloves. Do not wear shorts, sandals or operate this appliance barefoot.
WARNING: Keep hands, feet and all body parts away from the line area.
WINING: Only carry tool with battery removed.
CAUTION: Ensure that the work area is free of larger stones, sticks or other objects that could cause damage to the tines.
CAUTION: Keep a firm grip on both of the handles within operation.
CAUTION: Do not till overly wet soil. Overly wet soil will log the tines.
CAUTION: Maintain straight lines, avoid turning left or right while the tines are engaged in the soil.
CAUTION: Do not attempt to unclog the blade chamber by dropping or tapping the tool on the ground. This can damage the unit. Keep hands clear of blades when cleaning as these wear to a very sharp point during tilling.
- Place the appliance in the work area before switching it on.
- Hold the appliance with the tines just off of the soil and then switch the appliance on.
- Holding the auxiliary handle and main handle firmly, lower the tines into the soil.
- Pull backward on the tiller so the tines can more easily break the surface of the soil.
- Once the surface of the soil has been broken, continue forward at a slow pace until you are familiar with the controls and the handling of the tiller.
- Till the soil in overlapping rows. Push the tiller in vertical lines, then till horizontally across the vertical lines to ensure an even coverage.
- If the tines become jammed, remove the battery pack from the appliance.
- Wearing gloves, remove the obstruction from the tines. NOTE: For some jams you will need to use a screwdriver or a stick to remove the debris. Do not try to clear the tines by tapping the gear housing on the ground. Doing so could bend the tines or damage the appliance.
- If the tine shaft becomes jammed, remove the battery pack from the appliance. Inspect the tine shaft to see which side is jammed.
- Wearing gloves, remove the clip pin and washer. Then slide the tines off the tine shaft.
- Wearing gloves, remove debris or other obstructions wrapped around the tine shaft.
- Once the jam is clear, clean the tine shaft of any dirt with a damp rag.
English
- The tines are keyed and only correctly install one way so that the hole for the clip pin is exposed as shown in fig. X.
- Wearing gloves, slide the tine onto the tine shaft and install the washer and then the clip pin.
Preventing Corrosion
Fertilizers and other garden chemicals contain agents that greatly accelerate the corrosion of metals. If you use the tool in areas where fertilizers or chemicals have been used, the tool should be cleaned immediately afterwards. Wipe all exposed parts with a damp cloth. You may lubricate only metal parts with a light petroleum based oil. When cleaning, DO NOT immerse tool in water or squirt it with a hose.
MAINTENANCE
WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An
accidental start-up can cause injury.
Your CRAFTSMAN power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
Cleaning
WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
Accessories
WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.
Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569.
Versatrack™ (Fig. R)
WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-upcan cause injury.
WARNING: To reduce the risk of serious personal injury, do not use a damaged Versatrack™ integral hang hook or Versatrack™ Trackwall. A damaged Versatrack™ integral hang hook or Versatrack™ Trackwall will not support the weight of the tool.
WARNING: To reduce the risk of serious personal injury, DO NOT suspend tool overhead or suspend objects from the integral hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the integral hang hook.
WARNING: The Versatrack™ integral hang hook is intended to mount the tool onto a Versatrack™ Trackwall rail. Do not use the integral hang hook to mount the tool to any other surface.
WARNING: The Versatrack™ integral hang hook is not a deep hook.
WARNING: When hanging objects on a Versatrack™ Treadwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot.
WARNING: Before using the tool make sure that the oversatrack™ integral hang hook is returned to its original position.
iIMPORTAnT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwall system.
- Turn tool off, remove the battery pack and remove accessories.
- Flip or pull open the integral hang hook 21. It clicks when locked into position.
- Mount the integral hang hook to the Versatrack™ Trackwall.
NOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.
Repairs
The charger and batteries are not serviceable. There are no serviceable parts inside the charger or battery pack.
WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.
Register Online
Thank you for your purchase. Register your product now for:
- WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
- CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
- FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
- Register online at www.craftsman.com/registration
Three Year Limited Warranty
CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces. In addition to the warranty, CRAFTSMAN tools are covered by our:
2 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS
CMCB201, CMCB209, CMCB2011, CMCB2015
3 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS
CMCB202, CMCB204, CMCB205, CMCB206
NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.
90 DAY MONEY BACK GUARANTEE
If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.
LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.
FRAnÇAis
portezdes protections auditives
CMCB201, CMCB209, CMCB2011, CMCB2015
ENTRETIEN GRATUIT DURANT 3 ANS SUR LES BLOCS- PILES CRAFTSMAN
CMCB202, CMCB204, CMCB205, CMCB206
Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera
MERIDA, YUC
Calle 63 #459-A - Col. Centro (999) 928 5038
MONTERREY, N.L.
Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro
PUEBLA, PUE
17 Norte #205 - Col. Centro (222) 246 3714
QUERETARO, QRO
Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14
SAN LUIS POTOSI, SLP
Col. Santa Fe Alvaro Obregon,
Ciudad de Mexico, Mexico.
C.P 01210
TEL(52) 55 53267100
R.F.C.BDE8106261W7
Registro en Línea
CMCB201, CMCB209, CMCB2011, CMCB2015
CMCB202, CMCB204, CMCB205, CMCB206
* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
HING: Use of any other battery packs may create a risk of injury and fire.
