Brand	Dometic
Model	K9 80 AIR
Product type	Inflatable dog tent
Usage	Light to moderate weather, excursions
Number of places	1 dog
Main material	Fabric with UV protection
Structure	Inflatable air tubes (9 psi / 0.62 bar)
Floor covering	Yes, with zipper
Fixation	Corner stakes (45° angle)
Ventilation openings	Yes, to be kept open
Maintenance	Clean with water and soft brush, regular UV impregnation
Repair	Repair tape and solution for air tubes
Delivery contents	Tent, floor covering, stake bag, transport cover
Safety	Do not use open flame inside, do not block ventilation openings
Warranty	Statutory warranty, contacts in case of defects

Frequently Asked Questions - K9 80 AIR DOMETIC

How to inflate the K9 80 AIR tent?

Use the supplied manual pump and inflate the air tubes to the green zone on the pressure gauge (9 psi / 0.62 bar). Do not use a car tire compressor.

What type of ground should I choose to set up the tent?

Choose a flat, wind-protected, shaded location without stones. Avoid undergrowth because of branches and resin.

How to deflate and store the tent?

Open the valve, expel the air by rolling the tent toward the valve, then fold it into the transport bag. Make sure it is clean and dry before storing.

Can I use a heater or barbecue inside the tent?

No, it is dangerous. Carbon monoxide can accumulate and cause fatal poisoning. Never use an open flame inside.

How to repair a puncture in the air tube?

Open the sleeve, remove the tube, deflate it, find the puncture by submerging it in water, then apply repair tape and repair solution.

How to clean the K9 80 AIR tent?

Set up the tent, clean it with clean water and a soft brush. Do not use chemicals or sharp objects. Regularly apply UV impregnation.

What to do in case of condensation inside the tent?

Increase ventilation by opening doors or windows. Heavy condensation can be mistaken for a leak. Install a waterproof groundsheet if necessary.

Is this tent suitable for use in winter or snow?

No, the tent is not suitable for very strong winds or snowfall. It is designed for light to moderate weather.

What to do if the tent leaks at the seams?

Check the seams and apply a special seam sealer. Initial exposure to water may moisten the threads, which is normal.

How to maintain the tent's zippers?

Use a silicone spray for the zippers. Do not force them when opening or closing. A repair kit is available.

USER MANUAL K9 80 AIR DOMETIC

Line drawing of a modular furniture device with a grid-patterned lid and side supports (no text or symbols)

K9 80 Air

EN Dog Tent XL Installation and Operating Manual ..... 5

© 2021 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

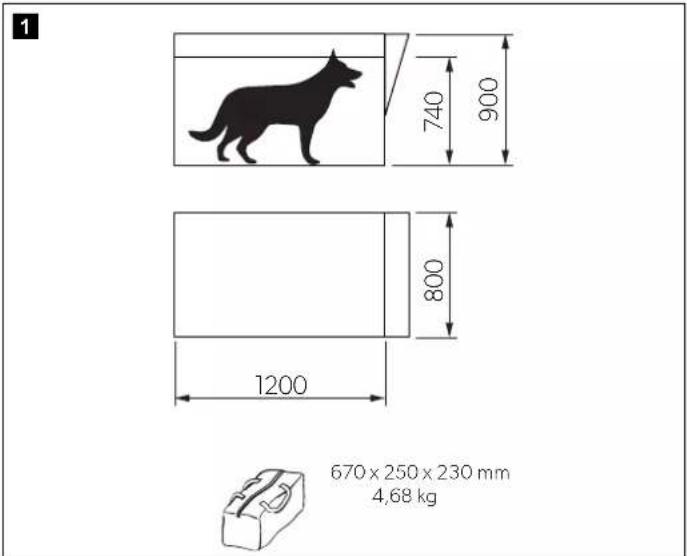

1 740 900 800 1200 670 x 250 x 230 mm 4,68 kg

1. 2. 3. 4.

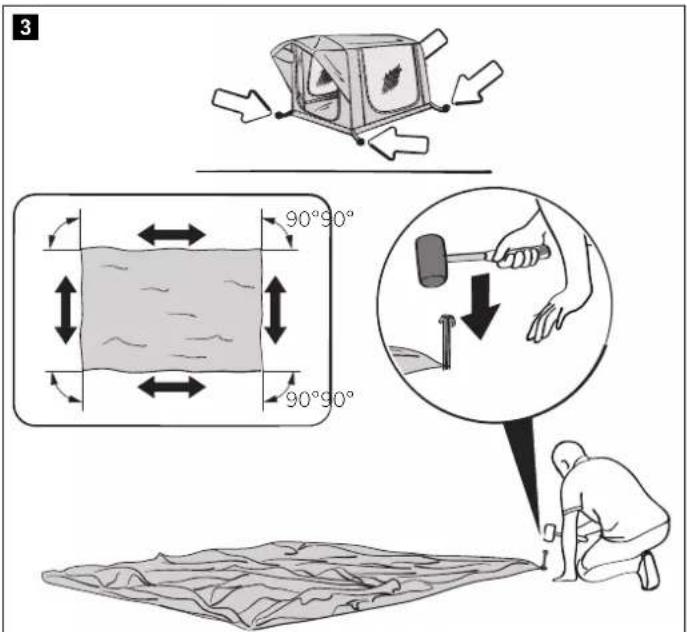

3 90°90° 90°90°

Diagram illustrating a folding or folding process with labeled steps and an inset showing the folding step.

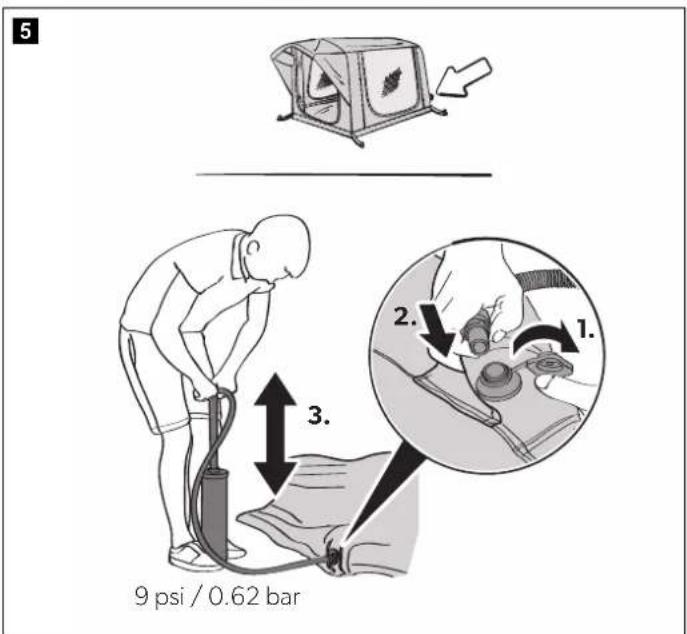

5 9 psi / 0.62 bar 1. 2. 3.

Illustration showing a person opening a large box with arrows indicating motion or movement (no text or symbols present)

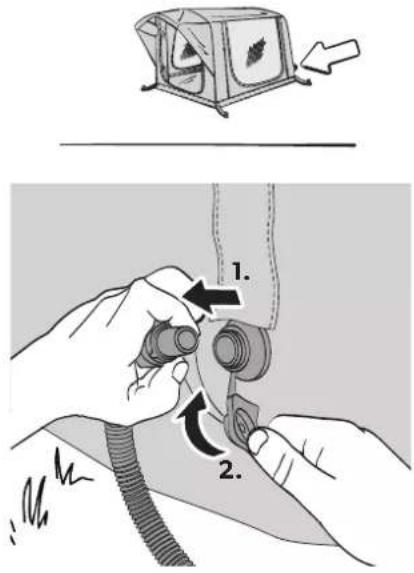

7

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or assembly.

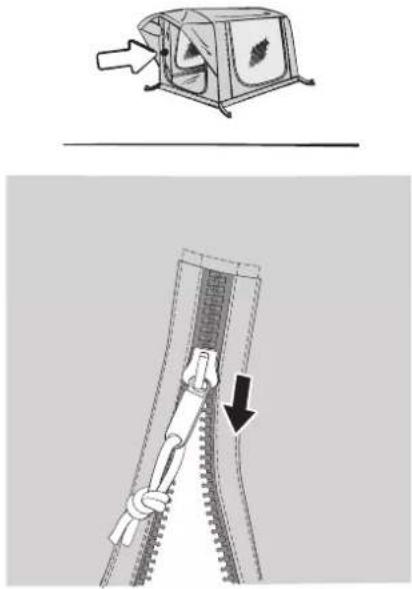

8

Diagram showing a mechanical device with a handle and a close-up of its internal structure, no text or symbols present.

9

Medical procedure diagram showing steps to connect eye and cable clips into a patient's seat, with numbered instructions for each step.

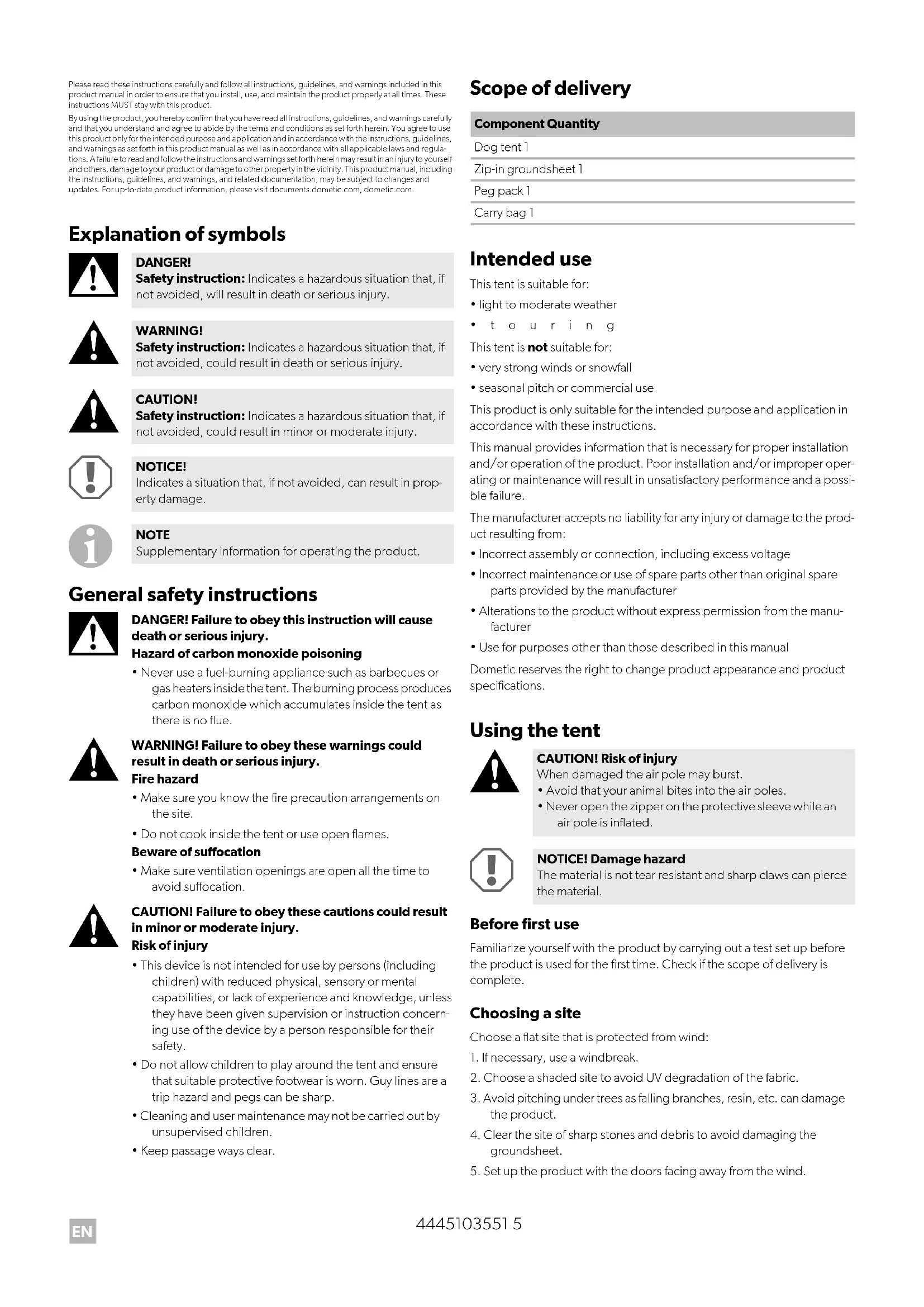

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and to follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.domctic.com, domctic.com.

Explanation of symbols

DANGER!

Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

General safety instructions

DANGER! Failure to obey this instruction will cause death or serious injury.

Hazard of carbon monoxide poisoning

- Never use a fuel-burning appliance such as barbecues or gas heaters inside the tent. The burning process produces carbon monoxide which accumulates inside the tent as there is no flue.

WARNING! Failure to obey these warnings could result in death or serious injury.

Fire hazard

• Make sure you know the fire precaution arrangements on the site.
• Do not cook inside the tent or use open flames.

Beware of suffocation

- Make sure ventilation openings are open all the time to avoid suffocation.

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

Risk of injury

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.
• Do not allow children to play around the tent and ensure that suitable protective footwear is worn. Guy lines are a trip hazard and pegs can be sharp.
• Cleaning and user maintenance may not be carried out by unsupervised children.
• Keep passage ways clear.

Scope of delivery

Component Quantity

Dog tent 1

Zip-in groundsheet 1

Peg pack 1

Carry bag 1

Intended use

This tent is suitable for:

• light to moderate weather
- touring

This tent is not suitable for:

• very strong winds or snowfall

• seasonal pitch or commercial use

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

Using the tent

CAUTION! Risk of injury

When damaged the air pole may burst.

• Avoid that your animal bites into the air poles.
• Never open the zipper on the protective sleeve while an air pole is inflated.

NOTICE! Damage hazard

The material is not tear resistant and sharp claws can pierce the material.

Before first use

Familiarize yourself with the product by carrying out a test set up before the product is used for the first time. Check if the scope of delivery is complete.

Choosing a site

Choose a flat site that is protected from wind:

1. If necessary, use a windbreak.
2. Choose a shaded site to avoid UV degradation of the fabric.
3. Avoid pitching under trees as falling branches, resin, etc. can damage the product.
4. Clear the site of sharp stones and debris to avoid damaging the groundsheet.
5. Set up the product with the doors facing away from the wind.

Setting up the tent

CAUTION! Risk of injury and material damage

• Do not use any type of compressor designed to inflate car tires.
• Only inflate the air poles into the green zone of the pressure gauge of the hand pump (9 psi/0.62 bar).

NOTICE! Material damage

Do not open or close the zippers by force.

NOTE

• The tent comes with general purpose pegs. These will be suitable for many sites but for some types of ground special pegs will be needed. Ask your dealer.
• Drive the pegs at a 45^ angle away from the tent into the ground.

Keep the following tips in mind while setting up the tent:

• The figures provide a general overview of the set-up. The actual set-up will vary slightly based on the model of tent.
• Get help. The set-up is easier with more people.
• After standing the tent upright, check the corner pegs and re-peg if necessary. The groundsheet on the inside should be taut and in a rectangular shape.
• If available, attach the storm straps.

Set up the tent as follows:

1. To protect the tent from dirt and damage, lay down a groundsheet or footprint before unpacking.
2. Unpack the tent.
3. Separate and identify the different components.

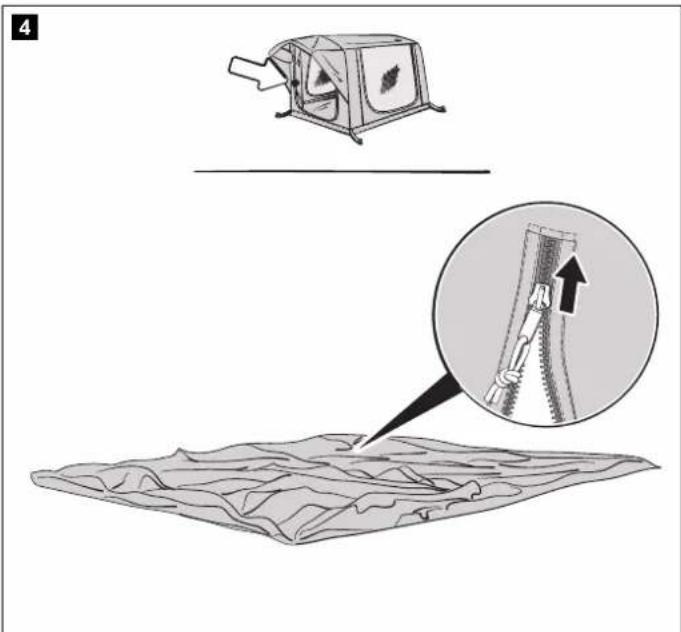

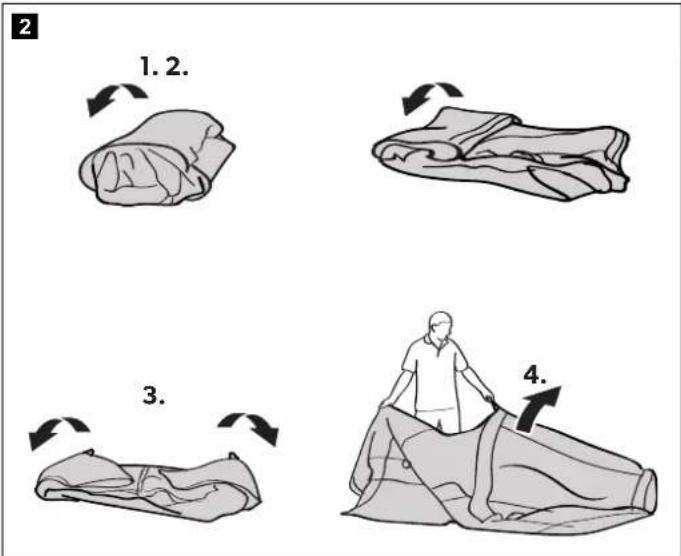

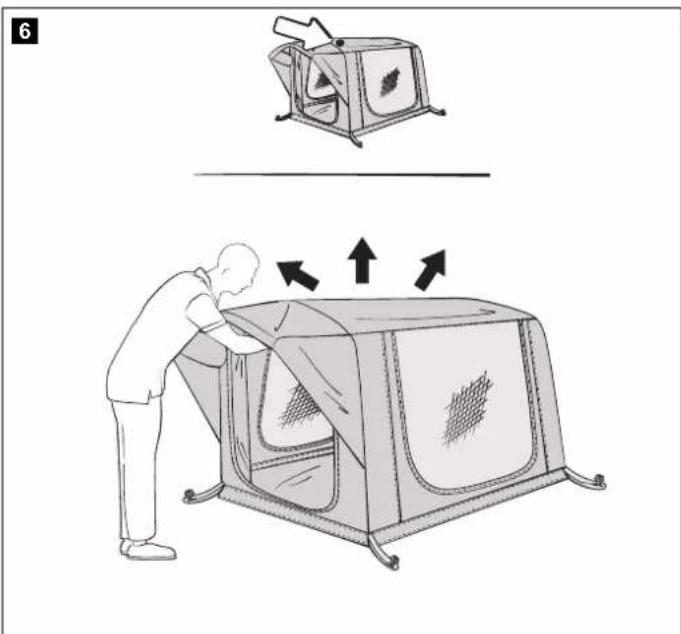

4. Proceed as shown to set up the tent (fig. 2, page 3 to fig. 8, page 4).

Dismantling the tent

NOTICE! Material damage

Do not use force when dismantling the tent. Otherwise you might damage any material.

1. Remove any dirt on the outside.
2. Open the valve.
3. Wait until most of the air has been expelled.
4. Remove the four corner pegs.
5. Fold/roll the tent towards the valve to expel more air.
6. When deflated, roll the tent to fit into the carry bag.
7. Ensure that all parts are clean before packing the tent into the carry bag.
8. If the tent is wet or damp, dry fully as soon as possible.

Storing the tent

1. Clean the tent (see chapter "Cleaning and maintenance" on page 6).
2. Air fully and ensure the tent is totally dry before packing away.
3. Store in a well ventilated dry place.

Cleaning and maintenance

NOTICE! Damage hazard

• Do not use sharp or hard objects or cleaning agents for cleaning.
• Do not use alcohol based materials, chemicals, soap and detergents for cleaning.

• Remove bird droppings and tree resin as soon as possible to avoid permanent damage to the material.

• Choose a sunny day for cleaning to ensure the material will dry thoroughly.

• Fully set up the tent for cleaning.
• Clean the product with clean water and a soft brush.
• Apply impregnation against water and UV radiation regularly or before each trip.

Condensation

All tents suffer from internal condensation if one or more of the following conditions apply:

• high air humidity
  • high ground moisture
• a drop in temperature

Severe condensation can run down the inside of the roof, drip off internal fittings and can be mistaken for leaking.

▶ Increase ventilation through door and/or windows.
▶ Install a waterproof groundsheet.

Repairing a puncture in the air pole

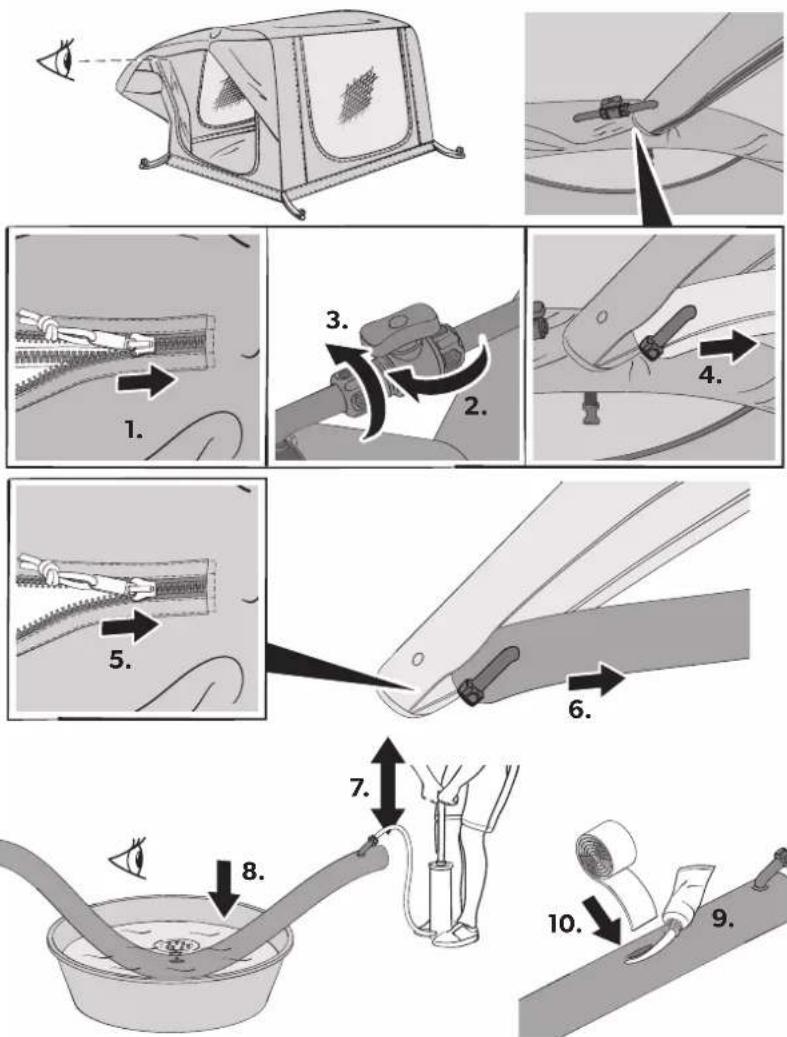

If the air pole loses air, proceed as follows (fig. 9, page 4):

1. Unzip the outer sleeve holding the air pole.
2. Close isolation valves.
3. Remove the air pole.
4. Deflate the air pole.
5. Unzip the protective sleeve to expose the inflatable tube.
6. Blow some air into the inflatable tube.
7. Submerge the tube in water.
8. Locate the puncture.
9. Use repair tape and repair solution to seal the hole.
10. Zip the inflatable tube back into the protective sleeve.
11. Zip the air pole back into the outer sleeve.

Troubleshooting

NOTE

• During first exposure to water there may be some moisture at the seams. Through this moisture the threads will swell and fill the holes that are created in the sewing process.
• A fully equipped spare parts kit should include:

- Waterproof

– Repair tape and repair solution
– Silicone spray for the zippers
- Spare pegs

Problem Solution

Tent only inflates with difficulties	▶ Check that the valve is fully screwed into the air pole.▶ Check if the air pole is twisted at the valve. This may be indicated by noise. Untwist the air pole.▶ Check that the hand pump is working.
Air poles are kinked	▶ Add more air (9 psi/0.62 bar).
Air leak	▶ Check that the valve is fully screwed into the air pole and the ring seal is in place.▶ Check that the cap of the valve is done up tightly.▶ Check for punctures, see chapter “Repairing a puncture in the air pole” on page 6.
Water leak ▶ Check for leaky seams, damaged tapings and moist areas.▶ If you cannot find any leaks, see chapter “Condensation” on page 6.▶ If you find any leaks, apply seam sealant.
Rip in the fabric ▶ Use repair tape to seal the fabric.▶ Have repairs carried out by an authorized service agent.

Disposal

Place the packaging material in the appropriate recycling waste bins, wherever possible.
▶ Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.

Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer).

For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

The warranty covers manufacturing defects, materials and parts. The warranty does not cover fading of the cover and wear and tear due to UV radiation, misuse, accidental damage, storm damage, or permanent, semi-permanent or commercial use. It does not cover any resulting damage. Please contact your dealer for claims. This does not affect your statutory rights.
