USER MANUAL FFS016X FOODSAVER

Product photo of a cleaner machine with food items on a cutting board (no visible text or symbols)

EN USER INSTRUCTIONS
FR NOTICE D'UTILISATION
DE BEDIENUNGSANLEITUNG
ES INSTRUCCIONES PARA EL USUARIO
PT INSTRUÇÕES DE UTILIZAÇÃO
IT ISTRUZIONI PER L'USO
NL GEBRUIKSAANWIJZING
SE BRUKSANVISNING
FI KÄYTTÖOHJEET

DK BRUGERVEJLEDNING
NO BRUKSANVISNING
PL INSTRUKCJA OBSŁUGI
CZ NÁVOD K POUŽITÍ
SK POKYNY PRE POUŽÍVATEL'A
RO INSTRUCTIUNI DE UTILIZARE
BG ИНСТРУКЦИИ ЗА ПОТРЕБИТЕЛЯ
GK OΔΗΓΙΕΣ ΧΡΗΣΤΗ

Shield-shaped emblem with abstract arrow-like design (no text or symbols)

www.foodsavereurope.com

English 6

Français/French 13

Deutsch/German 20

Español/Spanish 28

A B C D E F G H I J K L M N O P J Q R

FIG. 2

12 10 mm 3FoodSaver +75 mm

FIG. 3

1 2 3 4 3FoodSaver 4FoodSaver

Important Safeguards

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent or a similarly qualified person in order to avoid a hazard.

• Always use the appliance on a stable, secure, dry and level surface.
• CAUTION: THIS SEALER IS NOT FOR COMMERCIAL USE. Never use this appliance for anything other than its intended use. This appliance is for household use only. Do not use this appliance outdoors.
• Never immerse the appliance or power cord and plug in water or any other liquid.
• Do not use the appliance if it has been dropped or if there are any visible signs of damage.
• Ensure the appliance is switched off and unplugged from the supply socket after use, before cleaning.
• To disconnect, unplug the power cord from the electrical outlet. Do not disconnect by pulling on the cord.
• Do not use an extension cord with the appliance.
• Use only accessories or attachments recommended by the manufacturer.
• When reheating foods in FoodSaver ^™ bags make sure to place them in water at a low simmering temperature below 75°C (170°F).
• FOODS INSIDE BAG CAN BE DEFROSTED BUT NOT REHEATED IN A MICROWAVE OVEN. When defrosting foods in the microwave in FoodSaver™ bags make sure not to exceed maximum power of 180 watts (defrost setting), maximum time of 2 minutes and maximum temperature of 70°C (158°F).

FoodSaver™ Vacuum Sealing System

Why Vacuum Package?

Exposure to air causes food to lose nutrition and flavour, and also enables many types of bacteria, mould and yeast to grow. The FoodSaver™ vacuum packaging system removes air and seals in flavour and quality. With a full line of FoodSaver™ bags, and canisters to expand your options, you can now enjoy the benefits of a scientifically proven food storage method that keeps food fresh up to five times longer.

The FoodSaver™ System Saves Time and Money

• Spend less money. With the FoodSaver™ system, you can buy in bulk or buy on sale and vacuum package your food in desired portions without wasting food.
• Save more time. Cook ahead for the week, preparing meals and saving them in FoodSaver™ bags.
• Marinate in minutes. Vacuum packaging opens up the pores of food so you can get that great marinated flavour in just 20 minutes instead of overnight.
• Make entertaining easy. Make your signature dish in advance so you can spend quality time with your guests.
• Enjoy seasonal or specialty foods. Keep highly perishable or infrequently used items fresh longer.
• Control portions for dieting. Vacuum package sensible portions and write the calories and fat content on the bag.
• Protect non-food items. Keep camping and boating supplies dry and organised for outings. Protect polished silver from tarnishing by minimizing exposure to air.

FoodSaver™ Accessories

Get the most out of your FoodSaver ^™ appliance with easy-to-use FoodSaver ^™ bags, canisters and accessories.

FoodSaver™ Bags and Rolls

FoodSaver™ bags and rolls feature special channels that enable the efficient removal of air. The multiply construction makes them an especially effective barrier to oxygen and moisture and helps to prevent freezer burn. FoodSaver™ bags and rolls come in a variety of sizes.

SAVE THESE INSTRUCTIONS

FoodSaver™ Canisters

FoodSaver™ canisters are simple to use and ideal for vacuum packaging delicate items such as muffins and other baked goods, liquids and dry goods.

FoodSaver™ Fresh Zipper Bags

FoodSaver™ Zipper Bags feature special channels that enable the efficient removal of air. The multiply construction makes them an especially effective barrier to oxygen and moisture.

FoodSaver™ Fresh Containers

FoodSaver™ Fresh Containers are simple to use and ideal for vacuum packaging delicate items such as muffins and other baked goods, liquids and dry goods.

FoodSaver™ Bottle Stopper

Use FoodSaver™ bottle stoppers to vacuum package wine, non-carbonated liquids and oils. This will extend the life of the liquid and preserve the flavour. Don't use the bottle stopper on plastic bottles.

FoodSaver™ Quick Marinator

The quick marinator infuses food with flavour in minutes instead of hours using vacuum power to penetrate marinades deep into the food.

Ordering

To order FoodSaver™ bags, rolls and accessories please visit www.foodsaver.co.uk.

Parts

Referring to Fig. 1:

A Upper gasket

B Roll storage

C Roll cutter

D Roll cutter bar

E Lid latch

F Removable drip tray

G Lower gasket

H Sealing strip

I Control panel

Accessory port

K Handheld sealer

Power light

M Progress lights

Sealing progress light

0 Seal Only button

P Vacuum and Seal button

Q Moist Food button

Overheat warning light

Making a bag from a FoodSaver® roll

You can make your own custom sized bags from a FoodSaver™ roll. Referring to Fig. 2:

1. Plug your vacuum sealer in to a mains supply socket. Press both latches E and open the lid. If you haven't already done so, place the FoodSaver™ roll into the storage area B then lift up the roll cutter bar D and feed the roll end under the bar. Pull the roll end out until about 10mm of the roll overlaps the sealing strip H.
2. Close the lid all the way until the latches Ⓔ pop out. When correctly closed, a green band will appear around the latch and the green power light Ⓛ will come on. Press the Seal Only button Ⓞ. When the red sealing progress light Ⓝ goes out, press both latches and open the lid. The end of the roll will now have been sealed.
3. Pull the roll out to the required length for the item being packaged. Add an extra 75mm to allow the bag to be sealed then slide the roll cutter Ⓐ across to cut the roll.

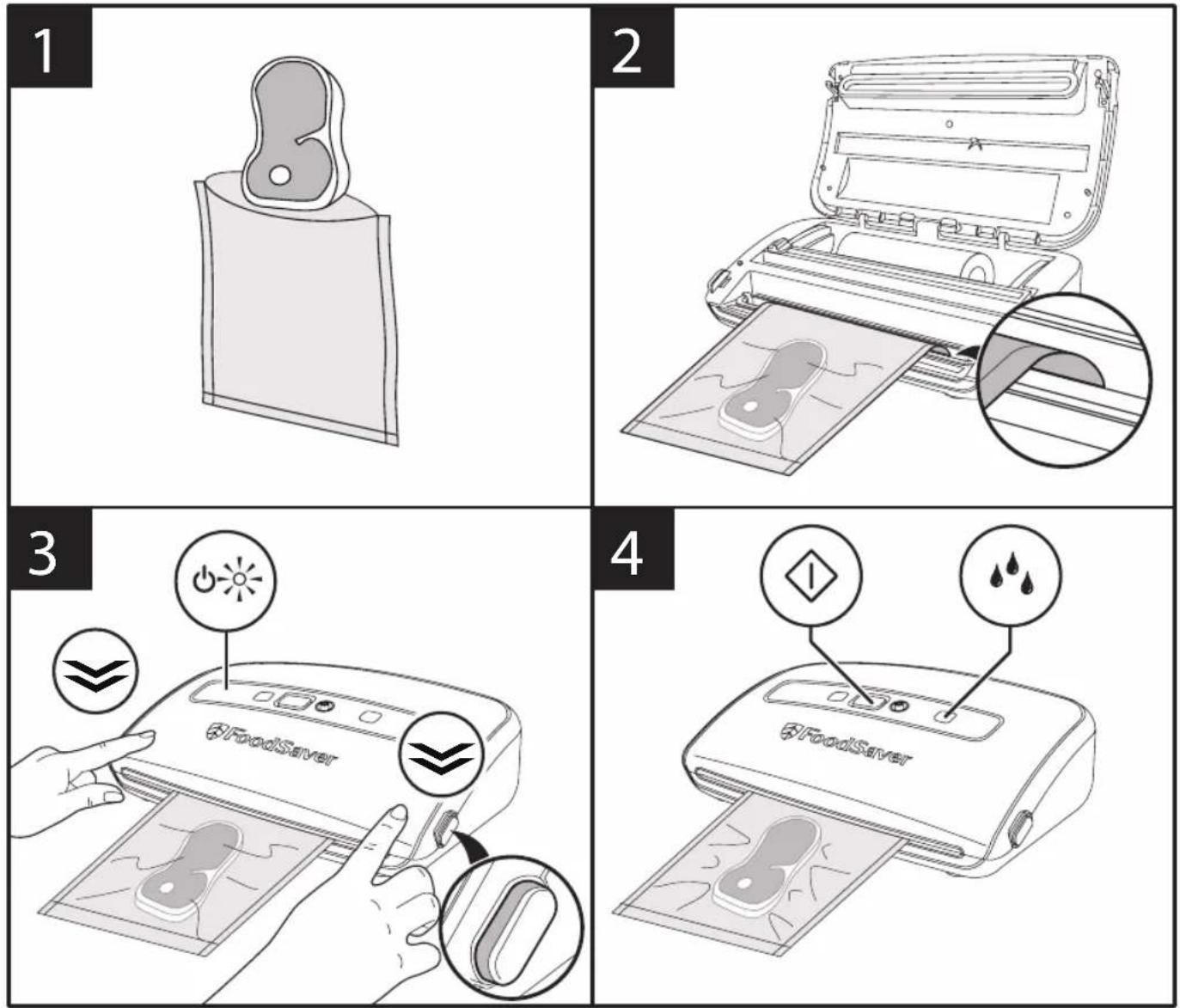

Using Your Vacuum Sealer

Referring to Fig. 3:

1. Place the item to be packaged into the bag. You can use a ready made FoodSaver™ bag or make your own from a FoodSaver™ roll.
2. Place the open end of the bag into the slot of the drip tray F.
3. Close and latch the lid. When correctly closed, a green band will appear around the latch and the green power light ⚠ will come on.
4. Press the Vacuum and Seal button P.
5. Your vacuum packager will start to remove the air from the bag and then seal it. When the progress lights M have stopped and the red sealing progress light N has gone out, the process is complete.

Packaging moist foods

If you are packaging foods that are moist or are very juicy, press the Moist Food button Ⓠ BEFORE pressing the Vacuum and Seal button.

Sealing a bag without removing any air

To seal a bag without extracting the air from it press the Seal Only button 0. You can seal the types of bag that are used to package snacks such as potato crisps, tortilla chips, etc.

Sealing delicate items

Some items such as pastries, bread, biscuits, etc. can be crushed when sealing. To prevent this, use the Seal Only button 0 as follows:

1. Follow steps 1, 2, 3 and 4 of 'Using Your Vacuum Sealer'.
2. Press the Seal Only button 0 before crushing occurs. This will immediately stop more air from being extracted and then seal the bag.

Using FoodSaver ^* accessories

To vacuum seal a Fresh Zipper Bag or Fresh Container:

1. Insert the connector end of the handheld sealer ⚫ into the accessory port ⚪ on the FoodSaver™ appliance.
2. Fit the end of the handheld sealer over the valve on the accessory and make sure that it is connected firmly. Follow any specific instructions that come with the FoodSaver ^™ accessory.

Note: To vacuum seal a FoodSaver ^™ Canister, remove the reservoir (clear bottom section) of the sealer by pulling it down and off the top section. Insert the tip of the sealer into the port on the canister.

1. Press the Vacuum and Seal button Ⓟ. Your vacuum packager will start to remove the air from the bag and then seal it.
2. When the progress lights M have stopped and the red sealing progress light N has gone out, the process is complete.

Illustration of food preparation steps: dropping sauce into a container, adding black chopsticks, and adding a glass with a side dish (no text or symbols)

Care and Cleaning

Never immerse the unit or power cord and plug in water or any other liquid. Always unplug the unit before cleaning.

Wipe over the body of the appliance with a soft, dry cloth.

Remove and empty the drip tray F after each use. Wash it in warm soapy water or place it in the top rack of a dishwasher. Dry thoroughly before refitting.

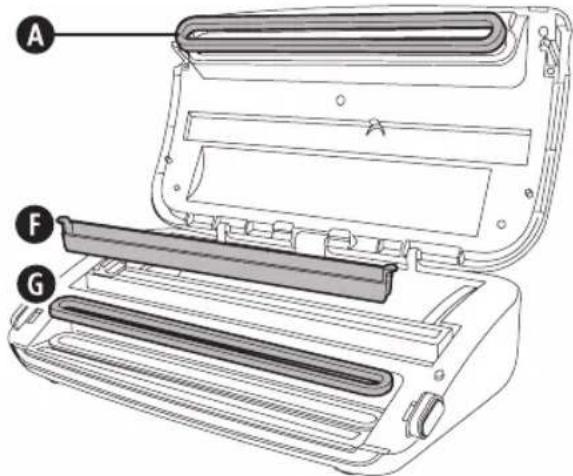

Check the upper gasket Ⓐ, lower gasket Ⓖ and around the drip tray to make sure they are free from food debris. Wipe the gaskets with a warm soapy cloth if needed. The gaskets may be removed for cleaning. Clean them with warm, soapy water. Dry thoroughly then carefully refit.

A F G

Remove the reservoir of the handheld sealer after each use. Wash it in warm soapy water and air dry thoroughly before replacing.

To keep your FoodSaver™ appliance operating effectively, we recommend that you replace the gaskets every year.

To order replacements, please visit www.foodsaver.co.uk or contact FoodSaver™ Brand Customer Service on 0800 525 089.

Storage

Close the lid to the first 'click' until the latches catch but don't pop out and reveal the green band. This is enough to secure the lid but avoids compressing the gaskets (which may cause incorrect functioning of the unit).

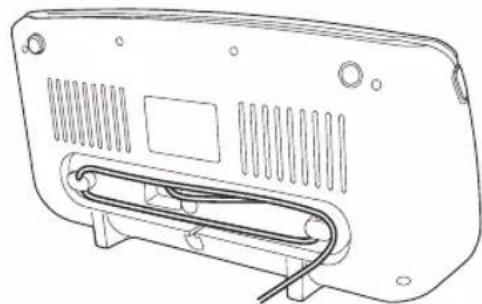

Wrap the cable around the cleats underneath the unit. The unit can be stored stood upright as shown.

Line drawing of a portable electronic device back panel with ventilation slots and cable (no text or symbols)

Storage Guide, Hints and Tips

Vacuum Packaging and Food Safety

The vacuum packaging process extends the life of foods by removing most of the air from the sealed container, thereby reducing oxidation, which affects nutritional value, flavour and overall quality. Removing air can also inhibit growth of microorganisms, which can cause problems under certain conditions:

To preserve foods safely, it is critical that you maintain low temperatures. You can significantly reduce the growth of microorganisms at temperatures of 4^ C or below.

Freezing at -17^ C does not kill microorganisms, but stops them from growing. For long-term storage, always freeze perishable foods that have been vacuum packaged, and keep refrigerated after thawing.

It is important to note that vacuum packaging is NOT a substitute for canning and it cannot reverse the deterioration of foods. It can only slow down the changes in quality. It is difficult to predict how long foods will retain their top-quality flavour, appearance or texture because it depends on age and condition of the food on the day it was vacuum packaged.

Important: Vacuum packaging is NOT a substitute for refrigeration or freezing. Any perishable foods that require refrigeration must still be refrigerated or frozen after vacuum packaging. To avoid possible illness, do not reuse bags after storing raw meats, raw fish or greasy foods. Do not reuse bags that have been microwaved or simmered.

Thawing and Reheating Vacuum Packaged Foods

Always thaw foods in a refrigerator or a microwave oven – do not thaw perishable foods at room temperature.

Foods inside a bag can be defrosted but not reheated in a microwave oven. When defrosting foods in the microwave in FoodSaver™ bags make sure not to exceed maximum power of 180 watts (defrost setting), maximum time of 2 minutes and maximum temperature of 70°C (158°F). You can also reheat foods in FoodSaver™ bags by placing them in water at a low simmer below 75°C (170°F). Follow any specific instructions that come with the FoodSaver™ specialty bags.

Preparation Guidelines

Meat and Fish

For best results, pre-freeze meat and fish for 1-2 hours before vacuum sealing in a FoodSaver™ Bag. This helps retain the juice and shape, and guarantees a better seal. If it's not possible to pre-freeze, place a folded paper towel between meat or fish and top of bag, but below seal area.

Leave a paper towel in bag to absorb excess moisture and juices during the vacuum sealing process.

Note: Beef may appear darker after vacuum sealing due to the removal of oxygen. This is not an indication of spoilage.

Hard Cheeses

To keep cheese fresh, vacuum seal it after each use. Make your FoodSaver™ Bag extra long, allowing 25mm of bag

material for each time you plan to open and reseal, in addition to the 75mm room you normally leave between contents and seal.

Simply cut sealed edge and remove cheese. When you're ready to reseal the cheese, just drop it in bag and reseal.

Important: Due to the risk of anaerobic bacteria, soft cheeses should never be vacuum sealed.

Vegetables

Vegetables need to be blanched before vacuum sealing. This process stops the enzyme action that could lead to loss of flavour, colour and texture.

To blanch vegetables, place them in boiling water or in the microwave until they are cooked, but still crisp. Blanching times range from 1 to 2 minutes for leafy greens and peas; 3 to 4 minutes for snap peas, sliced courgette or broccoli; 5 minutes for carrots; and 7 to 11 minutes for corn on the cob. After blanching, immerse vegetables in cold water to stop the cooking process. Finally, dry vegetables on a towel before vacuum sealing.

Note: All vegetables (including broccoli, Brussels sprouts, cabbage, cauliflower, kale, turnips) naturally emit gases during storage. Therefore, after blanching, they must be stored in freezer only.

When freezing vegetables, it is best to pre-freeze them for 1-2 hours or until solidly frozen. To freeze vegetables in individual servings, first place on a baking sheet and spread them out so they are not touching. This prevents them from freezing together in a block. Once they are frozen, remove from baking sheet and vacuum seal vegetables in a FoodSaver™ Bag. After they have been vacuum sealed, return them to the freezer.

Important: Due to the risk of anaerobic bacteria, fresh mushrooms, onions and garlic should never be vacuum sealed.

Leafy Vegetables

For best results, use a canister to store leafy vegetables. First wash the vegetables, and then dry with a towel or salad spinner. After they are dried, put them in a canister and vacuum seal as normal. Store in the refrigerator.

Fruits

When freezing soft fruits or berries, it is best to pre-freeze them for 1-2 hours or until solidly frozen. To freeze fruit in individual servings, first place on a baking sheet and spread them out so they are not touching.

This prevents them from freezing together in a block. Once they are frozen, remove from baking sheet and vacuum seal fruit in a FoodSaver™ Bag.

After they have been vacuum sealed, return them to the freezer. You can vacuum seal portions for baking or in your favourite combinations for easy fruit salad all year round. If storing in the refrigerator, we recommend using a FoodSaver™ Canister.

Baked Goods

To vacuum seal soft or airy baked goods, we recommend using a FoodSaver™ Canister so they will hold their shape. If using a bag, pre-freeze for 1-2 hours or

until solidly frozen. To save time, make cookie dough, pie shells, whole pies, or mix dry ingredients in advance and vacuum seal for later use.

Coffee and Powdery Foods

To prevent food particles from being drawn into vacuum pump, place a coffee filter or paper towel at top of bag or canister before vacuum sealing. You can

also place the food in its original bag inside a FoodSaver™ Bag, or use a FoodSaver™ Universal Lid with the original container to vacuum seal.

Liquids

Before you vacuum seal liquids such as soup stock, pre-freeze in a casserole dish, loaf pan or ice cube tray until solid. Remove frozen liquid from pan and vacuum seal in a FoodSaver™ Bag. You

can stack these 'frozen bricks' in your freezer.

When you're ready to use, just cut corner of bag and place in a dish in microwave or drop into water at a low simmer, below 75°C (170°F).

To vacuum seal non-carbonated bottled liquids, you can use a FoodSaver™ Bottle Stopper with the original container.

Remember to leave at least 25mm of room between contents and the bottom of the Bottle Stopper. You can reseal bottles after each use.

Troubleshooting

Problem Solution
Overheat warning light R comes on	The unit has overheated. Wait until the overheat warning light goes out before using.
Pump operates for more than 2 minutes without air being removed.	Make sure the open end of the bag is inserted into the drip tray.Check to make sure both gaskets are fitted properly.Check to make sure that at least one end of the bag is sealed.Open the unit and check to make sure that there are no foreign objects, dirt or debris on the upper or lower gaskets.Make sure there is enough room at the top of the bag (75 mm) so it will fit into the drip tray with lid closed and latched.Make sure the handheld sealer is not attached.Make sure the lid is fully closed (the green band is showing around the latch and the green power light is on).
Bag is not sealing properly.	There is too much liquid in the bag. Freeze the bag contents before vacuuming.To prevent wrinkles in the seal, gently stretch the bag flat while inserting the bag into the drip tray and continue to hold bag until vacuum pump starts.Create a second seal above the first seal on the bag to ensure a proper seal when sealing moist foods.
Nothing happens when latch is closed and Vacuum and Seal button or Seal Only button is pressed.	Make sure the lid is fully closed ( the green band is showing around the latch and the green power light is on).
If you need further assistance:	Please visit www.foodsaver.co.uk.

Pre-Made Meals, Leftovers and Sandwiches

Efficiently store your pre-made meals, leftovers and sandwiches in the stackable, lightweight FoodSaver™

Containers. They are microwaveable, top

rack dishwasher safe and come with a custom adaptor.

The lightweight containers will be ready to head off to the office, to school or the great outdoors whenever you are!

Snack Foods

Your snack foods will maintain their freshness longer when you vacuum seal them. For best results, use a FoodSaver™ Canister for crushable items like crackers.

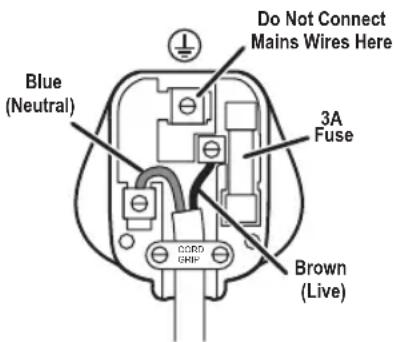

Fitting a Plug (UK/Ireland only)

If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type. If you remove the plug it must not be connected to a 13 amp socket and the plug must be disposed of immediately.

NOTE: If the terminals in the plug are not marked or if you are unsure or in doubt about the installation of the plug please contact a qualified electrician.

If a 13A 3-pin plug is fitted, it must be an ASTA approved plug, conforming to BS1363 standard.

Replacement fuses must be BSI or ASTA BS1362 approved.

The wires in the mains lead are coloured as such:

Please note that the colour of these mains wires may not correspond with the colour markings that identify the terminals in your plug.

The BROWN coloured wire must be connected to the terminal, which is marked with the letter "L" or is coloured RED.

The BLUE coloured wire must be connected to the terminal, which is marked with the letter "N" or is coloured BLACK.

DO NOT CONNECT either of these wires to the earth terminal in the plug. The earth terminal plug is marked with the letter "E", or with the earth symbol ④ , or coloured GREEN, or GREEN and YELLOW.

Do Not Connect Mains Wires Here Blue (Neutral) 3A Fuse Brown (Live)

Guarantee

Please keep your receipt as this will be required for any claims under this guarantee.

This appliance is guaranteed for 2 years after your purchase as described in this document.

During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee.

The rights and benefits under this guarantee are additional to your statutory rights, which are not affected by this guarantee. Only Jarden Consumer Solutions (Europe) Limited ("JCS (Europe)") has the right to change these terms.

JCS (Europe) undertakes within the guarantee period to repair or replace the appliance, or any part of appliance found to be not working properly free of charge provided that:

you promptly notify the place of purchase or JCS (Europe) of the problem; and

the appliance has not been altered in any way or subjected to damage, misuse, abuse, repair or alteration by a person other than a person authorised by JCS (Europe).

Faults that occur through, improper use, damage, abuse, use with incorrect voltage, acts of nature, events beyond the control of JCS (Europe), repair or alteration by a person other than a person authorised by JCS (Europe) or failure to follow instructions for use are not covered by this guarantee. Additionally, normal wear and tear, including, but not limited to, minor discoloration and scratches are not covered by this guarantee.

The rights under this guarantee shall only apply to the original purchaser and shall not extend to commercial or communal use.

If your appliance includes a country-specific guarantee or warranty insert please refer to the terms and conditions of such guarantee or warranty in place of this guarantee or contact your local authorized dealer for more information.

Waste electrical products should not be disposed of with Household waste. Please recycle where facilities exist. E-mail us at [e-mail] for further recycling and WEEE information.

Jarden Consumer Solutions (Europe) Limited 5400 Lakeside

Cheadle Royal Business Park Cheadle

SK8 3GQ

United Kingdom

Consignes importantes

Illustration of food preparation steps: adding sauce, using a brush, and adding a beverage (no text or symbols)

Line drawing of a front-mounted electronic device with ventilation slots and a cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited 5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

Illustration of laboratory equipment including a beaker, test tube, and mixing bowl with a bag (no text or symbols)

Line drawing of a front-mounted electronic device with ventilation slots and a cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

Illustration of food preparation steps: dropping sauce, using a brush, and adding a drink (no text or symbols)

Line drawing of a front panel with ventilation slots and a cable connector (no text or symbols)

Jarden Consumer Solutions (Europe) Limited

Edif. Vázquez Krasnow

Illustration of food preparation steps: dropping sauce, using a brush, adding a cookie, and pouring into a glass with a cookie (no text or symbols)

Cuidados e Limpeza

Line drawing of a front panel with ventilation slots and a cable connector (no text or symbols)

Jarden Consumer Solutions (Europe) Limited

Edif. Vázquez Krasnow

Illustration of food preparation steps: dropping sauce, using a brush, and adding a black beverage to a glass (no text or symbols)

www.foodsavereurope.com.

Conservazione

Line drawing of a front panel with ventilation slots and a cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

Illustration of a food preparation setup with a bowl, utensils, and a glass container (no text or symbols)

Line drawing of a front panel with ventilation slots and a cable connector (no text or symbols)

Jarden Consumer Solutions (Europe) Limited 5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

Viktiga Säkerhetsanvisningar

FoodSaver™ Fresh-burkar

Illustration of laboratory glassware and equipment components (no text or symbols)

Line drawing of a front-mounted electronic device with ventilation slots and a cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

Tärkeitä varotoimia

Illustration of cooking process steps: dropping sauce into a basket, adding black chopsticks, and adding a side dish with a teapot (no text or symbols)

Säilytys

Line drawing of a portable electronic device back panel with ventilation slots and cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited 5400 Lakeside

Cheadle Royal Business Park Cheadle

SK8 3GQ

United Kingdom

F Uttagbar drypprist

G Nedre pakning

H Forseglingsstripe

I Kontrollpanel

Varsellys for overoppheting

Illustration of a cooking process with a bowl, utensils, and a glass with a chocolate cup (no text or symbols)

Stell og rengjøring

Line drawing of a front-mounted electronic device with ventilation slots and cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

F Uttagbar drypprist

G Nedre pakning

H Forseglingsstripe

I Kontrollpanel

Varsellys for overoppheting

Illustration of a food preparation setup with a bowl, fork, and side dish (no text or symbols)

Stell og rengjøring

Line drawing of a front-mounted electronic device with ventilation slots and cable connectors (no text or symbols)

Oppbevaring, hint og tips Vakuumpakking og matvaresikkerhet

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

WAŻNE ZAŚADY BEZPIECZEŃSTWA

Illustration of cooking process steps: dropping sauce, stirring dish, and boiling with a steamer (no text or symbols)

Line drawing of a portable electronic device rear panel with ventilation slots and a cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

Illustration of cooking process steps: dropping sauce, using a blender, and adding a cookie (no text or symbols)

Údržba a čištění

Line drawing of a portable electronic device back panel with ventilation slots and a coiled cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited 5400 Lakeside

Cheadle Royal Business Park Cheadle

SK8 3GQ

United Kingdom

Illustration of food preparation steps: dropping sauce into a basket, adding dipping sauce, and shifting to a glass with a side dish (no text or symbols)

Starostlivost' a čistenie

www.foodsavereurope.com.

Uskladnenie

Line drawing of a front-mounted electronic device with ventilation slots and a coiled cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park Cheadle

SK8 3GQ

United Kingdom

Illustration of a food preparation setup with a container, utensils, and a glass bowl (no text or symbols)

Line drawing of a front-mounted electronic device with ventilation slots and a cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

Illustration of food preparation steps: dropping sauce into a basket, adding a spoon, and shifting to a beverage with a drop (no text or symbols)

Line drawing of a portable electronic device back panel with ventilation slots and a coiled cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited, 5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

Illustration of cooking process steps: dropping sauce, adding a lid, and adding a steamer (no text or symbols)

Line drawing of a portable electronic device with ventilation slots and a cable (no text or symbols)

Jarden Consumer Solutions (Europe) Limited

5400 Lakeside

Cheadle Royal Business Park

Cheadle

SK8 3GQ

United Kingdom

FoodSaver™

UK: Jarden Consumer Solutions (Europe) Limited

5400 Lakeside, Cheadle Royal Business Park,

Cheadle, SK8 3GQ, United Kingdom

e-mail: [e-mail]

Tel: [phone]

FR: Jarden Consumer Solutions (Europe) Limited

92705 Colombes, France

e-mail: [e-mail]

Tel: [phone]

ES/PT: Jarden Consumer Solutions (Europe) Limited

Edif. Vázquez Krasnow

For Customer Service details, please see the website.

© 2017 Jarden Consumer Solutions (Europe) Limited.

All rights reserved. Imported and distributed by Jarden Consumer Solutions (Europe) Limited,

5400 Lakeside, Cheadle Royal Business Park, Cheadle, SK8 3GQ, United Kingdom.

Jarden Consumer Solutions (Europe) Limited is a subsidiary of Newell Brands Inc. (NYSE: NWL).

The product supplied may differ slightly from the one illustrated due to continuing product development.

Printed In China

5400 Lakeside, Cheadle Royal Business Park, Cheadle, SK8 3GQ, United Kingdom.
