USER MANUAL Toulon Audizio

MANUEL D'INSTRUCTIONS

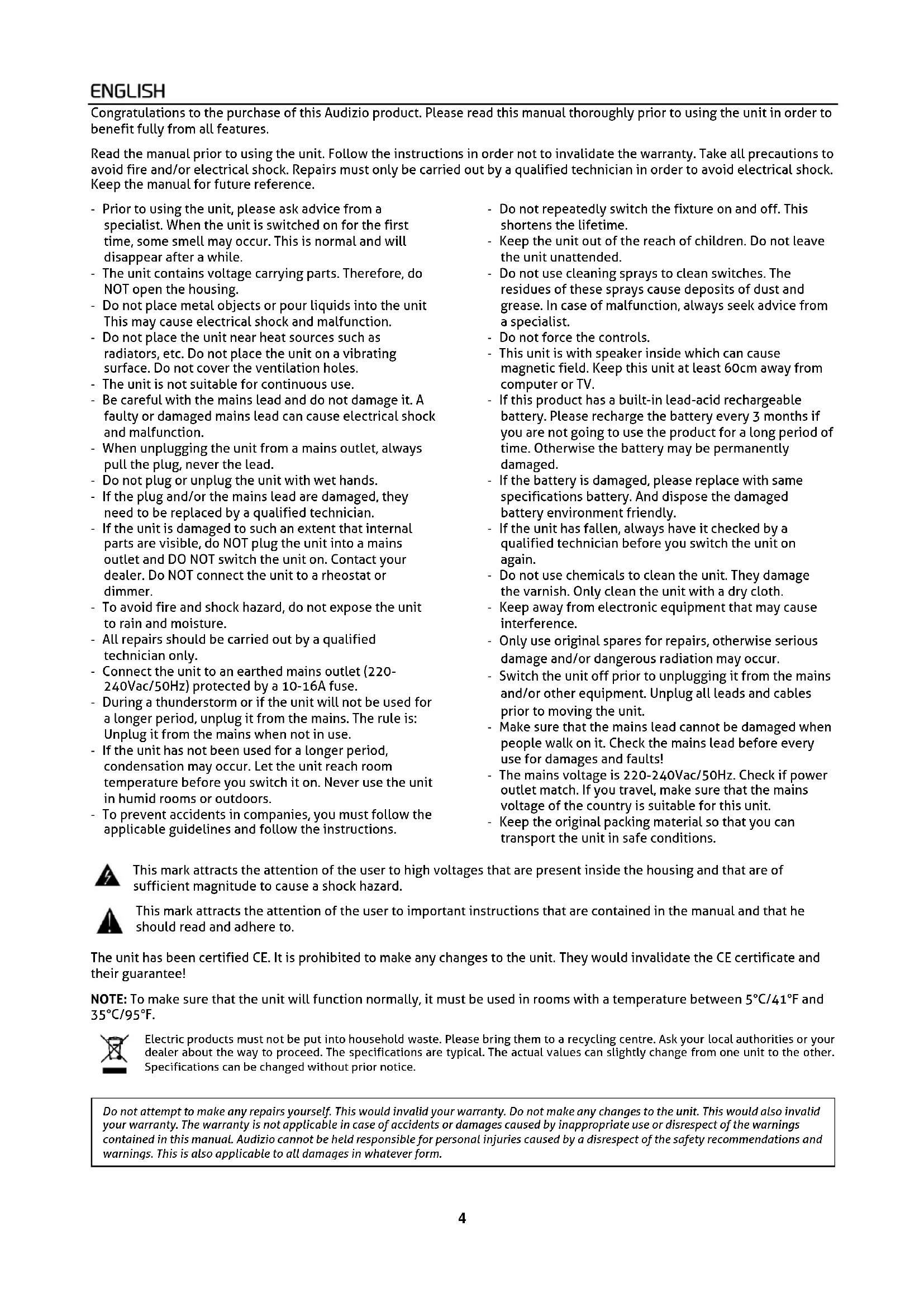

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.5 CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

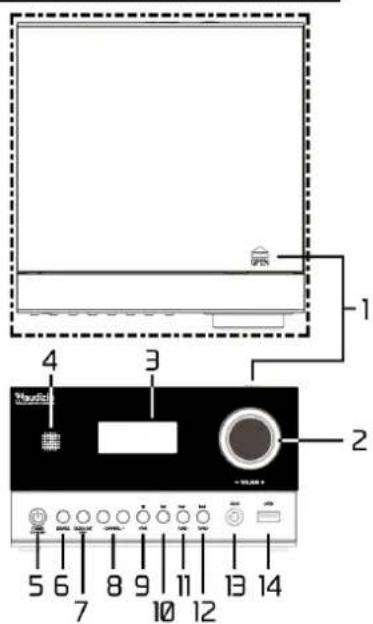

1. Open/Close CD compartment

4. IR remote control receiver

8. Channel –/Channel +

9. CD: stop ◼/BT pair

10. CD/BT: play/pause / Radio: auto search function

11. CB/BT: skip next / Tune +

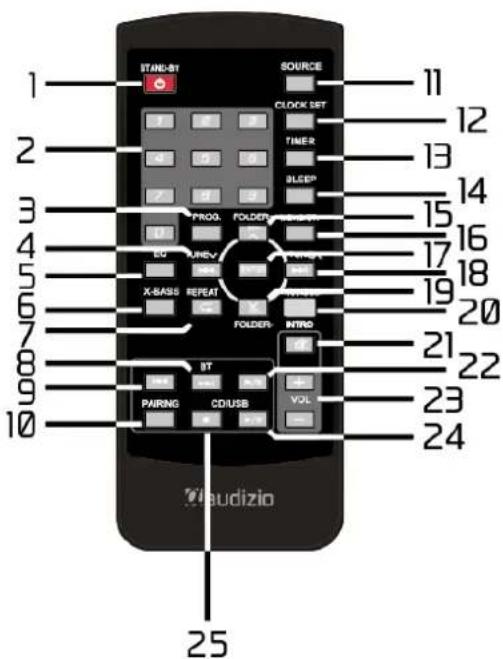

4. CD/USB previous / Tuner down

8. BT mode: skip next track

9. BT mode: skip previous track

16. FM mode: mono/stereo

22. BT mode: play/pause

24. CD/USB mode: play/pause

1. In standby mode, push POWER/STANDBY on the main unit or remote control to turn the unit ON. The unit will turn on, the last selected input mode icon will show on the LCD display. 2. To turn the unit OFF (into standby), push POWER/STANDBY on the main unit or remote control again. The LCD DISPLAY will go dim and show the current time. The standby mode indicator lights.6 After plugging the DC power adapter into the unit, “00:00” will appear and blink on the LCD display.

3. Press or on remote control or main unit to adjust the hour. Press and hold the button for fast advance/reverse

setting. Note: Make sure the hour is set so that the PM indicator is displayed correctly.

4. Press CLOCK SET on the remote control to confirm the hour setting, the minute digits will flash to prompt for input.

5. Press or on the remote control or main unit to adjust the minute. Press and hold the button for fast

advance/reverse setting.

6. Press CLOCK SET on remote control again to complete the setting.

NOTE: The clock and radio station presets will need to be reset if the power is interrupted or in the event of a power outage. “00:00” will appear and start blinking on the LCD display to notify you that the power was interrupted and the clock will need to be reset. Please follow above steps 1-6 to reset the clock. The unit will show the current time in standby mode. To check the current time in Power ON mode, press CLOCK SET on main unit or remote control, the current time will show for 5 seconds and then return to the previous screen.

SETTING THE ALARM CLOCK

This function allows the system to turn on automatically and wake you using a beeping alarm, CD/USB/FM music or buzzer. Timer start time (ON): 1. Press and hold, in standby mode, the TIMER button on the remote control until the display shows “On”, and the hour digits flash.

3. Press the or buttons to adjust the minute digits, and then press the ENTER button to confirm.

Timer end time (OFF):

4. When the “On” Timer Clock is set, the display will show “OFF” and the hour digits will flash.

6. Press the or buttons on the remote control to adjust the minute digits, and then press the ENTER button to confirm.

7. Press the or buttons to select CD, USB, FM or BU (buzzer) mode, then press the ENTER button to confirm. The

9. Press the TIMER button to select "Timer On", the Timer is set.

10. In standby mode, the icon “ ” will show on the display to indicate the Timer is On.

NOTE: If “Wake to CD/USB” is selected but a CD or USB drive are not inserted, the alarm will default to the Beeping Alarm automatically when the alarm time is reached. For ‘Wake to Radio”, the system will default to the last FM radio station listened to prior to switching off. The crescendo alarm will increase to the volume level you have set.

2. Cancel the ALARM function by pressing the TIMER button again. The alarm icon “ ” will disappear from the LCD display.

WAKE TO RADIO, CD/USB OR BUZZER ALARM

• When the alarm time is reached, the CD/USB, radio or beeping alarm will sound for 60 minutes, then shut off and reset itself for the following day (without pressing the snooze button).

• To stop the alarm immediately after it sounds, press the POWER button on remote control or on main unit once. It resets itself for the following day.

• To cancel the following day alarm, tap the TIMER button once, the alarm icon “ ” will disappear from the LCD display.

1. Tap the POWER/STANDBY button on main unit or remote control to turn on the unit.

2. Tap the SOURCE button on main unit or remote control to select FM mode.

3. To manually tune to a specific radio station, tap the TUNE or button on either main unit or remote control

repeatedly. Use this manual tuning method to tune in to weaker stations that are bypassed by Automatic Tuning method.

4. To automatically tune to the next available radio station, press and hold the or buttons on main unit or remote

control for 1-2 seconds until “SCA” readout appears on the display, then release the button. The tuner will stop scanning when it receives the next broadcasting station of adequate signal strength.7

5. Turn the volume control on main unit or press the volume buttons on remote control to adjust to the desired volume

FM / FM STEREO RECEPTION

When listening to the FM radio, press the ST./MONO button on remote control to switch between stereo mode and mono mode. The FM stereo icon “ST” appears on the display when unit is set in stereo mode. It is preferable to receive the program in mono when you are receiving a weak station. HINTS FOR BEST RECEPTION: For best FM reception, the FM wire antenna located on the back of the unit should be fully unwrapped and extended. NOTE: Automatic tuning depends on the signal strength of the broadcasting station, so weak stations may be skipped. You can manually tune to find the weak stations if a station gets skipped. With strong signals, the tuner may stop before it reaches the actual broadcast frequency, so you may need to manually tune for the best reception.

1. Press the POWER button on main unit or remote control to turn on the unit.

2. Press the SOURCE Button on main unit or remote control to select FM radio mode.

3. Press and hold the TUNE or TUNE button on the main unit or remote control until “SCA” readout appears on the

display. Release the button for auto search & program preset channels. Auto searching and program will stop at P01 after scan finished. Note: If the channels stored during the auto search & program preset are not the ones you want to save, use the method below for manually saving radio presets.

4. Tune to the desired radio station either by “manually” or “automatically” tuning method.

5. Press the PROG. button on the remote control, the next available preset memory number and a flashing number will show

on the LCD display (Note: ”P01” will show in the display if you are programming a preset for the first time).

6. Tap the CHANNEL -/+ buttons on main unit or remote control to select the preset number you want to assign the station

7. Tap the PROG. button on the remote control to confirm the setting.

8. Repeat above steps 4 - 8 to preset up to 30 FM stations.

RECALLING PRESET MEMORY CHANNELS

In radio mode, recall the pre-set channels by pressing the CHANNEL -/+ buttons on main unit or the numbers on remote control. Note: Besides commercial CDs, this CD player will also play self-compiled CD-R/RW, MP3 discs. Do not attempt to play CD-ROM, CDI, VCD, DVD or computer CDs. IMPORTANT: It may take up to 10 seconds for the actual playback to begin. If playback does not start at all, it is possibly due to the quality of the CD-R/RW, MP3 disc and/or the compatibility of the CD compilation software. The manufacturer is not responsible for the playback quality of CD-R/RW, MP3 discs. Do not stick a label to either side of the disc. It may cause a serious malfunction. PLAYING CD

1. Press the POWER/STANDBY button on main unit or remote control to turn the unit on.

2. Press the SOURCE button on remote control or main unit to select CD mode and press “Open/close disc compartment” (on

top of the compartment lid).

3. Place a CD on the center spindle with its label side facing out towards the CD lid. Close the disc compartment.

4. The unit starts to read the disc, “---” flashes on the display. After a few seconds, the total number of tracks show on the LCD display.

5. Press the PLAY/PAUSE button on main unit or remote control, PLAY indicator shows on the display, the CD will start

playing the first track. 6. Turn the volume control on main unit or press the volume control buttons on the remote control to adjust to the desired volume level.

7. To pause playback, press the PLAY/PAUSE button on main unit or remote control. The track time will be paused and the

play indicator will blink on the display. To resume playing, press the PLAY/PAUSE button again.

8. You can choose to play your favorite track by pressing the SKIP NEXT button or SKIP PREVIOUS button. The LCD

display will indicate the current track number.

9. To locate a particular section within a track, press and hold the or button until the section is found. Release the

button to continue playing your selection.

1. Press the SOURCE button on the remote control, and load an MP3 disc.

2. Press the FOLDER -/+ button to select desired playback folder.

3. Select the desired file to be played by pressing the SKIP NEXT or SKIP PREVIOUS button.

4. Press the PLAY/PAUSE button. Playback will start and the file name will be displayed.8

In case of playback with the folder mode on, press the FOLDER -/+ buttons, and the folder can be selected even though it is in playback/pause mode. It will continue playback/pause mode in the 1st track of the selected folder. TO PLAY BACK USB/MP3 PLAYER WITH FOLDER

1. Press the SOURCE button on the remote control or on the main unit to select the USB function. Connect the USB memory

device that contains playable MP3 format files. When the USB memory is connected to the main unit, the device information will be displayed.

2. Press the FOLDER -/+ button to select desired playback folder.

3. Select desired file to be played back by pressing the or button.

4. Press the PAUSE/PLAY button. Playback will start and the file name will be displayed.

NOTE: This product is not compatible with MTP and AAC file systems from USB mass storage devices or MP3 players. This unit supports FAT16 and FAT32, but some USB storage media may not support both file systems. For details, refer to the operation manual of the USB storage device in question or contact the manufacturer.

SKIP AND SEARCH MODE

1. During playback or pause mode, press the SKIP NEXT or SKIP PREVIOUS button to go to the next track or go back to

the beginning of the current track.

2. During playback, press and hold the or button to search within the current track with audible high speed playback.

NOTE: The following is only functional by using the remote control. Press the REPEAT button on the remote control to select different repeat play modes when a CD is playing: Repeat 1 Repeat All Normal

REPEAT 1 - the track currently playing will repeat continuously. “REPEAT 1” appears on the display. REPEAT ALL - all tracks will repeat continuously. “REPEAT ALL” appears on the display. RANDOM PLAY When the RANDOM/INTRO button is pressed, the “RAND“ indicator will appear on the LCD display. The tracks on the disc will be played in random order automatically. Cancel Random Play: Press RANDOM/INTRO until the “RAND” indicator disappears. NOTE: Pressing the button during random play will initiate a skip to the track selected next by random operation. On the other hand, the button does not allow you to select the previous track. Random Intro Normal

INTRO PLAYBACK 1. Press RANDOM/INTRO on the remote control. The “INTRO” indicator will appear on the display. The unit will play only the first 10 seconds of each track (intro).

2. Press RANDOM/INTRO on the remote control again to resume normal playback.

NOTE: The following is only functional by using the remote control. This function allows the tracks to be played in a programmed sequence. The user can program up to 32 tracks in CD mode or 99 tracks in MP3 mode. NOTE: This program can only be set in STOP mode.

1. Press the PROG. button on the remote control, “P01” and “PROG” appear on the display (“P01” will be shown if you are

programming for the first time).

2. Use the or button on the main unit or the remote control to select the desired track. The track number will appear

3. Press the PROG. button on the remote control to store the selected track in the memory, the program number will

advance one (i.e.“P02”) on the display. 4. Repeat steps 2 to 3 to store more tracks. You can store up to 32 CD tracks or 99 MP3 tracks. Display will show “FUL” after tracks have been programmed and memory is full.

5. Press PAUSE/PLAY on the main unit or the remote control to start playing the CD in the programmed sequence.

6. Press the REPEAT button on remote control to select Repeat 1/All if desired.

7. To stop play, press the STOP ◼ button on the main unit or on the remote control.

8. To cancel the program altogether, press the STOP ◼ button on main unit or remote control twice. The “PROG” icon will

disappear from the display.9 Press the POWER/STANDBY button to turn ON the unit, follow the instructions below to connect with BT. Pairing a BT streaming capable smartphone (or other BT capable device) to the Audizio Toulon:

1. Press the POWER/STANDBY button on the main unit or the remote control to turn on the unit.

2. Press the SOURCE button on the main unit or remote control to select BT mode, “bt” blinks on the display.

3. Turn on the BT streaming function of your BT capable device and enable the search or scan function to find the Audizio Toulon. Select "Audizio Toulon" from the device list when it appears on your devices’ screen. If required, enter the pass code “0000” to pair. 4. After successfully pairing device and Toulon, the display will show “bt” continuously (the blinking has stopped). You can begin playing music from your device wirelessly.

5. After selecting your favorite song, press the PLAY/PAUSE button on the main unit or on the remote control to play or

6. Turn the volume control on the main unit or press the volume buttons on the remote control to adjust to the desired

7. Press the or button on the main unit or on the remote control to skip to previous or next song.

8. If you want to pair the Audizio Toulon with another BT enabled device, press and hold the PAIR Button for 3 seconds or turn off the BT function of device currently paired with Audizio Toulon then repeat the steps above. NOTE: The following is only functional by using the remote control. This unit provides 4 different EQ modes to enhance your listening experience. You can select the desired effect by pressing the EQ Button on remote control at following sequence: ROCKPOPJAZZCLASSICOFF

NOTE: The following is only functional by using the remote control. Press the MUTE button on the remote control to mute the sound output from the speaker. “V 00” will appear on the display. Press the MUTE button again to resume to speaker playback. NOTE: The following is only functional by using the remote control. The sleep timer allows you to turn the unit off automatically after a preset time is reached.

1. To activate the sleep timer, turn the unit on and press the SOURCE button to select FM radio, CD, USB, BT or AUX IN.

2. Press the SLEEP button on the remote control, “SLEEP” appears on the display.

8. Channel –/Channel +

9. CD: stop ◼/BT pair

9. CD: stop ◼/BT pair

10. BT mode: pairing

9. CD: stop ◼/BT pair

10. BT mode: pairing

16. FM mode: mono/stereo

Playback options : BT streaming, CD, FM radio, USB Input connections : 3.5mm jack, USB Output connections : 3.5mm jack Speaker connections : Speaker 2-pin Output power : 50W Impedance : 6 Ohm Power Supply : 100-240VAC 50/60Hz (9V Adapter) Dimensions (L x W x H) : Unit: 190 x 180 x 105mm, Speaker: 123 x 130 x 172mm Weight (per unit) : 2,30 kg The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union United Kingdom

Tronios Ltd., 130 Harley Street, London W1G 7JU, United Kingdom

2014/30/EU S.I. 2016:1091 2011/65/EC S.I. 2012:3032 2014/53/EU S.I. 2017:120635Specifications and design are subject to change without prior notice. www.tronios.com Copyright © 2022 by Tronios The Netherlands
