Product type	Compact hi-fi system with CD player, FM radio, Bluetooth, USB and auxiliary input
Brand	Audizio
Model	Nimes
Power supply	220-240 V ~ 50 Hz, fuse 10-16 A
Operating temperature	5°C to 35°C
Audio sources	CD player, FM tuner, Bluetooth, AUX input (3.5 mm jack), USB port
CD playback functions	Play, pause, stop, previous/next track, search, repeat (1/ALL), random, program (32 tracks)
FM radio functions	Automatic and manual search, station memory (presets), mono/stereo mode
Bluetooth functions	Wireless pairing, range approx. 10 meters, PIN code 0000
USB functions	MP3 file playback, folder navigation, folder mode
Equalizer	Presets: Classic, Pop, Jazz, Rock; X-Bass function
Timer and sleep	Programmable timer (on/off), adjustable sleep function from 10 to 90 minutes
Connections	AUX input (3.5 mm), USB port, headphone jack (Phones)
Remote control	Yes, all main functions
Cleaning	Only with a dry cloth; do not use chemical products
Safety	Do not open the casing, do not expose to moisture or rain, unplug during storms, use only original parts
Repairability	Repairs by a specialized technician only; use of original parts mandatory
Warranty	Warranty void in case of unauthorized opening or modification

Frequently Asked Questions - Nimes Audizio

How to set the time on the Audizio Nimes system?

To set the time, use the remote control. Put the device in standby by pressing ON/STAND-BY, then press CLOCK/TIMER for 2 seconds. Select the 12h/24h format with the ◀◀ or ▶▶ buttons, confirm with CLOCK/TIMER, then set the hours and minutes in the same way.

How to connect my smartphone via Bluetooth?

Turn on the device and press SOURCE multiple times until Bluetooth mode is selected (the screen shows flashing '----'). On your smartphone, enable Bluetooth and search for devices. Select 'Audizio Nimes' from the list. If a code is requested, enter 0000. The connection is established when 'conn' is displayed.

How to use the sleep function?

While powered on, press the SLEEP button on the remote control multiple times. The screen will display 'SL 90', '80', etc. down to '10' minutes. Release when the desired duration is displayed. The device will automatically turn off after this time. To cancel, press until 'SL00' appears.

Can I play MP3 files from a USB flash drive?

Yes. Connect a USB flash drive containing MP3 files to the USB port. Select USB mode with the SOURCE button. Playback starts automatically. You can navigate folders by pressing the FOLDER button on the remote control, then use the arrows to choose a folder.

How to program CD playback?

Insert a CD and press STOP. Press MEMORY to enter programming mode. Use ◀◀ or ▶▶ to select a track, then press MEMORY again to memorize it. Repeat for up to 32 tracks. Press PLAY to start programmed playback.

How to clean the device?

Use only a dry cloth to clean the device. Never use chemical products, solvents, or sprays, as they could damage the finish. Unplug the device before cleaning.

What to do if the device does not turn on?

Check that the power cord is properly plugged into a 220-240 V wall outlet. Ensure the outlet is powered. If the device remains unresponsive, do not open it: contact a specialized technician or your retailer.

How to memorize a FM radio station?

Tune to the desired station manually or via automatic search. Press the MEMORY button on the remote control, then press a PRESET button (left or right) to assign the station to a preset location. The station is now memorized.

Can I use headphones with this system?

Yes, connect headphones with a 3.5 mm jack to the PHONES output on the front panel. The sound from the speakers will then be muted.

How to adjust the sound equalizer?

Press the EQ button on the remote control multiple times to cycle through preset modes: Classic, Pop, Jazz, Rock. The current mode is displayed on the screen. You can also enable or disable the X-Bass function with the dedicated button to enhance bass.

USER MANUAL Nimes Audizio

Ref. nr.: 102.310,102.311

Black desktop computer monitor with digital display showing approximately 10:00 AM (no visible text or symbols on device body)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

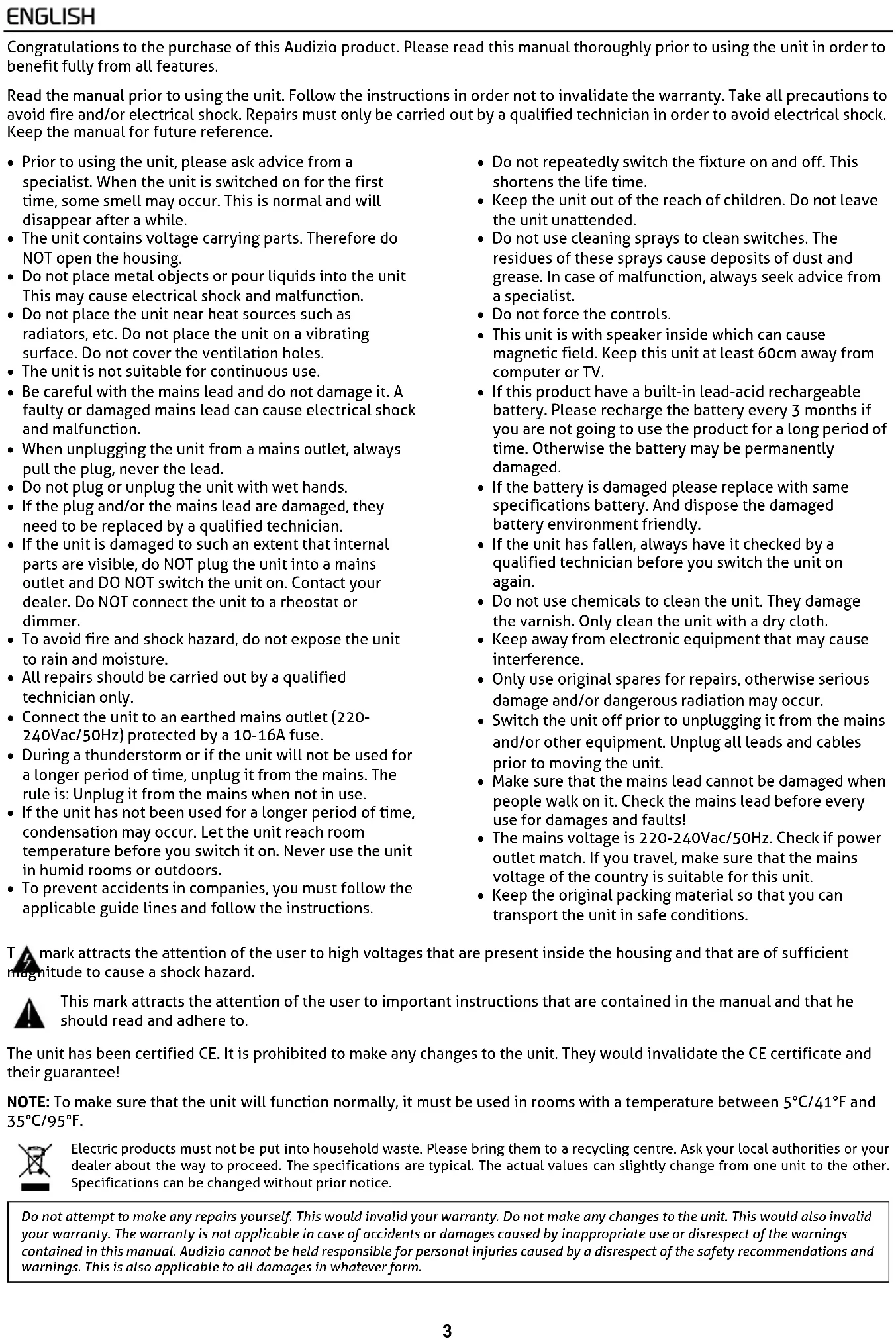

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

A mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

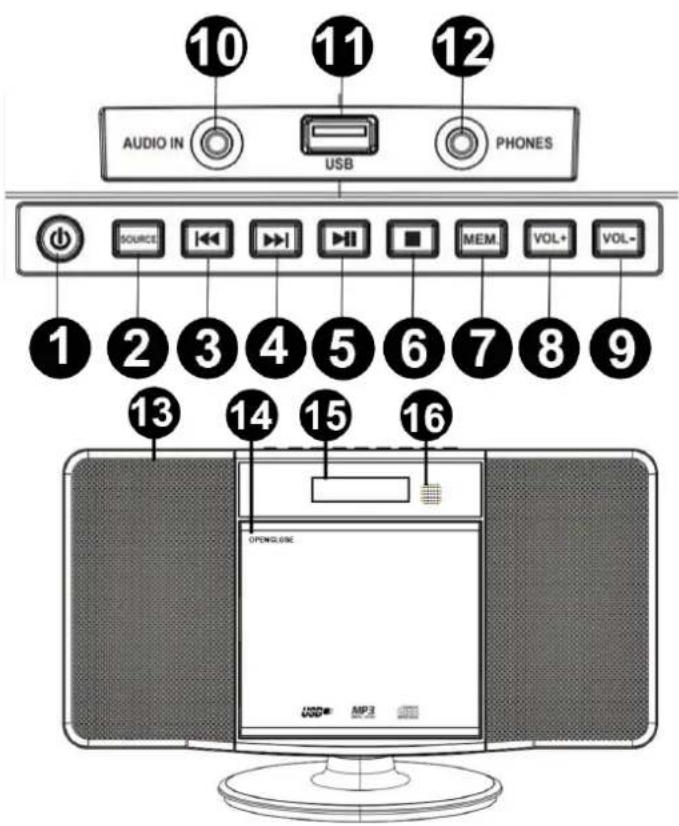

FRONTPANEL

1. POWER ON/OFF Standby on/off
2. SOURCE Switch between FM/CD/BT or aux in
3. BACK BUTTON Previews track, or searching manual FM sender
4. FORWARD BUTTON Next track, or searching FM sender
5. PLAY/PAUZE/FM SCAN Push to do a automatically search
6. STOP
7. MEMORY Push to select on of the storage senders
8. VOLUME +
9. VOLUME -
10. AUDIO IN
11. USB
12. PHONES
13. SPEAKERS
14. CD TRAY
15. DISPLAY
16. RC SENSOR

10 11 12 AUDIO IN USB PHONES SOURCE MEM VOL+ VOL- 1 2 3 4 5 6 7 8 9 13 14 15 16 OPEN ACCESS

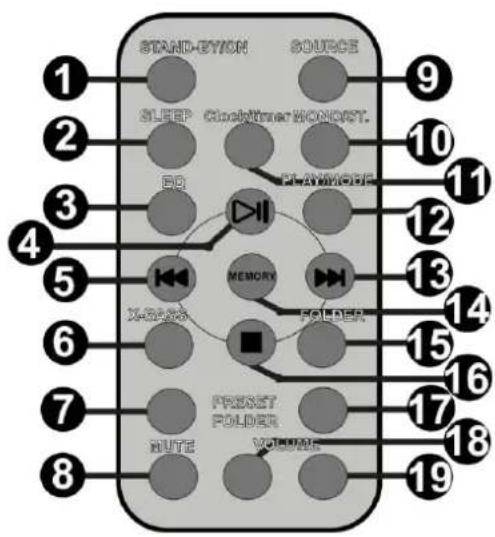

Remote

1 STANDBY/ON
2 SLEEP (PRESS REPEATEDLY TO ADJUST)
3 EQ (PRESS REPEATEDLY FOR PRESET)
4 PLAY / PAUSE / FM SCAN
5 PREVIOUS TRACK / STATION
6 X-BASS ON/OFF
7 PRESET/FOLDER LEFT
8 MUTE (TOGGLE MUTE ON/OFF)
9 SOURCE (PRESS REPEATEDLY FOR SELECTION)
10 MONO/ST. (FM)
11 CLOCK / TIMER
12 PLAY MODE (REPEAT & RANDOM MODES)
13 NEXT TRACK / STATION
14 MEMORY (STATION PRESETS)
15 FOLDER (TOGGLE FOLDER MODE MP3)
16 STOP
17 PRESET/FOLDER RIGHT
18 VOL-
19 VOL+

STAND-ETION SOURCE SLEEP ClockTimer HONORCY. EO PLAYMOPE MEMORY X-BACK FOLDER PRESER POLDER NOTE VOLUME 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

GETTING STARTED

1. Unpack the digital radio and remove all packing materials.
2. Completely unwind the power cord and plug it into the wall outlet.

TIME SETTINGS (REMOTE CONTROL ONLY)

• Press the ON/STAND-BY button to turn the power off.
• Press and hold the CLOCK/TIMER button 2 seconds, to adjust the day.
• Press [◀◀] Or [▶▶] to choose 12h / 24h display format and confirm with CLOCK/TIMER.
  • To set the hour, use [◀◀] Or [▶▶], then press CLOCK/TIMER.
• Repeat, to set the minutes.

In this example, the clock is set for the 24-hour (0:00) display.

• Press the CLOCK/TIMER Button once to turn the TIME function on. The TIME indicator will appear in the DISPLAY.
• Press the CLOCK/TIMER button 2 seconds, Operation again CLOCK/ TIMER button until "ON" Appears.
• Press [◀◀] Or [▶▶] to select Timer set and press the CLOCK/TIMER button.
• Press [◀◀] Or [▶▶] to select "OFF", and press the CLOCK/TIMER button.
• Set the time to finish as in steps 3 and 4 above.
  • To select the timer playback source (TU, CD, USB), press the or button. Press the CLOCK/ TIMER button.
• Adjust the volume using the VOLUME (+ or -) on the main unit or VOL +/- on the remote control, and then press the CLOCK/TIMER button. Do not turn the volume up too high.
• The indicator lights up and the unit is ready for timer playback.

This function allows you to program the system to switch off itself after a set period of time. You can set your sleep time in power on mode:

• To activate the sleep function, press the SLEEP button on the remote, the display will show "SL 90, 80, 70, 60, 50, 40, 30, 20, 10, 00".
• When the display shows your desired sleep time, release the button, the sleep timer is now activated. The display will show "SL10" is to indicate "10 minutes" sleep time and so on. When the sleep time counts to zero, the unit will go off.
• To cancel sleep, press the SLEEP button once again until you see "SL00", the sleep function will turn off.

AUTOMATIC STATION SEARCH (FM SCAN)

You can use the FM Scan function to automatically scan for new digital radio stations and remove inactive stations.

Press and hold the PLAY/PAUSE/FMSCAN button on the stereo system or on the remote control for 2 seconds to select[Scan]. Scan will be displayed during the automatic station scan. When the automation scan is finished, the last station listened to will be tuned in. If the last listened station is not available, the first station in the alphabetical list is tuned in.

To manually tune in a specific radio station, tap the [ ] Or [ ] ▶ button on the stereo or remote control repeatedly.

STATION STORE

Calling up saved stations

If you are in radiomode, you can call up the stored radiostations by repeatedly pressing PRESET LEFT or PRESET RIGHT on the remote control. When you access the preset stations for the first time, [PO1] blinks on the display.

AUX MODE

• Use a connection lead to connect the portable audio player etc. to the AUDIO IN socket
• Press the ON/STAND-BY button to turn the power on.
• Press the SOURCE button on the remote control or main unit repeatedly to select AUDIO IN function.
• Play the connected equipment. If volume level of the connected device is too high, sound distortion may occur. Should this happen, lower the volume of the connected device. If volume level is too low, increase the volume of the connected device.

The AUDIO IN terminal allows you to connect various devices such as an MP3 player, cassette player, minidisc player, DVD player, etc.

CD PLAYER

• Switch the unit on and switch it to CD mode with SOURCE Button.
• Open the CD tray by pressing the upper left corner („Open/Close“) and insert a CD with the top facing you.
• The CD will play as soon as the device has read the contents. This may take a few seconds.

Repeat and random mode

• Press PLAY MODE on the remote control to select REPEAT1 (plays the current track in a loop), REPEAT ALL (plays the entire CD in a loop) or RANDOM (plays the tracks on the CD in random order). A logo is displayed in the top right corner of the display.
• Press PLAY MODE again to return to normal play mode.

Programmed play (Playlist)

You can choose up to 32 selections for playback in the order you like. NOTE: Program can only be set in STOP mode.

• While in stop mode, press MEMORY on the remote control to enter the programming mode.
• Press [ ]|Q[ ] ▶▶ on the remote control to select the desired track.
• Press MEMORY to save the track number.
• Repeat for other tracks. Up to 32 tracks can be programmed. If you want to check the programmed tracks, press the MEMORY button repeatedly.
• Press the play button to start playback.

USB

Folder mode

1. Select USB mode using SOURCE button on the unit or the remote control.
2. Connect a USB mass storage device (USB stick, MP3 player) that contains MP3 files, this will take a few seconds.
3. Use the FOLDER button on the remote control to switch to FOLDER mode, "FOLD" will appear in the display.
4. Use the left/right arrow key on the remote control to select the desired folder that already stored in the USB device.
5. Navigate with BACK or FORWARD or PLAY/PAUSE button on the unit or on the remote control.

BT STEREO PAIRING

BT wireless technology is a short-range radio technology that enables wireless communication between various types of digital devices, such as mobile phoneor computer. It operates within a range of about 10 meters.

Pairing with BT devices:

Press the ON/STAND-BY button to turn the power on.

Press the SOURCE button (remote control or unit) to select BT function.

("----" flashes) Perform pairing procedure on the source device to detect this unit. "Audizio Nimes" will appear in the detected devices list (if available) in the source device. (Refer the source device operating manual for details).

Notes

Place the devices to be paired within 1 meter (3 feet) of each other when pairing.

Select "Audizio Nimes" from the source list. If Passcode* is required, enter "0000". Passcode may be called PIN Code, Passkey, PIN number or Password.

Pairing indicator (conn) will appearance the unit is successfullypaired with the source device.(Pairing information is now memorized in the unit.) Some audio source devices may connect with the unit

automatically after pairing is completed, otherwise follow the instructions in the source device operating manual to start connection

GLOBAL FUNCTIONS

MUTE

The Volume is muted temporarily when pressing the MUTE button on the remote control. Press again to restore the volume.

X-BASS

When the power is first turned on, the unit will enter the extra bass mode which emphasizes the bass frequencies, and "X-BASS" indicator will appear. To cancel the extra bass mode, press the X-BASS button on the remote control.

EQ

When the EQ button on the remote control, the current mode setting will be displayed. To change to a different mode, press the EQ MODE button repeatedly until the desired sound mode appears ("CLASSIC, POPS, JAZZ, ROCK").

13 14 15 16 OPEN/CLOSE MP2 MP3

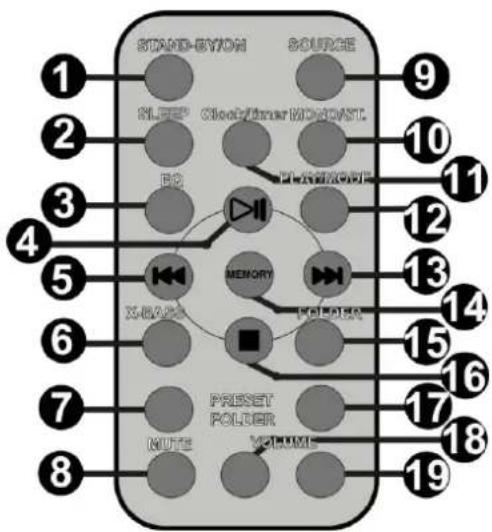

Afstandsbediening

1. STANDBY/ON

2. SLEEP (HERHAALDE MALEN INDRUKKEN OM AAN TE PASSEN)

3. EQ (HERHAALDELIJK INDRUKKEN VOOR VOORINSTELLING)

4. PLAY / PAUSE / FM SCAN

5. VORIG NUMMER / ZENDER

6. X-BASS AAN/UIT

7. PRESET/FOLDER LINKS

8. MUTE (DEMPEN AAN/UIT)

9. SOURCE (HERHAALDE MALEN INDRUKKEN VOOR SELECTIE)

10. MONO/ST. (FM)

11. KLOK / TIMER

12. AFSPEELMODUS (HERHALEN & WILLEKEURIGE MODUS)

13. VOLGENDE NUMMER / ZENDER

14. GEHEUGEN (VOORKEUZEZENDERS)

15. MAP (OMSCHAKELEN NAAR MAPMODUS MP3)

16. STOP

17. PRESET/FOLDER RECHTS

18. VOL-

STAND-EVYON SOURCE NLEEP Clock/Inner MODELS B2 BI-AC/AC MEMORY X-BACK POWER PRESSET POLDER MUTE VOLUME 10 11 12 13 14 15 16 17 18 19

AAN DE SLAG

Input connections 3.5mm Jack, USB

Output connections 3.5mm Jack

Output power 50W

Impedance 4 Ohm

Power supply 220-240VAC 50Hz

Dimensions (L x W x H) 380 x 240 x 90mm

Weight 1,55

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.Tronios.com

Copyright © 2022 by Tronios The Netherlands
