| Product type | 2-pole voltage tester |
| Brand | Voltcraft |
| Model | VC 63 |
| Dimensions (L x H x D) | 67 x 205 x 27 mm |
| Weight | 130 g |
| Power supply | 2 AAA/Micro batteries |
| Voltage range | 12 - 690 V (DC/AC) |
| Frequency range | 0 Hz; 16 - 400 Hz |
| LCD resolution | 12, 24, 36, 50, 120, 230, 400, 690 V |
| Voltage detection | Automatic (DC/AC) |
| Response time | < 1 s |
| Continuity test | Visual and acoustic (< 400 kΩ + 50%) |
| RCD test | Yes (max. test current 30 mA/230 V) |
| Bargraph display | Yes |
| Probe lighting | LED, activation by grey button, auto-off after 30 s |
| Dangerous voltage indicator | LED >50 V AC or >120 V DC |
| Measurement category | CAT IV 600 V / CAT III 1000 V |
| Protection rating | IP64 |
| Standard | EN 61243-3:2014, EN 60529 |
| Pollution degree | 2 |
| Operating temperature | -15 °C to +45 °C |
| Humidity | max. 85% RH non-condensing |
| Max. altitude | 2000 m |
| Measuring cable length | Approximately 93 cm |
| Included accessories | 2 AAA batteries, 2 protective sleeves, 2 4mm adapters, instruction manual |
| Maintenance | Clean with a soft, dry cloth; annual calibration recommended |
| Repairability | Battery replacement by user; no other spare parts specified |
Frequently Asked Questions - VC 63 VOLTCRAFT
User questions about VC 63 VOLTCRAFT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Measuring equipment in PDF format for free! Find your manual VC 63 - VOLTCRAFT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VC 63 by VOLTCRAFT.

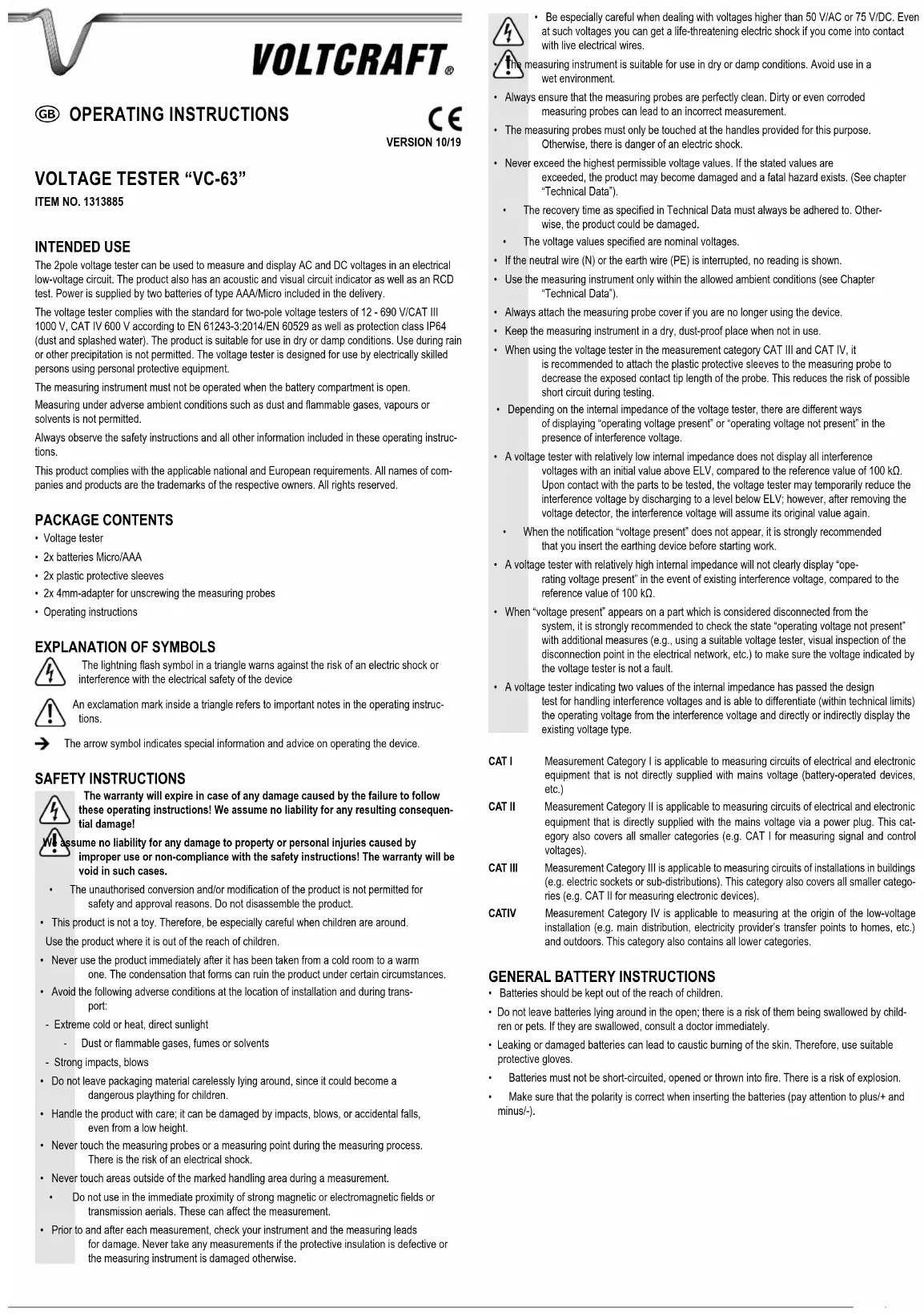

USER MANUAL VC 63 VOLTCRAFT
The 2pole voltage tester can be used to measure and display AC and DC voltages in an electrical low-voltage circuit. The product also has an acoustic and visual circuit indicator as well as an RCD test. Power is supplied by two batteries of type AAA/Micro included in the delivery.
The voltage tester complies with the standard for two-pole voltage testers of 12 - 690 V/CAT III 1000 V, CAT IV 600 V according to EN 61243-3:2014/EN 60529 as well as protection class IP64 (dust and splashed water). The product is suitable for use in dry or damp conditions. Use during rain or other precipitation is not permitted. The voltage tester is designed for use by electrically skilled persons using personal protective equipment.
The measuring instrument must not be operated when the battery compartment is open.
Measuring under adverse ambient conditions such as dust and flammable gases, vapours or solvents is not permitted.
Always observe the safety instructions and all other information included in these operating instructions.
This product complies with the applicable national and European requirements. All names of companies and products are the trademarks of the respective owners. All rights reserved.
PACKAGE CONTENTS
- Voltage tester
• 2x batteries Micro/AAA
• 2x plastic protective sleeves
• 2x 4mm-adapter for unscrewing the measuring probes
- Operating instructions
EXPLANATION OF SYMBOLS
The lightning flash symbol in a triangle warns against the risk of an electric shock or interference with the electrical safety of the device
An exclamation mark inside a triangle refers to important notes in the operating instructions.
The arrow symbol indicates special information and advice on operating the device.
SAFETY INSTRUCTIONS
The warranty will expire in case of any damage caused by the failure to follow these operating instructions! We assume no liability for any resulting consequential damage!
ume no liability for any damage to property or personal injuries caused by improper use or non-compliance with the safety instructions! The warranty will be void in such cases.
- The unauthorised conversion and/or modification of the product is not permitted for safety and approval reasons. Do not disassemble the product.
- This product is not a toy. Therefore, be especially careful when children are around. Use the product where it is out of the reach of children.
- Never use the product immediately after it has been taken from a cold room to a warm one. The condensation that forms can ruin the product under certain circumstances.
- Avoid the following adverse conditions at the location of installation and during transport:
- Extreme cold or heat, direct sunlight
- Dust or flammable gases, fumes or solvents
- Strong impacts, blows
- Do not leave packaging material carelessly lying around, since it could become a dangerous plaything for children.
- Handle the product with care; it can be damaged by impacts, blows, or accidental falls, even from a low height.
- Never touch the measuring probes or a measuring point during the measuring process. There is the risk of an electrical shock.
- Never touch areas outside of the marked handling area during a measurement.
- Do not use in the immediate proximity of strong magnetic or electromagnetic fields or transmission aerials. These can affect the measurement.
- Prior to and after each measurement, check your instrument and the measuring leads for damage. Never take any measurements if the protective insulation is defective or the measuring instrument is damaged otherwise.
- Be especially careful when dealing with voltages higher than 50 V/AC or 75 V/DC. Even at such voltages you can get a life-threatening electric shock if you come into contact with live electrical wires.
measuring instrument is suitable for use in dry or damp conditions. Avoid use in a wet environment.
- Always ensure that the measuring probes are perfectly clean. Dirty or even corroded measuring probes can lead to an incorrect measurement.
- The measuring probes must only be touched at the handles provided for this purpose. Otherwise, there is danger of an electric shock.
- Never exceed the highest permissible voltage values. If the stated values are exceeded, the product may become damaged and a fatal hazard exists. (See chapter "Technical Data").
- The recovery time as specified in Technical Data must always be adhered to. Otherwise, the product could be damaged.
• The voltage values specified are nominal voltages.
- If the neutral wire (N) or the earth wire (PE) is interrupted, no reading is shown.
- Use the measuring instrument only within the allowed ambient conditions (see Chapter "Technical Data").
• Always attach the measuring probe cover if you are no longer using the device.
- Keep the measuring instrument in a dry, dust-proof place when not in use.
- When using the voltage tester in the measurement category CAT III and CAT IV, it is recommended to attach the plastic protective sleeves to the measuring probe to decrease the exposed contact tip length of the probe. This reduces the risk of possible short circuit during testing.
- Depending on the internal impedance of the voltage tester, there are different ways of displaying "operating voltage present" or "operating voltage not present" in the presence of interference voltage.
- A voltage tester with relatively low internal impedance does not display all interference voltages with an initial value above ELV, compared to the reference value of 100 kΩ. Upon contact with the parts to be tested, the voltage tester may temporarily reduce the interference voltage by discharging to a level below ELV; however, after removing the voltage detector, the interference voltage will assume its original value again.
- When the notification "voltage present" does not appear, it is strongly recommended that you insert the earthing device before starting work.
- A voltage tester with relatively high internal impedance will not clearly display "operating voltage present" in the event of existing interference voltage, compared to the reference value of 100k .
- When “voltage present” appears on a part which is considered disconnected from the system, it is strongly recommended to check the state “operating voltage not present” with additional measures (e.g., using a suitable voltage tester, visual inspection of the disconnection point in the electrical network, etc.) to make sure the voltage indicated by the voltage tester is not a fault.
- A voltage tester indicating two values of the internal impedance has passed the design test for handling interference voltages and is able to differentiate (within technical limits) the operating voltage from the interference voltage and directly or indirectly display the existing voltage type.
CAT I
Measurement Category I is applicable to measuring circuits of electrical and electronic equipment that is not directly supplied with mains voltage (battery-operated devices, etc.)
CAT II
Measurement Category II is applicable to measuring circuits of electrical and electronic equipment that is directly supplied with the mains voltage via a power plug. This category also covers all smaller categories (e.g. CAT I for measuring signal and control voltages).
CAT III
Measurement Category III is applicable to measuring circuits of installations in buildings (e.g. electric sockets or sub-distributions). This category also covers all smaller categories (e.g. CAT II for measuring electronic devices).
CATIV
Measurement Category IV is applicable to measuring at the origin of the low-voltage installation (e.g. main distribution, electricity provider's transfer points to homes, etc.) and outdoors. This category also contains all lower categories.
GENERAL BATTERY INSTRUCTIONS
- Batteries should be kept out of the reach of children.
- Do not leave batteries lying around in the open; there is a risk of them being swallowed by children or pets. If they are swallowed, consult a doctor immediately.
- Leaking or damaged batteries can lead to caustic burning of the skin. Therefore, use suitable protective gloves.
- Batteries must not be short-circuited, opened or thrown into fire. There is a risk of explosion.
- Make sure that the polarity is correct when inserting the batteries (pay attention to plus/+ and minus/−).
DESCRIPTION OF SYMBOLS
| ~ | Alternating Current (AC) |
| V AC DC | V/AC: Alternating voltageV/DC: Direct current |
| 12/24/36/50/120/230/400/690 | display of rated voltage range in volt (V) |
| + | Direct current positive potential DC |
| — | Direct current negative potential DC |
| kΩ Electrical resistance in kilo-ohm | |
| Hz Electrical frequency (Hertz) | |
 | single-pole phase display 100 - 690 V as well as warning for hazardous voltage (>50 V/AC, >120 V/DC)Operation also possible with flat batteries or without batteries |
 | Continuity test symbol |
| [K02Z] | Battery symbol for data of used battery |
| CE | Conformity symbol, CE-approved |
| Apparatus and equipment for live works.Personal protection equipment required | |
| Protection class 2 (double or reinforced insulation/protective insulation) | |
INSERTING/REPLACING BATTERIES
Disconnect the voltage tester from the respective object under testing.
Hold both measuring probes together. The batteries must be replaced if no beep is heard or a flat battery is indicated on the display. Install the two protective plastic sleeves/measuring probe covers for your own safety. For this purpose, loosen the screw (15) using a small Phillips head screwdriver. Now, carefully pull the battery compartment (14) downwards along the cable. Remove the empty batteries from the measuring instrument, where applicable, and insert new batteries of the same type (see Technical data) into the battery compartment observing the correct polarity. The use of rechargeable batteries is not permitted. We recommend to use alkaline batteries. They guarantee a long service life. Slide the battery compartment back upwards until you feel it click in place and carefully close the compartment with screw (15).

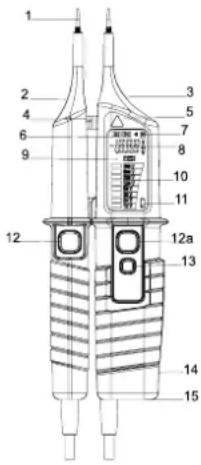

CONTROLS
1 Measuring probes
2 Measuring probe "-"
3 Measuring probe "+"
4 Holder for second measuring line
5 LED dangerous voltage
6 AC or DC voltage indicator
7 Continuity display
8 Voltage display
9 Display for power switching (RCD test)
10 Bar graph display
11 Flat battery display
12 Switch for power switching (RCD test)
13 Measuring probe lighting button
14 Battery compartment
15 Screw for battery compartment
FUNCTIONALITY TEST/SELF-TEST
We recommend to test the functionality of the measuring instrument before each measurement. Hold both measuring probes together. You will hear a beep and (7) lights up. The product is ready for operation.
The measuring instrument switches on automatically when the respective measurement unit is detected. After a measurement step, the measuring thermometer turns itself off to save power.
If no signal sounds, replace the batteries. If functionality is not given even after replacing the batteries, the product must not be used!
Additional self test function (all LED, TORCH, BUZZER are ON for 2sec) is implemented for all Conrad VTs. It can be started when VT is off. The user need to push Torch button and hold for 4 sec. After that all LED/symbols light, Torch light and buzzer sound is active for 2sec.
Always attach the measuring probe cover if you are no longer using the device.
VOLTAGE TEST
Connect the two measuring probes with the object to be measured.
The voltage tester automatically switches on when it detects a voltage of 12 V or higher.
When using the voltage tester in the measurement category CAT III and CAT IV, it is recommended to attach the plastic protective covers provided to the measuring probe to decrease the length of the free contact probes (2) and (3). This reduces the risk of a possible short circuit during testing.
→ For ease of use, the product has a holder (4) for a second measurement line. This makes measuring e.g., directly on the mains sockets easier.
For direct current, the polarity of the voltage displays refers to the measuring probe of the measuring instrument (3).
When the batteries are empty, only the warning indicator (5) for "Dangerous Voltage" will function when the test voltage reaches 50 V/AC or 120 V/DC. Do not ever touch the measuring contacts, if this indicator is on. Change the batteries.
In the LC display (8), the measured voltage (AC/DC) and the measuring range are indicated in the bar graph.
CONTINUITY TEST
Before a continuity check, make sure that the measurement object is de-energised.
Connect the two measuring probes with the object to be measured. A signal will sound and the LCD will show the continuity symbol (7) and Con, if the continuity is max. 400 kΩ +50%.
Disconnect the measuring probes from the measurement object after the measurement.
RCD TEST (RC OR RESIDUAL CURRENT PROTECTIVE DEVICES (RCD) TEST)
The voltage tester can be used to check whether the RC works properly.
The voltage tester can only check whether the residual current protective device is working properly. The testing or triggering current as well as the triggering time cannot be determined any longer!
Connect the measuring probe (2) with the protective conductor and the measuring probe (3) with the phase.
Now, press the red (12) button and the red (12a) button simultaneously.
MEASURING POINT LIGHTING
The measurement device has LED illumination on the outside of the case in order to allow measurements when there is little light. To activate this feature press on the button (13). The LED switches off automatically after roughly 30 seconds off to save battery power.
MAINTENANCE AND CLEANING
Apart from the occasional battery change, the product is maintenance-free for you.
However, in order to ensure the accuracy of the measurement device over a long period, it is recommended to have the device calibrated once a year.
Never clean the product while it is connected to a voltage source. Use a clean, dry, soft cloth for cleaning. Do not use aggressive cleaning agents as these can cause discolouration. To prevent scratch marks, do not press too strongly on the surface when cleaning.
DISPOSAL
a) General instructions
Please dispose of the unserviceable product according to the relevant statutory requirements. Remove any inserted battery and dispose of it separately from the product.
b) Batteries
You as the ultimate consumer are legally obliged (Regulation on Spent Batteries) to return all dead batteries and accumulators. Disposal in the household waste is prohibited.
Batteries containing hazardous substances are labelled with the symbol opposite indicating that disposal in the domestic waste is forbidden. The symbols of the critical heavy metals are: Cd = Cadmium, Hg = Mercury, Pb = Lead.
You can return your used batteries/rechargeable batteries free of charge to the official collection points in your municipality, in our stores, or anywhere batteries or rechargeable batteries are sold.
TECHNICAL DATA
Voltage range 12 - 690 V (DC/AC)
Frequency range 0 Hz; 16 - 400 Hz
LED resolution....+/-12, 24, 36, 50, 120, 230, 400, 690 V
Measurement tolerance for the voltage test....+/- (3% + 5 Digit)
DC/AC voltage recognition....automatic
Auto Power On....>12 V (DC/AC)
Response time....<1 s
Max testing time (RCD test) 30 s
Regeneration time (RCD test) 240 s
Max. testing current ( RCD test)....30 mA/230 V
Max. current w/out RCD burden ....<3.5 mA/690 V
Measurement category....CAT IV 600 V/CAT III 1000 V
Norms....EN 60529 and EN 61243-3:2014
Protection type....IP64
Contamination level 2
Temperature range....-15 °C to +45 °C
Humidity....max. 85% relative humidity, non condensing
Altitude above sea level....max. 2000 m
Length of measuring cables ....ca. 93 cm
Power supply....2x AAA / micro batteries
Weight 130 g
Dimensions....67 x 205 x 27 mm (W x H x D)
CONTINUITY TEST
| Indication optic and acoustic (<400 kΩ+50%) | |
| Test current <5 uA | |
| Overvoltage protection 690 V (DC/AC) |
