SPS12A - Speaker Vonyx - Free user manual and instructions

Product Type	Active amplified speaker
Brand	Vonyx
Model	SPS12A
Power Supply	220-240 V AC, 50 Hz
Fuse	10-16 A (replace with same type fuse)
Audio Inputs	2 microphone inputs (XLR and 6.35 mm jack), line input (XLR and RCA), USB input, SD card reader
Audio Output	Mix out 6.35 mm jack
Wireless Connectivity	Bluetooth (range ~10 m, password: 0000)
Controls	Master volume, treble, bass, MP3 volume, line volume, mic volume, mode, play/pause, repeat, previous, next
Remote Control	Included (on/off, mode, mute, EQ, volume, navigation, repeat, numeric keypad)
Indicators	Power and Clip LEDs
Usage	Indoor use only
Temperature Range	5 °C to 35 °C
Storage Conditions	Keep away from children, moisture and heat sources
Cleaning	Dry cloth (no chemicals)
Spare Parts and Repairability	Repairs by qualified technician; use original parts; replaceable fuse
General Information	CE certification; warranty void if modified or used improperly

Frequently Asked Questions - SPS12A Vonyx

How to connect my phone via Bluetooth?

Turn on Bluetooth on your phone, then press the MODE button on the speaker to select Bluetooth mode. Search for 'VONYX' in the list of available devices and connect. If a password is requested, enter 0000.

How to use a USB stick or SD card?

Insert the USB stick into the USB port or the SD card into the dedicated slot. Use the MODE button to select the USB/SD source. Playback starts automatically. Use the Previous and Next buttons to navigate.

How to adjust the master volume and tone?

Use the Master Volume knob for overall volume. Turn the Treble and Bass knobs to adjust the tone. Separate controls exist for MP3 volume, line output, and microphone.

Can I connect a microphone?

Yes, you can plug a microphone into the XLR input (balanced) or the 6.35 mm jack input (unbalanced). Adjust the microphone volume with the Mic Level knob.

How to replace the fuse?

First, unplug the device. Open the fuse holder on the back with a small screwdriver. Remove the old fuse and replace it with a fuse of the same type and rating (10-16 A). Close the fuse holder.

What to do in case of condensation after transport?

If the device has been exposed to temperature changes, do not turn it on immediately. Leave it off until it reaches room temperature (approximately 1 to 2 hours) to avoid damage.

The speaker produces a smell when first powered on, is this normal?

Yes, it is normal. A slight odor may occur during first use. It will disappear after a few minutes of operation.

Can I use the speaker outdoors?

No, the device is designed for indoor use only. Do not expose it to rain, moisture, or extreme temperatures (allowed range: 5°C to 35°C).

How to clean the speaker?

Use a dry cloth to wipe the surface. Do not use chemicals, aerosols, or solvents that could damage the finish.

What to do if the speaker does not turn on?

First check that the power cord is properly connected and the outlet works. If the fuse is blown, replace it. If the problem persists, contact a qualified technician – never open the device yourself.

USER MANUAL SPS12A Vonyx

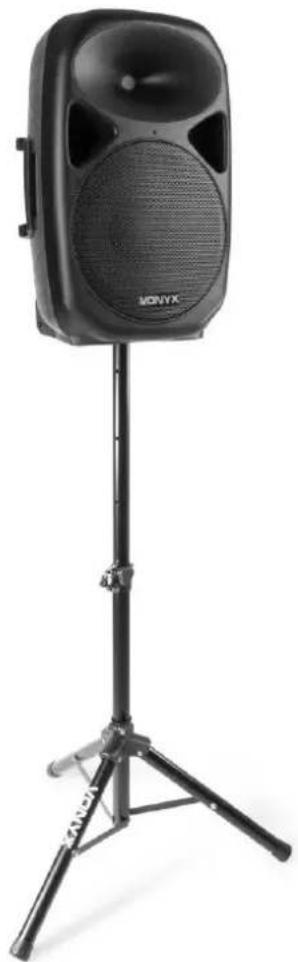

SPS Series Active Speaker

Ref. nr.: 178.132; 178.137

Black MONYX audio amplifier stand with tripod base (no visible text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the device can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

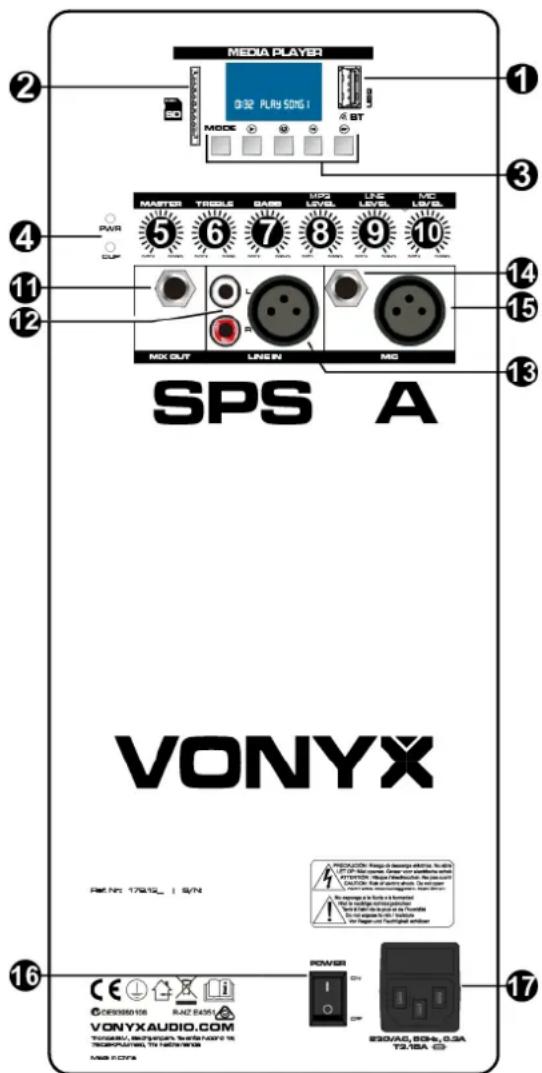

CONTROLS AND CONNECTIONS

1. USB Port
   USB entry port.
2. SD Card Slot
   Insert an SD card in this slot.
3. Button Cluster
   Mode - Press to change mode.
   Play / Pause - Start/resume or pause play by pressing this button.
   Repeat - Press to select repeat single track or repeat full folder.
   Previous Track - Skip to previous track.
   Next - Skip to next track.
4. Power and Clip LED
5. Master Volume
   Adjust the overall output level/volume.
6. Treble Control
   High tone control.
7. Bass Control
   Low tone control.
8. MP3 Volume Control
   Adjust the MP3 output level/volume.
9. Line Level Output Control
   Adjust the line level output level/volume.
10. Mic Output Level Control
    Adjust the volume of the microphone channel.
11. Mix Output Jack 6,3mm
    6,3mm mix output jack.
12. RCA Line Inputs
    RCA input for connecting audio units with line level output (e.g. mixer, CD player).
13. XLR Line Input
    Line level XLR input.
14. Microphone Input Jack 6,3mm
    6.3mm 14 " input jack for connecting a microphone.
15. XLR Microphone Input
    XLR input for connecting a microphone.
16. Power Switch
    Switch to turn the device ON or OFF.
17. AC In And Fuse Holder
    Socket for plugging in the supplied power cord.

MEDIA PLAYER D32 PLAY SONG 1 MODE 4 BT MARTER TROOLS BARS MPA LEVEL LINE LEVEL MC 5 6 7 8 9 10 SPS A VONYX Ref. No: 17612_ | 8/N POWER 630VAC, 80Hz, 0.3A TA:18A CE DES380106 RAZ E4051 VONYXAUDIO.COM TOMOYA, RANSHAN, TANSHAN, TIN REGRAP/RAM, TIN/SMR MAB-CCMS

CONNECTING WITH BT-DEVICE

1. Activate the BT-function on your device (Mobile phone, tablet etc.) from which you want to play the music. See the operating instructions of that device for instructions.
2. Press the "MODE" button and activate BT-function.
3. Select "VONYX" on your BT-device and make the BT-connection

If password is required, you can enter "0000".

Attention: The BT distance is approx. 10meter without any barrier.

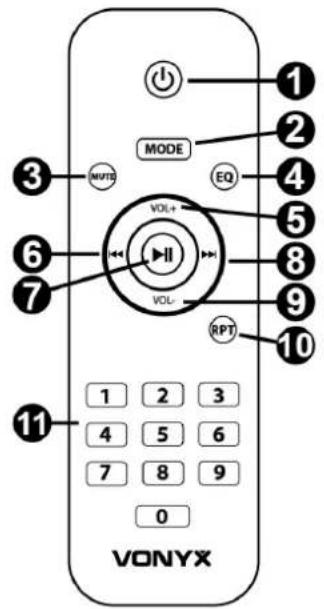

REMOTE CONTROL

1. Power Switch Switch to turn the device ON or OFF.

2. Mode Switch Press to change modes.

3. Mute Press to (un)mute the device.

4. Equalizer Press to change equalizer modes.

5. Master Volume Up Press to raise volume.

6. Previous Track Press to choose previous track.

7. Play / Pause Press to start/resume or pause play.

8. Next Track Press to choose next track.

9. Master Volume Down Press to decrease volume.

10. Repeat Press to select repeat single track or repeat full folder.

11. Numpad

MODE VOL+ VOL- RPT 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 0 VONYX

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

NEDERLANDS

MEDIA PLAYER 0:32 PLAY SONG! MODE 4 BT MASTER TREES RASS MPD LEVEL LFC LEVEL MC 5 6 7 8 9 10 PWR GUP MAX OUT LINE IN MO SPS A VONYX Ref No: 17912_ | 8/N A MEDIUM: Image & image editing. To select UP OF the screen. Master's view is available to select VITRIO. Image & image selection. To select and DIALDO. Image is not using color. To select and We recognize it as a button or window. To select and use a device to select. To select and use a device to select. To select and use a device to select. To select and use a device to select. To select and use a device to select. To select and use a device to select. To select and use a device to select. To select and use a device to select. To select and use a device to select. To select and use a device to select. To select and use a device to select. To select and use a device to select POWER DES300108 RAD 64551 VONYXAUDIO.COM VYONXAUDIO.COM VYONXAUDIO.COM VYONXAUDIO.COM VYONXAUDIO.COM VYONXAUDIO.COM VYONXAUDIO.COM

VERBINDEN MIT BT

REPLACEMENT DU FUSIBLE

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.
