Contents

Before Use....3

Basics 3

Getting Started 4

1 Select the display language, acknowledge the crossover type and cancel the demonstration
2 Set the clock and date
3 Set the other optional settings

Digital Radio....7

Analog Radio 9

USB/iPod 11

AUX....14

KENWOOD Remote Application ....14

Bluetooth ^® 15

Bluetooth - Connection

Bluetooth – Mobile phone

Bluetooth – Audio

AMAZON ALEXA 21

Audio Settings 24

Display Settings 28

Installation/Connection 30

References 36

Maintenance

More information

Change the display information

Troubleshooting....38

Specifications....40

How to read this manual

• The displays and faceplates shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual displays or faceplates.
• Operations are explained mainly using buttons on the faceplate of KMM-BT508DAB.
• English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. (Page 6)
  • [XX] indicates the selected items.
  • (Page XX) indicates references are available on the stated page.

This symbol on the product means there are important operating and maintenance instructions in this manual. Be sure to carefully read instructions in this manual.

BeforeUse

IMPORTANT

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and Cautions in this manual.
- Please keep the manual in a safe and accessible place for future reference.

WARNING

- Do not operate any function that takes your attention away from safe driving.

CAUTION

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.
• USB rating is indicated on the main unit. To view, detach the faceplate.
• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (page 32). Turn off the unit or change the source to STANDBY when parking at a low ceiling area.

Basics

Faceplate

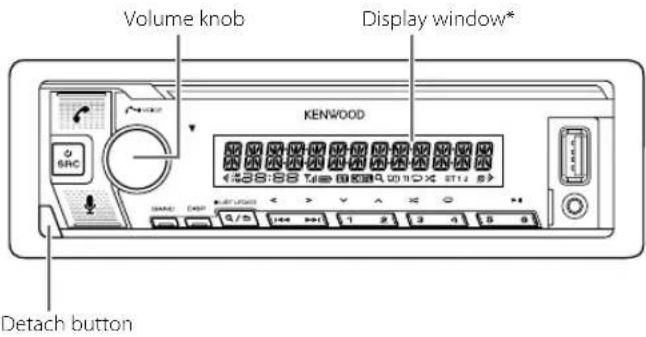

Volume knob Display window* KENWOOD 4/28:88 T100 00100 X ST12 S DETACH BUTTON

* Only for illustration purpose.

AttachDetach
How to reset	Reset the unit within 5 seconds after detaching the faceplate.

Basics

To On the faceplate
Turn on the power	Press ⏻SRC.• Press and hold to turn off the power.
Adjust the volume Turn the volume knob.
Select a source	• Press ⏻SRC repeatedly.• Press ⏻SRC, then turn the volume knob within 2 seconds.
Change the display information	Press DISP repeatedly. (Page 37)

GettingStarted

KEYWOOD

Select the display language, acknowledge the crossover type and cancel the demonstration

When you turn on the power for the first time (or [FACTORY RESET] is set to [YES], see page 6), the display shows: "SEL LANGUAGE" → "PRESS" → "VOLUME KNOB"

1 Turn the volume knob to select [EN] (English) / [RU] (Russian) / [SP] (Spanish) / [FR] (French) / [GE] (German), then press the knob. [EN] is selected for the initial setup. Then, the display shows: "2-WAY X 'OVER" or "3-WAY X 'OVER" "PRESS" → "VOLUME KNOB" → TO CONFIRM".

2 Press the volume knob to acknowledge the current crossover type.

- To change the crossover type, see "Change the crossover type" on page 6.

For : KMM-BT508DAB

Then, the display shows: "CANCEL DEMO" "PRESS" "VOLUME KNOB".

3 Press the volume knob again.

[YES] is selected for the initial setup.

4 Press the volume knob again.

"DEMO OFF" appears.

Set the clock and date

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [CLOCK], then press the knob.

GettingStarted

To adjust the clock

3 Turn the volume knob to select [CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob.
Set the time in the order of "Hour" "Minute".
5 Turn the volume knob to select [CLOCK FORMAT], then press the knob.
6 Turn the volume knob to select [12H] or [24H], then press the knob.

To set the date

7 Turn the volume knob to select [DATE FORMAT], then press the knob.
8 Turn the volume knob to select [DD/MM/YY] or [MM/DD/YY], then press the knob.

9 Turn the volume knob to select [DATE SET], then press the knob.

10 Turn the volume knob to make the settings, then press the knob.

Set the date in the order of "Day" "Month" "Year" or "Month" "Day" "Year".

11 Press and hold to exit.

To return to the previous setting item, press Q/5

Set the other optional settings

You can only set the following items while the unit is in STANDBY source.

1 Press ⏻ SRC repeatedly to enter STANDBY.
2 Press the volume knob to enter [FUNCTION].
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.

5 Press and hold to exit.

To return to the previous setting item, press 9/5

Default: [XX]

[AUDIO CONTROL]
[SWITCHPREOUT]	(Applicable only if [X'OVER] is set to [2WAY].) (Page 6)[REAR]/[SUB-W]: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier). (Page 33)
[DISPLAY]

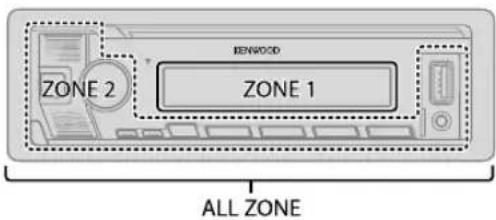

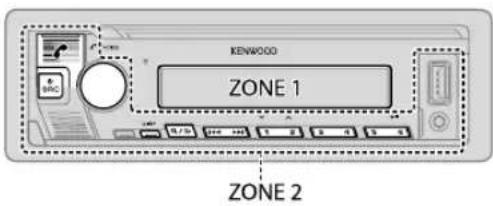

[EASY MENU]	When entering [FUNCTION]...[ON]: [ZONE 1] illumination changes to white color.;[OFF]: [ZONE 1] illumination remains as [COLOR SELECT] color.(Page 29)• [ZONE 2] illumination changes to light blue color when you enter [FUNCTION],irregardless of the [EASY MENU] setting.• Refer to the illustration on page 28 for zone identification.
[TUNERSETTING]
[DAB ANT POWER]	[ON]: Supplies power to the DAB antenna.; [OFF]: Does not supply power. Selects when using passive antenna without booster. (Page 33)
[PRESETTYPE]	[NORMAL]: Memorizes one station for each preset button in each band (FM1/FM2/FM3/MW/LW/DB1/DB2/DB3).; [MIX]: Memorizes one station (digital radio or analog radio) for each preset button, regardless of the selected band.
[SYSTEM]
[KEY BEEP]	(Applicable only if [X'OVER] is set to [2WAY].) (Page 6)[ON]: Activates the keypress tone.; [OFF]: Deactivates.
[SOURCESELECT]
[BT AUDIO SRC]	[ON]: Enables BT AUDIO in source selection.;[OFF]: Disables. (Page 20)
[BUILT-IN AUX]	[ON]: Enables AUX in source selection.; [OFF]: Disables. (Page 14)

GettingStarted

[P-OFF WAIT]	(For KHKAT eOnlyAhen the demonstration mode is turned off.)Sets the duration when the unit will automatically turn off (while in standby mode) to save the battery.[20M]: 20 minutes ; [40M]: 40 minutes ; [60M]: 60 minutes ;[— — —]: Cancels
[F/W UPDATE]
[UPDATE SYSTEM]*/[UPDATE DAB]
[F/W UP xxxx][F/W UP xxxxx]	[YES]: Starts upgrading the firmware. ; [NO]: Cancels (upgrading is not activated).For details on how to update the firmware, visit.* Once you have upgraded the firmware, you are unable to downgrade the firmware.
[FACTORYRESET]	[YES]: Resets the settings to default (except the stored station). ;[NO]: Cancels.
[ENGLISH]
[PYCCKII]	Select the display language for [FUNCTION] menu and music information if applicable.By default, [ENGLISH] is selected.
[ESPANOL]
[FRANCAIS]
[DEUTSCH]

Change the crossover type

1 Press ⏻ SRC repeatedly to enter STANDBY.
2 Press and hold number buttons 4 and 5 to enter crossover select.
The current crossover type appears.
3 Turn the volume knob to select "2WAY" or "3WAY", then press the knob.
4 Turn the volume knob to select "YES" or "NO", then press the knob. The selected crossover type appears.

• To cancel, press and hold 9/5

• To adjust the selected crossover settings, see page 25.

Once you have changed the crossover type, the next time when you turn on the power, the display shows:

"2-WAY X' OVER" or "3-WAY X' OVER" → "PRESS" → "VOLUME KNOB" →

"TO CONFIRM"

Press the volume knob to acknowledge in order to proceed to the next desired operation.

CAUTION

Select a crossover type according to how the speakers are connected. (Page 32, 33)

If you select a wrong type:

• The speakers may damage.
• The output sound level may be extremely high or low.

DigitalRadio

About DAB (Digital Audio Broadcasting)

DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data.

In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called "services") to form one "ensemble."

The “primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other information.

KENWOOD J SNO RANET 0.75 400 1 2 3 4 5 6

Preparation:

1 Connect the DAB antenna (supplied/separately purchased) to the DAB antenna jack. (Page 33)
2 Press ⏻ SRC repeatedly to select DIGITAL AUDIO.
3 Press and hold (LISTUPDATE) to start the Service List update.

"LIST UPDATE" appears and update starts. "UPDATED" appears when update completes.

Updates take up to 3 minutes. No interruption (such as traffic information) is possible during updates.

- To cancel the Service List update: Press and hold Ⓠ/⇨ (LIST UPDATE) again.

• "DGTL" indicator lights up when receiving DAB digital signal and flashes when receiving a RDS signal.
• The unit switches to DAB alarm automatically when receiving an alarm signal from DAB broadcast.

Search for an ensemble

1 Press ⏻ SRC repeatedly to select DIGITAL AUDIO.
2 Press BAND repeatedly to select DB1/DB2/DB3.
3 Press and hold ◀◀◀ / ▶▶▶ to search for an ensemble.
4 Press ◀◀◀ / ▶▶▶ to select an ensemble, service or component to listen.

You can store up to 18 services.

• To store a service: Press and hold one of the number buttons (1 to 6).
• To select a stored service: Press one of the number buttons (1 to 6).

Select a service

1 Press to enter Service Search mode.
2 Turn the volume knob to select a service, then press the knob.

To cancel the Service Search mode, press 9/3 again.

Select a service by name

1 Press to enter Service Search mode.
2 Turn the volume knob quickly to enter Alphabet Search mode.
3 Turn the volume knob or press |◀◀ / ▶▶▶ to select the character to be searched for.

- Press 1V/2A to go to the previous/next page.

4 Press the volume knob to start searching.
5 Turn the volume knob to select a service, then press the knob.

To cancel the Alphabet Search mode, press 9/5 again.

DigitalRadio

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold exit.

To return to the previous setting item, press Q/5.

Default: [XX]

[TUNERSETTING]
[SEEK MODE]	Selects the searching method for I◄◄/►►I buttons when pressed. [AUTO1]: Select an ensemble, service or component. Pressing and holding I◄◄/►►I automatically search for an ensemble.; [AUTO2]: Search for a preset service.; [MANUAL]: Select an ensemble, service or component. Pressing and holding I◄◄/►►I manually search for an ensemble.
[AF SET]	[ON]: While listening to DAB: Automatically switch to FM broadcasting the same program if the DAB signal becomes weak. It will switch back to DAB sound when the signal becomes strong again. While listening to FM: Automatically switch to DIGITAL AUDIO source broadcasting the same program (if available).; [OFF]: Cancels.
[TI]	[ON]: Allows the unit to temporarily switch to Traffic Information if available ("TI" indicator lights up).; [OFF]: Cancels.
[PTY SEARCH]	1 Turn the volume knob to select the available Program Type (see "Available Program Type for [PTY SEARCH]" on page 9), then press the knob.2 Turn the volume knob to select the PTY language ([ENGLISH]/ [FRENCH]/[GERMAN]), then press the knob.3 Press I◄◄/►►I to start searching.

[ASW SELECT]	[TRAVEL], [WARNINGS], [NEWS], [WEATHER], [EVENT], [SPECIAL], [RAD INFO], [SPORTS], [FINANCE]: Turn the volume knob to make a selection, then press the knob."*” appears in front of the activated announcement type.Automatically switch from any source to Digital radio ensembles broadcasting an activated announcement type.• Multiple announcement can be activated simultaneously.• To deactivate, press the volume knob again (" * " goes off).
[LIST UPDATE]	[AUTO]: Automatically update the DAB Service List when the power is turned on. ; [MANUAL]: Updates the DAB Service List by pressing and holding 9/5 (LIST UPDATE).
[PTY WATCH]	1 Turn the volume knob to select the available Program Type, then press 9/5.The unit automatically switch from any source to Digital Radio ensembles broadcasting the selected type of program.Program Type:[NEWS], [AFFAIRS], [INFO], [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS], [OTHER M] (music), [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION], [PHONE IN], [TRAVEL], [LEISURE], [JAZZ], [COUNTRY], [NATION M] (music), [OLDIES], [FOLK M] (music), [DOCUMENT][OFF]: Cancels.2 Press the volume knob to enter PTY language selection.3 Turn the volume knob to select the PTY language ([ENGLISH]/[FRENCH]/[GERMAN]), then press the knob.
[RELATEDSERV]	[ON]: Enable Soft-Link function to switch to an alternative service which is different audio program from the current audio program. ; [OFF]: Disable.

DigitalRadioAnalogRadio

[CLOCK]

[TIME SYNC] [ON]: Synchronizes the unit's time to the Digital Radio station time.; OFF: Cancels.

- If the volume is adjusted during reception of traffic information, announcement, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, announcement, alarm or news bulletin is turned on.

Available Program Type for[PTY SEARCH]

[SPEECH]

[NEWS], [AFFAIRS], [INFO] (information), [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION], [PHONE IN], [TRAVEL], [LEISURE], [DOCUMENT]

[MUSIC]:

[POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS], [OTHER M] (music), [JAZZ], [COUNTRY], [NATION M] (music), [OLDIES], [FOLK M] (music)

The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.

BENWOOD SRC

• "ST" indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.
• The unit switches to FM alarm automatically when receiving an alarm signal from FM broadcast.

Search for a station

1 Press ⏻ SRC repeatedly to select RADIO.
2 Press BAND repeatedly to select FM1/FM2/FM3/MW/LW.
3 Press ◀◀◀/▶▶▶ to search for a station.

You can store up to 18 stations for FM and 6 stations for MW/LW.

• To store a station: Press and hold one of the number buttons (1 to 6).
  • To select a stored station: Press one of the number buttons (1 to 6).

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (page 10), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold to exit.

To return to the previous setting item, press 9/5.

Analog Radio

Default: [XX]
[TUNERSETTING]
[SEEK MODE]	Selects the searching method for ◀◀/▶▶buttons when pressed.[AUTO1]: Automatically search for a station. ; [AUTO2]: Search for a preset station. ; [MANUAL]: Manually search for a station.
[LOCAL SEEK]	[ON]: Searches only stations with good reception. ; [OFF]: Cancels.• Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.
[AUTO MEMORY]	[YES]: Automatically starts memorizing 6 stations with good reception. ;[NO]: Cancels.• Selectable only if [NORMAL] is selected for [PRESET TYPE]. (Page 5)
[MONO SET]	[ON]: Improves the FM reception, but the stereo effect will be lost. ;[OFF]: Cancels.
[NEWS SET]	[ON]: The unit will temporarily switch to News Programme if available. ;[OFF]: Cancels.
[REGIONAL]	[ON]: Switches to another station only in the specific region using the “AF” control. ; [OFF]: Cancels.
[AF SET]	[ON]: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; [OFF]: Cancels.
[TI]	[ON]: Allows the unit to temporarily switch to Traffic Information if available (“TI” indicator lights up). ; [OFF]: Cancels.• [TI] in MW/LW band is for enabling traffic interruption to DIGITAL AUDIO source only.
[PTY SEARCH]	1 Turn the volume knob to select the available Program Type (see the following “Available Program Type for [PTY SEARCH]”), then press the knob.2 Turn the volume knob to select the PTY language ([ENGLISH]/[FRENCH]/[GERMAN]), then press the knob.3 Press ◀◀/▶▶to start searching.

- [LOCAL SEEK]/[MONO SET]/[NEWS SET]/[REGIONAL]/[AF SET]/[PTY SEARCH] is selectable only when the band is FM1/FM2/FM3.

- If the volume is adjusted during reception of traffic information, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, alarm or news bulletin is turned on.

Available Program Type for[PTY SEARCH]

[SPEECH]:

[NEWS], [AFFAIRS], [INFO] (information), [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION], [PHONE IN], [TRAVEL], [LEISURE], [DOCUMENT]

[MUSIC]:

[POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS], [OTHER M] (music), [JAZZ], [COUNTRY], [NATION M] (music), [OLDIES], [FOLK M] (music)

The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.

USB/iPod

Connect a USB device

USB input terminal USB type A cable*1 (general products) USB device

The source changes to USB automatically and playback starts.

Connect an iPod/iPhone

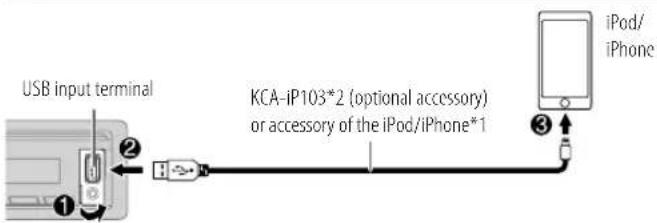

USB input terminal KCA-iP103*2 (optional accessory) or accessory of the iPod/iPhone*1 iPod/ iPhone

See "Set the playable source for iPod/iPhone" on page 12 to start playback. You can also connect iPod/iPhone via Bluetooth. (Page 16)

*1 Do not leave the cable inside the car when not in use.
*2 KCA-iP103: Lightning type

Basic operations

KENWOOD SNC

Selectable sources: USB/iPod USB or iPod BT

For playable audio file, see " playable files" on page 36.

To On the faceplate

Play back/pause	Press 6 ▶II.
Reverse/Fast-forward	Press and hold I◀◀/▶▶I.
Select a file	Press I◀◀/▶▶I.
Select a folder* Press 2	^ / 1V
Repeat play Press 4	○ repeatedly.[FILE REPEAT]/[FOLDER REPEAT]/[ALL REPEAT]: MP3/WMA/AAC/WAV/FLAC file[REPEAT ONE]/[REPEAT ALL]/[REPEAT OFF]: iPod
Random play Press 3	✕ repeatedly.[FOLDER RANDOM]/[RANDOM OFF]: MP3/WMA/AAC/WAV/FLAC file[SHUFFLE ON]/[SHUFFLE OFF]: iPod
	Press and hold 3✕ to select [ALL RANDOM].*

* This does not work for iPod.

USB/iPod

Select music drive

While in USB source, press 5 repeatedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).
• Selected drive of a multiple drive device. (This unit can support multiple drive device of up to 4 drives. However, this unit may take some time to read if three or more cards are connected.)

You can also select the music drive from the [FUNCTION] menu.

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [USB], then press the knob.
3 Turn the volume knob to select [MUSIC DRIVE], then press the knob.
4 Turn the volume knob to select [DRIVE CHANGE], then press the knob.

The next drive ( [DRIVE 1] to [DRIVE 4]) is selected automatically and playback starts.

5 Repeat step 1 to step 4 to select the following drives.
6 Press and hold to exit.

To return to the previous setting item, press Q/5.

Set the playable source for iPod/iPhone

You can make the following setting at all sources except at iPod USB source and iPod BT source.

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated.
4 Press and hold to exit.
To return to the previous setting item, press Q/S.

12

ENGLISH

Default: [XX]

[USB]

[IPHONE SETUP]

[BT]: iPod BT source is available if iPod/iPhone is connected via Bluetooth.

- If you connect the iPod/iPhone via USB input terminal, iPod USB source is not available. However, once the Bluetooth is disconnected, iPod USB source will become available.

[USB]: iPod USB source is available if iPod/iPhone is connected via USB input terminal, regardless of whether Bluetooth connection is available or not.

- Alexa mobile application cannot be used when iPod USB source is selected.

Select a file to play

From a folder or list

Press 9/5
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Selected file starts playing.

Quick search(applicable only for USB source)

If you have many files, you can search through them quickly.

Press .Q/5
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob quickly to browse through the list quickly.
4 Turn the volume knob to select a file, then press the knob.

Selected file starts playing.

USB/iPod

Skip search (applicable only for iPod USB source and iPod BT source)

If you have many files in the selected list, you can perform the following to search for a file by skipping through the list at a rate selected in [SKIP SEARCH].

1 Press .Q/5
2 Turn the volume knob to select a list, then press the knob.
3 Press |◀◀/▶▶| to search at a preset skip search ratio.

- Pressing and holding ◀◀◀ / ▶▶▶ searches at a 10% ratio regardless of the [SKIP SEARCH] settings.

4 Turn the volume knob to select a file, then press the knob.

Selected file starts playing.

[SKIP SEARCH] setting

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [USB], then press the knob.
3 Turn the volume knob to select [SKIP SEARCH], then press the knob.
4 Turn the volume knob to select the skip search ratio, then press the knob.

[0.5%] (default)/[1%]/[5%]/[10%]

The skip search ratio is shown as a percentage of the total files.

5 Press and hold to exit.

Alphabet search(applicable only for iPod USB source and iPod BT source)

You can search for a file according to the first character.

1 Press .Q/5
2 Turn the volume knob to select a list, then press the knob.
3 Turn the volume knob quickly to enter character search.
4 Turn the volume knob to select the character.

- Select “ * ” to search for a character other than A to Z, 0 to 9.

5 Press ◀◀◀ / ▶▶▶ to move to the entry position.
- You can enter up to 3 characters.
6 Press the volume knob to start searching.
7 Turn the volume knob to select a file, then press the knob.

Selected file starts playing.

• To return to the root folder/first file/top menu, press 5. (Not applicable for BT AUDIO source.)
  • To return to the previous setting item, press 9/5.
  • To cancel, press and hold 9/5

AUX

You can listen to music from a portable audio player via the auxiliary input jack.

Preparation:

Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (Page 5)

Start listening

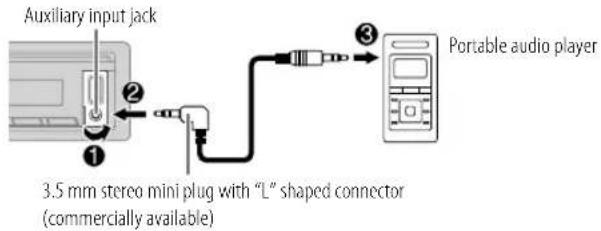

1 Connect a portable audio player (commercially available).

Auxiliary input jack 3.5 mm stereo mini plug with "L" shaped connector (commercially available) Portable audio player

2 Press ⏻ SRC repeatedly to select AUX.

3 Turn on the portable audio player and start playback.

Set the name of the external device

While listening to a portable audio player connected to the unit...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SYSTEM], then press the knob.
3 Turn the volume knob to select [AUX NAME SET], then press the knob.
4 Turn the volume knob to select an item, then press the knob. [AUX] (default)/[DVD]/[PORTABLE]/[GAME]/[VIDEO]/[TV]
5 Press and hold _exit

To return to the previous setting item, press 9/5.

KENWOOD Remote Application

You can control the KENWOOD car receiver from iPhone/iPod touch (via Bluetooth or via USB input terminal) or Android device (via Bluetooth) using KENWOOD Remote application.

- For more information, visit https://www.kenwood.com/cs/ce/.

Preparation:

Install the latest version of KENWOOD Remote application on your device before connecting.

Start using KENWOOD Remote application

1 Start up the KENWOOD Remote application on your device.

2 Connect your device.

- For Android device: Pair the Android device with this unit via Bluetooth. (Page 16)

- For iPhone/iPod touch: Connect iPhone/iPod touch to the USB input terminal. (Page 11) (or) Pair the iPhone/iPod touch with this unit via Bluetooth. (Page 16) (Make sure the USB input terminal is not connected to any device

3 Select the device to use from the [FUNCTION] menu.

See the following "Settings to use KENWOOD Remote application". By default, [ANDROID] is selected. To use iPhone/iPod touch, select [YES] for [IOS].

Settings to use KENWOOD Remote application

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (page 15), then press the knob.
3 Repeat step 2 until the desired item is selected/activated.
4 Press and hold to exit.

To return to the previous setting item, press 9/5.

KENWOOD Remote Application Bluetooth®

Default: [XX]

[REMOTEAPP]

[SELECT]	Selects the device ([IOS] or [ANDROID]) to use the application.
[IOS]	[YES]: Selects iPhone/iPod touch to use the application via Bluetooth or connected via USB input terminal. ; [NO]: Cancels.If [IOS] is selected, select iPod BT source (or iPod USB source if your iPhone/iPod touch is connected via USB input terminal) to activate the application.See "Set the playable source for iPod/iPhone" on page 12 for further information.The connectivity of the application will be interrupted or disconnected if:You change from iPod BT source to any playback source connected via the USB input terminal.You change from iPod USB source to iPod BT source.
[ANDROID]	[YES]: Selects Android device to use the application via Bluetooth. ; [NO]: Cancels.

[ANDROID LIST] Selects the Android device to use from the list.

- Displayed only when [ANDROID] of [SELECT] is set to [YES].

[STATUS] Shows the status of the selected device.

[IOS CONNECTED]: You are able to use the application using the iPhone/iPod touch connected via Bluetooth or USB input terminal.

[IOS NOT CONNECTED]: No iOS device is connected to use the application.

[ANDROID CONNECTED]: You are able to use the application using the Android device connected via Bluetooth.

[ANDROID NOT CONNECTED]: No Android device is connected to use the application.

• Depending on the Bluetooth version, operating system and the firmware version of your mobile phone, Bluetooth features may not work with this unit.
• Be sure to turn on the Bluetooth function of the device to make the following operations.
  • Signal conditions vary depending on the surroundings.

Bluetooth — Connection

Supported Bluetooth profiles

• Hands-Free Profile (HFP)
• Advanced Audio Distribution Profile (A2DP)
• Audio/Video Remote Control Profile (AVRCP)
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)

Supported Bluetooth codecs

• Sub Band Codec (SBC)
• Advanced Audio Coding (AAC)

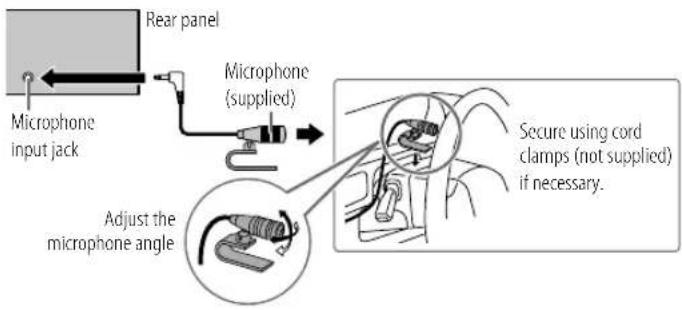

Connect the microphone

Rear panel Microphone input jack Microphone (supplied) Adjust the microphone angle Secure using cord clamps (not supplied) if necessary.

Bluetooth®

Pair and connect a Bluetooth device for the first time

1 Press ⏻ SRC to turn on the unit.
2 Search and select the name of your receiver ("KMM-BT508DAB"/ "KMR-M508DAB") on the Bluetooth device.

"PAIRING" "PASS XXXXXX" "Device name" "PRESS" "VOLUME KNOB" appears on the display.

- For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

3 Press the volume knob to start pairing.

"PAIRING OK" appears when pairing is completed.

Once pairing is completed, Bluetooth connection is established automatically.

• "BT 1" and/or "BT 2" indicator on the display window lights up.
• "T" indicator lights up to show the strength of the battery and signal of the connected device.
  • This unit supports Secure Simple Pairing (SSP).
• Up to five devices can be registered (paired) in total.
• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see [DEVICE DELETE] on page 19.
• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. To connect or disconnect the registered device, see [PHONE SELECT] or [AUDIO SELECT] in [BT MODE]. (Page 19)

However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (Page 20, 21)

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.
• Refer to the instruction manual of the Bluetooth device for more information.

Auto Pairing

When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to [ON]. (Page 19)

Press the volume knob to pair once you have confirmed the device name.

Bluetooth — Mobile phone

KENWOOD ZONE 1 ZONE 2

Receive a call

When there is an incoming call:

• [ZONE 2] illuminates in green color and flashes.
- The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (Page 17)

During a call:

• [ZONE 1] illuminates according to the settings made for [DISPLAY] (page 29) and [ZONE 2] illuminates in green color.
• If you turn off the unit or detach the faceplate, Bluetooth is disconnected.

Bluetooth®

The following operations may differ or be unavailable depending on the connected phone.

To On the faceplate
First incoming call...

Answer a call	Press or the volume knob or one of the number buttons (1 to 6).
Reject a call	Press Q/S .
End a call	Press Q/S .

While talking on the first incoming call...

Answer another incoming call and hold the current call	Press ↗.
Reject another incoming call	Press Ⓠ/♂.

While having two active calls...

End current call and activate held call	Press Q/D .
Swap between the current call and held call	Press F .

Adjust the phone volume*1 Turn the volume knob during a call. [00] to [35] (Default: [15])

Switch between hands-free and private talk modes*2

Press 6 ▶II during a call.

*1 This adjustment will not affect the volume of the other sources.
*2 Operations may vary according to the connected Bluetooth device.

■ Improve the voice quality

While talking on the phone...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to ext.

To return to the previous setting item, press 9/5.

Default: [XX]

[MIC GAIN]	[-10] to [+10] ([-4]): The sensitivity of the microphone increases as the number increases.
[NR LEVEL]	[LEVEL -5] to [LEVEL +5] ([LEVEL 0]): Adjust the noise reduction level until the least noise is being heard during a phone conversation.
[ECHOCANCEL]	[LEVEL -5] to [LEVEL +5] ([LEVEL 0]): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

- Call quality may depend on mobile phone.

Make the setting for answering a call

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [SETTINGS], then press the knob.
3 Turn the volume knob to select [AUTO ANSWER], then press the knob.
4 Turn the volume knob to select the time (in seconds) for the unit to answer the call automatically, then press the knob. [01] to [30], or select OFF to cancels. (Default: OFF)

5 Press and hold to exit.

To return to the previous setting item, press 9/5.

Bluetooth®

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.

"(First device name)" appears.

- If two Bluetooth phones are connected, press again to switch to the other phone. “(Second device name)” appears.

2 Turn the volume knob to select an item (see the following table), then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press and hold ① exit.

To return to the previous setting item, press Q/5.

[CALL HISTORY] (Applicable only if the phone supports PBAP.)

1 Press the volume knob to select a name or a phone number.

- "I" indicates call received, "O" indicates call made, "M" indicates call missed.

- Press DISP to change the display category (NUMBER or NAME).

- "NO DATA" appears if there is no recorded call history or call number.

2 Press the volume knob to call.

[PHONE BOOK] (Applicable only if the phone supports PBAP.)

1 Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts).

The first menu (ABCDEFGHIJK) appears.

- To go to the other menu (LMNOPQRSTUV orWXYZ1 *), press 2 ∧ 1 ∨.

- To select the desired first letter, turn the volume knob or press 1 / 1 , then press the knob.

Select "1" to search with numbers and select " * " to search with symbols.

2 Turn the volume knob to select a name, then press the knob.

3 Turn the volume knob to select a phone number, then press the knob to call.

- For using phonebook with this unit, make sure to allow access to or transfer from your smartphone. Depending on the connected phone, the process may be different.

- Contacts are categorized as: HM (home), OF (office), MO (mobile), OT (other), GE (general)

- This unit can display only non-accent letters. (Accent letters such as "U" are shown as "U".)

[NUMBER DIAL]

1 Turn the volume knob to select a number (0 to 9) or character (*#, +).

2 Press/▶◀/▶▶1 to move the entry position. Repeat step 1 and step 2 until you finish entering the phone number.

3 Press the volume knob to call.

[VOICE] Speak the name of the contact you want to call or the voice command to control the phone functions. (See also "Make a call using voice recognition" on page 19.)

[LOW]/[MID]/[FULL]: Shows the strength of the battery.*

[NO SIGNAL]/[LOW]/[MID]/[MAX]: Shows the strength of the current received signal.

* Functionality depends on the type of the phone used.

Bluetooth®

Make a call using voice recognition

1 Press and hold to activate the voice recognition of the connected phone.
2 Speak the name of the contact you want to call or the voice command to control the phone functions.
- Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [CALL HISTORY], [PHONE BOOK] or [NUMBER DIAL], then press the knob.
3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number.
4 Press and hold one of the number buttons (1 to 6).
"STORED" appears when the contact is stored.

To erase a contact from the preset memory, select [NUMBER DIAL] in step 2, store a blank number in step 3 and proceed to step 4.

Make a call to a registered number

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press the volume knob to call.
"NO MEMORY" appears if there is no contact stored.

Bluetooth mode settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold to exit.

To return to the previous setting item, press 9/5.

Default: [XX]

[BTMODE]
[PHONE SELECT]	Selects the phone or audio device to connect or disconnect. “*” appears in front of the device name when connected.
[AUDIO SELECT]	“▷” appears in front of the current playback audio device. • You can connect a maximum of two Bluetooth phones and one Bluetooth audio device at a time.
[DEVICEDELETE]	1 Turn the volume knob to select a device to delete, then press the knob. 2 Turn the volume knob to select [YES] or [NO], then press the knob.
[PIN CODE EDIT] (0000)	Changes the PIN code (up to 6 digits). 1 Turn the volume knob to select a number. 2 Press1◄◄ /►►1 to move the entry position. Repeat step 1 and step 2 until you finish entering the PIN code. 3 Press the volume knob to confirm.
[RECONNECT]	[ON]: The unit is automatically reconnect when the last connected Bluetooth device is within the connectable range. ; [OFF]: Cancels.
[AUTOPAIRING]	[ON]: The unit is automatically paired with the supported Bluetooth device (iPhone/iPod touch) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ; [OFF]: Cancels.

Bluetooth®

[INITIALIZE] [YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; [NO]: Cancels.

Bluetooth test mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired.

1 Press and hold .

"PLEASE PAIR YOUR PHONE PIN 0000" appears on the display.
2 Search and select the name of your receiver ("KMM-BT508DAB"/ "KMR-M508DAB") on the Bluetooth device.
3 Operate the Bluetooth device to confirm pairing.

"TESTING" flashes on the display.

The connectivity result (OK or NG) appears after the test.

PAIRING: Pairing status

HF CNT: Hands-Free Profile (HFP) compatibility

AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility

PB DL: Phonebook Access profile (PBAP) compatibility

To cancel test mode, press and hold ⏻ SRC to turn off the unit.

Bluetooth — Audio

• Operations and display indications may differ according to their availability on the connected device.
• Depending on the connected device, some features may not work with your device.

KENWOOD

While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices.

Listen to the audio player via Bluetooth

1 Press ⏻ SRC repeatedly to select BT AUDIO.
2 Operate the audio player via Bluetooth to start playback.

To On the faceplate

Play back/pause	Press 6 ▶III.
Select group or folder Press 2	^ / 1V
Reverse skip/Forward skip	Press I◀◀ / ▶▶I.
Reverse/Fast-forward	Press and hold I◀◀ / ▶▶I.
Repeat play Press 4	○ repeatedly.[ALL REPEAT], [FILE REPEAT], [GROUP REPEAT],[REPEAT OFF]

Bluetooth®

To On the faceplate
Random play Press and hold 3 to select × [ALL RANDOM] or [GROUP RANDOM].• Press 3× to select [RANDOM OFF].
Select a file from a folder/list	Refer to "Select a file to play" on page 12.
Switch between connected Bluetooth audio devices	Press 5.(Pressing the "Play" key on the connected device itself also causes switching of sound output from the device.)

Listen to iPod/iPhone via Bluetooth

You can listen to the songs on the iPod/iPhone via Bluetooth on this unit.

Press ⏻ SRC repeatedly to select iPod BT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. (Page 11)
• See "Set the playable source for iPod/iPhone" on page 12 for further information.

AMAZONALEXA

Alexa is the cloud-based voice service developed by Amazon. You can ask Alexa to play music, get weather reports, traffic information, control smart home devices, shop on Amazon, search the internet, set reminders and more.

Preparation:

• Create an account at .
  • Install the latest version of the Alexa mobile application on your device (iPhone/iPod touch or Android device), then log in to the application.
• Be sure to enable the internet connection on your smartphone.

Setup for the first time

For Android device

1 Pair your device with this unit via Bluetooth. (Page 16)
2 Start up the Alexa mobile application on your device.
3 Pair this unit to Alexa mobile application.

Perform Option A or Option B. (Page 22)

For iPhone/iPod touch

1 Pair your device with this unit via Bluetooth. (Page 16)
2 Start up the Alexa mobile application on your device.
3 Press on the unit to enter ALEXA source.
- You may also press ⏻ SRC repeatedly to select iPod BT source.
- See "Set the playable source for iPod/iPhone" on page 12 for further information.
4 Pair this unit to Alexa mobile application.
Perform Option A or Option B. (Page 22)

AMAZONALEXA

Option A: Direct Link

Access the following URL or scan the QR code with your smartphone:

https://www.kenwood.com/car/alexa

Option B: Manual Pairing

1 Start up the Alexa mobile application and go to the "Devices" tab.
2 Tap the " + " icon at the top right corner.
3 Tap "Add Device".
4 Tap "Automotive Accessory" or "Headphones" from the list of device types.
5 Tap the name of your receiver ("KMM-BT508DAB"/"KMR-M508DAB") and follow the instructions.

Once the setup process is completed, the Alexa mobile application will establish a connection with this unit.

• The Alexa connection can be disconnected if:
- A2DP profile is disconnected
- Bluetooth is disconnected
- This unit is turned off
- Stop Alexa mobile application running in foreground/background of your device
– Any other conditions depending on the connected device To establish Alexa connection again, reconnect the A2DP profile.
- Alexa connection cannot be established again if you:
– Reinstall Alexa mobile application
- Delete the paired device and perform pairing again (for Android device)
To establish Alexa connection again, perform the setup process again.
- You can check the Alexa connection from the Alexa mobile application. If the name of this unit appears on the screen of "ALL DEVICES", you do not need to perform setup process again.

KEWOOD

Basicoperations

For Alexa supported languages, see page 37 for more information. Some of the languages listed will be available by updating firmware of this unit when new release of firmware is available.

To update the firmware, see page 6 for more information.

Once Alexa connection is established...

1 Speak the word "Alexa" to the connected microphone (Page 15) to activate Alexa.

(or)

Press on the unit to speak with Alexa.

The display shows: "ALEXA" "LISTENING...".

Alexa cannot be activated by voice if:

– Alexa mobile application is not activated.

- Microphone is turned off, "Indicator lights up. See "Turn on/off microphone" on page 23.

- Current playback source is iPod USB.

- While using Bluetooth phone features.

2 Communicate with Alexa via the connected microphone. (Page 15)

"THINKING..." appears when Alexa is processing your voice input. "SPEAKING..." appears while Alexa is responding to your voice input. "ALEXA" or display information such as playing time, song title, etc. appears while Alexa is in idle state.

AMAZONALEXA

• To return to the previous source before ALEXA, press ⏻ SRC.
• To activate Alexa, press ♣ or speak "Alexa".
• To cancel current listening state, press ↓.
- To cancel current thinking/speaking states and go to listening state, press 🔔 or speak "Alexa".
- Only one Alexa connection can be connected at one time.
- "DOWNLOAD" → "ALEXA APP" → "AND PAIR" → "BLUETOOTH" → "TO USE ALEXA" appear if the unit is disconnected from Alexa mobile application or the Bluetooth connection is disconnected.
- Alexa will be ready to listen to the wake word after reconnected.

Turn on/off microphone

Press and hold to turn on and turn off the microphone.

• "∅" indicator lights up when the microphone is turned off.
• You cannot perform this operation while using Bluetooth phone features.

Start listening

While in Alexa idle state...

1 Speak the word "Alexa" to the connected microphone (Page 15) to activate Alexa.

(or)

Press on the unit to speak with Alexa.

The display shows: "LISTENING...".

2 Communicate with Alexa via the connected microphone.
3 During music playback in ALEXA source, you can perform the following operations:

To On the faceplate

Play back/pause	Press 6 ▶II.
Reverse skip/Forward skip	Press I◀◀ / ▶▶I.

During music playback, press 🎯 or speak "Alexa" to pause the music and activate Alexa. You can now start to communicate with Alexa.

AudioSettings

KEWWOOD SPC PLVD

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

To return to the previous setting item, press 9/5.

Default: [XX]

[AUDIO CONTROL]
[SUB-WLEVEL]	[LEVEL -50] to [LEVEL +10] ([LEVEL 0]): Adjusts the subwoofer output level.
[EASY EQ]	Adjusts your own sound settings.The settings are stored to [USER] in [PRESET EQ].The settings made may affect the current settings of [MANUAL EQ].[SW]: [LEVEL -50] to [LEVEL +10] (Default: [LEVEL 0][BASS]: [LEVEL -9] to [LEVEL +9] [LEVEL 0][MID]: [LEVEL -9] to [LEVEL +9] [LEVEL 0][TRE]: [LEVEL -9] to [LEVEL +9] [LEVEL 0]}

[MANUAL EQ] Adjusts your own sound settings for each source. The settings are stored to [USER] in [PRESET EQ]. The settings made may affect the current settings of [EASY EQ].
[62.5HZ] [LEVEL]	[LEVEL -9] to [LEVEL +9] ([LEVEL 0]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)
	[BASS EXTEND] [ON]: Turns on the extended bass.; [OFF]: Cancels.
[100HZ]/[160HZ]/[250HZ]/[400HZ]/[630HZ]/[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[6.3KHZ]/[10KHZ]/[16KHZ]	[LEVEL -9] to [LEVEL +9] ([LEVEL 0]): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)
[Q FACTOR]	[1.35]/[1.50]/[2.00]: Adjusts the quality factor.
[PRESET EQ]	[NATURAL]/[ROCK]/[POPS]/[EASY]/[TOP40]/[JAZZ]/[POWERFUL]/[USER]: Selects a preset equalizer suitable to the music genre. For KMM-BT508DAB: When the display demonstration is activated ([ON] is selected initially, page 29), [ROCK] is automatically selected as the [PRESET EQ]. - If you set [DEMO MODE] to [OFF] (page 29), [NATURAL] is selected as the default setting for [PRESET EQ]. (Select [USER] to use the settings made in [EASY EQ] or [MANUAL EQ].)
[BASS BOOST]	[LV1] to [LV5]: Selects your preferred bass boost level.; [OFF]: Cancels.
[LOUDNESS]	[LV1]/[LV2]: Selects your preferred low or high frequencies boost to produce a well-balanced sound at low volume.; [OFF]: Cancels.
[SUBWOOFERSET]	[ON]: Turns on the subwoofer output.; [OFF]: Cancels.
[FADER]	(Not applicable if 3-way crossover is selected.) (Page 6) [R15] to [F15] ([O]): Adjusts the front and rear speaker output balance.

Audio Settings

[BALANCE]	[L15] to [R15] ([0]): Adjusts the left and right speaker output balance.
[VOLUME OFFSET]	[-15] to [+6] ([0]): Presets the initial volume level of each source by comparing to the FM volume level.(Before adjustment, select the source you want to adjust.)
[SOUND EFFECT]
[SOUND RECNSTR](Sound reconstruction)	(Not applicable for RADIO source, DIGITAL AUDIO source and AUX source.)[ON]: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression.; [OFF]: Cancels.
[SPACE ENHANCE]	(Not applicable for RADIO source and DIGITAL AUDIO source.)[SML]/[MED]/[LRG]: Virtually enhances the sound space.;[OFF]: Cancels.
[SND REALIZER]	[LV1]/[LV2]/[LV3]: Virtually makes the sound more realistic.;[OFF]: Cancels.
[STAGE EQ]	[LOW]/[MID]/[HI]: Virtually adjusts the sound position heard from the speakers.; [OFF]: Cancels.
[DRIVE EQ]	[ON]: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres.; [OFF]: Cancels.
[SPEAKER SIZE]	Depending on the crossover type you have selected (see “Change the crossover type” on page 6), 2-way crossover or 3-way crossover setting items will be shown. (See the following “Crossover settings”.) By default, 2-way crossover type is selected.
[X'OVER]
[DTA SETTINGS]	For settings, see “Digital Time Alignment settings” on page 27.
[CAR SETTINGS]

• For 2-way crossover: [SUB-W LEVEL]/[SUBWOOFER SET] is selectable only if [SWITCH PREOUT] is set to [SUB-W]. (Page 5)
• [SUB-W LEVEL] is selectable only when [SUBWOOFER SET] is set to [ON]. (Page 24)

Crossoversettings

Below are the available setting items for 2-way crossover and 3-way crossover.

SPEAKER SIZE

Selects according to the connected speaker size for optimum performance.

• The frequency and slope settings are automatically set for the crossover of the selected speaker.

• If [NONE] is selected for the following speaker in [SPEAKER SIZE], the [X'OVER] setting of the selected speaker is not available.

• 2-way crossover[TWEETER] of [FRONT]/[REAR]/[SUBWOOFER]

• 3-way crossover[WOOFER]

X'OVER (crossover)

- [FRQ]/[F-HPF FRQ]/[R-HPF FRQ]/[SW LPF FRQ]/[HPF FRQ]/[LPF FRQ]: Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter).

If[THROUGH] is selected, all signals are sent to the selected speakers.
- [SLOPE]/[F-HPF SLOPE]/[R-HPF SLOPE]/[SW LPF SLOPE]/[HPF SLOPE]/[LPF SLOPE]: Adjusts the crossover slope.

Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.

• [SW LPF PHASE]/[PHASE]: Selects the phase of the speaker output to be in line with the other speaker output.
• [GAIN LEFT]/[GAIN RIGHT]/[F-HPF GAIN]/[R-HPF GAIN]/[SW LPF GAIN]/[GAIN]: Adjusts the output volume of the selected speaker.

Audio Settings

2-way crossover setting items

[SPEAKERSIZE]
[FRONT] [SIZE]		[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10]
	[TWEETER]	[SMALL]/[MIDDLE]/[LARGE]/[NONE](not connected)
[REAR]	[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10]/[NONE] (not connected)
[SUBWOOFER]	[16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE](not connected)
[X'OVER]
[TWEETER] [FRQ]		[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]
	[GAIN LEFT]	[-8] to [0]
	[GAIN RIGHT]	[-8] to [0]
[FRONT HPF] [F-HPF FRQ]		[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[F-HPF SLOPE]	[-6DB]/[-12DB]/[-18DB]/[-24DB]
	[F-HPF GAIN]	[-8] to [0]
[REAR HPF] [R-HPF FRQ]		Configure the settings for the rear speakers similarly to the front speakers.
	[R-HPF SLOPE]
	[R-HPF GAIN]

[SUBWOOFER LPF]	[SW LPF FRQ]	[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[SW LPF SLOPE]	[-6DB]/[-12DB]/[-18DB]/[-24DB]
	[SW LPF PHASE]	[REVERSE] (180°)/[NORMAL] (0°)
	[SW LPF GAIN]	[-8] to [0]

• [SUBWOOFER] of [SPEAKER SIZE] and [SUBWOOFER LPF] of [X'OVER] is selectable only when [SWITCH PREOUT] is set to [SUB-W] (page 5) and [SUBWOOFER SET] is set to [ON] (page 24).

B-way crossover setting items

[SPEAKER SIZE]
[TWEETER]	[SMALL]/[MIDDLE]/[LARGE]
[MID RANGE]	[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]
[WOOFER]	[16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE](not connected)
[X'OVER]
[TWEETER] [HPF FRQ]	[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]
	[SLOPE] [-6DB]/[-12DB]
	[PHASE] [REVERSE] (180°)/[NORMAL] (0°)
	[GAIN] [-8] to [0]

Audio Settings

[MID RANGE]	[HPF FRQ]	[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[HPF SLOPE]	[-6DB]/[-12DB]
	[LPF FRQ]	[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]/[THROUGH]
	[LPF SLOPE]	[-6DB]/[-12DB]
	[PHASE]	[REVERSE] (180°)/[NORMAL] (0°)
	[GAIN]	[-8] to [0]
[WOOFER] [LPF FRQ]		[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
		[SLOPE] [-6DB]/[-12DB]
		[PHASE] [REVERSE] (180°)/[NORMAL] (0°)
		[GAIN] [-8] to [0]

• [WOOFER] of [SPEAKER SIZE] and [WOOFER] of [X'OVER] is selectable only when [SUBWOOFER SET] is set to [ON]. (Page 24)

Digital Time Alignment settings

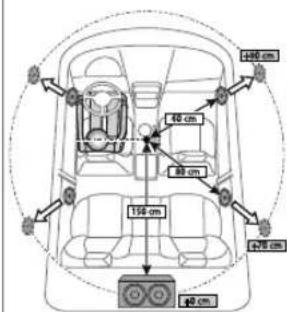

Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

- For more information, see "Determining the delay time automatically" on page 28.

[DTA SETTINGS]
[POSITION]	Selects your listening position (reference point).[ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ;[FRONT LEFT]: Front left seat ; [FRONT ALL]: Front seats• [FRONT ALL] is displayed only when [2-WAY X'OVER] is selected.(Page 6)
[DISTANCE]	[0CM] to [610CM]: Fine adjust the distance to compensate.(Before making an adjustment, select the speaker you want to adjust.)
[GAIN]	[-8DB] to [ODB]: Fine adjust the output volume of the selected speaker.(Before making an adjustment, select the speaker you want to adjust.)
[DTA RESET]	[YES]: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default. ; [NO]: Cancels.
[CAR SETTINGS] Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS].
[CAR TYPE]	[COMPACT]/[FULL SIZE CAR]/[WAGON]/[MINIVAN]/[SUV]/[MINIVAN(LONG)]: Selects the type of vehicle. ;[OFF]: Not compensating.
[R-SP LOCATION]	Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).• [DOOR]/[REAR DECK]: Selectable only when [CAR TYPE] is selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or [SUV].• [2ND ROW]/[3RD ROW]: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)].

• Before making an adjustment for [DISTANCE] and [GAIN] of [DTA SETTINGS], select the speaker you want to adjust:

When 2-way crossover is selected:

[FRONT LEFT]FRONT RIGHT]/[REAR LEFT]/[REAR RIGHT]/[SUBWOOFER]

- You can only select [REAR LEFT], [REAR RIGHT] and [SUBWOOFER] if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER] of [SPEAKER SIZE]. (Page 26)

Audio Settings

- [SUBWOOFER] is selectable only when [SWITCH PREOUT] is set to [SUB-W] (page 5) and [SUBWOOFER SET] is set to [ON] (page 24).

When 3-way crossover is selected:

[TWEETER LEFT]TWEETER RIGHT]/[MID LEFT]/[MID RIGHT]/[WOOFER]

• You can only select [WOOFER] if a setting other than [NONE] is selected for [WOOFER] of [SPEAKER SIZE]. (Page 26)
  • [R-SP LOCATION] of [CAR SETTINGS] is selectable only if:
• 2-way crossover is selected. (Page 6)
• A setting other than [NONE] is selected for[REAR] of [SPEAKER SIZE]. (Page 26)

Determining the delay time automatically

100 cm 80 cm 124 cm 90 cm

If you specify the distance from the currently set listening position to every speaker, the delay time will be automatically calculated.

1 Set [POSITION] and determine the listening position as the reference point (the reference point for [FRONT ALL] will be the center between the right and left in the front seats).
2 Measure the distances from the reference point to the speakers.
3 Calculate the distance between the furthest speaker (subwoofer on the illustration) and other speakers.
4 Sets the [DISTANCE] calculated in step 3 for individual speakers.
5 Adjusts [GAIN] for individual speakers.

Example: When [FRONT ALL] is selected as the listening position.

DisplaySettings

Zone identification for color settings and brightness settings

BENWOOD ZONE 2 ZONE 1 ALL ZONE

Set the dimmer

Press and hold DISP to turn on or off the dimmer.

- Once you press and hold this button, [DIMMER] (page 29) setting will be overwritten.

Change the display settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (page 29), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold to exit.

To return to the previous setting item, press 9/5.

DisplaySettings

[DISPLAY]
[COLORSELECT]	Selects illumination colors for [ALL ZONE], [ZONE 1] and [ZONE 2] separately.1 Select a zone. (See the illustration on page 28.)2 Select a preset color for the selected zone.Default:KMM-BT508DAB : [VARIABLE SCAN]KMR-M508DAB : [INITIAL COLOR]To make your own color, select [CUSTOM R/G/B]. The color you have made will be stored in [CUSTOM R/G/B].1 Press the volume knob to enter the detailed color adjustment.2 Press |◄◄/►►► to select the color ([R]/[G]/[B]) to adjust.3 Turn the volume knob to adjust the level ([0] to [9]), then press the knob.
[DIMMER]	Dims the illumination.[ON]: Dimmer is turned on.[OFF]: Dimmer is turned off.[DIMMER TIME]: Set the time to turn on dimmer and to turn off dimmer.1 Turn the volume knob to adjust the [ON] time, then press the knob.2 Turn the volume knob to adjust the [OFF] time, then press the knob.Default: [ON]: [18:00] ; [OFF]: [6:00]
[BRIGHTNESS] Sets the brightness for day and night separately.1 [DAY]/[NIGHT]: Select day or night.2 Select a zone. (See the illustration on page 28.)3 [LVL00] to [LVL31]: Set the brightness level.
[TEXT SCROLL]	[ONCE]: Scrolls the display information once.; [AUTO]: Repeats scrolling at 5-second intervals.; [OFF]: Cancels.• Not applicable to Dynarnic Label display information (page 37) while in DIGITAL AUDIO source.

[CLOCK]
[CLOCK DISPLAY]	For KMM-BT508DAB[ON]: The clock time is shown on the display even when the unit is turned off. ; [OFF]: Cancels.
[DEMOMODE]	For KMM-BT508DAB[ON]: Activates the display demonstration automatically if no operation is done for about 15 seconds. ; [OFF]: Deactivates.

Preset color:

[INITIAL COLOR]/[VARIABLE SCAN]/[CUSTOM R/G/B]/[RED1]/[RED2]/[RED3]/[PURPLE1]/[PURPLE2]/[PURPLE3]/[PURPLE4]/[BLUE1]/[BLUE2]/[BLUE3]/[SKYBLUE1]/[SKYBLUE2]/[LIGHTBLUE]/[AQUA1]/[AQUA2]/[GREEN1]/[GREEN2]/[GREEN3]/[YELLOWGREEN1]/[YELLOWGREEN2]/[YELLOW]/[ORANGE1]/[ORANGE2]/[ORANGERED]

Installation/Connection

This section is for the professional installer. For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.

WARNING

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
  • To prevent short circuit:
• Insulate unconnected wires with vinyl tape.
• Be sure to ground this unit to the car's chassis again after installation.
• Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires.

CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
- Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
- Mount the unit at an angle of less than 30^ .
- If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
- Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
- If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Part list for installation

(A) Faceplate (×1) (B) Trim plate (×1)

(C) Mounting sleeve (×1) (D) Wiring harness (×1)

(E) Extraction key (×2)

Basic procedure

1 Remove the key from the ignition switch, then disconnect the terminal of the car battery.
2 Install the DAB antenna.
See "Installing the DAB antenna" on page 33.
3 Connect the wires properly.
See "Wiring connection" on page 32.
4 Install the unit to your car.
See "Installing the unit (in-dash mounting)" on page 31.
5 Connect the terminal of the car battery.
6 Press ⏻ SRC to turn on the power.
7 Detach the faceplate and reset the unit within 5 seconds. (Page 3)

Installation/Connection

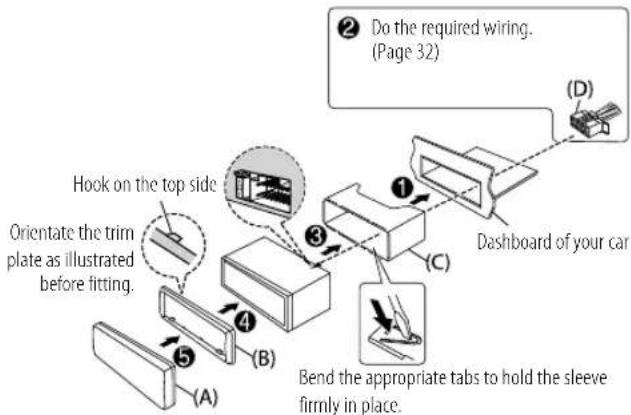

Installing the unit (in-dash mounting)

1

2

Removing the unit

1 Detach the faceplate.
2 Remove the trim plate.
3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration.

Diagram showing three labeled steps (A, B, C, E) of a mechanical or electrical component assembly with directional arrows indicating flow or movement.

Installation/Connection

Wiringconnection

If your car does not have an ISO terminal:

We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.

Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles

You may need to modify the wiring of the supplied wiring harness as illustrated below.

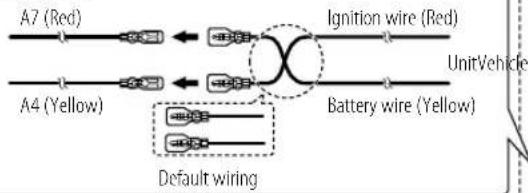

Pin Color and function (for ISO connectors)

A4 Yellow : Battery
A5 Blue/White*1 : Power control
A7 Red : Ignition (ACC)
A8 Black: Earth (ground) connection
B1	Purple ⊕	: Rear speaker (right)
B2	Purple/black ⊖	For 3-way crossover: Tweeter (right)
B3	Gray ⊕	: Front speaker (right)
B4	Gray/black ⊖	For 3-way crossover: Mid range speaker (right)
B5	White ⊕	: Front speaker (left)
B6	White/black ⊖	For 3-way crossover: Mid range speaker (left)
B7	Green ⊕	: Rear speaker (left)
B8	Green/black ⊖	For 3-way crossover: Tweeter (left)

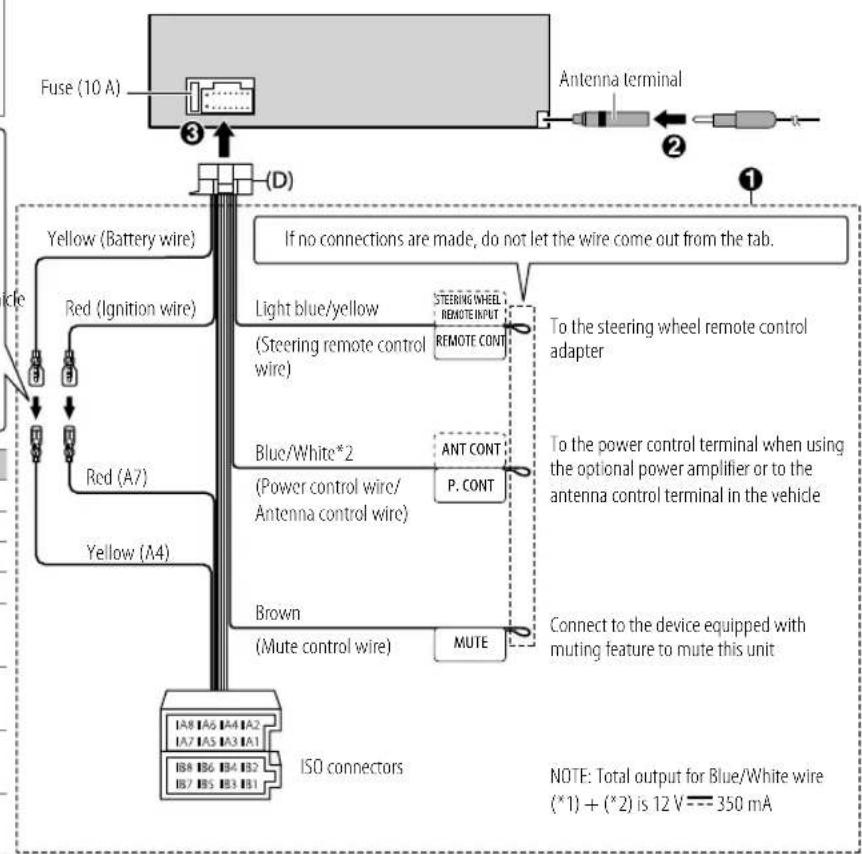

Fuse (10 A) Antenna terminal (D) If no connections are made, do not let the wire come out from the tab. Yellow (Battery wire) Red (Ignition wire) Red (A7) Yellow (A4) Light blue/yellow (Steering remote control wire) STEERING WHEEL REMOTE INPUT REMOTE CONT To the steering wheel remote control adapter Blue/White*2 (Power control wire/ Antenna control wire) ANT CONT P. CONT To the power control terminal when using the optional power amplifier or to the antenna control terminal in the vehicle Brown (Mute control wire) MUTE Connect to the device equipped with muting feature to mute this unit ISO connectors NOTE: Total output for Blue/White wire (*1) + (*2) is 12 V --- 350 mA

Installation/Connection

Connect external components

Diagram of a device rear panel with labeled ports and connectors, showing ports 1, 2, and 3.

No Part

1 Microphone input jack (Page 15)
2 Output terminals (See the following "Connect external amplifiers via output terminals".)
3 DAB antenna jack (Page 7, 36)

Connect external amplifiers via output terminals

When connecting an external amplifier to the output terminals of this unit, securely connect the amplifier ground wire to the car chassis to prevent damage to the unit.

Output terminals 2-way crossover 3-way crossover

FRONT: Front output Mid Range output

REAR/SW: Rear/subwoofer output Woofer output

Installing the DAB antenna

Connect the DAB antenna to the DAB antenna jack. (See the left column.)

• DAB antenna is supplied for KMM-BT508DAB
For details, see the following.
- For KMR-M508DAB, you need to purchase the DAB antenna separately. For details, refer to the instruction manual supplied with the DAB antenna.

CAUTION

• The film antenna (F) is exclusively for use inside the vehicle.
- Do not install at the following locations:

- where it may block the driver's view.

• where it may obstruct the operation of safety devices such as air bags.
  -on movable glass surfaces such as the rear hatch.
• at side of vehicle (e.g. door, front quarter window).
  -on rear window.

• Signal strength will weaken when installed at the following locations:

- on IR reflecting glass or locations covered with mirror type glass film.

• where it overlaps with genuine radio antenna (pattern).
• where it overlaps with window heating wires.
• on glass that blocks radio signals (e.g. IR reflecting glass, thermal insulation glass).

• Poor reception may occur:

• due to noise when windscreen wiper, air conditioner, or motor is turned on.
  – depending on the direction of the broadcast station with respect to the vehicle (antenna).
• Thoroughly wipe oil and dirt from the pasting surface with the supplied cleaner (I).
  Do not bend or damage the film antenna (F).
  It may not be possible to install on certain vehicles.
• Check the cable routing of the film antenna (F) and amplifier unit (G) before pasting.
• Do not apply any glass cleaner after pasting the film antenna (F).

Installation/Connection

Part list for installation

(F) Film antenna (×1) (G) Amplifier unit (cable with booster, 3.5 m) (×1) (H) Cable clampper (×3)

Technical line drawings of mechanical components including a lever, cable, and cleaning plate (no text or symbols)

Determine the antenna installation position

• The direction of the film antenna (F) changes depending on whether the film antenna (F) is installed on the right side or left side.
• Be sure to check the installation location of film antenna (F) before installing. Film antenna cannot be re-pasted.
• Separate from other antennas by at least 100 mm.
• Do not paste the amplifier unit (G) on the ceramic line (black part) around the front glass. Because there is not enough adhesion.

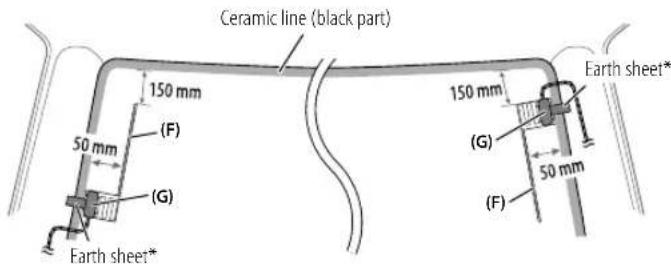

Installing the antenna on the left side Installing the antenna on the right side

Ceramic line (black part) 150 mm (F) 50 mm (G) Earth sheet* 150 mm (G) 50 mm (F) Earth sheet*

* Paste the earth sheet of the amplifier unit (G) on the metal part of the front pillar.

34

ENGLISH

CAUTION

When installing the antenna cable inside the front pillar with the air bag installed

- The front pillar cover is secured with a special clip which may need to be replaced when it is removed. Contact your vehicle dealer for details on removing the front pillar cover and availability of replacement parts.

• Install the amplifier unit (G) above the air bag so that it does not obstruct the operation of the air bag.

(G) Air bag

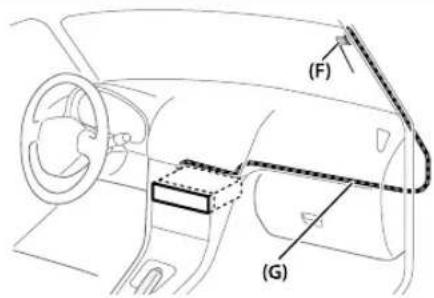

Installation overview

The antenna should be installed on the passenger side for safety.

(F) (G)

Installation/Connection

Antenna installation

1 Remove the front pillar cover of your car.

Front pillar

2 Clean the windscreen with the supplied cleaner (I).

— Wait until the glass surface is completely dry before proceeding.
— Warm the surface of the windscreen with defroster if it is cold (during winter).

3 Remove the separator (tag 1) of film antenna (F) horizontally and paste the antenna on the windscreen.

Separator (tag 1) (F)

Do not touch the pasting surface (adhesive side) of the film antenna (F).

4 Rub the film antenna gently onto the windscreen in the direction of the arrow shown to allow it to stick firmly.

(F)

5 Remove the separator (tag 2) of film antenna (F) vertically.

Separator (tag 2) (F)

6 Set the position of the protrusion of the amplifier unit (G) with the ▼ mark on the film antenna (F) and paste.

Do not touch the lead terminal or the pasting surface (adhesive side) of the amplifier unit (G).

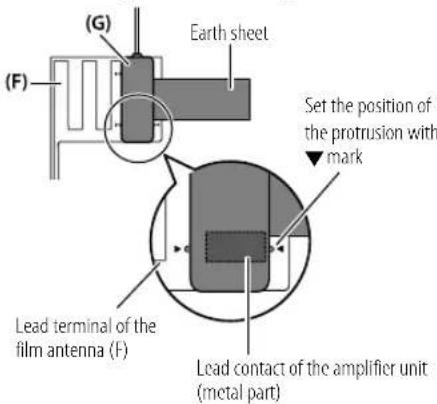

- When installing the antenna on the right side

(G) Earth sheet (F) Set the position of the protrusion with ▼ mark Lead terminal of the film antenna (F) Lead contact of the amplifier unit (metal part)

- When installing the antenna on the left side

Earth sheet (G) (F)

Installation/Connection

7 Remove the film covering the earth sheet and paste the earth sheet on the metal part of the vehicle.

Provide sufficient leeway for the earth sheet so that it does not interfere with the interior parts (front pillar cover). Also take care that the interior parts do not interfere with the amplifier unit (G).

Windscreen (G) Earth sheet Front pillar cover

8 Wire the antenna cables.

Use cable clamper (H) to secure the antenna to the pillar at several positions.

9 Attach the front pillar cover back to its original position.

Be sure not to damage the earth sheet and amplifier unit (G) when covering.

10 Connect the amplifier unit (G) to the DAB antenna jack on the rear of the unit.

Note:

Make sure [DAB ANT POWER] is set to [ON] on the [FUNCTION] menu in standby mode. (Page 5)

[ON] is selected initially.

References

Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab. Be careful not to damage the connector.

Connector (on the reverse side of the faceplate)

Moreinformation

For: — Latest firmware updates and latest compatible item list

• KENWOOD original application
  — Any other latest information

Visit https://www.kenwood.com/cs/ce/.

playablefiles

• USB mass storage class device:

playable audio file:

MP3 (.mp3), WMA (.wma), AAC (.aac), AAC (.m4a), WAV (.wav), FLAC (.flac)

Playable file system: FAT12, FAT16, FAT32

Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or devices.

- For detailed information and notes about the playable audio files, visit https://www.kenwood.com/cs/ce/audiofile/.

References

About USB devices

• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A.

About iPod/iPhone

• Made for
  — iPod touch (6th generation)
  — iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR, 11, 11 Pro, 11 Pro MAX, SE (2nd generation), 12, 12 Mini, 12 Pro, 12 Pro MAX
• The song order displayed on the selection menu of this unit may differ from that of the iPod/iPhone.
• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.

About AMAZON ALEXA

• Alexa is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Alexa supported languages on this unit: US English/Canada English/US Spanish/Canada French/Mexico Spanish/UK English/Italy Italian/Spain Spanish/France French/Deutschland Deutsch/Australia English/Japan Japanese

Change the display information

Each time you press DISP, the display information changes.

- If the information is unavailable or not recorded, "NO TEXT", "NO INFO", or other information (eg. station name) appears or display will be blank.

FM -10:12 Clock time 9790 Main display

Source name Display information: Main display

STANDBY Source name	→ Date back to the beginning
DIGITAL AUDIO Service	label → Ensemble label Dynamic label Song title/Artist Next program → Signal level Date back to the beginning
RADIO Frequency	→ Date back to the beginning
	For FM Radio Data System stations only:Station name/Program type → Radio text → Radio text+ Radio text+ song title/Radio text+ artist → Frequency → Date back to the beginning
USB For MP3/WMA/AMC/WAV/FLAC files:Song title/Artist → Album title/Artist Folder name File name Playing time → Date back to the beginning
iPod USB/iPod BT Song	title/Artist → Album title/Artist Playing time Date back to the beginning
BT AUDIO/ALEXA Song	title/Artist → Album title/Artist Playing time Date back to the beginning
AUX Source name	→ Date back to the beginning

Troubleshooting

Symptom Remedy
General	Sound cannot be heard. • Adjust the volume to the optimum level.• Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Source cannot be selected.	Check the [SOURCE SELECT] setting. (Page 5)
	• Sound cannot be heard.• The unit does not turn on.• Information shown on the display is incorrect.	Clean the connectors. (Page 36)
	The unit does not work at all.	Reset the unit. (Page 3)
	Correct characters are not displayed.	• This unit can only display uppercase letters, numbers, and a limited number of symbols.• Depending on the display language you have selected (page 6), some characters may not be displayed correctly.
Digital Radio	DAB reception is poor.	Make sure [ON] is selected for [DAB ANT POWER]. (Page 5)
	"DAB ANT ERR" Check the DAB antenna. If a passive antenna (without a booster) is used, set [DAB ANT POWER] to [OFF]. (Page 5)
	"RELATED SERV FOUND" • Press the volume knob to activate Soft-Link. (Page 8)• Press 🔒/⇨ to cancel.
Analog Radio	• Radio reception is poor.• Static noise while listening to the radio.	Connect the antenna firmly.

Symptom Remedy
USB/iPod	Playback order is not as intended.	USB device, the folders are played in the order of creation (date and time). The files within each folder are played in the order of the file name (alphabet).
	Elapsed playing time is not correct.	This depends on the recording process earlier (USB).
	"READING" keeps flashing. • Do not use too many hierarchical levels and folders.• Reattach the device (USB/iPod/iPhone).
	"UNSUPPORTED DEVICE" appears.	• Check whether the connected USB device is compatible with this unit and ensure the file systems are in supported formats. (Page 36)• Reattach the USB device.
	"UNRESPONSIVE DEVICE" appears.	Make sure the USB device is not malfunction and reattach the USB device.
	"USB HUB IS NOT SUPPORTED" appears.	This unit cannot support a USB device connected via a USB hub.
	• The source does not change to "USB" when you connect a USB device while listening to another source.• "USB ERROR" appears.	The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device.
	The iPod/iPhone does not turn on or does not work.	• Check the connection between this unit and iPod/iPhone.• Disconnect and reset the iPod/iPhone using hard reset.
	"LOADING" appears when you enter search mode by pressing Q/5.	This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later.

Troubleshooting

Symptom	Remedy
USB/iPod	"NA FILE" Make sure the media (USB) contain supported audio files.(Page 36)
	"COPY PRO" A copy-protected file is played (USB).
	"NO DEVICE" Connect a device (USB/iPod/iPhone), and change the source to USB or iPod USB again.
	"NO MUSIC" Connect a device (USB/iPod/iPhone) that contains playable audio files.
	"iPod ERROR" • Reconnect the iPod. Reset the iPod. Press and hold ⏻ SRC to turn off the power. Turn the power on again for error recovery.
	"MEMORY FULL" You have reached the maximum storage limit of your iPod/iPhone.
Bluetooth®	No Bluetooth device is detected. • Search from the Bluetooth device again. Reset the unit. (Page 3)
	Bluetooth pairing cannot be made. • Make sure you have entered the same PIN code to both the unit and Bluetooth device. Delete pairing information from both the unit and the Bluetooth device, then perform pairing again.(Page 16)
	Echo or noise is heard during a phone conversation. • Adjust the microphone unit's position. (Page 15) Check the [ECHO CANCEL] setting. (Page 17)
	Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth device. Move the car to a place where you can get a better signal reception.
	Phone call sound cannot be heard from the car speakers. • Press 6▶■ during a call to switch between hands-free and private talk mode. (Page 17)

Symptom Remedy
Bluetooth^®	Voice calling method is not successful.	Use voice calling method in a more quiet environment.Reduce the distance from the microphone when you speak the name.Make sure the same voice as the registered voice tag is used.
	Sound is being interrupted or skipped during playback of a Bluetooth audio player.	Reduce the distance between the unit and the Bluetooth audio player.Turn off, then turn on the unit and try to connect again.Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled.	Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP).(Refer to the instructions of your audio player.)Disconnect and connect the Bluetooth player again.
	“NOT SUPPORT” The connected phone does not support Voice Recognition feature or phonebook transfer.
	“NO ENTRY” There is no registered device connected/found via Bluetooth.
	“ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried.
	“NO INFO”/“NO DATA” Bluetooth device cannot get the contact information.
	“HF ERROR XX”/“BT ERROR”	Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center.
	“SWITCHING NG”	The connected phones might not support phone switching feature.
	The Bluetooth connection between the Bluetooth device and the unit is unstable.	Delete the unused registered Bluetooth device from the unit. (Page 19)

Troubleshooting

Symptom Remedy
AMAZON ALEXA	No response from Alexa after the voice input.	Amazon cloud was unable to analyze the voice input.
	Wrong response from Alexa.	Alexa misunderstood what was said or did not catch the entire request or sentence spoken. Please try again. (Page 22)
	“DISCONNECTED” Be sure to connect your smartphone to the unit via Bluetooth. (Page 16)
	Not able to connect or reconnect to Alexa mobile application.	Be sure the audio device is connected via Bluetooth.Select the audio device from [AUDIO SELECT] in [BT MODE]. (Page 19)Perform the one-time setup process again. See “Setup for the first time” on page 21.Turn off, then turn on the unit and try to connect again.For iOS device, make sure ALEXA source or iPod BT source is selected.
	Not able to exit from “TALKING” screen after ending the call.	It may take some time for the unit to exit the “TALKING” screen. Press number button 6 to return to the previous source control screen.
	Not able to go to “LISTENING” screen after activated Alexa.	Disconnect and connect the Bluetooth connection again. (Page 16)Disconnect and connect the Alexa connection again. (Page 21)Turn off the unit for about 10 seconds, then turn on the unit and try again.

Specifications

Digital radio	DAB Frequency Range Band III:174.928 MHz — 239.200 MHz
	Sensitivity -100 dBm
	Signal-to-Noise Ratio 90 dB
	Antenna Connector Type SMB
	Antenna Output Voltage 12 V DC
	Antenna Maximum Current < 100 mA

Analog radio	FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step)
	Usable Sensitivity(S/N = 30 dB)	6.2 dBf (0.56 μV/75 Ω)
	Quiecting Sensitivity(DIN S/N = 46 dB)	15.2 dBf (1.58 μV/75 Ω)
	Frequency Response(±3.0 dB)	30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO) 68.0 dB
	Stereo Separation (1 kHz)	40 dB
	MW (AM)	Frequency Range 531 kHz — 1 611 kHz (9 kHz step)
		Usable Sensitivity(S/N = 20 dB)
	LW	Frequency Range 153 kHz — 279 kHz (9 kHz step)
		Usable Sensitivity(S/N = 20 dB)

Specifications

USB	USB Standard USB 1.1, USB 2.0 (High speed)
	File System FAT12/16/32
	Maximum Supply Current DC 5 V = 1.5 A
	Frequency Response (±1 dB) 20 Hz — 20 kHz
	Signal-to-Noise Ratio (1 kHz) 98 dB
	Dynamic Range 93 dB
	Channel Separation 90 dB
	MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode Compliant with Windows Media Audio
	AAC Decode AAC-LC “.aac”, ".m4a” files
	WAV Decode Linear-PCM
	FLAC Decode FLAC file (Up to 96 kHz/24 bit)

Bluetooth	Version Bluetooth 4.2
	Frequency Range 2.402 GHz — 2.480 GHz
	RF Output Power (E.I.R.P.) +4 dBm (MAX), Power Class 2
	Maximum Communication Range Line of sight approx. 10 m (32.8 ft)
	Profile	HFP 1.7.1 (Hands-Free Profile)SPP (Serial Port Profile)PBAP (Phonebook Access Profile)A2DP (Advanced Audio Distribution Profile)AVRCP 1.6.1 (Audio/Video Remote Control Profile)

Auxiliary	Frequency Response (±3 dB) 20 Hz — 20 kHz
	Input Maximum Voltage	1 000 mV
	Input Impedance	30 kΩ
Audio	Maximum Output Power	50 W × 4
	Full Bandwidth Power(at less than 1 % THD)	22 W × 4
	Speaker Impedance	4 Ω — 8 Ω
	Tone Action	Band 1: 62.5 Hz ±9 dBBand 2: 100 Hz ±9 dBBand 3: 160 Hz ±9 dBBand 4: 250 Hz ±9 dBBand 5: 400 Hz ±9 dBBand 6: 630 Hz ±9 dBBand 7: 1 kHz ±9 dBBand 8: 1.6 kHz ±9 dBBand 9: 2.5 kHz ±9 dBBand 10: 4 kHz ±9 dBBand 11: 6.3 kHz ±9 dBBand 12: 10 kHz ±9 dBBand 13: 16 kHz ±9 dB
	Preout Level/Load	2 500 mV/10 kΩ
	Preout Impedance	≤ 600 Ω
General	Operating Voltage	12 V DC car battery
	Installation Size (W × H × D)	182 mm × 53 mm × 100 mm
	Net Weight (includes Trim plate and Mounting sleeve)	0.7 kg

Subject to change without notice.

Table des matieres

Application KENWOOD Remote 14

Bluetooth ^® 15

Bluetooth - Connexion

Bluetooth – Téléphone portable

Bluetooth - Audio

AMAZON ALEXA....21

Réglages audio....24

Installation/Connexion....30

Références....36

Entretien

Plus d'informations

Application KENWOOD Remote

Application KENWOOD Remote Bluetooth®

Défaut: [XX]

[REMOTEAPP]

Diagram illustrating a three-step process of a device with labeled components (A), (B), (C), and (E), showing directional arrows and component placement.

Installation/Connexion

Connexions

Diagram of a device rear panel with labeled ports and connectors, showing ports 1, 2, and 3.

No. Pièce

Consultez https://www.kenwood.com/cs/ce/.

• Made for
- iPod touch (6th generation)
iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR, 11, 11 Pro, 11 Pro MAX, SE (2nd generation), 12, 12 Mini, 12 Pro, 12 Pro MAX

KENWOOD SING

Diagram illustrating a mechanical assembly with labeled parts (A), (B), (C), and (E), showing directional arrows and numbered annotations.

Einbau/Anschluss

Diagram of a device rear panel with labeled ports and connectors, showing ports 1, 2, and 3.

Nr Teil

Simple line drawing of a pole with a flag and two hanging pins (no text or symbols)

(G) Airbag

Einbauübersicht

Trägerblatt (Zapfen 1) (F)

Trägerblatt (Zapfen 2) (F)

• Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
  This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
  • Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
  • Android is a trademark of Google LLC.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Amazon, Alexa and all related marks are trademarks of Amazon.com, Inc. or its affiliates.
• Alexa is not available in all languages and countries. Alexa features and functionality may vary by location.
