ED 12200mm f3.56.3 - Lens OLYMPUS - Free user manual and instructions

Product Type	Zoom lens for Micro Four Thirds cameras
Brand	Olympus
Model	ED 12-200 mm f/3.5-6.3
Focal Length	12-200 mm (35 mm equivalent: 24-400 mm)
Maximum Aperture	f/3.5 (at 12 mm) - f/6.3 (at 200 mm)
Angle of View	84° - 6.2°
Optical Design	11 groups, 16 elements
Aperture Range	f/3.5 to f/22
Minimum Focus Distance	0.22 m (at 12 mm) - 0.7 m (at 200 mm)
Focus Mode	AF/MF (switch)
Mount	Micro Four Thirds
Dimensions (Diameter × Length)	∅ 77.5 × 99.7 mm
Weight	455 g (without caps and hood)
Filter Diameter	∅ 72 mm
Lens Hood Mount	Bayonet
Care and Cleaning	Blow off dust with a blower, wipe with lens cleaning paper
Safety	Do not look at the sun through the lens; do not leave the lens without a cap in the sun; do not point the mounted lens toward the sun
Spare Parts and Repairability	Front cap, rear cap, lens hood available; repair by authorized service center
General Information	Micro Four Thirds compatibility; specifications subject to change without notice

Frequently Asked Questions - ED 12200mm f3.56.3 OLYMPUS

What is the mount of this Olympus 12-200 mm lens?

This lens is compatible with the Micro Four Thirds (MFT) mount.

What is the filter diameter of the lens?

The filter thread diameter is 72 mm.

Can I use a lens hood with this lens?

Yes, a bayonet mount lens hood is supplied (or optional) and attaches directly to the lens.

What is the minimum focus distance?

It varies by focal length: 0.22 m at 12 mm and 0.7 m at 200 mm.

Is this lens stabilized?

The datasheet does not mention built-in stabilization. Stabilization depends on the camera body used.

How to clean the lens?

Use a blower to remove dust, then gently wipe with lens cleaning paper.

What are the important safety precautions?

Never look at the sun through the lens. Do not leave the lens without a cap in direct sunlight (fire risk). Do not point the mounted lens toward the sun.

Can I use multiple filters simultaneously?

Using multiple filters (or a thick filter) may cause vignetting (darkening of the corners).

Is this lens compatible with flash units?

Flash light may be blocked by the lens or hood at certain focal lengths. Test before use.

Where to find technical support for this lens?

For Europe, visit www.olympus-europa.com or call 00800-67 10 83 00 (toll-free).

USER MANUAL ED 12200mm f3.56.3 OLYMPUS

date of issue 2018.12

WD429400

Printed in Japan

OLYMPUS®

MICRO FOURTHIRDS

M.ZUIKO DIGITAL

ED 12-200mm f3.5-6.3

Model No.:IM014

04 - JP 取扱説明書
07 - EN INSTRUCTIONS
11 - ES INSTRUCCIONES
14 - FR MODE D'EMPLOI
17 - ВС ИНСТРУКЦИИ
20 - CS NÁVOD K POUŽITÍ
23 - DR BETJENINGSVEJLEDNING
26 - DE BEDIENUNGSANLEITUNG
29 - EL ODHΓIEΣ
32 - JUHISED
35. KÄYTTÖOHJEET
38 - HE UPDATE
41 - HASZNÁLATI ÚTMUTATÓ
44 - ISTRUZIONI
47 - INSTRUKCIJA
50 - IV NORADJUMI
53 - ML AANWIJZINGEN
56 - NC INSTRUKSJONER

59 - PL INSTRUKCJA
62 - PT INSTRUÇÕES
65 - RC INSTRUCTIUNI
68 - RU ИНСТРУКЦИЯ
71 - SK NÁVOD NA POUŽITIE
74 - SI NAVODILA
77 - SR UPUTSTVO ZA UPOTREBU
80 - SW BRUKSANVISNING
83 - TR TALIMATLAR
86 - UK IHCTPYKЦІЯ
91 - AF الا شادات
92-KF사용설명서
94. 则使用說明書
96 - ต่อแผนนําการใช้งาน
99 - VI CÁC HƯỚNG DĂN

UP 取报说明書

The following important consideration available to products imported for the EU electricity by OLYMPUR EUROPA SE & Co. KG only: OLYMPUR EUROPA SE & Co. KG Amsterdam 14-15, 2009 Hong Kong Manufactured by OLYMPUR CORPORATION Hindi unknown national currency in Tokyo 196 6912, Japan

お手入れ

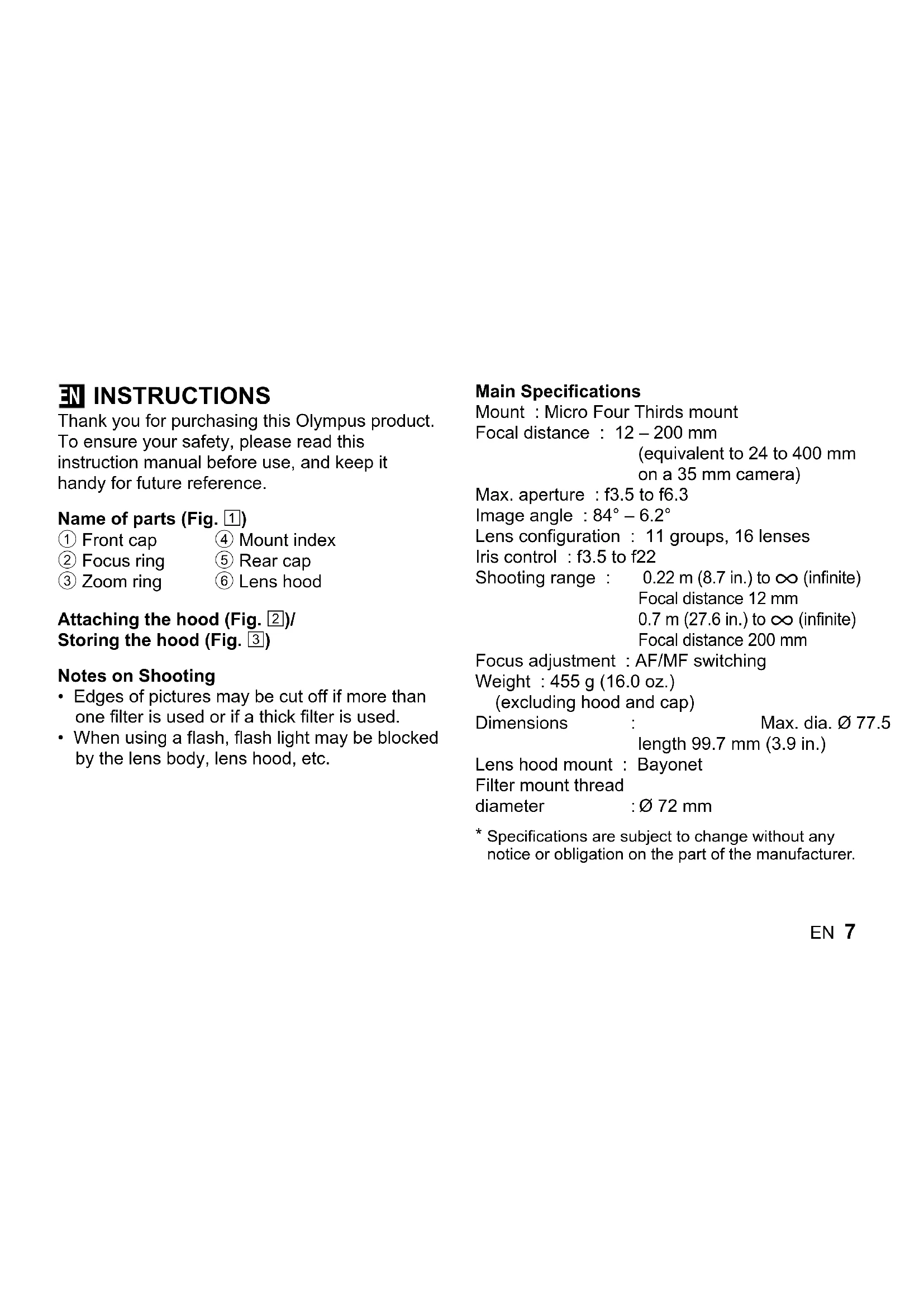

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

Name of parts (Fig. 1)

① Front cap

④ Mount index

② Focus ring

⑤ Rear cap

③ Zoom ring

⑥ Lens hood

Attaching the hood (Fig. 2)/Storing the hood (Fig. 3)

Notes on Shooting

• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 12 – 200 mm

(equivalent to 24 to 400 mm

on a 35 mm camera)

Max. aperture : f3.5 to f6.3

Image angle : 84° – 6.2°

Lens configuration : 11 groups, 16 lenses

Iris control : f3.5 to f22

Shooting range : 0.22 m (8.7 in.) to ∞ (infinite)

Focal distance 12 mm

0.7 m (27.6 in.) to ∞ (infinite)

Focal distance 200 mm

Focus adjustment : AF/MF switching

Weight : 455 g (16.0 oz.)

(excluding hood and cap)

Dimensions : Max. dia. ∅ 77.5

length 99.7 mm (3.9 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter : ∅ 72 mm

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Maintenance

Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers.

FCC Caution

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For customers in North America, Central America, South America and the Caribbean

Declaration of Conformity

Model Number : IM014

Trade Name : OLYMPUS

Responsible Party : OLYMPUS AMERICA INC.

Address : 3500 Corporate Parkway, P. O. Box 610, Center Valley, PA 18034-0610, USA

Telephone Number : 484-896-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help :

http://www.olympusamerica.com/support

Phone customer support :

Tel.[phone] (Toll-free)

Our phone customer support is available

from 9 am to 9 pm (Monday to Friday) ET

E-Mail : [e-mail]

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support

Please visit our homepage

http://www.olympus-europa.com

or call: Tel. 00800 - 67 10 83 00 (Toll-free)

+49 40 - 237 73 899 (Charged)

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at

http://www.olympus.co.jp/en/support/img/digicamera/download/notice/notice.cfm

This product uses T-Kernel source code under the terms of the TRON Forum (www.tron.org) T-License.
