USER MANUAL Scout 40 POLARIS

WARNING WARNING – For anything other than the routine cleaning and maintenance described in this guide, this product must be serviced by a qualified professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in the product’s complete installation and operations manual can be followed exactly. All safety instructions in the complete manual must be followed explicitly in order to prevent injury hazards. Improper installation and/or operation may void the warranty. Never turn the cleaner on unless it is fully submerged in the water. Doing so may void the warranty and may cause severe damage to the cleaner motors.Page 2 ENGLISH Polaris

Robotic Pool Cleaner | Owner’s Manual FCC Statement This device complies with Part 15 of the FCC Rules and IC license-exempt RSS standard. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. CAUTION Any changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. NOTE: This device complies with FCC and IC RF radiation exposure limits set forth for general population. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference including interference that may cause undesired operation of the device.

SAVE THESE INSTRUCTIONS

THANK YOU FOR PURCHASING THE POLARIS CLEANER. YOUR POLARIS ROBOTIC CLEANER HAS BEEN DESIGNED AND MANUFACTURED TO BE EASILY INSTALLED AND TO PROVIDE LOW MAINTENANCE OPERATION. PRIOR TO INSTALLING YOUR NEW POLARIS CLEANER, PLEASE DO THE FOLLOWING:

1) Complete and return the warranty registration card.

2) Record your purchase information on the spaces provided below.

3) Attach your invoice (or a copy) to this page.

Taking these steps will help ensure prompt warranty service, should it be required. If service is required, please contact your original dealer. If the original dealer does not perform warranty service, please visit polarispool.com to locate an independent service company near you. If you are unable to locate a service company, please call our Technical Support department at 1.800.822.7933. RECORD YOUR POLARIS CLEANER DATA HERE: Date of Purchase Purchased From Serial Number: (located on robot-head) City State/Province Zip/Postal CodePage 3 Polaris

Robotic Pool Cleaner | Owner’s Manual ENGLISH Table of Contents

Section 1. Important Safety Instructions .........4

Section 4. General Cleaner Operation .............6

4.3 Start / Stop Cleaning and Select

(connected models only) ............... 12

Control (connected models only) ............... 13

7.6 In-App Error Messages and

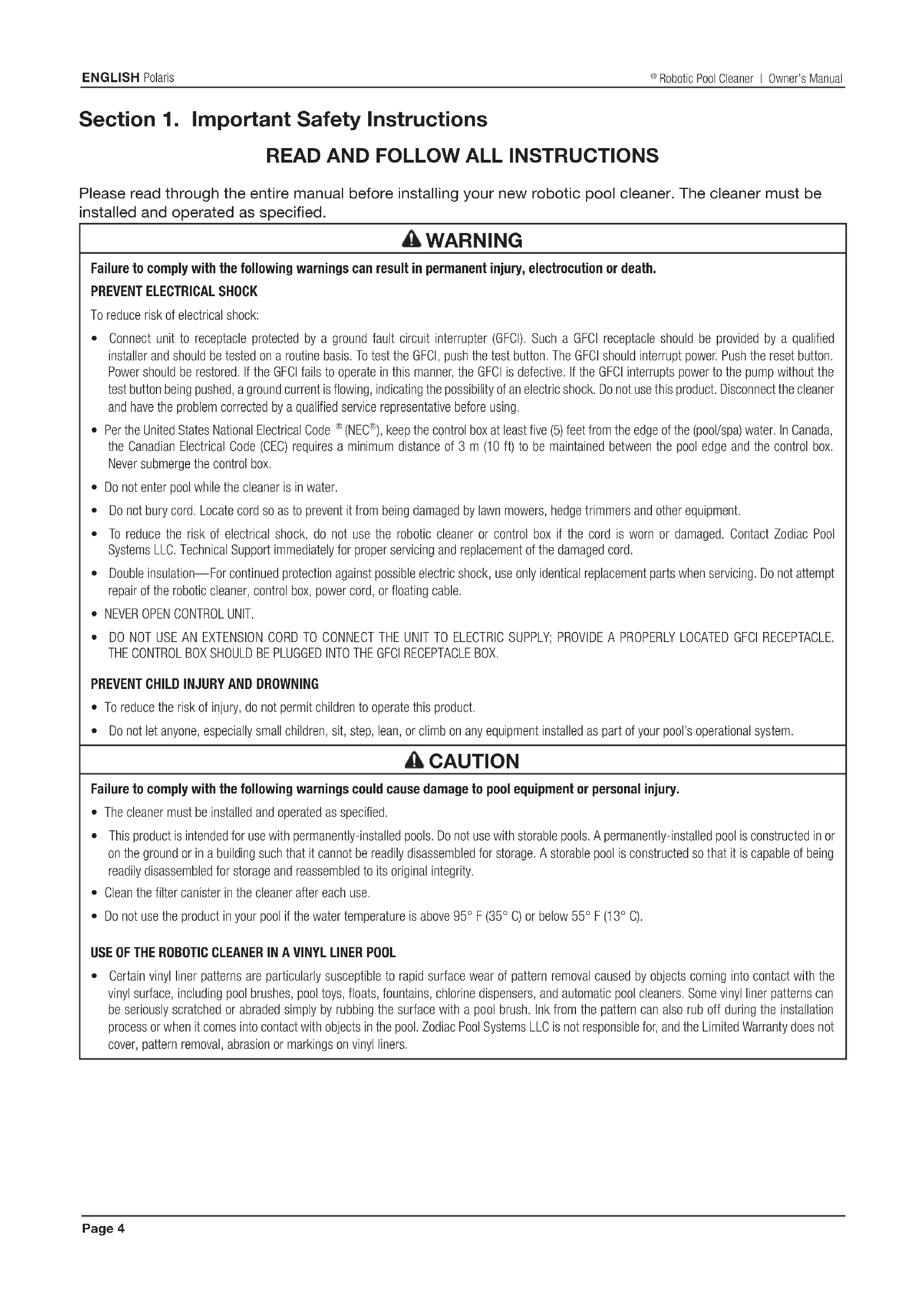

Section 1. Important Safety Instructions

READ AND FOLLOW ALL INSTRUCTIONS

Please read through the entire manual before installing your new robotic pool cleaner. The cleaner must be installed and operated as specified. WARNING Failure to comply with the following warnings can result in permanent injury, electrocution or death.

PREVENT ELECTRICAL SHOCK

To reduce risk of electrical shock:

• Connect unit to receptacle protected by a ground fault circuit interrupter (GFCI). Such a GFCI receptacle should be provided by a qualified installer and should be tested on a routine basis. To test the GFCI, push the test button. The GFCI should interrupt power. Push the reset button. Powershould be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts power to the pump without the test button being pushed, a ground current is flowing, indicating the possibility of an electric shock. Do not use this product. Disconnect the cleaner and have the problem corrected by a qualified service representative before using.

• Per the United States National Electrical Code

), keep the control box at least five (5) feet from the edge of the (pool/spa) water. In Canada, the Canadian Electrical Code (CEC) requires a minimum distance of 3 m (10 ft) to be maintained between the pool edge and the control box. Neversubmerge the control box.

• Do not enter pool while the cleaner is in water.

• Do not bury cord. Locate cord so as to prevent it from being damaged by lawn mowers, hedge trimmers and other equipment.

• To reduce the risk of electrical shock, do not use the robotic cleaner or control box if the cord is worn or damaged. Contact Zodiac Pool SystemsLLC. Technical Support immediately for proper servicing and replacement of the damaged cord.

• Double insulation—For continued protection against possible electric shock, use only identical replacement parts when servicing. Do not attempt repair of the robotic cleaner, control box, power cord, or floating cable.

• To reduce the risk of injury, do not permit children to operate this product.

• Do not let anyone, especially small children, sit, step, lean, or climb on any equipment installed as part of your pool’s operational system. CAUTION Failure to comply with the following warnings could cause damage to pool equipment or personal injury.

• The cleaner must be installed and operated as specified.

• This product is intended for use with permanently-installed pools. Do not use with storable pools. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity.

• Clean the filter canister in the cleaner after each use.

• Do not use the product in your pool if the water temperature is above 95° F (35° C) or below 55° F (13° C). USE OF THE ROBOTIC CLEANER IN A VINYL LINER POOL

• Certain vinyl liner patterns are particularly susceptible to rapid surface wear of pattern removal caused by objects coming into contact with the vinyl surface, including pool brushes, pool toys, floats, fountains, chlorine dispensers, and automatic pool cleaners. Some vinyl liner patterns can be seriously scratched or abraded simply by rubbing the surface with a pool brush. Ink from the pattern can also rub off during the installation process or when it comes into contact with objects in the pool. Zodiac Pool Systems LLC is not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners.Page 5Polaris Robotic Pool Cleaner | Owner’s Manual ENGLISH

Section 2. Cleaner Specifications

Technical Specifications The general specifications for the cleaner are as follows: Control Box Supply Voltage 100-125 VAC, 60 Hz Supply Voltage 30 V DC Installed Load 150 W max The cleaner is a double-insulated product. Adouble-insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to ground. The basic requirement for double-insulation is that no single failure can result in dangerous voltage becoming exposed so that it might cause an electric shock and that this is achieved without relying on an earthed (grounded) metal casing. This is achieved by having two (2) layers of insulating material surrounding live parts or by using reinforced insulation. Therefore, devices having double-insulated construction, suchas this cleaner, do not utilize a grounded (three-prong) cord/plug.

Section 3. Getting Started

The packaging should contain the following items:

• Robotic cleaner and floating cable

3.2 Connect to a Power Source

WARNING Failure to comply with the following warnings can result in permanent injury, electrocution or drowning.

requirements, keep the control box at least 5 ft. (1.5m) from the edge of the pool. CANADA: Per CEC requirements, keep the control box at least 3 m (10 ft) from the edge of the pool. Only connect the control box to a receptacle protected by a ground fault circuit interrupter (GFCI). Contact a certified electrician if you cannot verify that the receptacle is protected by a GFCI. Do not use an extension cord to connect the control box. Do not allow anyone to swim while the cleaner is in the pool. The control box is water-resistant, not waterproof. In order to prevent electrocution, never submerge the control box or leave exposed to inclement weather.Page 6ENGLISH Polaris Robotic Pool Cleaner | Owner’s Manual

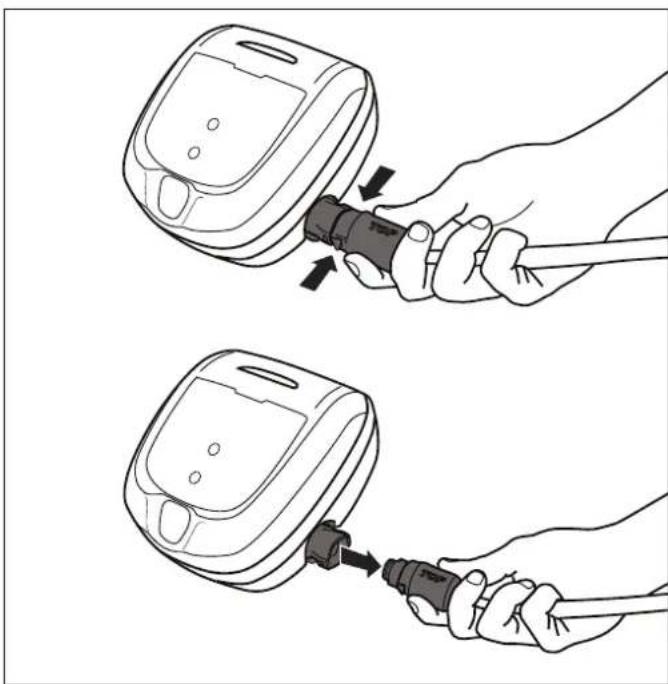

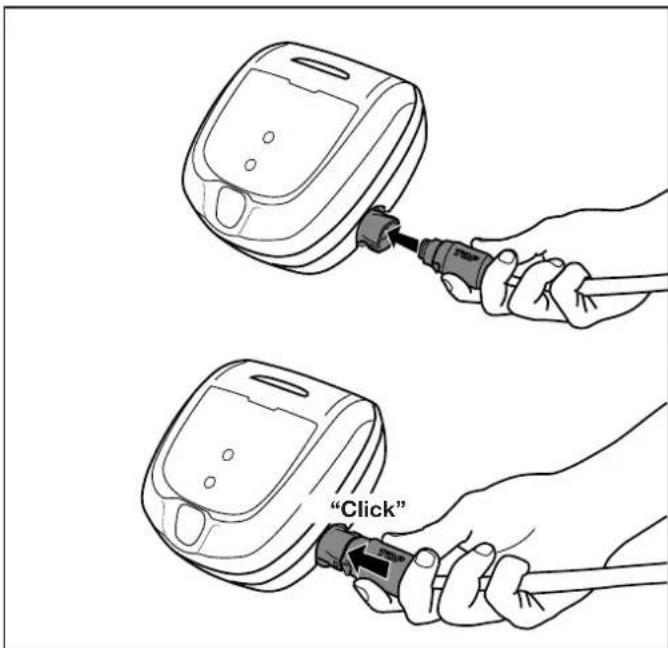

1. Firmly insert power cord connector (with TOP

shown facing up) until you hear a “click”. NOTE: The “click” indicates the power cord is connected correctly. “Click” Figure 1. Connect Power Cable

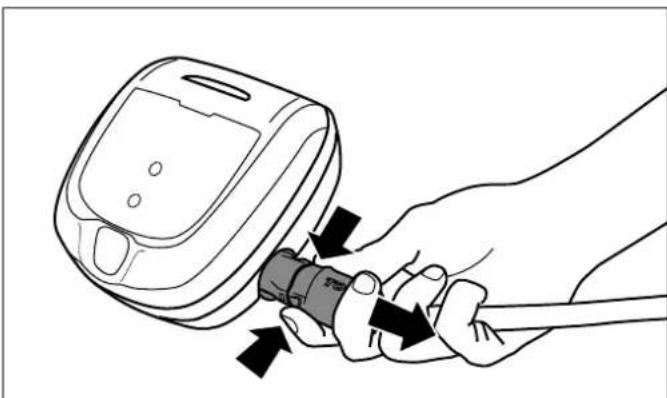

2. To disconnect, firmly grip the power cord

connector on each side, press the two tabs, andpull out. Figure 2. Disconnect Power Cable

Section 4. General Cleaner

Operation CAUTION To prevent damage to the cleaner, to adhere to the following guidelines:

• Remove the cleaner from the pool after the cleaning cycle is completed.

• Store out of direct sunlight or inclement weather.

• Never lift the cleaner out of the pool by the floating cable.

• Take additional care when lifting the cleaner out of the pool. Itbecomes heavier when filled with water.

• Always remove the cleaner from pool when super chlorinating or adding acid.

• Do not handle cleaner while it is in operation. IMPORTANT

• Always fully submerge the cleaner head before you begin operation.

• Clean the filter canister after each cleaning cycle.

• Do not leave your cleaner in the pool on a permanent basis.

• At the end of each cycle, remove the cleaner from the pool.

• Start at the cleaner head and untangle any coils in the cable before storing the cleaner. The robotic cleaner includes a safety feature that automatically stops the cleaner if a cleaning cycle starts but it is not submerged in water. For pools equipped with a beach area, this safety feature is programmed to drive the cleaner in reverse and back into the pool when the impeller is out of the water.

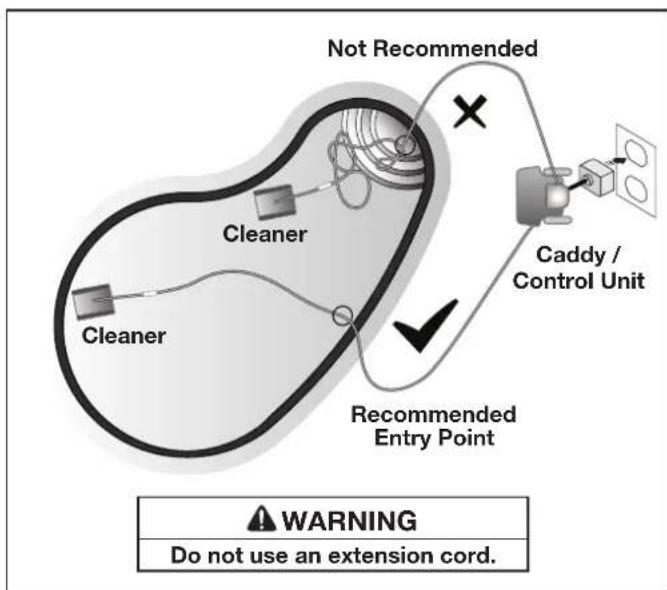

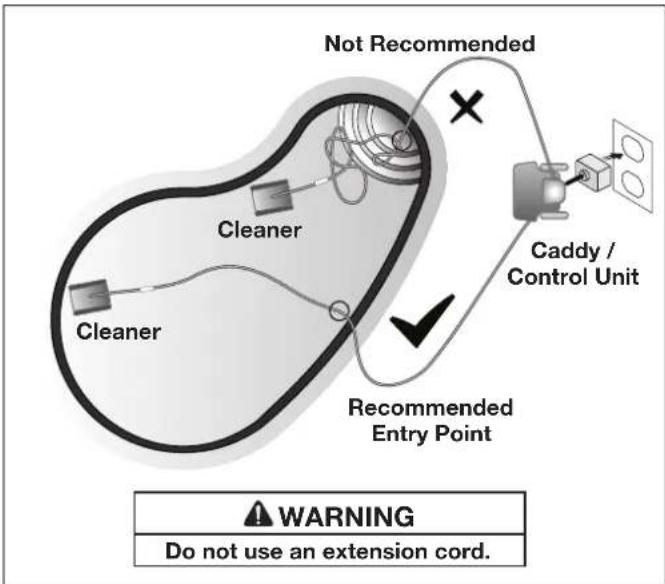

4.1 Install and Submerge the Cleaner

1. With the control box plugged into a power

outlet, spread the floating cable across the pooldeck until you reach the middle of the poollength. WARNING Do not use an extension cord.

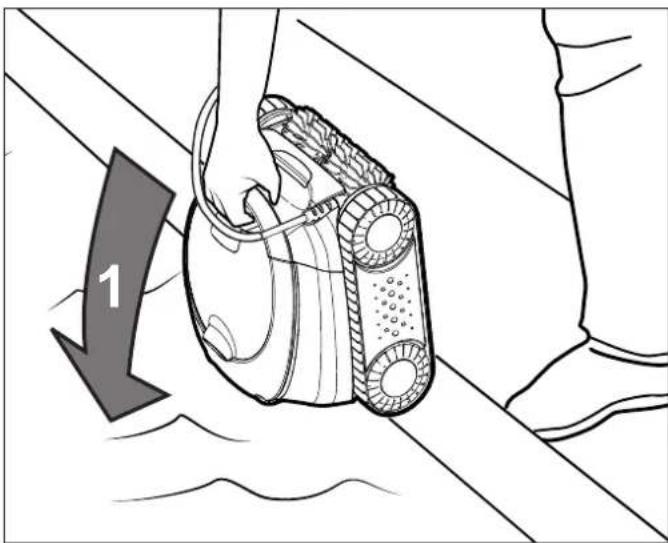

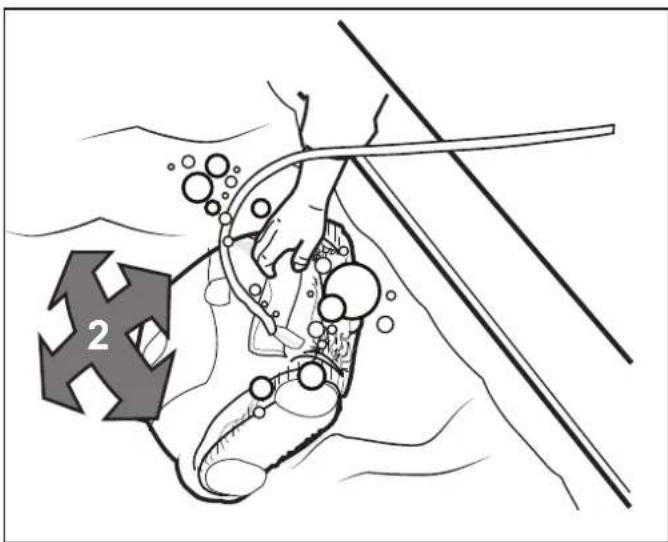

2. At the center point, submerge the cleaner in the

pool and hold in the vertical position to release any air trapped inside.Page 7Polaris Robotic Pool Cleaner | Owner’s Manual ENGLISH

Figure 3. Submerge the Cleaner Vertically

3. Ensure the unit sinks to the bottom of the pool

Figure 4. Cleaner Sinking to the Bottom of the Pool

4. Place all of the floating cable in the water to

allow free movement in your pool from the central point. Spread out the floating cable ensuring there are no kinks or coils in the cable. Caddy / Control UnitRecommended Entry PointNot RecommendedCleanerCleaner WARNINGDo not use an extension cord. Figure 5. Pool Entry Point for Optimal Patterning

4.2 Control Box Buttons

The control box can be used to initiate basic cleaning features and to connect the device to home Wi-Fi (connected models only). For more information on connecting your cleaner to Wi-Fi (connected models), see Installing iAquaLink

section. Button Functions Start / Stop Cleaning Select Cleaning Mode Remove cleaner from thepool Initiate connection and set up iAquaLink

4.3 Start / Stop Cleaning and Select

Cleaning Mode The factory default cleaning mode is set to Floor, Wall, Waterline. Use to change cleaning surface setting.* Toggle between modes: Floor Only (1 hour 30 min) Floor, Wall, Waterline (2 hours 30 min) With the cleaner submerged in the water, press

to begin operation. Press again to interrupt and cancel an in-progress cleaning cycle. *not available on all models

4.4 Removal from Pool

Depending on the model, you can manually removethe cleaner from the pool or use the Lift System feature. For manual removal, pull gently on the floating cable to bring the cleaner handle within arm’s reach. Use the handle to lift the cleaner from the water and hold the cleaner vertically over the pool surface to drain (Figure 6). Never lift the cleaner out of the pool by the floating cable.

4.5 Using the Lift System

The Lift System is designed to assist in retrieving the robot from the pool. Lift System can be activated at any time during or after a cleaning cycle.

1. Press any button to engage cleaner controls.

on the control box to begin the automated procedure to bring the cleaner to thewall. NOTE: To stop the procedure at any time, press and release the button again.

to rotate the cleaner.

4. Once the cleaner is facing the wall of your

choice for retrieval, release the button.

5. Cleaner will drive forward and up the wall

it is facing. It will wait at the waterline to be retrieved.

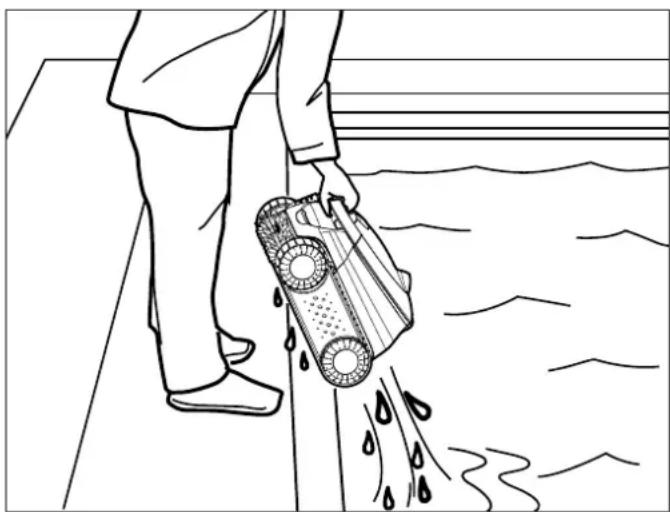

6. When in reach, remove the cleaner from the pool

using the handle. The cleaner will quickly expel water to allow for lighter, easier removal. NOTE: Never lift the cleaner out of the pool by the floating cable. Figure 6. Always Remove Cleaner Using the HandlePage 9Polaris Robotic Pool Cleaner | Owner’s Manual ENGLISH

Section 5. Maintenance

WARNING To avoid electric shock and other hazards which could result in permanent injury or death, disconnect (unplug) the cleaner from the power source before performing any cleaning and maintenance.

Tangling can occur more frequently when the cleaner is not attended to after each cleaning cycle. Proper installation, general maintenance and the following troubleshooting steps can help to avoid cable challenges. IMPORTANT Cleaner power cable may become tangled if correct procedure is not followed after each cleaning cycle. NOTE: Place all of the floating cable in the water to allow free movement in your pool from the central point. Spread out the floating cable ensuring there are no kinks or coils in the cable. Caddy / Control UnitRecommended Entry PointNot RecommendedCleanerCleaner WARNINGDo not use an extension cord. Figure 7. Optimal Entry Point in Pool If tangling occurs, follow these steps:

1. Remove the cleaner from the pool. When the

cleaner is within arm’s reach, use the handle to remove from the water. Never lift the cleaner out of the pool by the floating cable.

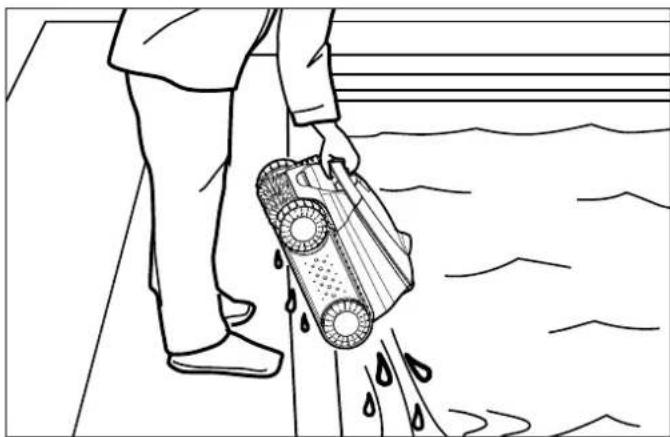

2. Hold the cleaner vertically to drain.

Figure 8. Keep Cleaner Vertical to Drain Water

3. Unplug power to the cleaner at the control box.

4. Remove the cleaner from the pool and untangle

all kinks and coils in the power cable. Start at the cleaner head. Lay the cable in the sun to loosen any tangling memory. Figure 10. Untangle the power cablePage 10 ENGLISH Polaris

The filter canister should be cleaned at the end of each cycle.

1. Remove the cleaner from the water and let the

remaining water drain.

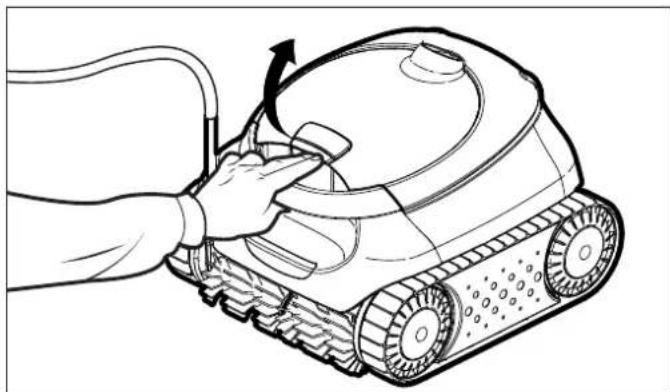

2. Unlatch the cleaner cover to access the canister.

Figure 11. Lift Cleaner Cover

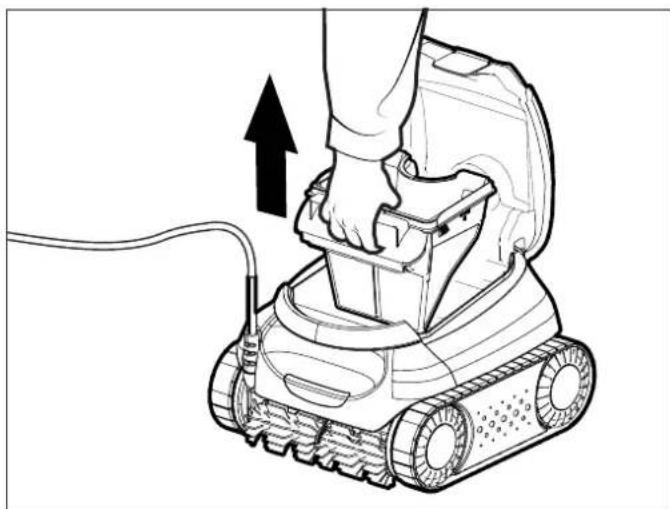

3. Remove the filter canister from the body.

Figure 12. Remove Filter Canister

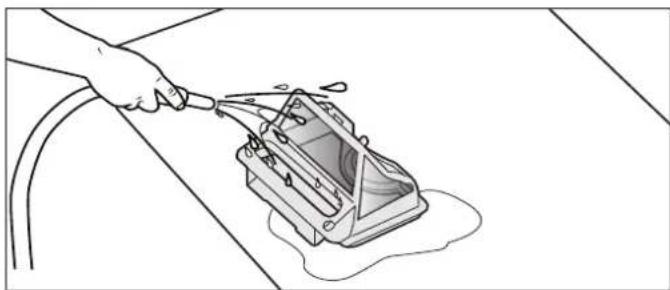

4. Empty all debris from the filter canister, then

rinse the canister and the cleaner using a hose. Figure 13. Wash Filter Canister NOTE: Periodically, deep-clean the filter canister with soapy water and a soft bristle brush to prevent clogging.

5.3 Store the Cleaner When Not in Use

The cleaner should be cleaned regularly using slightly soapy water. Do not use solvents such as trichlorethylene or its equivalent. Rinse the cleaner generously using clean water. Do not let your cleaner dry in direct sunlight.

1. Disconnect cleaner from the power source.

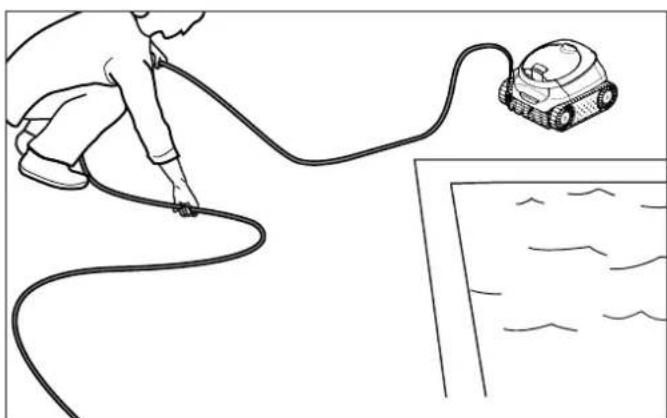

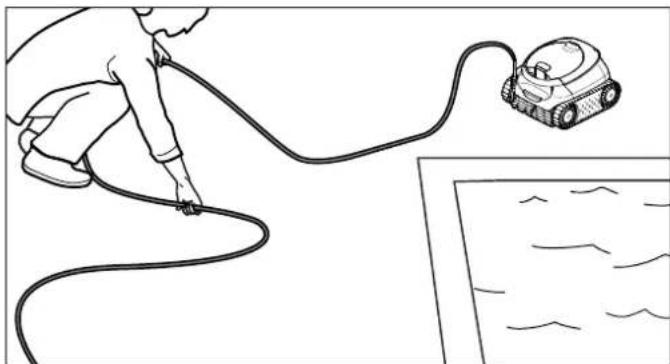

2. Starting at the cleaner head, remove all twists

and tangles from the cable. Lay the cable in the sun to loosen any tangling memory.

3. Loosely coil the cable into a loop for storage

near the cleaner or on the caddy hook (not available with all models).

4. Disconnect the cable from the control box.

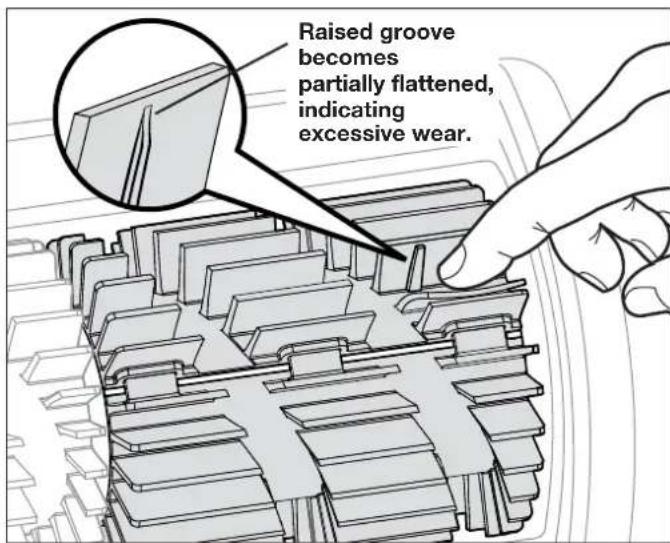

Replacing Brushes The cleaner is fitted with brushes with a “wear’’ indicator.Page 11 Polaris

Robotic Pool Cleaner | Owner’s Manual ENGLISH Raised groove becomes partially flattened, indicating excessive wear. Figure 15. Worn Brush Indicator To maintain cleaner performance at its best, replace the brushes as soon as one of the wear indicators is reached (even if the wear is not even). It is recommended that you replace the brushes when the rubber is worn down to the top of the wear indicator (or every two years, whichever comes first). To replace a worn brush:

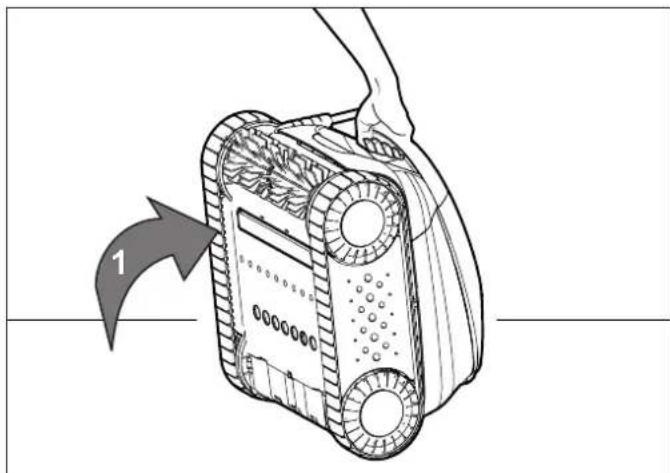

1. Stand the cleaner on its end in a vertical

Figure 16. Cleaner in Upright Position

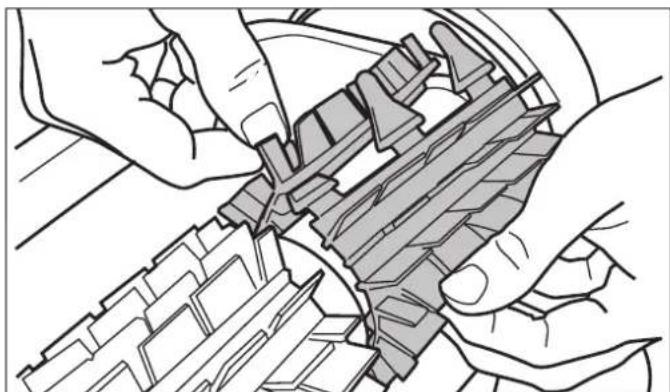

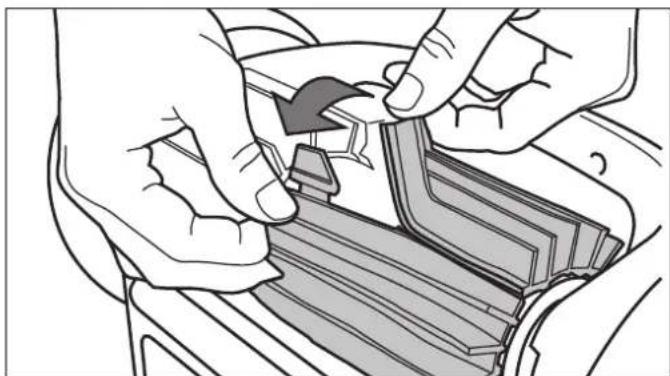

2. Separate the edges of the brush and undo the

tabs. Remove the worn brush. Figure 17. Undo the Tabs of the Brush

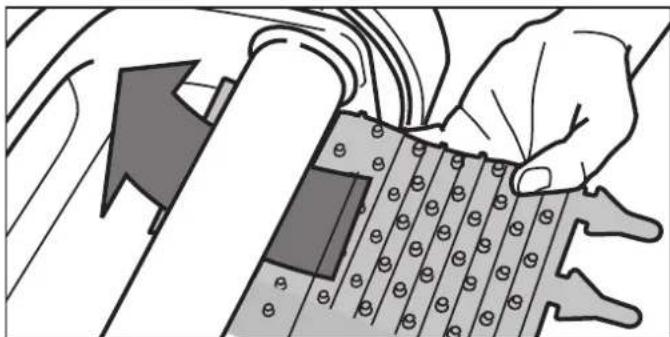

3. Position the new brush underneath the roller

with the bristles facing downwards. Figure 18. Position the New Brush on Roller

4. Thread each tab into the slot provided and

gently feed it through until the heel comes out at the other side of the slot.

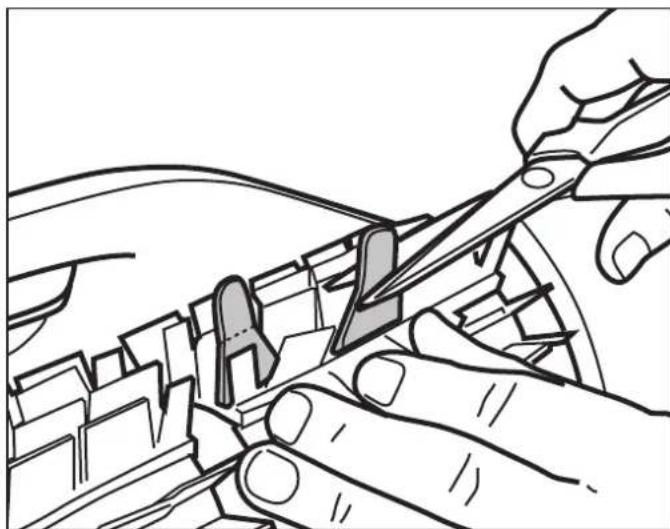

5. Use a pair of scissors to cut the tabs 3/4 inch

from the heel so that they are no higher than the cleaning blade.Page 12 ENGLISH Polaris

(connected models only) The iAquaLink app is available for download from the App Store or Google Play. With iAquaLink Control, you can connect to your robotic cleaner from anywhere, anytime to access functions and troubleshooting advice. App features are dependant on model. Before you begin installation, make sure you have the following:

• IMPORTANT: Have your Wi-Fi network password available

• Robotic Cleaner is submerged in the pool

• Control Box is connected and plugged into a GFCIoutlet

• Smart device (phone or tablet) with Wi-Fi and Bluetooth

• Wi-Fi router with sufficient signal strength at the Control Box

6.1 Download the App

Install or update the iAquaLink app from the App Store or Google Play.

6.2 Sign Up and Log In

Open the iAquaLink app, then Sign Up or Log In. Complete all required fields in the Account Setup page and agree to the Terms and Conditions.Page 13Polaris Robotic Pool Cleaner | Owner’s Manual ENGLISH

6.3 Add to Mobile App System

2. Choose “Robotic Cleaner”. Follow in app

instructions to add your cleaner and connect it to your home router.

light indicator status: BLINKING - searching for signal SOLID - paired with phone Wi-Fi light indicator status: BLINKING - connected to router SOLID - connected to the internet NOTE: Errors during connection may be the results of insufficient Wi-Fi signal strength at the control box location. If you are unable to move the control or router to improve signal strength, you may need a Wi-Fi extender to boost your signal strength. (See iAquaLink Troubleshooting section.) NOTE: An incorrect password may also be that cause of a connection error. If the signal strength at the control box is good, double check the network name and credentials for the router you are trying to access.

Control (connected models only) Once you have downloaded the iAquaLink app and connected the device to Wi-Fi, the iAquaLink app allows for robotic cleaner control from anywhere, anytime. Functions vary within the iAquaLink app depending on which cleaner model you have. WARNING Do not enter pool while the robotic cleaner is in water.

7.1 iAquaLink Control Home Screen

App function and design is subject to change. Start/Stop Cleaning Remote* Clean Mode Lift System* *not available on all models

7.2 Start / Stop Cleaning

The factory default cleaning surface setting is Floor, Wall, Waterline.

1. From the Home screen or the Control Box press

the Start/Stop button to begin cleaning.

2. The app displays the cycle time in hours and

to interrupt and cancel an in-progress cleaning cycle.Page 14 ENGLISH Polaris

1. From the home screen, select Cleaning Mode

Use your mobile device as a remote control. IMPORTANT Only use Remote Control when in view of the cleaner.

1. From the main screen, select the Remote tab.

2. You can direct the cleaner using the remote

control to help pick up debris. NOTE: If you experience significant delays between the app command and cleaner response, you may have a weak Wi-Fi signal or other connectivity challenges that interfere with the immediacy of the remote control functions. *not available on all models

7.5 Removal from Pool

Depending on the model, you can manually remove the cleaner from the pool or use the Lift System* feature in app or on the control box. The Lift System is designed to assist in retrieving the robot from the pool. Lift System can be activated at any time during or after a cleaning cycle. IMPORTANT Only use Lift System when in view of the cleaner.

1. From the home screen, select Lift System

to enter automated procedure.

2. Use the left and right controls to rotate the

cleaner to face the wall of your choice.

3. Press the Start Button to drive the cleaner up

the wall it is facing. The cleaner will wait at the water line to be retrieved. NOTE: To stop the procedure at any time, press and release the button again.

4. When in reach, grab the cleaner handle and

begin to pull cleaner out of the water. The cleaner will quickly expel water to allow for lighter, easier removal. NOTE: Never lift the cleaner out of the pool by the floating cable. *not available on all models

7.6 In-App Error Messages and

Troubleshooting If an error occurs, cleaning will be interrupted and the app will display an error message. The message will display:

• A set of troubleshooting steps you can take to resolve the error (if available for the error type) Tap “Clear Error” when you believe you have fixed the problem and want to try again or anytime you want to return to the home screen.

Access System Settings by pressing the gear icon in the upper right hand corner of the app screen.Page 15 Polaris

• If the status indicator on the control box flashes to alert the user, follow the recommended troubleshooting tips below.

• User alerts can also be accessed in the iAquaLink

app (on connected models only).

Flashing LED In-App Display (depending on the model) Solutions Rapid flashing 1 flash / 1 second pause Communication

• Disconnect and reconnect the cleaner.

• Check that the cable is properly connected to the control box.

• Check that nothing is interfering with the cable connection area.

• If this does not resolve the problem, contact your local retailer for a diagnostic review or call customer service. Rapid flashing 2 flash / 1 second pause Right traction motor Left traction motor Right traction motor consumption Left traction motor consumption

• Check that debris or the cable is not preventing the brushes or the tracks from rotating freely.

• Check that nothing is interfering with the cable connection area.

• Rotate the track by a quarter of a turn in the same direction until it rotates smoothly

• If this does not resolve the problem, contact your local retailer for a diagnostic review or call customer service. Rapid flashing 3 flash / 1 second pause Cleaner out of the water

• Turn the cleaner off.

• Clean the filter thoroughly.

• Put it back in the water, shaking to release the air bubbles.

• If this does not resolve the problem, contact your local retailer for a diagnostic review or call customer service. Pump motor Pump motor consumption

• Check that no debris or hair is blocking the impeller.

• Clean the filter thoroughly.

• If this does not resolve the problem, contact your local retailer for a diagnostic review or call customer service. iAquaLink Control Models Only Rapid flashing 5 flash / 1 second pause Software update failed or incomplete

• Disconnect and reconnect the control box to restart the update.

• If this does not resolve the problem, contact your local retailer for a diagnostic review or call customer service. Rapid flashing Rapid flashing Update in progress

• Wait for the update to complete.

• Do not disconnect the power cable from the cleaner during an update. N/A Connection error

/Wi-Fi LEDs on the control box. N/A A red dot appears in the “Mysystems” list

• Robot not plugged in or not connected to the home Wi-Fi network. If the dot is red when the control box is plugged in and if the Bluetooth/Wi-Fi icons are lit up, refresh the screen (by swiping downwards).

• If the dot turns green: the robot is ready for use. Deleting an error code: Using the control box: After following the troubleshooting solutions, press any key to delete the error code (except the button). From the iAquaLink app (connected models only)

After following the troubleshooting solutions, press Clear Error.Page 16 ENGLISH Polaris

The following list provides some helpful hints for troubleshooting common challenges when using the cleaner. User Issue Possible Cause Suggested Solution The cleaner does not stay on the pool surface or is floating excessively There is air trapped inside the cleaner housing Remove cleaner from pool and re-submerge (see Install and Submerge the Cleaner). The filter canister is full or dirty Dispose of debris and thoroughly clean the filter canister with mild soap and a soft brush. Then, re-submerge the cleaner (see Clean the Filter Canister). The cleaner is not climbingwalls The filter canister is full or dirty Dispose of debris and thoroughly clean the filter canister with mild soap and a soft brush. Then, re-submerge the cleaner (see Clean the Filter Canister). Confirm appropriate pool chemistry Speak with your pool service professional. Do not leave cleaner in the pool during any chemical treatments. The cleaner is not moving Not connected to electricity The outlet the control box is connected to, is not supplying electrical power. Check that the outlet to which the control box is connected is receiving electricity. Cycle not started Press the Start button to initiate a cleaning cycle. Reset needed Disconnect the unit power and reconnect after 20seconds. If the problem is not resolved, contact your local retailer to request a diagnostic review or contact Technical Support at 1-800-822-7933. Cable is tangling in thepool Cable is not spread evenly in thewater Verify the floating cable enters the water near the middle of the pool length. Spread all of the floating cable carefully in the pool, ensuring there are no kinks or coils. Ensure the cable is not too tightly wrapped or coiled when storing. If the problem persists, lay the cable straight in the sun to relax it and remove kinks. Follow the procedure in Cord Tangling to avoid and correct tangled cord. The cleaner is not cleaning the pool effectively Filter canister is full or dirty Dispose of debris and thoroughly clean the filter canister with mild soap and a soft brush. Then, re-submerge the cleaner (see Clean the Filter Canister). Brushes are worn Check the wear indicator(s). Contact your local dealer for spare parts. Cable is excessively tangled Untangle the twisted cord and lay in sun to reduce memory (see Cord Tangling).Page 17 Polaris

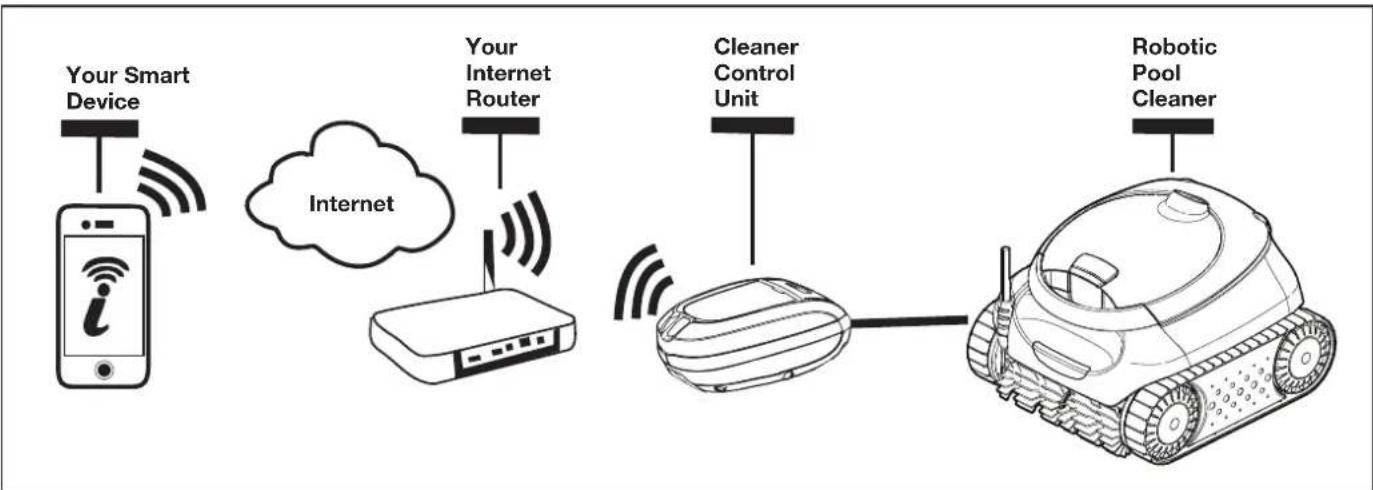

Troubleshooting (not available on all models) This information can help to troubleshoot connection and setup challenges between the iAquaLink app and the cleaner. How it Works: Your Smart DeviceInternetYour Internet RouterCleaner Control Unit Robotic Pool Cleaner How to Connect: You must connect to the home router (network) by first establishing a direct connection between the control box and your smart device (see Configuring the System). IMPORTANT It is recommended to locate the control box as close to the home router as practical. Do not use an extension cord.Page 18 ENGLISH Polaris

Troubleshooting Remember, if you get a new Wi-Fi router, reset the defaults of your current Wi-Fi router or simply change your Wi-Fi network password, you will have to re-establish the connection between your cleaner and the router (see Configure the System). User Issue Possible Cause Suggested Solution All lights are off Bright sunlight Shield the lights to block sunlight and re-check if the lights are lit. Control box is unplugged Plug the control box in (see Connect to a Power Source). Power outage Verify that the breaker is on and electricity is being supplied to the outlet. Lost internet connection Check internet connection - network may be down. Wi-Fi is off Router is off Turn router on. Router password was changed Reset router with new password. Wi-Fi light is flashing Lost internet connection Check internet connection - Network may be down. Control box is too far from home router Relocate the control box as near to the home router as practical (see Install and Submerge the Cleaner). Do not use an extension cord. Weak Wi-Fi signal

• Check for adequate Wi-Fi signal strength.

• With a Windows laptop, go to Network Connections in the Control Panel. Check Signal Strength meter under Wireless Network Connection icon while standing near the controlbox.

• With a smart device, search for, download, and use an app that can check signal strength while standing near the control box. If Wi-Fi signal is weak, consider installing a Wi-Fi extender. Connectivity issue with local Wi-Fi or connection to the server Contact your local internet service provider.

• Unplug your control box and wait 10 seconds. Plugin the box again and see if lights illuminate.

• Check internet connection - network may be down. Status light is continuously flashing Antenna firmware update in progress Wait for the update to complete and the flashing to end. Do not disconnect the power cable from the cleaner during an update. Power LED is blinking fast Firmware update in progress Wait for blinking to stop, indicating update is complete. Do not unplug from power during an update.Page 19 Polaris

Robotic Pool Cleaner | Owner’s Manual ENGLISHZodiac Pool Systems LLC 2882 Whiptail Loop # 100 Carlsbad, CA 92010, USA PolarisPool.com | 1.800.822.7933 Zodiac Pool Systems Canada, Inc. 2-3365 Mainway Burlington, ON L7M 1A6, Canada PolarisPool.ca | 1.800.822.7933 ©2022 Zodiac Pool Systems LLC. All rights reserved. Polaris

and the Polaris 3-wheeled cleaner design are registered trademarks of Zodiac Pool Systems LLC. All other trademarks referenced herein are the property of their respective owners. Apple and the Apple logo are trademarks of Apple, Inc., registered in the U.S. and other countries. AppStore is a service mark of Apple, Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC. H0790300_REVAOwner’s Manual Manuel du propriétaire El manual del propietario Nettoyeur de piscine robotique Modèles : Scout 42 iQ, Scout 40, Scout 20
